02 - Shared Responsibility Model

Question 1

Shared Responsibility Model - Overview

Answer 1

• Have a strong understanding of the shared responsibility model
• You are responsible for things like EC2 OS patching, antivirus, security groups, etc…
• You are not responsible for things like RDS OS updates, RDS database updates, PHP updates with Elastic Beanstalk, etc…
• Encryption is a shared responsibility (both yours and Amazon)

Question 2

What is Shared Responsibility Model?

Answer 2

What is Shared Responsibility Model?

• Security and Compliance is a shared responsibility between AWS and the customer.

  • The customer retains control of what security they choose to implement to protect their content, platform, applications, systems, and networks
• AWS is Responsible

  • For the security of the cloud (e.g. the infrastructure that runs all of the services offered in the AWS Cloud)
  • Global Infrastructure

    • Is composed of the hardware, software (Xen, RDS, etc…), networking, and facilities that run AWS Cloud services.
  • Managed Services

    • S3, DynamoDB, etc…
• Customer is Responsible

  • For the security of what is put into the cloud
  • Infrastructure as a Service (IaaS)

    • Including updates and security patches
    • Configuration of AWS provided firewalls

Question 3

Breakdown of responsibility model

Answer 3

Infrastructure Services

• This category includes compute services (EC2, EBS, AutoScaling, & VPC)

  • With these services you can architect and build a cloud infrastructure using techniques similar to and largely compatible with on premise solutions
  • You control the operating system, and configure and operate any identity management system that provides access to the user layer of the virtualized stack
• Customer responsible for

  • Amazon Machine Images (AMIs)
  • Operating Systems
  • Applications
  • Data in Transit
  • Data at Rest
  • Data Stores
  • Credentials
  • Policies and Configuration

Question 4

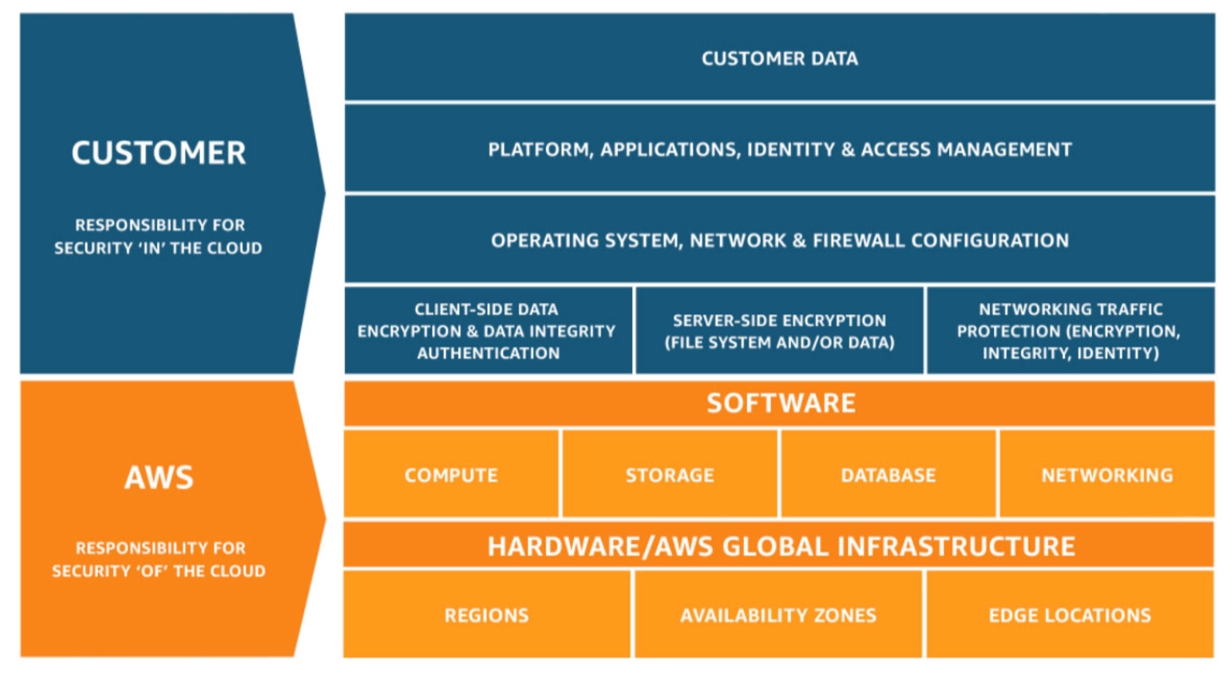

Security Model: Infrastructure Services

Answer 4

See Image
