10 Boolean Logic

Question 1

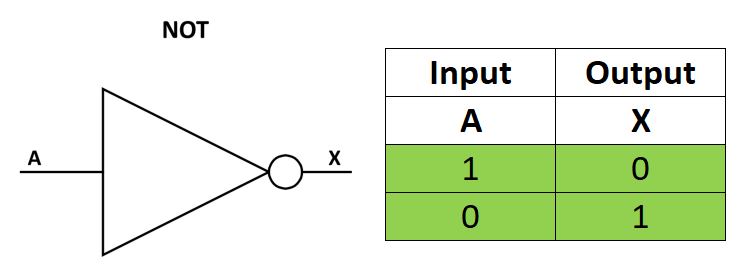

Draw the NOT gate and complete a truth table for it

Answer 1

Question 2

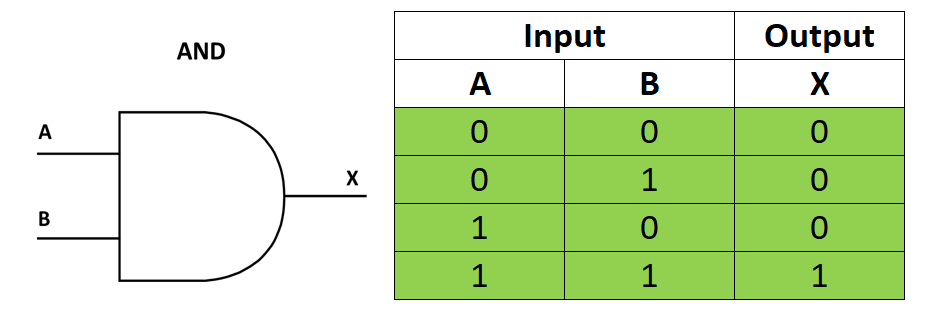

Draw the AND gate and complete a truth table for it

Answer 2

Question 3

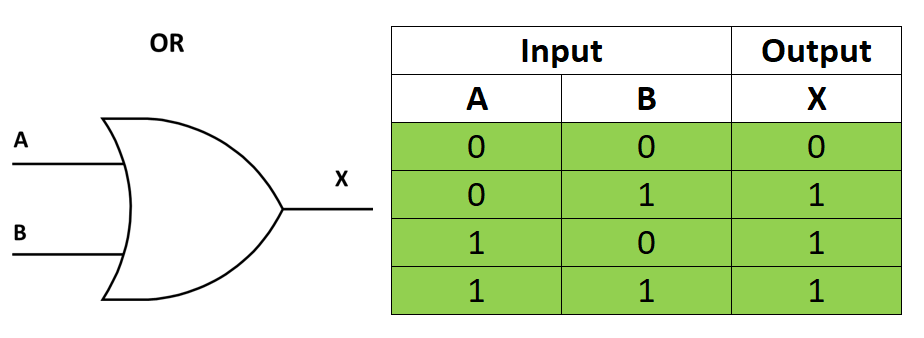

Draw the OR gate and complete a truth table for it

Answer 3

Question 4

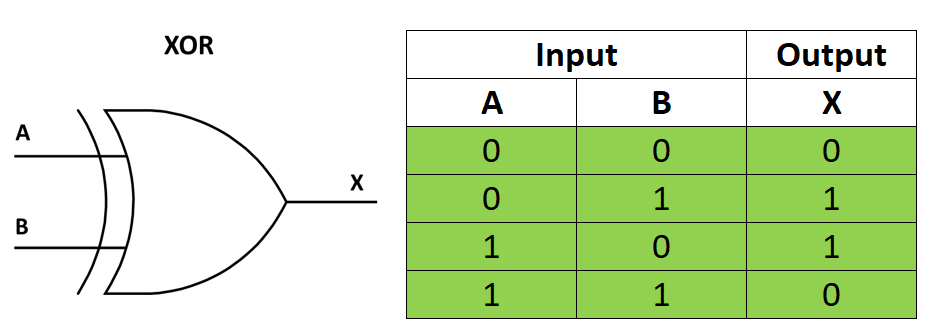

Draw the XOR gate and complete a truth table for it

Answer 4

Question 5

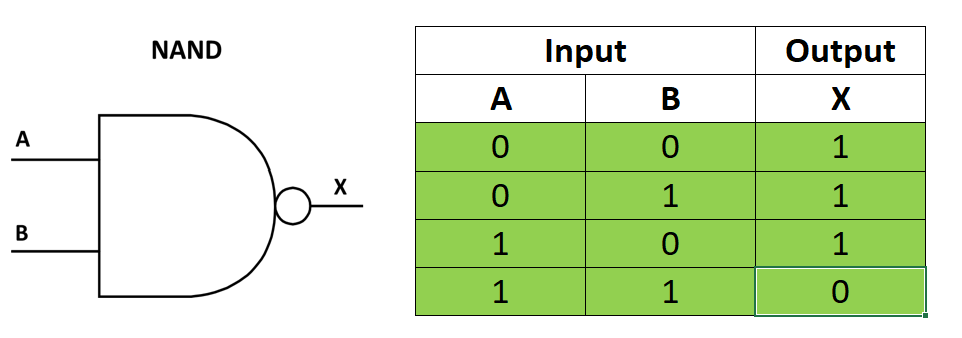

Draw the NAND gate and complete a truth table for it

Answer 5

Question 6

Draw the NOR gate and complete a truth table for it

Answer 6

Question 7

Describe the function (operation) of an XOR gate

Answer 7

• It has two inputs
• Output will be 1 if either input is 1
• Output will be 0 if both inputs are 1
• Output will be 0 if both inputs are 0

Question 8

Describe the function (operation) of a NOT gate

Answer 8

• It has one input
• Output will be 1 if the input is 0
• Output will be 0 if the input is 1

Question 9

Describe the function (operation) of an AND gate

Answer 9

• It has two inputs
• Output will be 1 if both inputs are a 1
• Output will be 0 if either input is 0

Question 10

Describe the function (operation) of a NAND gate

Answer 10

• It has two inputs
• Output will be 1 if both inputs are a 0
• Output will be 1 if either input is 1
• Output will be 0 if both inputs are 1

Question 11

Describe the function (operation) of a NOR gate

Answer 11

• It has two inputs
• Output will be 1 if both inputs are a 0
• Output will be 0 if either input is 1
• Output will be 0 if both inputs are 1

Question 12

Describe the function (operation) of an OR gate

Answer 12

• It has two inputs
• Output will be 0 if both inputs are a 0
• Output will be 1 if either input is 1

Question 13

The function of which gate is being described?

• It has two inputs
• Output will be 1 if either input is 1
• Output will be 0 if both inputs are 1
• Output will be 0 if both inputs are 0

Answer 13

XOR gate

Question 14

The function of which gate is being described?​

• It has one input
• Output will be 1 if the input is 0
• Output will be 0 if the input is 1

Answer 14

NOT gate

Question 15

The function of which gate is being described?

• It has two inputs
• Output will be 1 if both inputs are a 1
• Output will be 0 if either input is 0

Answer 15

AND gate

Question 16

The function of which gate is being described?

• It has two inputs
• Output will be 1 if both inputs are a 0
• Output will be 1 if either input is 1
• Output will be 0 if both inputs are 1

Answer 16

NAND gate

Question 17

The function of which gate is being described?

• It has two inputs
• Output will be 1 if both inputs are a 0
• Output will be 0 if either input is 1
• Output will be 0 if both inputs are 1

Answer 17

NOR gate

Question 18

The function of which gate is being described?

• It has two inputs
• Output will be 0 if both inputs are a 0
• Output will be 1 if either input is 1

Answer 18

OR gate

Question 19

What do you need to do to prepare yourself for Logic Gate exam questions?

Answer 19

Do exam questions!!!!!

Complete the questions in OneNote (PP1 in the content library) or try some here https://germany-source.codio.io/ or here https://www.bitsofbytes.co/exam-questions—logic-gates.html
