What on the fire extinguisher are you checking (5 things)
- Correct Type (AFFF) 2. IN date. 3. Sealed 4. Contents in the green 5. Nozzle Fitted
What contents are in the BCU
- Trainwires 23, 24, 25 2. Weigh Load Valve 3. 3 step brake relay
On prep when must you apply parking brake manually
If main res gets upto 1.5 and the brake res is not rising. Contact maintenance as the parking brake releases at 1.9

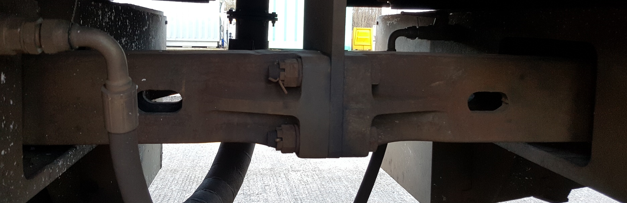

What sort of coupling is this (142)
Ridgid Bar

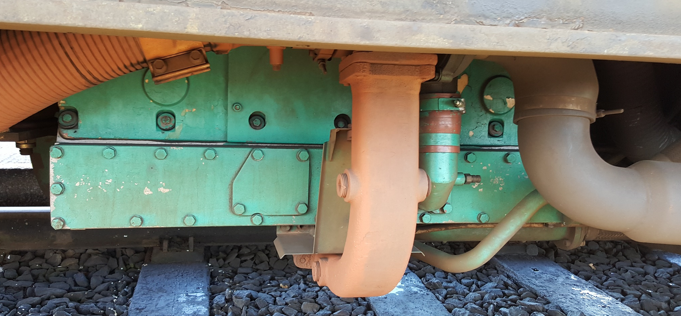

What 2 parts are in this picture?
Engine and Turbo

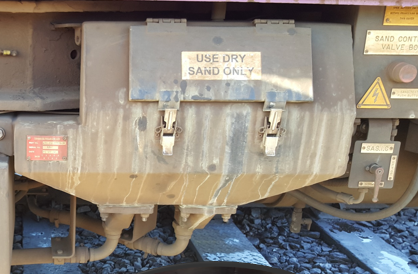

What 3 things are you checking on the sander?
- Contents (sand in it)
- Not isolated
- Test Button (only works when engine on)

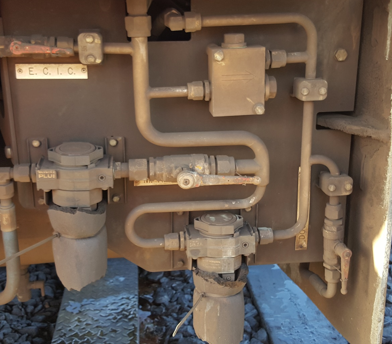

Name these 3 Isolating Cocks
- Top One- Emergency Couple I.C
- Main Res I.C
- Dorr Res I.C
(Cadburys (coupler) Dairy (door) Milk (main)

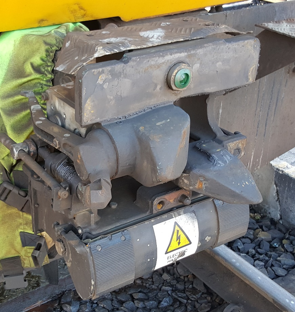

What are we checking on the coupler?
6 things
- Rose Valve (present & undamaged)
- Gathering Horn looks ok
- Uncouple arm is flush with body
- Tommy bars are horizontal and seated in rubber gromits
- Coupler pin is fully out
- Electric box is fully up and the serrated rubber section is there.
What 5 things will illumiate the Hazard Lights
Pass the ball dick face
- Passcom Operated
- TCA Fault
- Brake MCB Tripped
- Doors open or released
- Fire system operated
What 3 reservoirs are under the drivers cab end
- Brake Res
- Door Res
- Main res

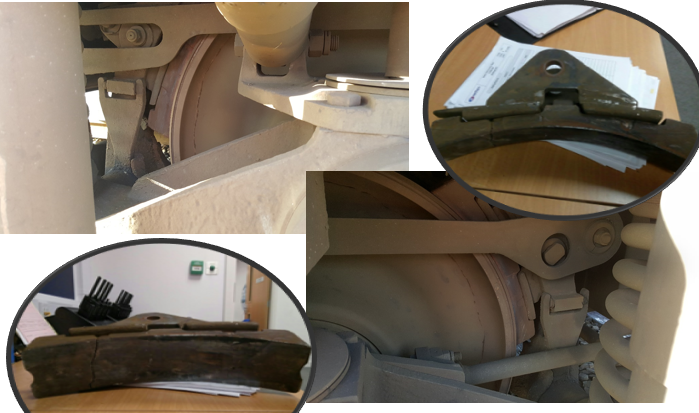

What 3 things are we looking for on the brake blocks
No more than 3 hairline cracks
No more than 1 through crack
Wear Level (thumb line)

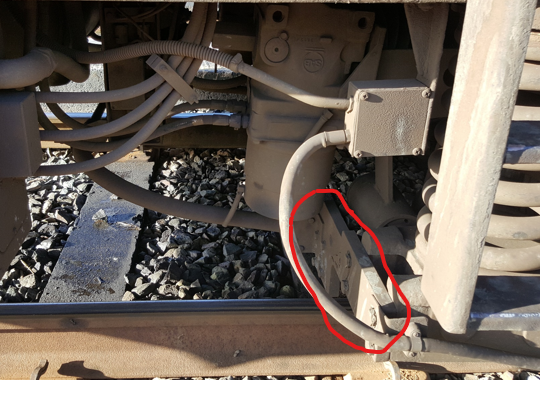

When checking by the wheels, what do I nearly always forget to check thats important
Life Guard
