1
Q
What is Error?
A
Defined as the difference between the desired output and actual output
2
Q
Different types of Feedback
A
Positive
Adds the achieved output to the desired output
Negative
Subtracts the achieved output to the desired output
3
Q
Transient Response
A
Response of a system to a change from an equilibrium or to a steady state
4
Q
Stability
A
An output is under control. A stable system produces a bounded output for a given bounded input.
Examples:
- Ship list, trim
- Aircraft pitch, rotation
5
Q

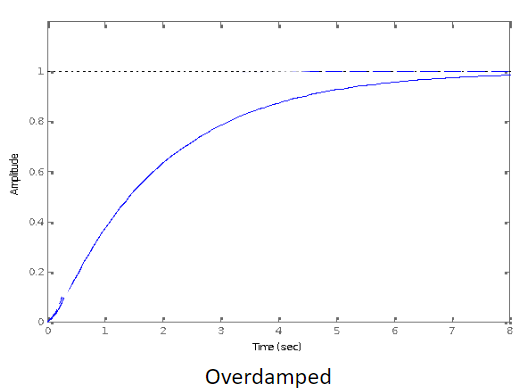

Example of Overdamped System Response
A
6
Q

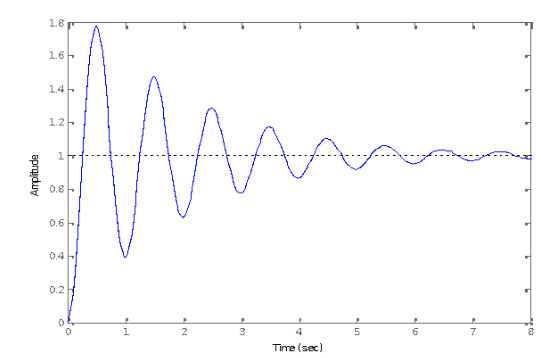

Example of an Underdamped System Response
A
7
Q

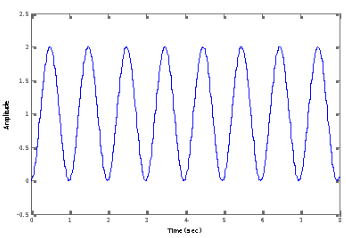

Example of a Marginally Stable or Underdamped System Reponse
A
8
Q

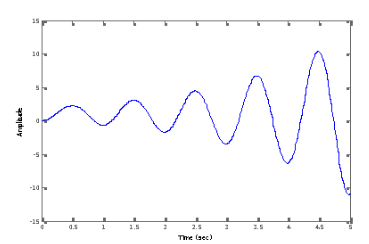

Example of an Unstable (Oscillating) System Response
A
9
Q
Example of an Unstable (Non-oscillating) System Response
A
