BigQuery Basics

Peta-byte scale, serverless, highly-scalable cloud entreprise data warehouse.
In-memory BI Engine (BigQuery BI Engine).
Accepts batch and streaming loads.
Machine learning capabilities (BigQuery ML).
Support for geospatial data storage and processing.

How well did you know this?

Not at all

Perfectly

BigQuery Key Features

High Availability: Automatic data replication to multiple locations with availability.
Supports Standard SQL: BigQuery supports a standard SQL dialect which is ANSI:2011 compliant.
Federated Data: BigQuery able to connect to, and process, data stored outside of BigQuery (external sources).
Automatic Backups: BigQuery automatically replicates data and keeps a seven-day history of changes.
Governance and Security: Fine-grained identity and access management. Data encrypted at rest and in transit.
Separation of Storage and Compute: Leads to a number of benefits including ACID-compliant storage operations, cost-effective scalable storage and stateless resilient compute.

How well did you know this?

Not at all

Perfectly

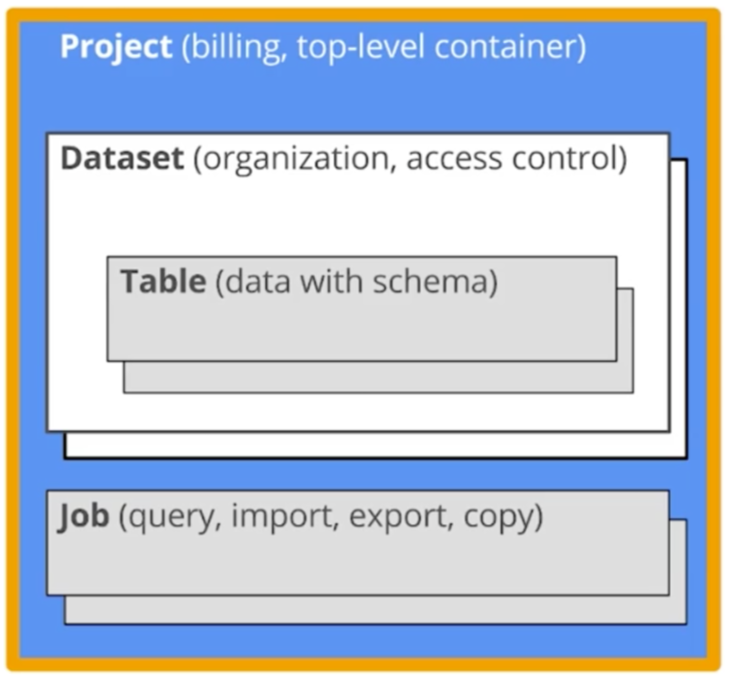

BigQuery Structure

Project: contains users and datasets.
- Use a project to:
  - Limit access to datasets and jobs
  - Manage billing
Dataset: contains tables/views
- Access Control Lists for Reader/Writer/Owner
- Applied to all tables/views in dataset
Table: collection of columns
- Columnar storage
- Views are virtual tables defined by SQL query
- Tables can be external (e.g. on Cloud Storage)
Job: long running action/query that is run in BigQuery on your behalf (asynchronously)
- Can be cancelled

How well did you know this?

Not at all

Perfectly

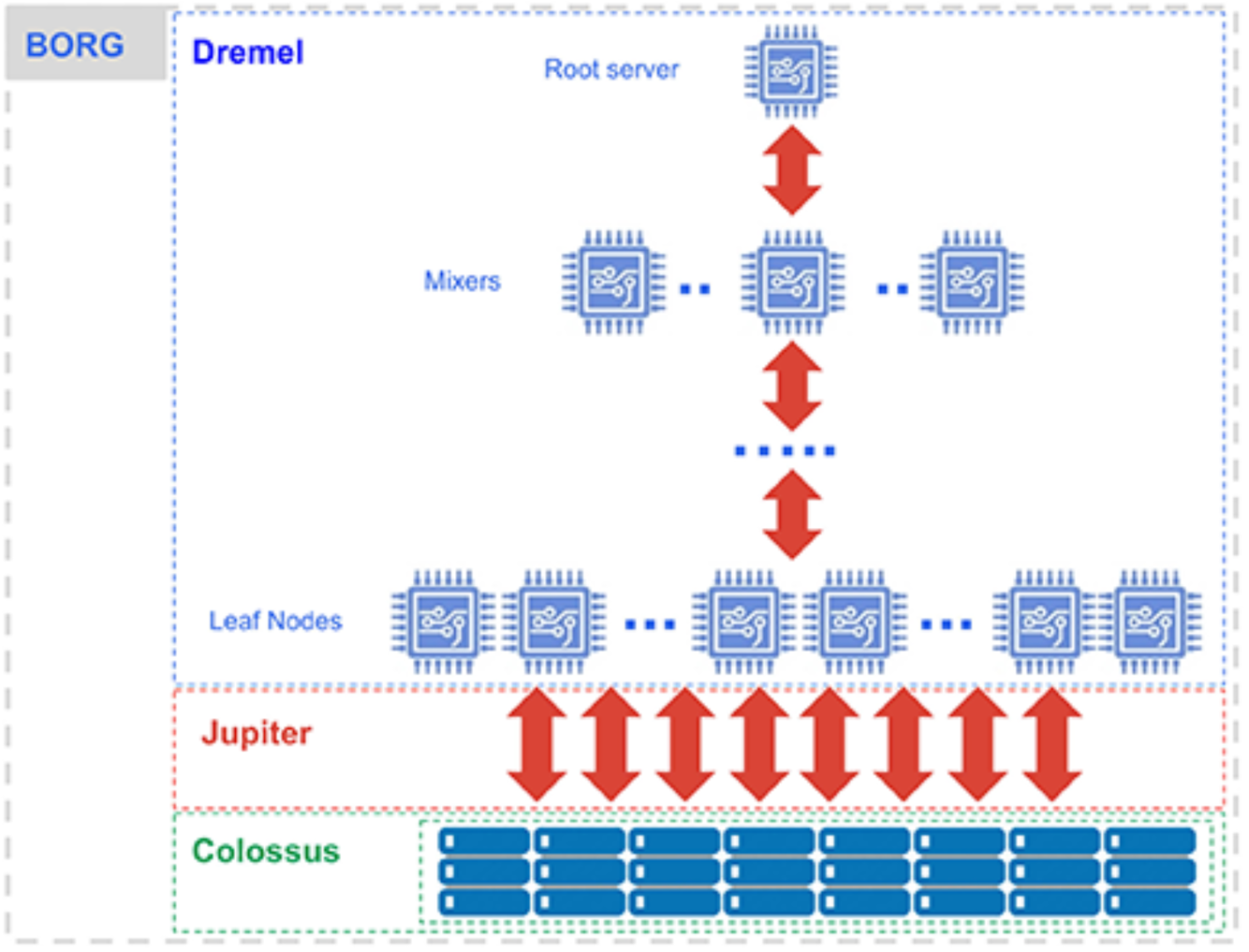

BigQuery Jobs

Jobs (queries) can scale up to thousands of CPU’s across many nodes, but the process is completely invisible to the end user.
Storage and compute are separated, connected by petabyte network.
4 types of jobs:
- Load
- Export
- Query
- Copy
Query job priority:
- Interactive: Default. Queries are executes asap. Results always saved to either Temporary or Permanent table.
- Batch: Queries are executed when there are idle resources. If not executed within 24 hours, then it becomes interactive.

How well did you know this?

Not at all

Perfectly

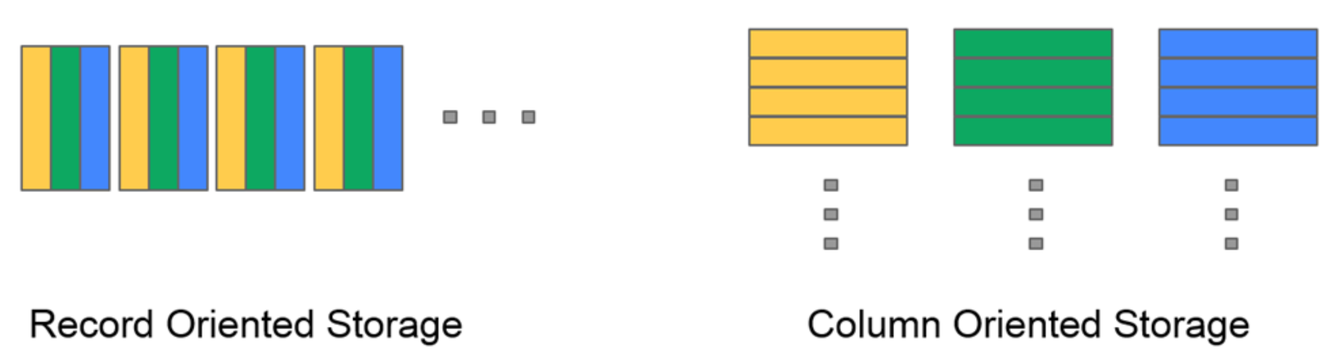

Table Storage

Capacitor columnar data format
- Each column in a separate, compressed, encrypted file that is replicated 3+ times
- No indexes, keys or partitions required
- For immutable, massive datasets
Separates records into column values, stores each value on different storage volume.
Traditional RDBMS stores whole record on one volume.
Extremely fast read performance, poor write (update) performance - BigQuery does not update existing records.
Not transactional.
Table schemas specified at creation of table or at data load.

How well did you know this?

Not at all

Perfectly

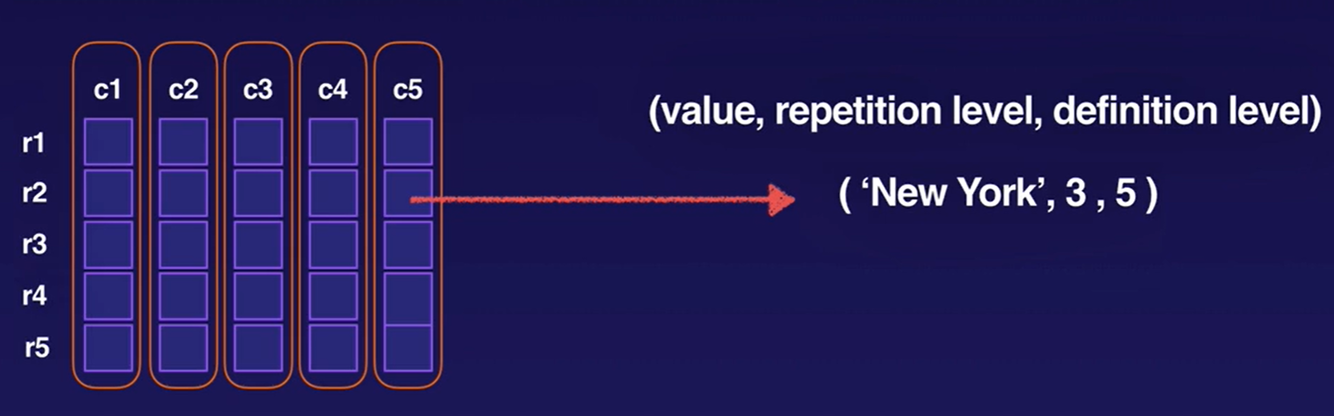

BigQuery Capacitor

Capacitor storage system

Proprietary columnar data storage that supports semi-structured data (nested and repeated fields).
Each value stored together with a repetition level and a definition level.
- Repetition level: the level of the nesting in the field path at which the repetition is happening.
- Definition level: how many optional/repeated fields in the field path have been defined.

How well did you know this?

Not at all

Perfectly

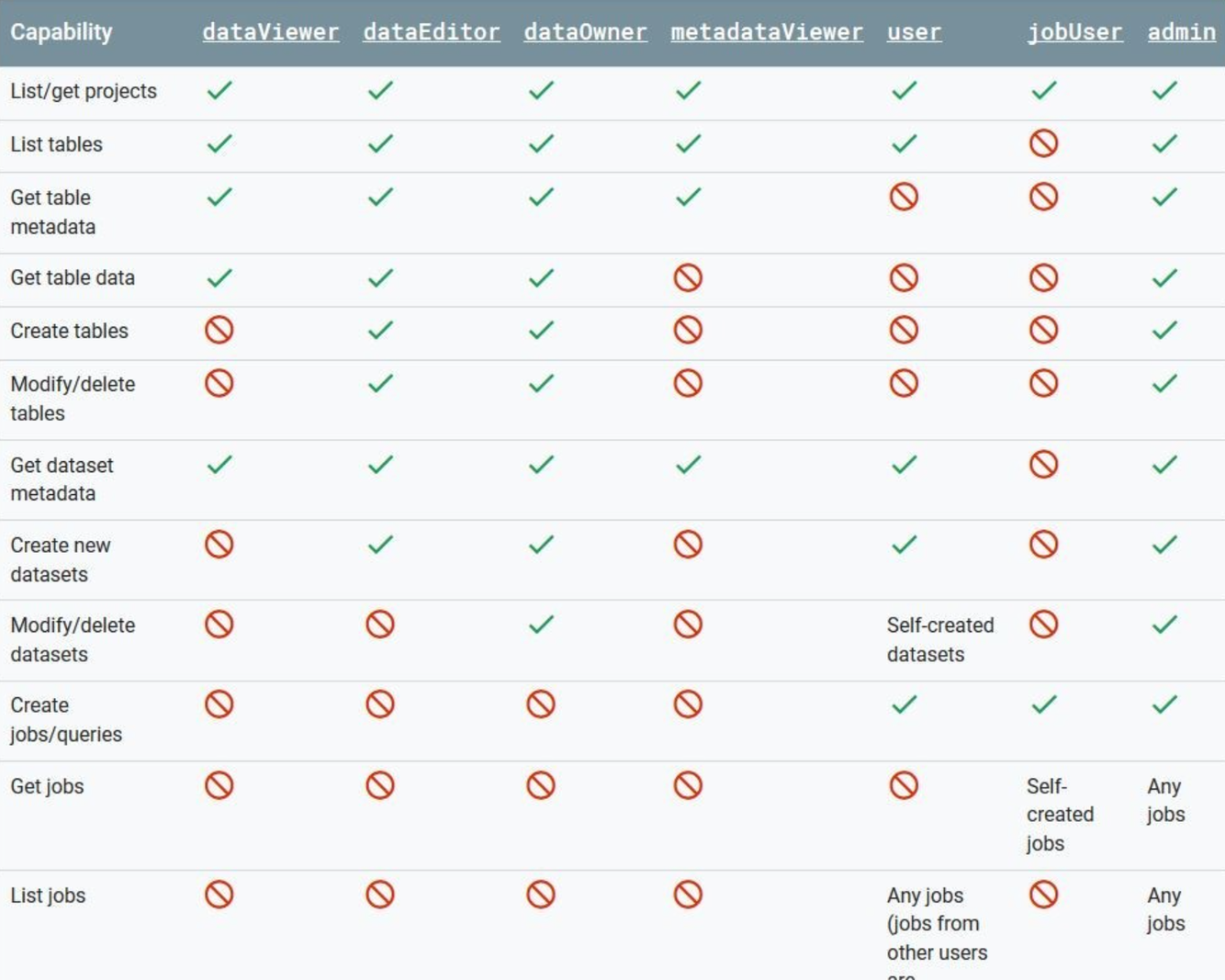

IAM

Control by project, dataset, table/view (table level since June 2020)
Roles:
- Basic: grant access at Project level
  - Owner, Editor, Viewer
- Predefined:
  - Admin, User: Project level
  - Data Owner, Data Editor, Data Viewer: Table/View level
- Custom: user managed

https://cloud.google.com/bigquery/docs/access-control

https://cloud.google.com/bigquery/docs/share-access-views

How well did you know this?

Not at all

Perfectly

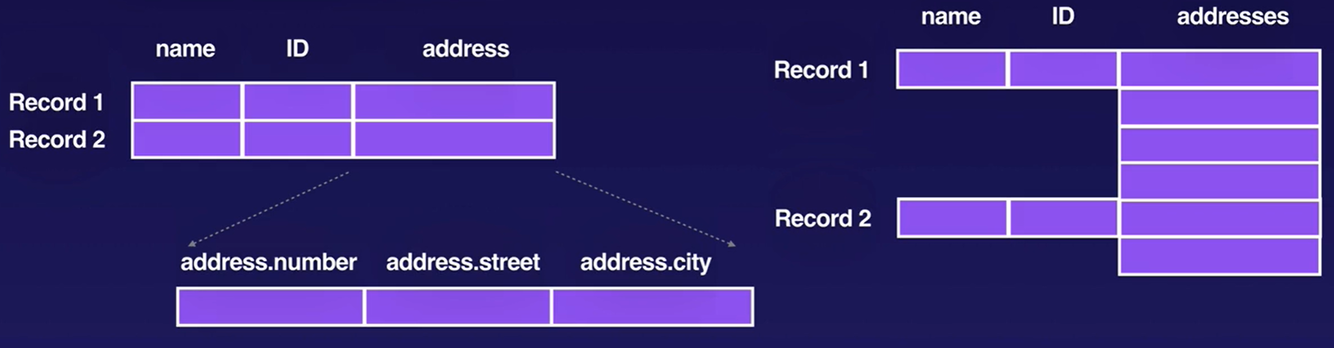

Denormalisation

BigQuery performance optimised when data is denormalised appropriately
Nested and repeated columns
Maintain data relationships in an efficient manner
RECORD (STRUCT) data type

How well did you know this?

Not at all

Perfectly

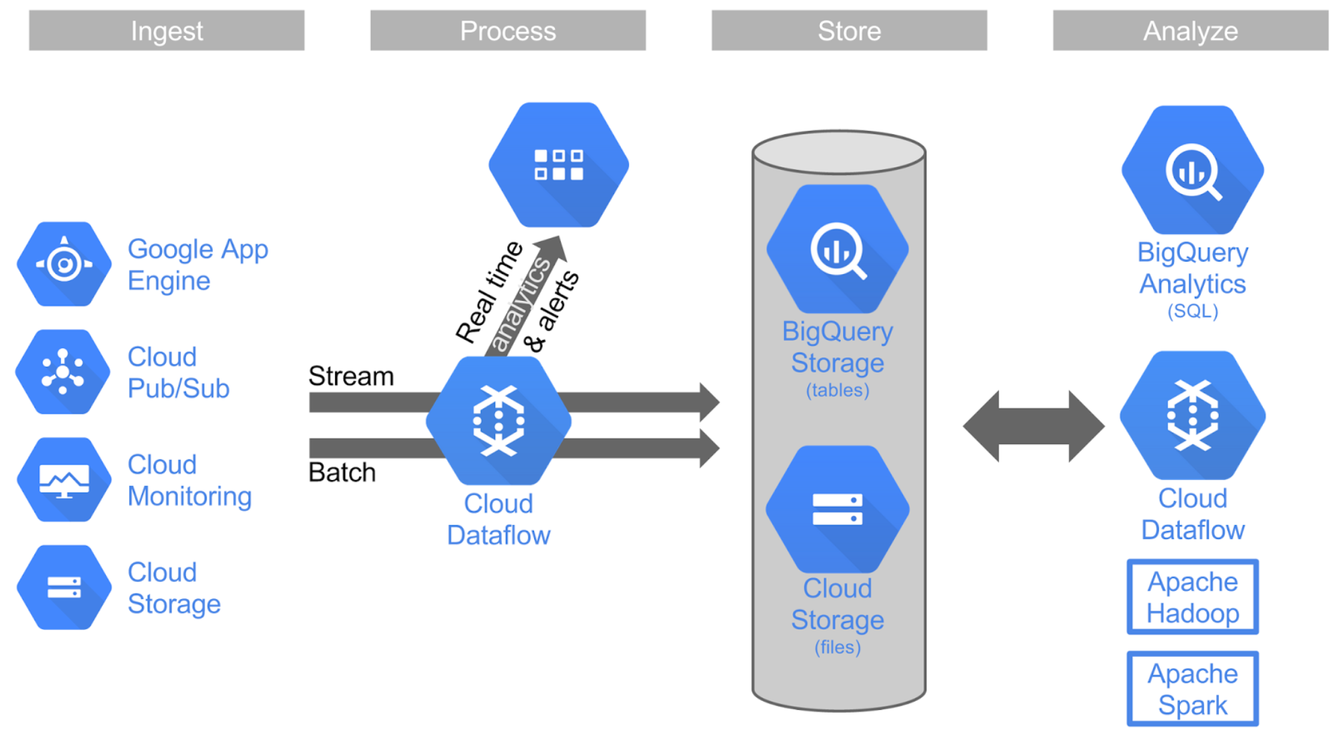

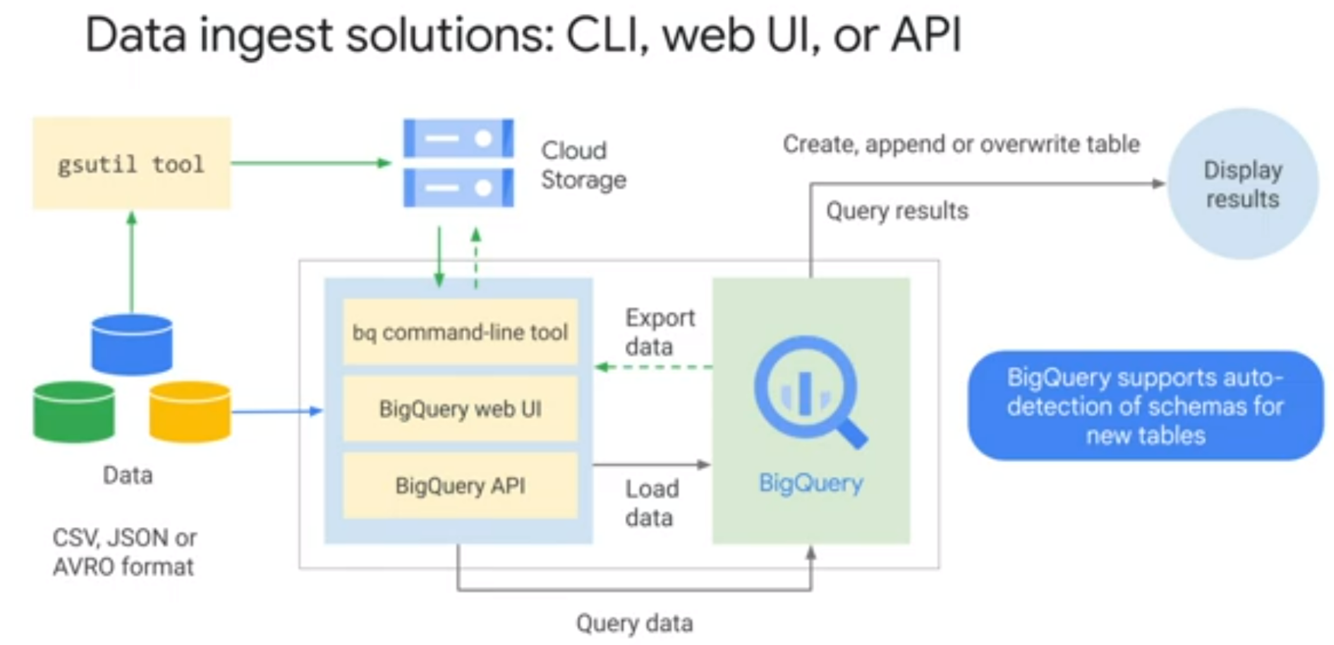

Data Ingest Solutions: CLI, web UI, or API

How well did you know this?

Not at all

Perfectly

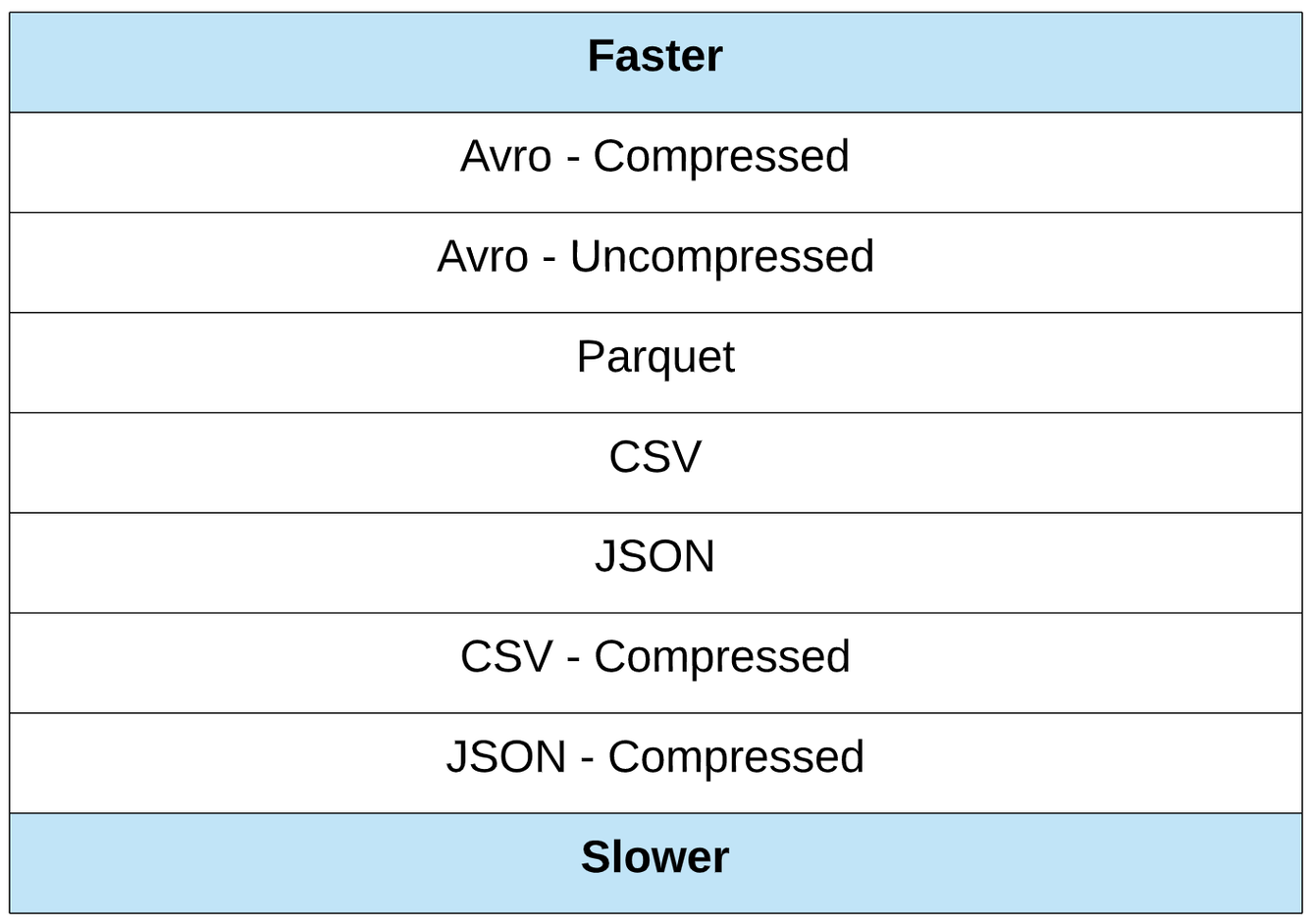

Load and Read Data

Load:

CSV
JSON (Newline delimited)
Avro - best for compressed files
Parquet
ORC
Datastore backups/exports

Read:

From external source:
- Cloud Storage
- Cloud Bigtable
- Google Drive
Data format:
- CSV
- JSON (Newline delimited)
- Avro
- Parquet

How well did you know this?

Not at all

Perfectly

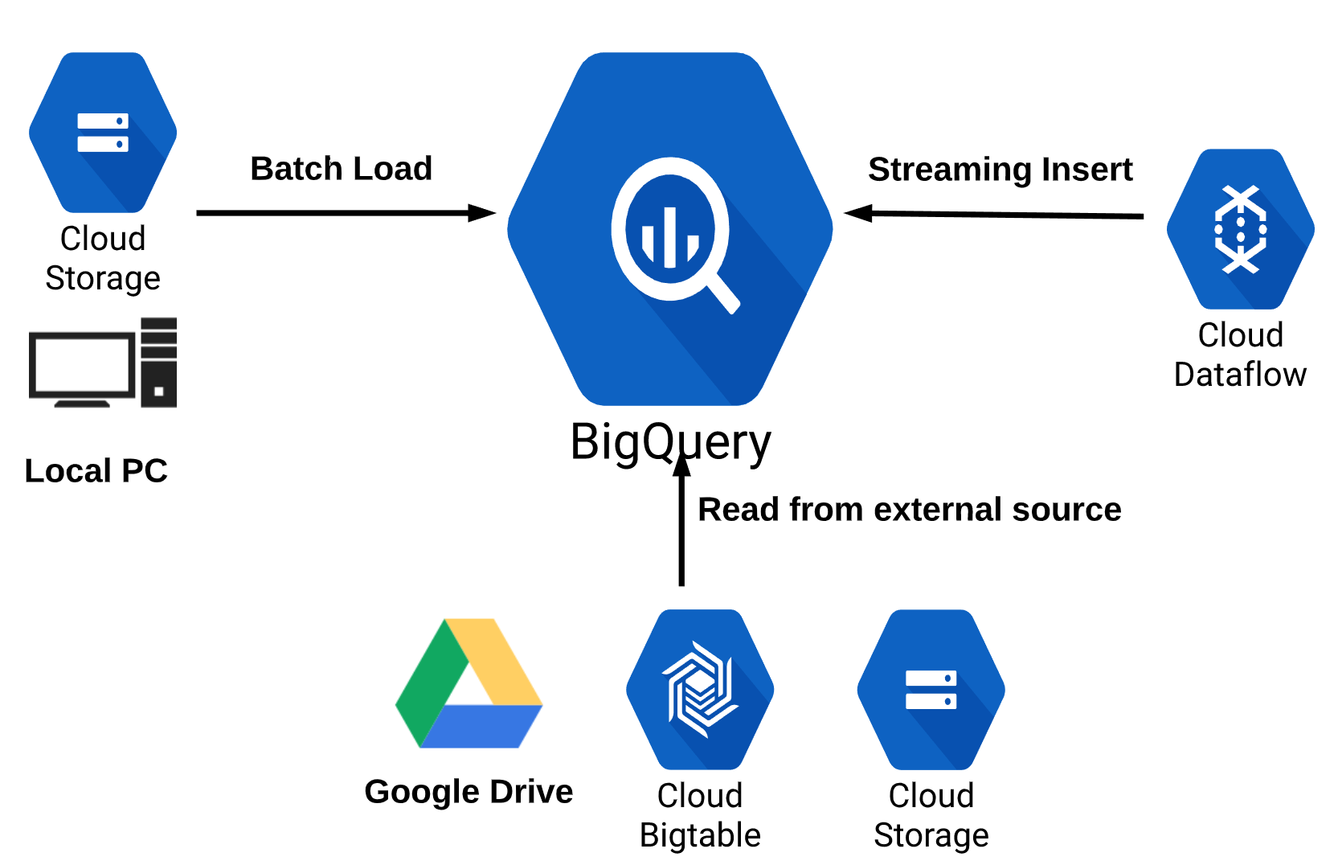

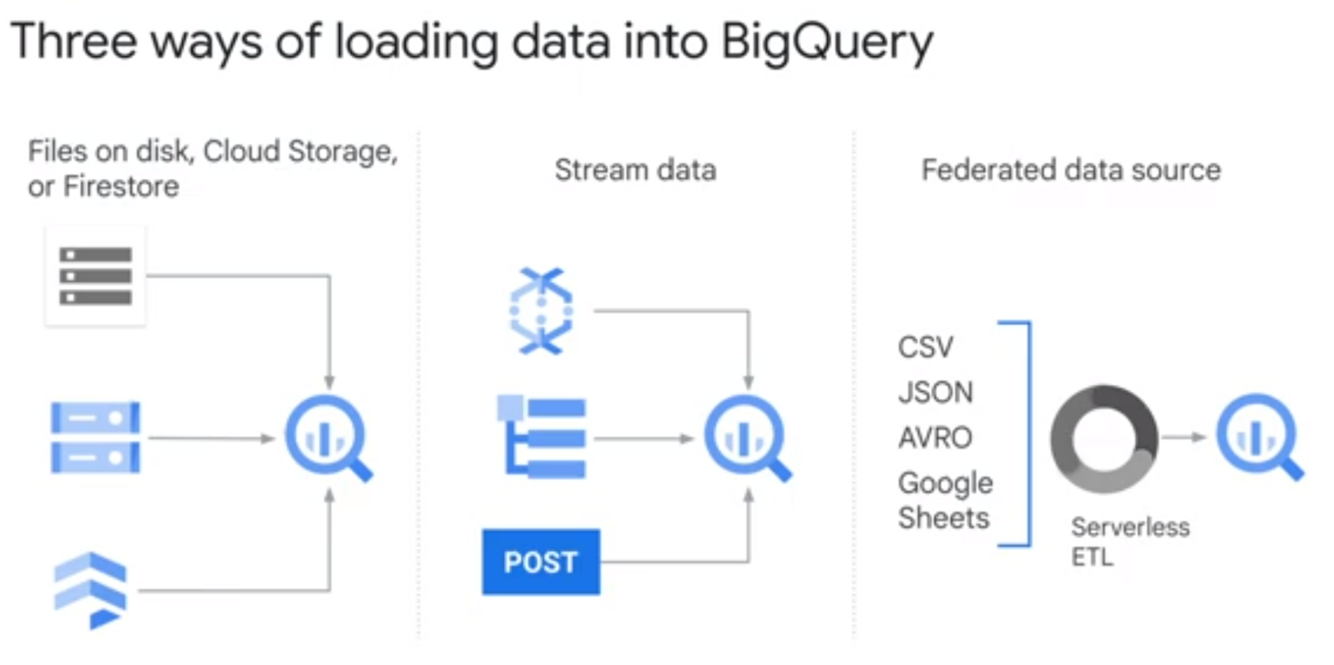

Three ways of loading data into BigQuery

How well did you know this?

Not at all

Perfectly

External Sources

Use cases:

Load and clean data in one pass from external, then write to BigQuery
Small amount of frequently changing data to join to other tables

Limitations

No guarantee of consistency
Lower query performance
Cannot use TableDataList API method
Cannot run export jobs on external data
Cannot reference in wildcard table query
Cannot query Parquet or ORC formats
Query results not cached
Limited to 4 concurrent queries
Cannot import directly from Cloud SQL, need to build a pipeline for that

https://cloud.google.com/bigquery/external-data-sources

https://cloud.google.com/bigquery/docs/cloud-sql-federated-queries

How well did you know this?

Not at all

Perfectly

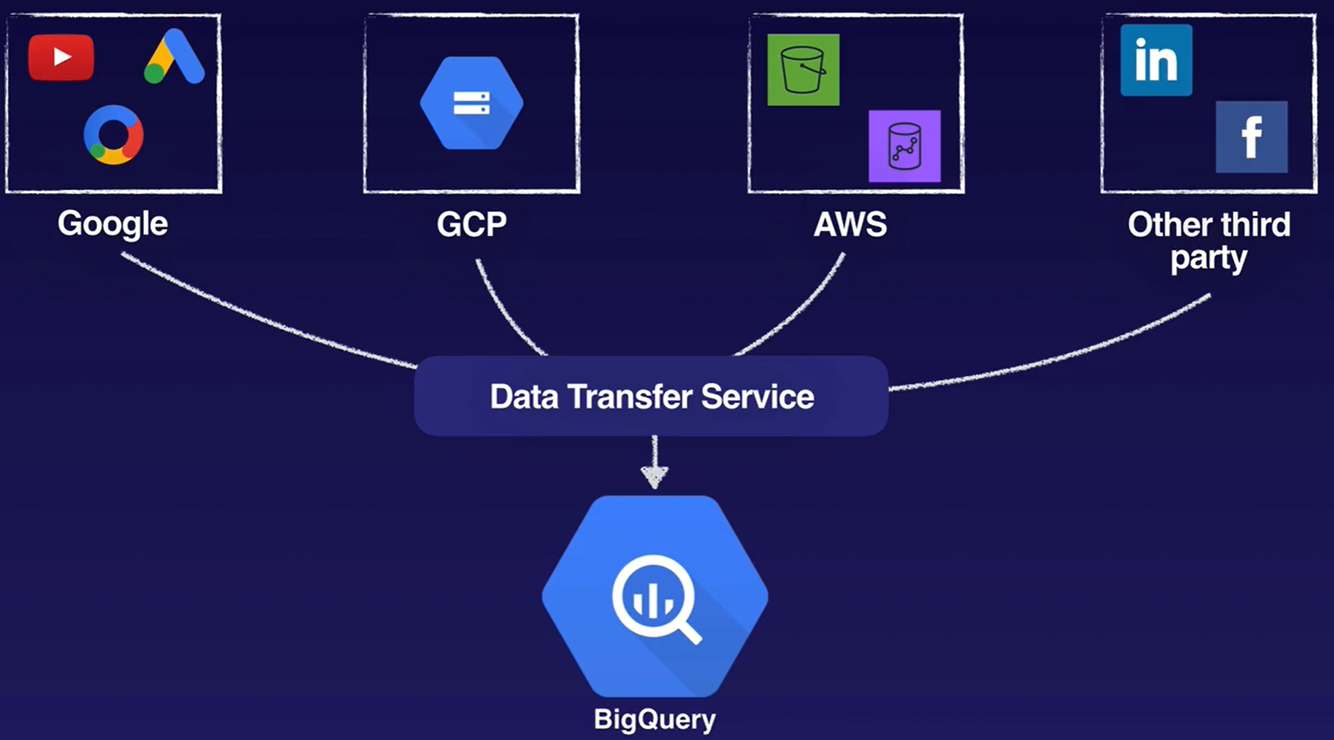

Data Transfer Service

Import data to BigQuery from other Google advertising SaaS applications.
Google AdWords
DoubleClick
YouTube reports

https://cloud.google.com/bigquery-transfer/docs/introduction

How well did you know this?

Not at all

Perfectly

Exporting Tables

Can only export to Cloud Storage
Can copy table to another BigQuery dataset
Export formats: CSV, JSON, Avro
Can export multiple tables with command line
Can only export up to 1Gb per file, but can split into multiple files with wildcards
Use Dataflow to read data from BigQuery instead of manually exporting it if you need scheduled exports.

How well did you know this?

Not at all

Perfectly

Schema Modification

BigQuery natively supports the following schema modifications:

Adding columns to a schema definition
Relaxing a column’s mode from REQUIRED to NULLABLE

It is valid to create a table without defining an initial schema and to add a schema definition to the table at a later time.

All other schema modifications are unsupported and require manual workarounds, including:

Changing a column’s name
Changing a column’s data type
Changing a column’s mode (aside from relaxing REQUIRED columns to NULLABLE)
Deleting a column

How well did you know this?

Not at all

Perfectly

Streaming data into BigQuery

Instead of using a job to load data into BigQuery, you can choose to stream your data into BigQuery one record at a time. This approach enables querying data without the delay of running a load job. But enabling streaming on BigQuery is not free.

If you have an app that collects a large amount of data in real-time, streaming inserts can be a good choice. Generally, these types of apps have the following criteria:

Not transactional. High volume, continuously appended rows. The app can tolerate a rare possibility that duplication might occur or that data might be temporarily unavailable.
Aggregate analysis. Queries generally are performed for trend analysis, as opposed to single or narrow record selection.

Study These Flashcards

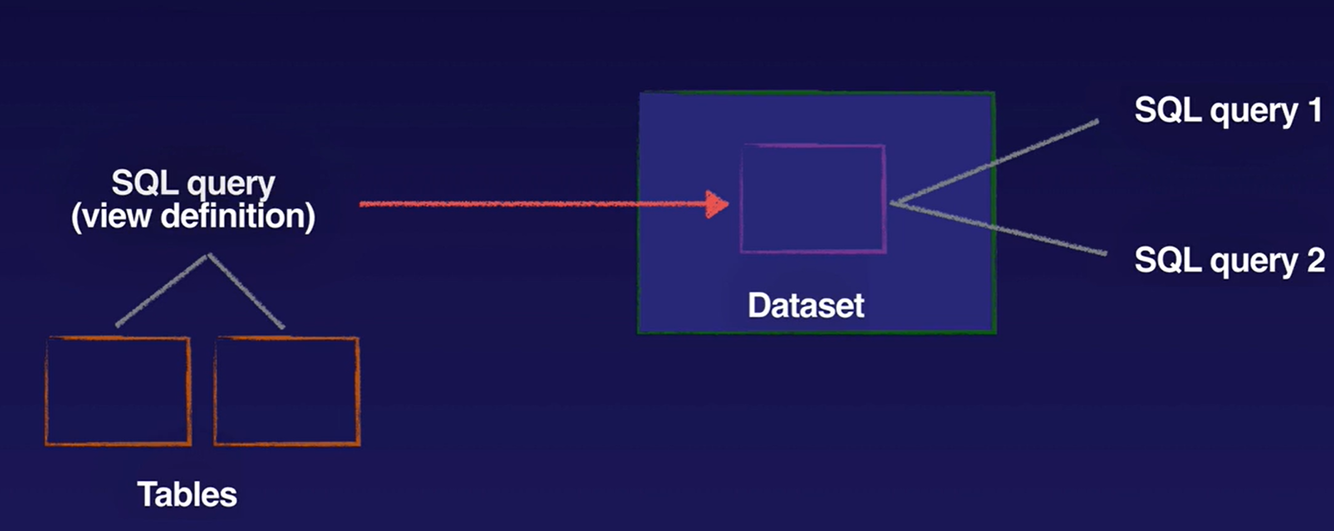

Views

Virtual table defined by a query
Contains data only from query that contains view
Control access to data
- Giving a view access to a dataset is also known as creating an authorized view in BigQuery. An authorized view allows you to share query results with particular users and groups without giving them access to the underlying source data
- When making an authorized view in another dataset, both the source data dataset and authorized view dataset must be in the same regional location.
- You can also control access to tables and views with access control set at the table level, within the same dataset.
Reduce query complexity
Constructing logical tables
Ability to create authorized views

Views limitations:

Cannot export data from a view
Cannot use JSON API to retrieve data from a view
Cannot combine standard and legacy SQL
No user defined functions
No wildcard table references

Study These Flashcards

Cached Queries

BigQuery writes all query results to a table. The table is either explicitly identified by the user (a destination table), or it is a temporary, cached results table. Temporary, cached results tables are maintained per-user, per-project. There are no storage costs for temporary tables, but if you write query results to a permanent table, you are charged for storing the data.

Query results are not cached:

When a destination table is specified
If any of the referenced tables or logical views have changed since the results were previously cached
When any of the tables referenced by the query have recently received streaming inserts (a streaming buffer is attached to the table) even if no new rows have arrived
If the query uses non-deterministic functions; for example, date and time functions such as CURRENT_TIMESTAMP() and NOW(), and other functions such as CURRENT_USER() return different values depending on when a query is executed
If you are querying multiple tables using a wildcard
If the cached results have expired; typical cache lifetime is 24 hours, but the cached results are best-effort and may be invalidated sooner
If the query runs against an external data source

Study These Flashcards

Wildcards

Use backticks ` , not single quote ‘
Query across multiple, similarly named tables
- FROM project.dataset.table_prefix*
Filter using _TABLE_SUFFIX in WHERE clause:
- FROM project.dataset.table_prefix* WHERE _TABLE_SUFFIX BETWEEN ‘29’ and ‘35’
Filter using TABLE_DATE_RANGE:
- FROM (TABLE_DATE_RANGE([mydata.], TIMESTAMP(‘2014-03-19’), TIMESTAMP(‘2015-03-21’)))
- The legacy SQL TABLE_DATE_RANGE() functions work on tables that conform to a specific naming scheme: YYYYMMDD, where the represents the first part of a table name and YYYYMMDD represents the date associated with that table’s data.
- In standard SQL, an equivalent query uses a table wildcard and the BETWEEN clause.
Filter using TABLE_QUERY.
- The legacy SQL TABLE_QUERY() function enables you to find table names based on patterns. When migrating a TABLE_QUERY() function to standard SQL, which does not support the TABLE_QUERY() function, you can instead filter using the _TABLE_SUFFIX pseudo column.
Limitations:
- The wildcard table functionality does not support views.
- Currently, cached results are not supported for queries against multiple tables using a wildcard even if the Use Cached Results option is checked. If you run the same wildcard query multiple times, you are billed for each query.
- Wildcard tables support native BigQuery storage only. You cannot use wildcards when querying an external table or a view.

https://cloud.google.com/bigquery/docs/querying-wildcard-tables

Study These Flashcards

Partitioned & Sharded Tables

Table divided into segments known as “partitions”
Query only certain rows (partitions) instead of entire table
- Limits amount of read data
- Improves performance
- Reduces costs
You can partition BigQuery tables by:
- Ingestion time: Tables are partitioned based on the data’s ingestion (load) time or arrival time.
- Date/timestamp/datetime: Tables are partitioned based on a TIMESTAMP, DATE, or DATETIME column.
- Integer range: Tables are partitioned based on an integer column.
Why not use multiple tables plus wildcards instead?
- Limited to 1000 tables per dataset
  - Bring tables number below 1000 to query all of them at once.
  - Merge tables, then use table partitioning to divide single tables into segments (called partitions)
- Substantial performance drop vs. a single table
As an alternative to date/timestamp/datetime partitioned tables, you can shard tables using a time-based naming approach such as [PREFIX]_YYYYMMDD. This is referred to as creating date-sharded tables.

https://cloud.google.com/bigquery/docs/partitioned-tables

Study These Flashcards

Partition Types

Ingestion Time partitioned tables
- Partitioned by load or arrival date
- Data automatically loaded into date-based partitions (daily)
- Tables include the pseudo-column _PARTITIONTIME
- Use _PARTITIONTIME in queries to limit partitions scanned
Partitioning based on specific TIMESTAMP or DATE column
- Data partitioned based on value supplied in partitioning column
- 2 additional partitions:
  - __Null__
  - __UNPARTITIONED__
- Use partitioning column in queries

Study These Flashcards

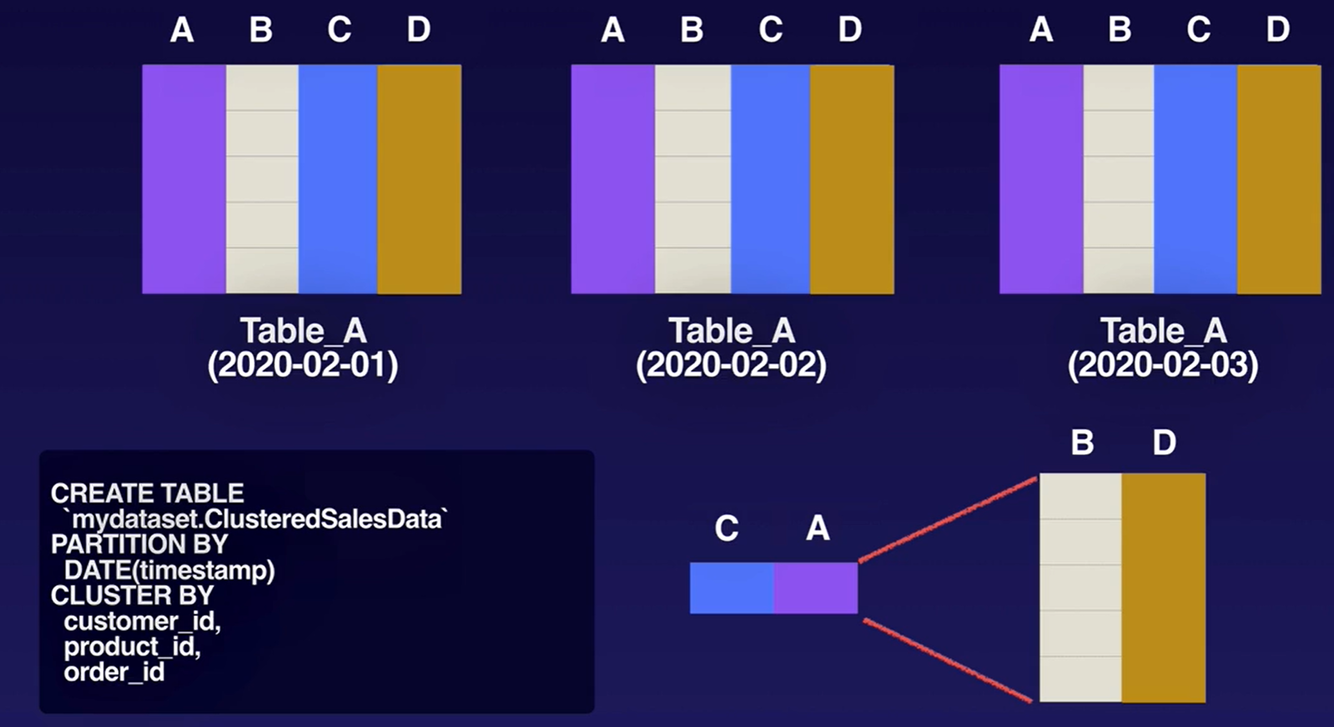

Clustered Tables

Taking partitioned tables “to the next level”
Similar to partitioning, divides table reads by a specified column field
- Instead of dividing dy date/time, divides by field

Limitations:

Only (currently) available for partitioned tables
Standard SQL only for querying clustered tables
Standard SQL only for writing query results to clustered tables
Specify clustering columns only when table is created
Clustering columns cannot be modified after table creation
Clustering columns must be top-level, non-repeated columns
You can specify 1 to 4 clustering columns

Querying Clustered Tables:

Filter clustered columns in the order they were specified
Avoid using clustered columns in complex filter expressions
Avoid comparing clustered columns to other columns

Study These Flashcards

Slots

Computational capacity required to run a SQL query
- Play a role in pricing and resource allocation.
Choice of using an on-demand pricing model or a flat-rate pricing model
- The flat-rate model gives you explicit control over slots and analytics capacity, whereas the on-demand model does not.
Number of slots per query depends on its complexity:
- Query size = amount of data processed by the query.
- Query complexity = amount of data that is shuffled during steps of query.
BigQuery automatically manages slots quota.
View slots usage using Stackdriver monitoring.
Default, on-demand pricing allocates 2000 slots
- Only an issue for extremely complex queries, or a high number of simaltaneous users.
- If more than 2000 slots required, switch to flat-rate pricing - purchase fixed number of slots.

https://cloud.google.com/bigquery/docs/slots

Study These Flashcards

Logging and Monitoring

Stackdriver Monitoring and Logging differences

Monitoring = performance/resources
Logging = history of actions (who is doing what)

Monitoring BigQuery Performance/Resources

Monitoring = metrics, performance, resource capacity/usage (slots)
- Query count, query times, slot utilization
- Number of tables, stored and uploaded bytes over time
- Alerts on metrics e.g. long query times
No data on who is doing what, or query details

Stackdriver Logging

Record of jobs and queries associated with accounts

Study These Flashcards

**Query Plan Execution** * Embedded within query jobs, BigQuery includes **diagnostic query plan** and **timing information**. * BigQuery converts the declarative SQL statement into a graph of execution, broken up into a series of **query stages**. * Query stages themselves are composed of more granular sets of **execution steps**. * For each query stage, following information is provided: * **Stage overview** * **Step information**: Steps represent the more granular operations that each worker within a stage must execute, presented as an ordered list of operations. * **Stage timing classification**: These times represent the average performance for all workers in a stage as well as the long-tail slowest worker performance for a given classification. * **Timeline metadata**: The query timeline reports progress at specific points in time, providing snapshot views of overall query progress. [https://cloud.google.com/bigquery/query-plan-explanation](https://cloud.google.com/bigquery/query-plan-explanation)

**Cost Control** * Avoid using SELECT \* * Filter early and big with WHERE clause * Do biggest joins first and filter pre-JOIN * Use preview options to sample data * Price queries before executing them * Remember that using LIMIT does NOT affect costs * View costs using a dashboard and query your audit logs * Partition by date (ingest time or data columns) * Materialise query results in stages * Consider the cost of large results sets * Use streaming inserts with caution If you have multiple BigQuery projects and users, you can manage costs by requesting a **custom quota** that specifies a limit on the amount of query data processed per day. Creating a custom quota on query data allows you to control costs at the **project-level** or at the **user-level**. * **Project-level custom quotas** limit the aggregate usage of all users in that project. * **User-level custom quotas** are separately applied to each user or service account within a project.

**Query Performance** _Input data and data sources_ * Prune partitioned queries * Denormalize data whenever possible * Use external data sources appropriately * Avoid excessive wildcard tables _Query computation_ * Avoid repeatedly transforming data via SQL queries * Avoid Javascript user-defined functions * Order query operations to maximise performance * Optimise JOIN patterns _SQL anti-patterns_ * Avoid self-joins * Avoid data skew * Avoid unbalanced joins * Avoid joins that generate more output than inputs (Cartesian product) * Avoid DML statements that update or insert single rows

**Optimising Storage** * Use expiration settings (tables automatically deleted at expiration) * Control Storage costs and optimise use of storage space * Take advantage of long-term storage * **Lower monthly charges apply for data stored in tables or in partitions that have not been modified in the last 90 days.** * Use the pricing calculator to estimate storage costs.

**Data Loss Prevention** * Fully managed service for handling sensitive data (e.g. medical information, credit card numbers, etc.) * **Identify and protect sensitive data at scale.** * Over 100 predefined detectors to identify patterns, formats and checksums. * De-identifies data using masking, tokenisation, pseudonymisation, date shifting and more.

**BigQuery ML** BigQuery ML lets you create and execute machine learning models in BigQuery **using standard SQL queries**. BigQuery ML **democratizes machine learning** by letting SQL practitioners build models using existing SQL tools and skills. BigQuery ML **increases development speed** by eliminating the need to move data. BigQuery ML functionality is available by using: * The Google Cloud Console * The bq command-line tool * The BigQuery REST API * An external tool such as a Jupyter notebook or business intelligence platform _Supported models:_ * Linear Regression * Binary Logistic Regression * Multi-class Logistic Regression * K-Means clustering * And more... [https://cloud.google.com/bigquery-ml/docs/introduction](https://cloud.google.com/bigquery-ml/docs/introduction) ![]()

7_BigQuery Flashcards

(30 cards)
