Active Terminal Homing

Weapon has an onboard RADAR that performs search and acquisition

How well did you know this?

Not at all

Perfectly

Semi-Active Terminal Homing

Target is painted by a Fire Control RADAR the launching platform

How well did you know this?

Not at all

Perfectly

Passive Terminal Homing

Noise Radiation Homing
Anti-Radiation Homing (ARM)
Infrared (IR)

How well did you know this?

Not at all

Perfectly

Command Guidance

Come from sources outside the weapon in order to get it to a Intercept Point

How well did you know this?

Not at all

Perfectly

Self Contained Guidance

GPS - Uses satellites to send a digital signal
Inertial Navigation System (INS) - Uses accelerometers to make in-flight corrections

How well did you know this?

Not at all

Perfectly

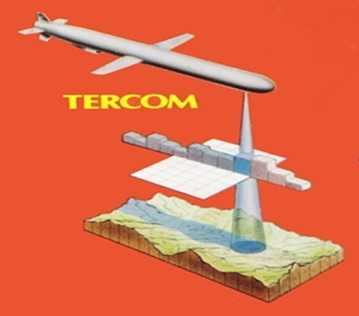

Terrain Contour Matching (TERCOM)

Uses an altimeter and a database of stored 3D navigation “maps” that guide the missile en route to its target

How well did you know this?

Not at all

Perfectly

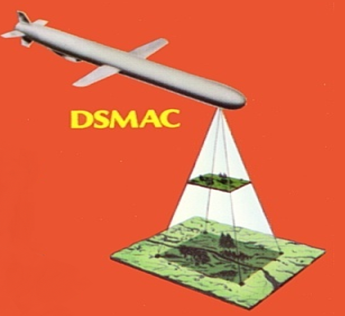

Digital Scene Matching Area Correlator (DSMAC)

Uses a digital camera and an image correlator to find the target

How well did you know this?

Not at all

Perfectly

Launch environment designations

A - Air
B - Multiple
C - Coffin
F - Individual
G - Runway
H - Silo stored
L - Silo launched
M - Mobile
P - Soft pad
R - Ship
S - Space
U - Underwater

How well did you know this?

Not at all

Perfectly

Basic Mission designations

C - Cargo/transport
D - Decoy
E - Electronic or communication
G - Surface attack
I - Intercept aerial or space
L - Launch detection or surveillance
M - Scientific/calibration
N - Navigation
S - Space support
T - Training
U - Underwater attack
W - Weather

How well did you know this?

Not at all

Perfectly

Vehicle type designations

B - Booster
M - Guided missile or drone
N - Probe
Q - Drone
R - Rocket
S - Satellite

How well did you know this?

Not at all

Perfectly

Crew served weapons

MK38 25mm
.50Cal Machine Gun
M240 Machine Gun
GAU-17 Machine Gun

How well did you know this?

Not at all

Perfectly

Close In Weapon System (CIWS)

Primary Mission: S-A Engagements (AW/AMD)
Secondary Mission: S-S Engagements (SUW)
Platforms: CVN, DDG, CG, LCC, LSD, LHA, LHD
Additional Info: 1550 round drum at 4500 rounds per min utilizing the M-61A1 Gatling Gun

How well did you know this?

Not at all

Perfectly

MK46 30mm Gun Mount

Function: Self defense against small high speed surface craft
Platforms: LPD 17, LCS SUW module, DDG1000
Range: 4400 yds
Additional info: Utilizes an IR sensor, low-light TV camera, and laser range finder
1/5/200 rounds per minute with a 400-round drum

How well did you know this?

Not at all

Perfectly

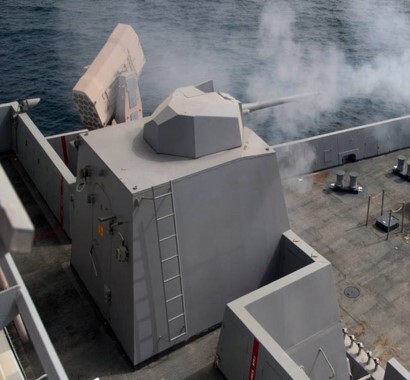

MK 110 57mm Gun Mount

Primary Mission: SUW
Secondary Mission: NSFS/STW, Low-speed aircraft engagement (AW/AMD)
Platforms: LCS1&2
Range: 9nm
Additional info: 220rpm with a 120-round drum

How well did you know this?

Not at all

Perfectly

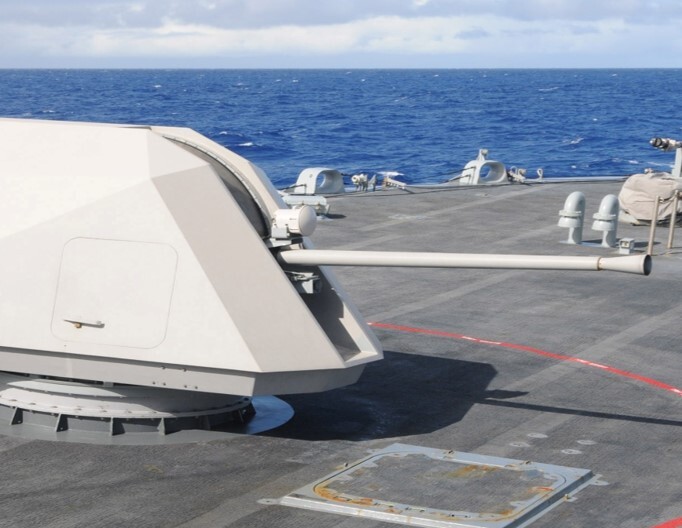

MK45 Lightweight Gun Mount
5” Gun

Primary Mission: SUW
Secondary Mission: NSFS/STW, Low-Speed aircraft engagements (AW/AMD)
Platforms: DDG, CG
Range: 13nm
Additional info: Utilizes the GFCS to calculate

How well did you know this?

Not at all

Perfectly

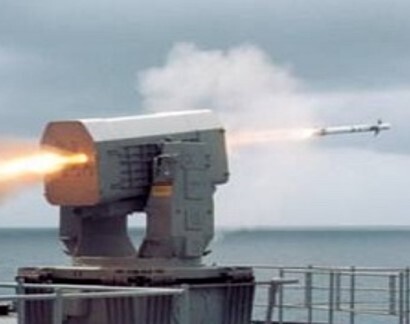

RIM-116 Rolling Airframe Missile (RAM)

Primary Mission: AW/AMD
Secondary Mission: SUW
Guidance: Passive —> (ARH/RF,IR)
Platforms: CVN, LHD, LHA, LPD, LSD, LCS1
Additional info: Supersonic (>667kts)
RIM-116C combines the CIWS search-and-track RADAR

How well did you know this?

Not at all

Perfectly

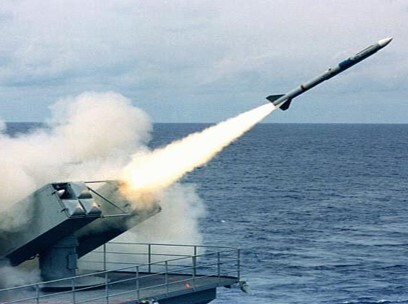

RIM-7 NATO Sea Sparrow Missile (NSSM)

Primary Mission: AW/AMD
Secondary Mission: SUW
Guidance: Semi-Active or Continuous Wave
- Utilizes the SPQ-9B uplink and/or MK-95 Illuminators
Platforms: CVN, LHD, LHA
Additional info: Supersonic (>667kts)
Utilizes IFF to target incoming threats

How well did you know this?

Not at all

Perfectly

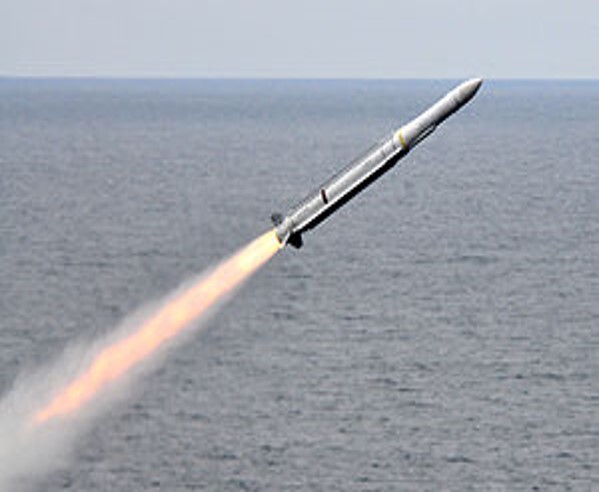

RIM-162 Evolved Sea Sparrow Missile (ESSM)

Study These Flashcards

Function: S-A, S-S
Guidance: Semi-active or Continuous Wave
Platforms: CVN, LHD, LHA, DDG, CG

RIM-66C Standard Missile (SM)

Study These Flashcards

Function: S-S & S-A missile launched from VLS
Guidance:
SM-2: Semi-Active, IR (anti-air, anti-surface)
SM-3: Semi-Active (BMD)
SM-6: Semi-Active, Active (Long range area air defense and anti-surface)
Platforms: DDG and CG

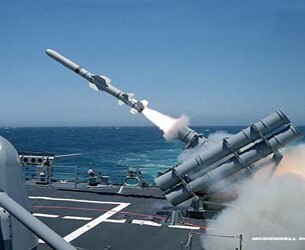

RGM-84 Harpoon

Study These Flashcards

Function: S-S
Guidance: RADAR altimeter–>Active RADAR
Platforms: CG & DDG (FLT1&2)

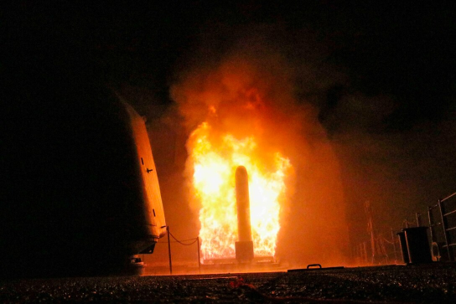

RGM-109 Tomahawk Land Attack Cruise Missile (TLAM)

Study These Flashcards

Function: Strike Warfare, NSFS
Guidance: GPS, INS, TERCOM, DSMAC
Platforms: DDG, CG, SSN, SSGN

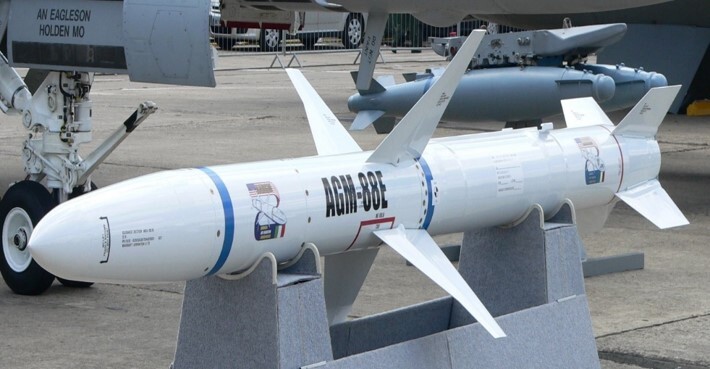

AGM-88 HARM Missile

Study These Flashcards

Function: A-S anti-radiation missile; destroys enemy RADAR stations
Guidance: Passive
Platforms: Super Hornet, Growler

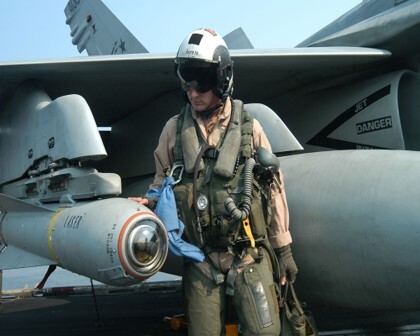

AGM-65 Maverick Guided Missile

Study These Flashcards

Function: A-S
Guidance: Semi-Active and Passive
Platforms: Super Hornet AV-8B Harrier

AGM-84 Harpoon Missile

Study These Flashcards

Function: A-S
Guidance: RADAR altimeter–> Active
Platforms: Poseidon, Super Hornet

AGM-84K SLAM-ER Missile

Function: Long Range Strike Warfare weapon Guidance: Ring Laser Gyro Inertial Navigation System (INS), GPS Platforms: Super Hornet

AGM-114 Hellfire Missile

Function: A-G (Anti Tank/Armor) Guidance: Semi-Active laser seeker Platforms: MH-60S/R, AH-1

AGM-154 Joint Standoff Weapon (JSOW)

Function: A-S Standoff from Outside Point Defenses (SOPD) Guidance: Link-16 data link, GPS/INS, Terminal IR Platforms: Super Hornet and Lightning

Joint Direct Attack Munition (JDAM)

Function: Guided A-S weapon Guidance: GPS-aided INS Platforms: Super Hornet and Lightning

Mk 80 Series Bombs

Function: General ordnance bomb

AIM-9 Sidewinder Missile

Function: A-A missile Guidance: Passive IR Platforms: Super Hornet, Lightning, AH-1

AIM-7 Sparrow Missile

Function: A-A guided missile Guidance: Semi-active Platforms: Super Hornet

AIM-120 AMRAAM

Function: A-A tactical missile Guidance: Active RADAR terminal, inertial midcourse Platforms: Super Hornet, Growler, Lightning

Mk 46 Mod 5A

Function: Air/Surface to Subsurface Guidance: Active/passive acoustic homing Platforms: DDG, CG, P-8 and MH-60R

Mk 54 Mod0/1

Function: Air/Surface to Subsurface Guidance: Active/passive acoustic homing Platforms: DDG, CG, P-8 and MH-60R

RUM-139C Vertical Launched Anti-Submarine Rocket (ASROC)

Function: Surface to Subsurface Guidance: Active/passive acoustic homing Platforms: DDG, CG

Mk 48 Heavyweight Torpedo

Function: Subsurface-Subsurface, Subsurface-Surface Guidance: Active and passive methods Platforms: SSN, SSGN, SSBN

AN/AQS-22 Airborne Low Frequency SONAR (ALFS) Dipping SONAR

Function(s): Primary USW sensor to detect submarines; Underwater communication and environmental intel gathering Platforms: MH-60R

AN/SSQ-62 Directional Command Activated Sonobuoy System (DICASS)

Function: DICASS is used for detection and localizing submarines Platforms: MH-60R, Poseidon, DDG, CG

AN/SSQ-53 Directional Frequency Analysis and Recording (DIFAR)

Function: DIFAR combines passive directional and calibrated wideband omni-capability Platforms: MH-60R, Poseidon, DDG, CG

Aegis Weapon System (AWS) Components

Command & Decision (C&D) Weapons Control System (WCS) Aegis Display System (ADS) Vertical Launching System (VLS) SPY-1 RADAR Mk 99 Fire Control System (FCS) SM-2 Aegis Combat Training System (ACTS) Operational Readiness Testing System (ORTS)

MK-38 25mm Gun

Primary Mission: Small craft engagements (SUW) Platforms: All USN vessels except LCS and DDG 1000 Range: 2700-3000 yds

.50 Cal Machine Gun

Primary Mission: Small craft engagements (SUW) Platforms: All USN vessels except DDG 1000 Range: 6700 yds

M240 Machine Gun

Primary Mission: Small craft engagements (SUW) Platforms: All USN vessels except DDG 1000 Range: 3725 yds

GAU-17 Machine Gun

Primary Mission: Small craft engagements (SUW) Platforms: A/UH-1 Huey & MH-60S/R Helos Range: 1000 yds
