Abdomen

Question 1

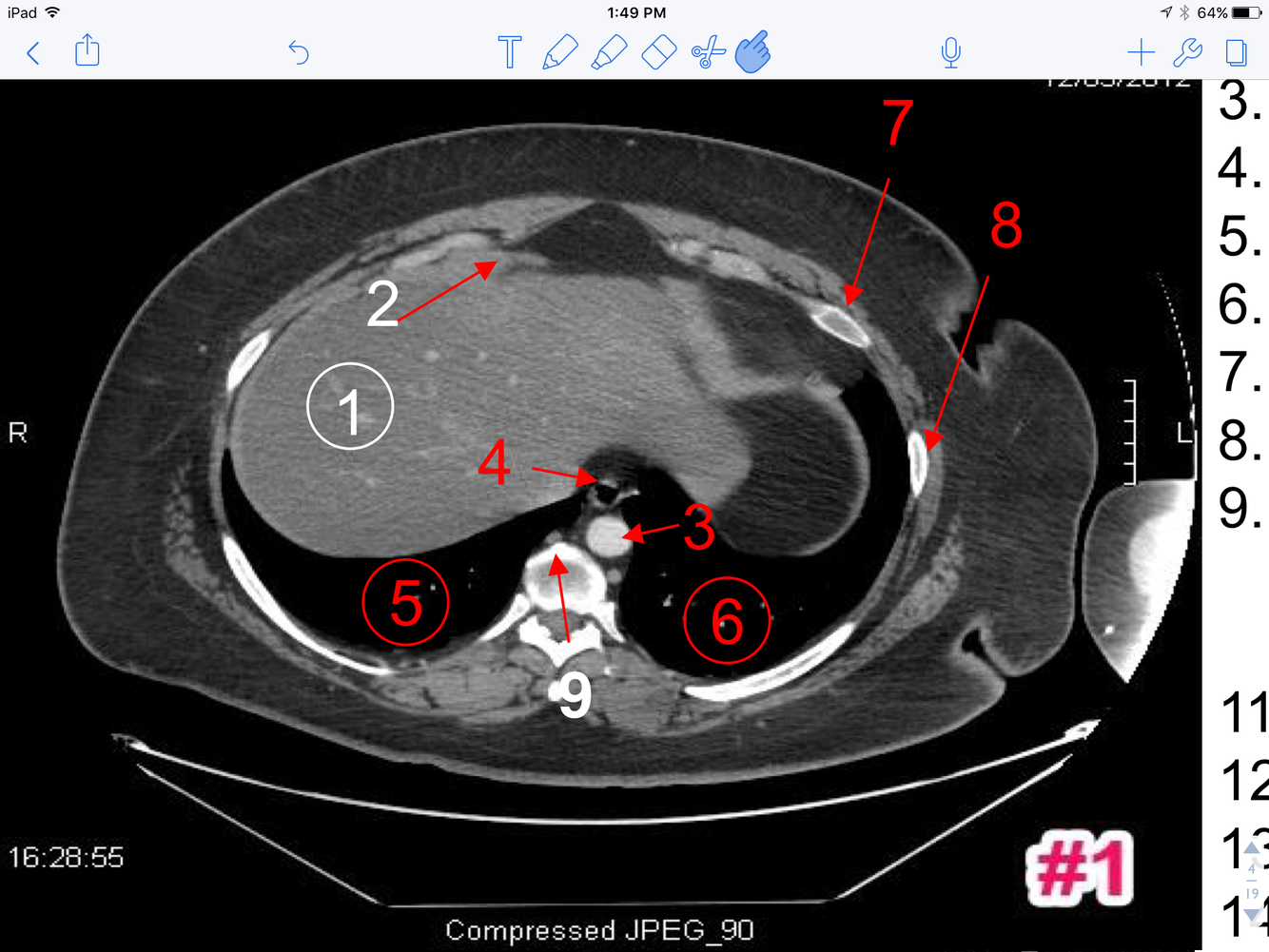

Answer 1

1. Liver
2. Faliciform ligament
3. Abdominal aorta
4. Abdominal esophagus
5. Rt lung
6. Lt lung
7. Lt lung
8. Lt rib
9. Azygos vein

Question 2

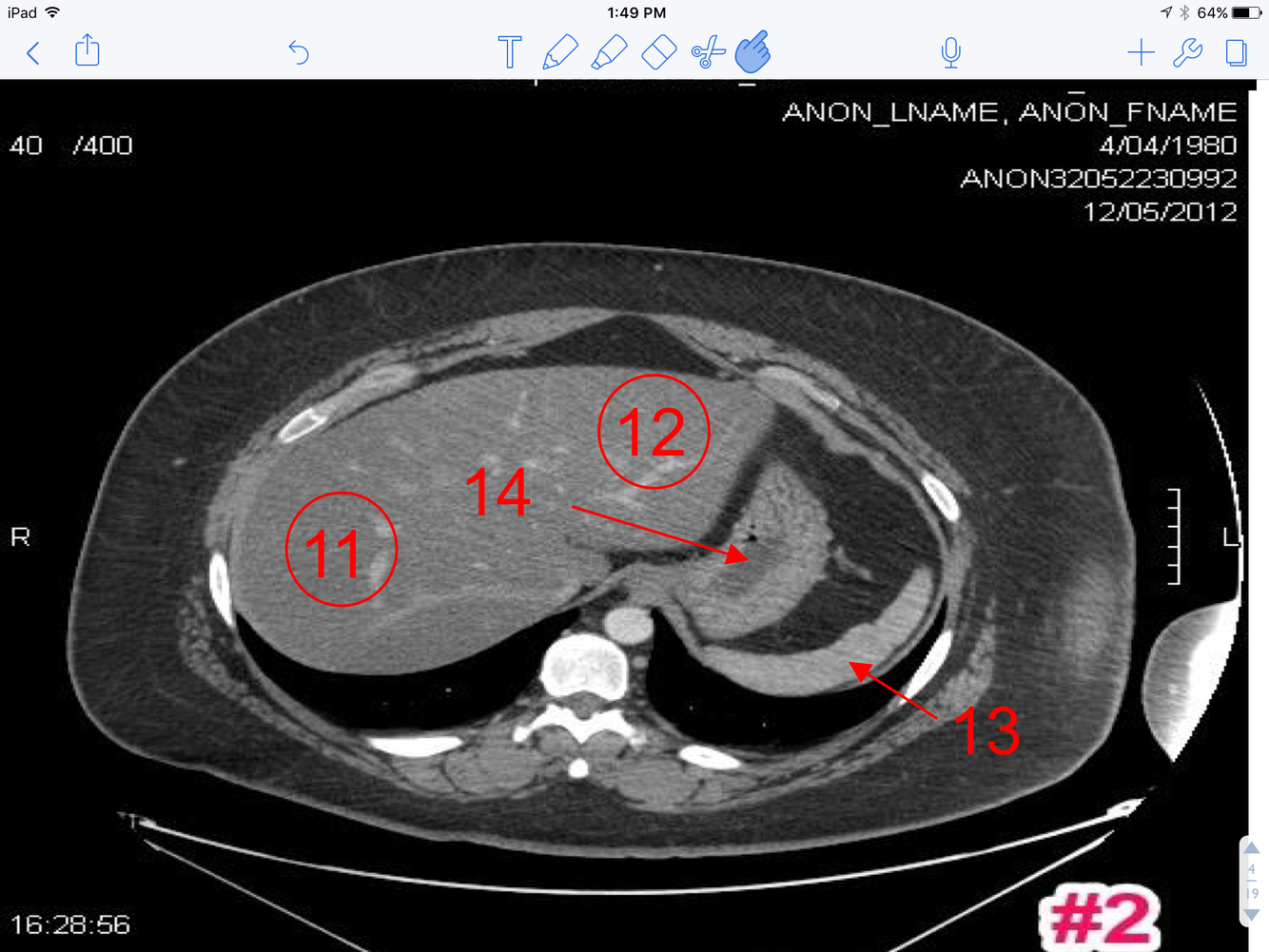

Answer 2

11. Rt lobe of liver
12. Lt lobe of liver
13. Spleen
14. Body of stomach filled with fluid

Question 3

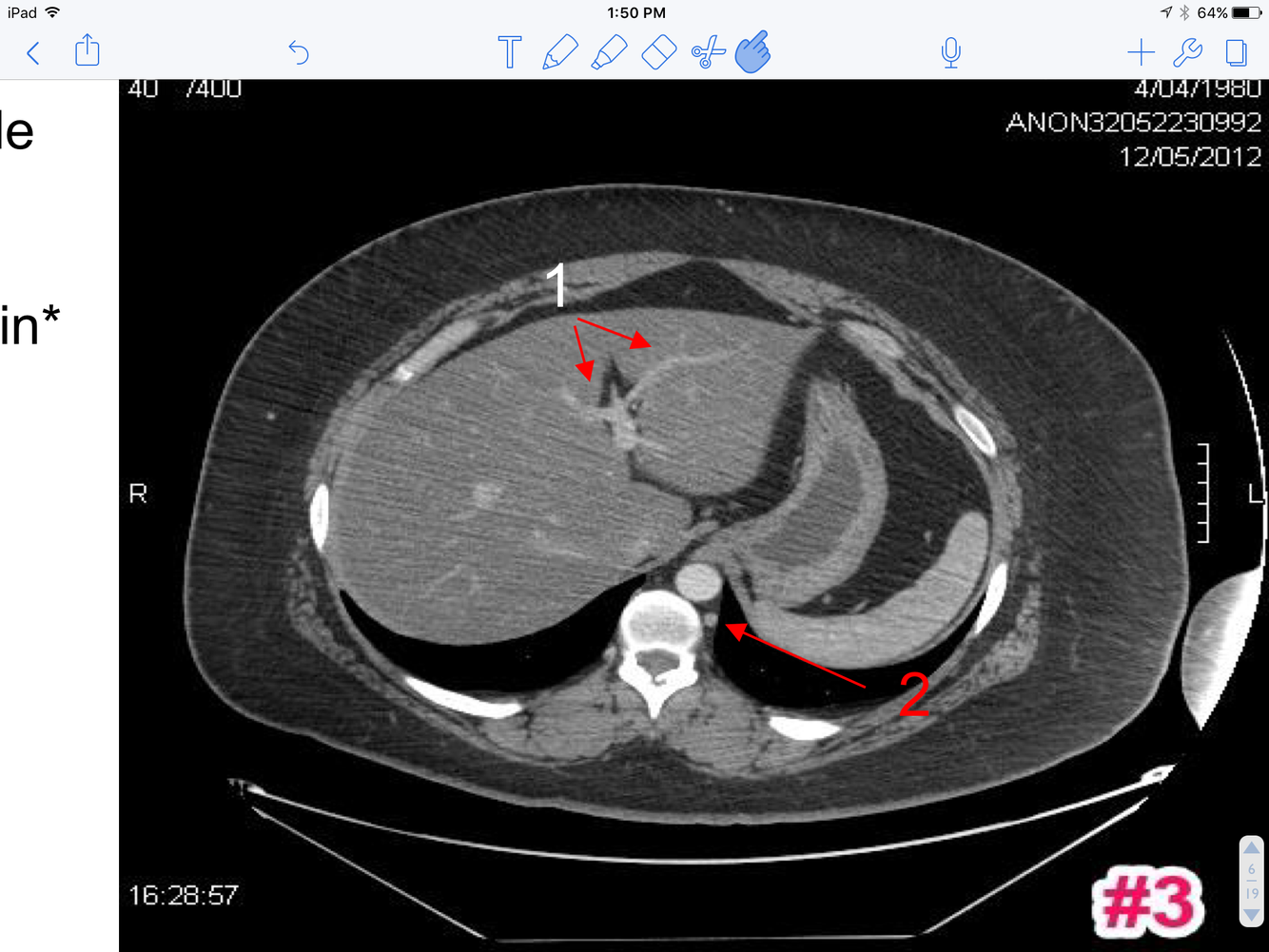

Answer 3

1. Branches of the Lt. branch of the portal vein
2. Hemiazygos vein

Question 4

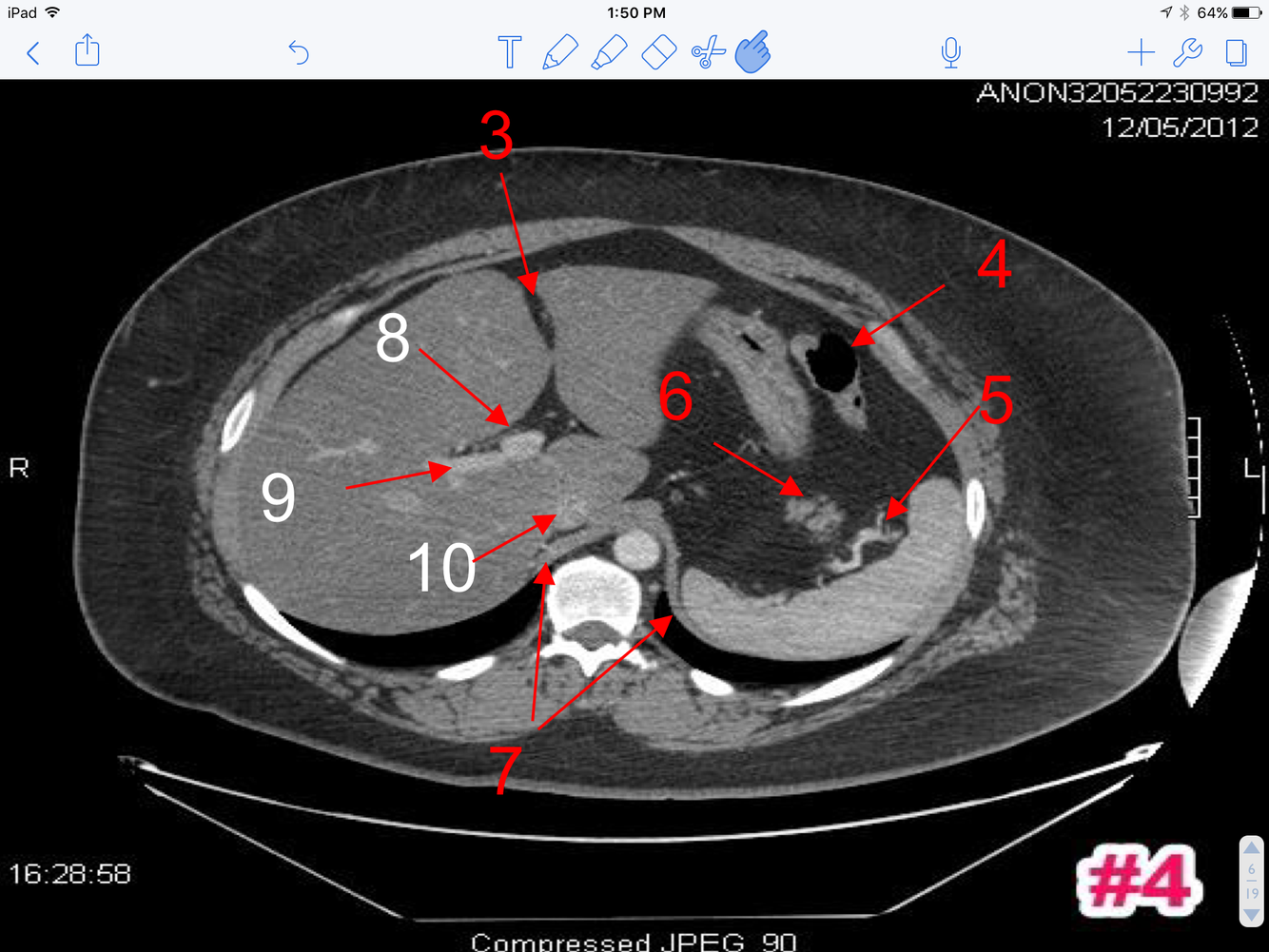

Answer 4

3. Ligamentum teres (fissure for)
4. Splenic flexure
5. Splenic vessel
6. Tail of the Pancreas
7. Rt & Lt crus of diaphragm
8. Lt branch of portal vein
9. Rt branch of the portal vein
10. Intrahepatic inferior vena cava

Question 5

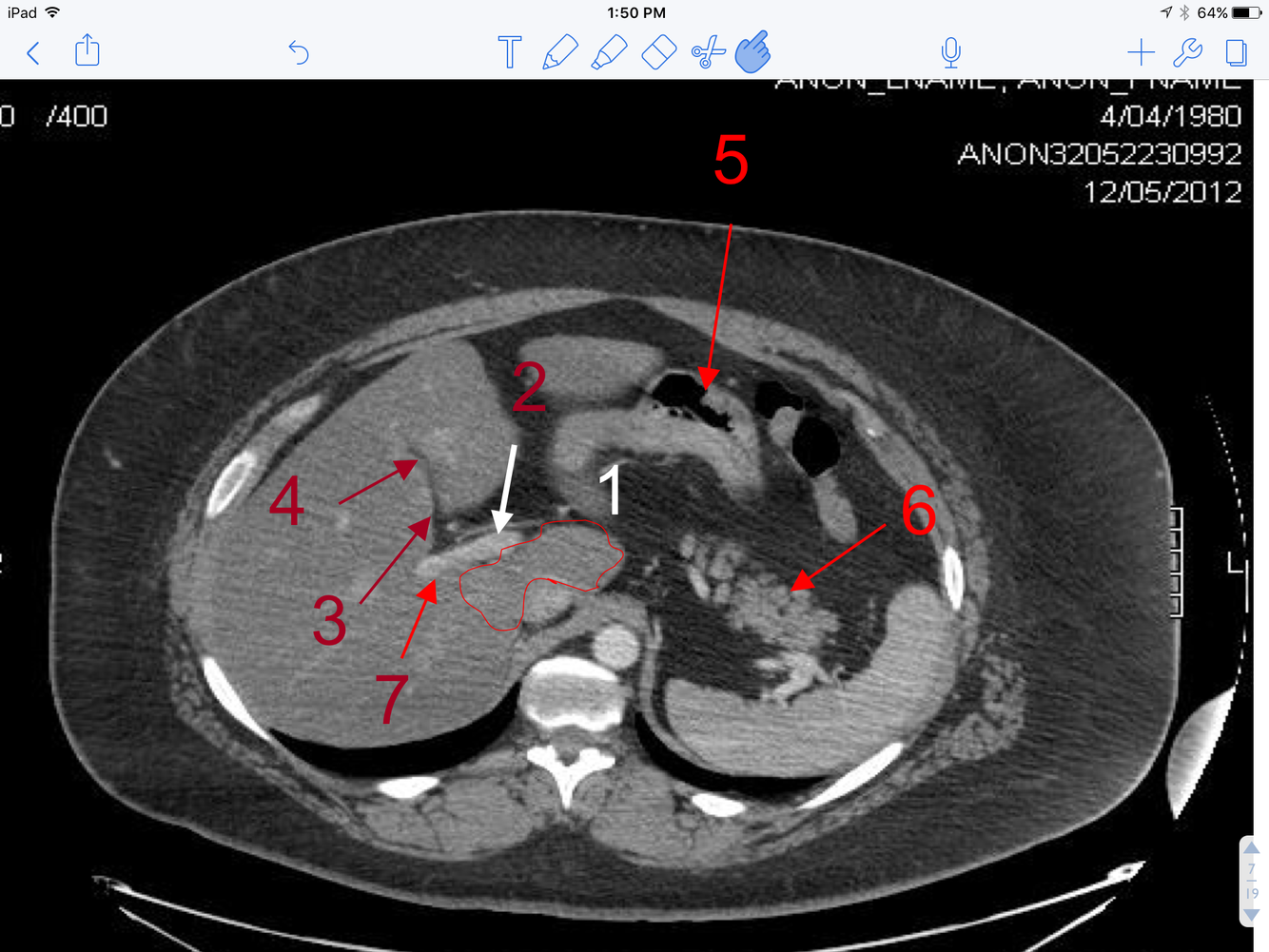

Answer 5

1. Caudate lobe of the liver (outlined)
2. Lt branch of the portal vein
3. Cystic duct of the gallbladder
4. Neck of the gallbladder
5. Gas in the body of the stomach
6. Tail of Pancreas
7. Rt branch of the portal vein

Question 6

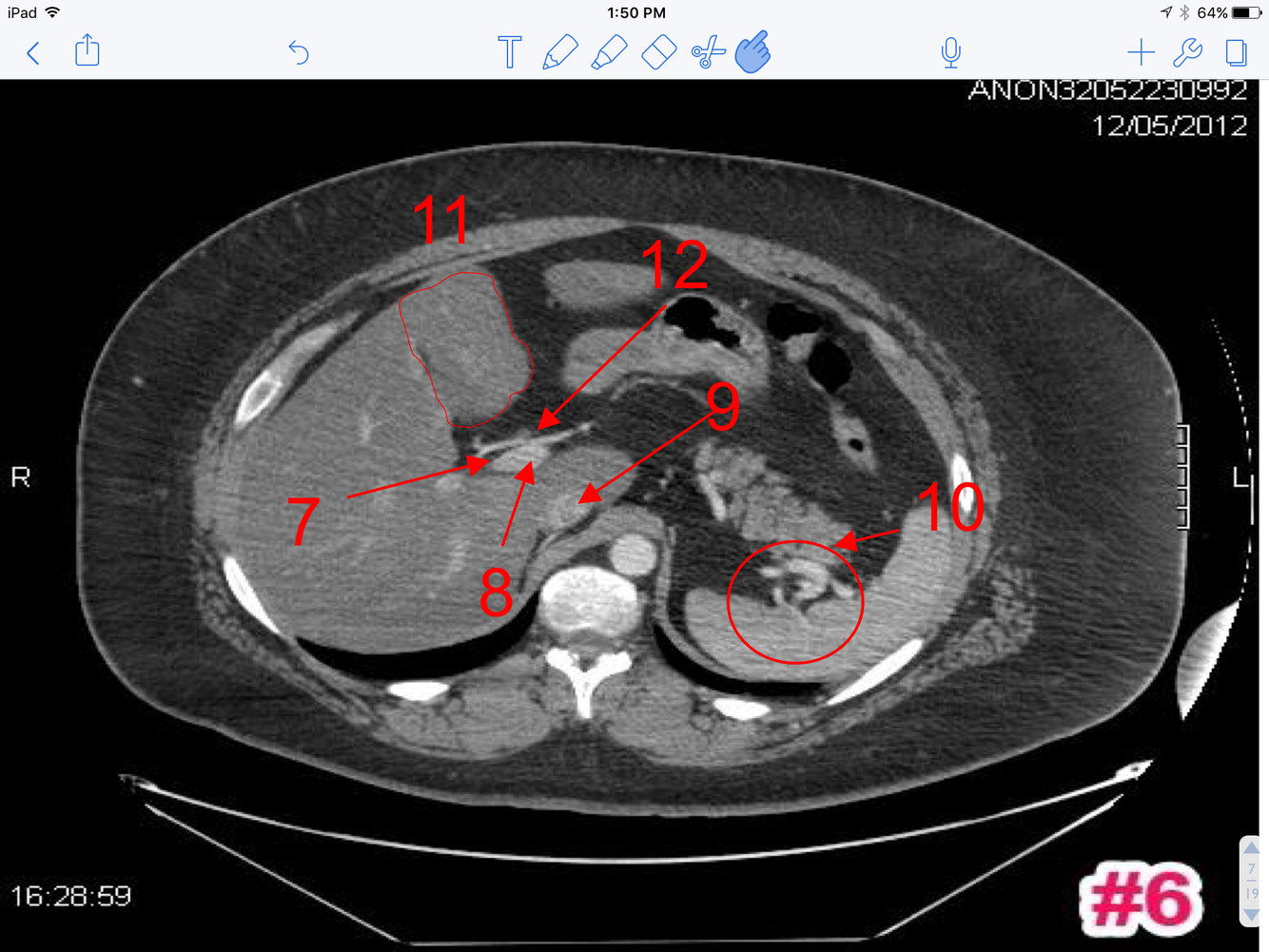

Answer 6

7. Rt branch of the portal vein
8. Lt branch of the portal vein
9. Intrahepatic inferior vena cava
10. Splenic vessels at the hilum of the spleen
11. Quadrate lobe of the liver (outline)
12. Hepatic artery proper in the porta hepatis

Question 7

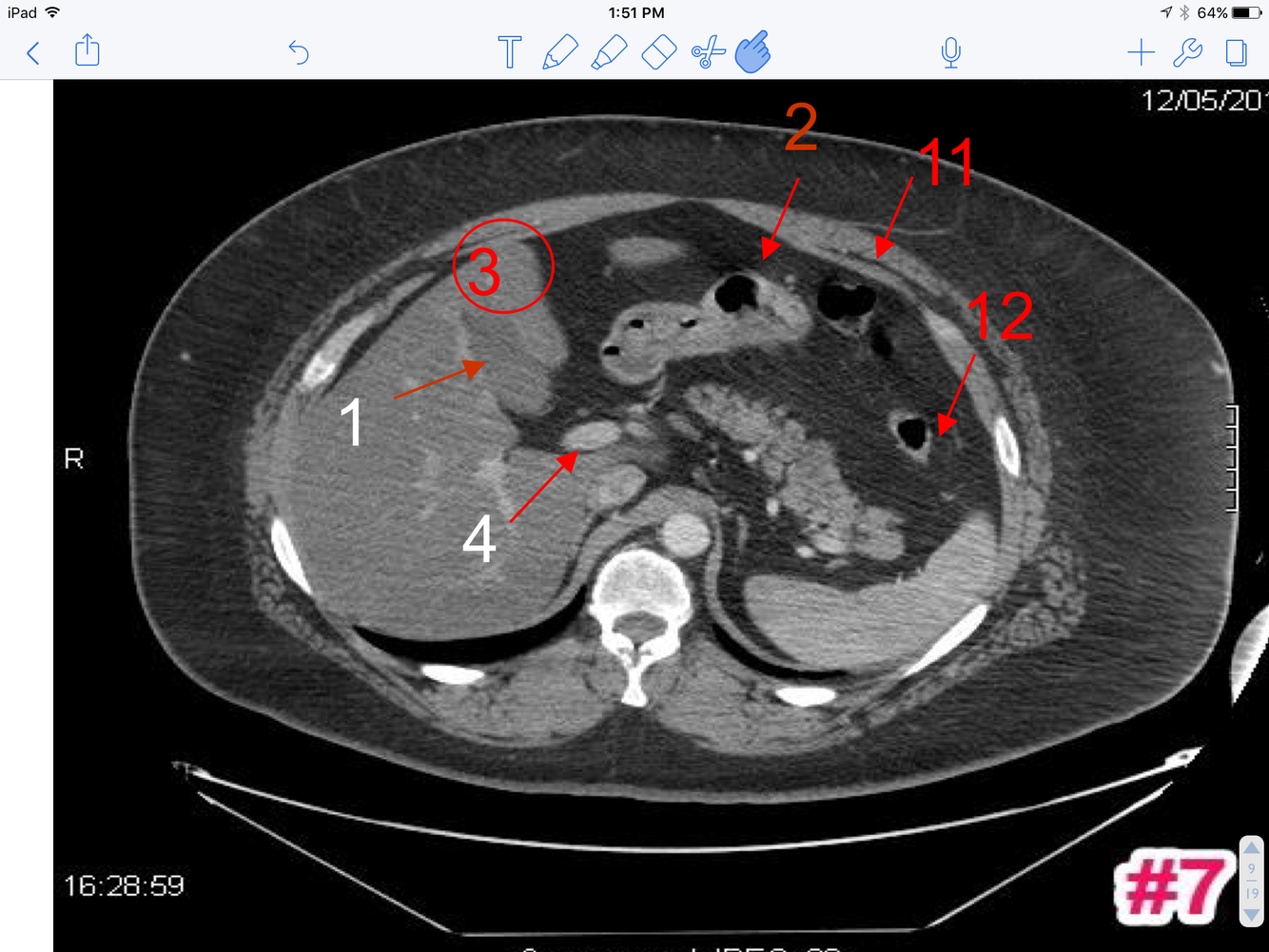

Answer 7

1. Body of gallbladder
2. Pyloric part of the stomach
3. Quadrate lobe of liver
4. Portal vein
5. Transverse colon
6. Descending colon

Question 8

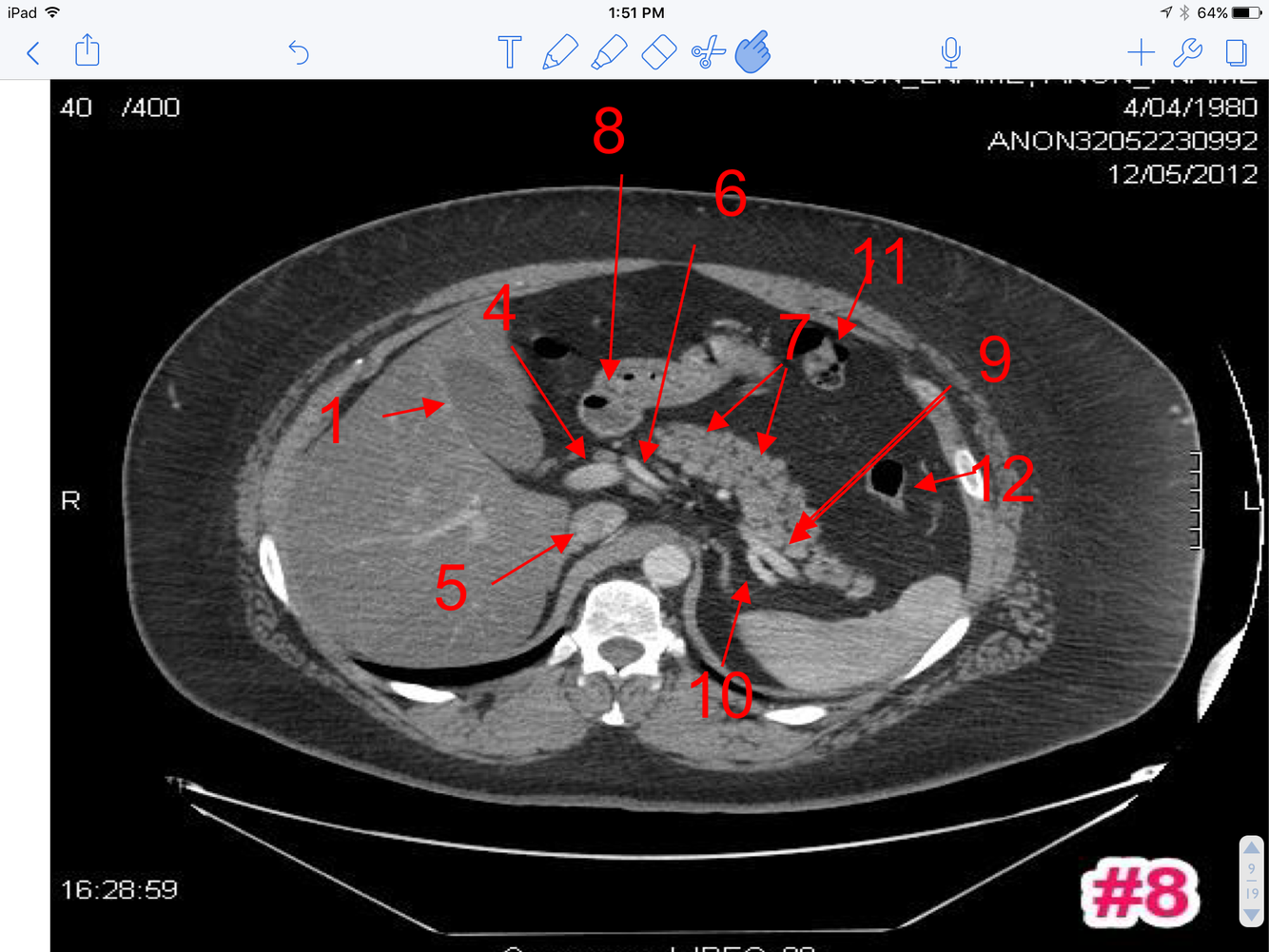

Answer 8

1. Body of gallbladder
2. Portal vein
3. Inferior vena cava
4. Common hepatic artery
5. Body of the Pancreas
6. First part of the duodenum
7. Splenic vein
8. Splenic artery

11, Transverse colon

12. Descending colon

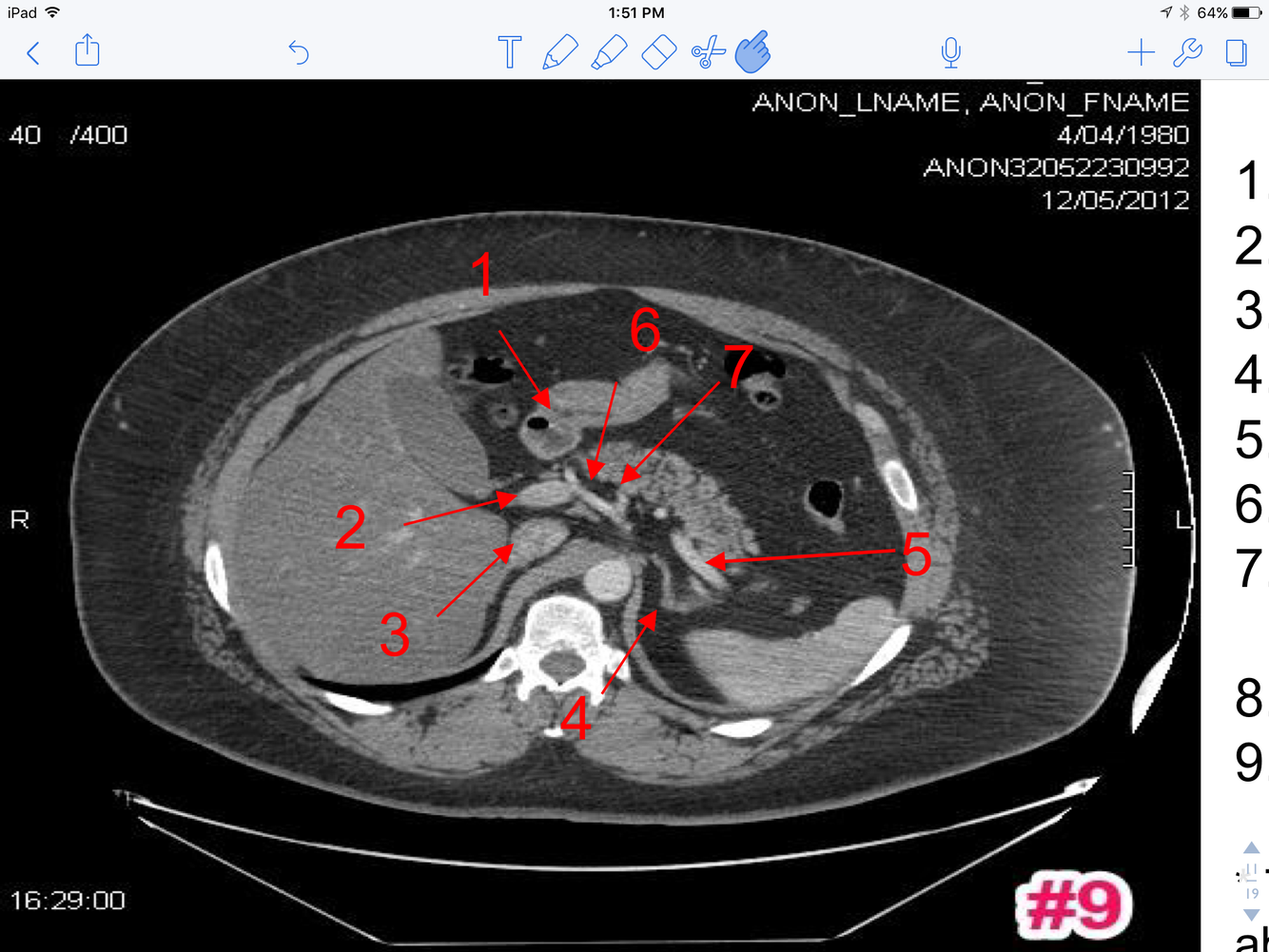

Question 9

Answer 9

1. First part of duodenum (cap or bulb)
2. Portal vein
3. Inferior Vena Cava
4. Lt. Adrenal Gland
5. Splenic vein
6. Common Hepatic Artery
7. Splenic Artery

Question 10

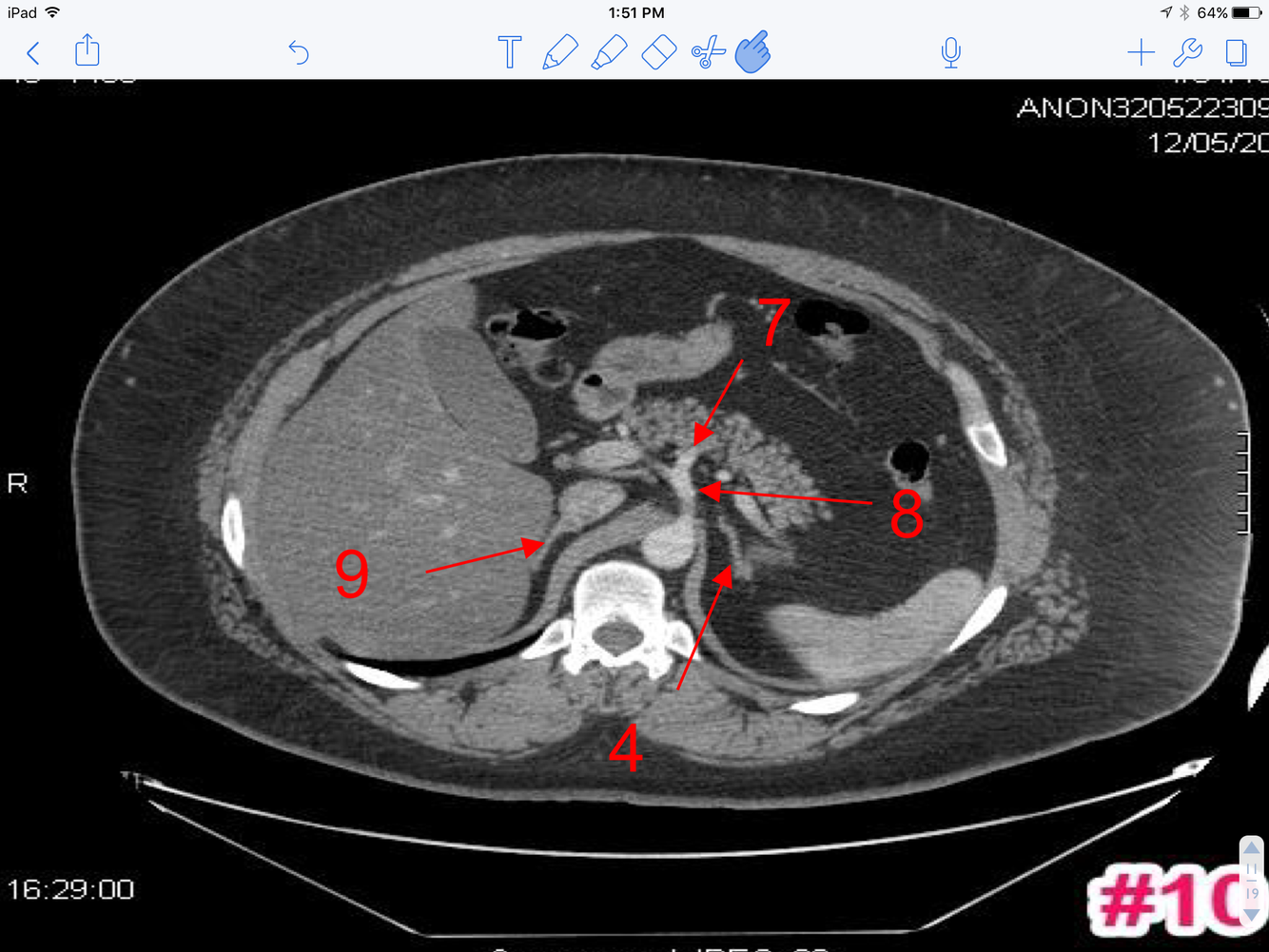

Answer 10

4. Lt Adrenal Gland
5. Splenic Artery
6. Celiac axis (trunk)
7. Rt. Adrenal

Question 11

Answer 11

1. Fundus of the gallbladder
2. Uncinate process of pancreas
3. Portal Vein
4. Splenic Vein
5. Upper Pole of Lt Kidney
6. Superior mesenteric artery

Question 12

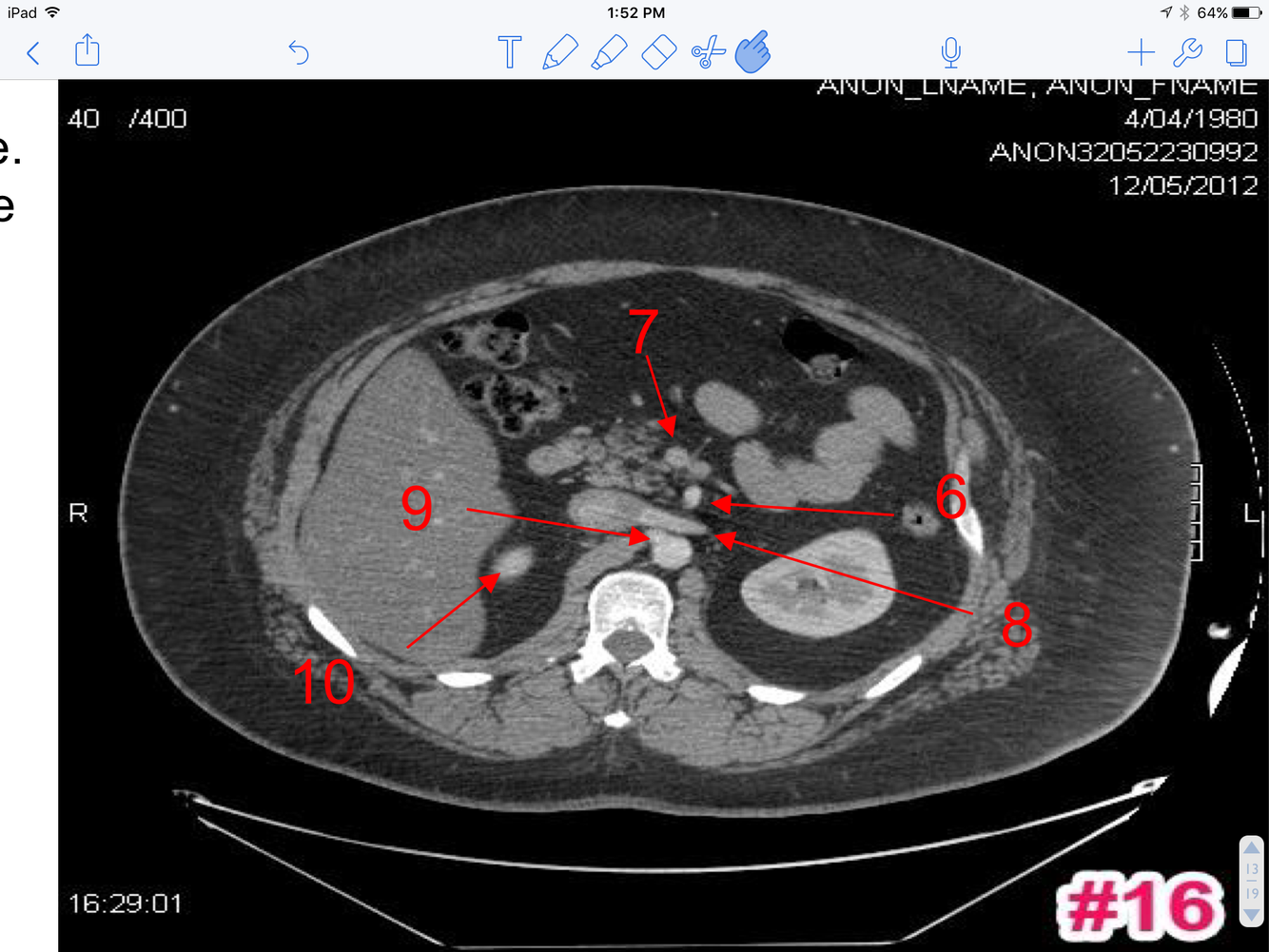

Answer 12

6. Superior mesenteric artery
7. Superior mesenteric vein
8. Lt. renal vein
9. Rt. renal artery
10. Upper pole right kidney

Question 13

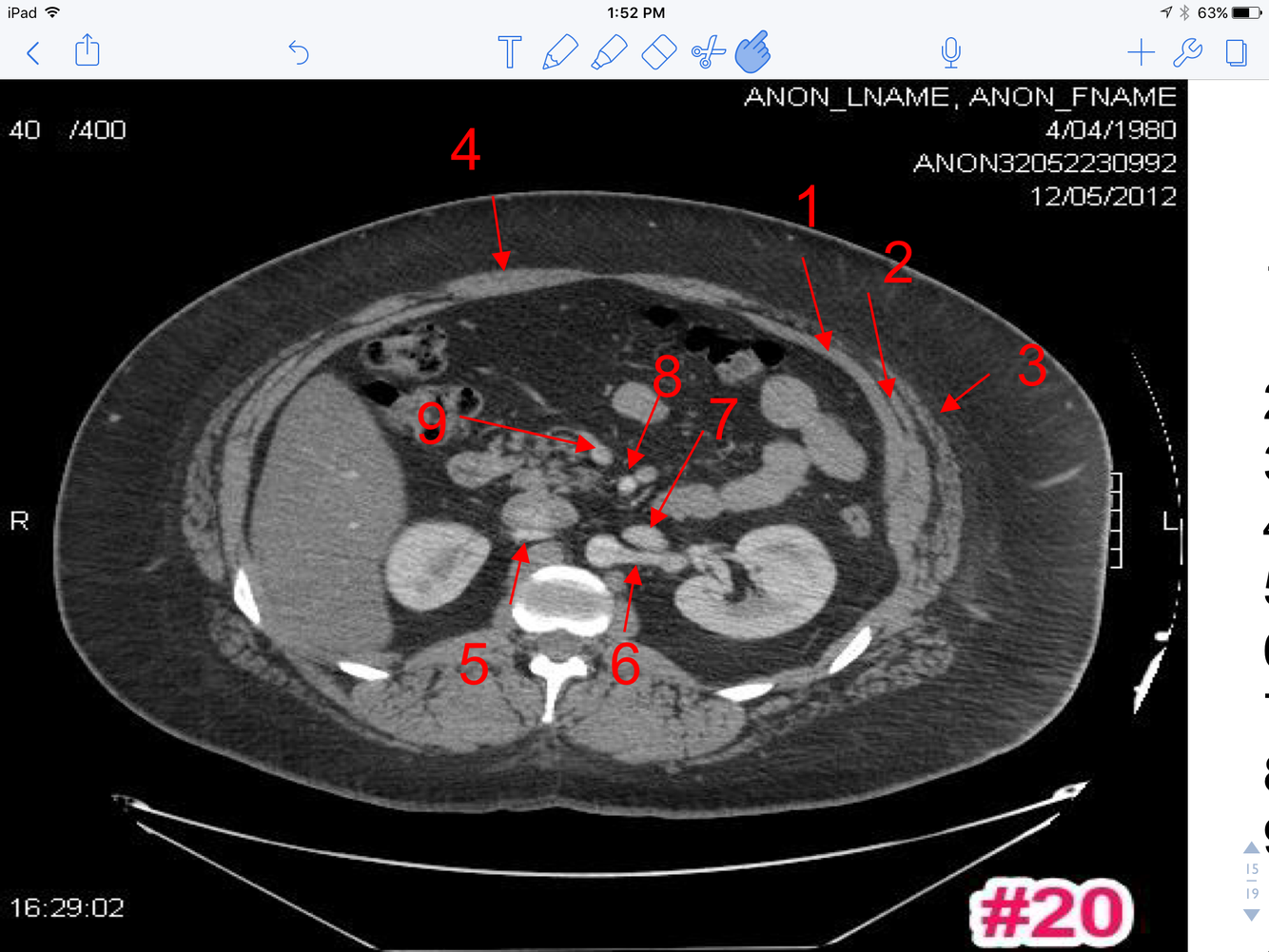

Answer 13

1. Transversus abdominus muscle
2. Lt. Internal abdominal oblique M
3. Lt. External abdominal oblique M
4. Rectus Abdominus
5. Rt. Renal A
6. Lt. Renal A
7. Lt. Renal V
8. Superior mesenteric A
9. Superior mesenteric V

Question 14

Answer 14

5. Rt. renal A
6. Lt. renal V
7. Superior mesenteric A
8. Superior mesenteric V
9. Transverse colon
10. Inferior Vena Cava
11. Abdominal Aorta

Question 15

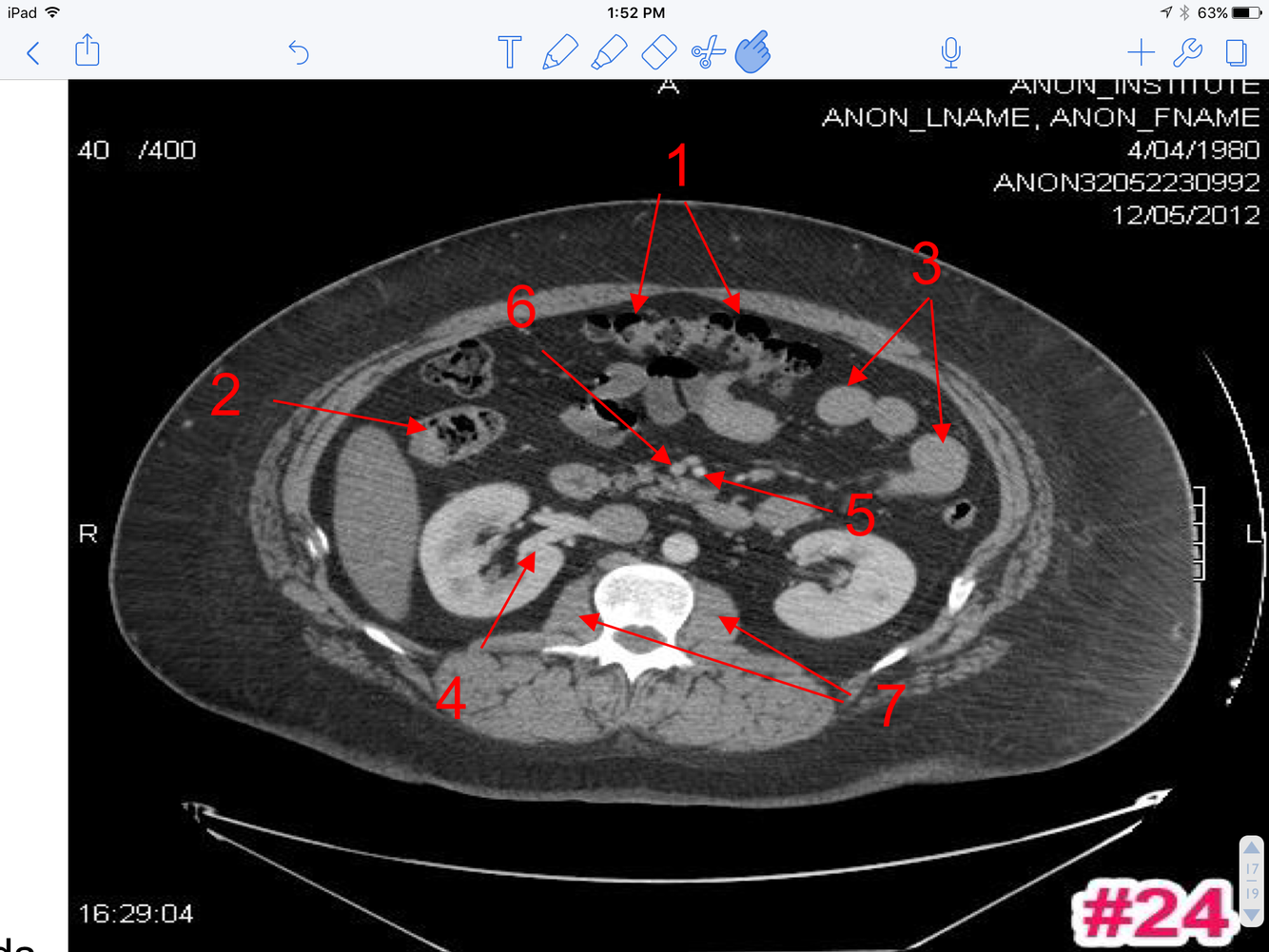

Answer 15

1. Transverse colon
2. Ascending colon
3. Loops of small bowel
4. Rt. renal V
5. Superior mesenteric A
6. Superior mesenteric V
7. Psoas major M

Question 16

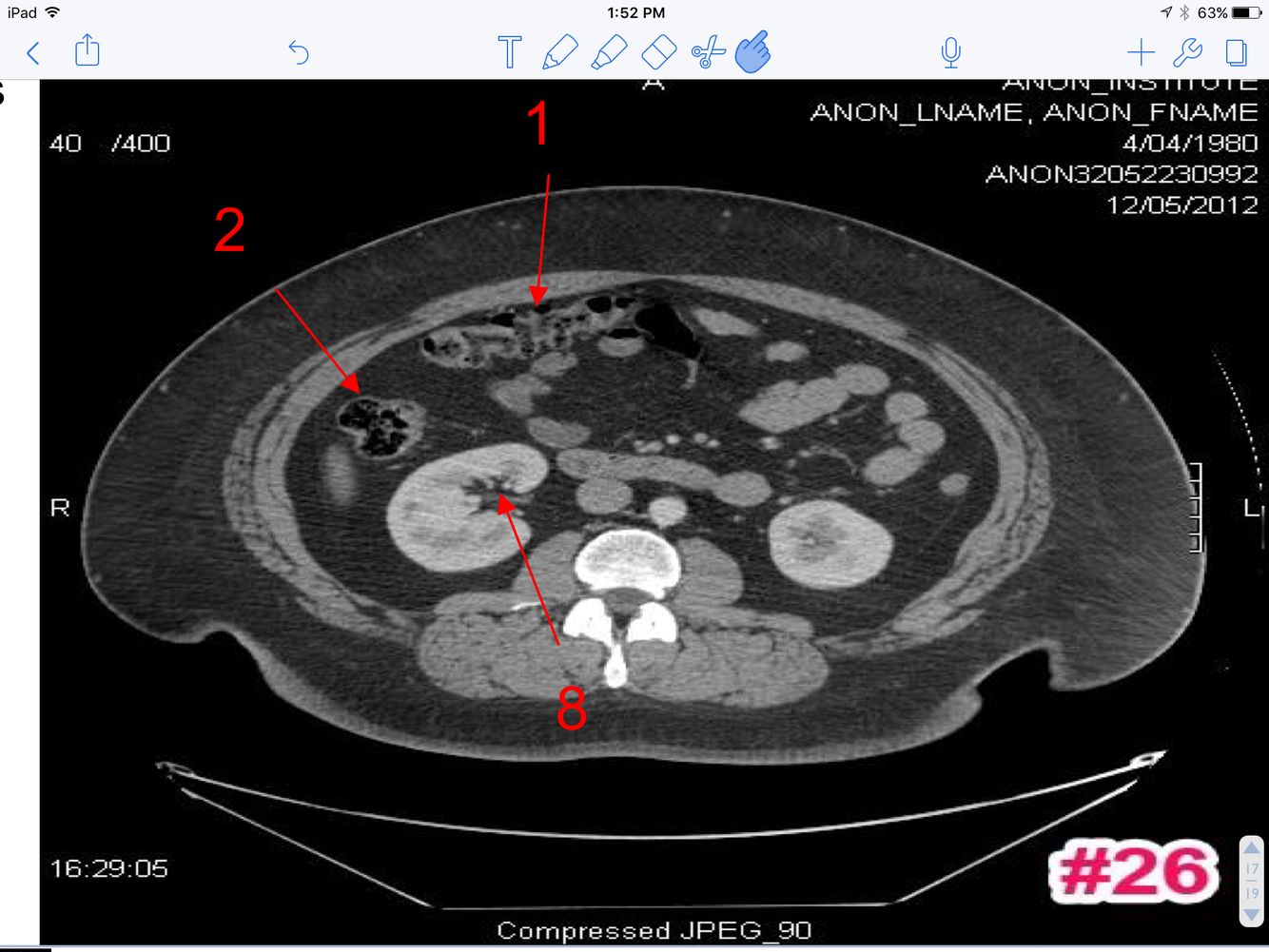

Answer 16

1. Transverse colon
2. Ascending colon
3. Rt renal pelvis

Question 17

Answer 17

1. Inferior mesenteric A*

*very small and can just been seen coming off the

abdominal aorta

2. Rt. ureter

Question 18

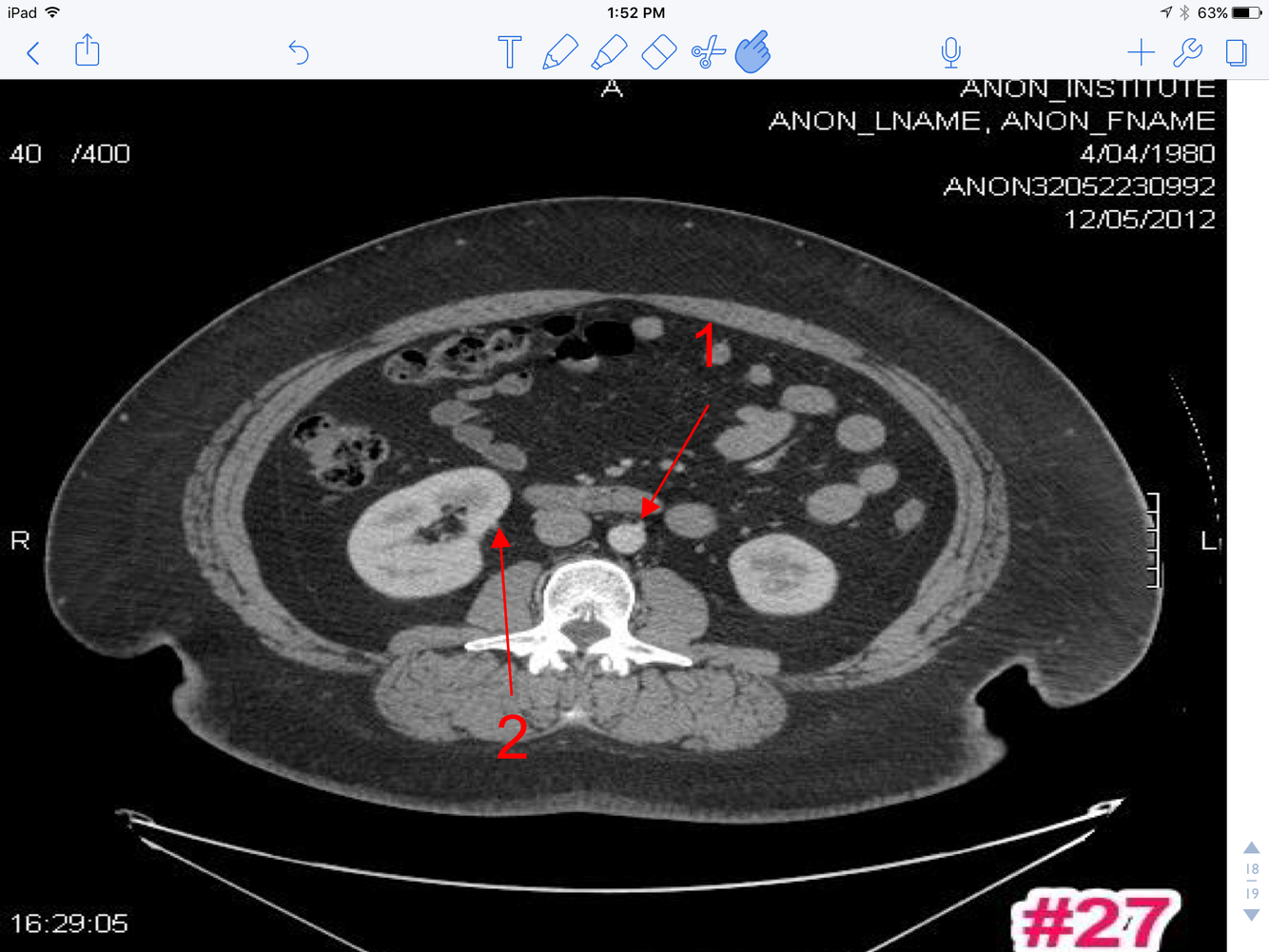

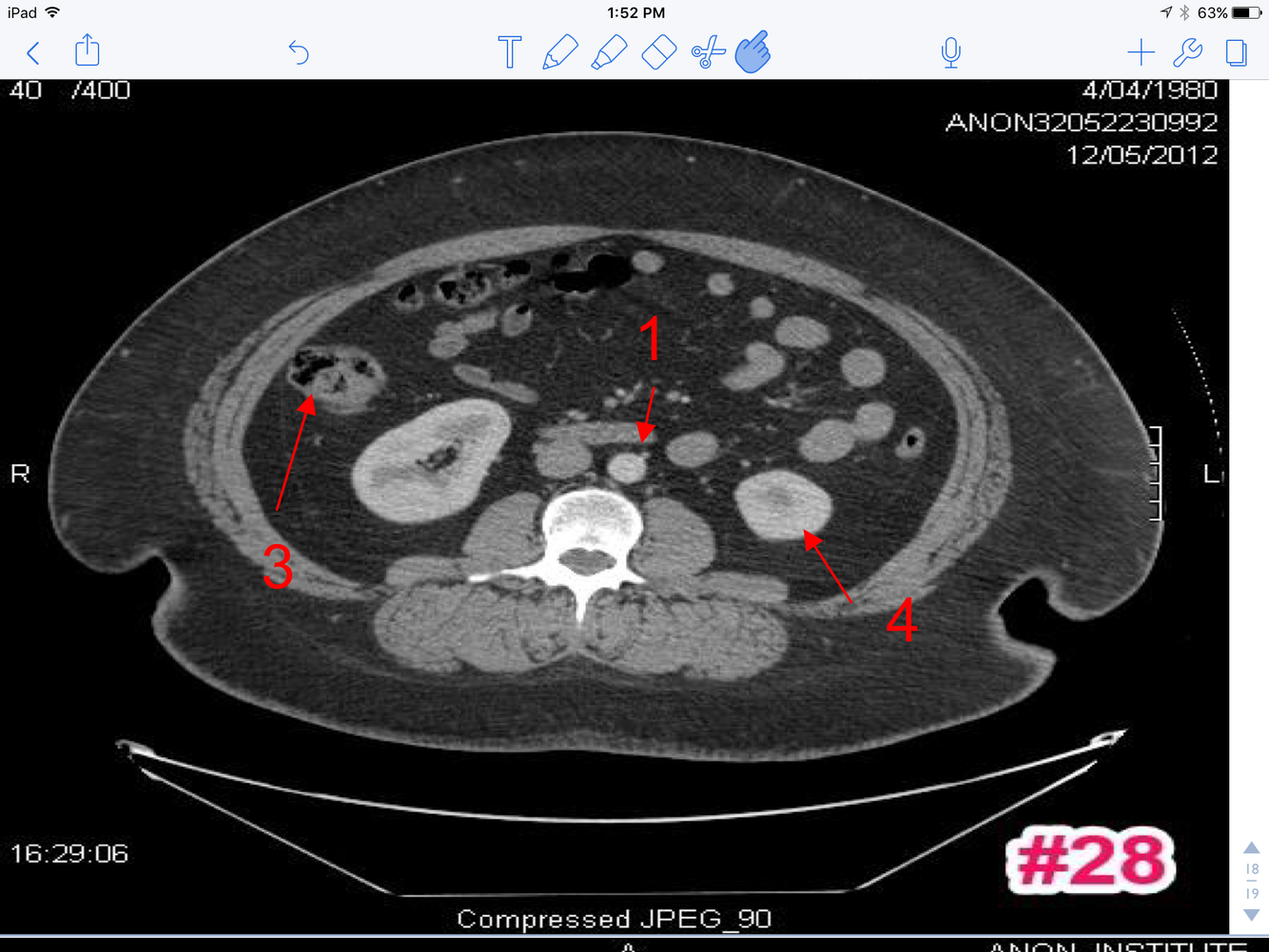

Answer 18

1. Inferior mesenteric A
2. Cecum of colon
3. Lower pole of the Lt. kidney
