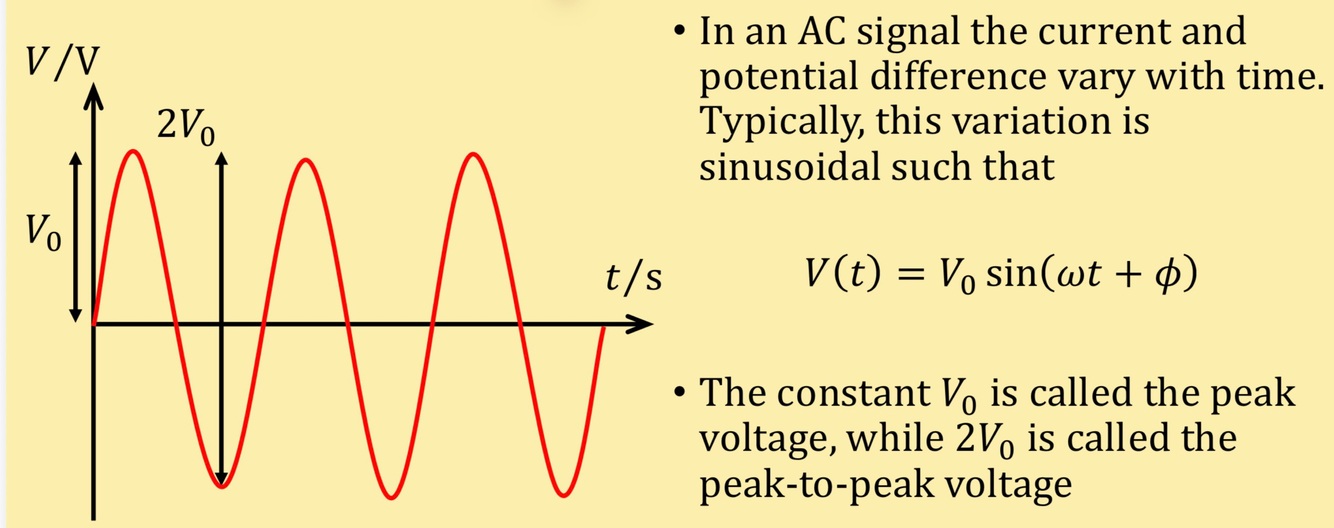

Alternating Current

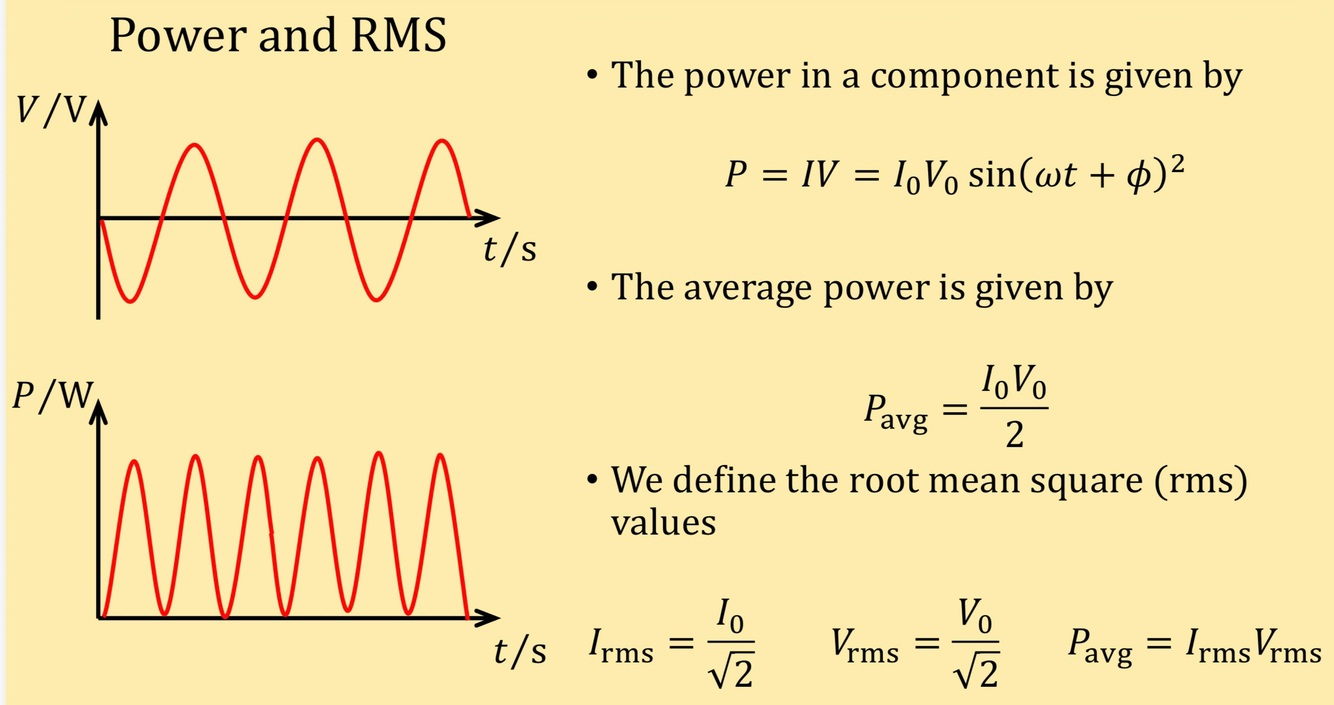

Power and RMS I&V

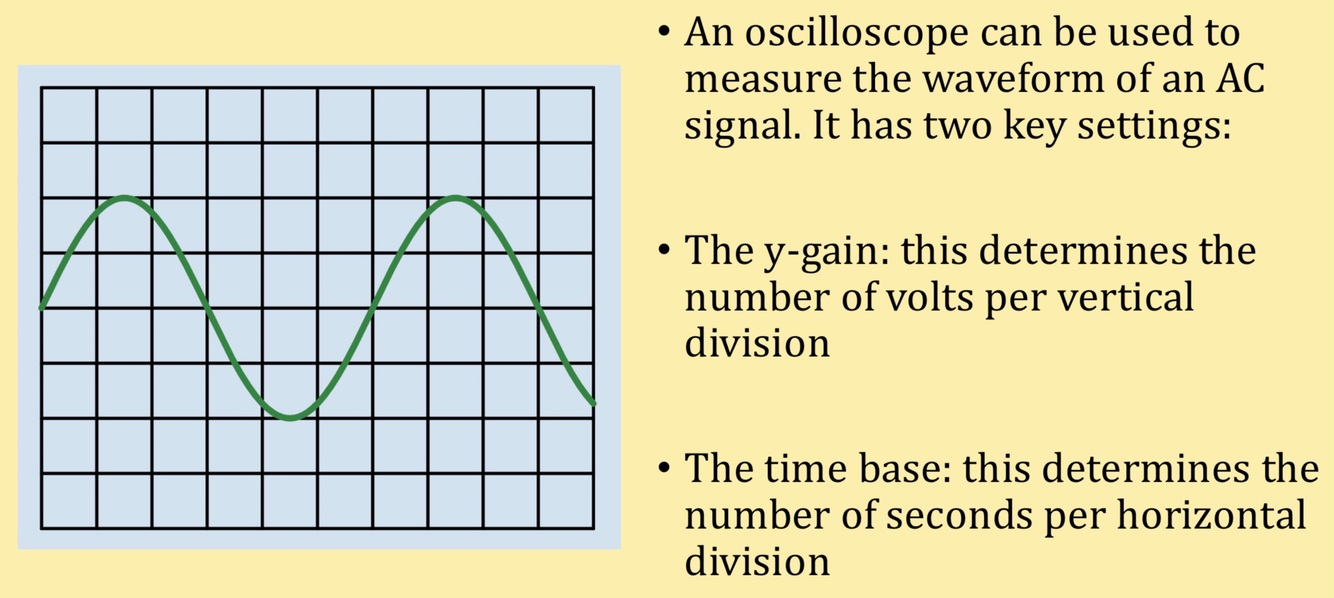

Oscilloscopes y-gain & x-gain

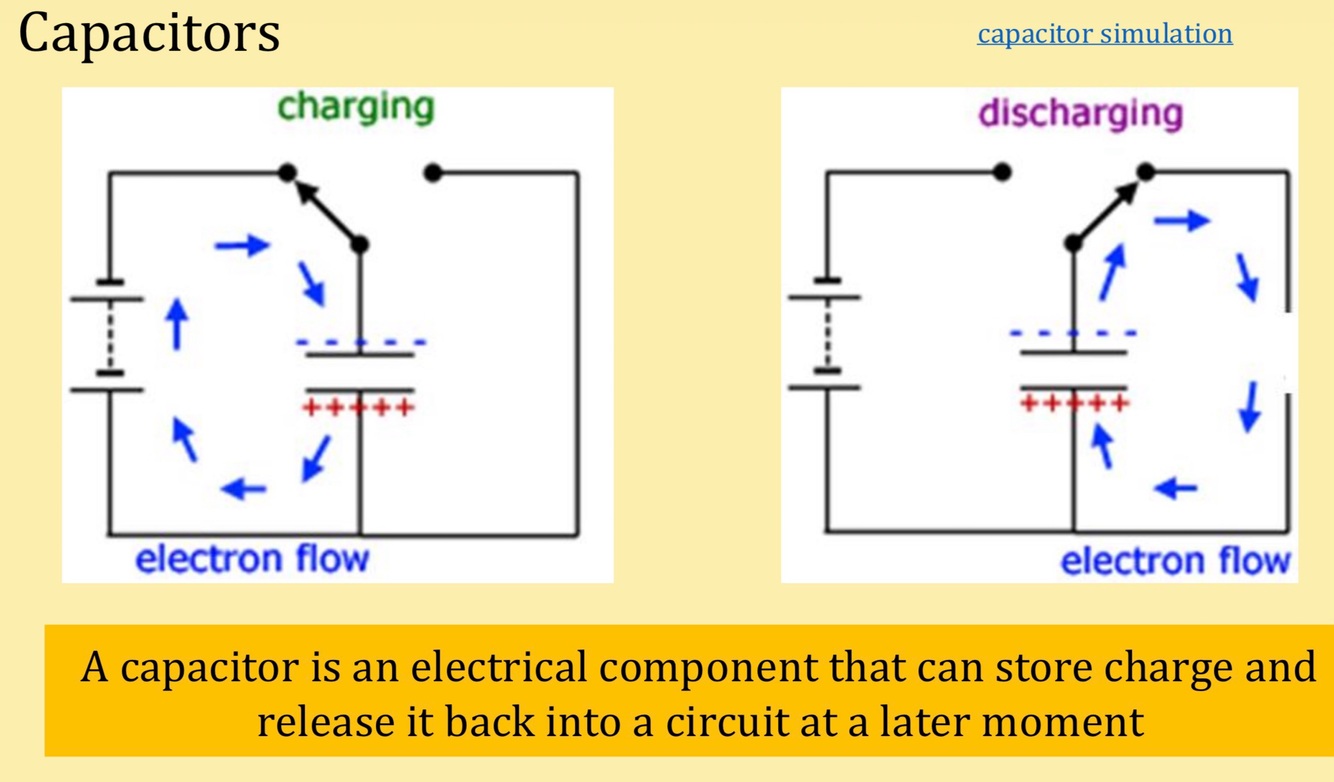

Capacitors

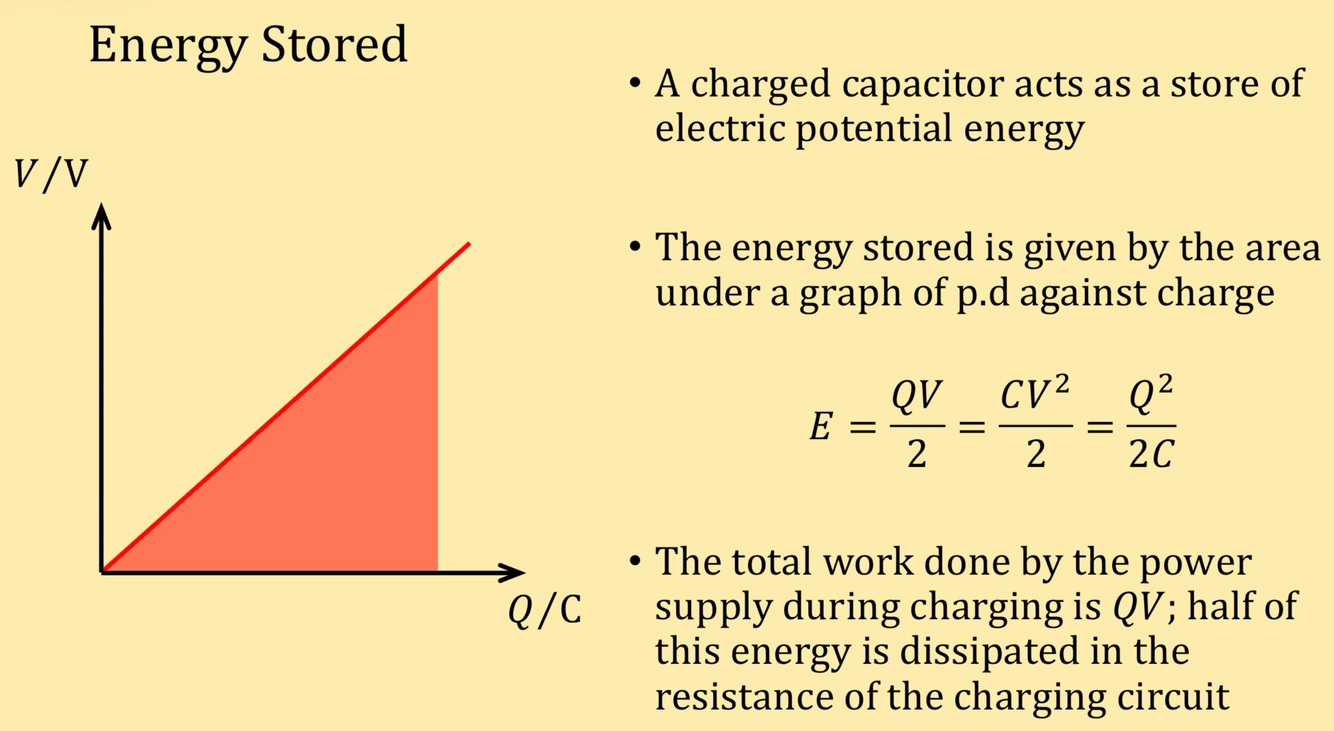

Energy Stored in a capacitor

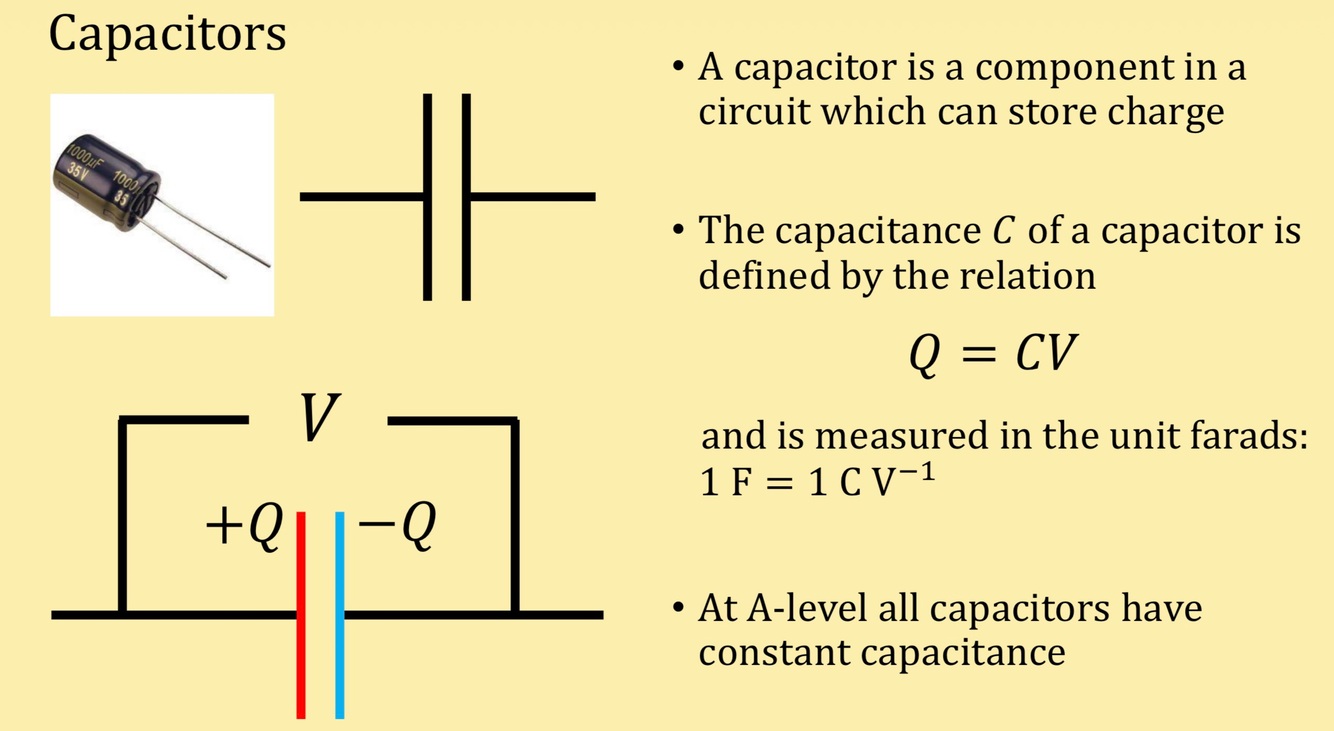

Capacitors equation

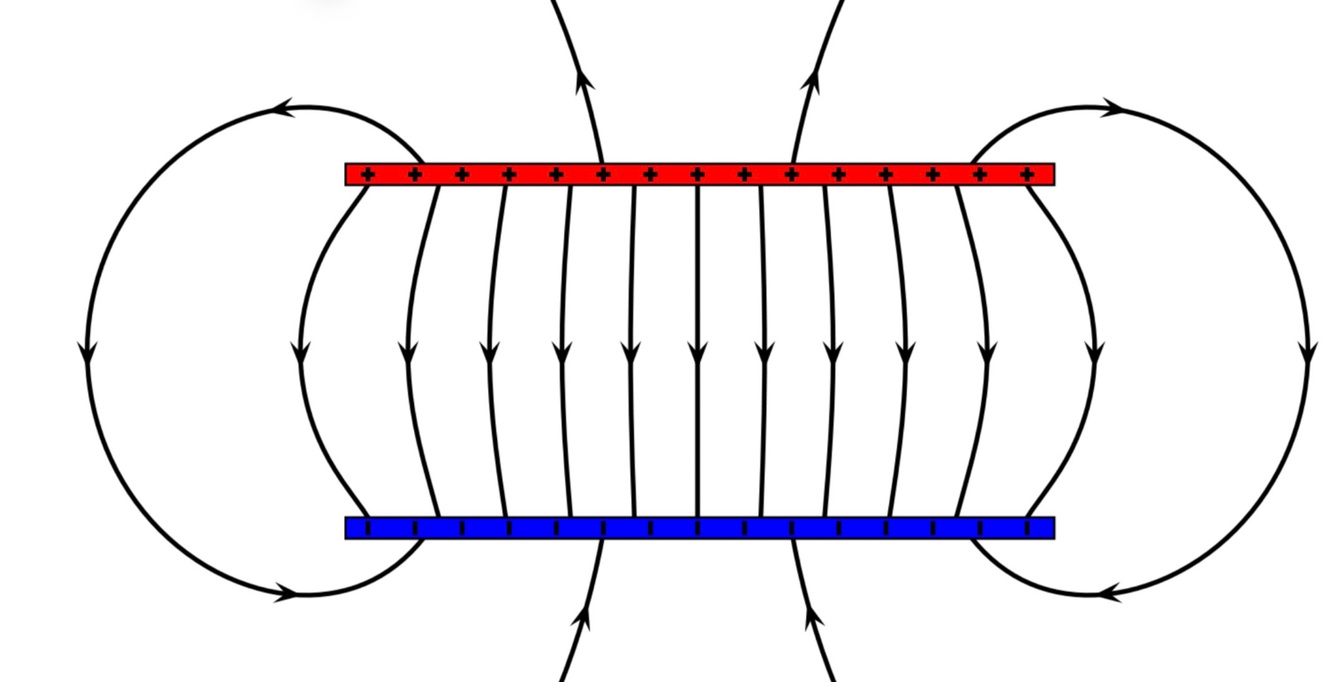

Sketch the electric field lines between a pair of
parallel plate
Capacitance of capacitors in series and parallel

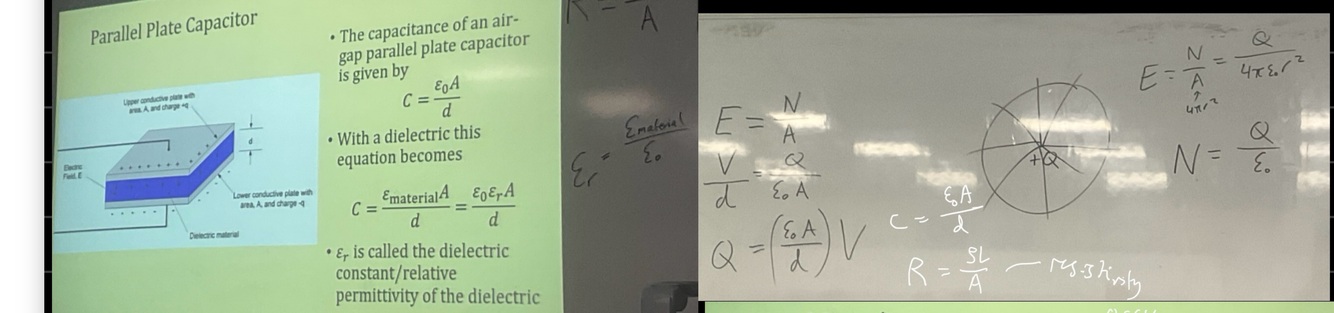

Parallel plat capacitor capacitance equation

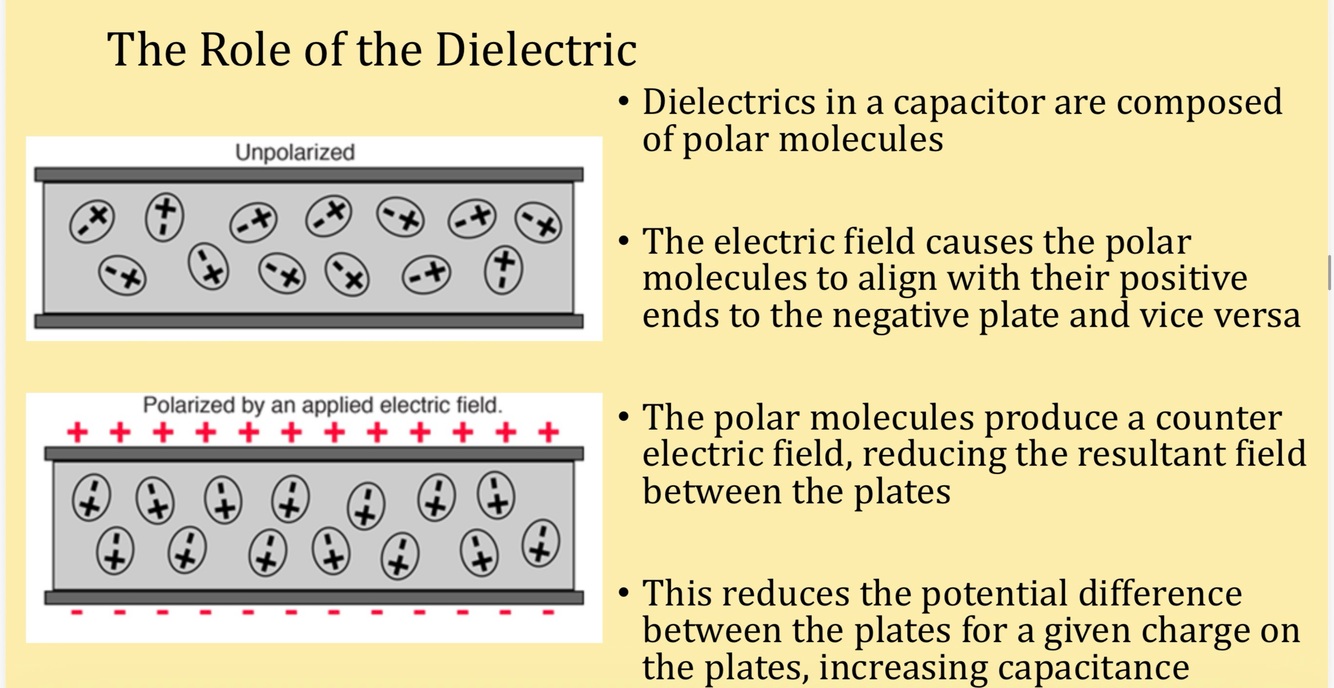

The Role of the Dielectric

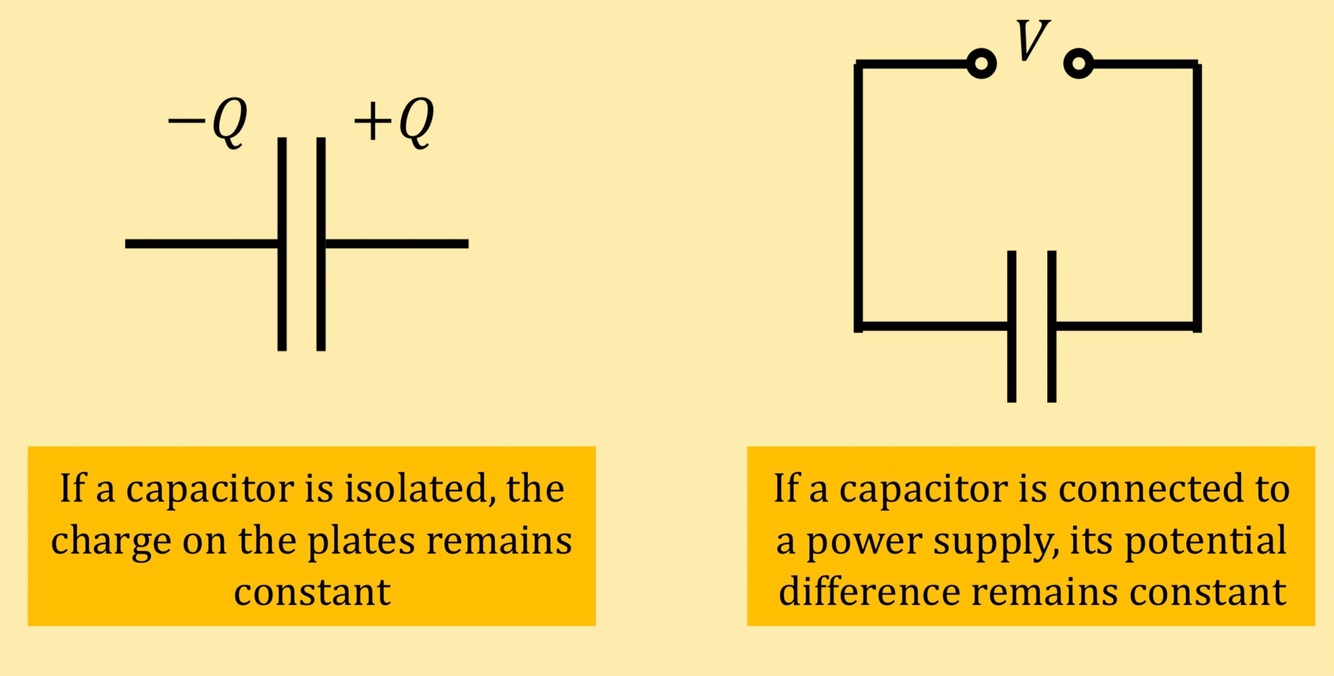

When capacitors are isolated or in a circuit what quantity of it remains constant

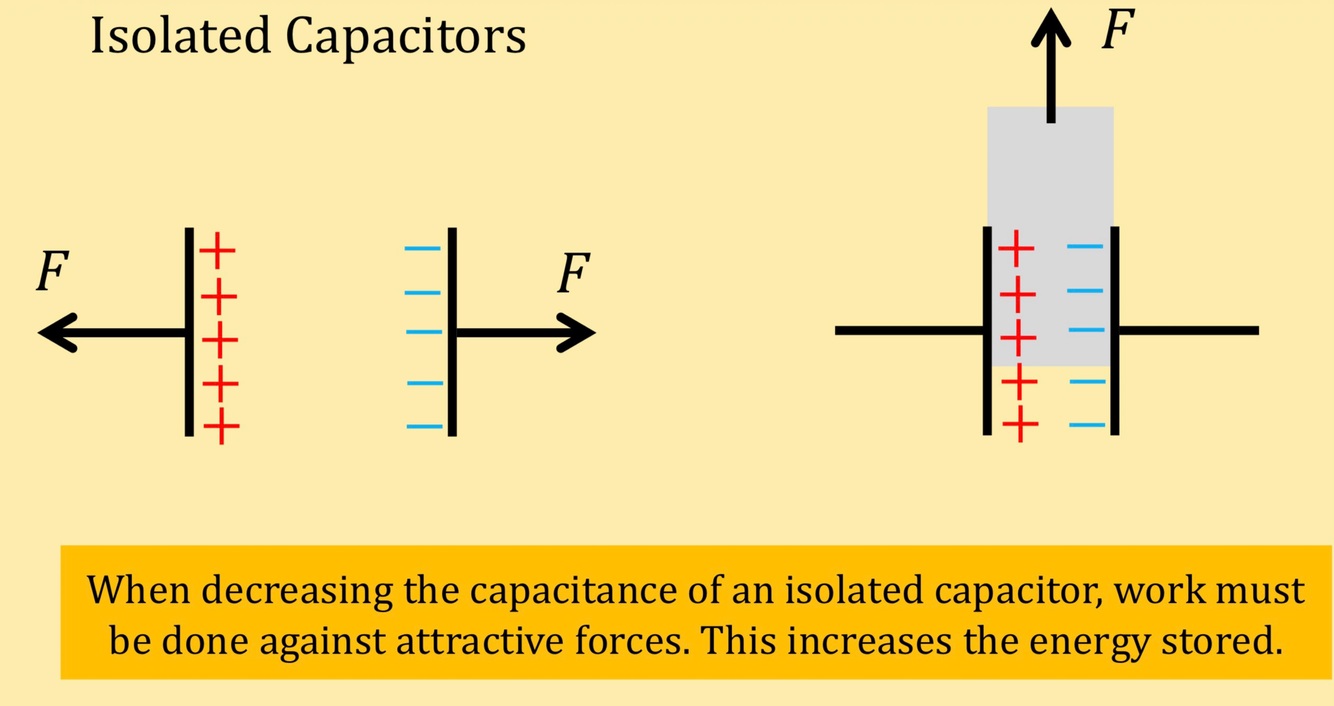

What happens to energy stored in a capacitor when its capacitance decreases for an isolated capacitor
What happens to energy stored in a capacitor when its capacitance decreases for a capacitor connected to a battery

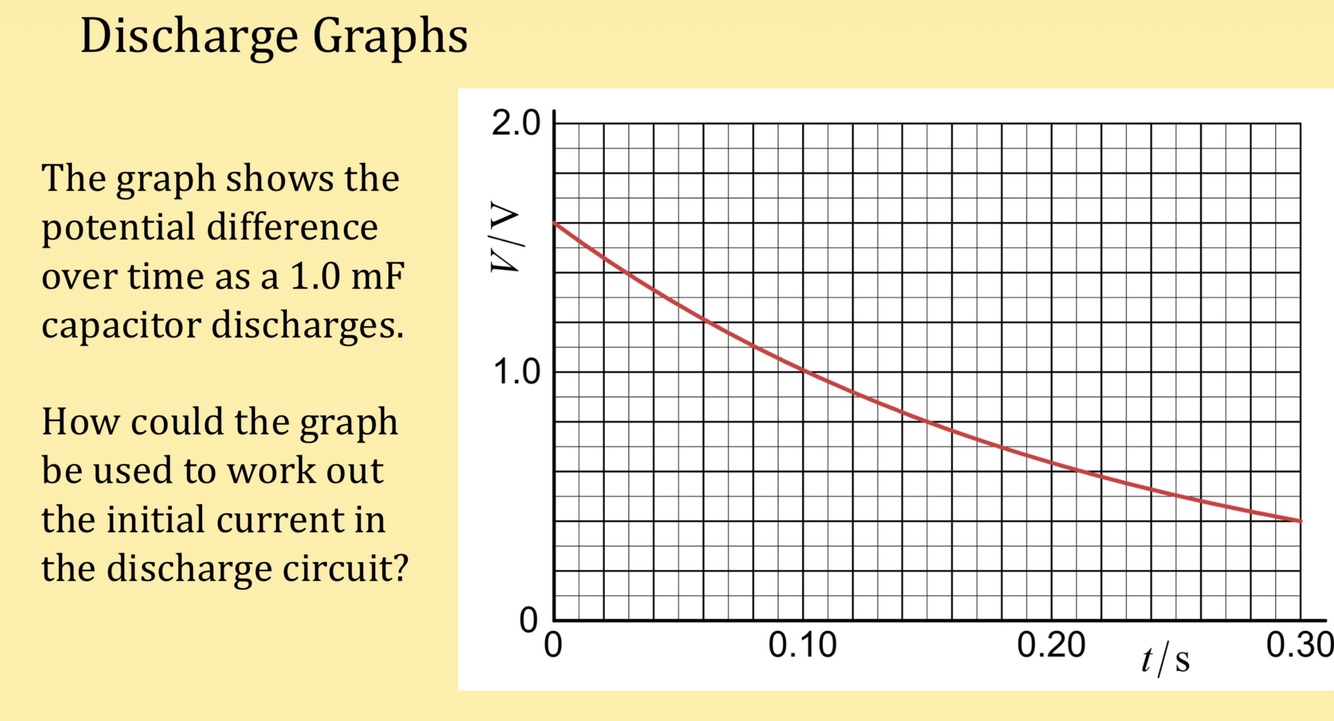

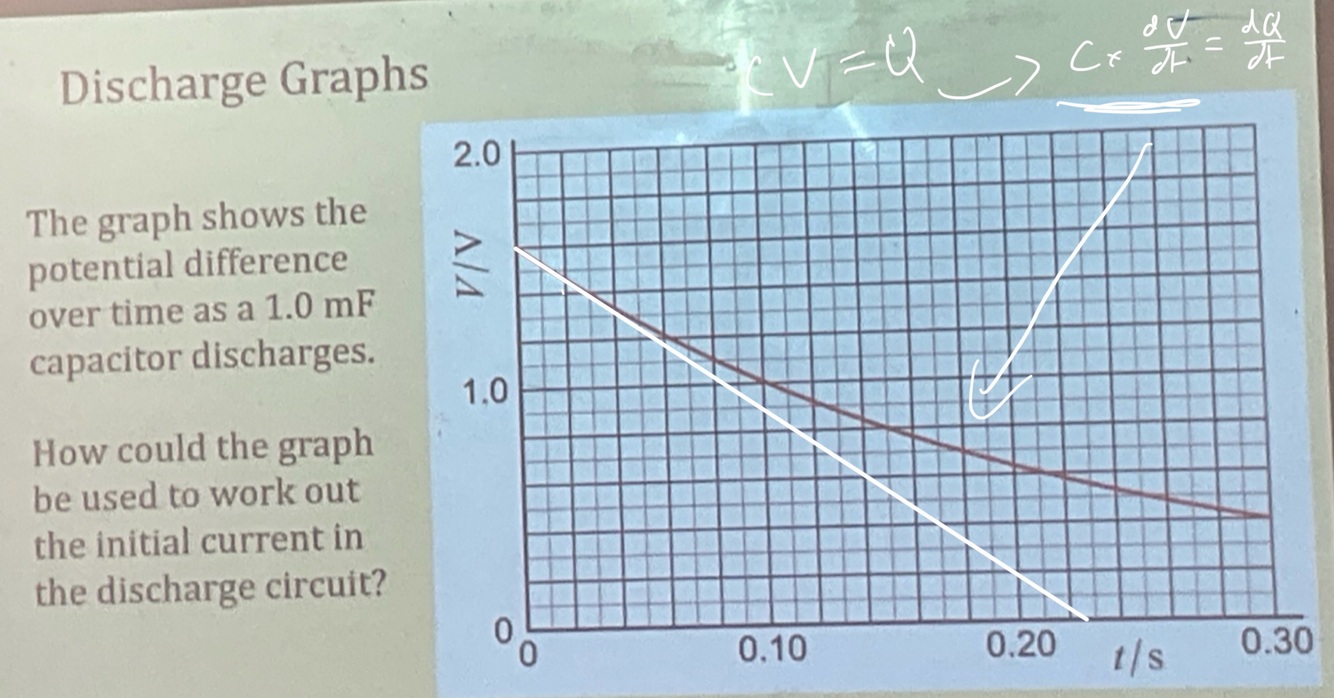

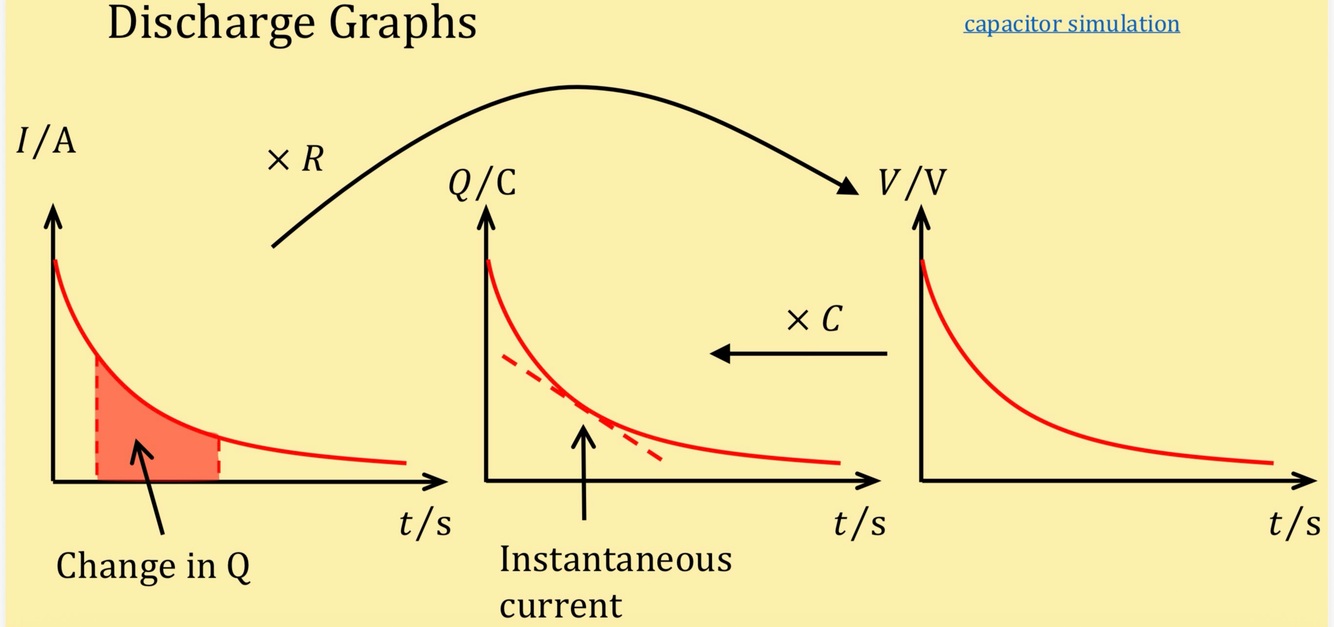

Capacitor discharge graphs
Find gradient of tangent line and multiply by capacitance
Use point t=0.1 and v=1 and v=v0e^-t/rc and using v0= 1.6 and c= 10^-3 solve for R then use I0 = Vo/R to find initial current
Q(t) for discharging capacitor

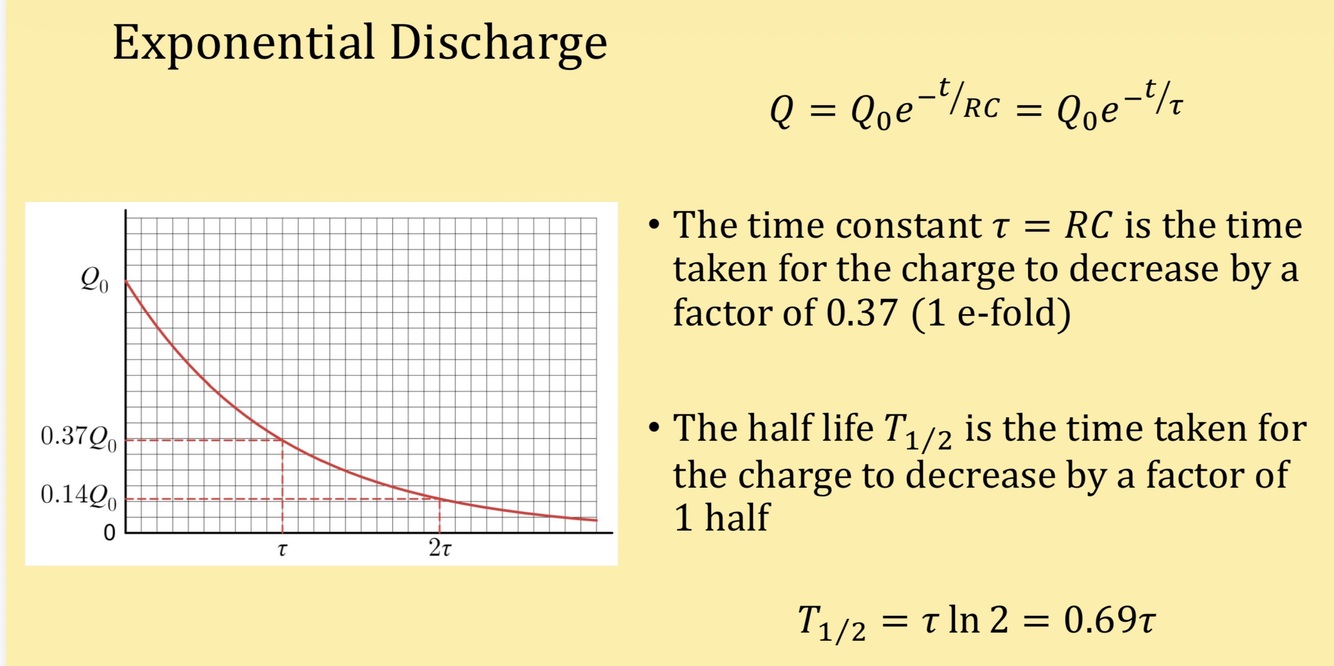

Exponential discharge time constant & half life

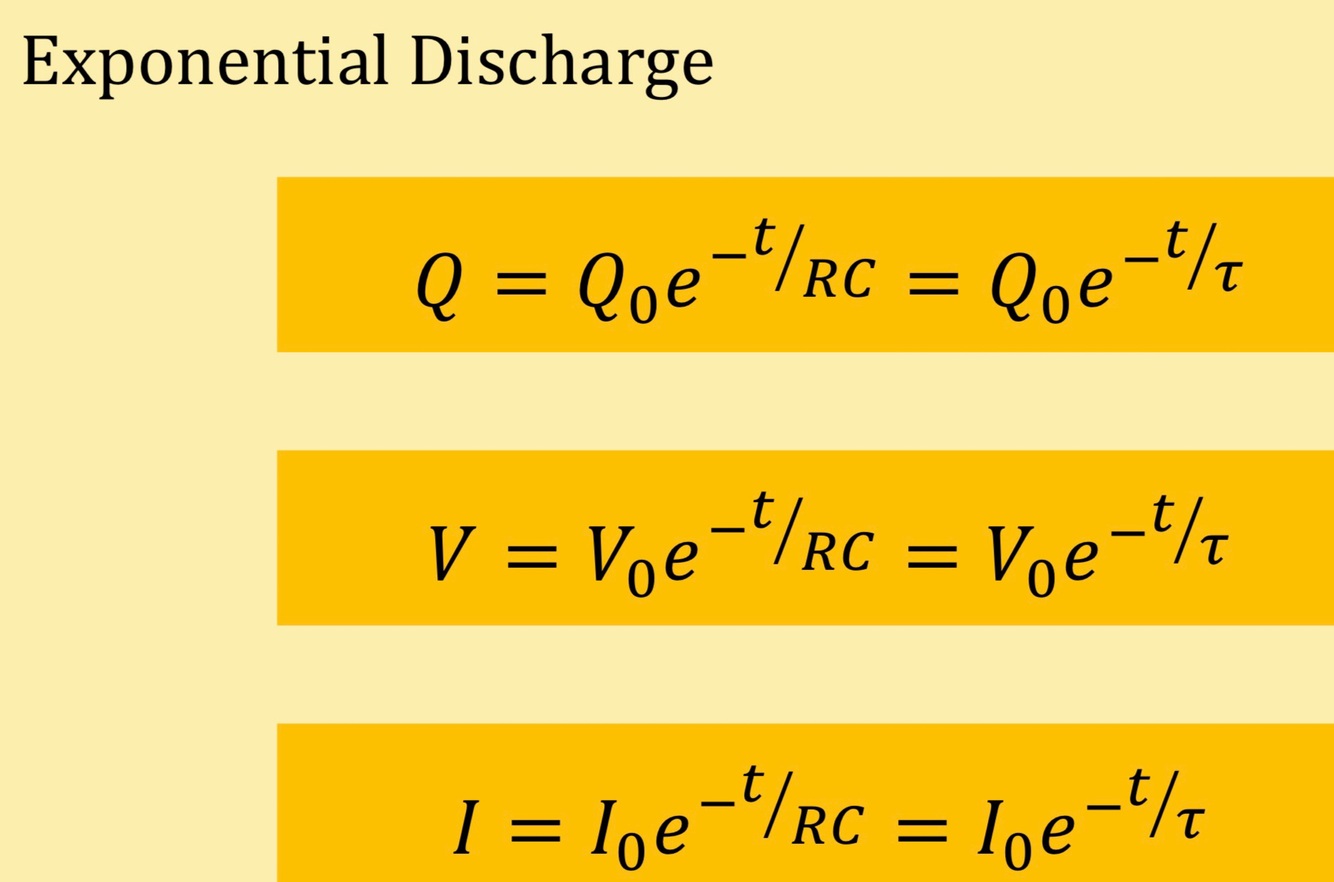

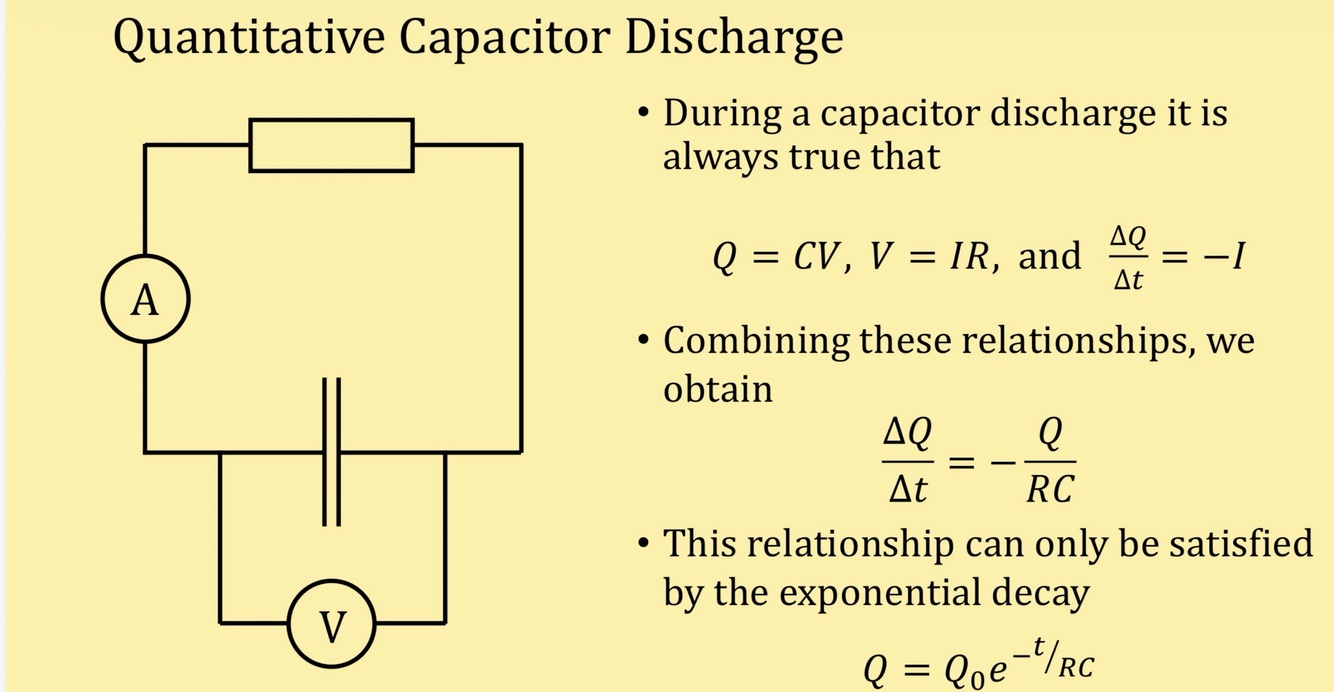

Q, v, I exponential discharge equations

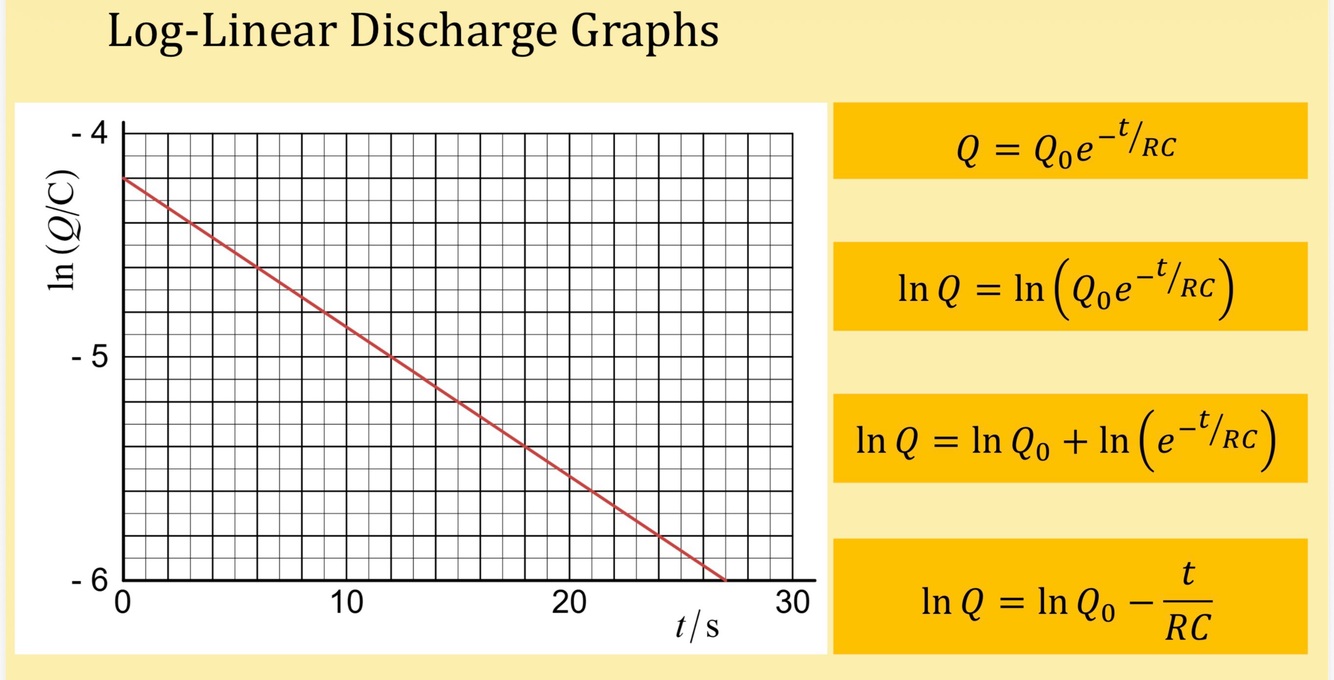

Log-Linear Discharge Graphs

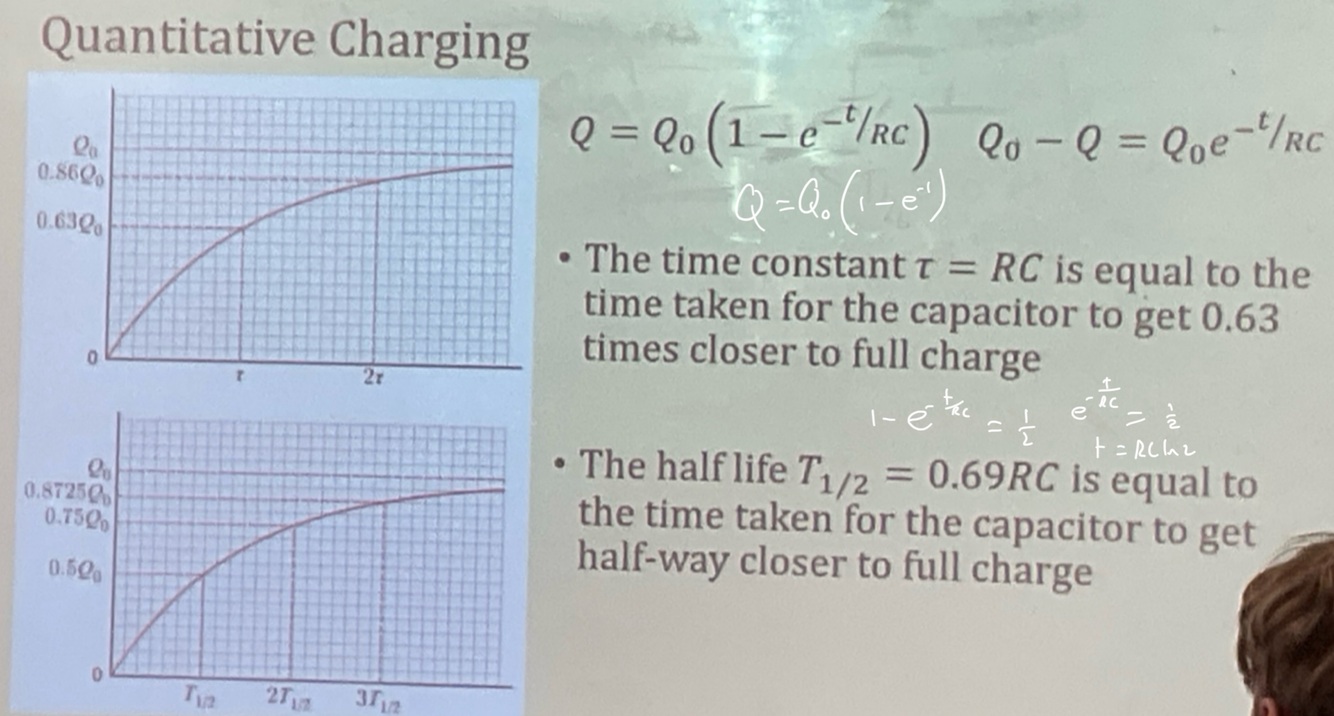

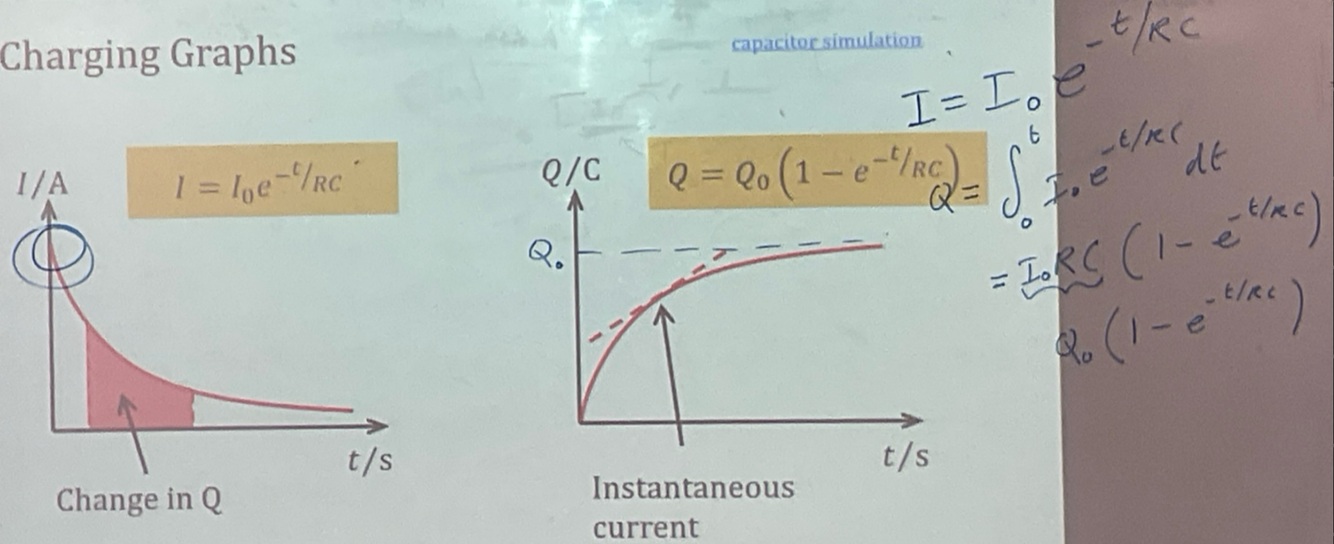

Capacitor charging graphs and equations

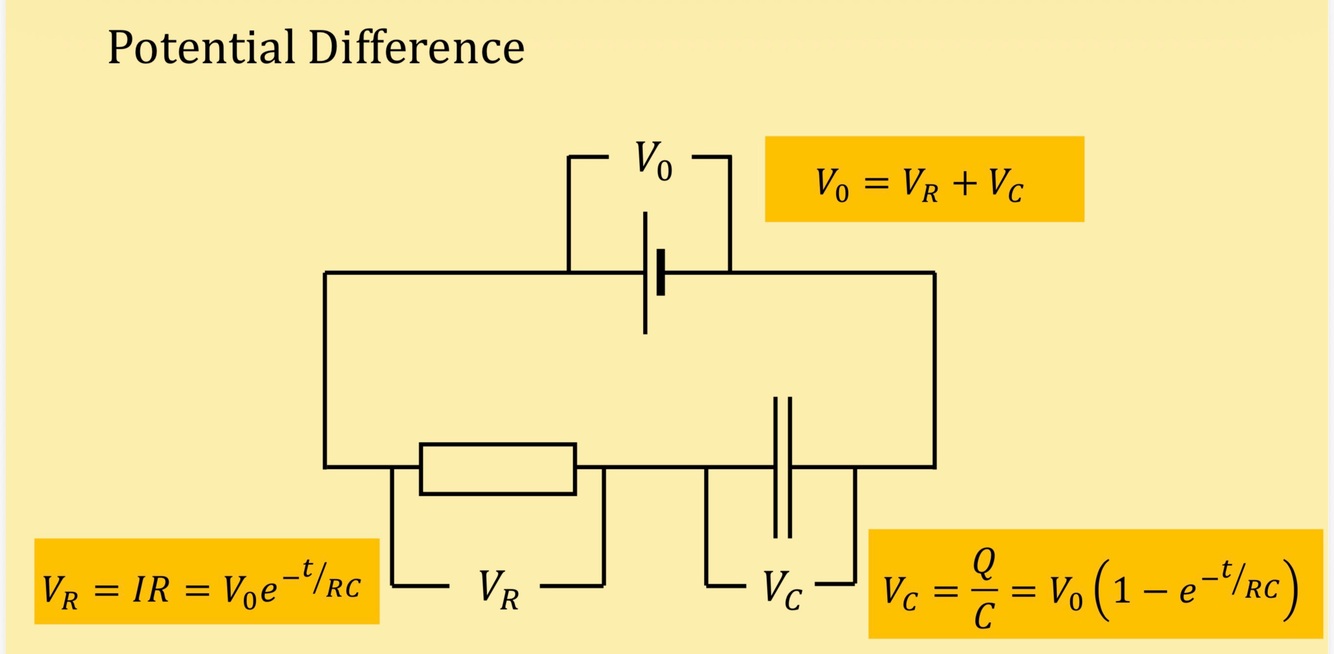

Pd across stuff in circuit with capacitor and resistor and cell
Quantitative charging time constant & half life
