ACFT - Flight Instruments Flashcards

(26 cards)

Study These Flashcards
1
Q

What are the 6 Traditional flight instruments on an A/C? (6)

A
  1. Altimeter
  2. Vertical Speed Indicator (VSI)
  3. Air Speed Indicator (ASI)
  4. Attitude Indicator/Artificial Horizon
  5. Heading indicator/Gyrosyn compass
  6. Turn Co-ordinator
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
2
Q

Which 3 instruments are from air pressure / altitude? (3)

A
  1. Altimeter
  2. Vertical Speed Indicator (VSI)
  3. Air Speed Indicator (ASI)
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
3
Q

Which 3 instruments are Gyroscopic? (3)

A
  1. Heading indicator/Gyrosyn compass
  2. Attitude Indicator/Artificial Horizon
  3. Turn Co-ordinator

”HAT”

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
4
Q

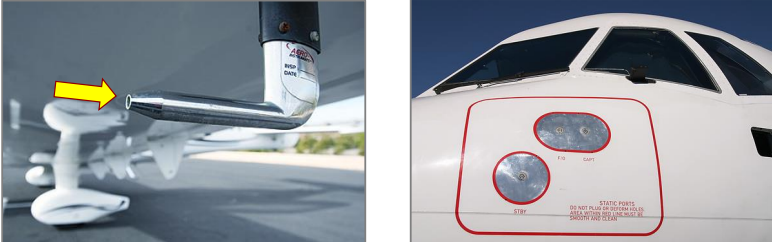

How does a Pitot system work? (5)

A
  1. Uses atmospheric pressure
  2. Senses Dynamic & Static air pressure
  3. Works out the variation with altitude
  • Dynamic air - When the A/C is moving forwards
  • Static air - is not in the direct flow of air over the aircraft in flight
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
5
Q

What is an Altimeter? (1)

A

An instrument used to measure the altitude of an aircraft above a fixed level

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
6
Q

What can the implications be of an incorrect Altimeter subscale? (3)

A

Mis-setting the subscale will cause the instrument to under or overread

Higher pressure on subscale - Altimeter to Overread
Lower pressure on subscale - Altimeter to Underread

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
7
Q

What is the VSI? (2)

A

VSI - Vertical Speed Indicator

  1. Measured in 100 fpm intervals
  2. Always a slight lag in the instrument and between six and nine seconds of steady climb, descent or level flight must elapse before an accurate reading is displayed
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
8
Q

What is ASI?

A

ASI - Air Speed Indicator

Measures the difference between STATIC pressure and the DYNAMIC pressure received from an aircraft’s pitot tube

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
9
Q

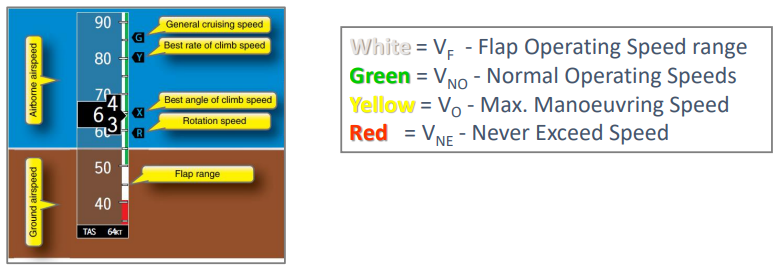

What are the V-Speeds for Airspeed Indicators? (4)

A
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
10
Q

What types of ASI errors are there? (4)

A
  1. Compression errors
  2. Instrument error
  3. Position errors
  4. Density errors
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
11
Q

What types of Pitot system blockages are there? (2)

A
  1. A Static blockage - Overread in Descent
  2. A Pitot blockage - Underread in Descent

“PUD - SOD”

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
12
Q

Why do Aircraft use Mach Number? (2)

A
  • In order to overcome the problem of the
    difference between IAS and TAS at high altitudes
  • Expressed as fractions (or multiples) of the Local Speed of Sound
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
13
Q

What errors can Mach meters suffer from? (2)

A
  1. Instrument error
  2. Pressure error
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
14
Q

What are the 2 important properties of a Gyroscope? (2)

A

Inertia - The tendency of the gyro to keep a fixed position relative to space, often referred to as rigidity in space

Precession - When subjected to a force, the gyro acts as though the force has been applied at 90 degrees to the rotor, at a position 90 degrees forward in the direction of rotation of the rotor

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
15
Q

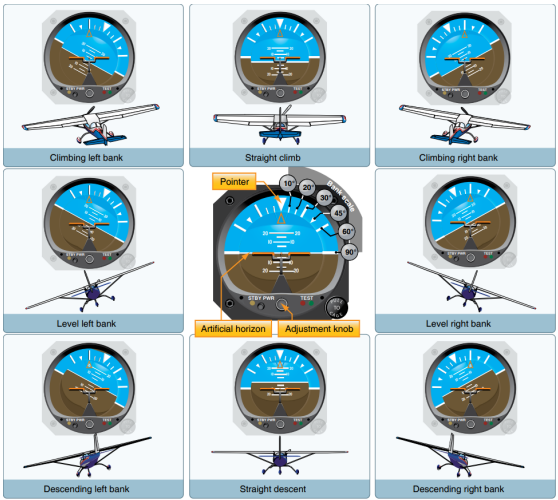

Positions of an A/C vs Attitude Indicator diagram

A
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
16
Q

What will a failure of a vacuum system cause? (1)

Study These Flashcards
A

The Attitude Indicator to fail

17
Q

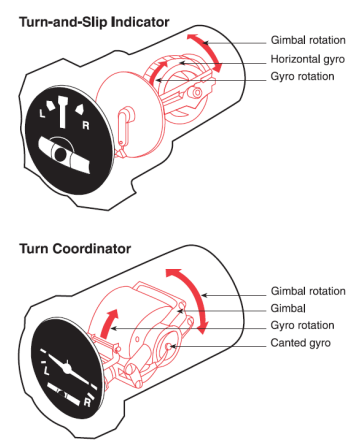

Turn & Turn-and-Slip indicators diagram

18
Q

What is a Rate turn? (1)

Study These Flashcards
A

3° /sec
(360° in 2 mins)

19
Q

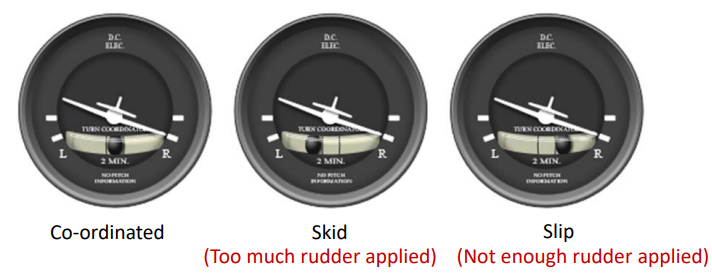

Turns using a Turn & Turn-and-Slip indicator diagram

20
Q

What is a Heading Indicator? (3)

Study These Flashcards
A
  • It is tied to the vertical/yaw axis to indicate the aircraft’s heading on a rotating compass card
  • Remains aligned with the Yaw axis
  • Earth’s rotation (approx. 15° per hour) will cause the reading to gradually drift
21
Q

Is a Magnetic Compass mandatory on an aircraft? (1)

22
Q

What types of Magnetic compass Errors are there? (3)

Study These Flashcards
A
  1. Deviation
  2. Dip
  3. Acceleration error
23
Q

What is deviation error? (1)

Study These Flashcards
A

The compass needle is affected when aircraft electrical equipment is operated and by the ferrous metallic components in the aircraft

24
Q

How are Deviation errors mitigated? (1)

Study These Flashcards
A

By calibrating the compass on a Compass Swing

25
What is **Dip error**? (1)
The compass aligns itself with the earth's magnetic field
26
What is **Acceleration error**? (2)
- This occurs during airspeed changes and is most apparent on headings of east and west - It is caused by a combination of inertia and magnetic dip
