1
Q
Minimum clearance for door?
A
32”w for less than 24”
2
Q
Min clearance for corridor?
A
36”
3
Q
Minimum t shaped for 180 turns
A
36”
4
Q

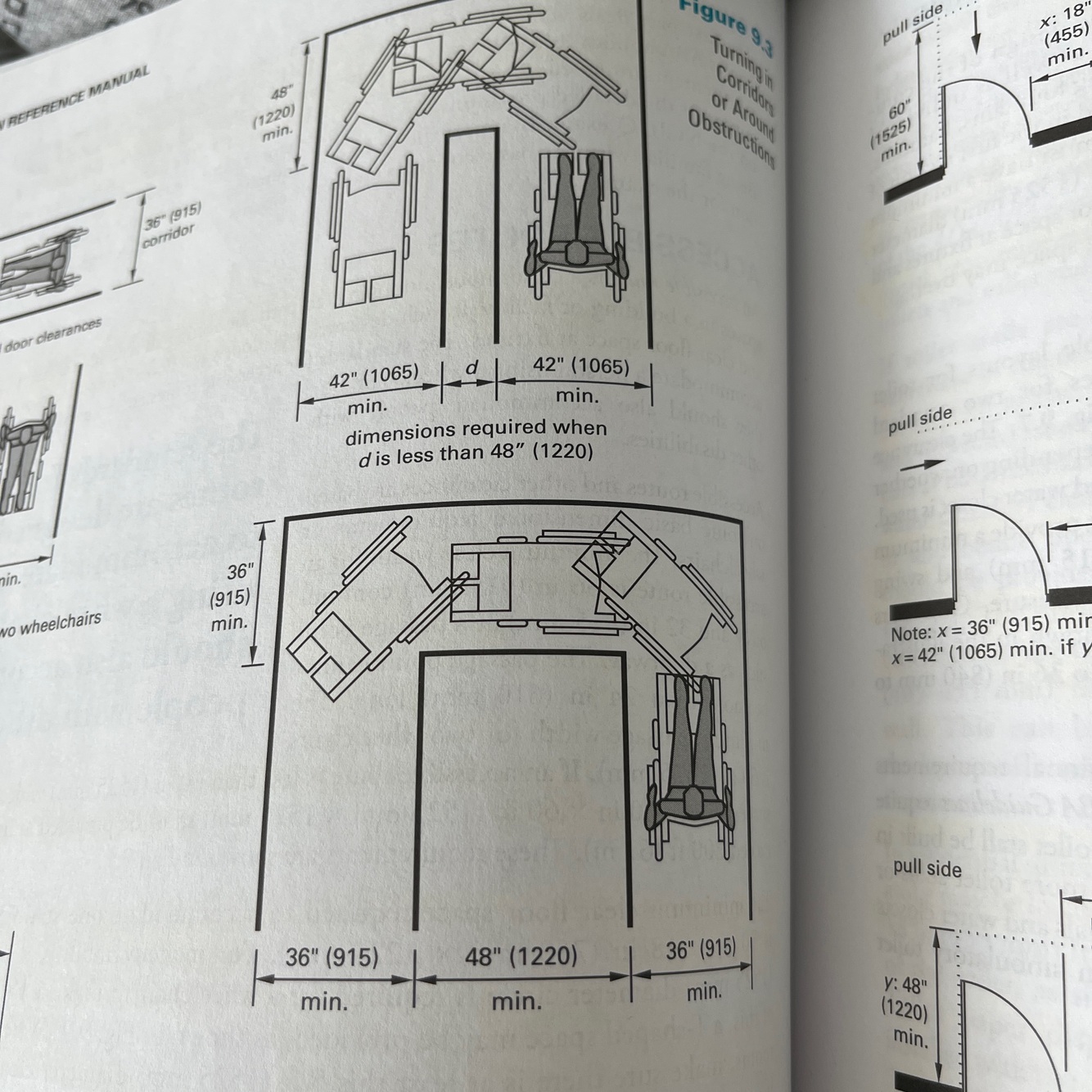

Turning around corners?
A
5
Q

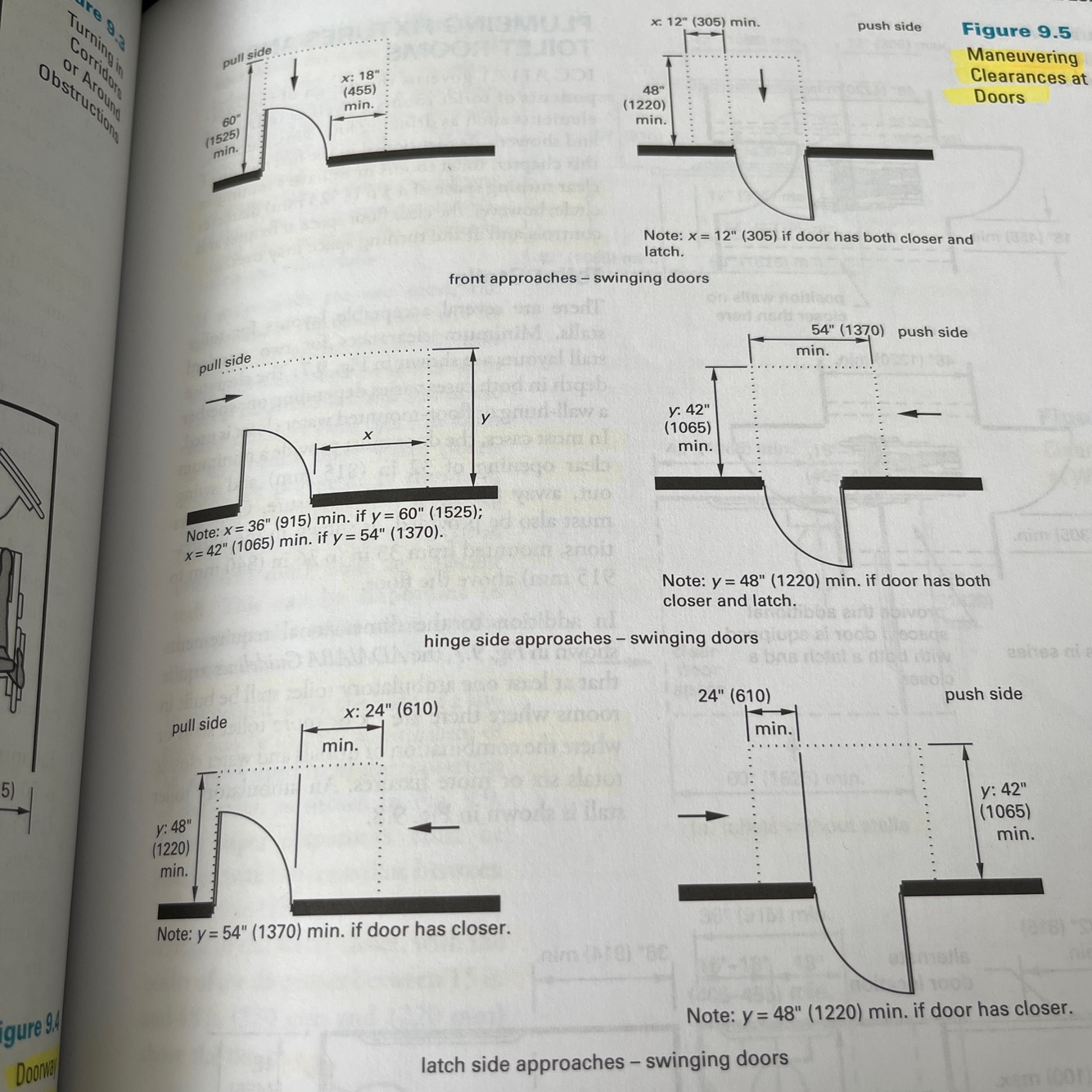

Door clearances
A
6
Q
Maximum change at threshold?
A
1/4”
7
Q
Vertical change in elevation between 1/4” & 1/2” must be…
A
Beveled
8
Q
Opening force of push or pull?
A
Max 5lbs
9
Q

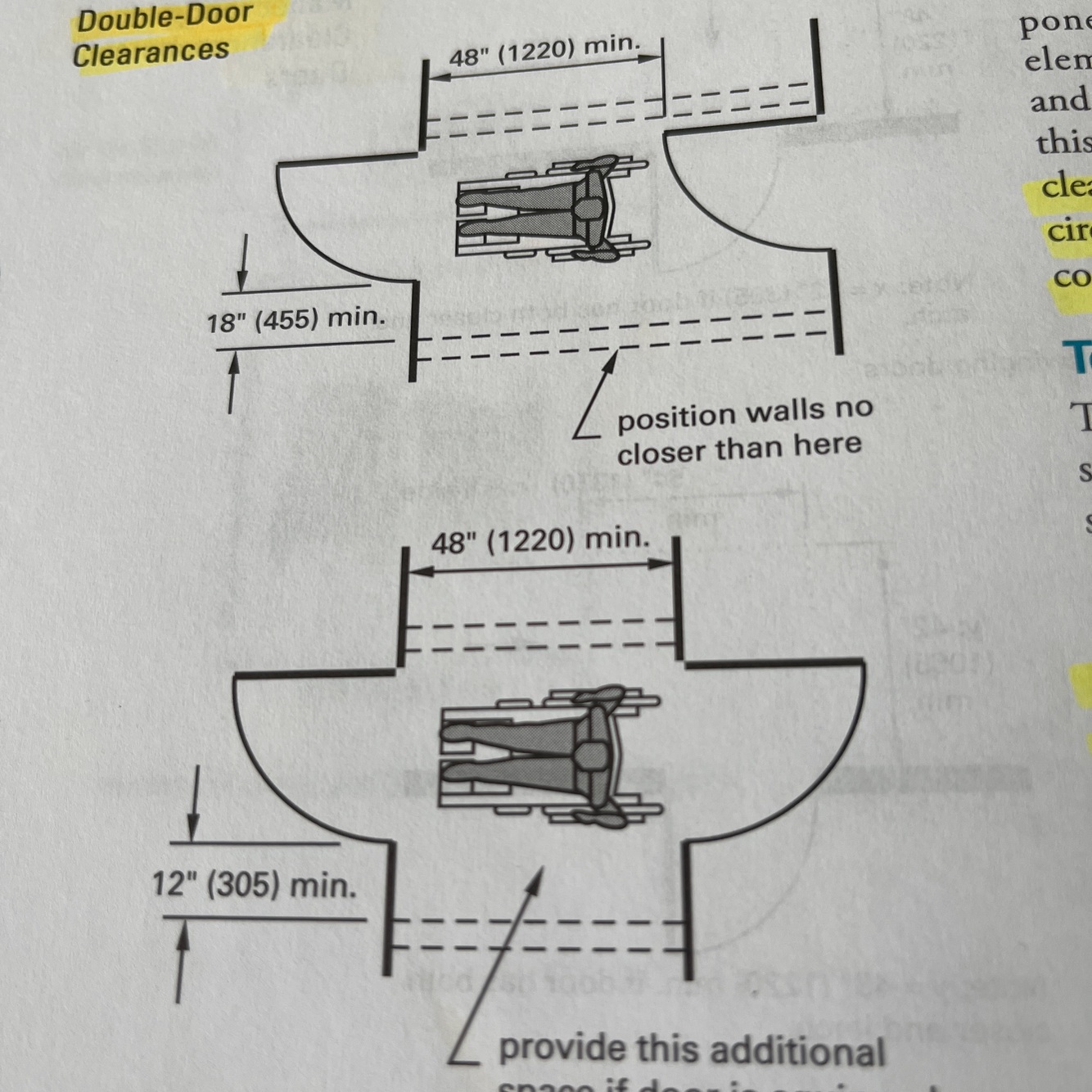

Double door clearances
A
10
Q
Grab bar height?
A
From 33in-36in above floor
11
Q

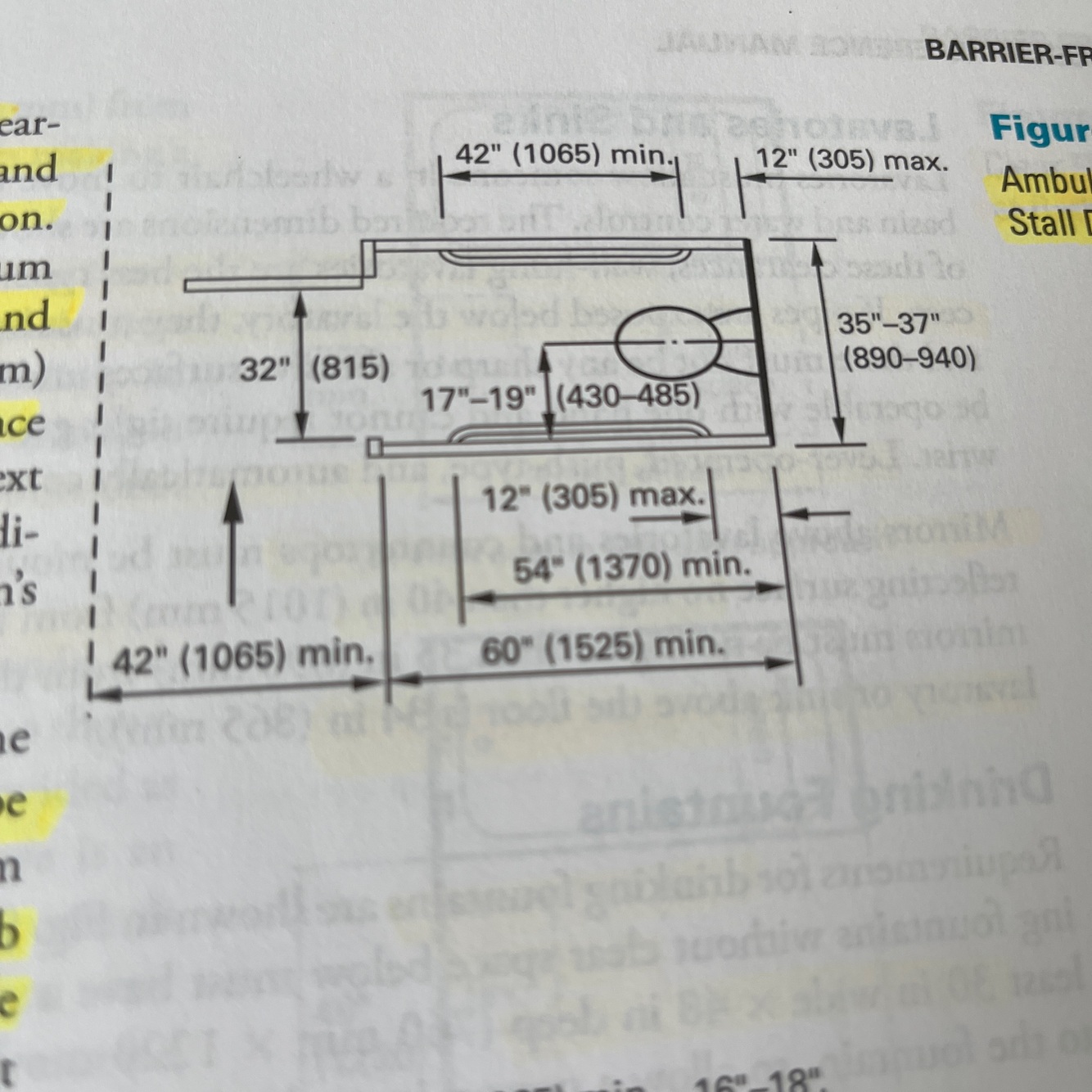

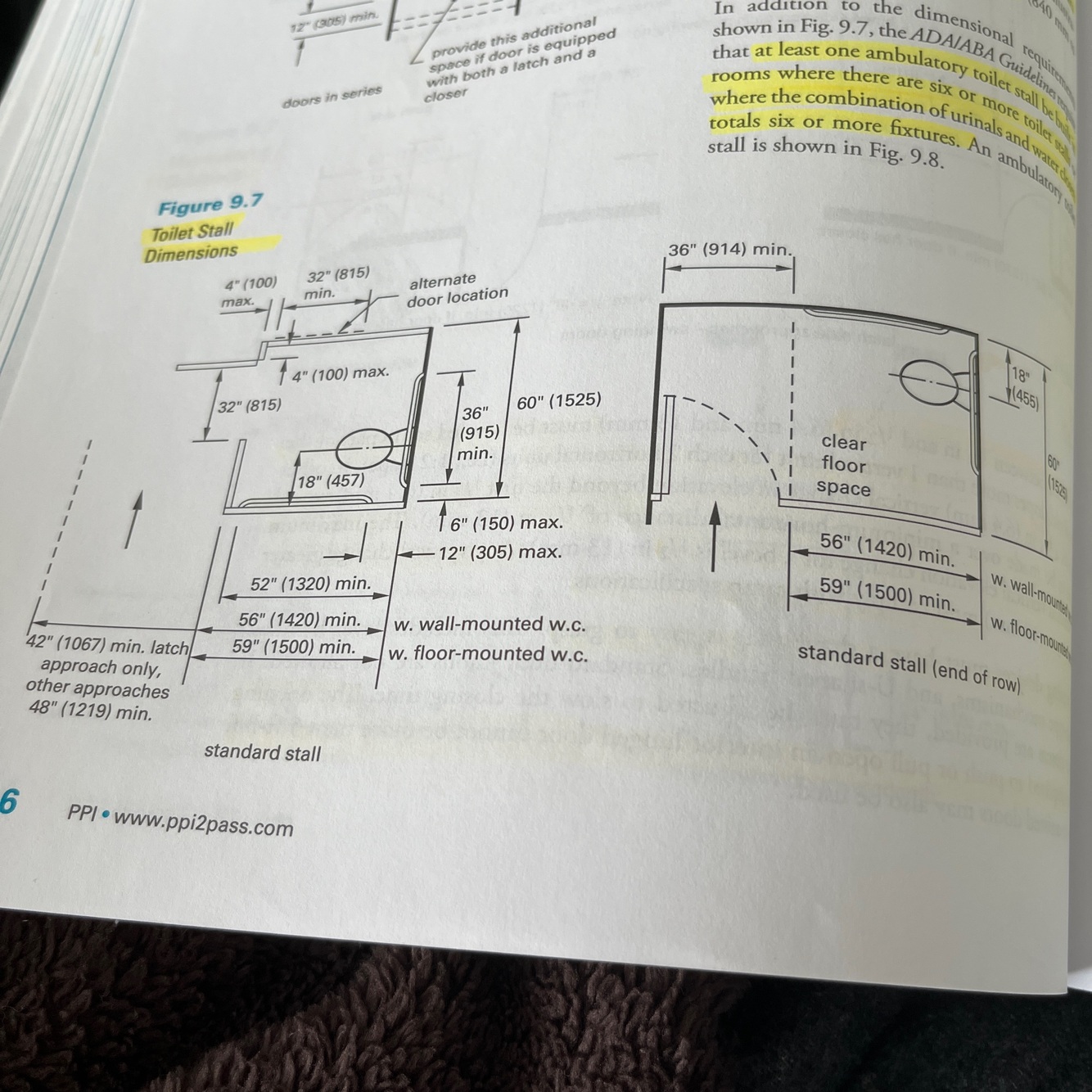

Toilet stall dims
A
12
Q
How many toilets provided before ambulatory toilet is required?
A
6 or more stalls
13
Q
Centerline of toilet?
A
16”-18” residential is 18”min
14
Q

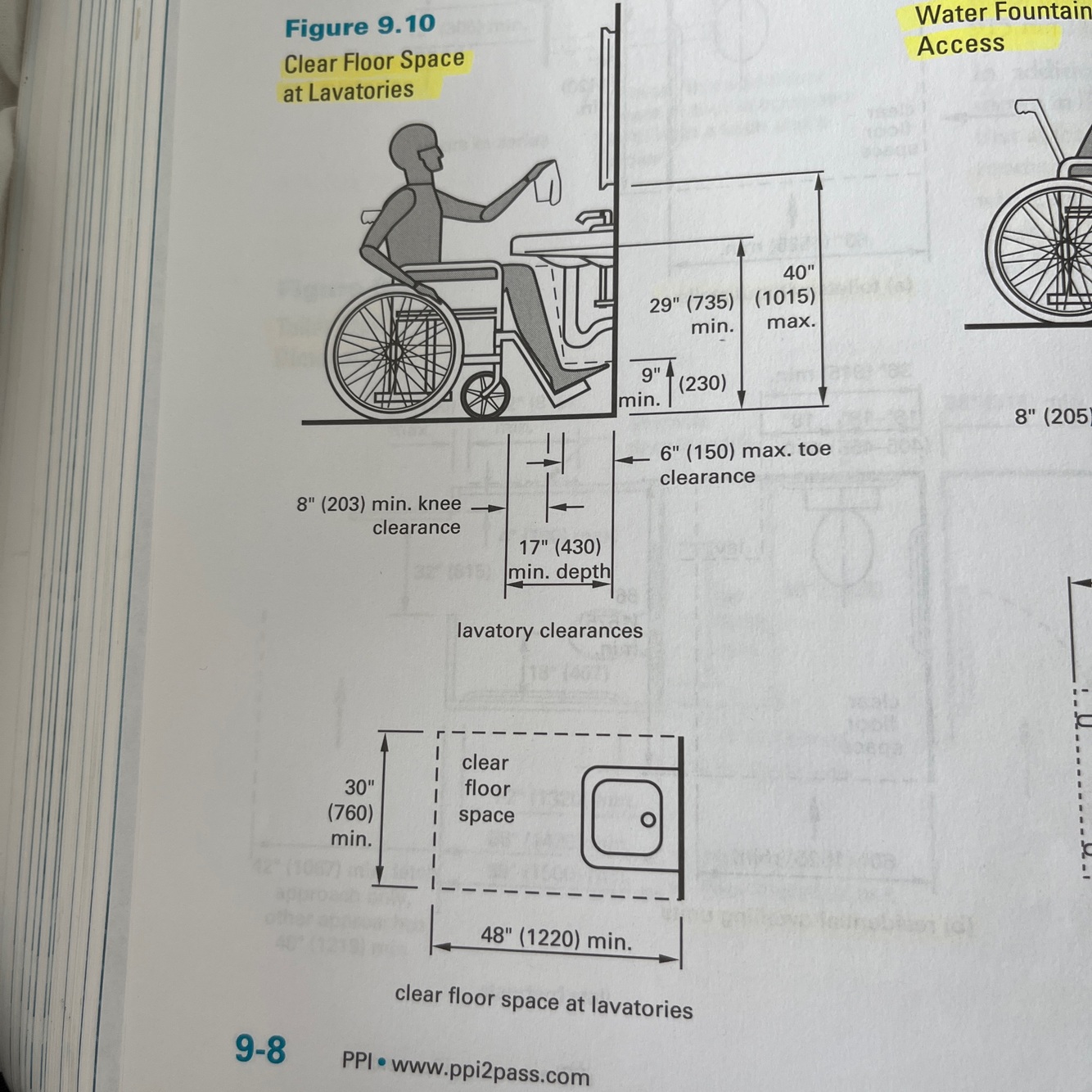

Clear floor space of lavatories
A
15
Q

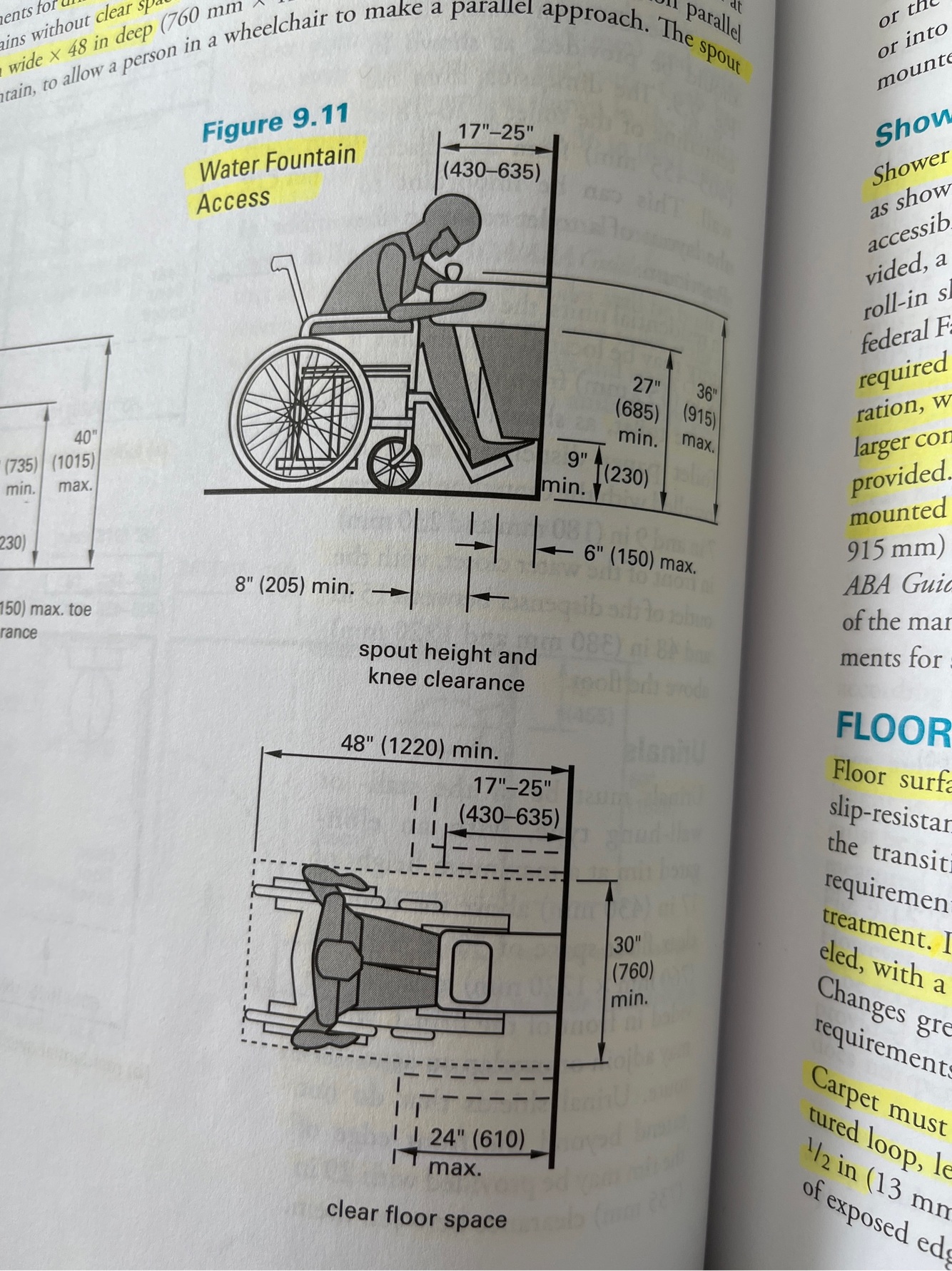

Drinking fountains
A
16
Q

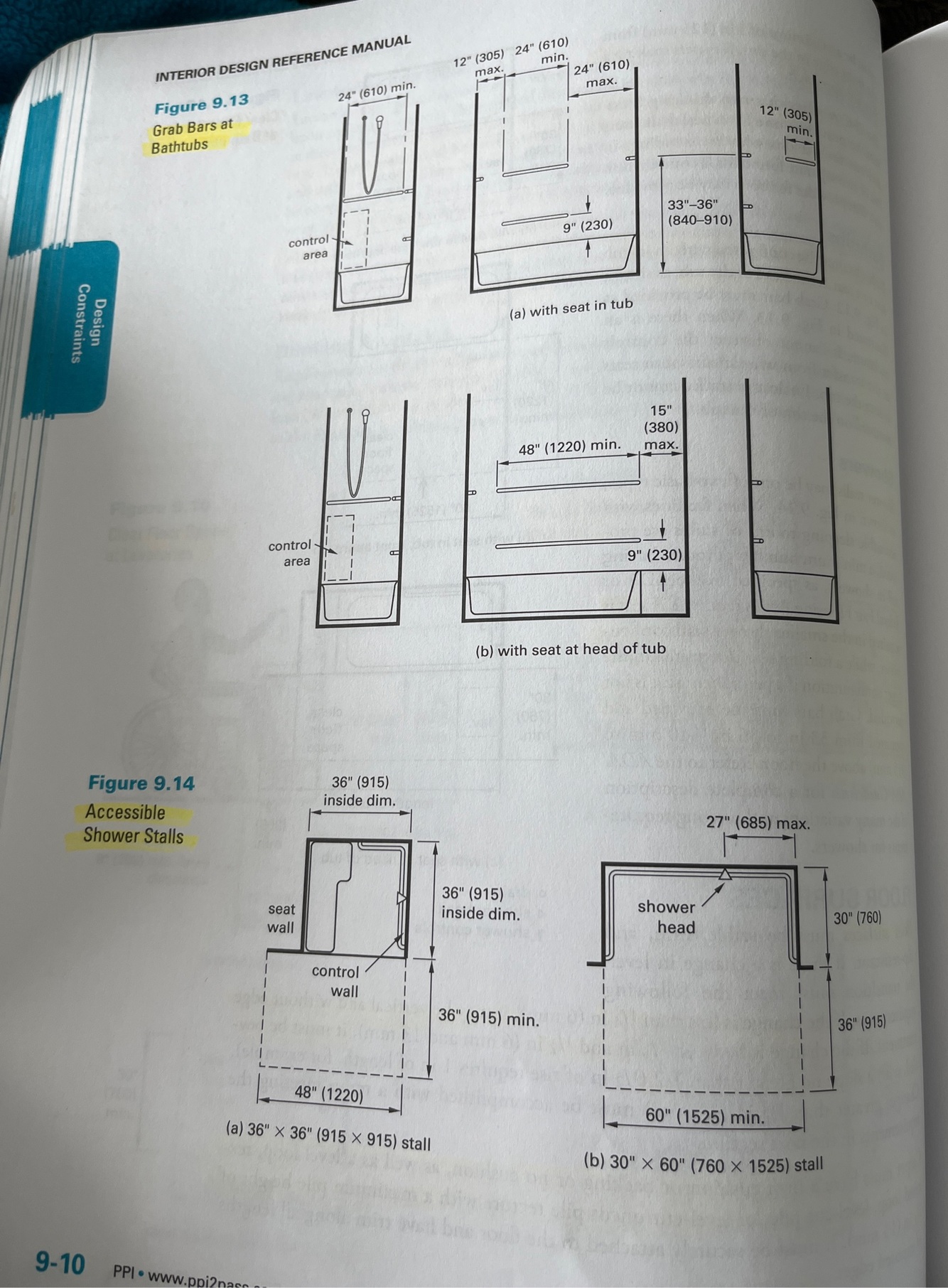

Bathtubs and showers
A
17
Q

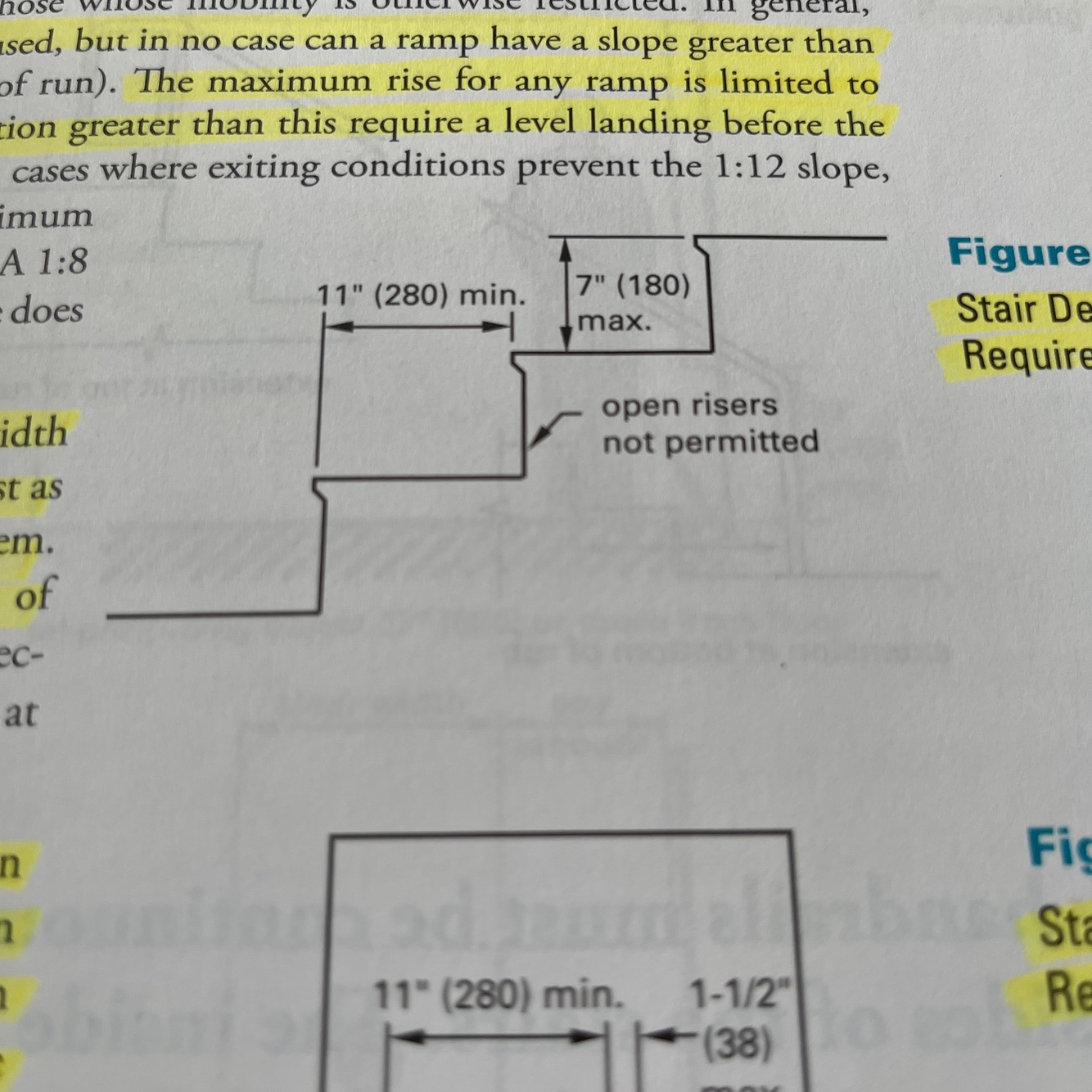

Stairs rise max and run min?
A
7”h max rise, 11”min run
