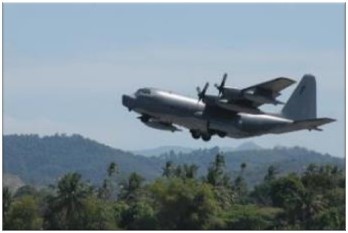

AC 130 Gunship
Heavily armed, long endurance ground attack C-130 mod.
CAS + AI
Modified APG 70

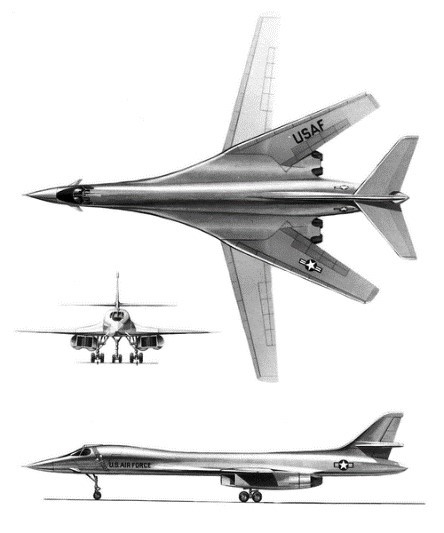

B-1B Lancer
Four engine, supersonic, intercontinental strategic heavy bomber
CAS
APG 164, Sniper Pod

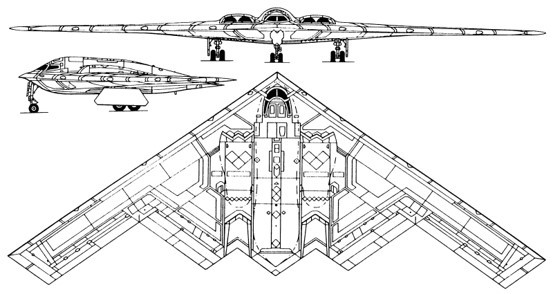

B-2A Spirit
•Deep penetration, intercontinental strategic stealth bomber designed to avoid enemy air defences
Conventional and Nuclear capable.
AN/APQ 181
Link 16 recieve only

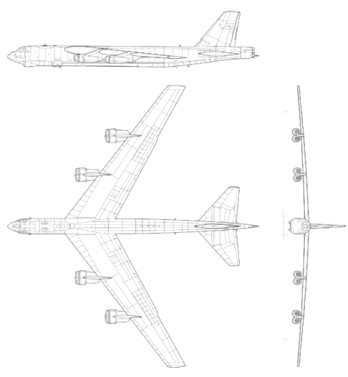

B-52H Stratofortress
•Intercontinental 8-engine strategic bomber
–Conventional and nuclear capable
•Strategic attack, AI, OCA, countersea missions
C-130 Refueler
- Wingtip drogue only
- 3 UHF/1 VHF/SATCOM
- Low altitude
- Max fuel 67K lbs
- 5K PPH burn rate
CF-188 Hornet
All weather multirole fighter/attack aircraft
330NM Combat Radius, 50 000ft ceiling, Mach 1.8 Clean
AN/APG 73 Mechanically scanned Planar Array:Detection range 45-90nm
2x AN/ARC Radios UHF/VHF Selectable
Link 16 through MIDS
9x Hardpoints
Sniper XR ATP (Left)
- AN/ALR-67(v3) Radar Warning Receiver
- AN/ALQ-126B Deception Jammer
- AN/ALQ-162 Continuous Wave Jammer
- AN/ALE-47 Counter Measure Dispenser System
CP-140 Aurora
- RCAF maritime patrol aircraft –P-3 airframe but different electronic suite
- Block III/IV upgrades provide GMTI, high resolution SAR mapping, interrogators
Expands mission set to assist with target detection, tracking, ID for counterland support
•Land surveillance and ASW exclusive due to differing flight profiles, radar modes

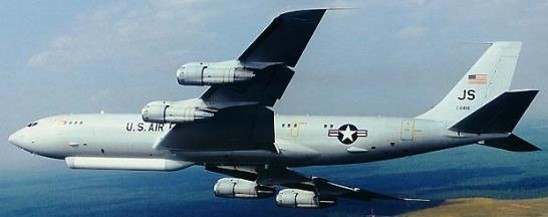

E-8 JSTARS
- Ground surveillance, battle management, C2 aircraft to track ground objects, some aircraft, and collect imagery
- Aircrew can support or provide C2 for IPOE, AI, CAS, SEAD, TMD, CSAR, TST missions (threat dependent)

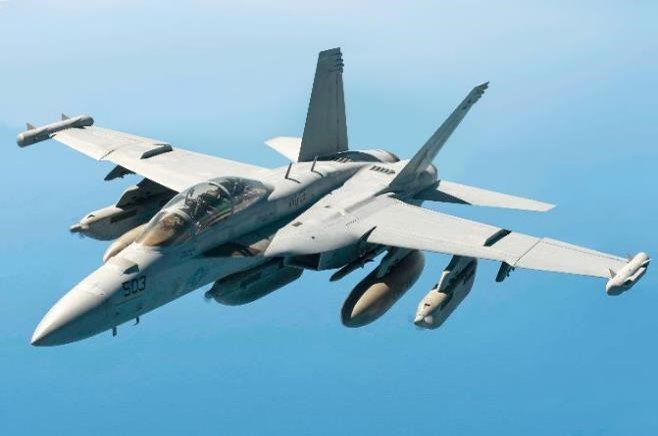

EA-18G Growler
All weather electronic warfare aircraft
Performs escort, comms, standoff jamming
AN/APG 79 AESA radar
Full spectrum EW suite with AN/ALQ 99 + 128 ECM pods

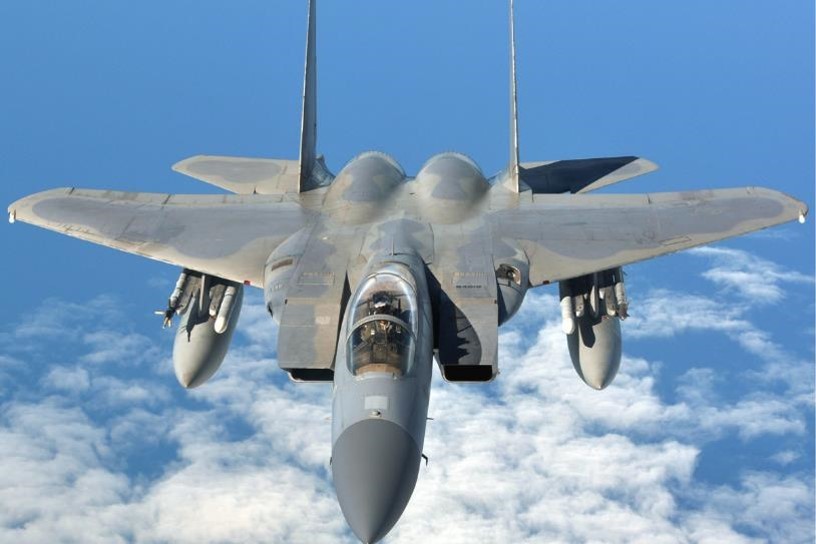

F-15C Eagle
•All weather air superiority fighter
Radars vary, AN/APG-63(v1), AN/APG-63(v2)/(v3), AN/APG-70
•Two radios –AN/ARC-164 UHF, AN/ARC-186 VHF
x11 Hardpoints

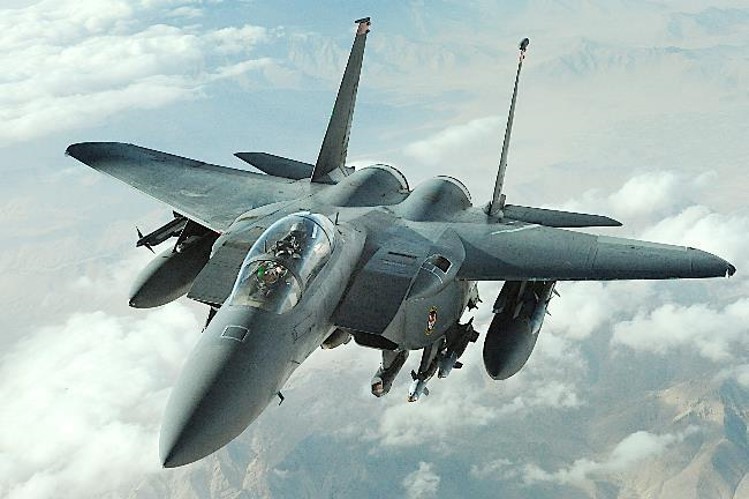

F-15 E Strike Eagle
•All weather dual-role strike fighter for high-speed self escort interdiction
AN/APG 70 radar allows for concurrent A/A and A/G work

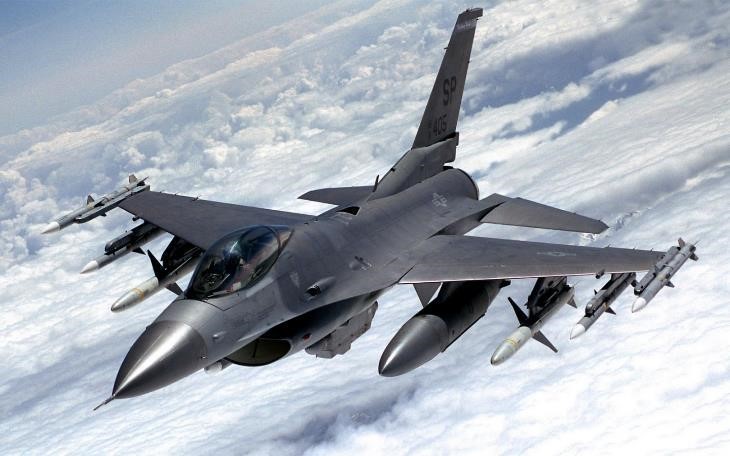

F-16 Viper
- Cheap, compact, all weather multirole fighter
- AN/APG-68(v5) [On latest USAF Vipers] Radars differ depending on nation and variant
HARM targeting system (HTS)
9x Hardpoints

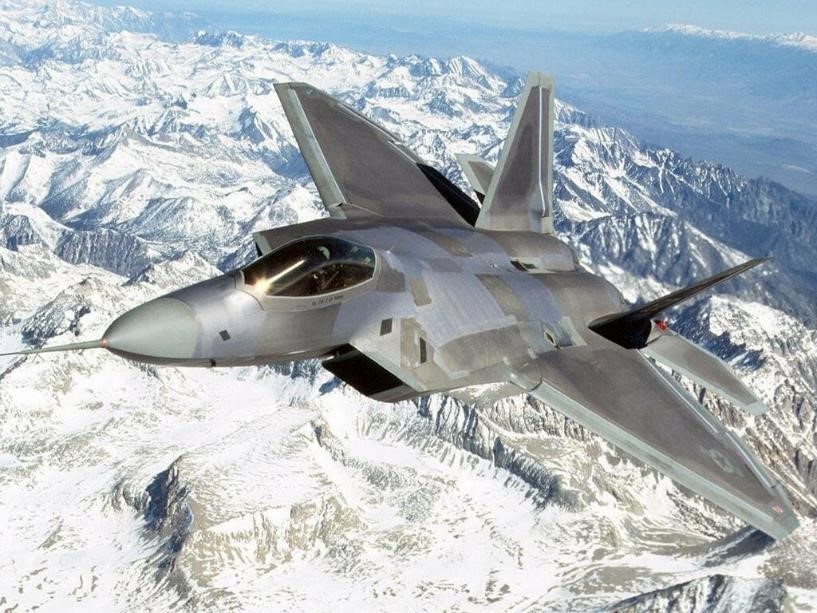

F-22A Raptor
- 5th Gen air superiority stealth fighter, A/A + A/G missions
- AN/APG-77
L16 Receive only
F-35 A Lightning 2
•5th Gen stealth multirole fighter
–A-A and A-G missions
•AN/APG-81
6x hardpoints

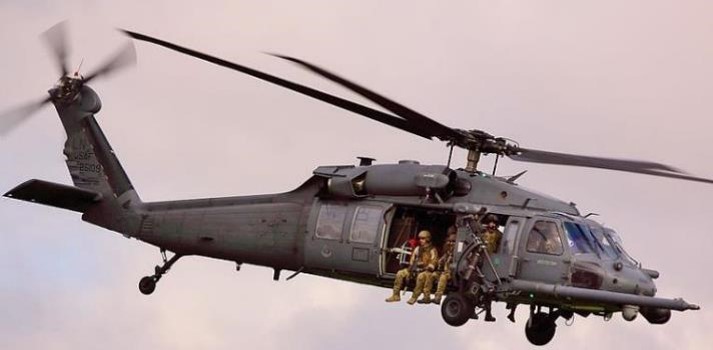

HH-60G Pave Hawk
•Primary USAF CSAR recovery vehicle
KC-135 Stratotanker
•Max fuel load 203K lbs

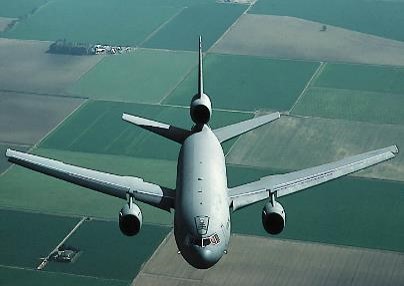

KC-10 Extender
•Max fuel load 340K lbs

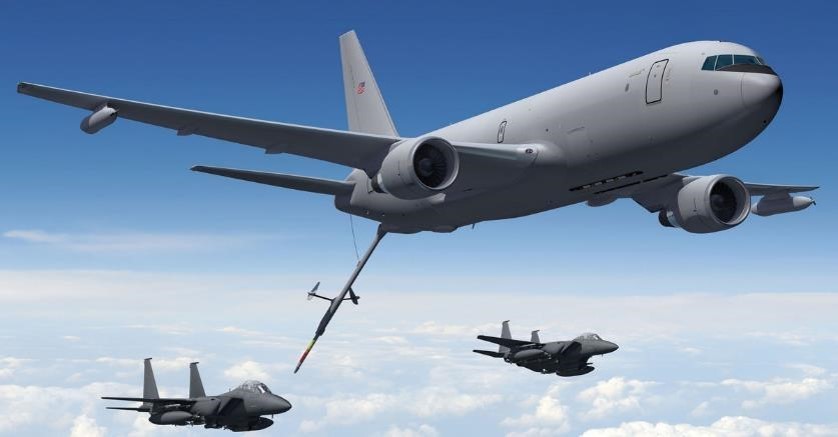

KC-46 Pegasus
•Max fuel load 212K lbs
MQ-9 Reaper
•Medium to high altitude (up to 50kft), long endurance (12-14 hours when fully loaded)
–Primarily hunter-killer against emerging targets
–Also fills CAS, TST, SCAR, ISR, CSAR roles
MQ-1 Predator
•Medium altitude (up to 25kft), long endurance (24 hrs)
–Primary mission armed reconnaissance against TSTs
–Also fills CAS, TST, SCAR, ISR, CSAR roles

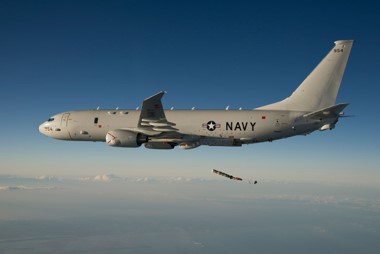

P-8 Poseidon
•ASW/Maritime surveillance aircraft replacing P3
P-3 Orion
•Anti-submarine/MARPAT aircraft in use worldwide

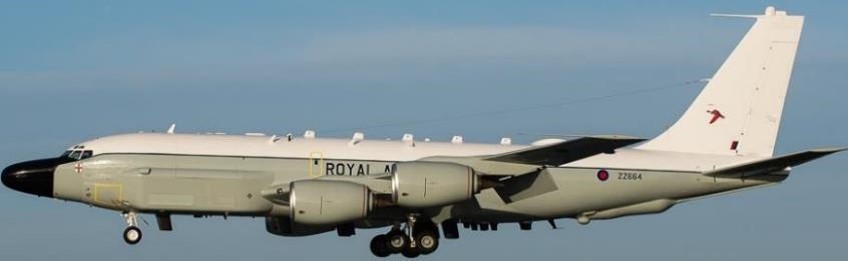

RC-135V Rivet Joint
•Theater level tactical SIGINT platform provides direct, near real time information, EW support
–Conducts IPOE; provide EW support for all mission sets
RQ 4 Global Hawk
•High altitude (60kft), long endurance (36 hr) ISR platform
