1
Q

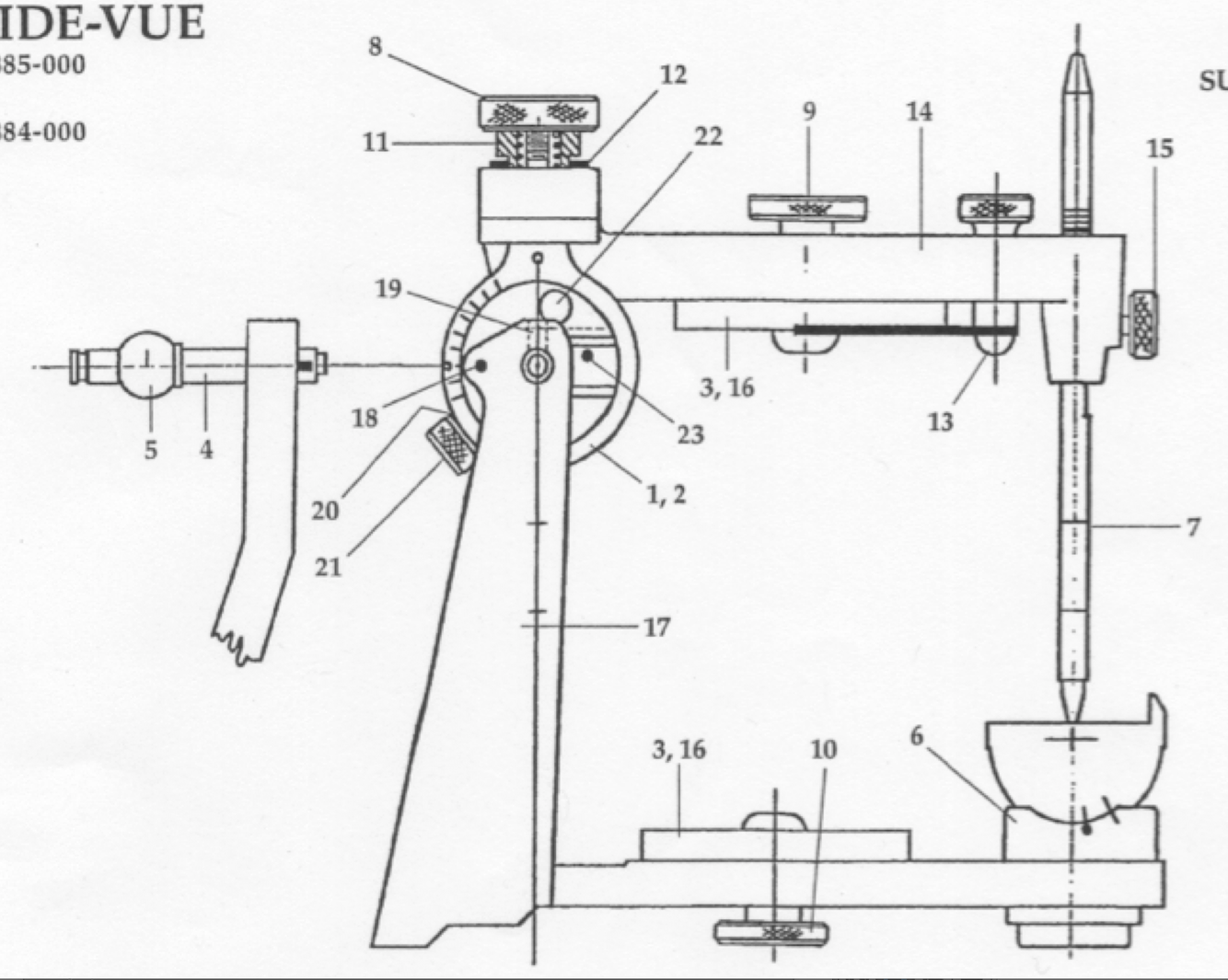

What are 1, 2, and 3
A
- Condylar guide (right)
- Condylar guide (left)
- Mounting Plate
2
Q
What is 4 and 5
A
- Condylar shaft
- Condyle element
3
Q
What is 6 and 7
A
- Adjustable incisal guide table
- Incisal pin
4
Q
What are 8, 9, and 10
A
- Thumbnut
- Thumbscrew (cast attachment)
- Thumbscrew (cast attachment)
5
Q
What are 11, 12, 13, and 14
A
- Spring
- Swing top
- Orbital Indicator (3rd point of reference)
- Upper Member
6
Q
What is 15 and 16
A
- Thumbscrew (Incisal pin “adjuster”)
- Pin (of mounting plate?)
7
Q
What are 18, 19, 20, and 21
A
- Spring Pin
- Set screw (factory fixed the adjustable condylar shafts)
- Washer
- Thumbnut (for horizontal inclination)
8
Q
What is 22 and 23
A
- Centric lock
- Centric Riser Pin (condyle retainer?)
