Chapter 15: D.C. Circuits

Question 1

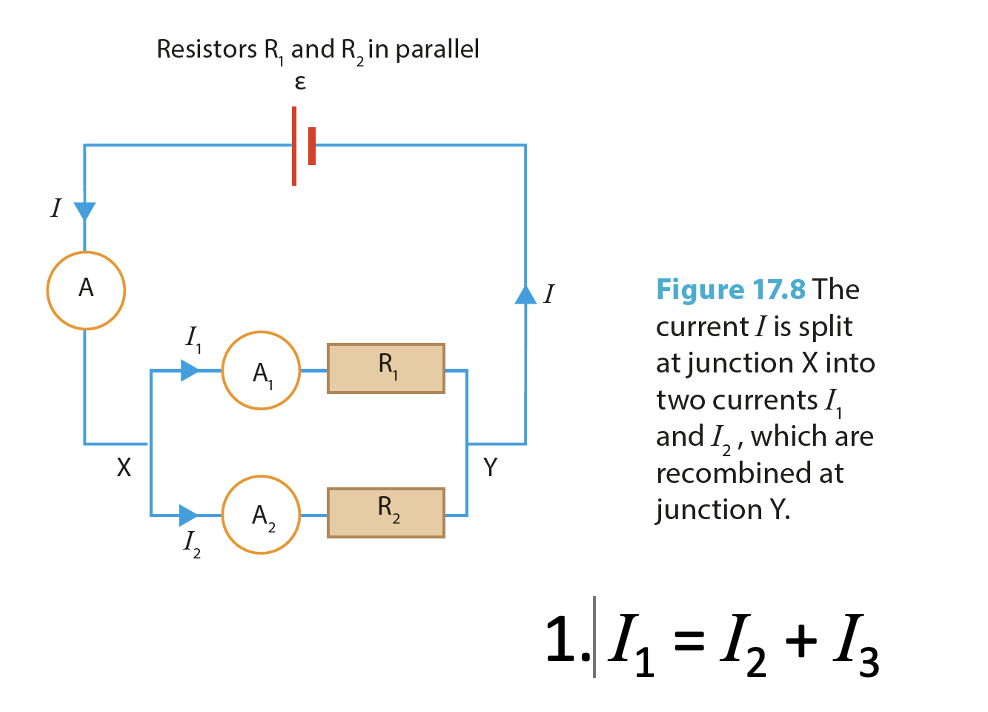

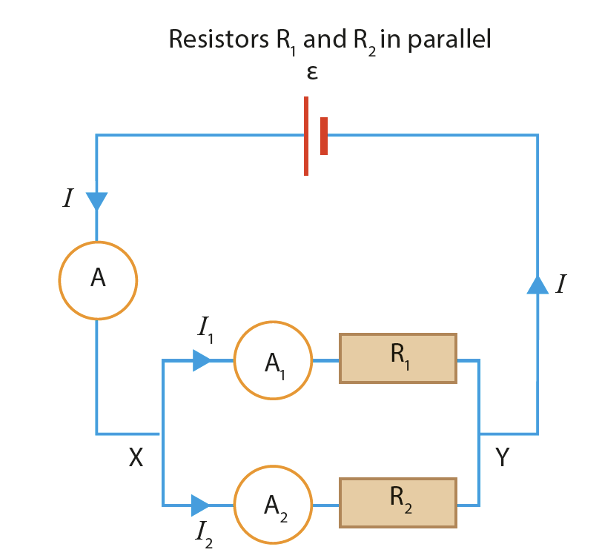

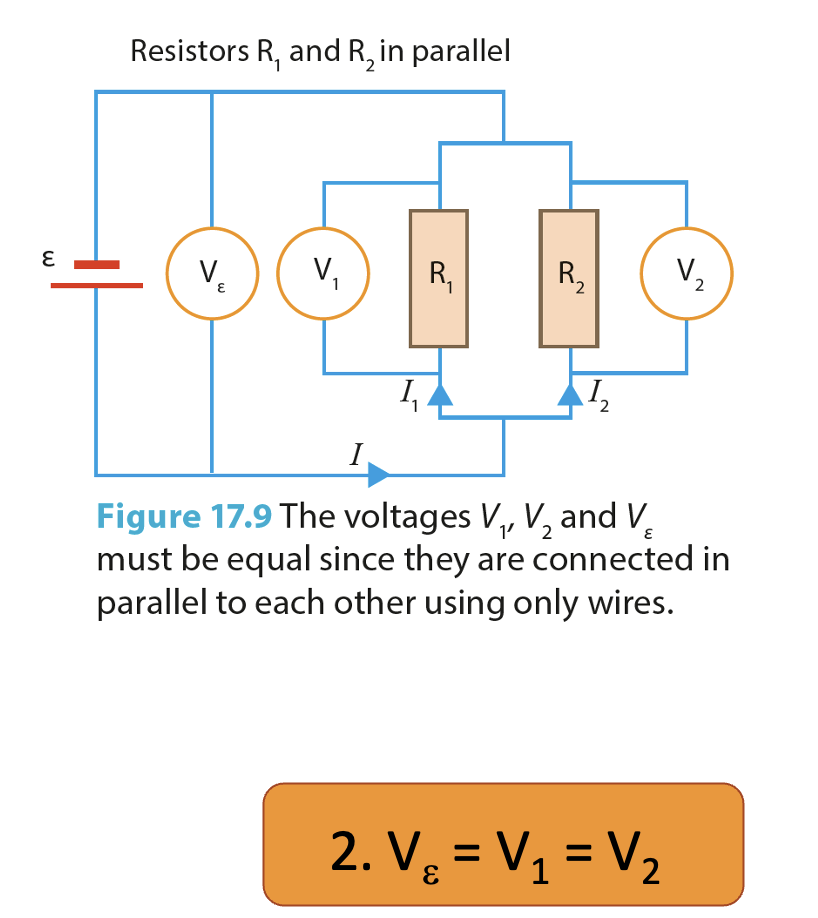

How is Voltage related in a Parallel Circuit?

Answer 1

Question 2

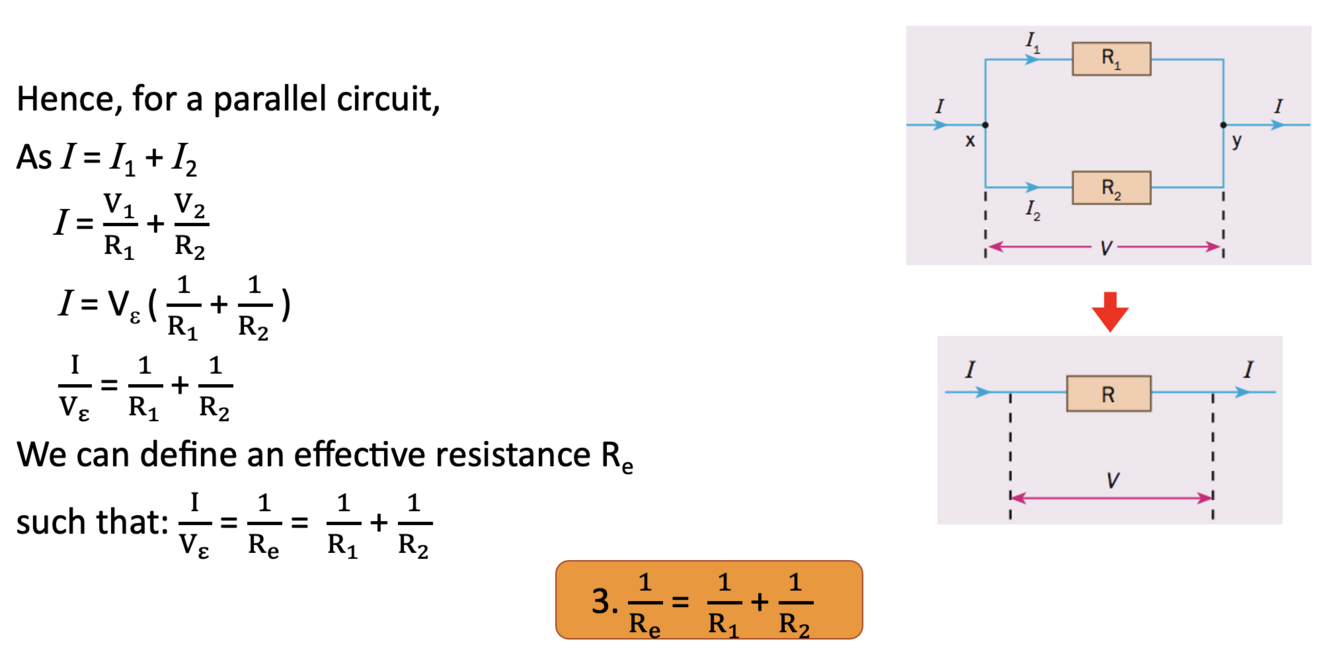

How can you find resistance in a parellel circuit?

Answer 2

Question 3

How can you find the resistance for a parellel circuit?

Answer 3

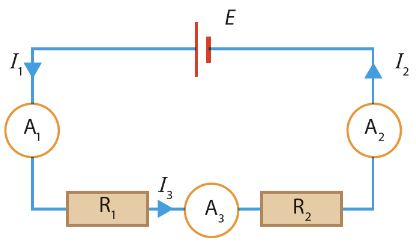

Question 4

How is current related in a series circuit?

Answer 4

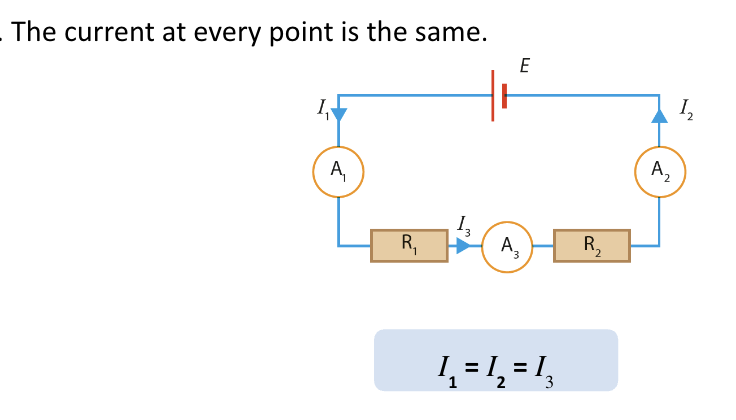

The current at every point is the same

Question 5

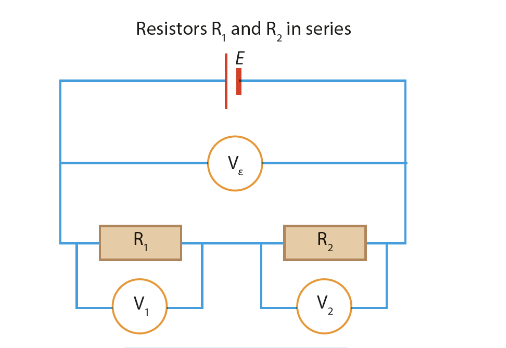

How is potential difference related in a series circuit?

Answer 5

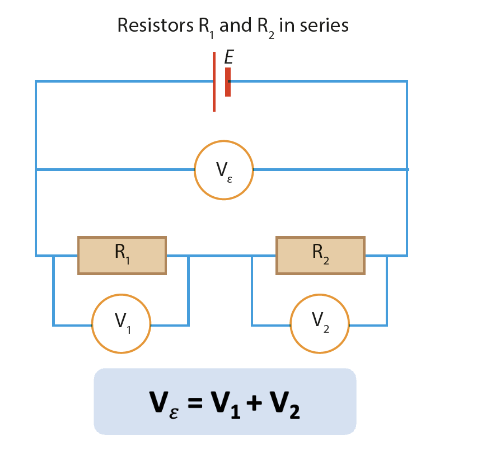

The total potential difference E supplied to the circuit is equal to the sum of individual potential differences across the resistors.

Question 6

How is resistance related in a series circuit?

Answer 6

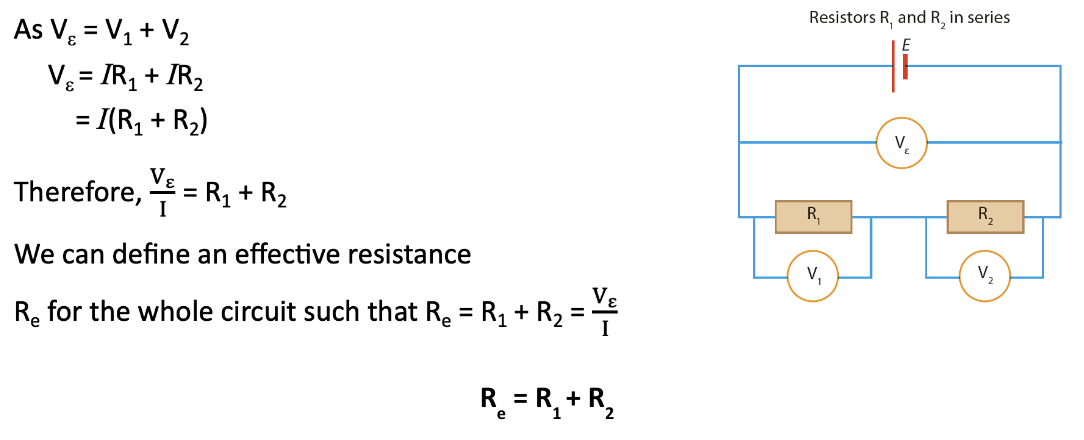

The effective resistance Re is equal to the sum of the individual resistances

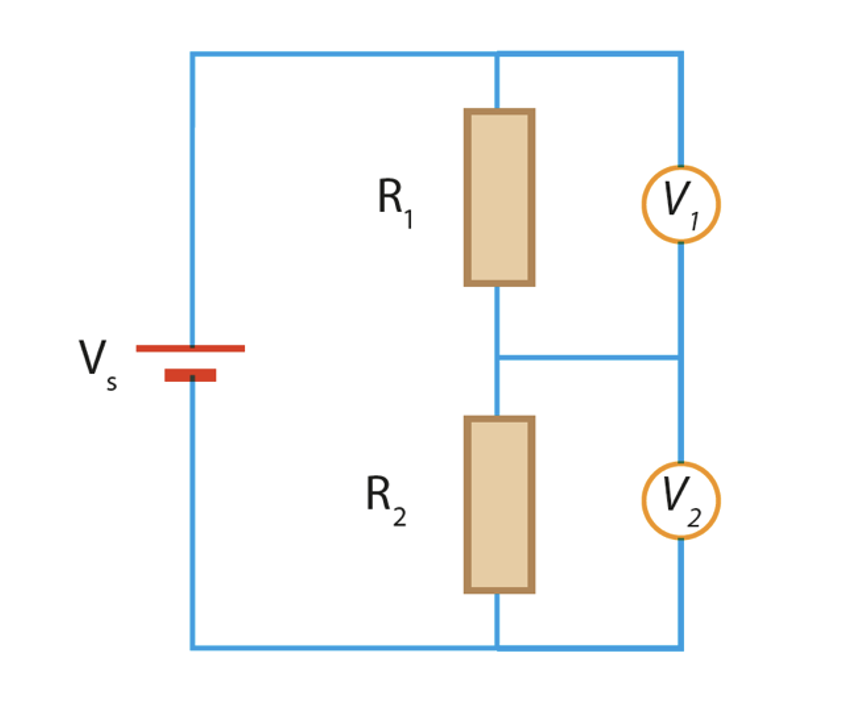

Question 7

What happens if R1 is increased, while keeping R2 constant?

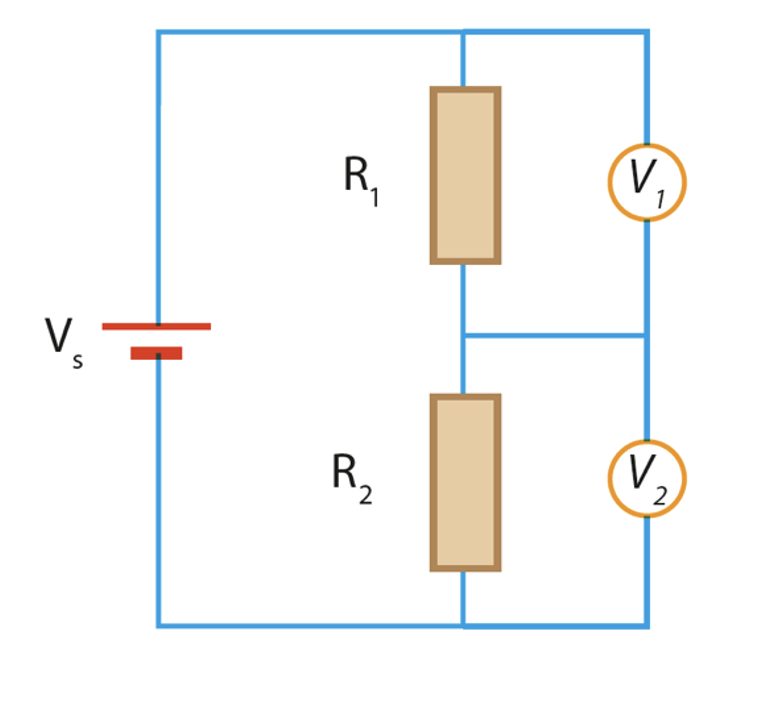

Answer 7

When R1 is increased while keeping R2 constant, V2 will decrease

Question 8

Answer 8

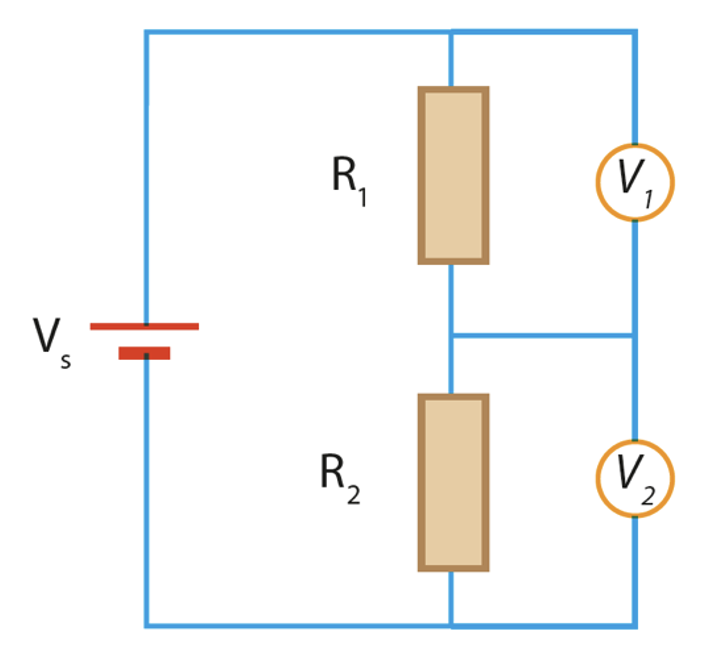

When R2 is increased while keeping R1 constant, V2 will increase

Question 9

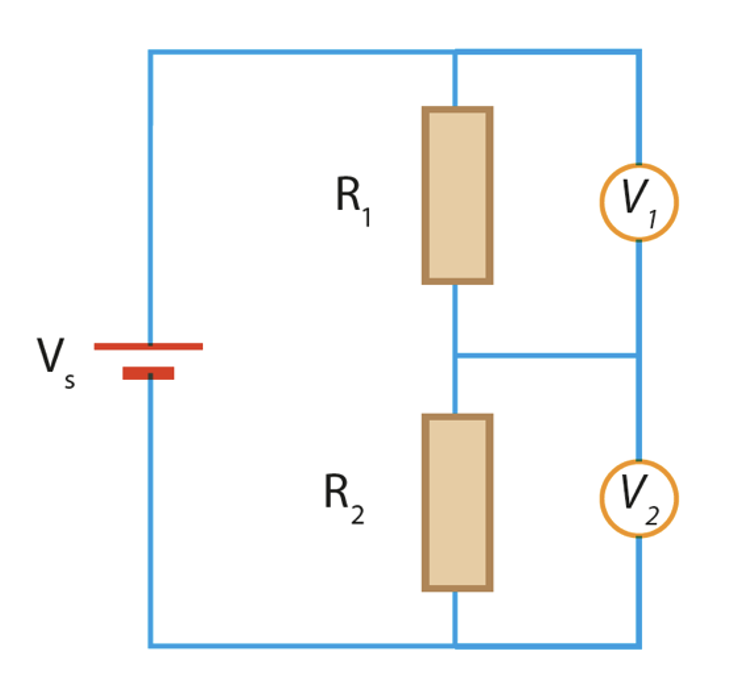

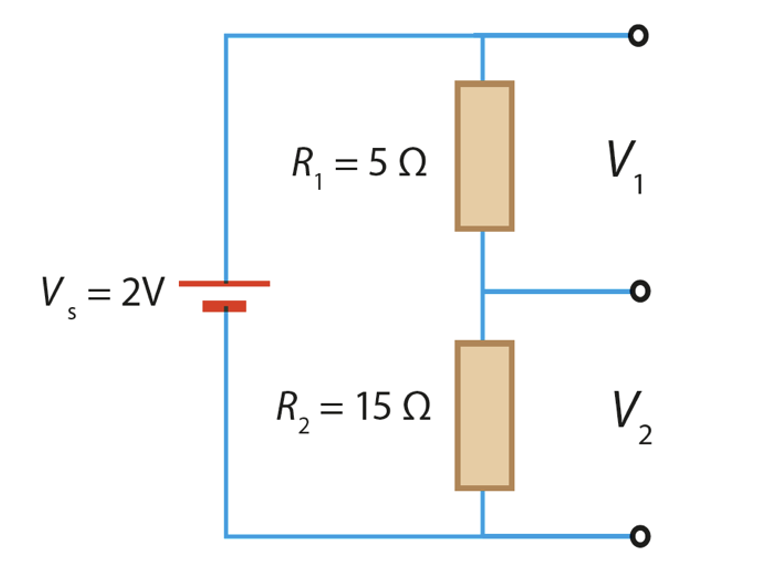

For a potential divider circuit, how do you find the potential differences?

Answer 9
