OS > chapter 2 > Flashcards

chapter 2 Flashcards

(62 cards)

Study These Flashcards
1
Q

(4)Operating System Services

A

Operating systems provide an environment for execution of programs and services to programs and users

One set of operating-system services provides functions that are helpful to the user:

User interface - Almost all operating systems have a user interface (UI). Varies between Command-Line (CLI), Graphics User Interface (GUI), Batch

Program execution - The system must be able to load a program into memory and to run that program, end execution, either normally or abnormally (indicating error)

  • *I/O operations** - A running program may require I/O, which may involve a file or an I/O device
  • *File-system manipulation** - The file system is of particular interest. Programs need to read and write files and directories, create and delete them, search them, list file Information, permission management
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
2
Q

(5)Operating System Services (Cont.)

A

Communications – Processes may exchange information, on the same computer or between computers over a network

  • Communications may be via shared memory or through message passing (packets moved by the OS)

Error detection – OS needs to be constantly aware of possible errors

  • May occur in the CPU and memory hardware, in I/O devices, in user program
  • For each type of error, OS should take the appropriate action to ensure correct and consistent computing
  • Debugging facilities can greatly enhance the user’s and programmer’s abilities to efficiently use the system
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
3
Q

(6)Operating System Services (Cont.)

A

Another set of OS functions exists for ensuring the efficient operation of the system itself via resource sharing

Resource allocation - When multiple users or multiple jobs running concurrently, resources must be allocated to each of them

  • Many types of resources - Some (such as CPU cycles, main memory, and file storage) may have special allocation code, others (such as I/O devices) may have general request and release code
  • *Accounting** - To keep track of which users use how much and what kinds of computer resources
  • *Protection and security** - The owners of information stored in a multiuser or networked computer system may want to control use of that information, concurrent processes should not interfere with each other

Protection involves ensuring that all access to system resources is controlled

Security of the system from outsiders requires user authentication, extends to defending external I/O devices from invalid access attempts

If a system is to be protected and secure, precautions must be instituted throughout it. A chain is only as strong as its weakest link.

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
4
Q

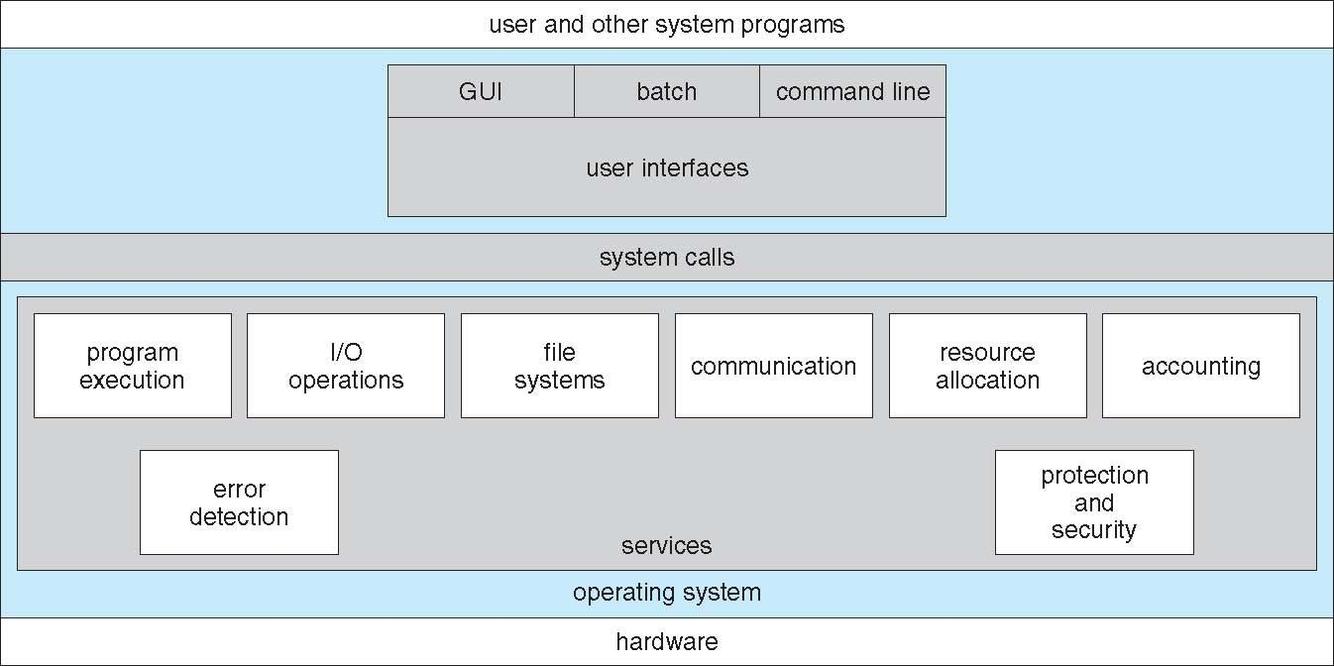

(7)A View of Operating System Services

A
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
5
Q

(8)User Operating System Interface - CLI

A

CLI or command interpreter allows direct command entry

Sometimes implemented in kernel, sometimes by systems program

Sometimes multiple flavors implemented – shells

Primarily fetches a command from user and executes it

  • Sometimes commands built-in, sometimes just names of programs

If the latter, adding new features doesn’t require shell modification

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
6
Q

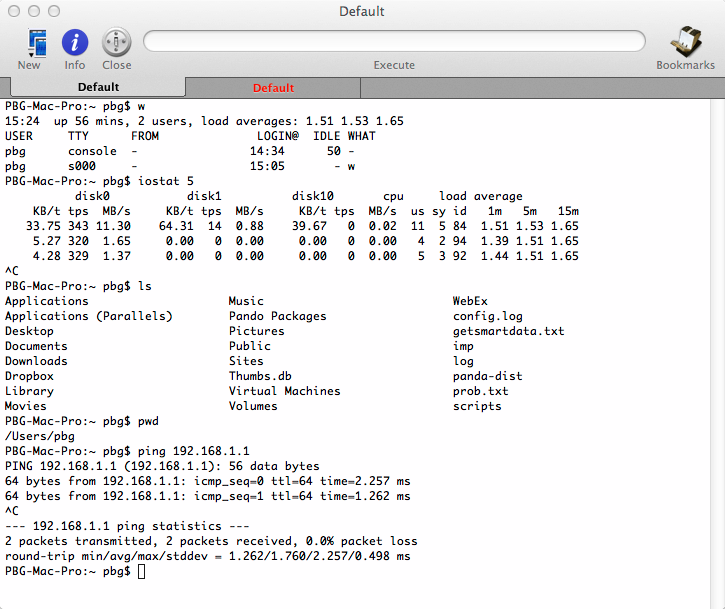

(9)Bourne Shell Command Interpreter

A
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
7
Q

(10)User Operating System Interface - GUI, what is it, what to use it with ?

A

User-friendly desktop metaphor interface

  • Usually mouse, keyboard, and monitor
  • Icons represent files, programs, actions, etc
  • Various mouse buttons over objects in the interface cause various actions (provide information, options, execute function, open directory (known as a folder)
  • Invented at Xerox PARC
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
8
Q

(10)User Operating System Interface - GUI, what systems have includes CLI?

A

Many systems now include both CLI and GUI interfaces

  • Microsoft Windows is GUI with CLI “command” shell
  • Apple Mac OS X is “Aqua” GUI interface with UNIX kernel underneath and shells available
  • Unix and Linux have CLI with optional GUI interfaces (CDE, KDE, GNOME)
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
9
Q

(11)Touchscreen Interfaces

A

Touchscreen devices require new interfaces

  • Mouse not possible or not desired
  • Actions and selection based on gestures
  • Virtual keyboard for text entry
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
10
Q

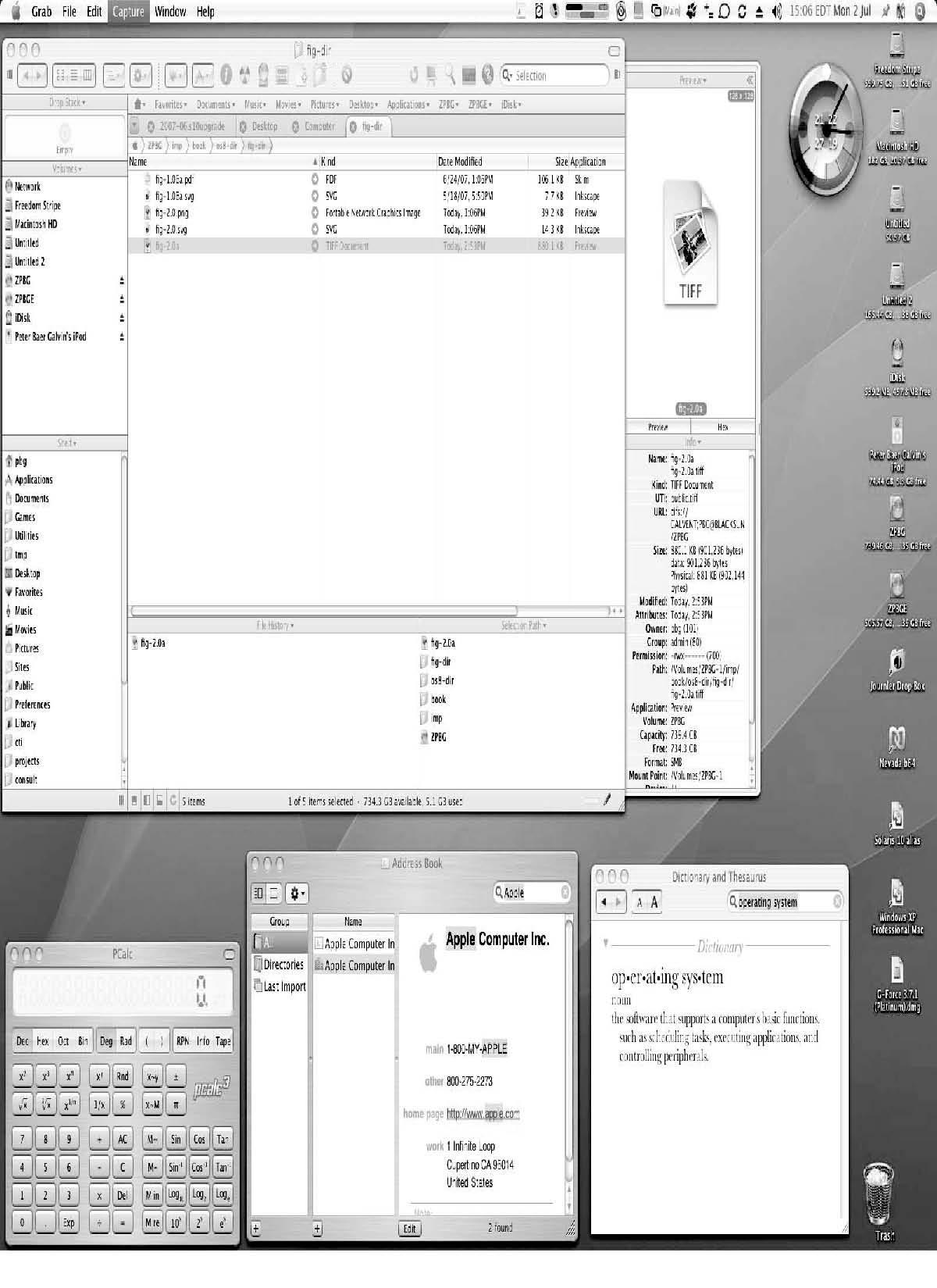

(12)The Mac OS X GUI

A
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
11
Q

(13)System Calls

A

Programming interface to the services provided by the OS

Typically written in a high-level language (C or C++)

Mostly accessed by programs via a high-level Application Program Interface (API) rather than direct system call use

Three most common APIs are Win32 API for Windows, POSIX API for POSIX-based systems (including virtually all versions of UNIX, Linux, and Mac OS X), and Java API for the Java virtual machine (JVM)

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
12
Q

(13)System Calls-Why use APIs rather than system calls?

A

(Note that the system-call names used throughout this text are generic)

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
13
Q

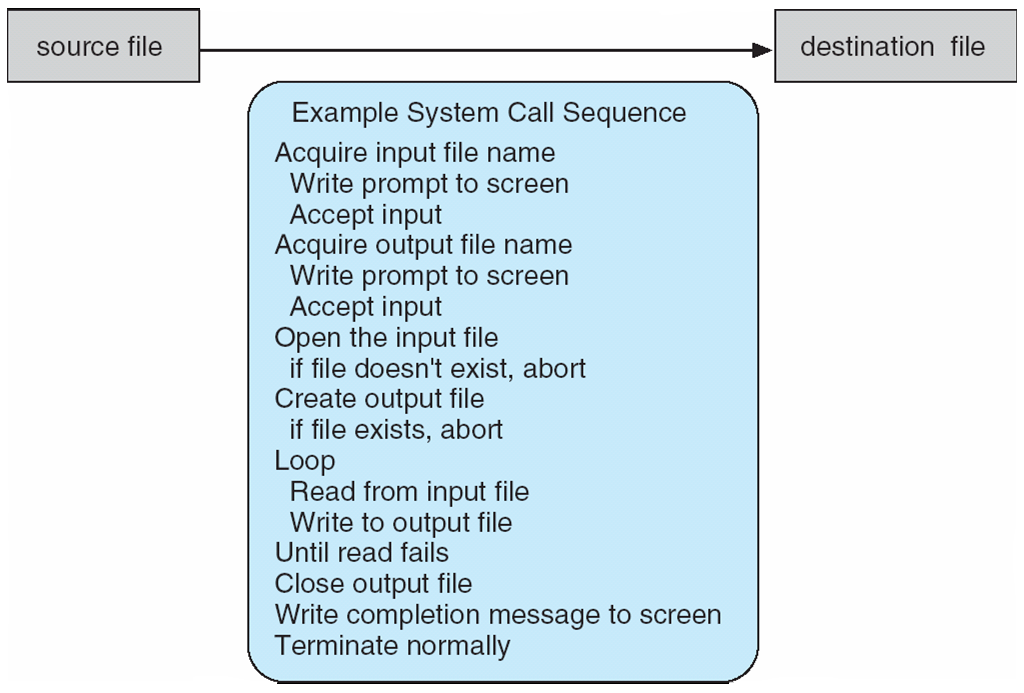

(14)Example of System Calls-

A

System call sequence to copy the contents of one file to another file

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
14
Q

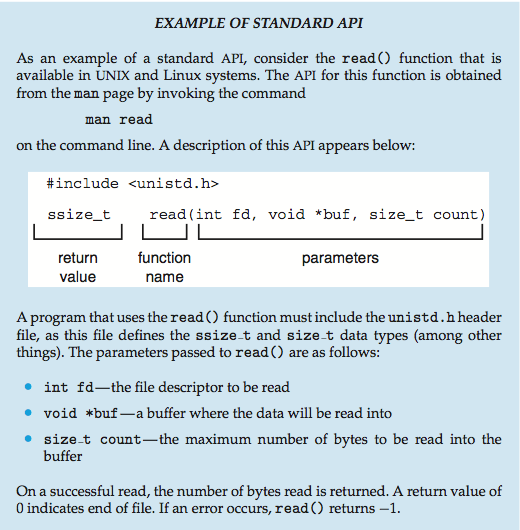

(15)Example of Standard API

A
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
15
Q

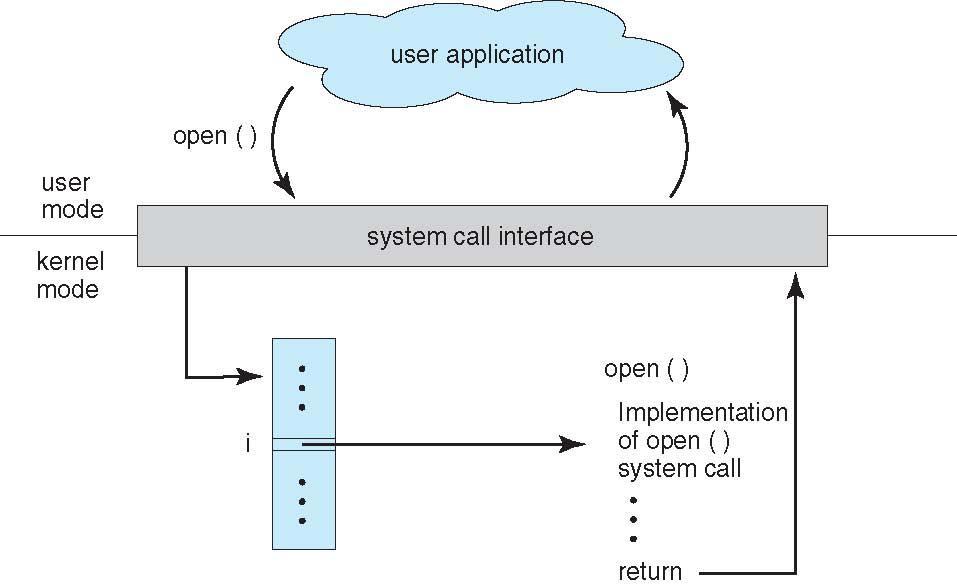

(16)System Call Implementation

A

Typically, a number associated with each system call

  • System-call interface maintains a table indexed according to these numbers

The system call interface invokes intended system call in OS kernel and returns status of the system call and any return values

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
16
Q

(16)System Call Implementation- user role in system calls

A

The caller need know nothing about how the system call is implemented

Just needs to obey API and understand what OS will do as a result call

Most details of OS interface hidden from programmer by API

  • Managed by run-time support library (set of functions built into libraries included with compiler)
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
17
Q

(17)API – System Call – OS Relationship

A
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
18
Q

(18)System Call Parameter Passing- amount of infromation ?

A

Often, more information is required than simply identity of desired system call

  • Exact type and amount of information vary according to OS and call
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
19
Q

(18)System Call Parameter Passing- what are the types of method to pass parameters?

A

Three general methods used to pass parameters to the OS
Simplest: pass the parameters in registers

  • In some cases, may be more parameters than registers

Parameters stored in a block, or table, in memory, and address of block passed as a parameter in a register

  • This approach taken by Linux and Solaris

Parameters placed, or pushed, onto the stack by the program and popped off the stack by the operating system
Block and stack methods do not limit the number or length of parameters being passed

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
20
Q

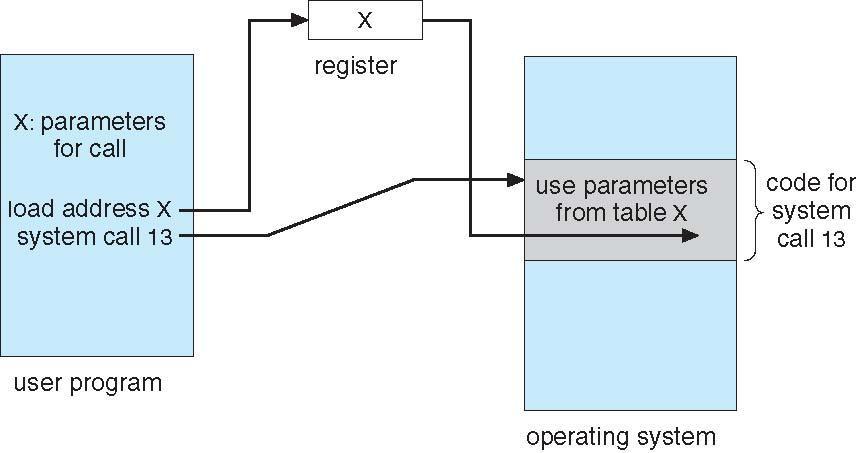

(19)Parameter Passing via Table

A
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
21
Q

(20)Types of System Calls

A

Process control

  • end, abort
  • load, execute
  • create process, terminate process
  • get process attributes, set process attributes
  • wait for time
  • wait event, signal event
  • allocate and free memory
  • Dump memory if error
  • Debugger for determining bugs, single step execution
  • Locks for managing access to shared data between processes
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
22
Q

(21)Types of System Calls

A

File management

  • create file, delete file
  • open, close file
  • read, write, reposition
  • get and set file attributes
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
23
Q

(21)Types of System Calls

A

Device management

  • request device, release device
  • read, write, reposition
  • get device attributes, set device attributes
  • logically attach or detach devices
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
24
Q

(22)Types of System Calls (Cont.)

A

Information maintenance

  • get time or date, set time or date
  • get system data, set system data
  • get and set process, file, or device attributes
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
25
(22)Types of System Calls (Cont.)
Communications * create, delete communication connection * send, receive messages if **message passing model** to **host name** or **process name** * From client to server * **Shared-memory model** create and gain access to memory regions * transfer status information * attach and detach remote devices
26
(23)Types of System Calls (Cont.)
Protection * Control access to resources * Get and set permissions * Allow and deny user access
27
(24)Examples of Windows and Unix System Calls
28
(25)Standard C Library Example
C program invoking printf() library call, which calls write() system call
29
(26)Example: MS-DOS
Single-tasking Shell invoked when system booted Simple method to run program No process created Single memory space Loads program into memory, overwriting all but the kernel Program exit -\> shell reloaded (a) At system startup (b) running a program
30
(27)Example: FreeBSD
Unix variant Multitasking User login -\> invoke user’s choice of shell Shell executes fork() system call to create process * Executes exec() to load program into process * Shell waits for process to terminate or continues with user commands Process exits with code of 0 – no error or \> 0 – error code
31
(28)System Programs
System programs provide a convenient environment for program development and execution. They can be divided into: * File manipulation * Status information sometimes stored in a File modification * Programming language support * Program loading and execution * Communications * Background services * Application programs Most users’ view of the operation system is defined by system programs, not the actual system call
32
(29)System Programs
Provide a convenient environment for program development and execution * Some of them are simply user interfaces to system calls; others are considerably more complete **File management** - Create, delete, copy, rename, print, dump, list, and generally manipulate files and directori
33
(29)System Programs- status information?
**Status information** * Some ask the system for info - date, time, amount of available memory, disk space, number of users * Others provide detailed performance, logging, and debugging information * Typically, these programs format and print the output to the terminal or other output devices * Some systems implement a **registry** - used to store and retrieve configuration information
34
(30)System Programs (Cont.): file and programming language support ?
**File modification** Text editors to create and modify files Special commands to search contents of files or perform transformations of the text **Programming-language support** - Compilers, assemblers, debuggers and interpreters sometimes provided
35
(30)System Programs (Cont.)- program loading and ecution and communication ?
**Program loading and execution-** Absolute loaders, relocatable loaders, linkage editors, and overlay-loaders, debugging systems for higher-level and machine language **Communications** - Provide the mechanism for creating virtual connections among processes, users, and computer systems Allow users to send messages to one another’s screens, browse web pages, send electronic-mail messages, log in remotely, transfer files from one machine to anothe
36
(31)System Programs (Cont.) background and application programs ?
**Background Services** * Launch at boot time * Some for system startup, then terminate * Some from system boot to shutdown * Provide facilities like disk checking, process scheduling, error logging, printing * Run in user context not kernel context * Known as services, subsystems, daemons **Application programs** * Don’t pertain to system * Run by users * Not typically considered part of OS * Launched by command line, mouse click, finger poke
37
(32)Operating System Design and Implementation
Design and Implementation of OS not “solvable”, but some approaches have proven successful Internal structure of different Operating Systems can vary widely Start by defining goals and specifications Affected by choice of hardware, type of system **User** goals and **System** goals * User goals – operating system should be convenient to use, easy to learn, reliable, safe, and fast * System goals – operating system should be easy to design, implement, and maintain, as well as flexible, reliable, error-free, and efficient
38
(33)Operating System Design and Implementation (Cont.)
Important principle to separate * * Policy:** What will be done? * *Mechanism**: How to do it? Mechanisms determine how to do something, policies decide what will be done The separation of policy from mechanism is a very important principle, it allows maximum flexibility if policy decisions are to be changed later Specifying and designing OS is highly creative task of **software engineering**
39
(34)Implementation
Much variation * Early OSes in assembly language * Then system programming languages like Algol, PL/1 * Now C, C++ Actually usually a mix of languages * Lowest levels in assembly * Main body in C * Systems programs in C, C++, scripting languages like PERL, Python, shell scripts More high-level language easier to **port** to other hardware * But slower **Emulation** can allow an OS to run on non-native hardware
40
(35)Operating System Structure
General-purpose OS is very large program Various ways to structure one as follows
41
(36)Simple Structure
I.e. MS-DOS – written to provide the most functionality in the least space * Not divided into modules * Although MS-DOS has some structure, its interfaces and levels of functionality are not well separated
42
(37)UNIX
UNIX – limited by hardware functionality, the original UNIX operating system had limited structuring. The UNIX OS consists of two separable parts * Systems programs * The kernel Consists of everything below the system-call interface and above the physical hardware Provides the file system, CPU scheduling, memory management, and other operating-system functions; a large number of functions for one level
43
(38)Traditional UNIX System Structure
Beyond simple but not fully layered
44
(39)Layered Approach
The operating system is divided into a number of layers (levels), each built on top of lower layers. The bottom layer (layer 0), is the hardware; the highest (layer N) is the user interface. With modularity, layers are selected such that each uses functions (operations) and services of only lower-level layers
45
(40)Microkernel System Structure
Moves as much from the kernel into user space **Mach** example of **microkernel** * Mac OS X kernel **(Darwin)** partly based on Mach Communication takes place between user modules using **message passing**
46
(40)Microkernel System Structure - benefits ?and determinet
Benefits: * Easier to extend a microkernel * Easier to port the operating system to new architectures * More reliable (less code is running in kernel mode) * More secure Detriments: * Performance overhead of user space to kernel space communication
47
(41)Microkernel System Structure - Digram ?
48
(42)Modules
Most modern operating systems implement **loadable kernel modules** * Uses object-oriented approach * Each core component is separate * Each talks to the others over known interfaces * Each is loadable as needed within the kernel Overall, similar to layers but with more flexible * Linux, Solaris, etc
49
(43)Solaris Modular Approach
50
(44)Hybrid Systems
Most modern operating systems actually not one pure model Hybrid combines multiple approaches to address performance, security, usability needs Linux and Solaris kernels in kernel address space, so monolithic, plus modular for dynamic loading of functionality Windows mostly monolithic, plus microkernel for different subsystem ***personalities*** Apple Mac OS X hybrid, layered, **Aqua** UI plus **Cocoa** programming environment * Below is kernel consisting of Mach microkernel and BSD Unix parts, plus I/O kit and dynamically loadable modules (called **kernel extensions**)
51
(45)Mac OS X Structure Digram?
52
(46)iOS
Apple mobile OS for **iPhone, iPad** * Structured on Mac OS X, added functionality Does not run OS X applications natively Also runs on different CPU architecture (ARM vs. Intel) **Cocoa Touch** Objective-C API for developing apps **Media services** layer for graphics, audio, video **Core services** provides cloud computing, databases Core operating system, based on Mac OS X kernel
53
(47) Android
Developed by Open Handset Alliance (mostly Google) * Open Source Similar stack to IOS Based on Linux kernel but modified * Provides process, memory, device-driver management * Adds power management Runtime environment includes core set of libraries and Dalvik virtual machine Apps developed in Java plus Android API * Java class files compiled to Java bytecode then translated to executable than runs in Dalvik VM Libraries include frameworks for web browser (webkit), database (SQLite), multimedia, smaller libc
54
(48)Android Architecture
55
(49)Operating-System Debugging
**Debugging** is finding and fixing errors, or **bugs** OSes generate **log files** containing error information Failure of an application can generate core dump file capturing memory of the process Operating system failure can generate crash dump file containing kernel memory Beyond crashes, performance tuning can optimize system performance * Sometimes using ***trace listings*** of activities, recorded for analysis * **Profiling** is periodic sampling of instruction pointer to look for statistical trends
56
(49)(49)Operating-System Debugging**-Kernighan’s Law?**
Kernighan’s Law: “Debugging is twice as hard as writing the code in the first place. Therefore, if you write the code as cleverly as possible, you are, by definition, not smart enough to debug it.
57
(50)Performance Tuning
Improve performance by removing bottlenecks OS must provide means of computing and displaying measures of system behavior For example, “top” program or Windows Task Manager
58
(51)DTrace
DTrace tool in Solaris, FreeBSD, Mac OS X allows live instrumentation on production systems Probes fire when code is executed within a provider, capturing state data and sending it to consumers of those probes Example of following XEventsQueued system call move from libc library to kernel and back
59
(52)DTrace
DTrace code to record amount of time each process with UserID 101 is in running mode (on CPU) in nanoseconds
60
(53)Operating System Generation
Operating systems are designed to run on any of a class of machines; the system must be configured for each specific computer site **SYSGEN** program obtains information concerning the specific configuration of the hardware system * Used to build system-specific compiled kernel or system-tuned * Can general more efficient code than one general kernel
61
(54)System Boot
When power initialized on system, execution starts at a fixed memory location * Firmware ROM used to hold initial boot code Operating system must be made available to hardware so hardware can start it * Small piece of code – **bootstrap loader**, stored in **ROM** or **EEPROM** locates the kernel, loads it into memory, and starts it * Sometimes two-step process where **boot block** at fixed location loaded by ROM code, which loads bootstrap loader from disk Common bootstrap loader, **GRUB**, allows selection of kernel from multiple disks, versions, kernel options Kernel loads and system is then **running**
62
OS
flashcards
Decks in class (7)
# Cards
Brainscape helps you reach your goals faster, through stronger study habits.
© 2026 Bold Learning Solutions. Terms and Conditions
