Chapter 7: Web Caching & Consistent Hashing

Question 1

Congested networks & over‐loaded servers NN

Answer 1

• Web‐based processing is prone to unpredictable delays and (frequent) failures
• Two main reasons: Congested networks and over‐ loaded servers
• Date moves slowly through congested networks
• Over‐loaded servers either refuse to serve requests or serve them slowly
• Problems can occur unexpectedly and without prior

notice (e.g., Slashdot effect, flash crowd, DDOS, etc.) inncdiahly popularity

• In this case, planning ahead is of limited use
• Better, adapt to changing circumstances

Question 2

(Web) Caching to the rescue

Answer 2

• Caching employed to improve efficiency & reliability of data delivery (Web, Internet, disk, CPU, etc.)
• Cache serves a (cached) page quickly even if the originating server is swamped or path to it is congested
• “Cache hierarchy“, with caches

  • at client (Web browser)
  • at client’s site (institutional proxy)
  • at server’s site (reverse proxy)
  • at ISPs (CDN endpoints of major players, proxy)
  • part of service delivery, 3rd party service (content delivery network)
• Wide use of caches engenders a general good: If requests are served by nearby caches, then fewer go to source server, reducing load and network traffic for the benefit of all users

Question 3

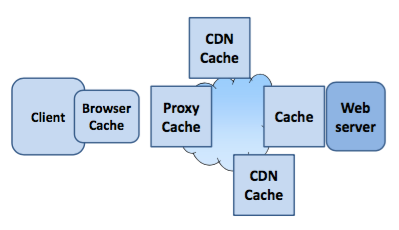

“Web cache hierarchy”

Answer 3

Question 4

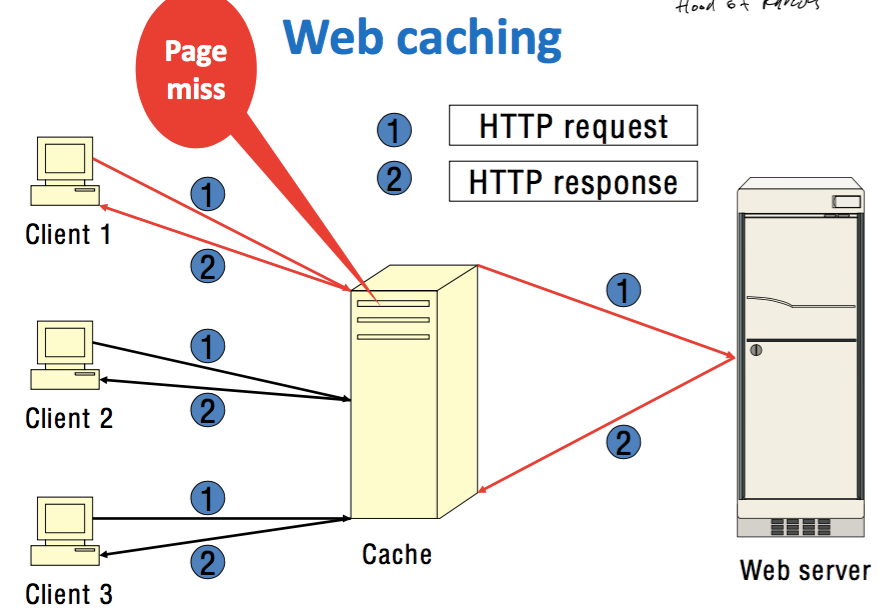

Web caching - what if cache crashes?

Answer 4

flood of requests

Question 5

Single, shared caching machine per group of users

Answer 5

• Drawbacks of single cache machine

  • All users are impacted in case of cache failure –> increased latency
  • Also, potential for severe impact on source server – Cache a potential bottleneck, if heavily used
• Two important limits regarding hit rate of a single cache

  • “False misses” for repeated requests of objects which were evicted for lack of space
  • User limit of cache works against aggregating requests from as many users as possible for caching:
• *The more user requests are aggregated, the better the hit rate becomes due to locality, the higher impact of failure**

Question 6

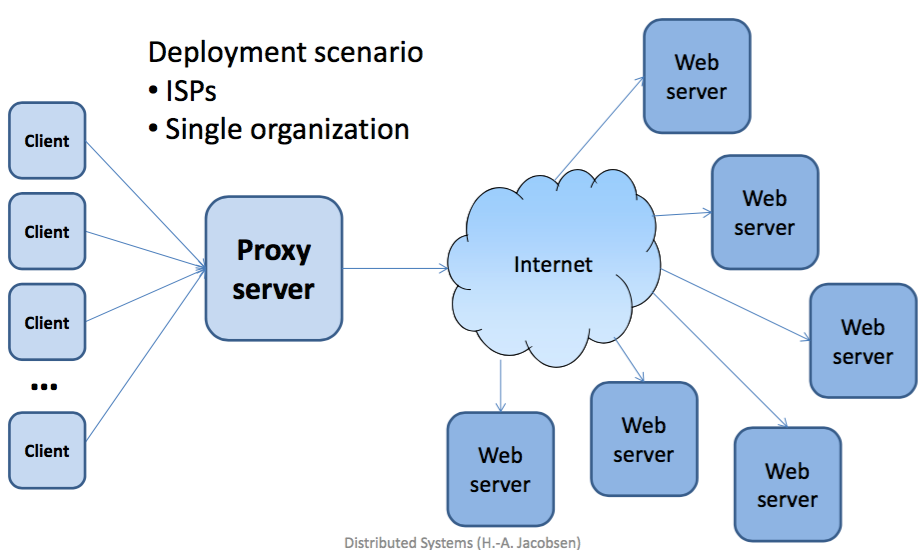

Web proxy, proxy server

Answer 6

Question 7

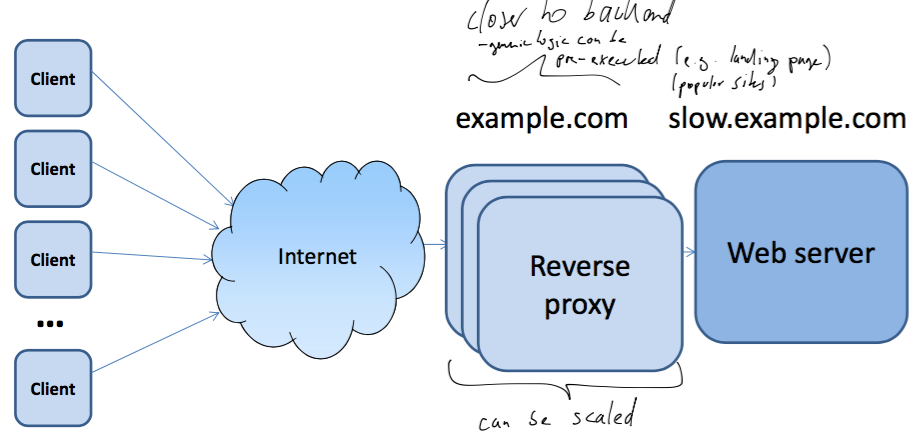

Reverse proxy, Web accelerator

Answer 7

• closer to backend
• generic logic can be pre-executed (e.g. landing page)

Question 8

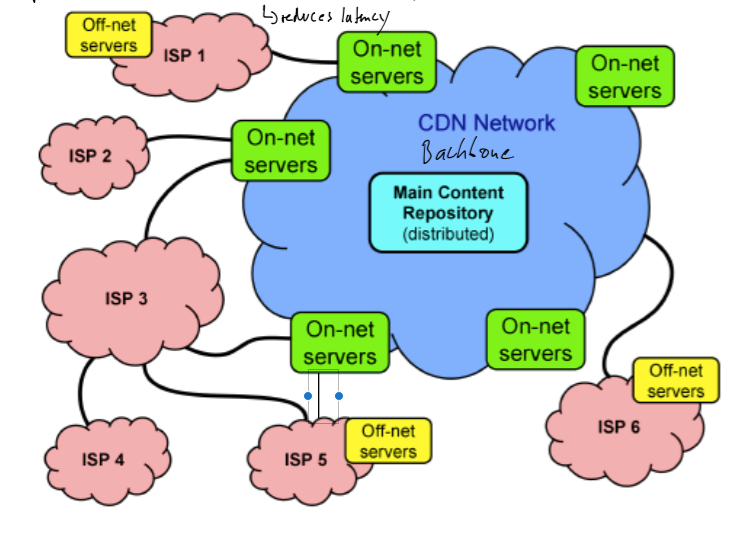

Content‐delivery network (CDN)

Answer 8

Place content as close as possible to user to reduce latency. Challenge is how to devise content

Question 9

Web caching trade‐offs

Answer 9

• Client‐server architecture is inherently non‐scalable
• Proxies serve as a level of indirection
• Proxies reduce client response time

  • Direct and indirect effect
  • Less load on the server: Server does not have to be over‐provisioned
• Proxies reduce network bandwidth usage

  • Wide area vs. local area use
  • These two objectives are often in conflict

    • May do exhaustive local search to avoid using wide area bandwidth (e.g., in cooperative caching)
    • Prefetching uses extra bandwidth to reduce client response time

Question 10

Problem: Mapping objects to caches

Answer 10

• Given a number of caches (nodes)
• Each node should carry an equal share of objects
• Clients need to know what node to query for a given object
• Nodes should be able to come and go without disrupting the whole operation (i.e., all nodes)

Question 11

Attempted solution: Use hashing (mapping objects to cache)

Answer 11

• Map page referenced by URL, u, into one of the nodes
• Use a hash function that maps u to node h(u)

  • For example, h(x) = (ax + b) mod p, where p is range of h(x)
  • Interpret u as a number based on bit pattern of string underlying input URL
• Hash functions tend to distribute their input uniformly “random” across the range of the hash function

  • URLs are equally balanced across nodes
  • No one cache responsible for an uneven share of URLs
  • A disproportionately loaded node would be a bottleneck

Question 12

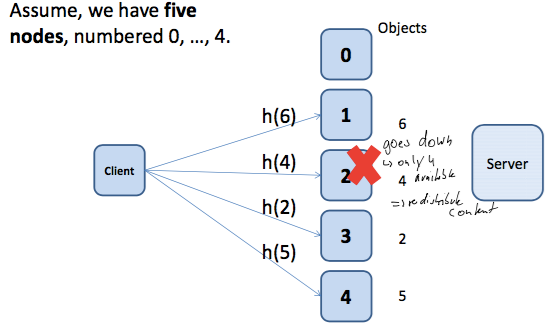

h(u) = (7u + 4) mod 5 (Problem when failing node?)

Answer 12

Removing a node with normal hashing changes location of every node

Question 13

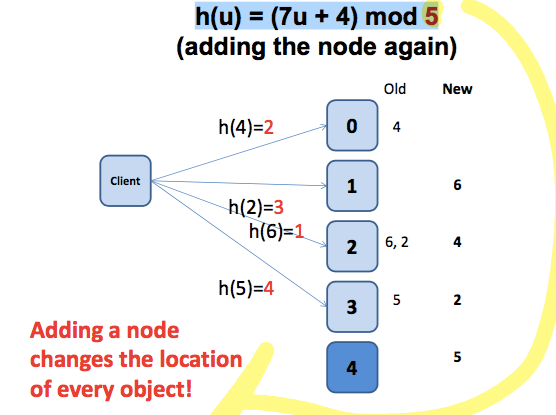

h(u) = (7u + 4) mod 5 (Problem when adding node?)

Answer 13

Adding a node changes the location of every node

Question 14

Consistent hashing

Answer 14

• Goals

  • Uniform distribution of objects across nodes
  • Easily find objects
  • Let any client perform a local computation mapping a URL to the node that contains referenced object
  • Allow for nodes to be added/removed without much disruption
• D. Karger et al., MIT, 1997
• Basis for Akamai

  • CDN company (content distribution network)
  • Web cache as a service

Question 15

Consistent hashing (how does it work?)

Answer 15

• Select a base hash function that maps strings to the number range [0, …, M]
• Divide by M, re‐mapping strings to [0, 1]
• Interpret this interval as the unit circle: Here, circle with circumference 1 (normally radius 1)
• Each URL is mapped to a point on the unit circle
• Also, map each cache to a point on the unit circle
• Assign each URL to the closest cache point in clockwise direction on the circle

Question 16

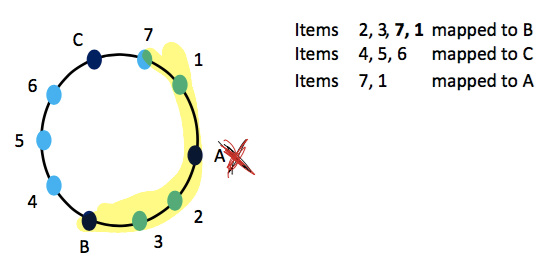

Consistent hashing: Removing a cache

Answer 16

Question 17

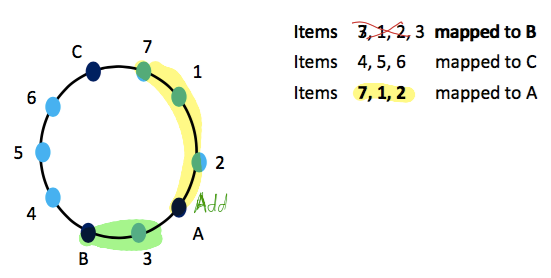

Consistent hashing: Add a cache

Answer 17

Question 18

Adding an object : Consistent hashing

Answer 18

Question 19

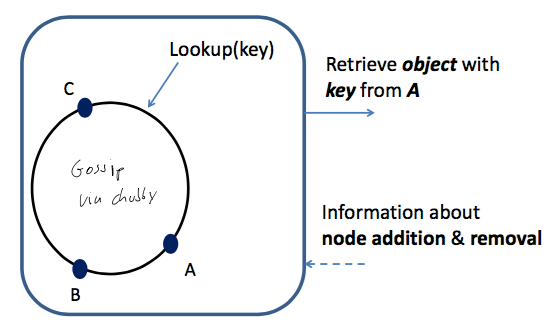

Implementation at each cache

Answer 19

• Store cache points in a binary tree
• Find clockwise successor of a URL point by single search in tree (takes O(log n) time)
• For a constant time technique, cf. Karger et al., 1997

Question 20

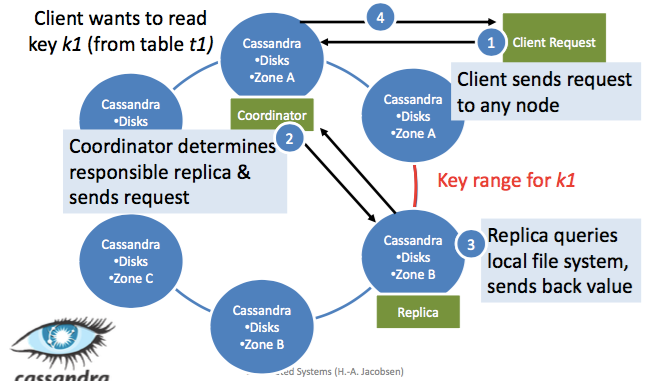

Cassandra global read‐path

Answer 20

Question 21

A “good” base hash function is MD5

Answer 21

• Message Digest 5 (MD5), R. Rivest, 1992 (MD1, …, MD6)
• Cryptographic hash function that produces a 128‐bit (16‐ byte) hash value
• Maps variable‐length message into a fixed‐length output
• Also used to check data integrity
• MD5 hash is typically expressed as a hex number (32 digits)
• It’s been shown that MD5 is not collision resistant
• US‐CERT about MD5 “should be considered cryptographically broken and unsuitable for further use“ (for security, not for caching)
• SHA‐2 is a more appropriate cryptographic hash function
