Chapter 9: Distributed File Systems

Question 1

CAP Theorem

Answer 1

• Brewers conjecture [1]

  • You can have at most two of these properties for any shared-data system
• Proof the conjecture [2]

  • Impossible to reliable provide atomic, consistent data when there are partitions in the network
• Consistency

  • Any read operation that begins after a write operation must contain that value or that of a later write operation
• Availability

  • Every request received must result in a response
• Partition tolerant

  • Even when network failures occure, every request must terminate
  • E.g., Datacenter A cannot connect to Datacenter B, the leader election algorithm should not elect in each Datacenter a new leader

Question 2

POSIX guarantees in distributed systems?

Answer 2

• Real world distributed systems

  • Higher latencies over network than local access
  • Unreliable network
  • Limited bandwidth
  • Topology changes
  • Heterogeneous environments
• CAP theorem

  • It is proven that Consistent Available and Partition tolerant systems are not possible
  • => Exposing the POSIX API with all the required atomic guarantees (which would require CAP) over network is not possible, hence we call that an abstraction which leaks.
• => Cloud storage API

Question 3

Network File System (NFS)

Answer 3

• Sharing of data between computers
• Protocol designed for local LAN‘s
• NFS creates a remote access layer for file systems

  • Remote machines can then handle inodes
• NFS is built on multiple protocols

  • NFS (File creation, reading, writing, searching, authentication, stats)
  • Mountd (Mounting of exported filesystems)
  • –Nsm (Monitors client/server status
  • Nlm (Network Lock Manger, provides locking capabilities)

Question 4

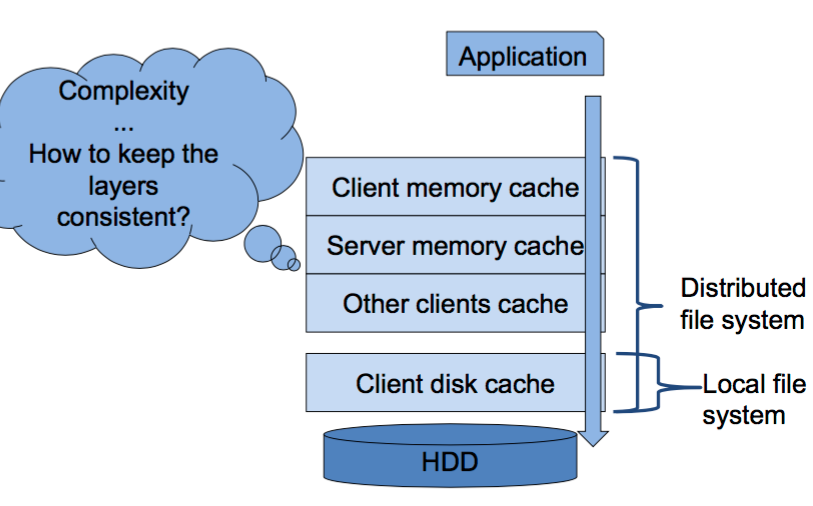

Caching in distributed filesystems

Answer 4

Question 5

Definitions - Caching

Answer 5

• Cooperative caching

  • A request goes through multiple hierarchies. Cooperative caching is used to from from multiple servers a single unified cache.
• Cache coherence

  • A cache is coherent if a process writes to any location, a subsequent read of any process sees the modification
• Prefetching

  • Caching data blocks which will probably be accessed in the near future

Question 6

Lease Manager (LMGR)

Answer 6

• File systems use locking mechanism to control access to the disk
• Leases are locks with an expiration period set up in advance

  • Needed in case of network outage
  • Causes additional overhead, lease renewal
• Implementation

  • Each OSD has one LMGR which acquires and renews the major lease
  • All leases for objects are managed by the OSD LMGR
  • OSD knows the network address of the current holder of the major- lease
  • The LMGR grants exclusive leases for objects residing in the OSD

Question 7

File Manager (FMGR)

Answer 7

• Each opened file is managed by a single FMGR – open() creates an instance of a file manager
• FMGR keeps track of each accomplished open() and read() request
• When an open() request arrives at the FMGR it checks whether the file has already been opened by another client, else a proper exclusive lease is acquired from the LMGR

Question 8

Transaction Server (TSVR)

Answer 8

• Responsibility

  • Directory operations are implemented as distributed transactions
• Example

  • Creating a new file means to create a new entry in the parent directory and creating a file
  • Potential failures

    • Creating entry in parent directory
    • Creating file
    • Initiating host can fail
• Works on a per operation basic

  • Acquires leases and performs the action
  • Holds acquired leases for as long as possible

Question 9

GFS (The Google File System)

Answer 9

• Fault tolerance while running on inexpensive commodity hardware
• Introduces an API which is designed to be implemented scalably
• Mutation
  • The GFS paper uses the word „mutation“ for any modification done to a file. This can be an in-place update, an append or a file creation, hence we also use it in the slides.
• Leases

  • Ownership for a specified length of time
  • Leases can be renewed or extended by the owner
  • When the owner fails, the lease expires
  • The owner can end the lease early

Question 10

GFS Design assumptions

Answer 10

• Inexpensive commodity components that often fail
• Typical file size 100MB or larger, no need to optimize for small files
• Read workload

  • Large streaming reads
  • Small random reads
• Write workload

  • Append to files
  • Modification supported but a design goal
  • Hundreds of concurrently appending clients
• Bandwidth is more important than low latency

Question 11

Architecture GFS

Answer 11

• Files

  • Divided into fixed-size chunks
  • Identified by an immutable and unique id (chunk handle)
• Single master

  • Maintains file system metadata

    • Namespace, access control information, mapping from files to chunks, location of chunks
  • Garbage collection (deferred deletion of files)
  • Sends heartbeat messages to chunk server
• Multiple chunk servers

  • Chunks are stored on disks as files
  • Each chunk is replicated to multiple chunk servers (depending on the replication factor of the region)

Question 12

Guarantees provided by GFS

Answer 12

• File namespace mutations are atomic

  • e.g., file creation, …
  • Uniquely handled by master
  • Masters operation log defines a global total order of the operations
• File manipulations

  • The state of a file region after a data mutation depends on the type of the action
• Definitions

  • Consistent
  • all clients see the same data, regardless of which replica they read from
  • Defined – consistent and also the clients see what the file mutation writes in its entirety
  • Inconsistent – multiple clients see different kinds of data

Question 13

How is fault-tolerance achieved? GFS

Answer 13

• Master

  • Operation Log, Replication to shadow master
• Chunk server

  • All chunks are versioned
  • Version number updated when a lease is granted
  • Chunks with old versions are not served and are deleted
• Chunks

  • Re-replication triggered by master maintains replication factor – Rebalancing
  • Data integrity checks

Question 14

How is high-availability achieved? GFS

Answer 14

• Fast recovery of master

  • Check pointing and operation log
• Heartbeat messages

  • Include piggybacked information
  • Can trigger re-replication
• Share current load
• Can trigger garbage collection

  • => Chunkservers can fail any time
• Diagnostic tools

Question 15

Summary on GFS

Answer 15

• Highly concurrent reads and appends
• Highly scalable
• On cheap commodity hardware
• Built for map-reduce kind of workloads

  • Reads
  • Appends
• Developers have to understand the limitations
• and may have to use other tools to work around

Question 16

HDFS

Answer 16

• The Hadoop Distributed File System
• Originally built as infrastructure for the Apache
• Nutch web search engine
• Quite similar to GFS
• Facebook
  • One cluster with 8800 cores and 12 PB raw storage
• LinkedIn

  • Multiple clusters and als PB of data
• Twitter
• Powerset (bought by Microsoft)

Question 17

F4: Facebook‘s warm BLOB storage

Answer 17

• Storage efficiency

  • Reduce replication factor
• Suitable for warm BLOBs
• Fault tolerance

  • Drive failures
  • Host failures
  • Rack failures
  • Datacenter failures
• Design goals similiar to GFS

Question 18

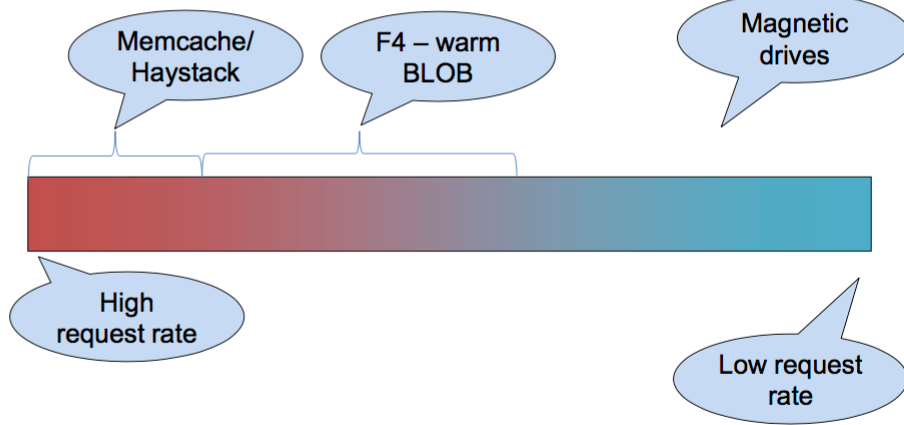

Observation - files can be hot, warm or cold F4

Answer 18

Question 19

Properties G4

Answer 19

• Blobs are in volumes which use distributed erasure coding

  • Less bytes than triple replication
  • Reed-SolomonCodes
  • XOR coding in the wide-area to ensure resilience to datacenter failures
• Volumes

  • Has multiple states

    • Unlocked, which means open for modification
    • Locked, only reads and deletes
  • When unlocked, supports read, creates (appends) and deletes
  • Once full (100GB), volume is locked
  • Comprises 3 files

    • Index, journal and data

Question 20

Ori + design goals

Answer 20

• ORI replicated file system
• Think of git combined with Dropbox

DEsign goals:

• Availability

  • Data should be available at any time despite nodes going down
• Accessibility

  • Data should be accessible from everywhere
• Durability

  • Data should not be lost
• Usability

  • Built for collaboration and version control
