What are the general questions to ask about client/server when considering how to structure your application
- Type of service being procided
- eg. file, name, web
- Layers of co-dependant servers
- How can client/server interactions vary?
- Does server store info about client?
What are the two key questions/issues?
Division of labor
packets or streams
What are the PROs and CONs of client vs server?
PRO:
- Dustrubuted access (anytime anywhere)
- Load distribution and scalability
- Cost effectiveness
CON:
- Tech issues
- Sys admin overhead (more machines to maint)
- Hidden cost of main
- Security
What is the difference between a Thick or Thin Client?
Division of labour
Thick:
- More functionality on client side
Thin:
- The client acts as display only.
- Relies on server to process everything.
- Can be delays because of communication
What are the factors to consider when determining division of labour?
Location of resources required
- If resources are on a single machine, then processesing should be completed there
Communication Costs
- Chose a patht that minimizes communication
Workload balance/distribution
- Try to balance workload across available machines
- CONSIDER:
- capability of machines
- number of machines
- application load variations
- CONSIDER:
What are Server design considerations?
- Stateful vs stateless
- Multi vs Single-Threaded
- Server Replication
What is a stateful server?
A server that maintains the “state” of clients
- “What clients am I currently connected to?”
- “What is each client currently doing?”
- FAULT TOLLERANCE CONSIDERATION:
- What happens when the server fails?
- How is the state information reconstructed?
These states allow for more complex functionality
- Shopping card
- Saving information when filling our a web-form
What is a stateless server?
Does not maintain any information about clients
PRO: Easy to recover from failure, just need to restart the server
What should be used to determine if you should create a concurrent or non-concurrent implementation?
Non-concurrent: Simple, quick tasks
Concurrent: Any time processesing would create any type of delay.
What are the advantages of multithreaded vs multi-process servers?
- All threads share a single memory space
- cheap to create and share data easily
- NOTE: concurrency requires syncronization(because the data space is shared)
What are the 3 variations on concurrent server implementations?
- Thread per request
- Thread per connection
- Thread per object

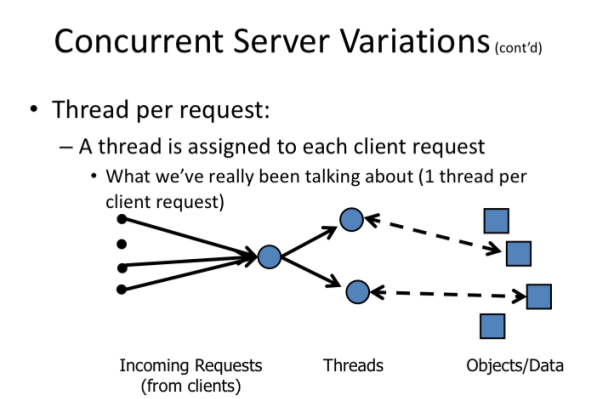

Draw the diagram of “Thread per request”

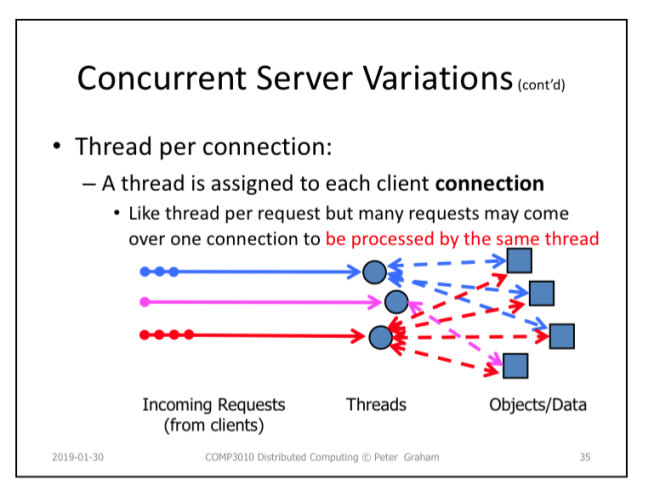

Draw the diagram of “Thread per connection”

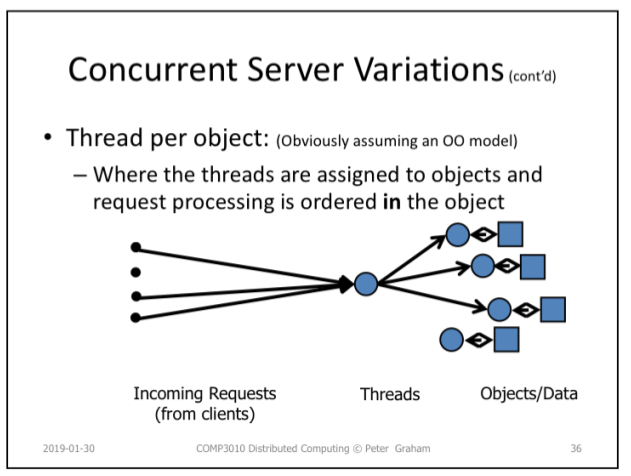

Draw the diagram of “Thread per Object”
What is a server farm/pool
Using a bunch of “smaller”(and cheaper) machines
PRO: Enhanced performance and avialability
CON: Consistency
- How do we keep all the servers up to date and in sync?
- This may or may not matter
- ATM machine vs Web Page
- This may or may not matter

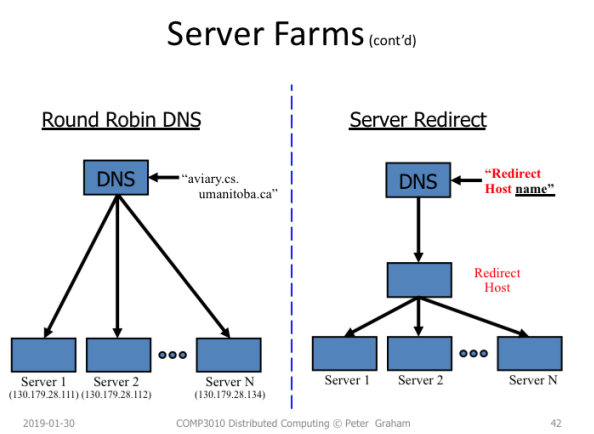

What are the two implementation sof a server-farm?
Draw the diagram of each
Round Robin
DNS request comes in and maps to one of avail local servers
Server Redirect
DNS request comes in, goes to one host and then redirects to a closer server geographically
What is Wide Area Server Replication?
How does it work with a CDN?
What is a CDN?
Allows for efficient delivery of content across a large geographic area via wide-area server replication
Often used to replicate websides
Akamai being one of the largest
CDN: Content Distribution/Delivery Network
Content is replicated to servers geographically located in strategic areas to increase the speed of access to these servers.
What are the challenges with a Wide Area Server Replication?
How do CDNs help with this?
Questions to consider
- Where to replciate content to
- What to replicate
- When and how to maintain consistency
CDN:
Content provided maintians origin site and the CDN then replicates
Users acess the “edge servers”
Edge servers are hosted and maintained by network providers

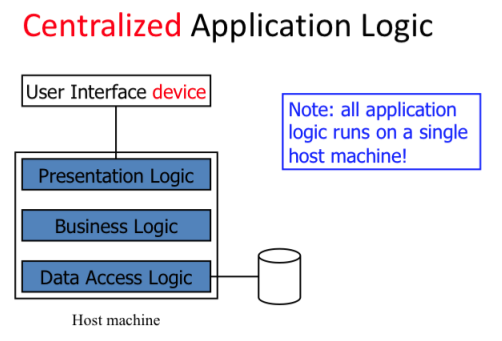

Draw a diagram of a Centralization Application Logic

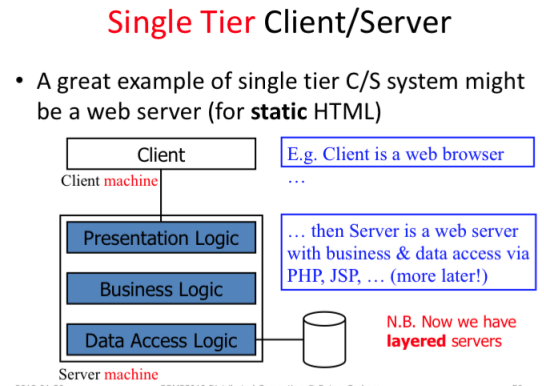

Draw a diagram of a Single Tier client/server

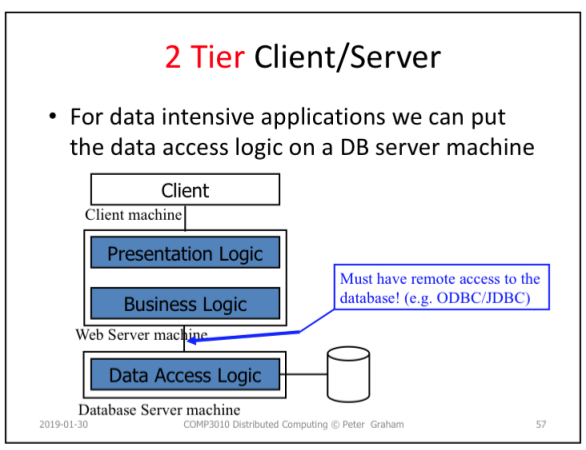

Draw a diagram of 2 tier client/server

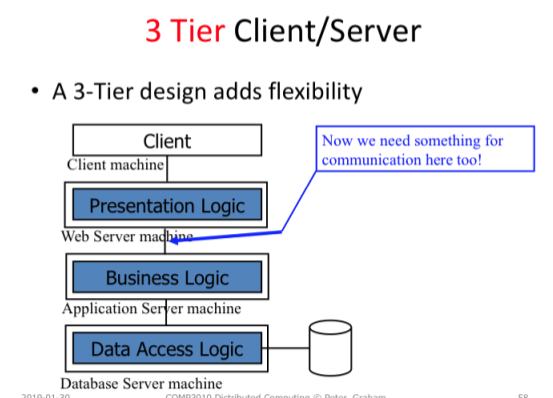

Draw a diagram of 3 Tier Client/Server

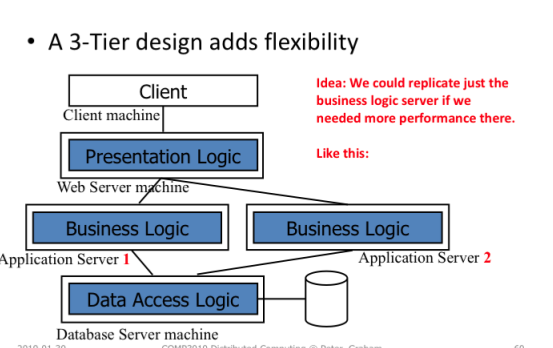

How does a 3 tier design increase flexibility?
Any layer can be replicated
What are the guiding principles for determering what type of tier design to use?
Location of resources accressed
Communication costs
Workload distribution
