Configuring the Network

Question 1

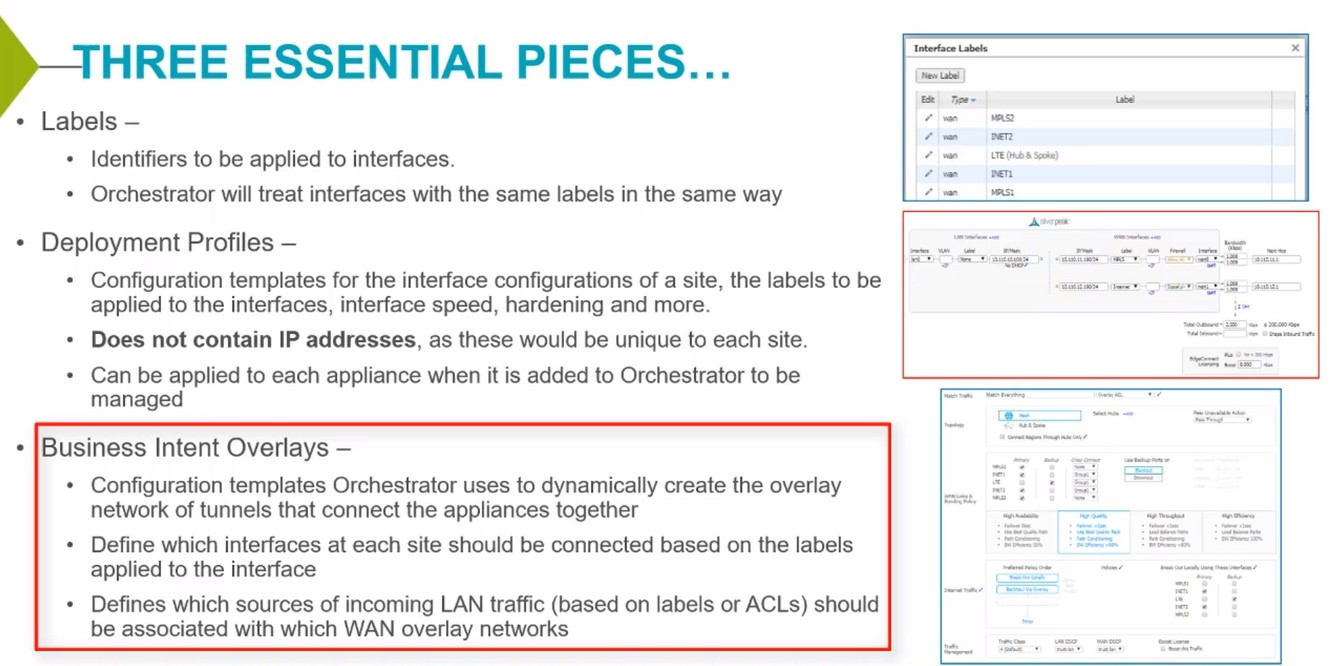

What are the 3 essential steps to setup prior to a deployment/installation?

Answer 1

Create:

1. Labels
2. Deployment Profiles
3. Business Intent Overlays

Question 2

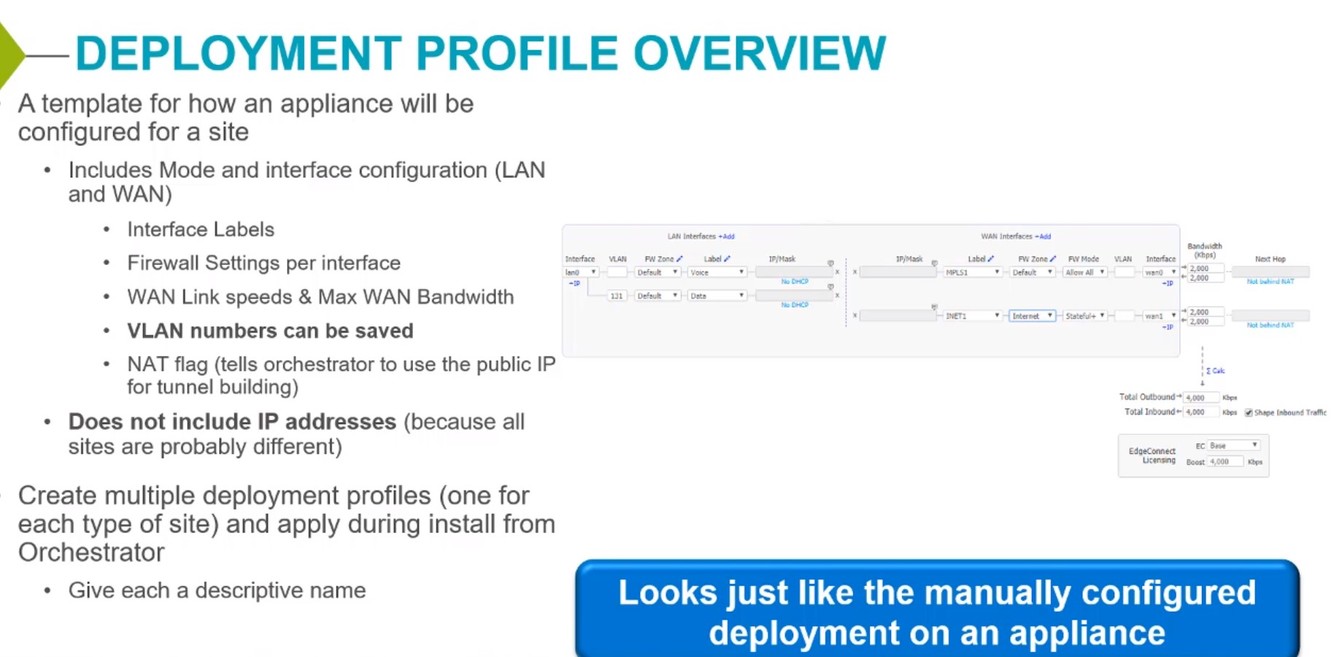

What data is stored in a deployment profile?

Answer 2

Includes Mode and Interface Configuration

Does not include IP addresses.

Question 3

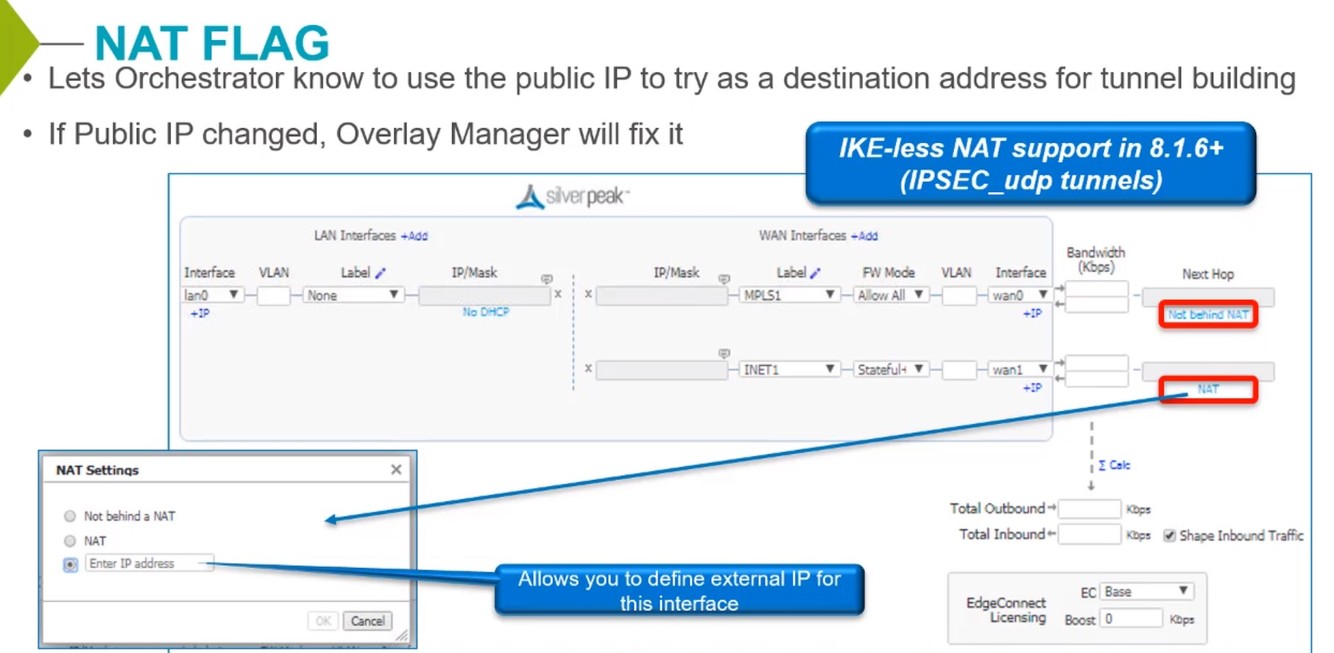

When appliances are behind a 1-to-1 NAT, what needs to be set in the deployment profile?

Answer 3

Set NAT flag so unit outside the NAT device knows what address to address traffic to in order to reach the device behind the NAT.

Question 4

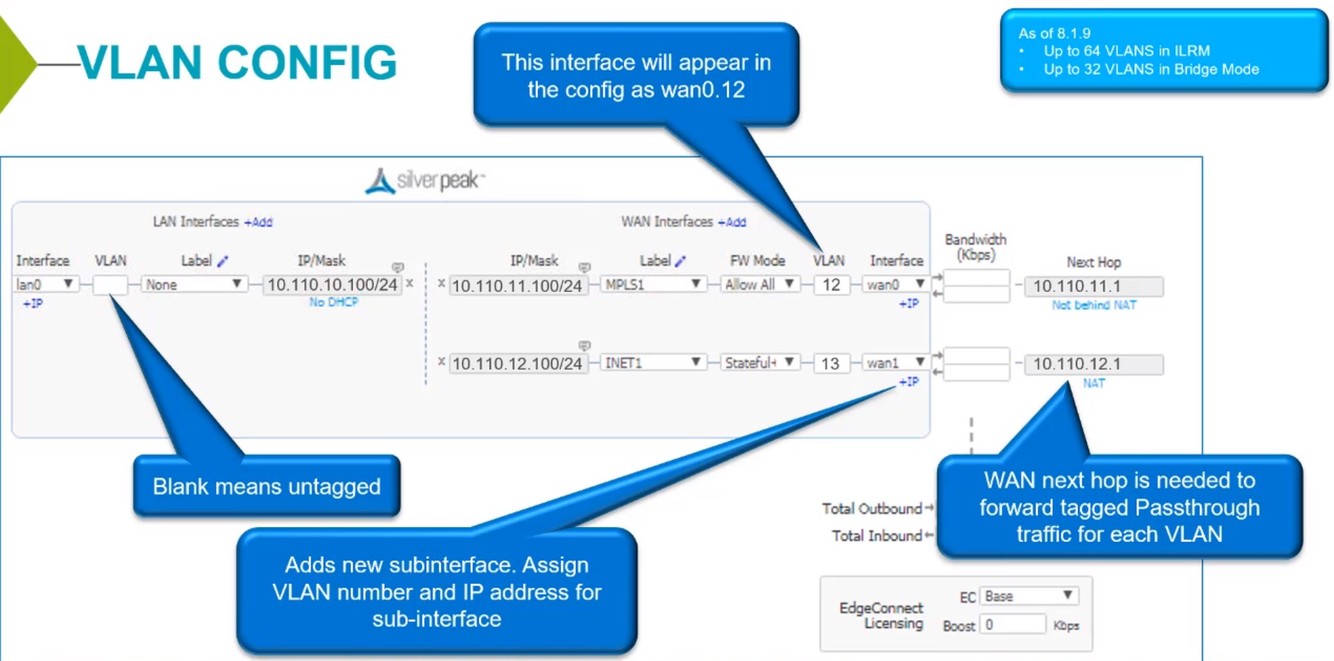

How do you configure VLAN tagging on the Silver Peak device?

Answer 4

see image

Question 5

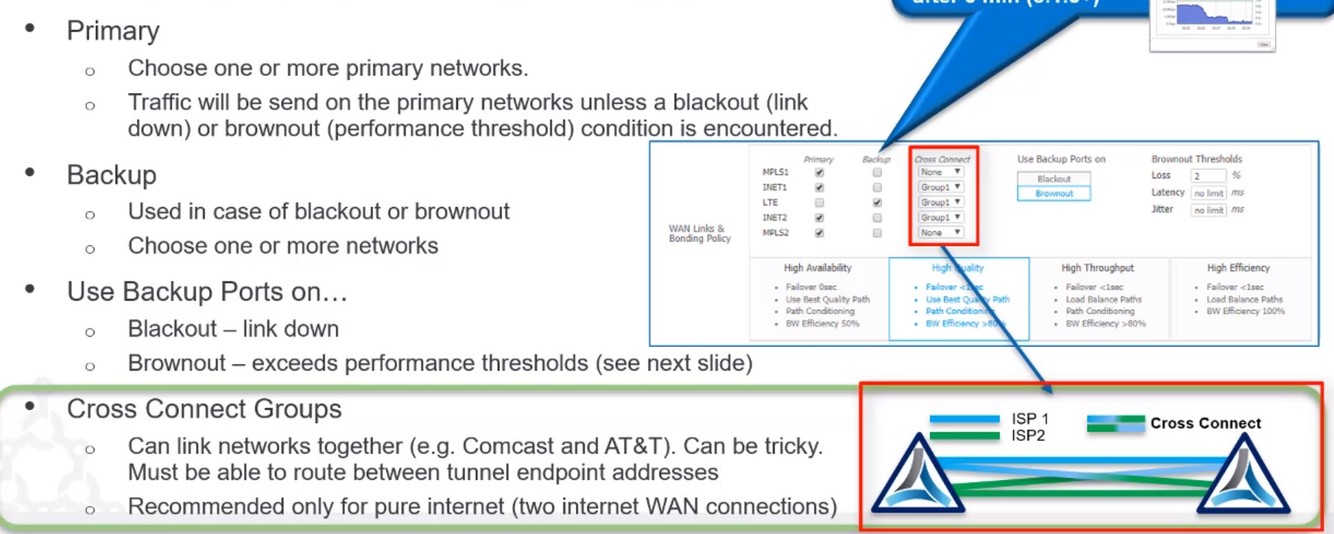

What are WAN Cross Connect Groups?

Answer 5

If these boxes are checked, tunnels will be generated between these interfaces on various devices.

Question 6

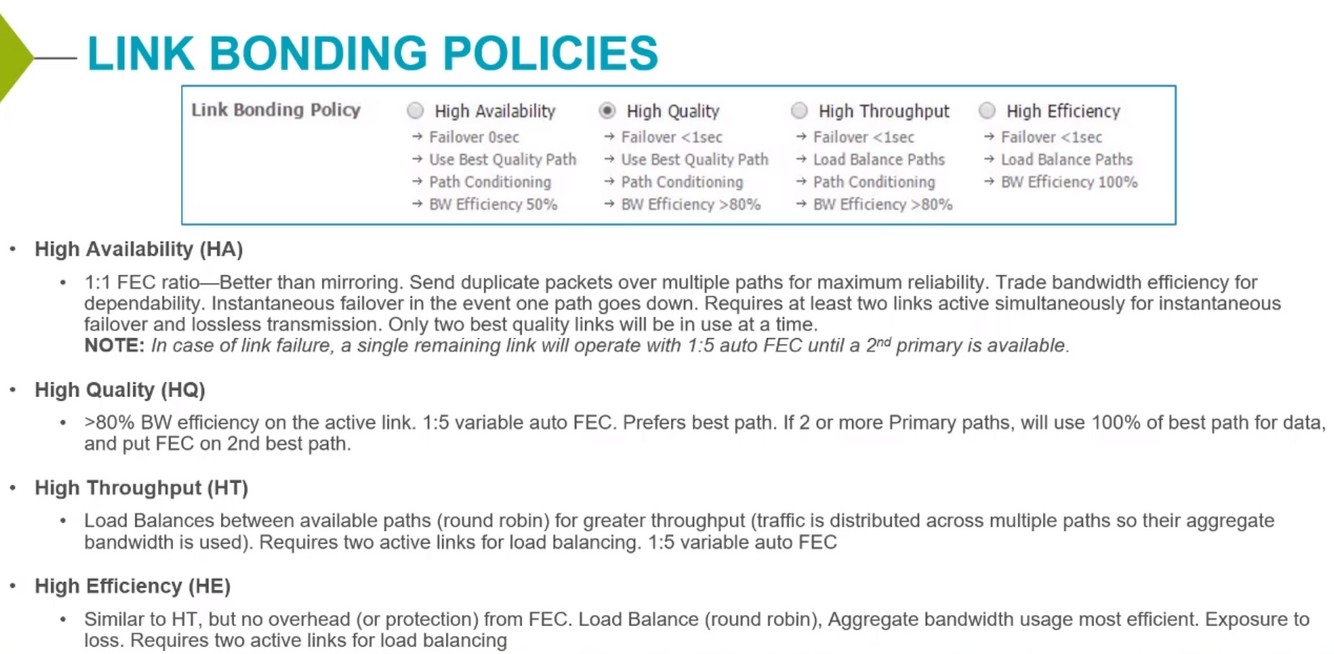

What are the 4 Link Bonding Policies?

Answer 6

1. High Availability (HA)
2. High Quality (HQ)
3. High Throughput (HT)
4. High Efficiency (HE)

Question 7

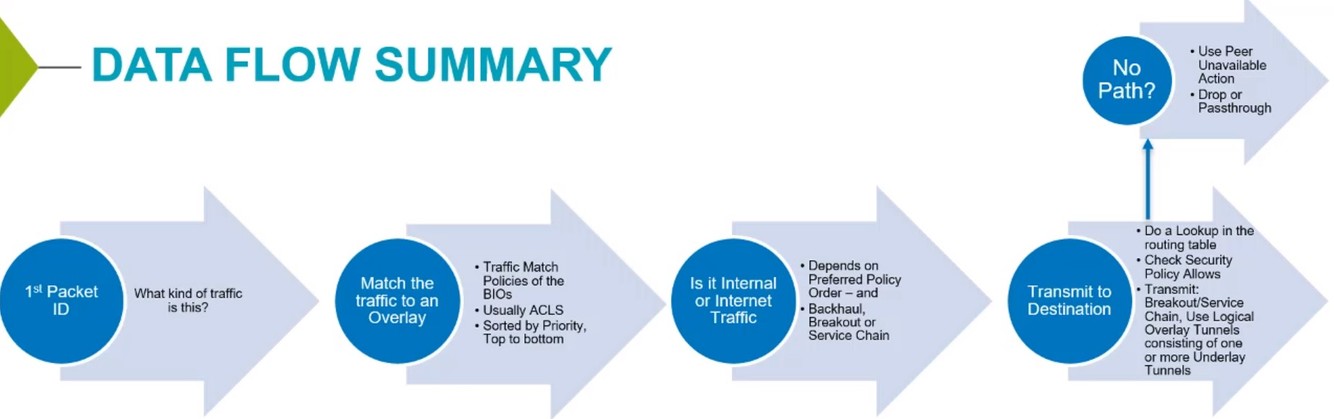

What is the data flow order?

Answer 7

1. 1st Packet ID
2. Match the overlay traffic
3. Passthrough or tunnel traffic decision
4. transmit to destination
