Control Comp #2 (Clyinders-Regulators-Flowmeters, LVN, O2 Analyzers)

Question 1

Cylinders, Regulators, Flowmeters (Comp 2)
(9 Steps)

Answer 1

PROCEDURAL STEPS
1. Selects appropriate cylinder and appropriate regulator and wrench (Read Label, Green Tank = O2)
2. Demonstrates proper handling of cylinder and proper transport (Needs to be secure in a cart)
3. Demonstrates or states the importance of cracking cylinder (WARN PEOPLE BEFORE CRACKING: Use wrench to turn on valve quickly to blow out any debris
4. Demonstrates or states how to place Regulator on Cylinder
5. Trouble shoots cylinder to ensure no leaks; corrects if necessary (Leaks due to Regulator on wrong or not tighten all the way)
6. Demonstrates or states how to close Cylinder Valve and Bleed the Pressure from Regulator
7. Returns the Cylinder to its original place of storage
FLOWMETERS
1. Connects flowmeter correctly to wall outlet; detects and corrects any leaks
2. Adjusts liter flow

Question 2

Cylinders, Regulators, Flowmeters
(Steps 1-7)

Answer 2

PROCEDURAL STEPS

1. Selects appropriate cylinder and appropriate regulator and wrench (Read Label, Green Tank = O2)
2. Demonstrates proper handling of cylinder and proper transport (Needs to be secure in a cart)
3. Demonstrates or states the importance of cracking cylinder (WARN PEOPLE BEFORE CRACKING: Use wrench to turn on valve quickly to blow out any debris
4. Demonstrates or states how to place Regulator on Cylinder
5. Trouble shoots cylinder to ensure no leaks; corrects if necessary (Leaks due to Regulator on wrong or not tighten all the way)
6. Demonstrates or states how to close Cylinder Valve and Bleed the Pressure from Regulator
7. Returns the Cylinder to its original place of storage

Question 3

Cylinders, Regulators, Flowmeters
(Steps 8-9)

Answer 3

FLOWMETERS
8/1. Connects flowmeter correctly to wall outlet; detects and corrects any leaks
9/2. Adjusts liter flow

Question 4

Volume-Pressure (V-P) Conversion Factors

Answer 4

1. E Cylinder: 622.0 L / 2200 psi = 0.28
2. H Cylinder: 6900.0 L / 2200 psi = 3.14

Question 5

Equation to Determine: How much time there is of O2 in a Cylinder. Using Tank Pressure * V-P Factor / Liter Flow. Example: 2000 psi, E cylinder, 3 L Flow

Answer 5

2000 psi * .28 Factor= 560
560 / 3 L Flow = 186.66
186.66 / 60 min = 3.11
.11 min * 60 sec = 6.6
Answer is 3 hours and 6 minutes

Question 6

Safety Systems for Small and Large Cylinders

Answer 6

1. Small Cylinders: Pin Index Safety System (PISS)
2. Large Cylinders: American Standard Safety System (ASSS) indexing system

Question 7

Large Volume Nebulizer (Comp 2)
(13 Steps)

Answer 7

PROCEDURAL STEPS
1. Checks physician orders and/or verifies facilities protocol
2. Scans chart for diagnosis and any other pertinent data
3. Gathers appropriate equipment
4. Utilizes and maintains standard precautions as required
5. Introduces self and department and Identify patient
6. Explains purpose of O2 and/or Aerosol Therapy (Provide Humidity and O2)
7. Assesses patient Vitals before therapy (HR, RR, O2 Sat, Breath Sounds)
8. Sets up the aerosol device, verifies mist/flow, and applies the device to the patient (See Mist, turn up L/Flow if cannot see)
9. Assesses patient Vitals after therapy (HR, RR, O2 Sat, Breath Sounds)
10. Correctly cares for the equipment following the procedure
11. thanks patient and ensures safety and needs
12. Disposes of PPE; Washes/Gel Hands
13. Documents

Question 8

Large Volume Nebulizer
(Steps 1-6)

Answer 8

1. Checks physician orders and/or verifies facilities protocol
2. Scans chart for diagnosis and any other pertinent data
3. Gathers appropriate equipment
4. Utilizes and maintains standard precautions as required
5. Introduces self and department and Identify patient
6. Explains purpose of O2 and/or Aerosol Therapy

Question 9

Large Volume Nebulizer
(Steps 7-10)

Answer 9

7. Assesses patient Vitals before therapy (HR, RR, O2 Sat, Breath Sounds)
8. Sets up the aerosol device, verifies mist/flow, and applies the device to the patient (See Mist, turn up L/Flow if cannot see)
9. Assesses patient Vitals after therapy (HR, RR, O2 Sat, Breath Sounds)
10. Correctly cares for the equipment following the procedure

Question 10

Large Volume Nebulizer
(Steps 11-13)

Answer 10

11. thanks patient and ensures safety and needs
12. Disposes of PPE; Washes/Gel Hands
13. Documents

Question 11

Oxygen Analyzers (Comp 2)
(11 Steps)

Answer 11

PROCEDURAL STEPS
1. Selects, gathers, and assembles the necessary equipment
2. Utilizes and maintains standard precautions as required
3. Identifies patient correctly, introduces self and department
4. Explains purpose of procedure
5. Performs the correct calibration of device prior to use and allow analyzer to stabilize for reading
6. Places the analyzer in an appropriate location to analyze the O2 device* (Put after drain bag)
7. Allows for stabilization of the reading*
8. Correctly cares for the equipment following the procedure
9. Thanks patient and ensures safety and needs
10. Disposes of PPE; Washes/Gel Hands
11. Documents

Question 12

Oxygen Analyzers
(Steps 1-4)

Answer 12

1. Selects, gathers, and assembles the necessary equipment
2. Utilizes and maintains standard precautions as required
3. Identifies patient correctly, introduces self and department
4. Explains purpose of procedure

Question 13

Oxygen Analyzers
(Steps 5-8)

Answer 13

5. Performs the correct calibration of device prior to use and allow analyzer to stabilize for reading
6. Places the analyzer in an appropriate location to analyze the O2 device* (Put after drain bag)
7. Allows for stabilization of the reading*
8. Correctly cares for the equipment following the procedure

Question 14

Oxygen Analyzers
(Steps 9-11)

Answer 14

9. Thanks patient and ensures safety and needs
10. Disposes of PPE; Washes/Gel Hands
11. Documents

Question 15

Oxygen Analyzer
How to Calibrate

Answer 15

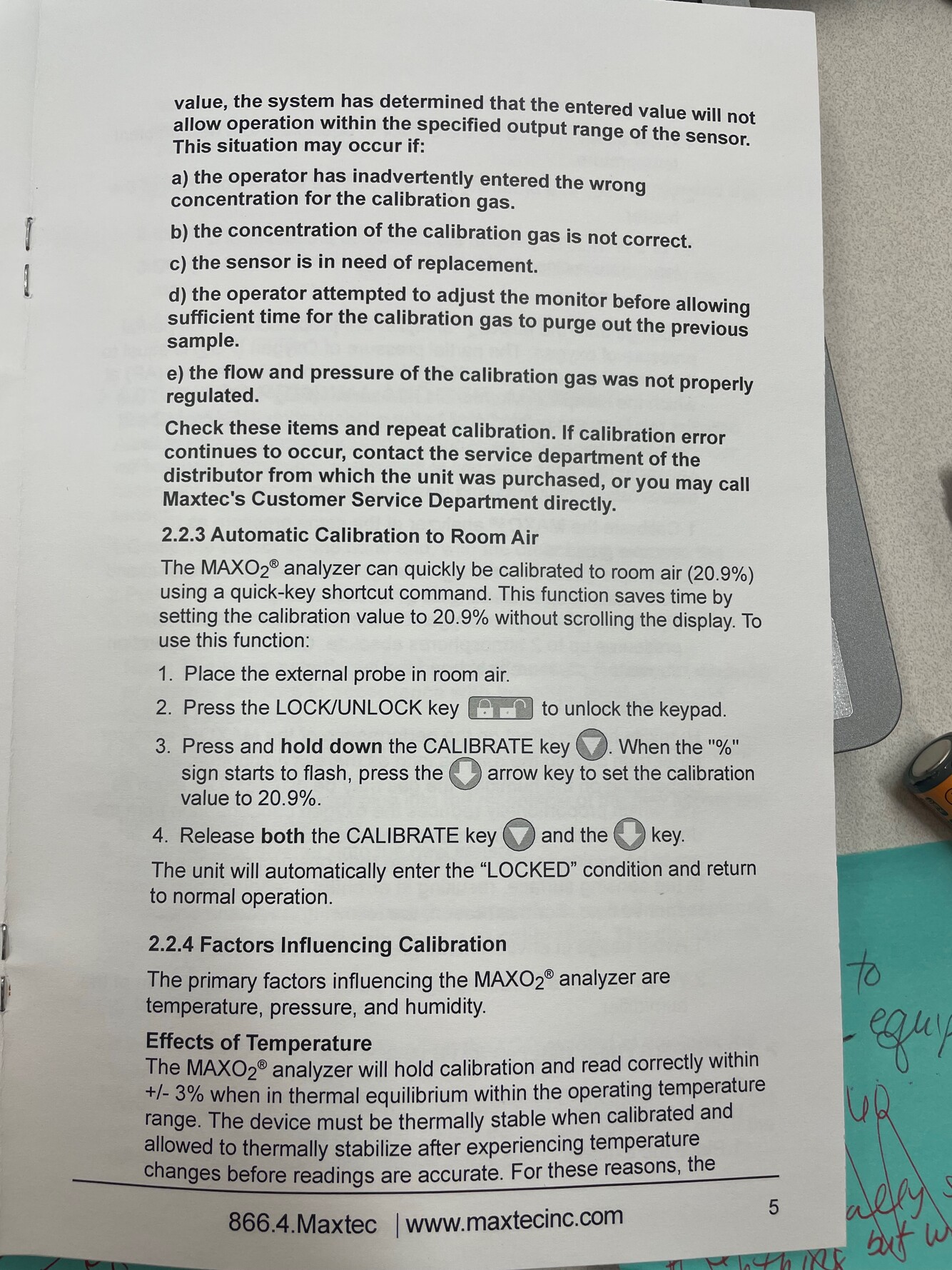

Calibrate Gas to Room Air

Question 16

Oxygen Analyzer
How to Calibrate

Answer 16

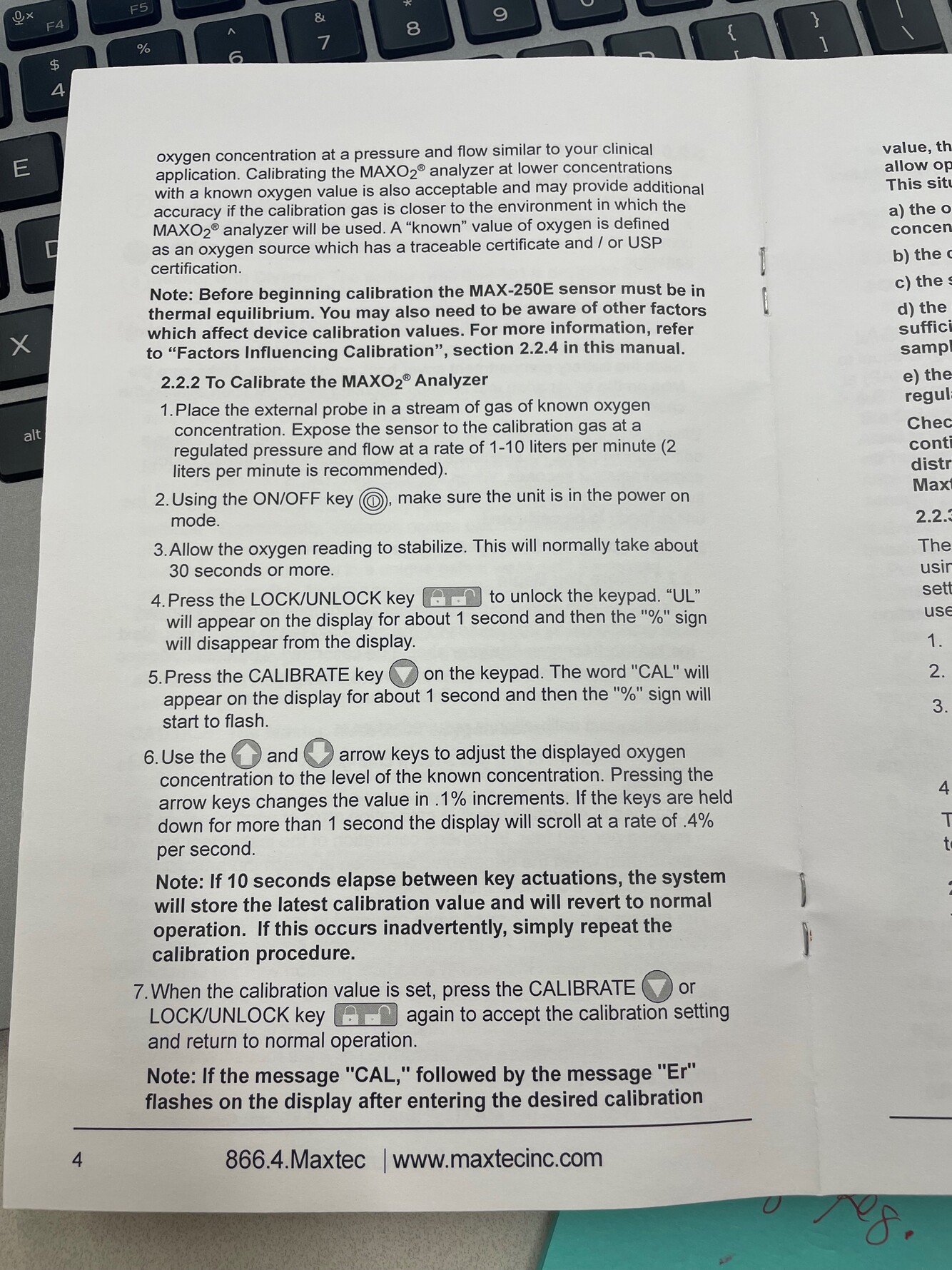

Calibrate Gas of Known Oxygen Concentration

Question 17

Oxygen Analyzer
“Rules of Thumb”

Answer 17

1. If patient is set at 50% FiO2 or greater than calibrate to 21% first then 100% second
2. If patient is set at 49.9% FiO2 or lower than calibrate to 100% first then 21% second

• When Calibrating the 100%. Use a 5 L/Flow
  *Once you have calibrated the Oxygen Analyzer you want to ensure your accurate within 2%

Question 18

Room Air Oxygen %
Cylinder Air Oxygen % per Liter for Nasal Canula (NC)

Answer 18

1. Room Air has 21% Oxygen
2. Cylinder Air for 1L has 24% Oxygen For NC
   *For every liter of air in Cylinder the Oxygen % Increases by 4%
3. Cylinder Air for 2L has 28% Oxygen NC
4. Cylinder Air for 3L has 32% Oxygen NC
5. Cylinder Air for 4L has 36% Oxygen NC
