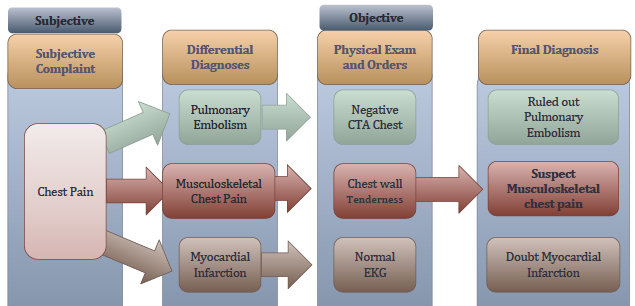

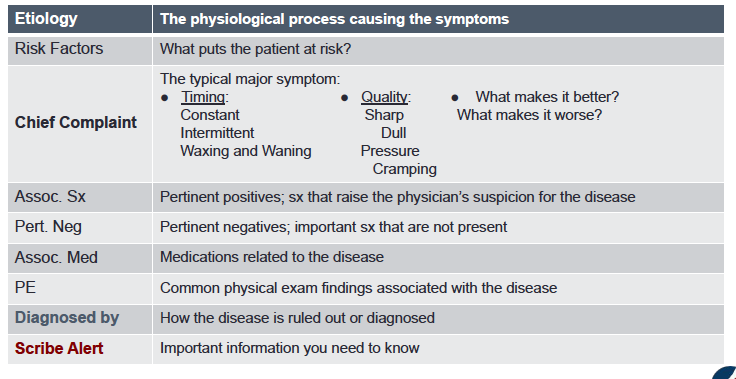

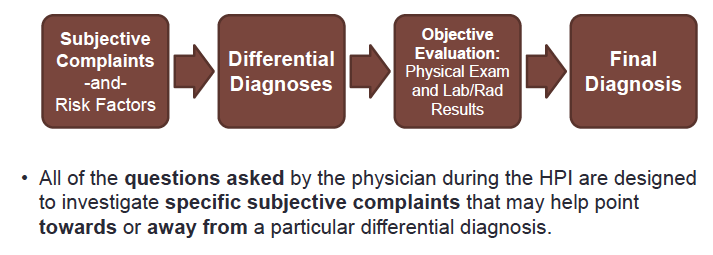

Example Pathophysiology (ED Flow)

Differential Diagnosis
1. Differential Diagnosis: the different diseases the physician comes up with to explain the true source of the pc’s chief complaint

Pertinent Positives
specific symptoms that raise the physician’s suspicion for a particular disease
Pertinent Negatives
specific symptoms that are not present which cause teh physician to doubt certain diagnosis

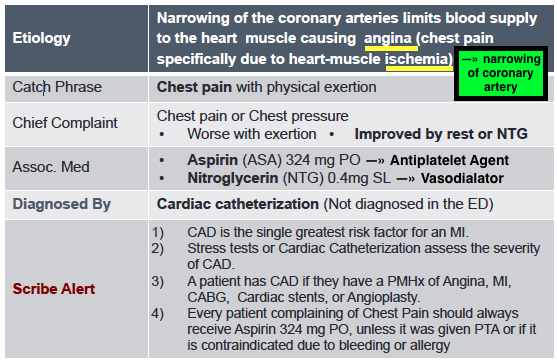

Coronary Artery Disease
(Etiology)

CAD

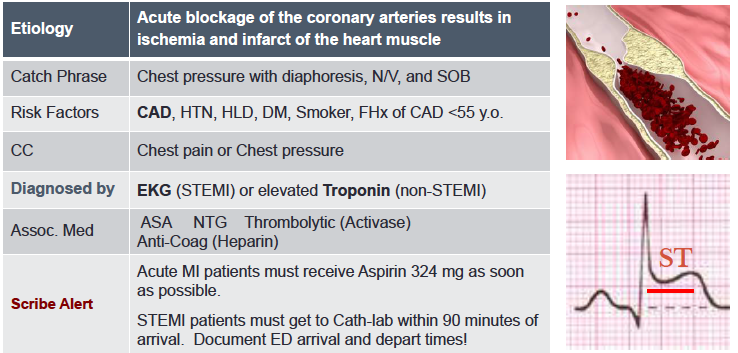

Myocardial Infarction
(Etiology)

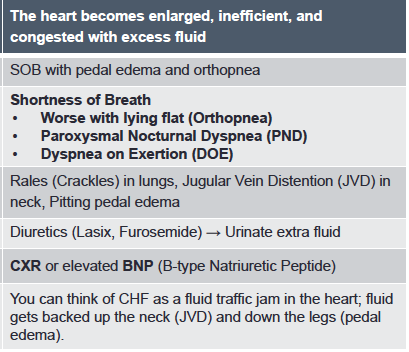

Congestive Heart Faliure
(Etiology)

A) rales (snap, crackle, pop sound in lungs upon breathing),
B) Jugular Vein Distention (JVD) in neck,
C) pitting pedal edema ( Observable swelling of body tissues due to fluid accumulation that may be demonstrated by applying pressure to the swollen area)

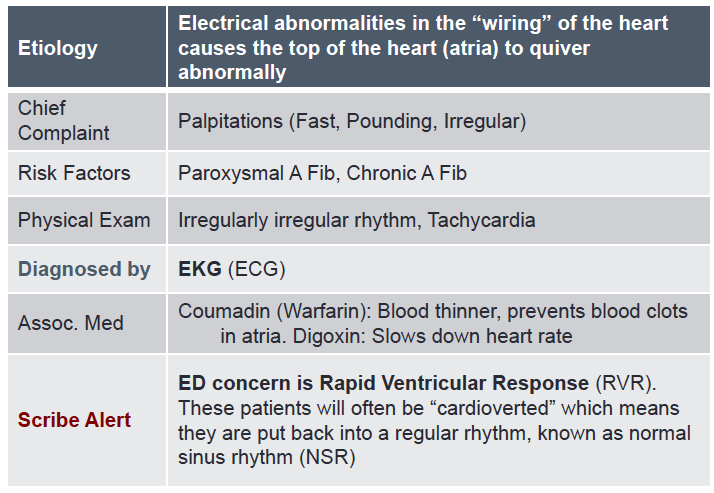

Atrial Fibrillation
(Etiology)


what are 3 Shortness of Breath (SOB) Symptoms associated with CHF?
inflammation of the sac surrounding the heart causing CP (chest pain)
Pericarditis
inflammation of the sac surrounding the lungs causing pleuritic CP
Pleurisy
irritation of the ribs causing CP worsened by pressing on the sternum
Costochondritis
irritation of the chest wall causing pain with palpation of the chest
Chest Wall Pain
fluid collecting around the lungs causing SOB or CP
Pleural Effusion

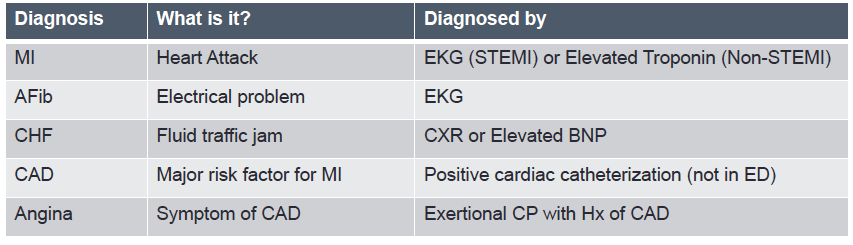

Cardiovascular Summary Slide

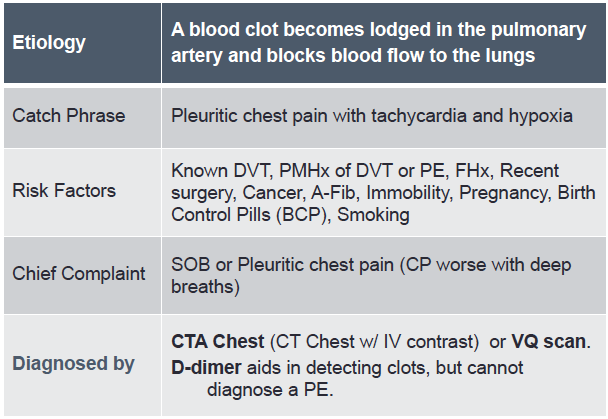

Pulmonary Embolism
(Etiology)

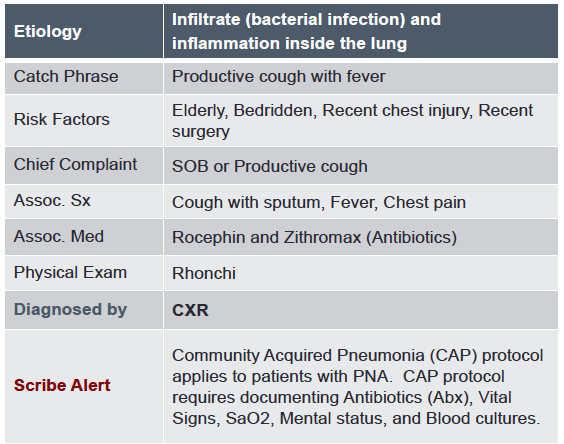

Pneumonia
(Etiology)

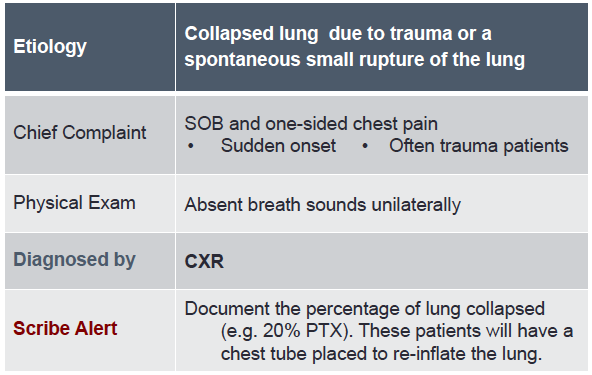

Pneumothorax
(Etiology)

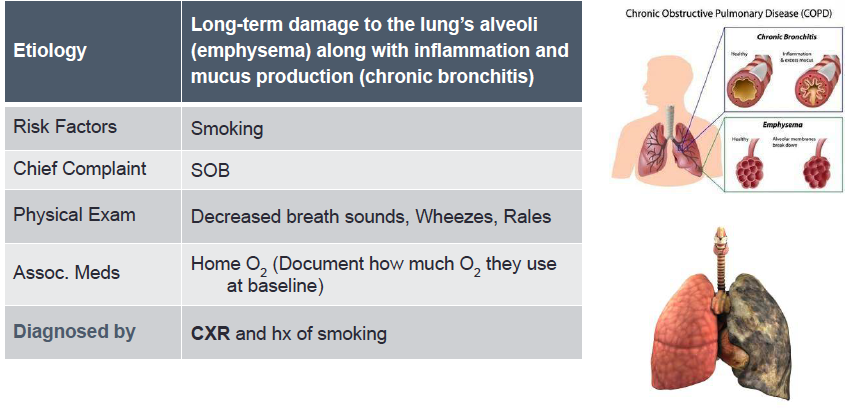

Chronic Obstructive Pulmonary Disease
(Etiology)

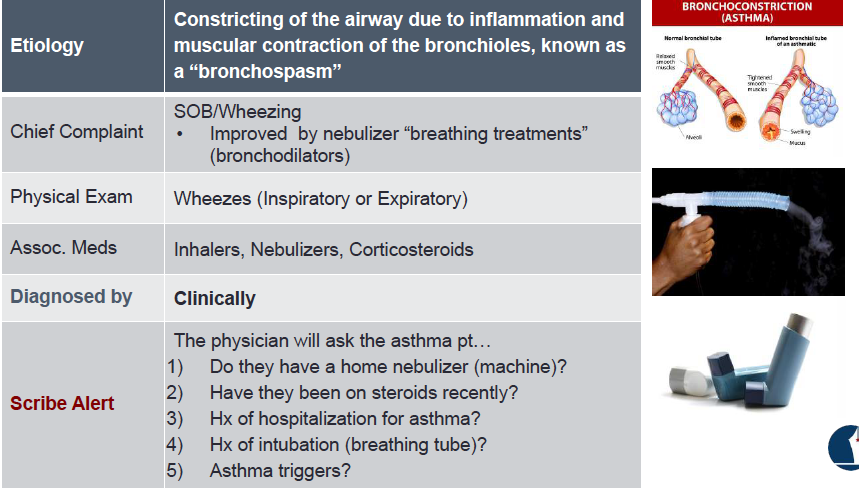

Asthma (Reactive Airway Disease)
(Etiology)

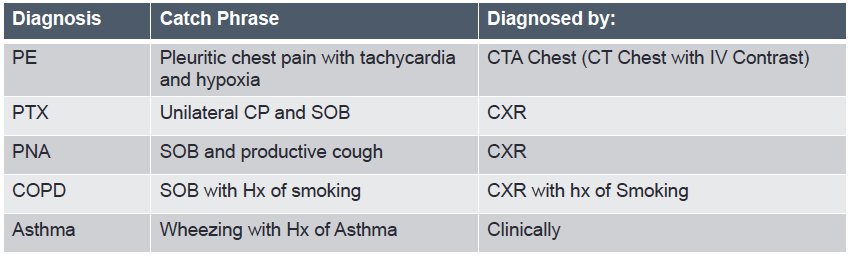

Pulmonary Summary

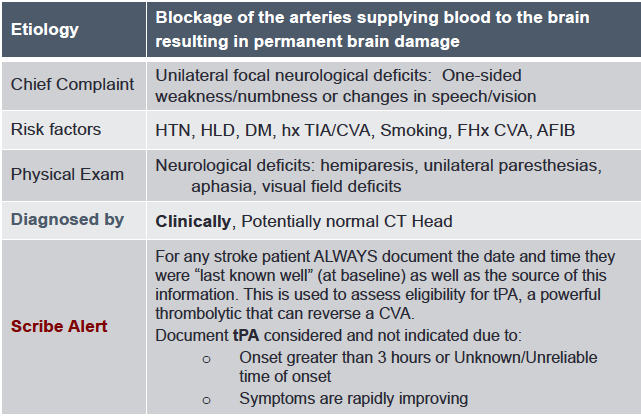

Ischemic Cerebrovascular Accident
(Etiology)

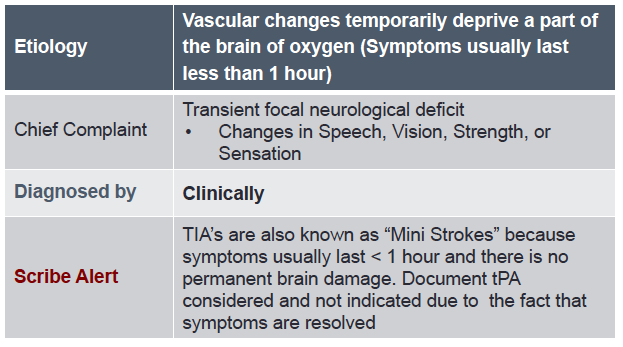

Transient Ischemic Attack
(Etiology)
