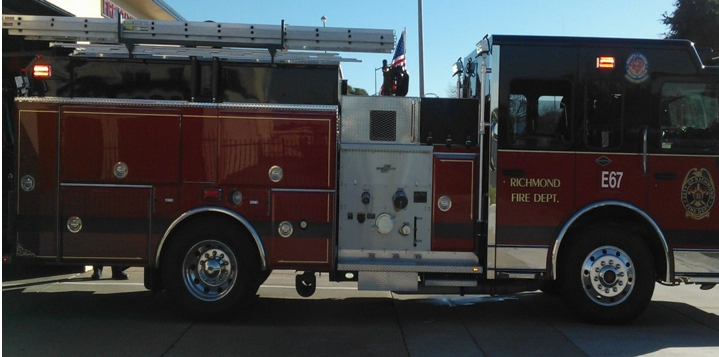

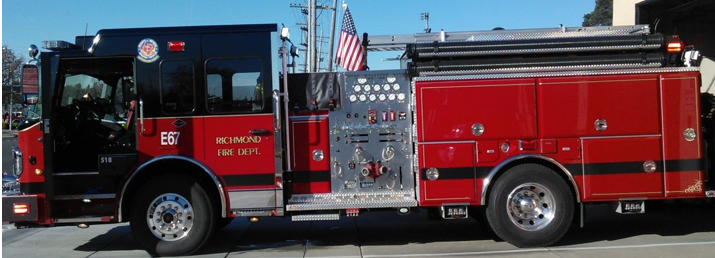

ENGINE 67 #518

Question 2

ENGINEER DIAMOND PLATE

Answer 2

1. extra nozzles
2. bresnan distributor (250gpm 100 psi)
3. bubble cup nozzle (95 gpm 100psi)
4. 2 ½” - 1 ½” gated wye
5. smooth bore tips
6. assorted couplings
7. toe strap 30’ double nylon ply 10,700 lb working strength 32,000 lb test strength
8. GAP SEAL
9. electrical tape
10. 20’ high pressure pneumatic hose 200psi max
11. assorted gaskets
12. hose strap
13. traffic vests

Question 3

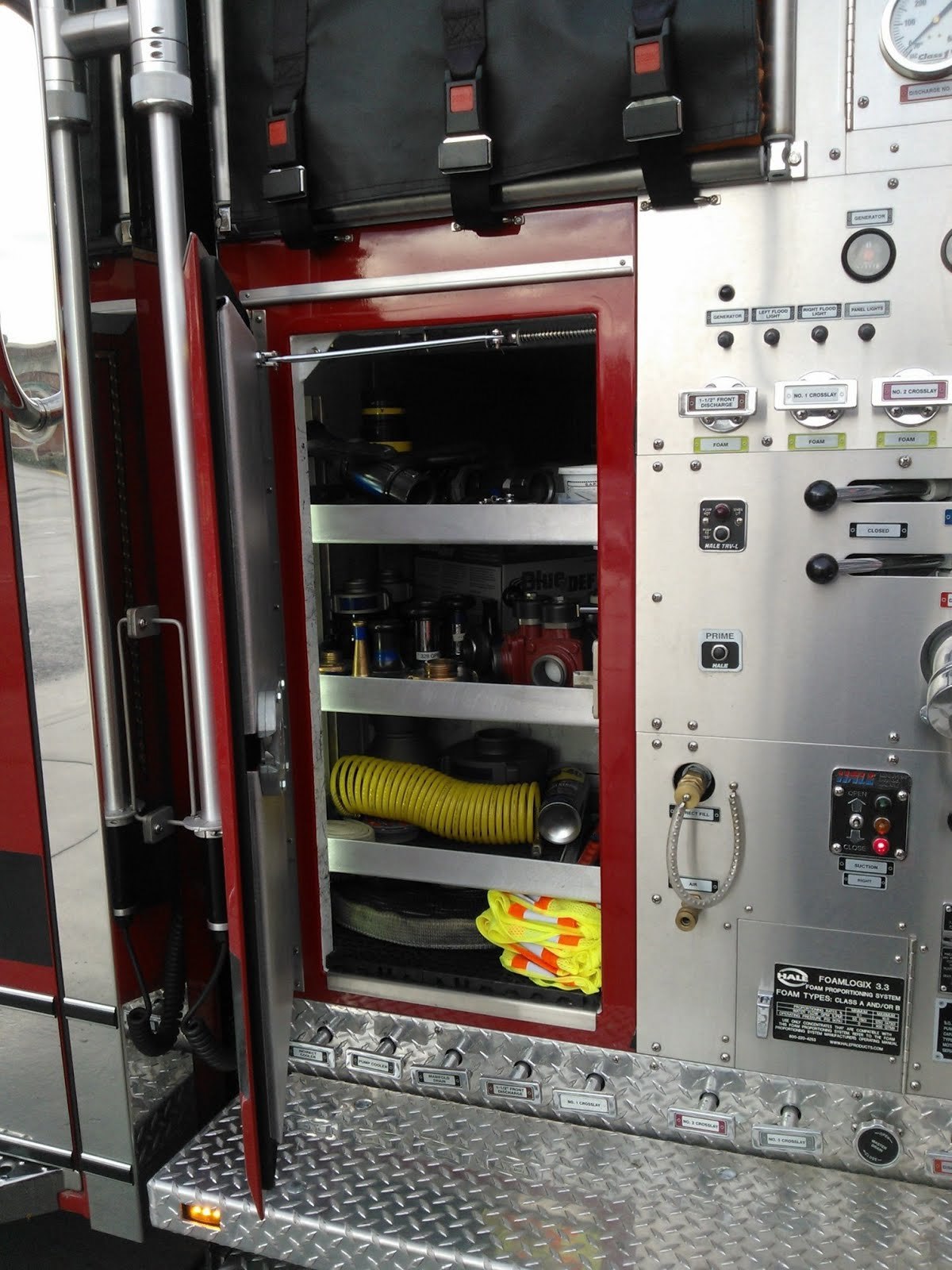

ENGINEER COMPARTMENT

Answer 3

1. assorted spanners,
2. hydrant wrenches
3. masks
4. flares 20min
5. caution tape fire tape
6. rubber mallet
7. circ. blades 9”, 48 teeth, 5/64” kerf
8. engineer tool box
9. heli-spot lights (5) REACH Lightmans (4) orange (1) red
10. gap seal
11. 15w40 motor oil
12. 20’ chain towels

Question 4

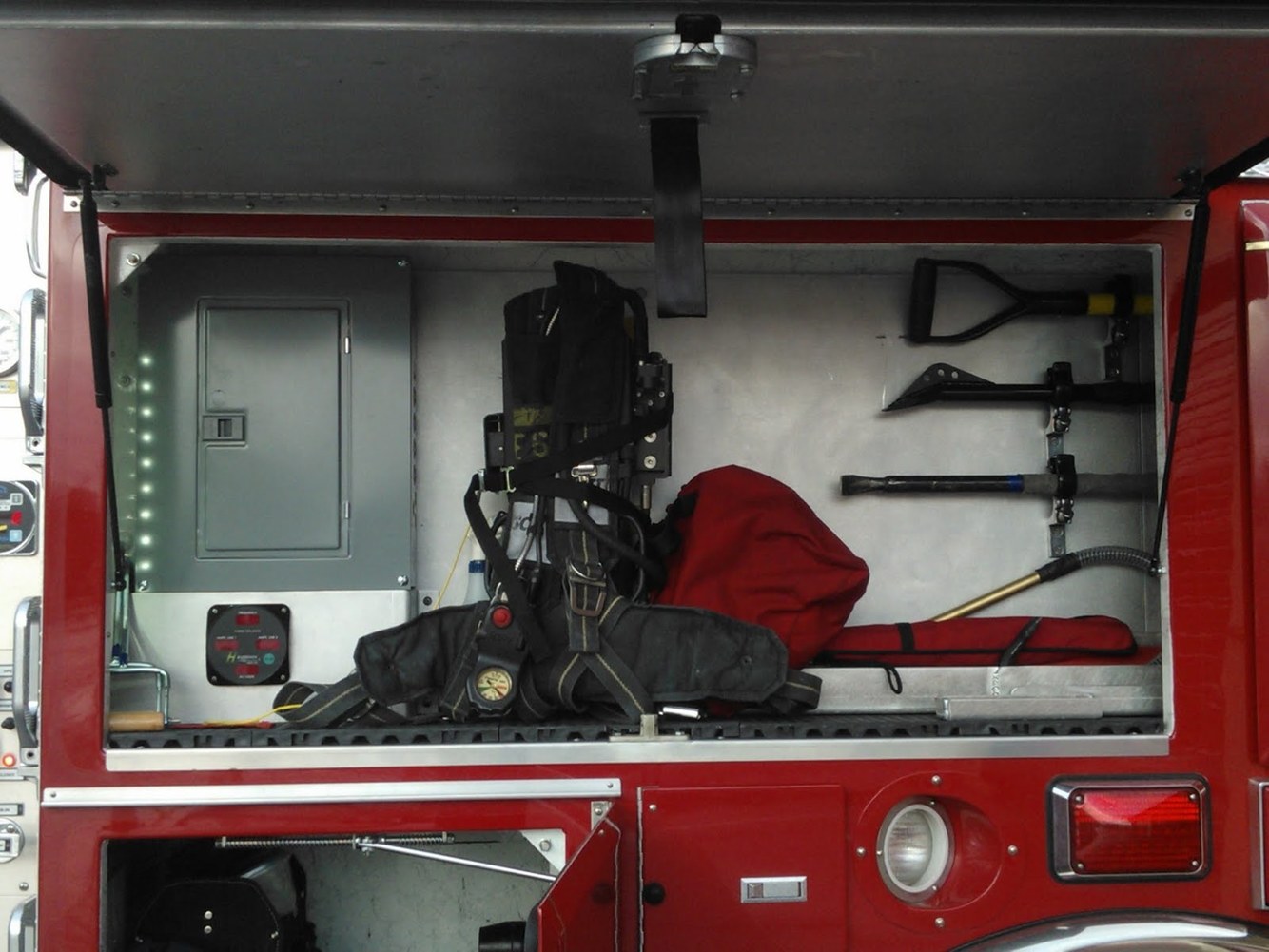

ENGINEER SIDE LONG COMPARTMENT 1

(TOP FRONT)

Answer 4

1. air pak 75
2. 2 hay hooks
3. soap and water bottle (leak detector)
4. tac stick
5. breaker box

Question 5

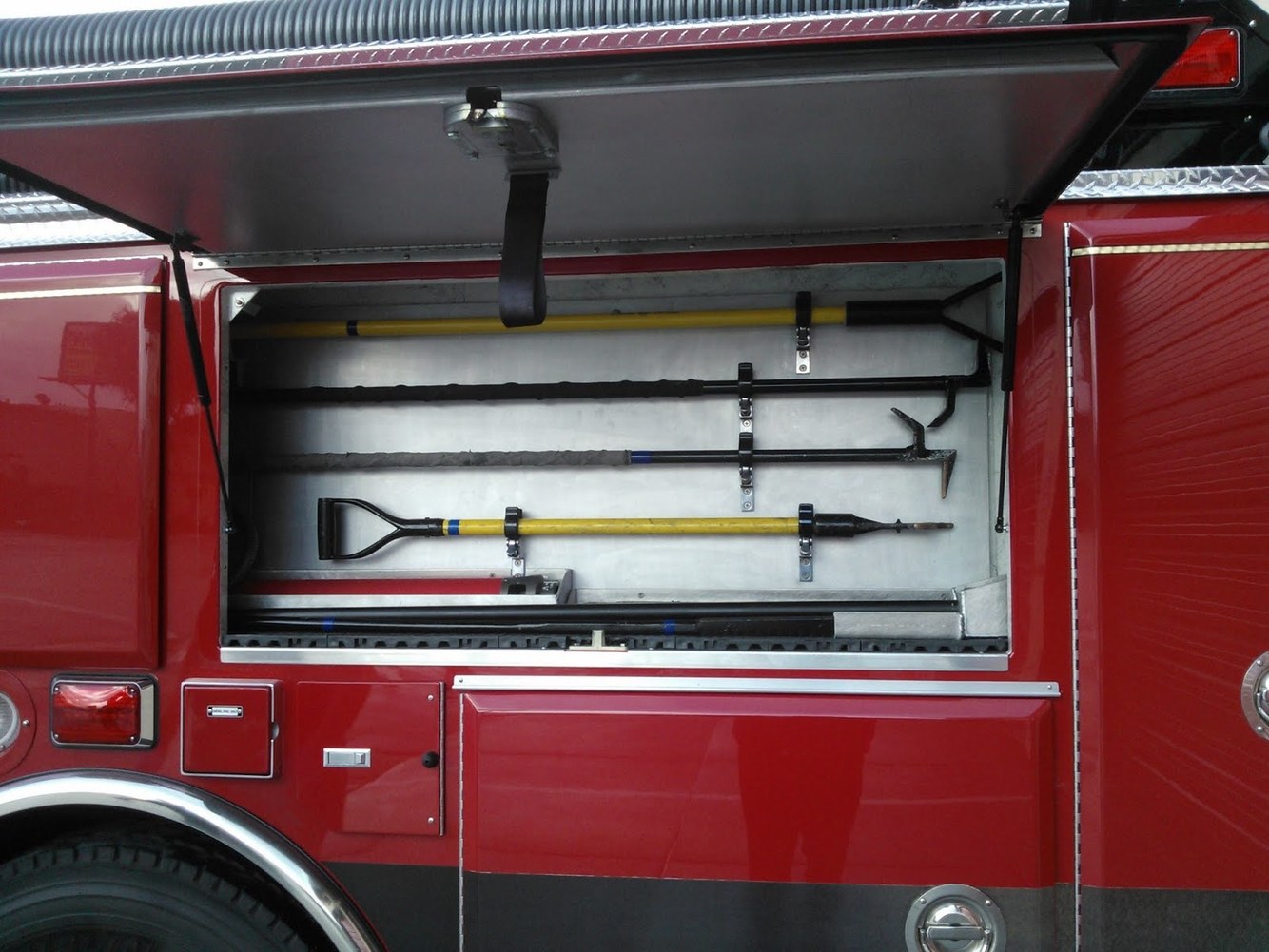

ENGINEER SIDE LONG COMPARTMENT 2

(TOP REAR)

Answer 5

1. rubbish hook
2. 2 new york hooks
3. officer’s hook
4. foam aeration nozzle
5. inline foam eductor 2 ½” inlet 1 ½” discharge 0, ¼, ½, 1, 3, 6%’s
6. pry bar
7. hydrant key w/t-handle
8. residential water key w/t-handle
9. rolling pin pry
10. bar crow bar

Question 6

ENGINEER COMPARTMENT 3

(BOTTOM REAR BEHIND TIRE)

Answer 6

1. circ saw electric EVOLUTION STEEL SAW EVO230-HD
2. ric bag (60 min bottle, quick connect, mmr, cutters, light, rescue tarp, rescue strap, 2 prusiks)
3. tool box
4. leak kit
5. high rise tool bag (door stop, 2 akron #10 spanners, 1 stack, hose strap)
6. heli-spot lights (8) turboflares placement: day: 75’ apart; night: 125’ apart utility rope (73’)

Question 7

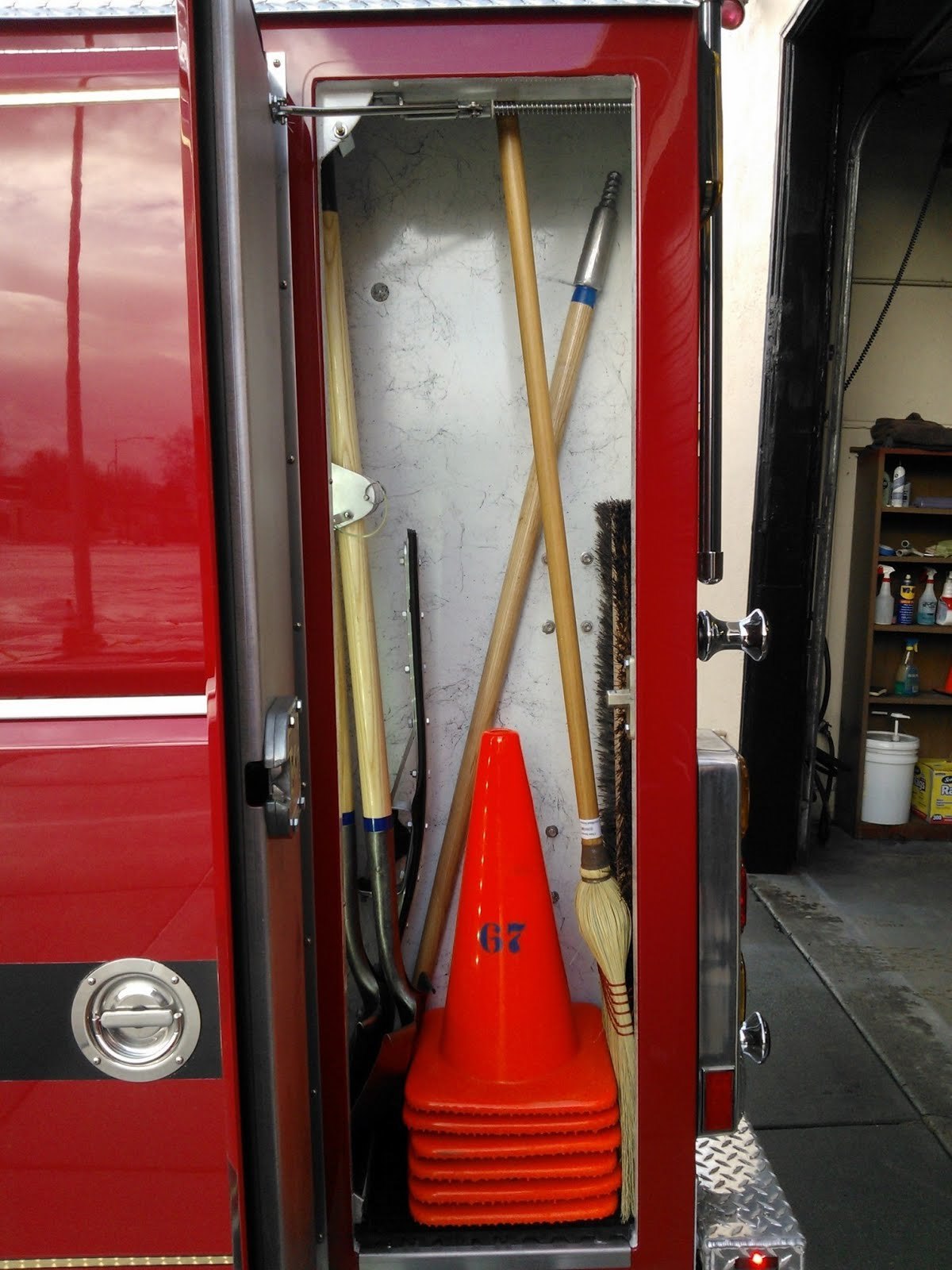

ENGINEER COMPARTMENT 4

(REAR VERTICAL)

Answer 7

1. spade shovel
2. flat shovel
3. 2 push brooms
4. 6 traffic cones
5. broom
6. squeegee & handle

Question 8

REAR ROLL UP

Answer 8

1. 200’ electrical line
2. 200’ booster line w/nozzle 13,25,40,60 gpm
3. wedge
4. LDH clamp
5. filler line 10’ of 2 ½” hose
6. quartz light 750w
7. pig tail 20a-15a
8. strainer
9. hose roller
10. manual hand crank for hose reel
11. hydrant wrench

Question 9

LADDER RACK

Answer 9

1. 24’ extension ladder
2. 14’ roofer
3. 10’ attic ladder
4. 6’ pike pole
5. 8’ pike pole

Question 10

TOP DECK/DIAMOND PLATE

Answer 10

1. backboard
2. master fog nozzle
3. foam class b
4. stackable tips
5. monitor base
6. life preservers

Question 11

CAPT DIAMOND PLATE

Answer 11

1. foam
2. absorbent
3. assorted couplings,
4. storz adapters
5. assorted spanners,
6. wrenches
7. ship to shore coupling
8. DEF fluid

Question 12

CAPT COMPARTMENT

Answer 12

1. 2 ½” - 2 ½” gated wye
2. donut roll 1 ¾”
3. 50’ 2 ½” straight roll
4. rabbit
5. carry all
6. 50’ air hose
7. munson tool

Question 13

CAPT SIDE LONG COMPARTMENT 1

(TOP FRONT)

Answer 13

1. CO2 10BC,
2. dry chem 4A 80BC,
3. water 2A extinguishers
4. air pak 75
5. tic (per CAPT Bone) otherwise in cab

Question 14

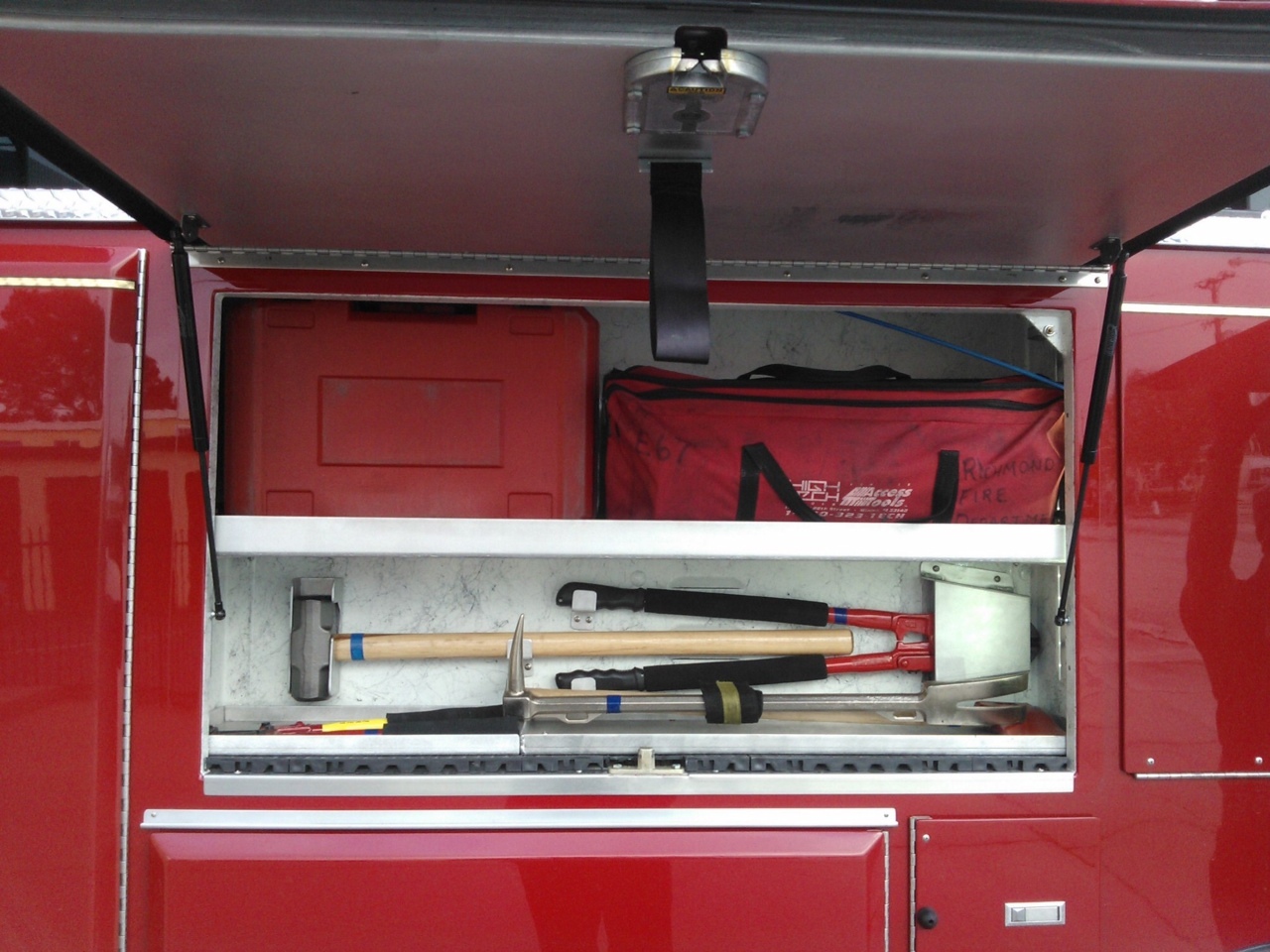

CAPT SIDE LONG COMPARTMENT 2

(TOP REAR)

Answer 14

1. sawzall
2. bolt cutters
3. wire cutters
4. irons
5. lock out kit
6. sledge hammer
7. bargas tool
8. elevator key

Question 15

CAPT COMPARtMENT 3

MEDICAL COMPARTMENT

(BOTTOM REAR)

Answer 15

1. Med bag
2. AED
3. med supplies
4. extra O2 bottles
5. rescue tarp
6. blanket

Question 16

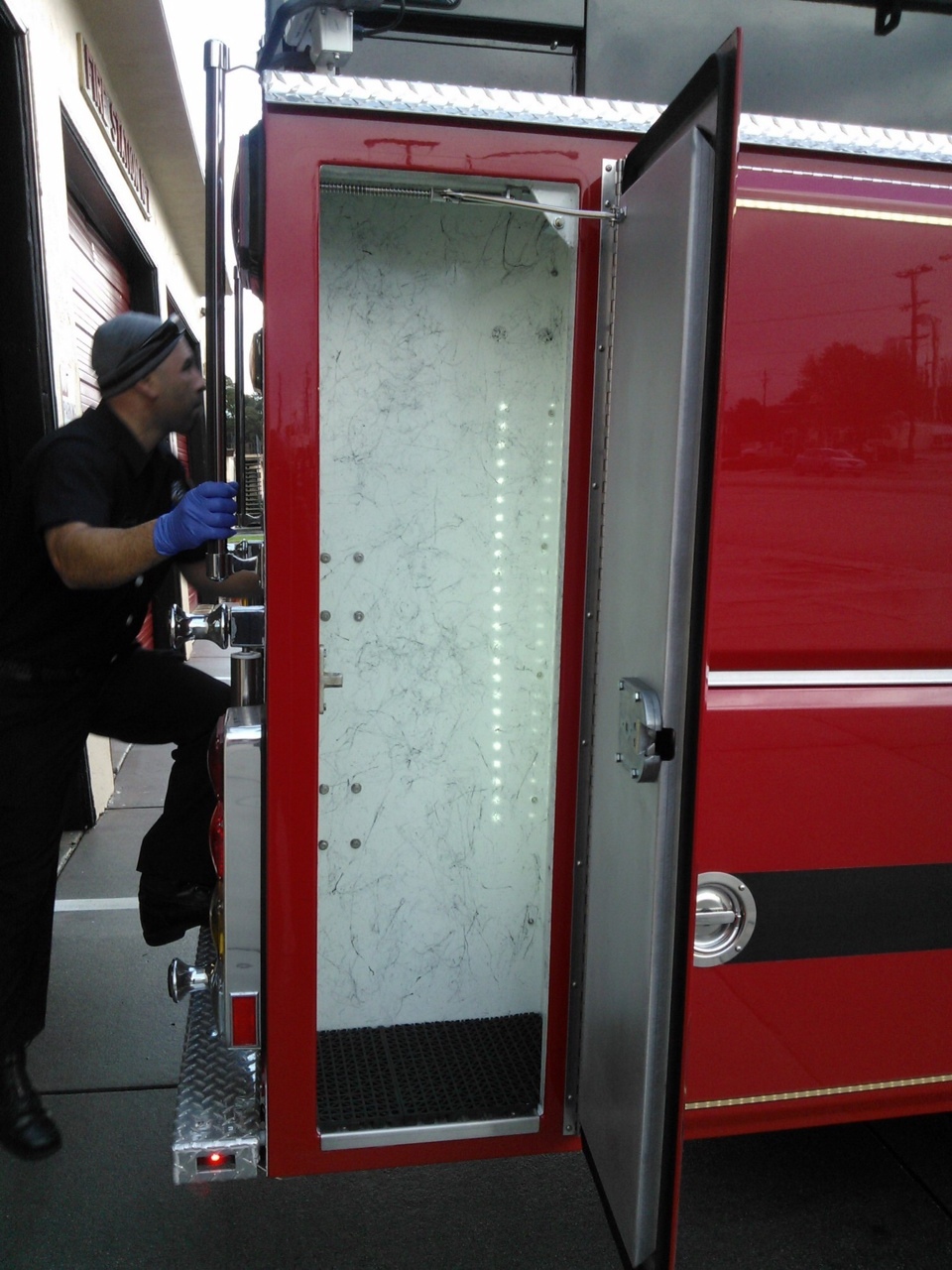

CAPT COMPARTMENT 4

(REAR VERTICAL)

Answer 16

EMPTY to be determined

Question 17

UNDER ENGINEER SEAT

Answer 17

1. IR temperature gun
2. manual cab lift handle

Question 18

UNDER CAPT SEAT

Answer 18

binoculars

Question 19

CAB

Answer 19

1. FLAT HEAD AXE
2. PICK HEAD AXE
3. HAND LAMPS
