Engine 7574 Flashcards by Tyrone Lewis

Q

A

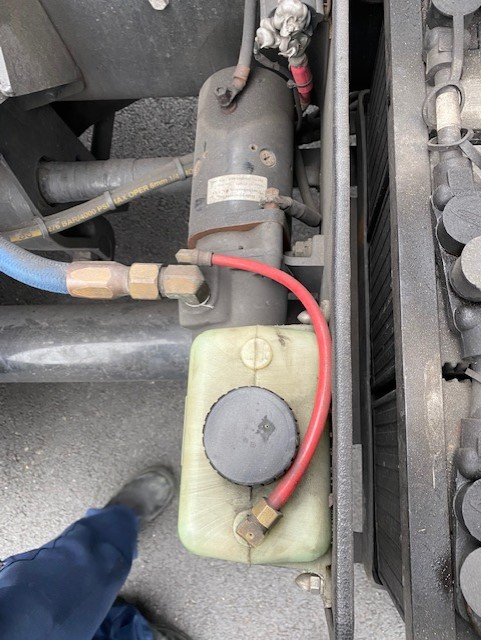

Resevoir for cab tilt

How well did you know this?

1

Not at all

2

3

4

5

Perfectly

Q

A

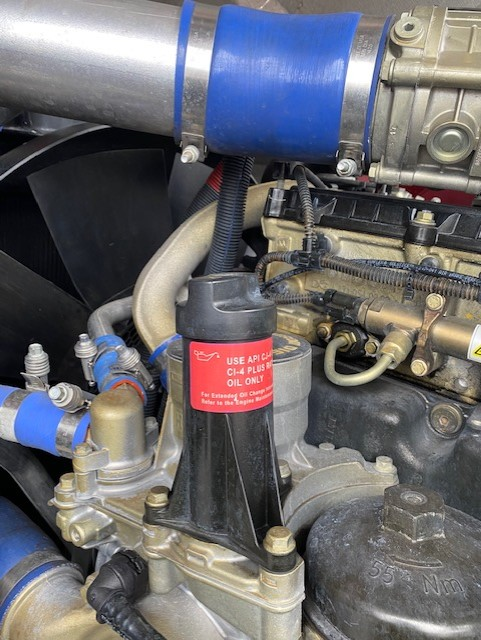

Oil add

How well did you know this?

1

Not at all

2

3

4

5

Perfectly

Q

A

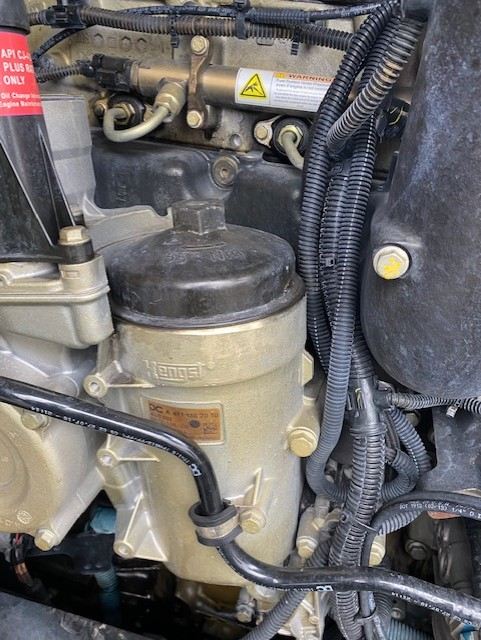

Oil Filter

How well did you know this?

1

Not at all

2

3

4

5

Perfectly

Q

A

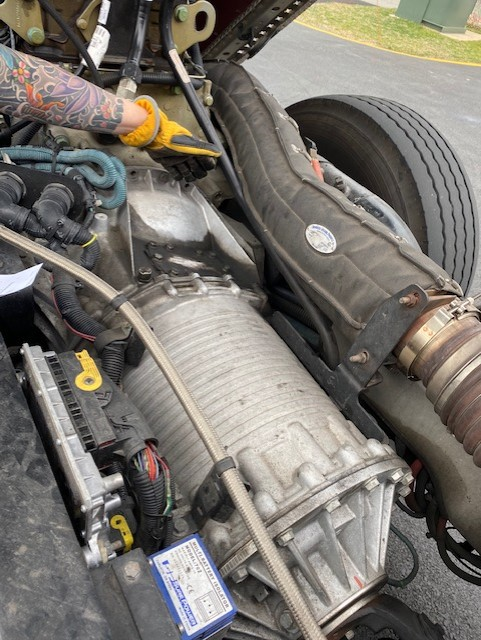

Transmission

How well did you know this?

1

Not at all

2

3

4

5

Perfectly

Q

A

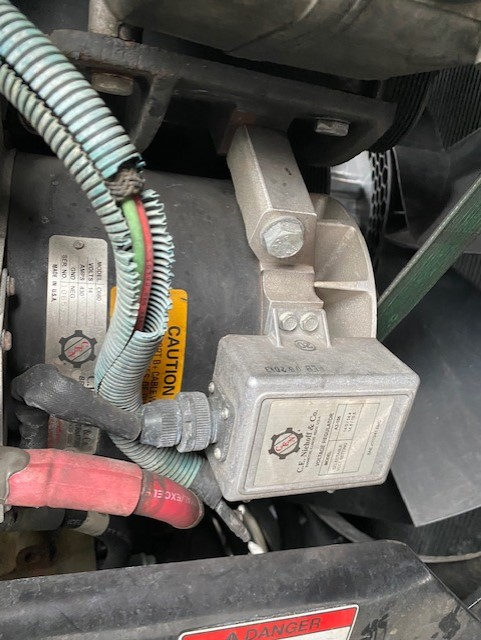

Altenator

How well did you know this?

1

Not at all

2

3

4

5

Perfectly

Q

A

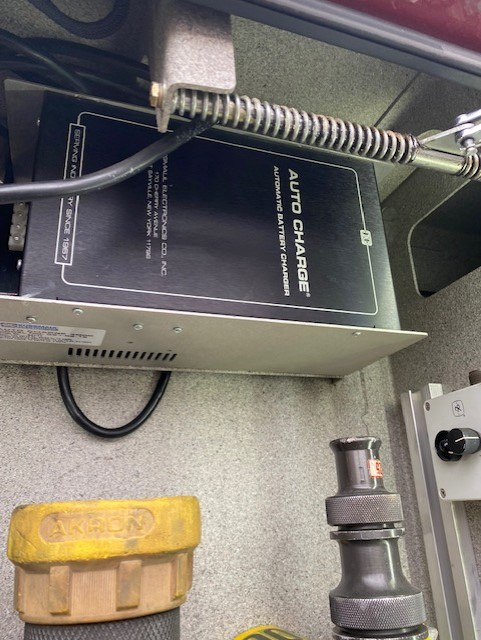

Battery Conditioner

How well did you know this?

1

Not at all

2

3

4

5

Perfectly

Q

A

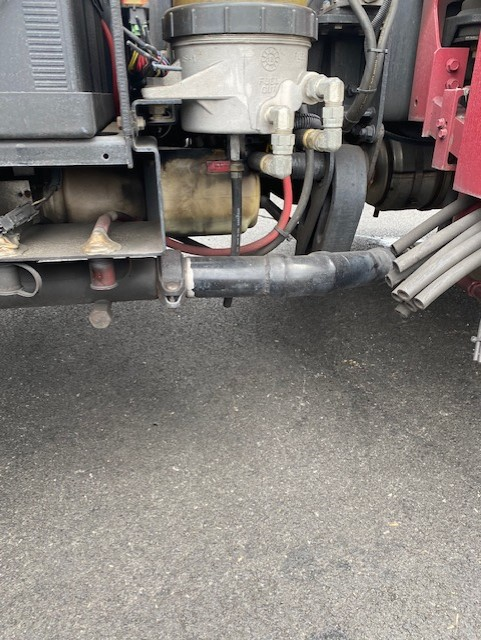

Primer Pump and Resevoir

How well did you know this?

1

Not at all

2

3

4

5

Perfectly

Q

Type of Pump

A

Hale Q Max Single Stage Mid-Ship Pumper rated

150PSI@1500GPM

How well did you know this?

1

Not at all

2

3

4

5

Perfectly

Q

Length

A

31’ 9.5 Inches

How well did you know this?

1

Not at all

2

3

4

5

Perfectly

Q

Make/Model

A

Pirece/ Velocity

How well did you know this?

1

Not at all

2

3

4

5

Perfectly

Q

Engine

A

DD13

How well did you know this?

1

Not at all

2

3

4

5

Perfectly

Q

Weight

A

49,800lbs

How well did you know this?

1

Not at all

2

3

4

5

Perfectly

Q

Front Steering wheels

A

4/32

120psi

How well did you know this?

1

Not at all

2

3

4

5

Perfectly

Q

Drive wheels

A

2/32

120psi

How well did you know this?

1

Not at all

2

3

4

5

Perfectly

Q

Fuel Tank capacity

A

63 Gallons

How well did you know this?

1

Not at all

2

3

4

5

Perfectly

Q

Engine Coolant Capacity

A

57 Quartz

How well did you know this?

1

Not at all

2

3

4

5

Perfectly

Q

Engine Oil

A

15W40 42 Quarts

How well did you know this?

1

Not at all

2

3

4

5

Perfectly

Q

Hale Pump Transmission

A

80W90

How well did you know this?

1

Not at all

2

3

4

5

Perfectly

Q

Pump Primer Fluid

A

Anitfreeze

How well did you know this?

1

Not at all

2

3

4

5

Perfectly

Q

Water Tank Capacity

A

750Gallons

How well did you know this?

1

Not at all

2

3

4

5

Perfectly

Q

Foam Tank Capacity

A

40 Gallons Class B foam

How well did you know this?

1

Not at all

2

3

4

5

Perfectly

Q

Width

A

10’

How well did you know this?

1

Not at all

2

3

4

5

Perfectly

Q

Height

A

9’ 10.5inches

How well did you know this?

1

Not at all

2

3

4

5

Perfectly

Q

Normal Engine Oil Operating Pressure

A

30-40 Idle

50-60 driving

How well did you know this?

1

Not at all

2

3

4

5

Perfectly

Normal Transmission operating pressure

200-230 degrees

Normal Operating Pressure for air brakes

100-125psi

pressure low air alarm sounds

60psi

Pressure maxi brake sets itself

40psi

pressure air system stops charging

125psi

Normal system voltage level

14 volts

Total Discharges

10

2.5 Discharges

5

Large Diameter Discharges

2

Deck Gun

Task Force master stream automatic fog nozzle 150-1250GPM

Foam System

Husky 3 direct Injection system

Type of Foam

Thunderstorm AR-AFF 1% 3% class B foam

Axel gear lube

Water Pump

Fuel Filter

Power Steering Pump (Blue)

Air Compressor

Air Dryer and Fuel water Separator

Turbo

Vogul Lube Resevoir

Jocky Pump (tops off Air in tanks)

Lower Control Arm

Leaf Springs

Isolated Battery

Battery Jump Ports

Tie Rod

Torsion bar

Steering Shaft

Places to check engine oil level

dipstick

add engine oil

oil add port

places you can see engine oil pressure

Dash Command zone Pump panel

where can you check Transmission fluid

orange dipstick

Flywheel

located behind engine and in front of transmission

places you can see transmission temperature

Dash Command Zone Pump Panel

where can you check power steering fluid

under hood, drivers side

places you can check water tank level

Pump panel Look up top Command zone
