Equation Deck

Question 1

Logic Gate Propagation Delay

Answer 1

Question 2

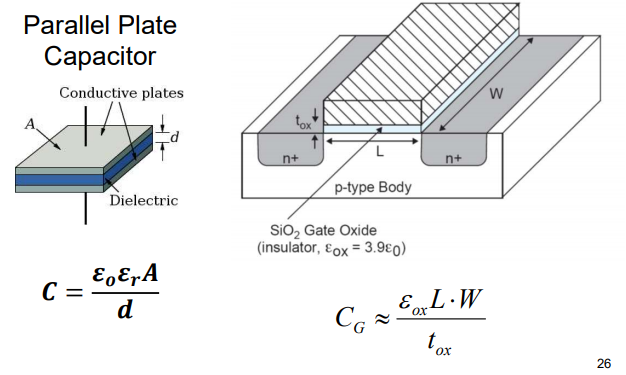

MOSFET Gate Capacitance

Answer 2

Question 3

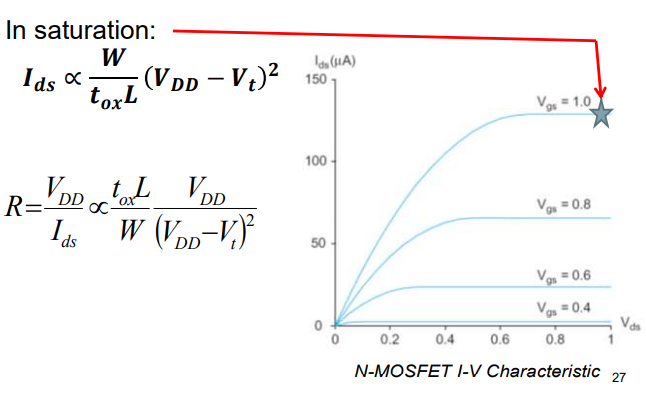

MOSFET Effective Resistance

Answer 3

Question 4

CMOS Scaling and Economics: Number of die per wafer

Answer 4

Question 5

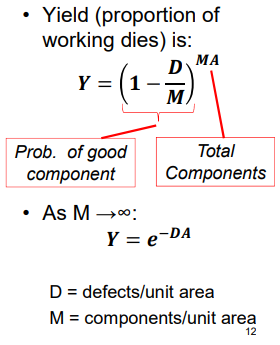

Yield

Answer 5

Question 6

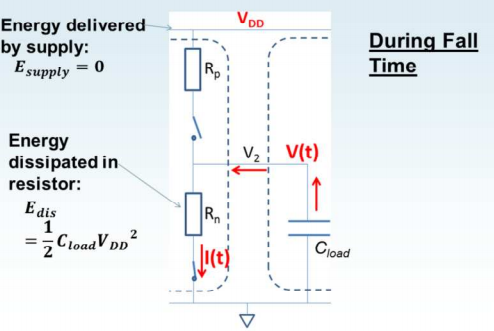

CMOS Switching Energy Equations During Fall Time

Answer 6

Question 7

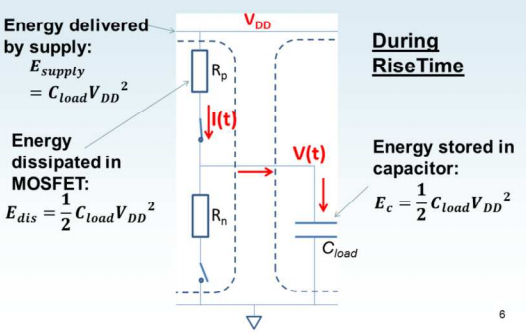

CMOS Switching Energy Equations during rise time

Answer 7

Question 8

Circuit Dynamic Power Consumption

Answer 8

𝑃 = 𝛼𝐶_{𝑡𝑜𝑡𝑎𝑙}𝑓𝑉²_DD
