Flow Chart

Question 1

Answer 1

Starting or ending point or point of interruption.

Question 2

Answer 2

Input or output of a document or report.

Question 3

Answer 3

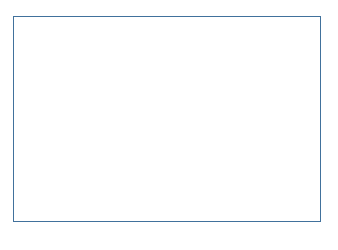

Computer operation or group of operations.

Question 4

Answer 4

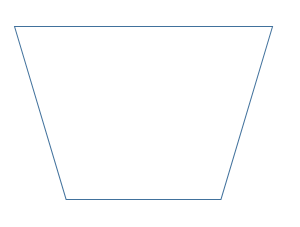

Manual processing operation, e.g., prepare document.

Question 5

Answer 5

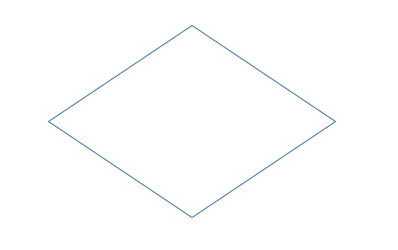

Decision symbol indicating a branch in the flow.

Question 6

Answer 6

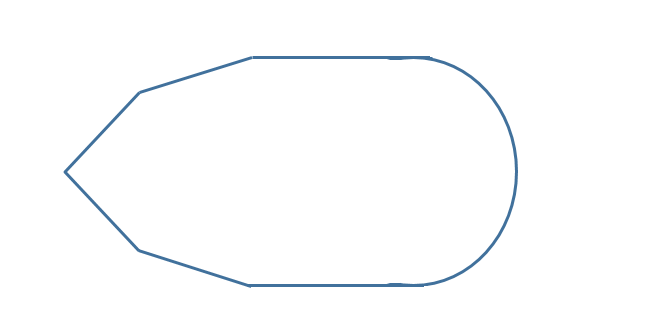

Display on a video terminal.

Question 7

Answer 7

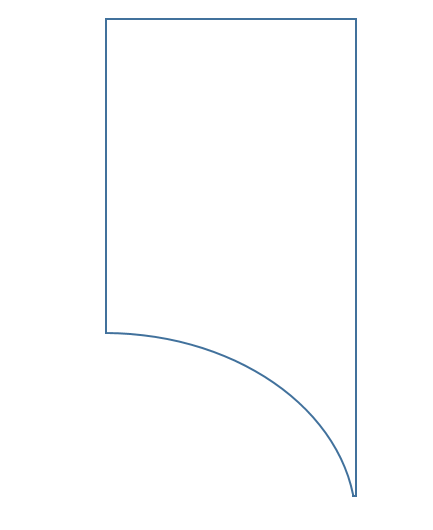

Adding machine tape (batch control).

Question 8

Answer 8

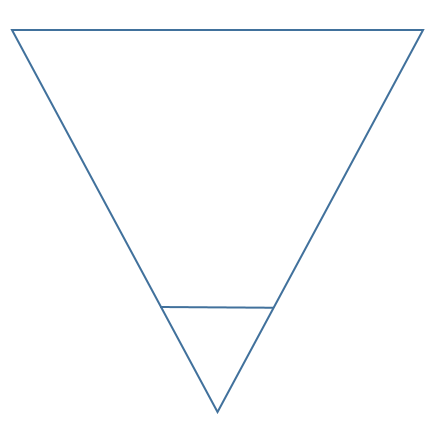

Storage (file) that is not immediately accessible by computer.

Question 9

Answer 9

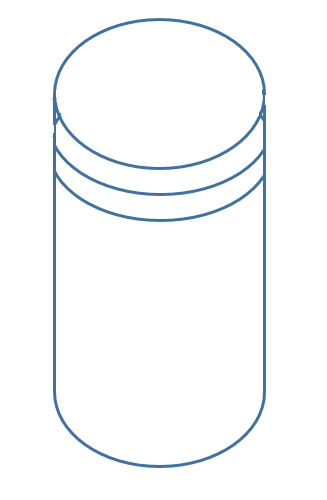

Magnetic disk used for storage.

Question 10

Answer 10

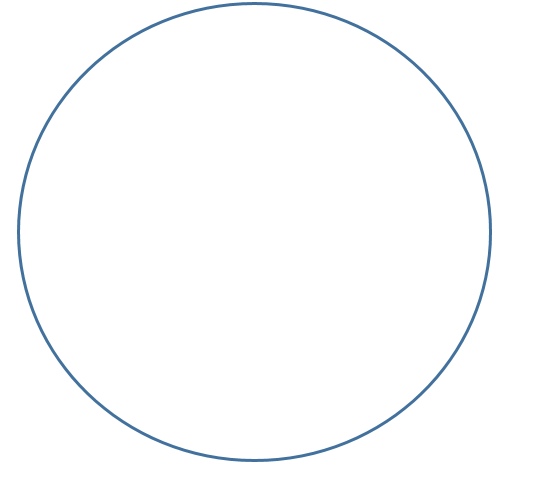

Connection between points on the same page.

Question 11

Answer 11

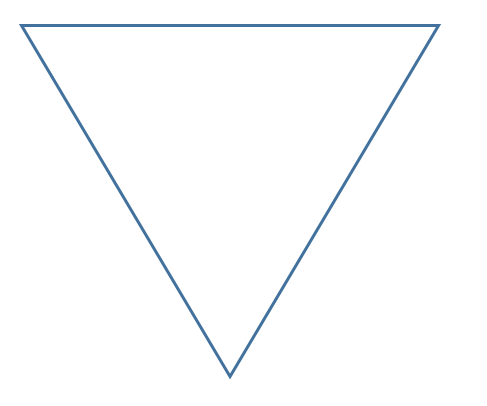

Merge

Question 12

Answer 12

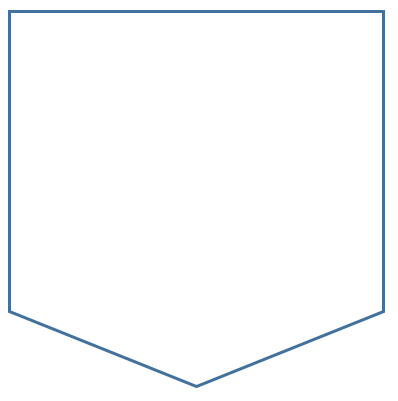

Off-Page Connector
