Flows

Question 1

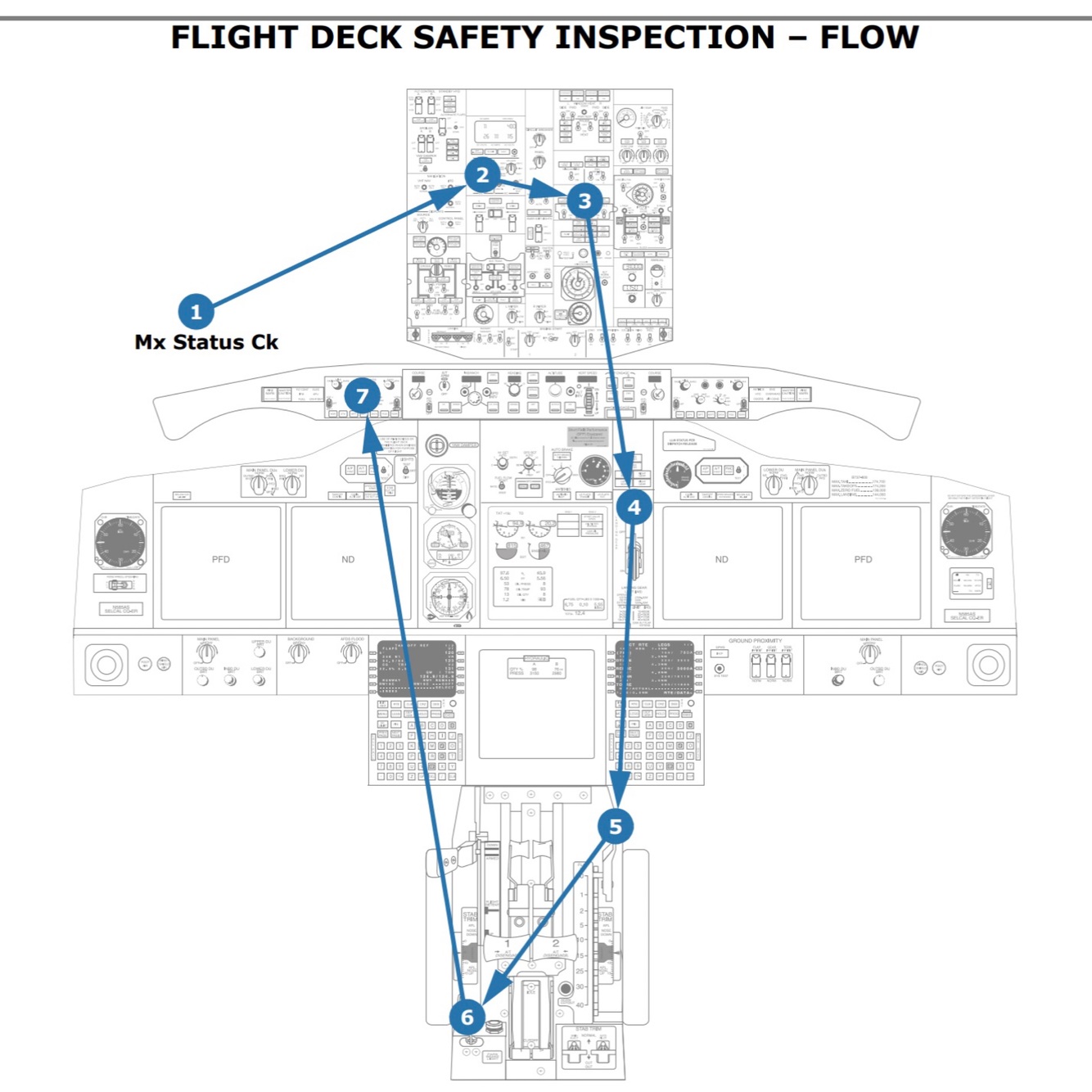

Flight Deck Safety Inspection

Answer 1

1. MX - Check
2. BATT - On
3. Elec Hyd Sw – On / Off (pwr or no pwr)
4. Landing Gear – Down & Green
5. Flap – Match
6. Parking Brake – On and light
7. Radar – off (Terrain)

Question 2

MISC. Sys. / Equipment / Security Check

Answer 2

1. *FDSI – Check
2. Circuit Breakers – Check
3. Data Loader Sw – Norm
4. HALON Fire Extinguisher – Check
5. Manual Gear Extension Access Door – Closed
6. Manuals / BCB / EFB Equip. – Check
7. Crash Axe – Stowed
8. *FDAS – Check
9. Flashlight (Max) – Check
10. Life Vests (4)
11. PBE – Check
12. Spare Radio Boom Mic – Check

Question 3

AC Power up & Fire Systems Test

Answer 3

1. Ground Pwr – On
2. Fire Protection System – Test
3. Cargo Fire / Smoke System (as installed) – Check
4. APU (if desired) – Start & On Busses

Question 4

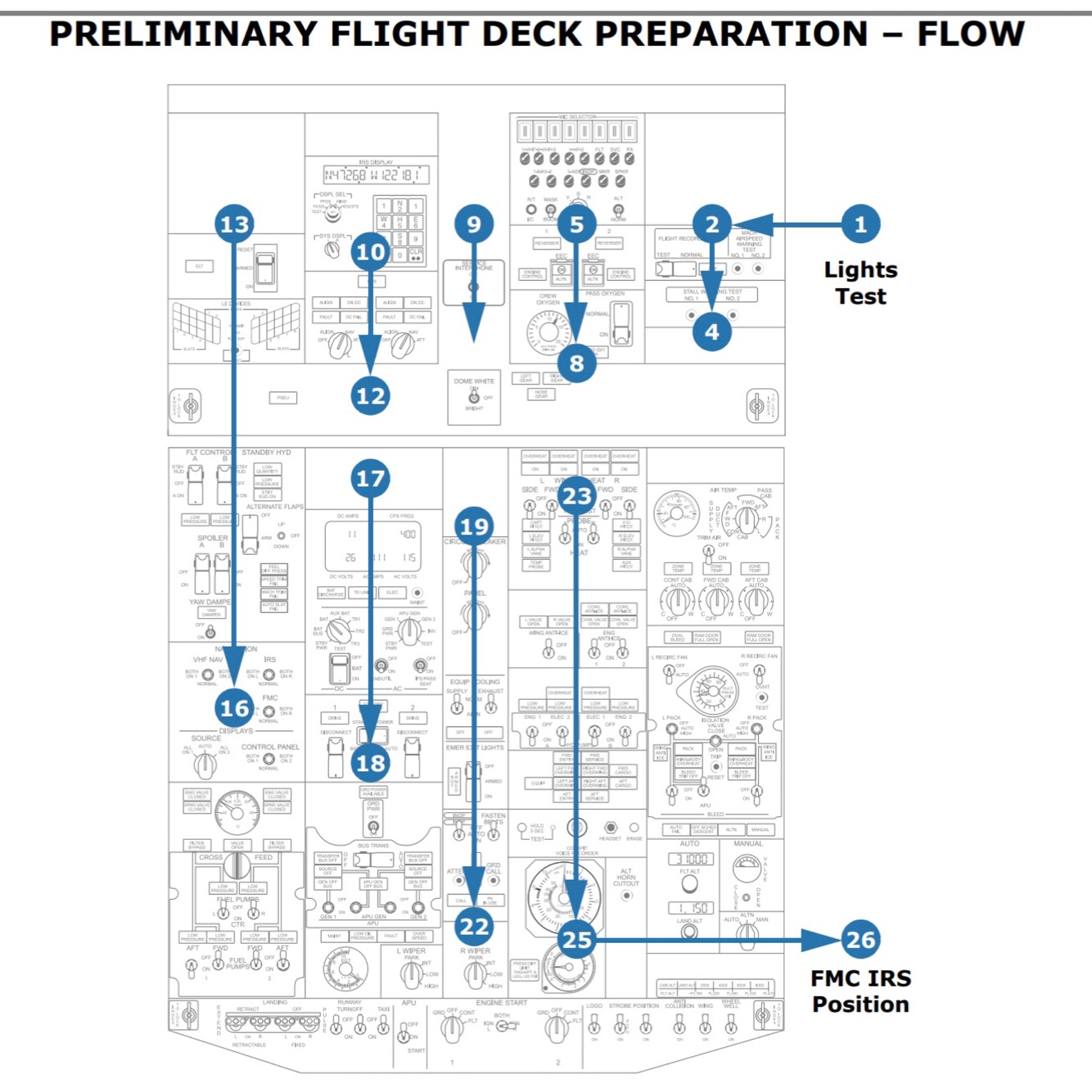

Overhead Panel Prep

Answer 4

1. Lights – Test
2. MACH airspeed Warn Test Sw – Push (both)
3. Flight Recorder – Test
4. Stall Warn Test Sw – Push
5. Observers Audio Selector Panel – As Req.
6. ENG Panel – Set
7. Pass Oxygen Sw – NORMAL / Guard Down
8. Crew Oxygen Pressure Indicator – Check
9. Service Interphone Sw – As Req
10. NAV Caution – Extinguished
11. IRS Mode Selectors – NAV
12. PSEU or MAINT light – Extinguished
13. ELT Remote Panel – Check
14. Elevator Jam Landing Assist (MAX) – Off / Guard Closed
15. FLT CONTROL Panel – Check
16. NAV Transfer and Display Se – NORMAL / AUTO
17. CAB/UTIL, IFE/Pass seat pwr Sw – On
18. Electrical Sys. – Set
19. C/B and panel light Control – As Desired
20. Equip Cooling sw – NORMAL
21. Equip Smoke light (MAX) – Extinguished
22. Windshield Wiper Sel. – Park
23. Anti Ice Switches – Off
24. Press. Indicators – Check
25. FMC IRS POS - Entered

Question 5

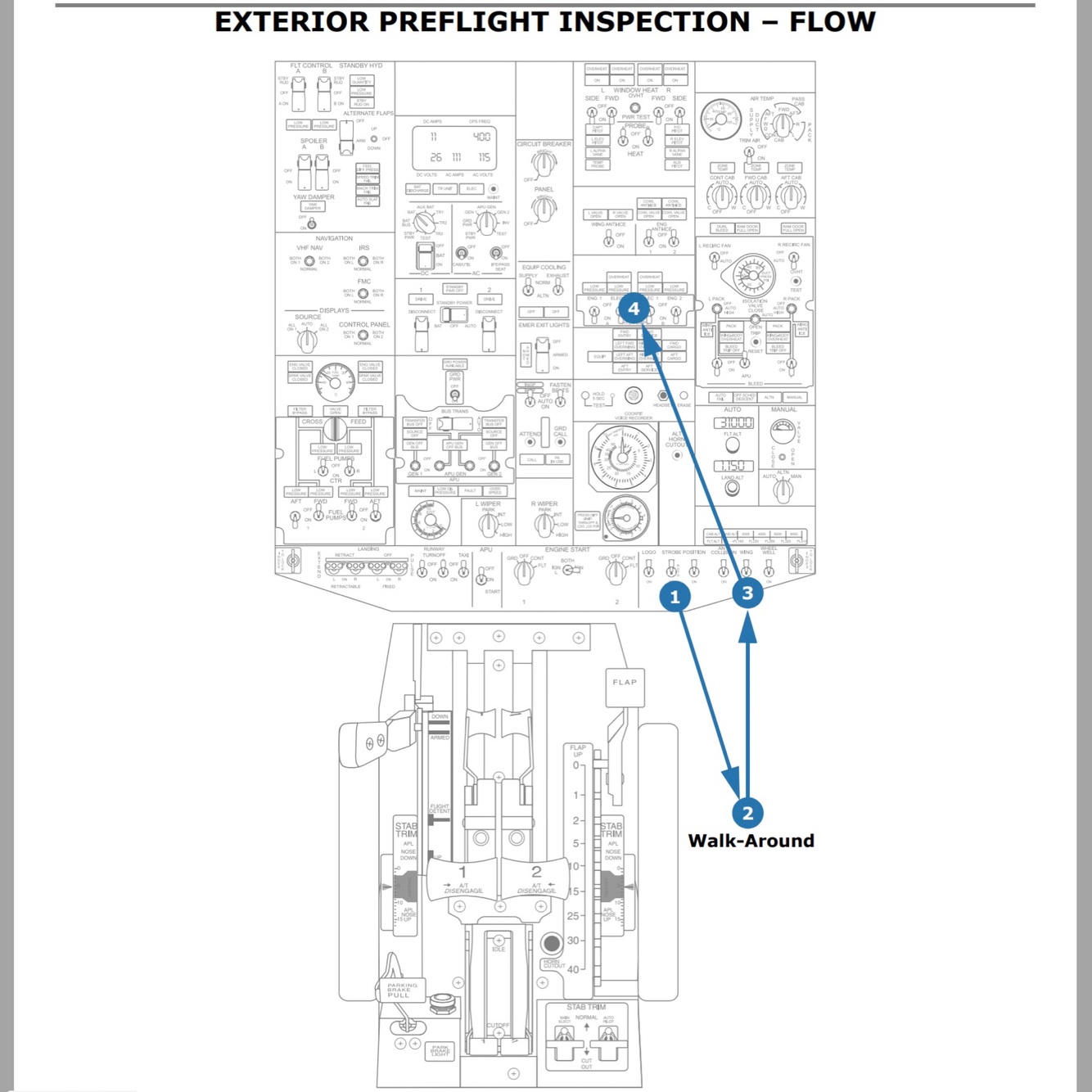

Exterior Inspection

Answer 5

1. Exterior Lights (NAV, Wheel, Wing) – ON
2. Exterior Inspection – Complete
3. Exterior Lights (Wheel, Wing) – Off
4. Hydraulics – On / Norm

Question 6

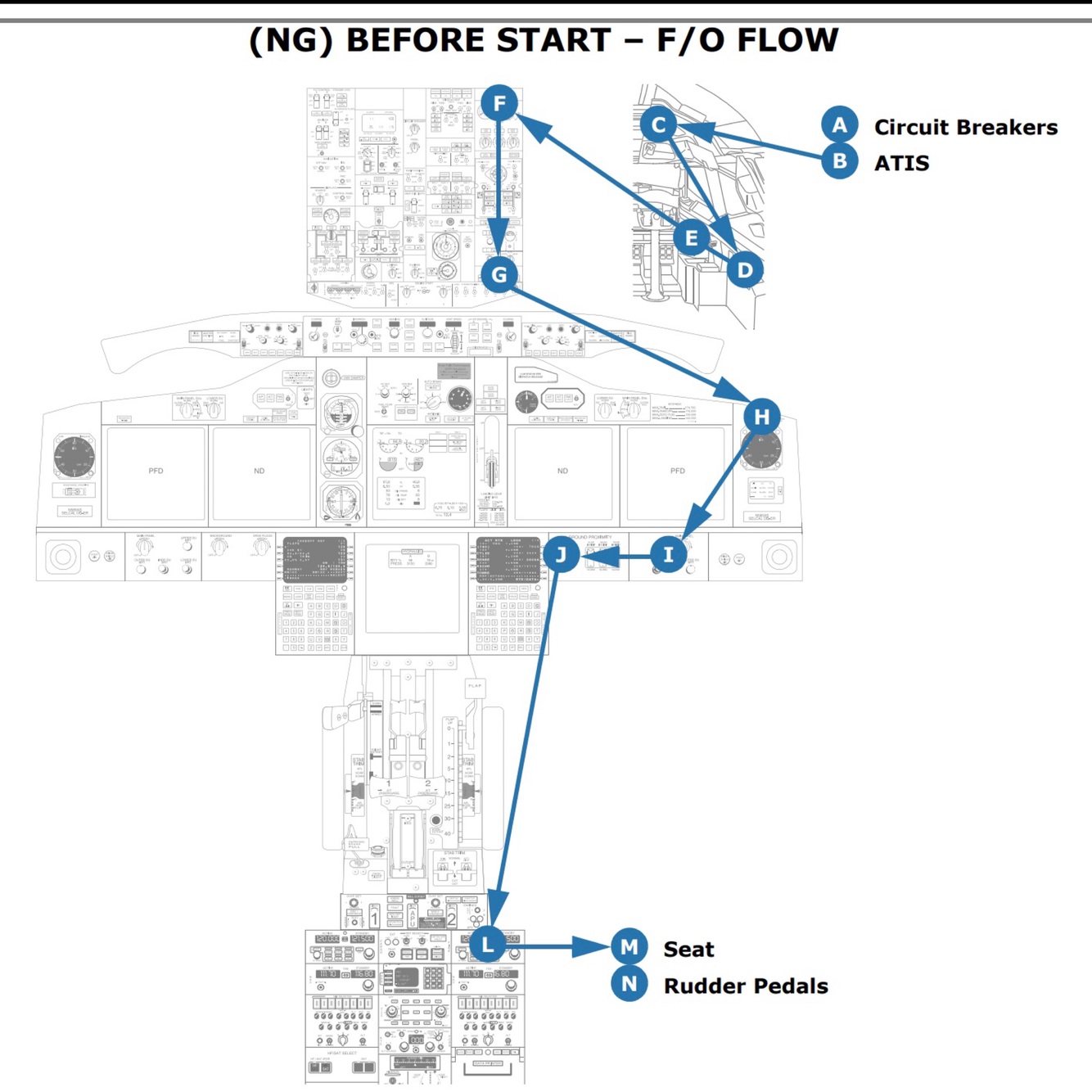

Before Start

Answer 6

1. C/B – Check
2. ATIS – Obtain
3. Emergency Escape Strap – Check
4. Sun Visor – Stowed
5. • Smoke Goggles, O2, Interphone – Check (>100psi drop) and Stowed
6. • A/C System – Set
7. • Press. System – Set
8. Clock – Set
9. Lights / Display Controls – As Desired, Set
10. GPWS Test Sw – Push Momentarily
11. NAV / HF Radios – Test
12. • Seat – Adjust
13. Rudder Pedals – Adjust

Question 7

6 Right Road

Answer 7

IDENT
POS INIT
RTE
PERF INIT (Reserves ALT + Res)
N1 Limit
Take Off REF 1/2 & 2/2
Legs - RTE Data (winds) (w/ACARS)
DES - Target Speed (w/ACARS)
DES - Forecast (w/ACARS)
Fix (as req)

Question 8

Departure Set up Tasks

Answer 8

FMC / ACARS (EFB,T/O perf., ATC Clearance, FMC route)
Nav Radios
Transponder
HGS
Mode Control Panel
EFIS Control

Question 9

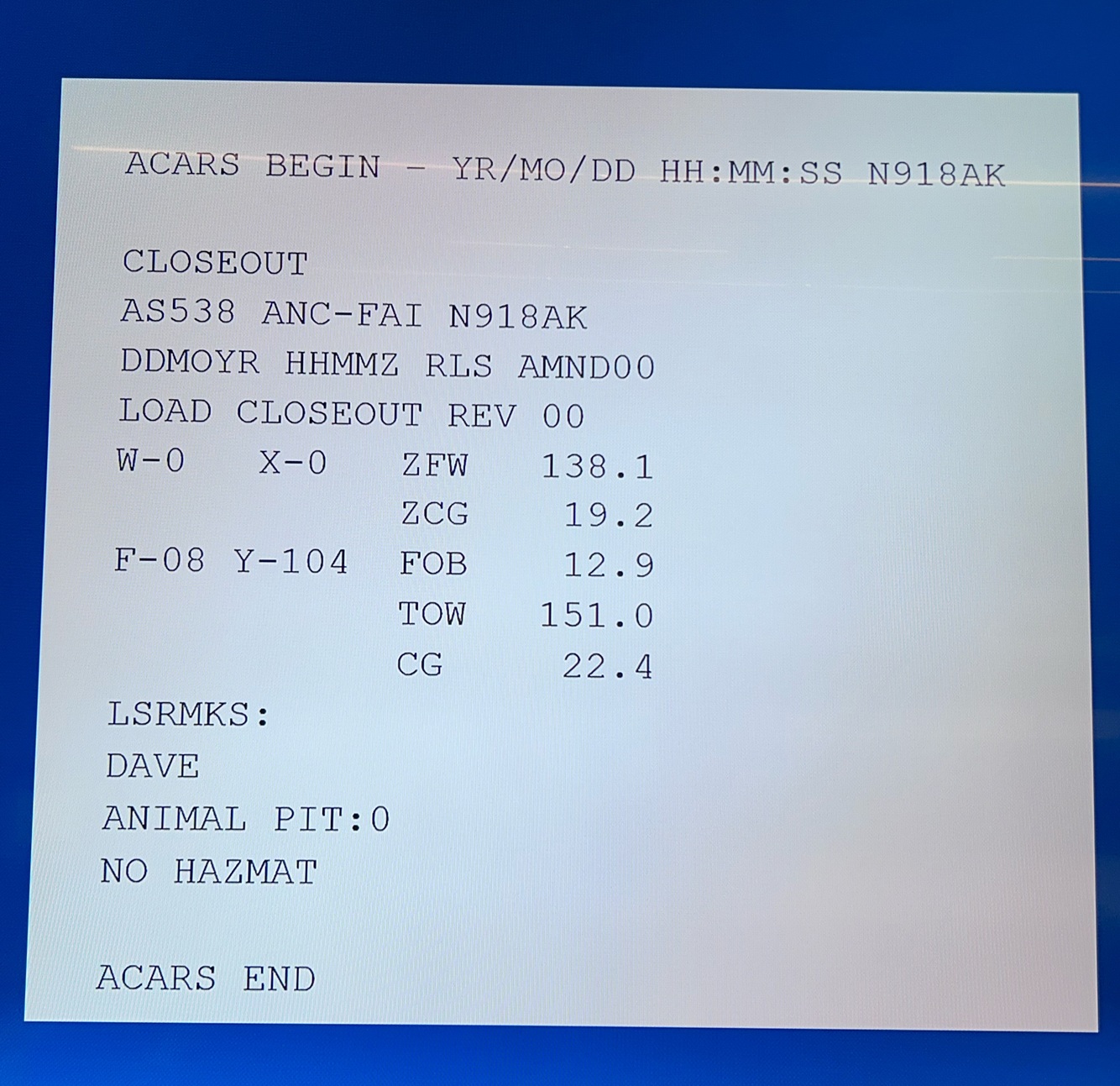

Load Out Verification

Answer 9

Flt#, Tail #
Amendment #
Jump seat & Pax count
ZFW
FOB
TOW
CG
Remarks

Question 10

Prior to Push

Answer 10

Windows - Closed
TCAS transponder - On

Question 11

ENG Start (#2 first)

Answer 11

“Packs off, Starting Engine number_____”
N2 rise
Raise Start level Idle when N1 rotation, N2 25% or max motoring
Fuel flow and EGT
ENG start sw off and start valve open 56% or 63%
“Starter cutout”
Monitor N1, N2, EGT, oil press
Eng stable once redline no longer shown

Question 12

Abort start criteria

Answer 12

No N2
No N1 after Idle
No EGT within 15 sec
No N1 or N2 or very slow after EGT
EGT rapidly rises
No oil press

Question 13

Taxi Flow

Answer 13

Flaps - Set
Flight controls - Tops
Shoulder harness - On

Question 14

PA announcement

Answer 14

Flight attendants should now be seated for takeoff

Question 15

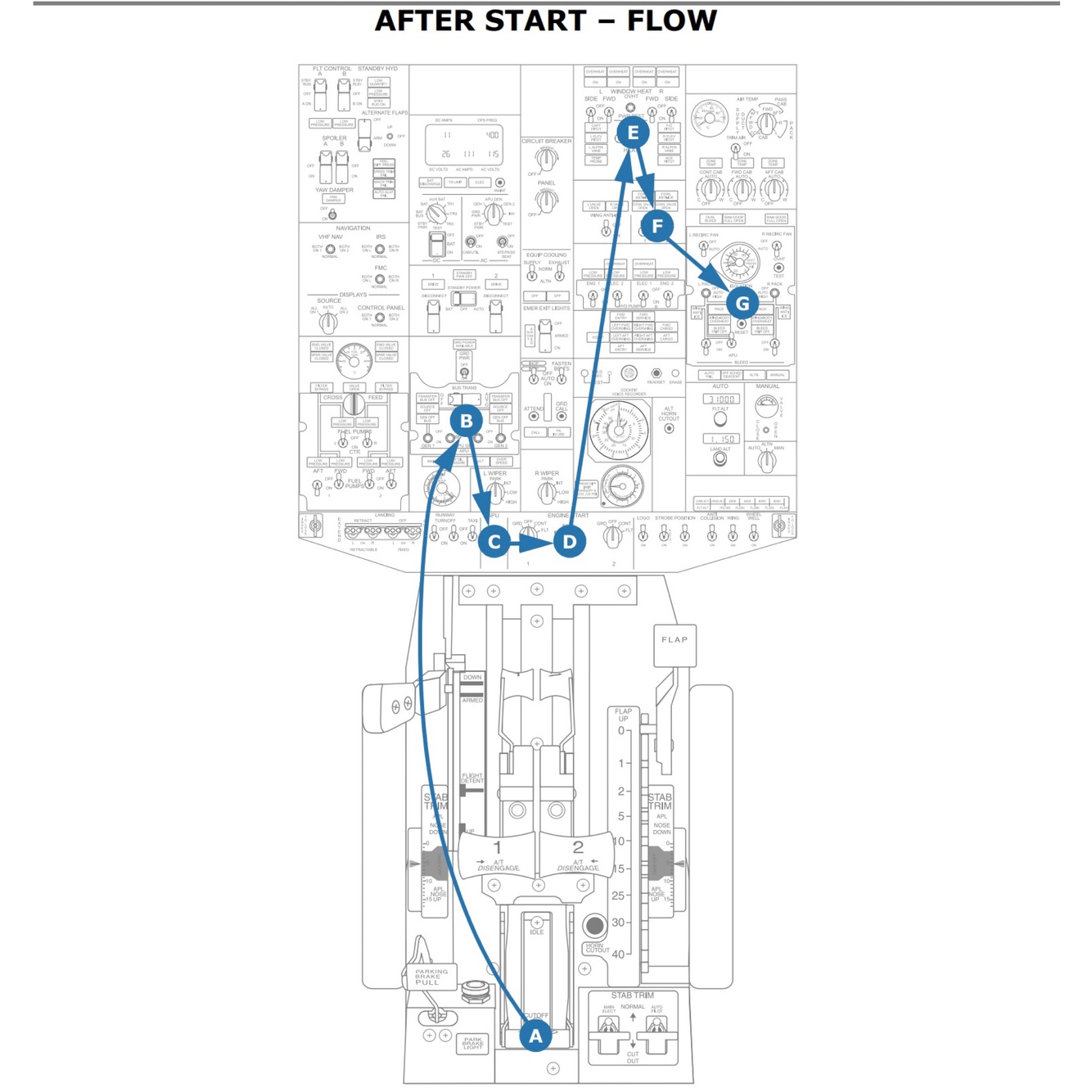

After Start Flow

Answer 15

Start Lever - Idle
Electrical - Gens On
APU - On / Off
Start Sws - On
Probe Heat - On
Anti Ice - As Req
Packs / Bleeds - Auto / Set

Question 16

Before Takeoff

Answer 16

Make PA

Question 17

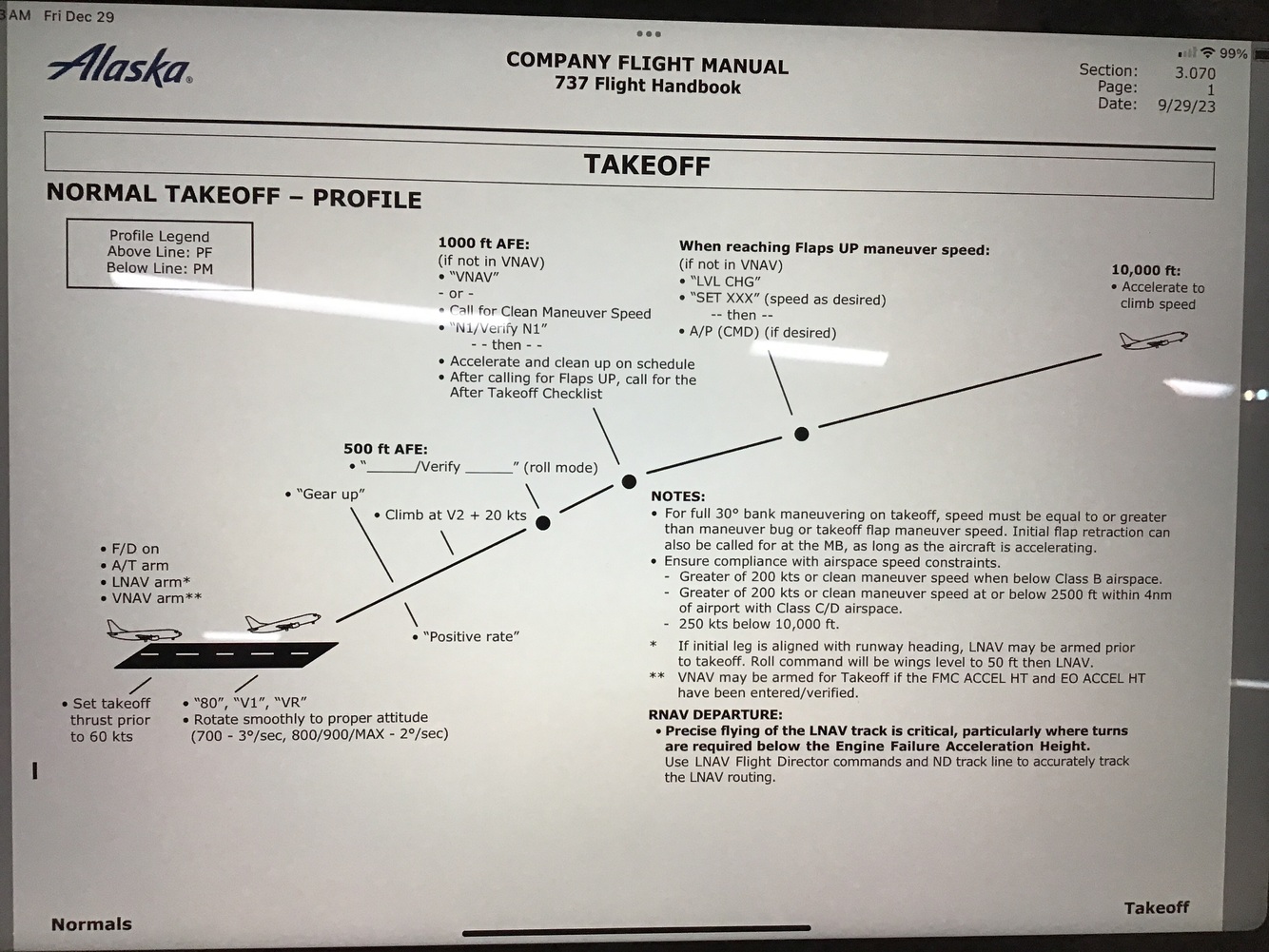

Normal Takeoff Call outs

Answer 17

PF PM
Set 40%. Stable
Set power. Power set

Question 18

Climb Procedure

Answer 18

At 10000

APU - Off
Fasten seatbelt - cycle
Pressure - check “10000ft pressurizing”
Retractable Landing Light - as desired

Transition Alt

Altimeter - STD
Lights - Set

Question 19

FMC Arrival Procedure

Answer 19

WX
ACARS landing data
In Range Call
Arrival page
RTE page
ACT DES page
ACT LEGS page
APP Ref

Question 20

Arrival Setup Outside FMC

Answer 20

EFB
Radio
HGS Runway data
MCP
EFIS
Autobrakes

Question 21

Approach Announcement

Answer 21

“Flight attendants please prepare the cabin for arrive (and be seated)”

Question 22

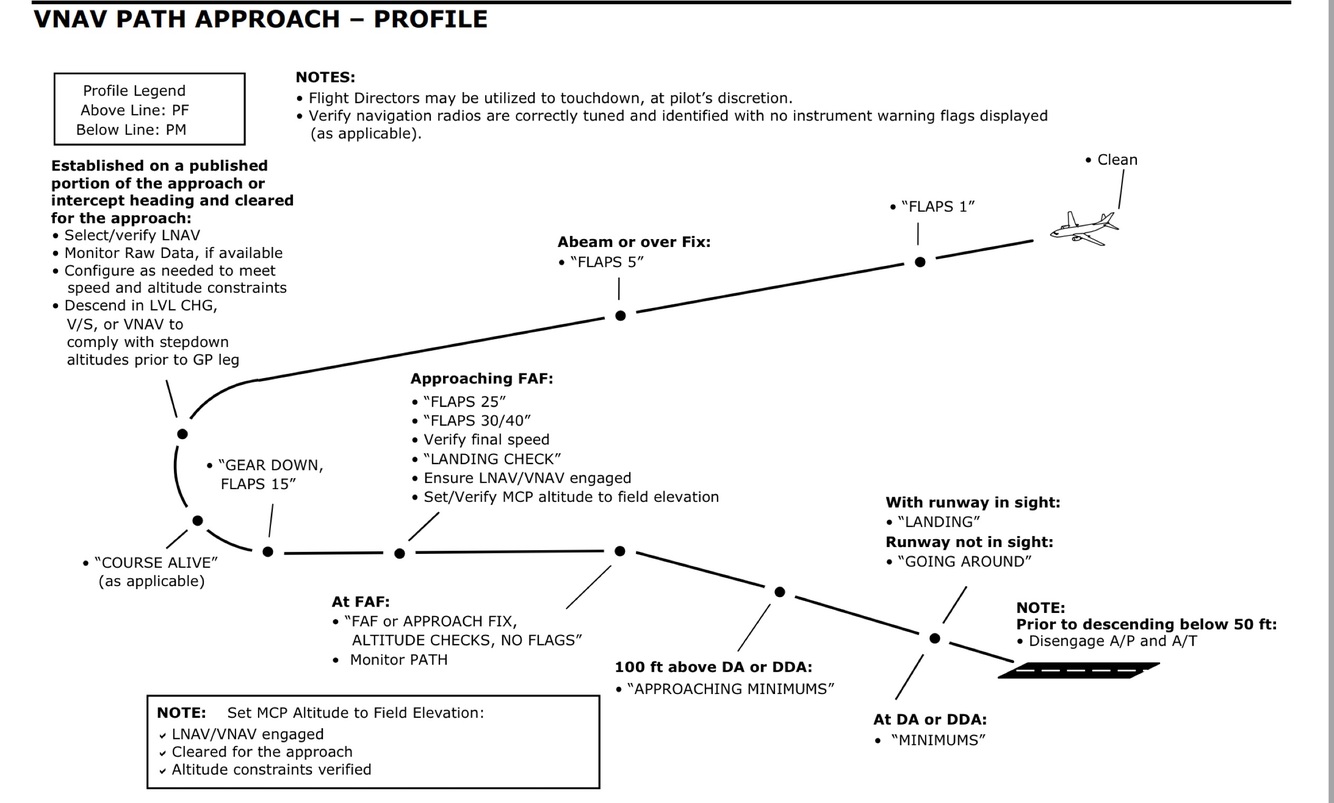

Approach Profile

Answer 22

Question 23

Roll Out Call

Answer 23

PM:
Speed Break / No Speed Break
Auto Break Disarmed
Two Lights
100, 90, 80

Question 24

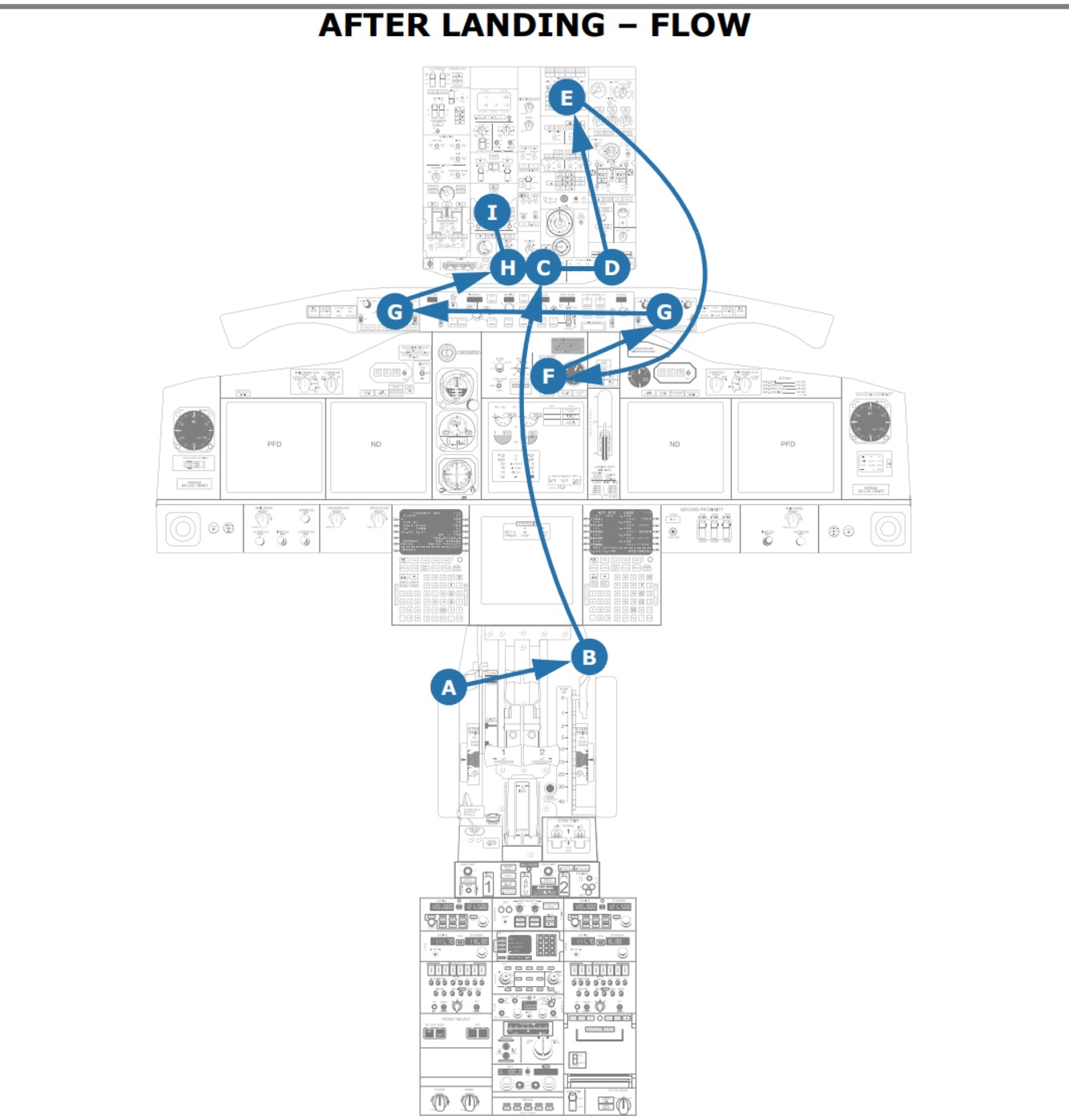

After Landing

Answer 24

1. Speed Break – Down Detent
2. Flaps – Up, No Lights
3. ENG Start Sw – Off
4. Stob/Wing Lights – Off
5. Probe Heat – Auto
6. Auto Brake – Off
7. Radar – Off
8. APU – Start
9. APU Gen – On

Question 25

Missed Approach

Answer 25
