G1000

Question 1

EFIS

Answer 1

Electronic Flight Instrument System

Question 2

TAA

Answer 2

Technically Advanced Aircraft

Question 3

WIDN

Answer 3

What’s It Doing Now?

Question 4

When was Garmin founded?

Answer 4

1989
Gary Burnell & Min Kao

Question 5

When wasG1000 introduced?

Answer 5

1999

Question 6

LRU

Answer 6

Line Replaceable Unit

Question 7

Air Data Computer

Answer 7

pitot/static system

Question 8

AHRS

Answer 8

Attitude and Heading Reference System (gyro)

Question 9

EAU

Answer 9

Engine Airframe Unit

Question 10

Magnetometer

Answer 10

Senses local magnetic field

Question 11

PFD

Answer 11

Primary Flight Display

Question 12

Airspeed range

Answer 12

+-30kts

Question 13

Altimeter range

Answer 13

+-300 feet

Question 14

What is GMA 1347

Answer 14

Audio Panel
located between PFD & MFD
-playback switch

Question 15

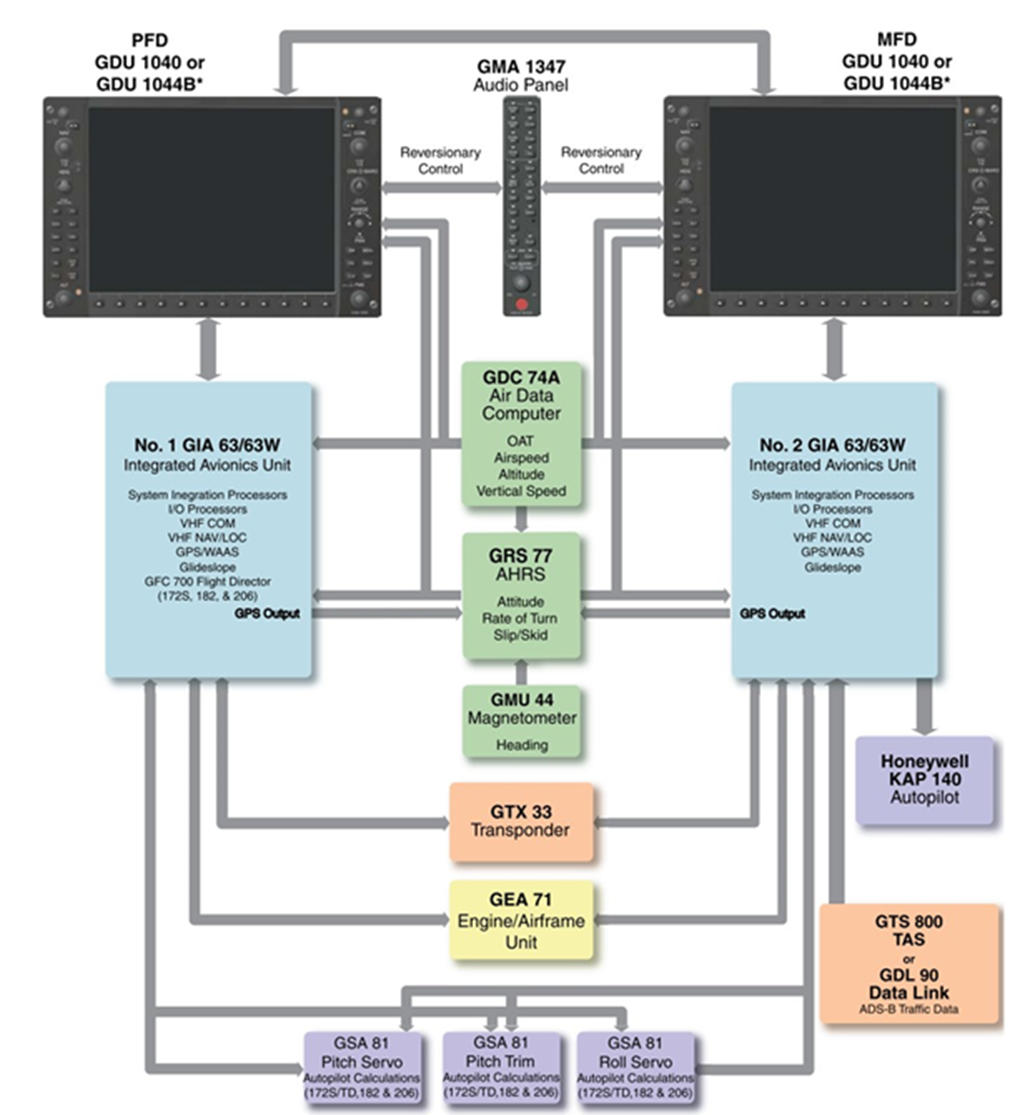

Draw G1000 system diagram

Answer 15

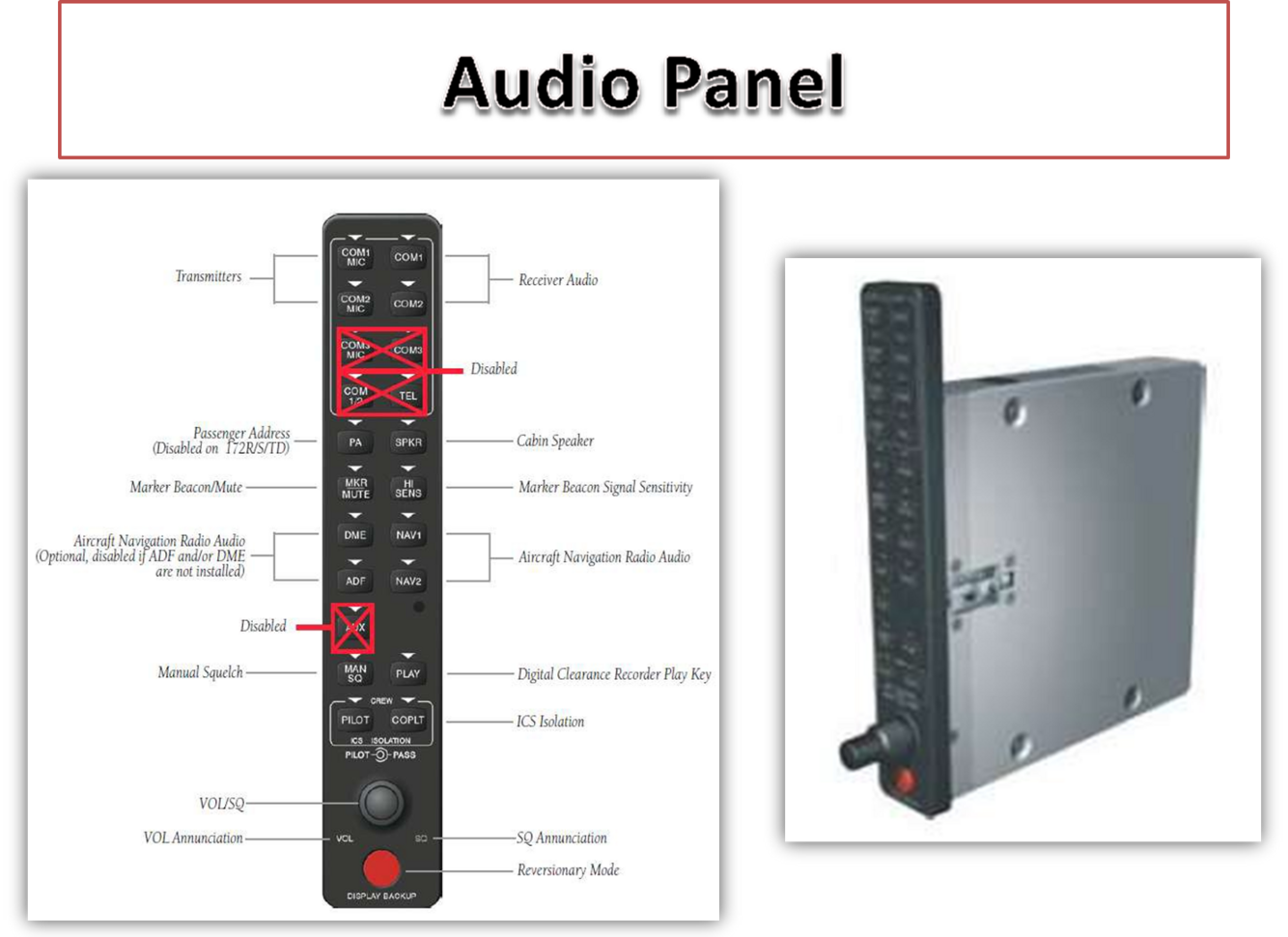

Question 16

Audio Panel button layout
GMA-1347

Answer 16

Question 17

GEA 71

Answer 17

Engine/Airframe Unit

Question 18

GFC 700

Answer 18

Flight Director and Autopilot

Question 19

FMS gives 3 options

Answer 19

1 - hand flying
2 - hand flying the aircraft with ref to FD cues
3 - Autopilot providing “muscle” to control aircraft with FMS guidance

Question 20

TOGA button

Answer 20

Takeoff / Go Around

Question 21

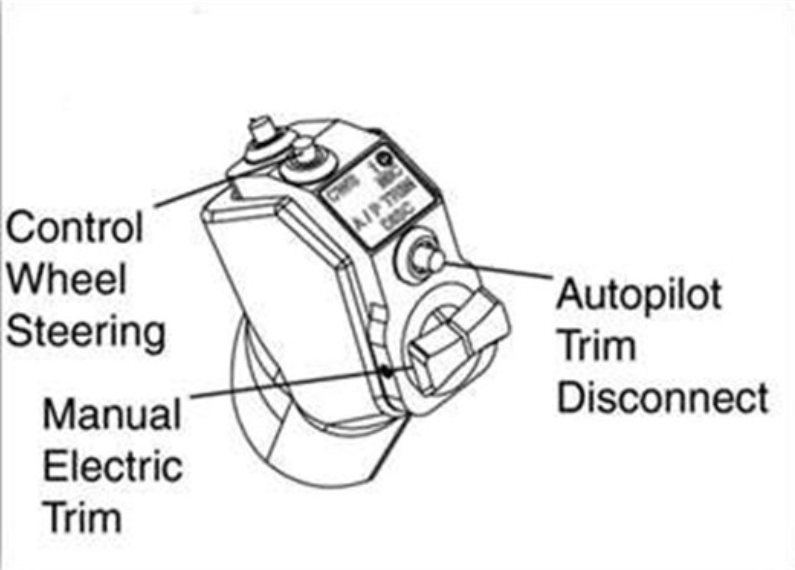

Yoke mounted buttons

Answer 21

Control wheel steering (CWS)
Manual electric trim (MET)
Autopilot trim disconnect (AP DISC)

Question 22

KAP 140

Answer 22

Older autopilot associated with G1000

Question 23

What axis of AP

Answer 23

Pitch and roll

Question 24

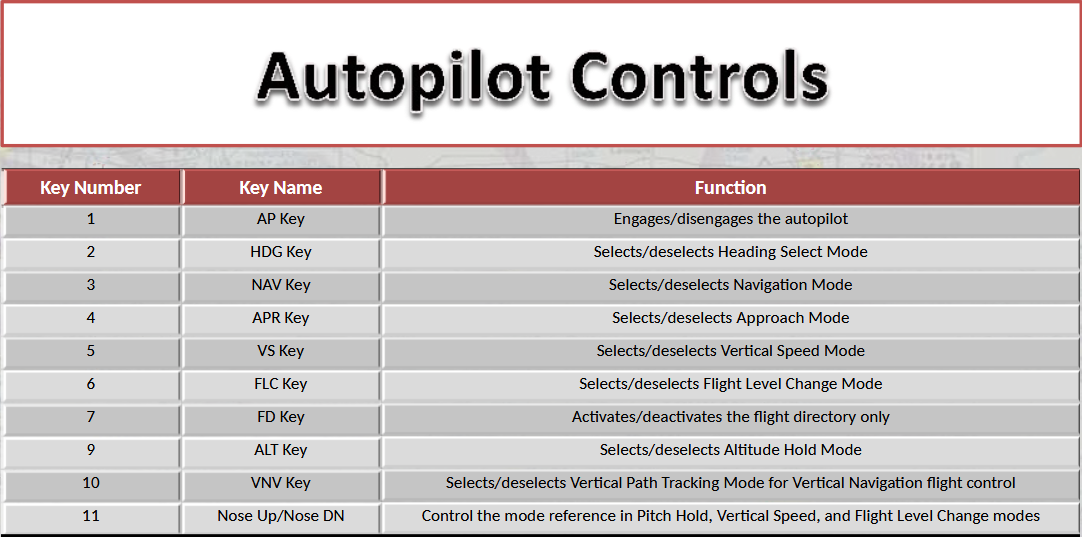

Autopilot buttons

Answer 24

Question 25

Autopilot Disengagement

Answer 25

Yellow = manually disengaged Red = Automatically disengaged

Question 26

A/S Limitations

Answer 26

Autopilot max engagement 150 KIAS Min engagement 70 KIAS Electric Trim maximum 163 KIAS

Question 27

Altitude Limitations

Answer 27

200 AGL during approach 800 AGL for other operations

Question 28

AP Disconnect Note

Answer 28

Changing nav source in Nav. Mode will cause lateral mode to default to ROL.

Question 29

Autopilot FLC button

Answer 29

climb/descend at specified airspeed

Question 30

What LRU contains GFC 700 Flight Director

Answer 30

GIA 63W

Question 31

How many servos

Answer 31

3 Pitch Roll Pitch trim

Question 32

CWS button

Answer 32

disables autopilot while pressed

Question 33

With AP off, What see status bar

Question 34

GA button do?

Answer 34

disconnect AP, turns on Go around mode

Question 35

AP min speed

Answer 35

70 knots

Question 36

What turn on before AP

Answer 36

AP

Question 37

AFCS white status mean

Answer 37

armed

Question 38

AP flashing yellow

Answer 38

AP disconnected by pilot

Question 39

Green AP

Answer 39

active

Question 40

GDU 1044B

Answer 40

display

Question 41

BARO knob

Answer 41

altimeter setting

Question 42

LRU Heading and Attitude

Answer 42

GRS 77

Question 43

LRU pitot static

Answer 43

GDC 74A

Question 44

GMU 44 where

Answer 44

left wing

Question 45

LRU dispays info for pilot

Answer 45

GDU 1044B

Question 46

MFD fails

Answer 46

Press red button on GMA 1347

Question 47

GIA 63W fails GPS

Answer 47

no loss of GPS

Question 48

Soft key nav change

Answer 48

CDI

Question 49

GMA 1347 location

Answer 49

between PFD and MFD

Question 50

how many levels of annunciation

Answer 50

3

Question 51

Engine instrumentation displayed where

Answer 51

Left side GDU 1044B
