is the equation for oxygen delivery (DO2)?
What is the equation for arterial oxygen content (CaO2)?
The equation for oxygen delivery (DO2) is…
DO2 (mL/min) = Q × CaO2
Where Q is the cardiac output and CaO2 is the arterial oxygen content.
The equation for arterial oxygen content (CaO2) is…
CaO2 (mL O2/dL) = (1.34 × Hb × SaO2) + (0.0031 × PaO2)
Where Hb is the hemoglobin concentration, SaO2 is the arterial oxygen saturation, and PaO2 is the arterial oxygen tension.
Oxygen dissolved in arterial blood (0.003 x PaO2) raises the total value by only a small amount. If PaO2 is increased, there is little change in CaO2 and it is therefore considered of little significance by most when determining oxygen content. Optimizing Hgb amount is one way to ensure maximal oxygen content.
Each gram of normal Hb can bind ~1.34 mL of oxygen.
According to Henry’s law, the amount of dissolved oxygen is related to the partial pressure of oxygen and the solubility coefficient. The solubility coefficient of oxygen is 0.003 mL O2/dL/mm Hg, so the amount of oxygen dissolved in the plasma is 0.003 mL O2/dL/mm Hg × PaO2.

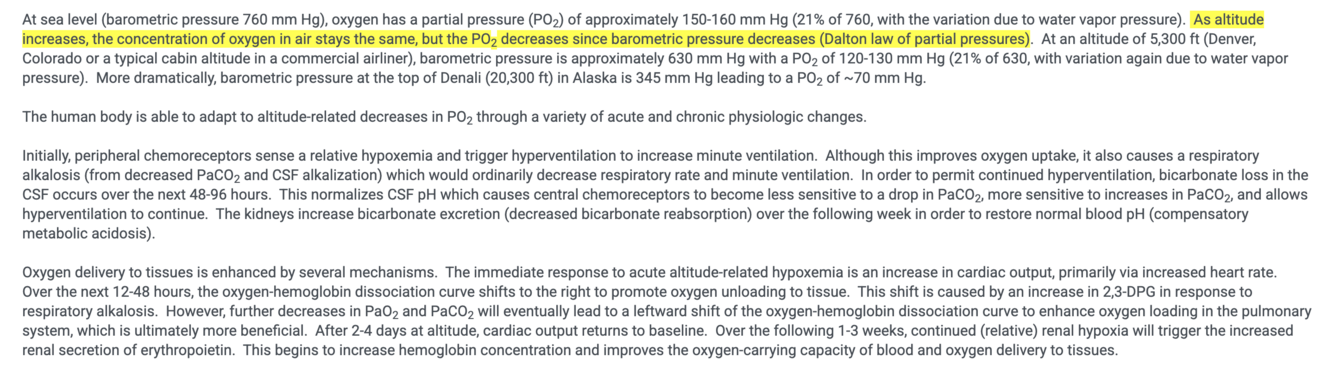

What happens to the concentration of oxygen at increased altitudes?
Remains the same! FiO2 still 21% of the lower barometric pressure. The partial pressure of O2 (PO2) however is decreased.

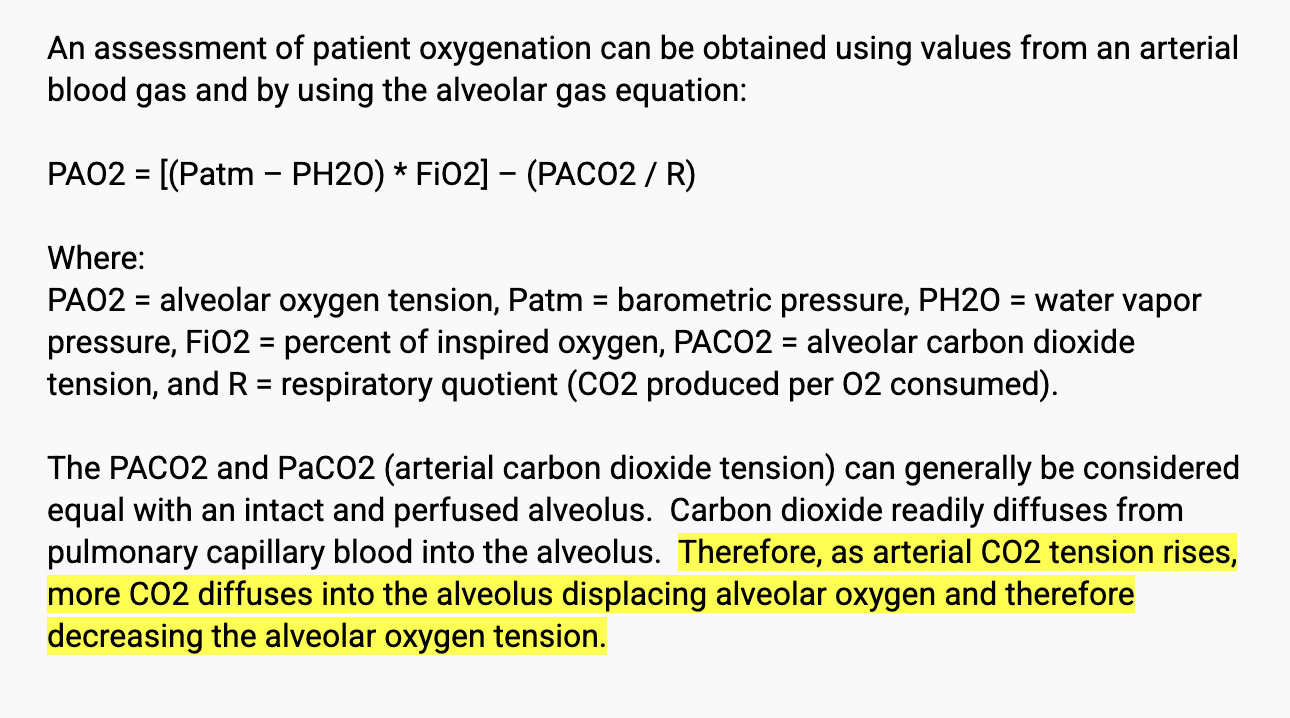

What is the Alveolar Gas Equation?
The alveolar gas equation is a formula used to calculate the approximate partial pressure of oxygen in the alveoli (PAO2).
PAO2 = [(Patm − PH2O) x FiO2] − (PaCO2/RQ)
Notice that if PaCo2 rises (hypercarbia), PAO2 decreases (less O2 reaching alveoli). This is because the CO2 diffusing into the alveoli displaces the O2 in the alveoli.
What is a normal Aa-gradient?
< 10mmHg
Aa= PAO2-PaO2
What is the Fick Principle?
The Fick principle
The Fick equation [CO = VO2 / (CaO2 – CvO2)] can be used to calculate cardiac output on the basis of total oxygen consumption divided by the differences between arterial and mixed oxygen content. This makes it a more accurate measure of cardiac output than simply measuring heart rate or blood pressure.
CO = VO2 / (CaO2 – CvO2)
CaO2= (1.34 x hgb x SaO2) + (0.003 x PaO2)
VO2 (total uptake of oxygen consumption into the blood; measured by the difference between inhaled and expired oxygen)
CaO2 (arterial oxygen content, measured off a systemic artery)
CvO2 (venous oxygen content, measured off the pulmonary artery)
Calculating oxygen saturation from an ABG and a mixed venous gas provides the gradient between arterial and venous oxygen content.
EXAMPLE:
CO = (200 mL/min) / (140 mL O2/L blood – 100 mL O2/L blood)
CO = 200/40 = ~5 L/min
Equation for SVR
SVR = (MAP - RAP) / CO x 80
Typically, CVP is substituted for RAP.
The conversion factor “80” is used to change units from “mm Hg/L/min” to “dynes x sec/cm^5.”
Equation for MAP
MAP = (SBP + 2DBP)/3
or
MAP= DP + 1/3 (PP)
MAP = (CO x SVR) +CVP
Equation for PVR
PVR= 80 (MPAP-PAOP) /CO
MPAP (Mean pulmonary arterial pressure)
PAOP (pulmonary artery occlusion pressure)
The conversion factor “80” is used to change units from “mm Hg/L/min” to “dynes x sec/cm^5.”
NOTE:
LA pressure or LVEDP can be used instead of PAOP.
Pulmonary Artery Occlusion Pressure (PAOP) can be used as a proxy for _.
Pulmonary Artery Occlusion Pressure (PAOP) can be used as a proxy for LVEDP.

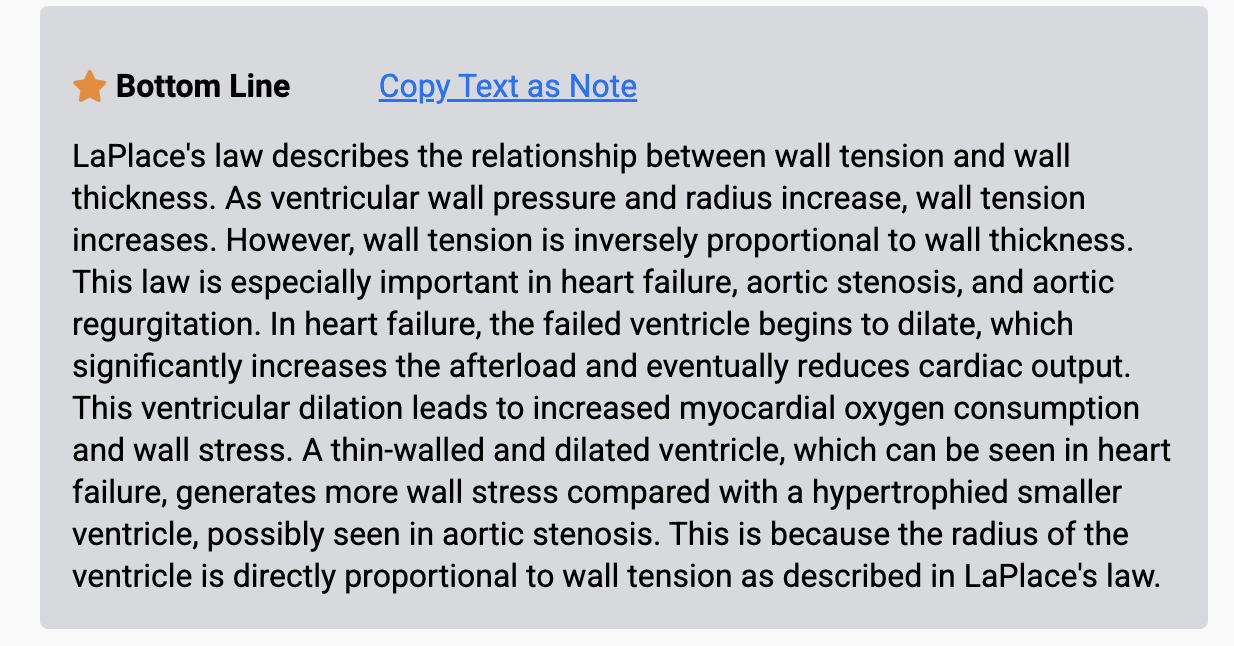

Describe LaPlace’s law as it pertains to myocardial wall tension.
T = Pr/2h
T = wall tension
P= Pressure
r = radius
h= thickness

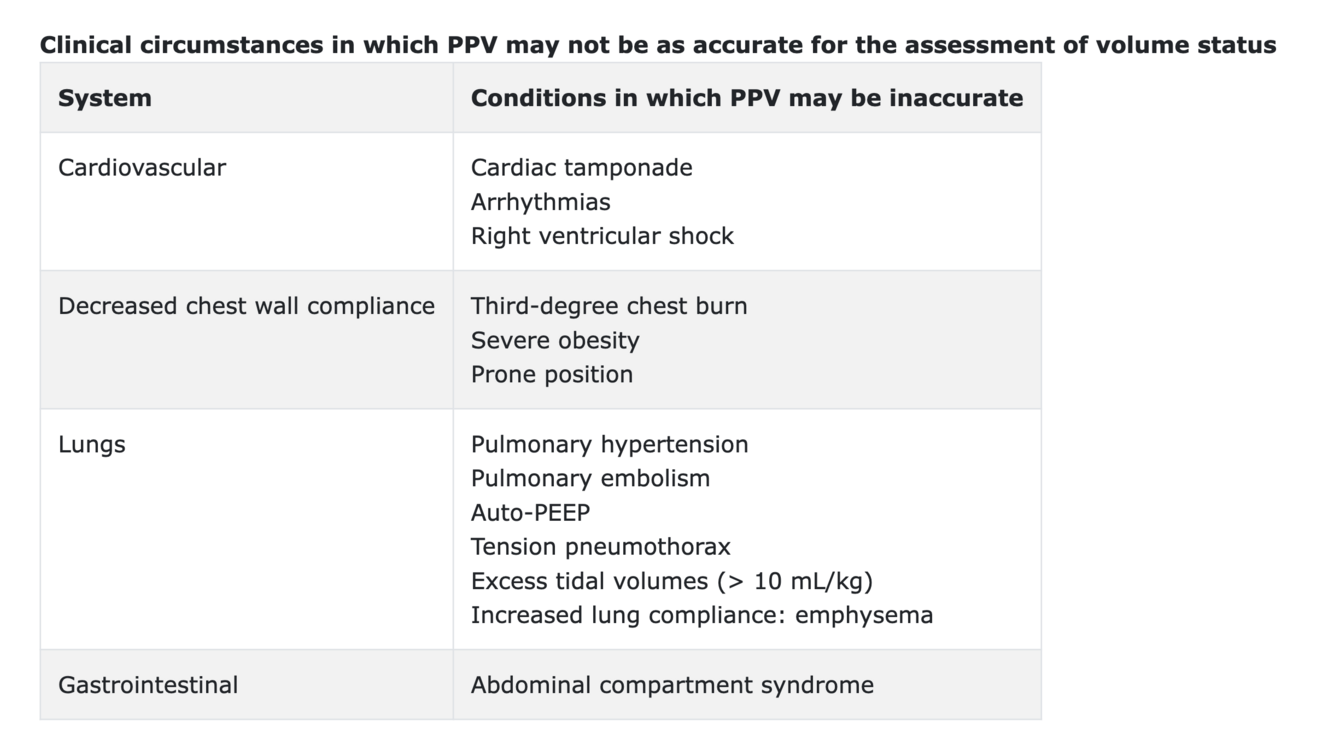

For PPV or SVV to be valid for the prediction of fluid responsiveness, various conditions must be met:
For PPV or SVV to be valid for the prediction of fluid responsiveness, various conditions must be met:
* Mechanical ventilation with positive pressure ventilation at 8-10 mL/kg tidal volume (NOT spontaneously breathing patients)
* PEEP of ≥ 5 cm H20
* Regular cardiac rhythm
* Closed thoracic cavity with normal intrathoracic pressures
* Normal intra-abdominal pressure
Fluid responsiveness can be viewed as an increase in stroke volume or cardiac output after a fluid bolus. Accurate predictors of fluid responsiveness in patients who are being treated with mechanical ventilation include systolic and pulse pressure variation and stroke volume variation. The greater the variation of the systolic pressure and pulse pressure with positive pressure breaths while mechanically ventilated, the more likely the patient will respond to volume administration with an increase in cardiac output or stroke volume. Minimal to absent pulse pressure variation with respiration indicates that the patient may not have a hemodynamic response to volume resuscitation.
Negative Pressure Pulmonary Edema
Causes:
Risk factors:
Pathophysiology:
Signs/symptoms:
Treatments:
Negative Pressure Pulmonary Edema
Causes: upper airway obstruction [eg. laryngospasm (#1), bitting of ETT]
Risk factors: airway obstruction, young, fit, men, otolaryngology surgery
Pathophysiology: exaggerated negative intrathoracic pressure increases RV return and pulmonary hydrostatic pressure causing pulmonary edema, also increases LV afterload worsening pulmonary edema, mechanical stress from breathing against a closed glottis induces breaks in the alveolar epithelial and pulmonary microvascular membranes resulting in increased pulmonary capillary permeability
Signs/symptoms: Absence of breath fog, suprasternal and supraclavicular retractions, paradoxical chest and abdomen movements (abdominal breathing), loss of ETCO2/volumes, hypoxia, pink/frothy sputum, bilateral fluffy pulmonary infiltrates on CXR
Treatments: relieve obstruction, PPV (via ETT or CPAP), FiO2 100%, +/- diuretics
NOTE:
Triggering stimuli within the larynx tend to be more potent when preexisting inflammation of the upper airway is present such as patients with severe GERD or recent URI.

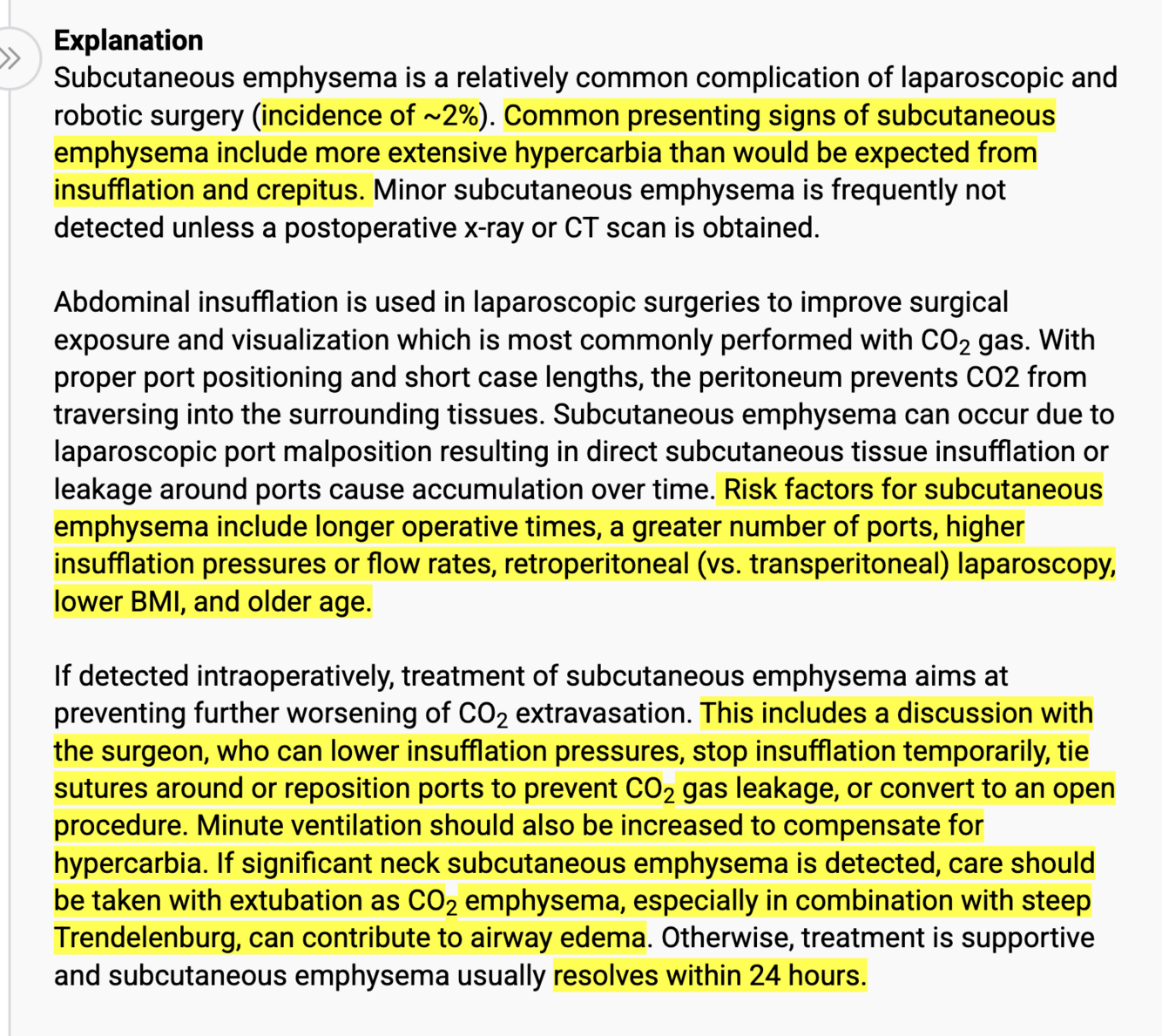

Subcutaneous ephysema after abdominal insufflation most commonly present with…
Hypercarbia
Crepitus

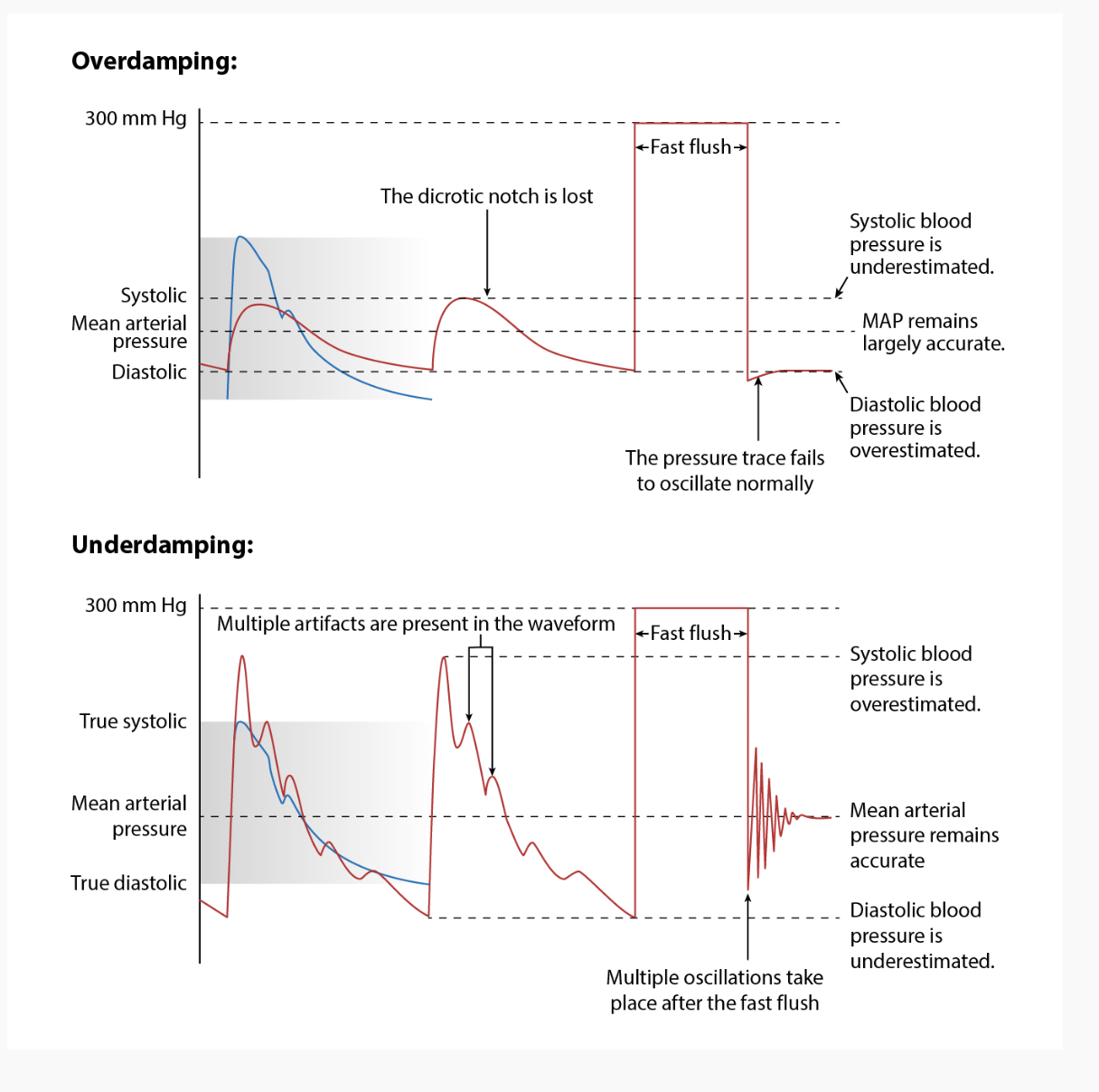

What are causes of overdampening seen on an arterial line trace?
Overdampening is caused by factors that increased resistance within the tubing or increase compliance of the tubing.
* Blood clot
* Air bubble
* Addition of stop cocks
* Thin tubing
Overdampening is seen on a trace as a loss of dicrotic notch and flattened waveform. Systolic blood pressure will be underestimated. Diastolic pressure will be overestimated. MAP will remain accurate.
Fix by flushing line if clot, pulling back to remove air, and removing stopcocks or an extra length of tubing.

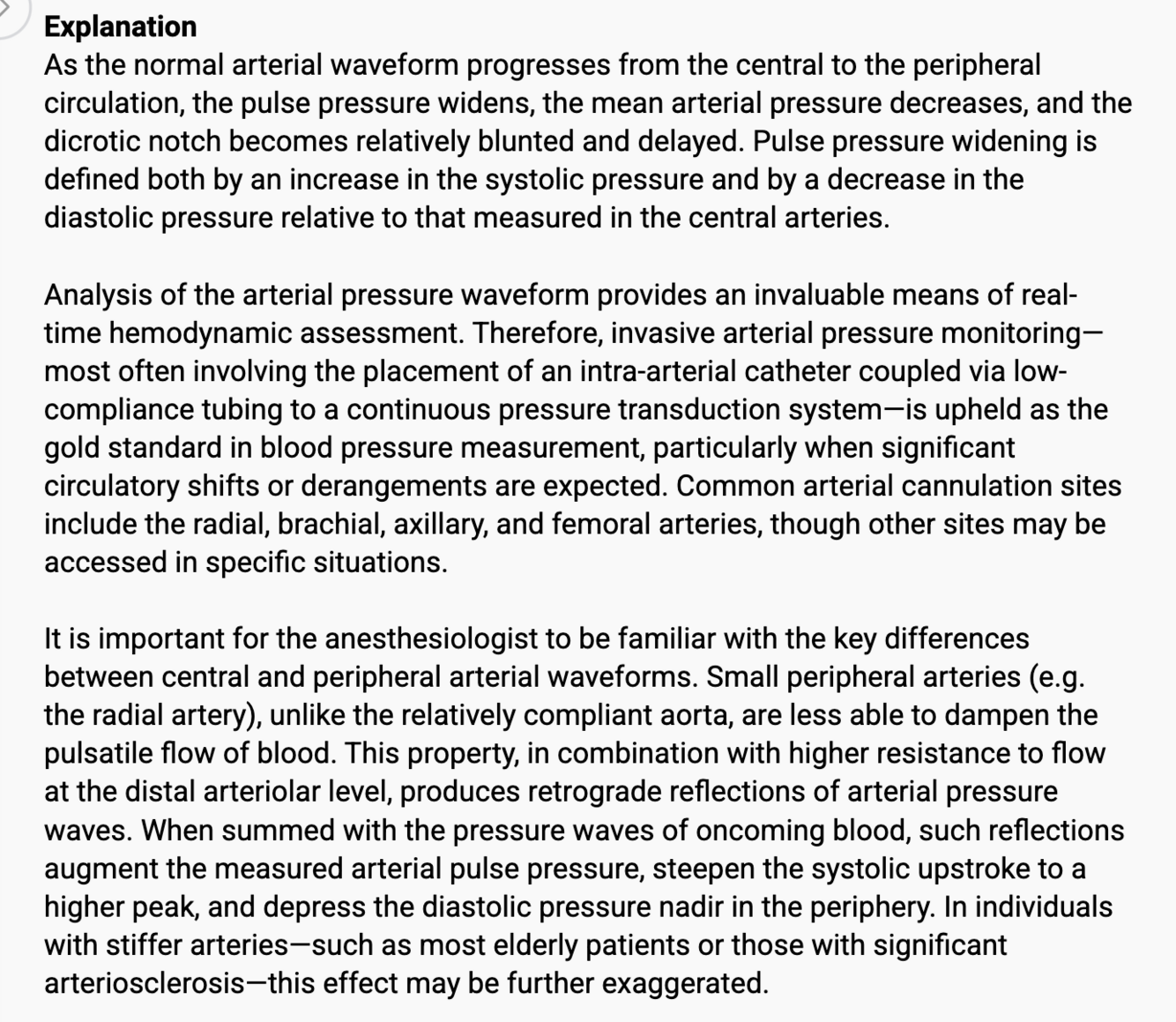

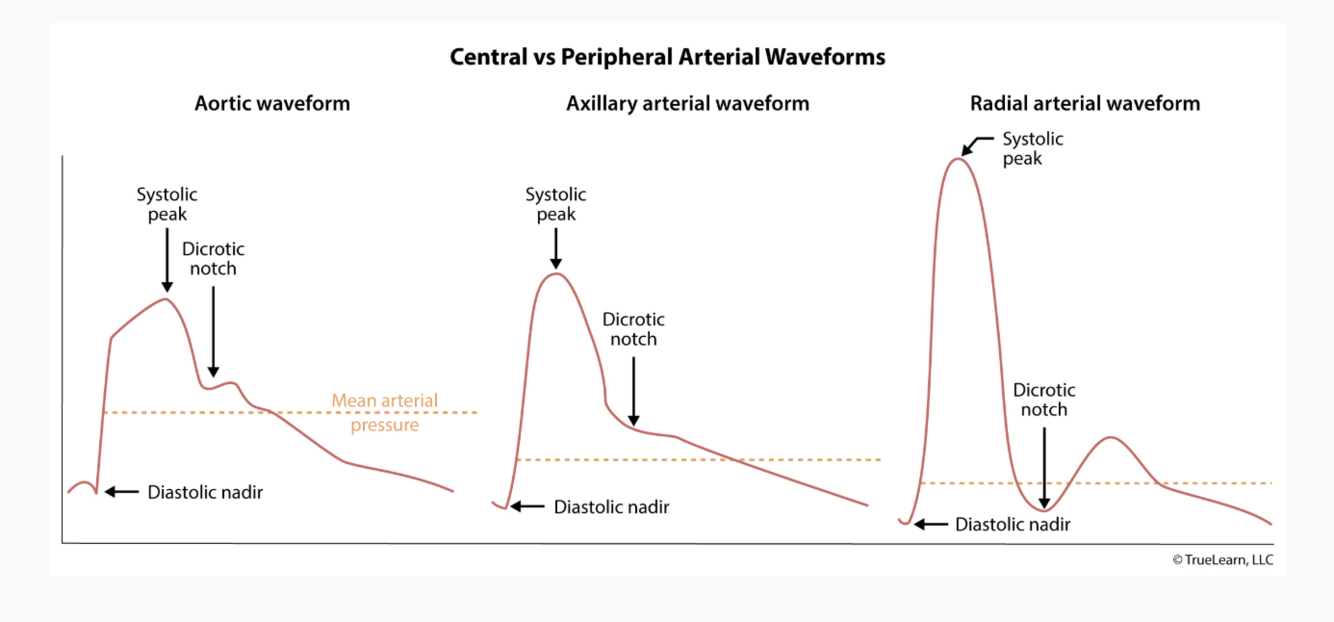

How does a peripheral arterial waveform differ from a central arterial waveform?
Increased systolic
Decreased diastolic
Widened pulse pressure
MAP decreases
Blunted/delayed dicrotic notch
What is the most accurate measurent provided by an automated noninvassive blood pressure cuff?
MAP
NOTE:
Systolic is overestimated (least accurate) and diastolic is underestimated.

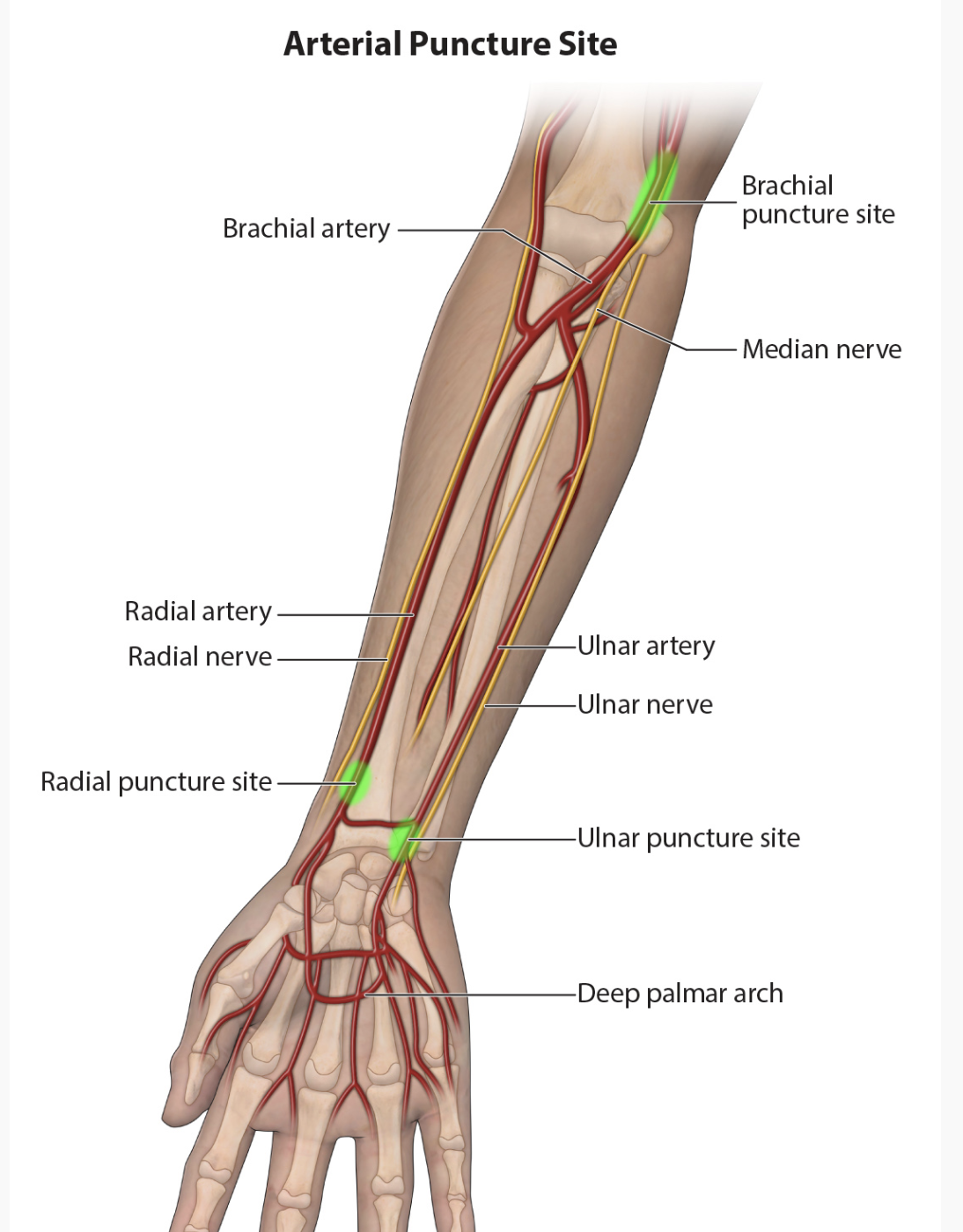

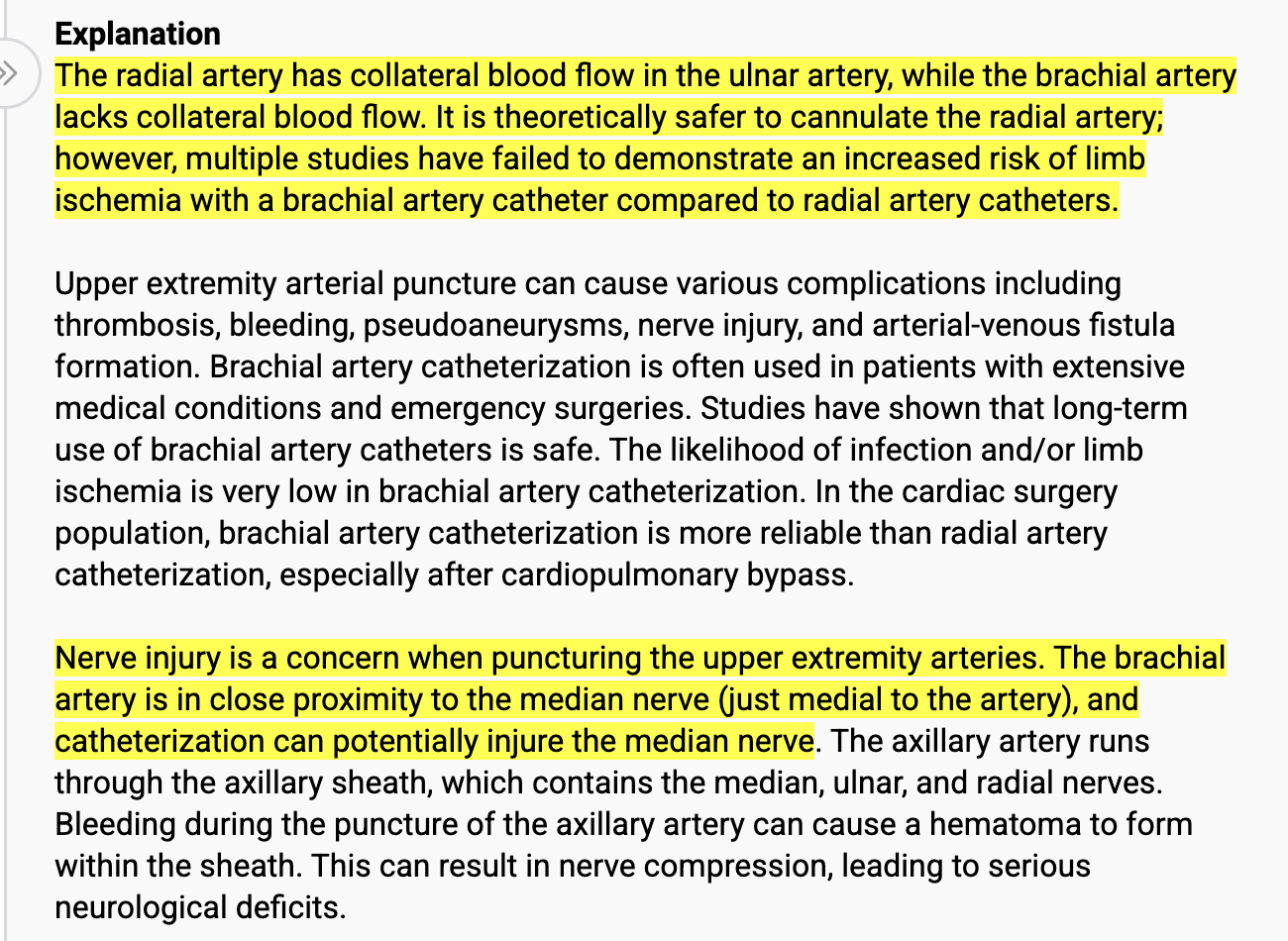

What nerve can potentially be injured by placement of a brachial arterial catheter?
Median Nerve

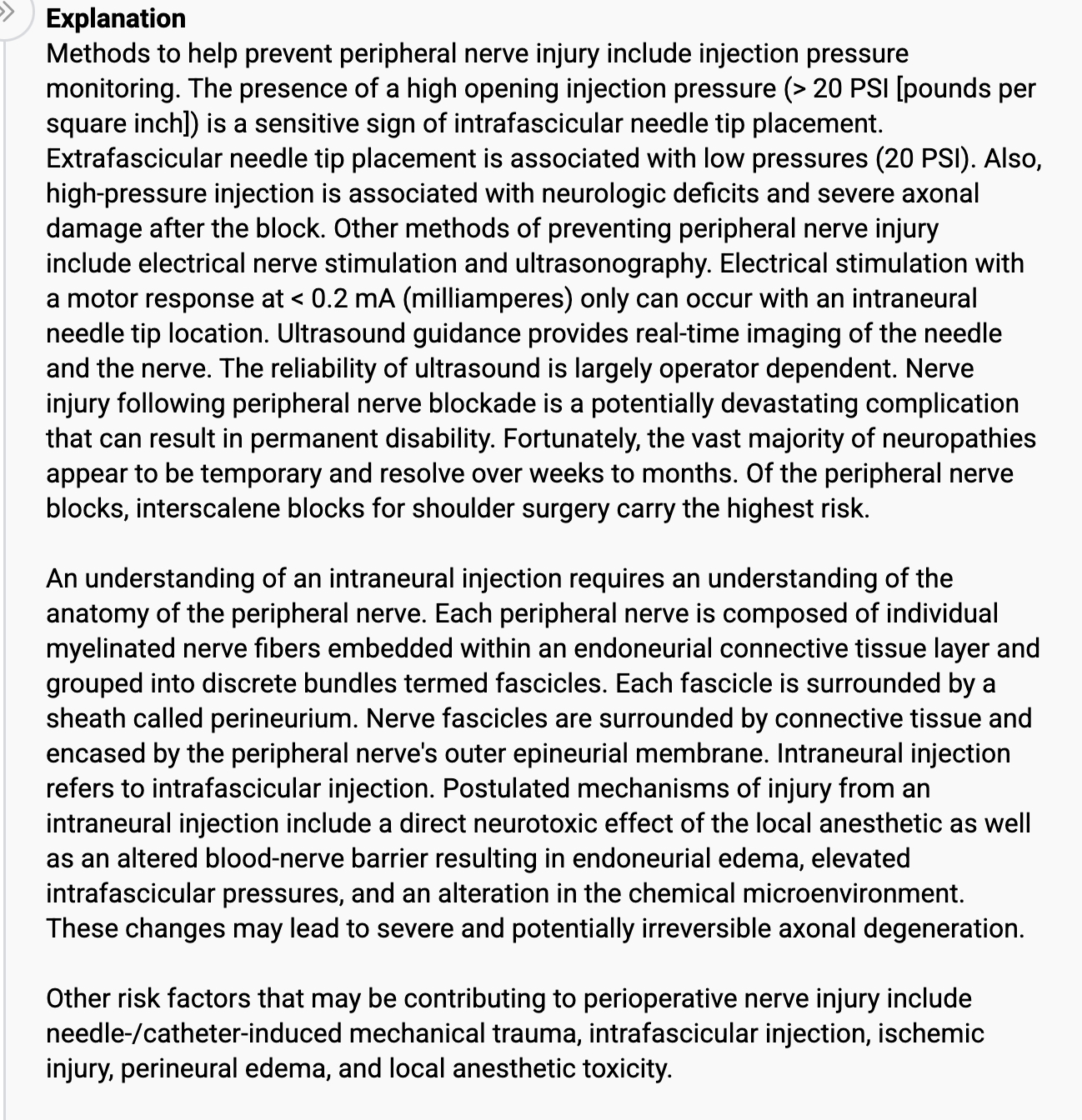

Methods to prevent peripheral nerve injury during regional anesthesia?
Ultrasound
(operator dependent)
Electrical Nerve Stimulation
(motor response at < 0.2mA occurs with intraneural needle tip placement)
Injection Pressure Monitoring
(high opening pressure >20psi sensitive sign of intrafasicular needle tip placement)
NOTE:
An injection that takes place outside the epineurium is considered extra- or perineural whereas any injection inside the epineurium is considered intraneural. An intraneural injection can be either extrafascicular (without breaching the perineurium) or intrafascicular (breaching the perineurium). This distinction is extremely important as damaging the perineurium exposes the protective environment of the fascicles. Even small amounts of solution injected intrafascicularly can lead to axonal degeneration and permanent neural damage.
CBF increases linearly with PaCO2 between ____ to ___ mm Hg
CBF increases linearly with PaCO2 between 20 to 80 mm Hg.
Beyond 80 mm Hg, CBF tends to plateau.
NOTE:
CO2 readily cross the blood-brain barrier while H+ ions do not. Respiratory acid-base derrangement (ie respiratory acidosis) have a greater affect on CBF than metabolic acid-base derrangements (ie metabolic acidosis).
The specific mechanism by which PaCO2 controls CBF involves changes in CSF pH; high PaCO2 decreases CSF pH which in turn cause a release of vasodilators nitric oxide and prostaglandins.
CBF increases 1-2cc/100mg/min for each 1mmHg increase of PaCO2.
CBF changes in response to CO2 are not sustained. After 6-8hrs the CSF will compensate by excreting bicarbonate.

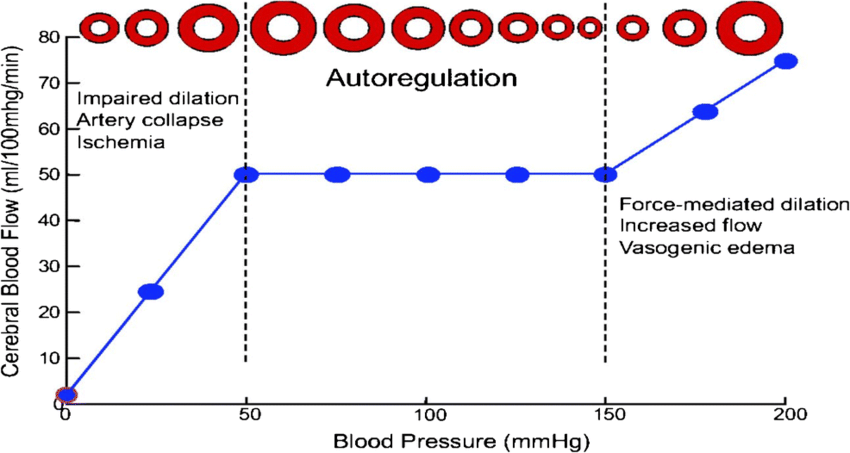

In healthy adults, CBF is autoregulated with respect to MAP between a MAP range of ____ to _____ mm Hg.
In order to maintain adequate cerebral oxygenation, CBF undergoes extensive regulation in the human body.
In healthy adults, CBF is autoregulated with respect to MAP between a MAP range of 50 to 150 mm Hg.
NOTE:
The cerebral autoregulation curve is right-shifted in chronic hypertension. Long term antihypertensive therapy can reverse the right shift towards a normal cerebral autoregulation curve.
Define controlled hypotension.
Controlled hypotension is defined as a reduction of the systolic blood pressure to 80-90 mm Hg, a reduction of mean arterial pressure (MAP) to 50-65 mm Hg or a 30% reduction of baseline MAP.
Increases in brain activity lead to local increases in cerebral metabolic rate (CMR), which leads to proportional changes in cerebral blood flow (CBF). This relationship is referred to as ________________________.
Increases in brain activity lead to local increases in cerebral metabolic rate (CMR), which leads to proportional changes in cerebral blood flow (CBF). This relationship is referred to as flow-metabolism coupling.

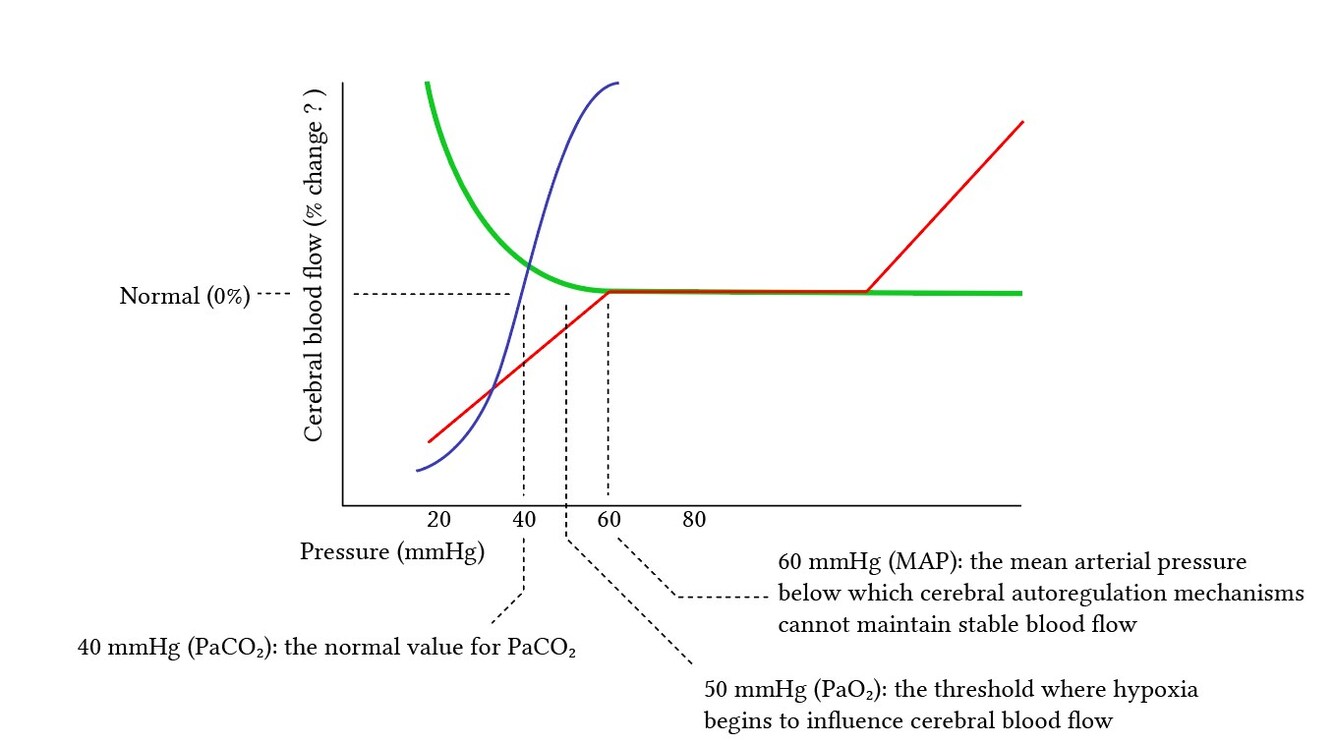

Hypoxia has minimal effect on CBF above tensions of _______, but below that level CBF rises dramatically.
Hypoxia has minimal effect on CBF above tensions of 50 mm Hg, but below that level CBF rises dramatically.
NOTE:
Compared to PaCO2, PaO2 has much less of an effect on CBF.
What methods are used for neurologic monitoring during carotid endarterectomies?
Neurologic monitoring in a patient undergoing carotid endarterectomy (CEA) is primarily utilized to promptly identify changes in cerebral blood flow (CBF) to prevent brain hypoperfusion while a carotid artery is clamped. This monitoring is utilized to guide both surgical interventions (e.g. carotid shunt placement) and the maintenance of anesthesia (e.g. increasing cerebral perfusion pressure).
Monitoring modalities that are most often used to detect these changes in CBF include electroencephalogram (EEG), somatosensory-evoked potentials (SSEP), transcranial Doppler (TCD), and cerebral oximetry.
EEG is often thought of as the “Gold Standard” for the detection of electrical brain activity perturbations attributed to decreases CBF during CEA. This arises from studies in the 1970s that validated EEG against the true gold standard of CBF measurement, 133Xe radiotracer washout method. While these studies demonstrated that EEG was adequate to detect regional changes in CBF, because of the extremely low incidence of intraoperative stroke, no prospective study has validated EEG to reduce the incidence of stroke during CEA. Controversy abounds regarding the use of EEG during CEA especially when it is the practice of a surgeon to place a carotid shunt in all patients prophylactically. It is further complicated by the fact that the majority of the studies validating EEG in this role utilized a full 16-channel EEG, while in practice a 4 channel (2 per hemisphere) EEG is utilized for simplicity of monitoring. While sensitivity and specificity of detecting intraoperative cerebral injury both approached 100% in a 16 channel EEG, these were slightly less when a 4 channel EEG was utilized. Regardless, this monitor reflects a functional assessment of brain electrical activity and is utilized routinely to detect regional decreases in CBF and guide therapy during CEA.
SSEPs generally remain intact until CBF decreases to under 15 mL/100 g/minute. This is an additional monitor that has been shown to have a similar clinical efficacy to EEG when selective shunting (shunting patients undergoing CEA when intraoperative evidence of cerebral hypoperfusion arises) is utilized. Also, as the SSEP signal is averaged over minutes instead of instantaneously as in EEG, SSEPs may have a lower failure rate than EEG, but clinically these two monitoring modalities are very similar. Where controversy regarding the clinical efficacy of EEG exists in preventing the development of intraoperative cerebral injury, even fewer outcome data exist to guide the use of this monitoring modality in CEA.
TCD monitoring utilized ultrasonography to most often image the MCA by obtaining a view window through the thin temporal bone. Utilizing the Doppler effect, the flow velocity of red blood cells in the MCA can be approximated. Because this is an ultrasound monitor, atherosclerotic emboli burden can be quantified by counting the number of high-intensity transient signals (HITSs) that the highly echogenic emboli generate as they pass through the plane of the ultrasound Doppler. The use of this monitoring modality makes two major assumptions regarding CBF. First is that the velocity of blood flow correlates with CBF, and second is that increasing the embolic burden increases the likelihood of cerebral injury. The first assumption here regarding Doppler flow velocity and CBF is controversial, with many data both supporting and criticizing this claim, but the second has been borne out in multiple studies. If utilized, TCD flow velocity reductions of greater than 50% are generally thought to be an indicator for shunting, TCD monitoring is also the only monitor that allows for the detection of cerebral hyperemia, or increased blood flow, following removal of an obstructive carotid lesion. Sustained doubling of flow may be an indicator for the anesthesia provider to decrease CPP if clinically prudent. The intraoperative use of this monitor is limited by the difficulty in maintaining an appropriate view window, though new head-mount systems are mitigating this limitation and this technology is becoming more utilized throughout the perioperative period.
Cerebral oximetry, or near-infrared spectroscopy (NIRS), is a monitor that is simple to both apply and interpret. It operates under the principle that as less oxygen is delivered to the brain due to decreased CBF, more oxygen is proportionately extracted from cerebral arterial blood, and therefore oxygen saturation in cerebral venous blood will decrease. Practically, this monitor is applied as a pad across the forehead and detects oxygen saturation in cerebral venous blood across the prefrontal cortex. While, in theory, this monitor seems useful in detecting decreased oxygen delivery to the brain and may prevent intraoperative cerebral injury, the data regarding its use in this capacity is mixed.
Contradictory evidence regarding intraoperative findings of cerebral oximetry, EEG/SSEP, and TCD all exist, and no single monitor has yet been validated as the gold standard for the prevention of cerebral injury during CEA.
