hydraulic

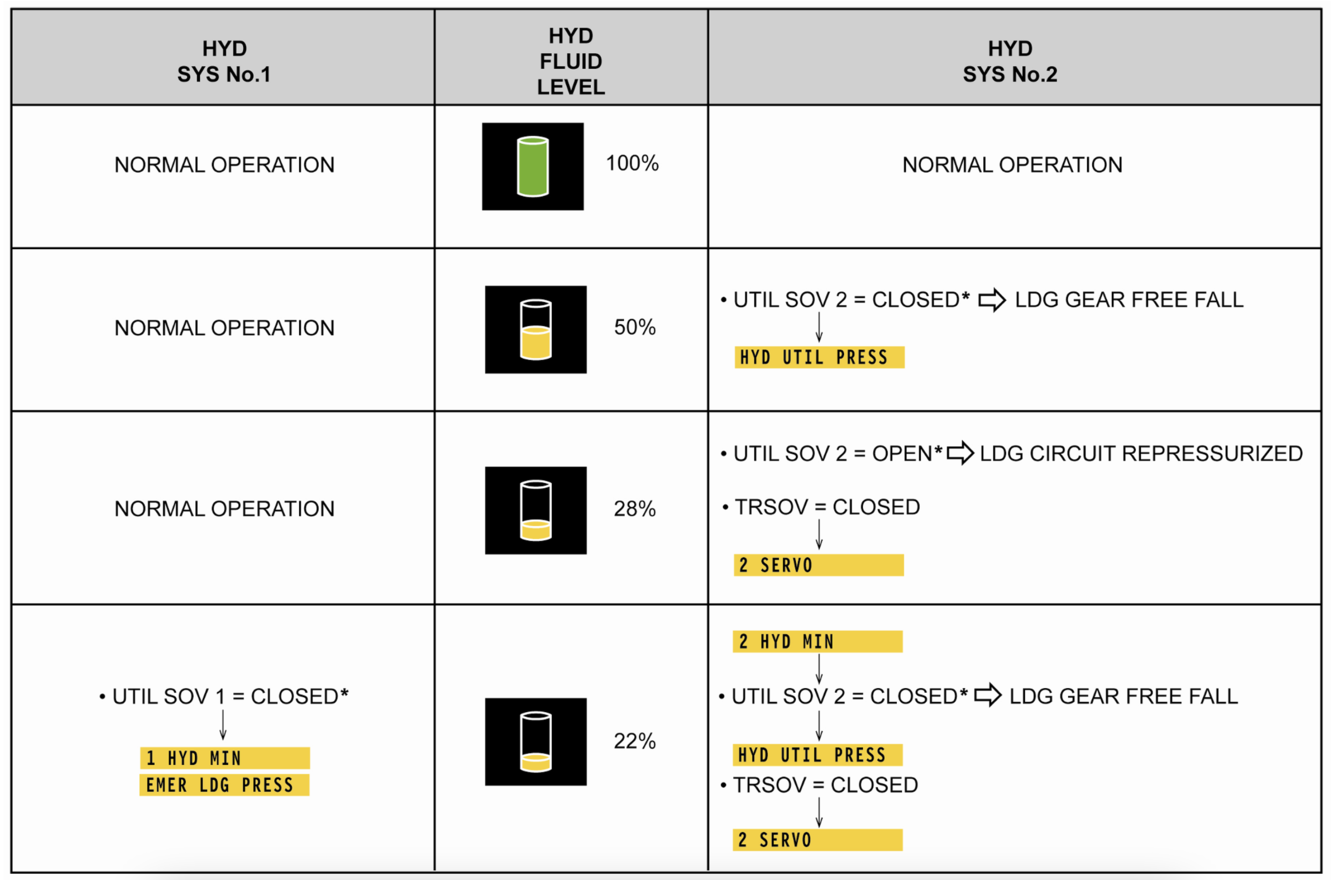

Question 1

Hydraulic System #2 50%

Answer 1

Util SOV 2 closed

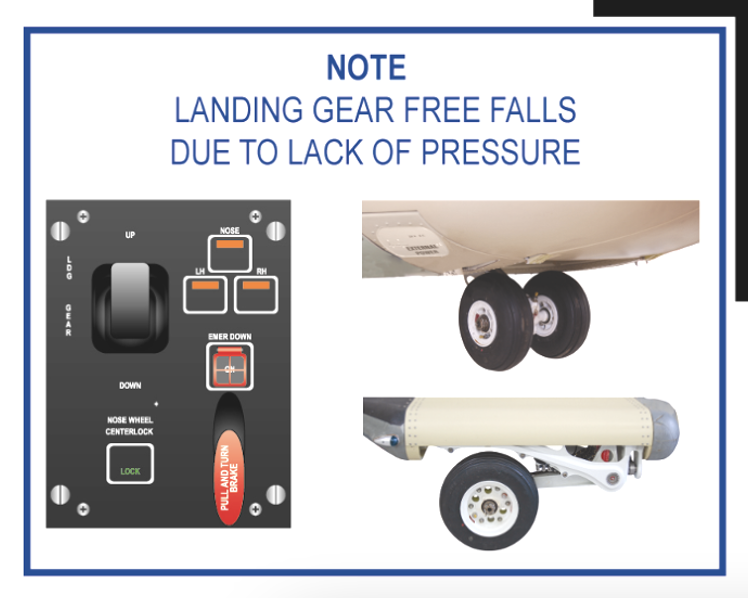

landing gear free falls due to missing pressure

Question 2

Hydraulic System #2 28%

Answer 2

TRSOV closed

SLV 1 closure prohibited

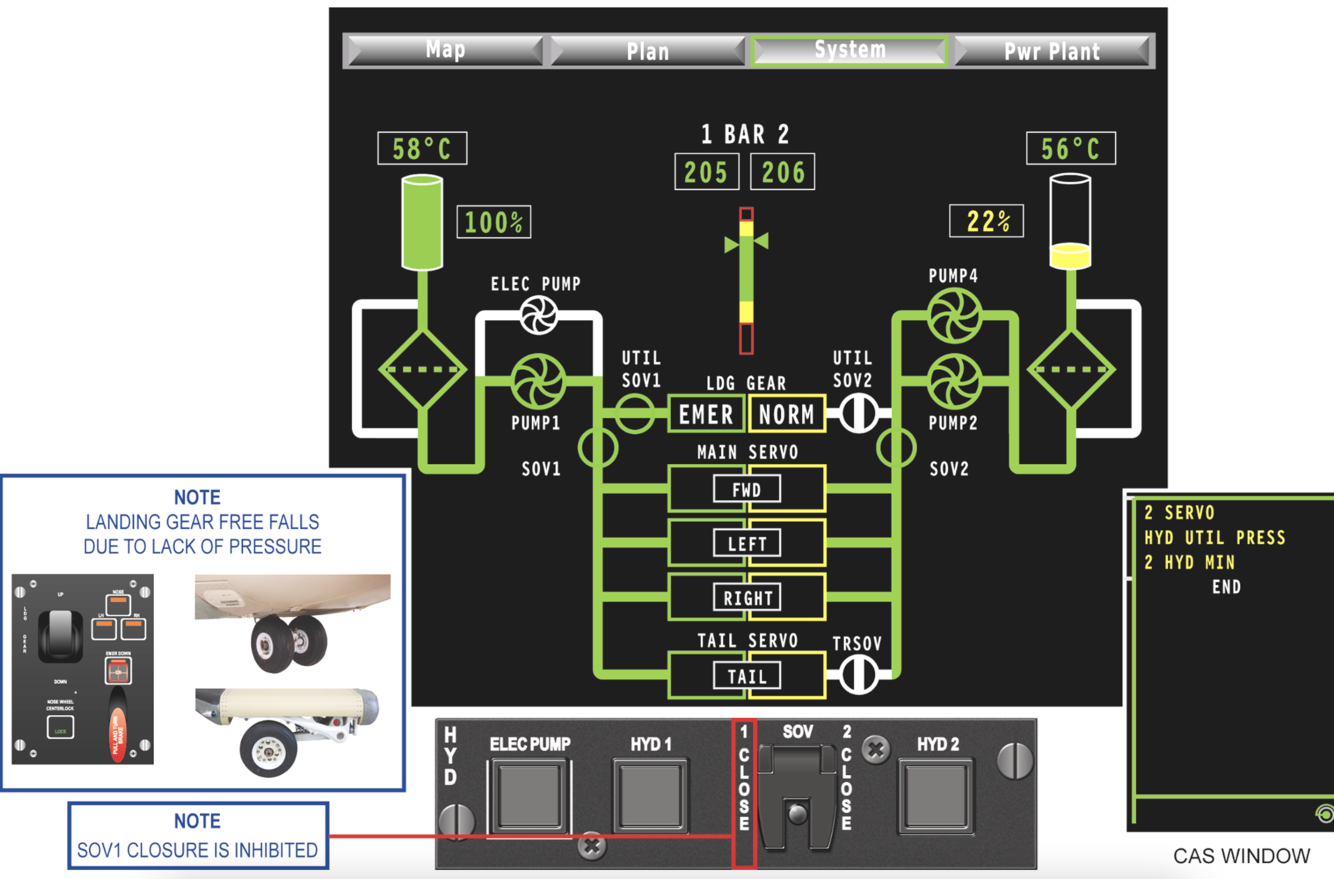

Question 3

Hydraulic System #2 22%

Answer 3

Util SOV 2 closed & TRSOV closed

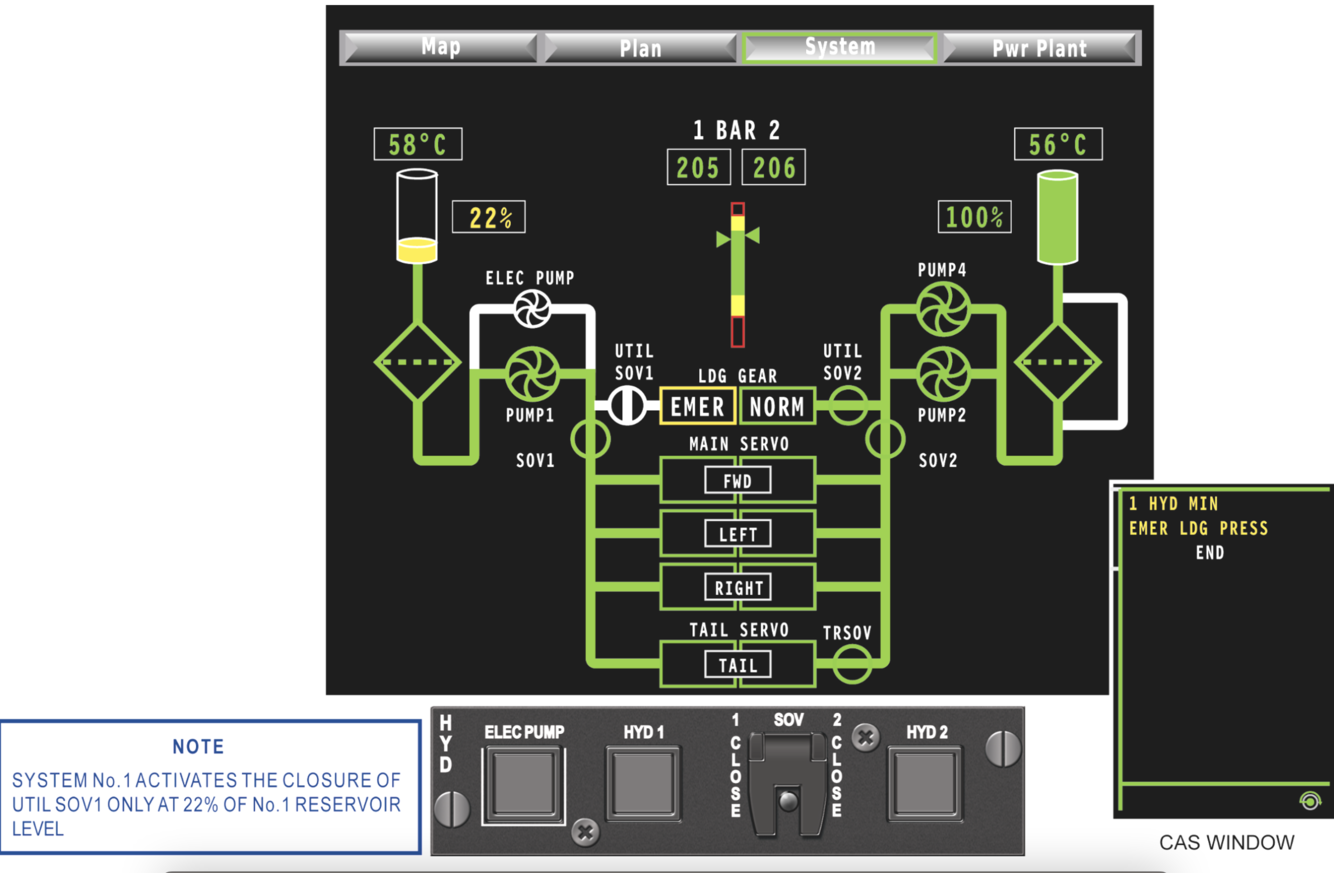

Question 4

Hydraulic System #1 22%

Answer 4

Util SOV 1 closed

Question 5

Electric Hydraulic Normal Pressure

Answer 5

105 bar

Question 6

Electric Hydraulic Pump # and Side

Answer 6

Pump 3 Side 1

Question 7

how to the Hydraulic system tries to protect itself if the hydraulic reservoirs are falling?

Answer 7

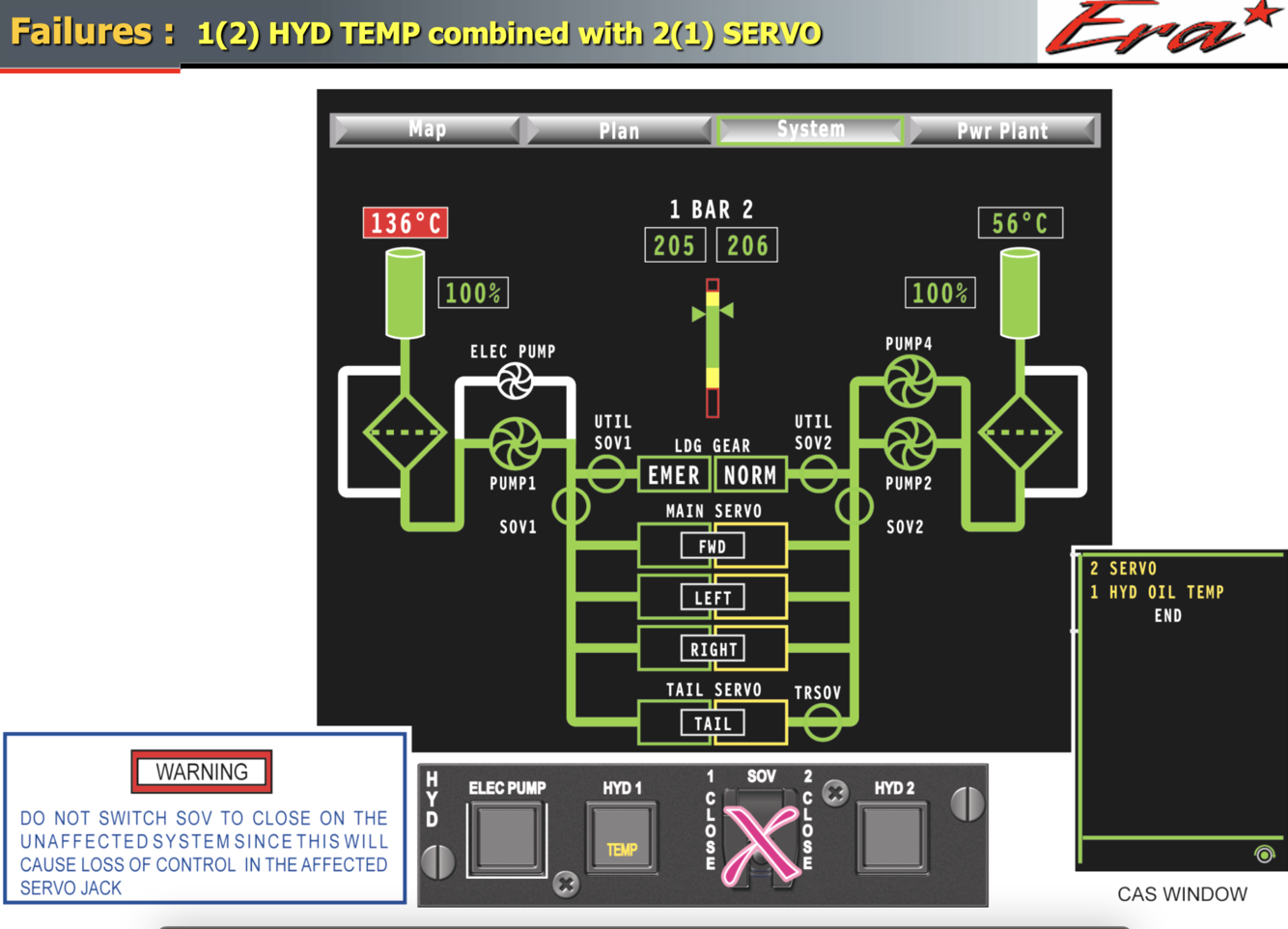

Question 8

** WARNING **

if 1 (2) HYD TEMP

with

2 (1) SERVO

???

Answer 8

Do NOT switsh SOV on unaffected system!

This will cause loss of control in the affected servo jack
