L11B: Neural Code

Question 1

Do joint receptors fire constantly during movement?

Answer 1

No, they fire in a very limited way, mainly at the extremes of joint motion or when pressure is applied.

Question 2

When do most joint receptors respond?

Answer 2

At limits of joint movement (extremes)

To joint pressure, external (e.g., force) & internal (e.g., swelling)

Question 3

How do joint receptors code for movement direction?

Answer 3

Ambiguously —
they may respond to both flexion & extension or other
non-physiological joint motions.

Question 4

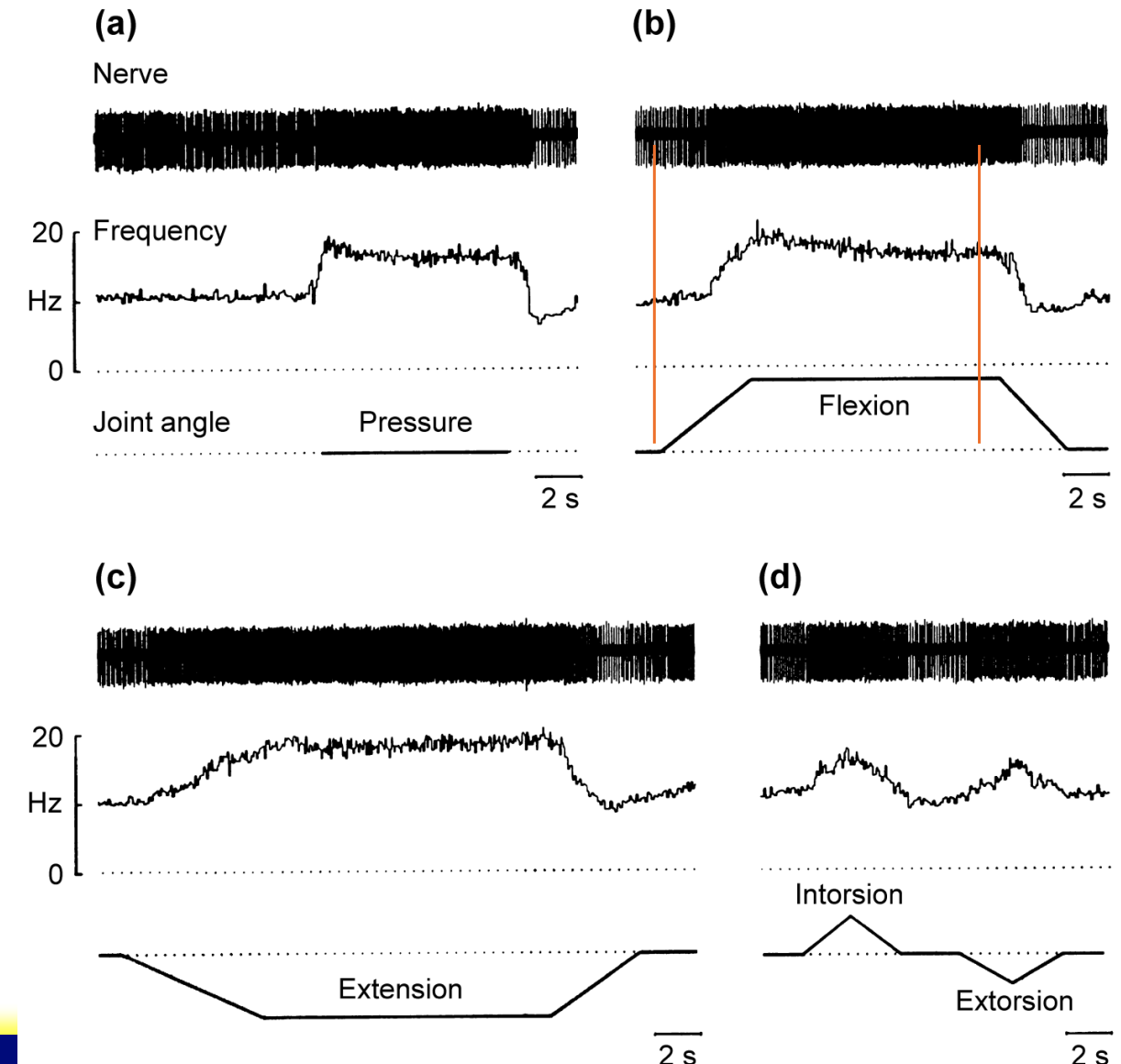

How a joint afferent from 4th toe’s metatarsophalangeal joint responds to different types of mechanical stimuli

Answer 4

(a) Pressure:

• When pressure is applied to the joint capsule, the firing rate (Hz) increases noticeably.
• This indicates the receptor responds to static pressure or joint compression.

(b) Flexion:

• As the joint flexes, firing rate increases during movement and gradually decreases when the joint returns to rest.
• Shows sensitivity to joint angle change and velocity.

(c) Extension:

• Similar pattern — firing rate rises during extension and falls afterward.
• Confirms joint receptors also respond to movement in the opposite direction.

(d) Intorsion and Extorsion (rotational movements):

• Smaller firing changes compared to flexion/extension.
• Suggests less sensitivity to rotational motion but still some response.

Question 5

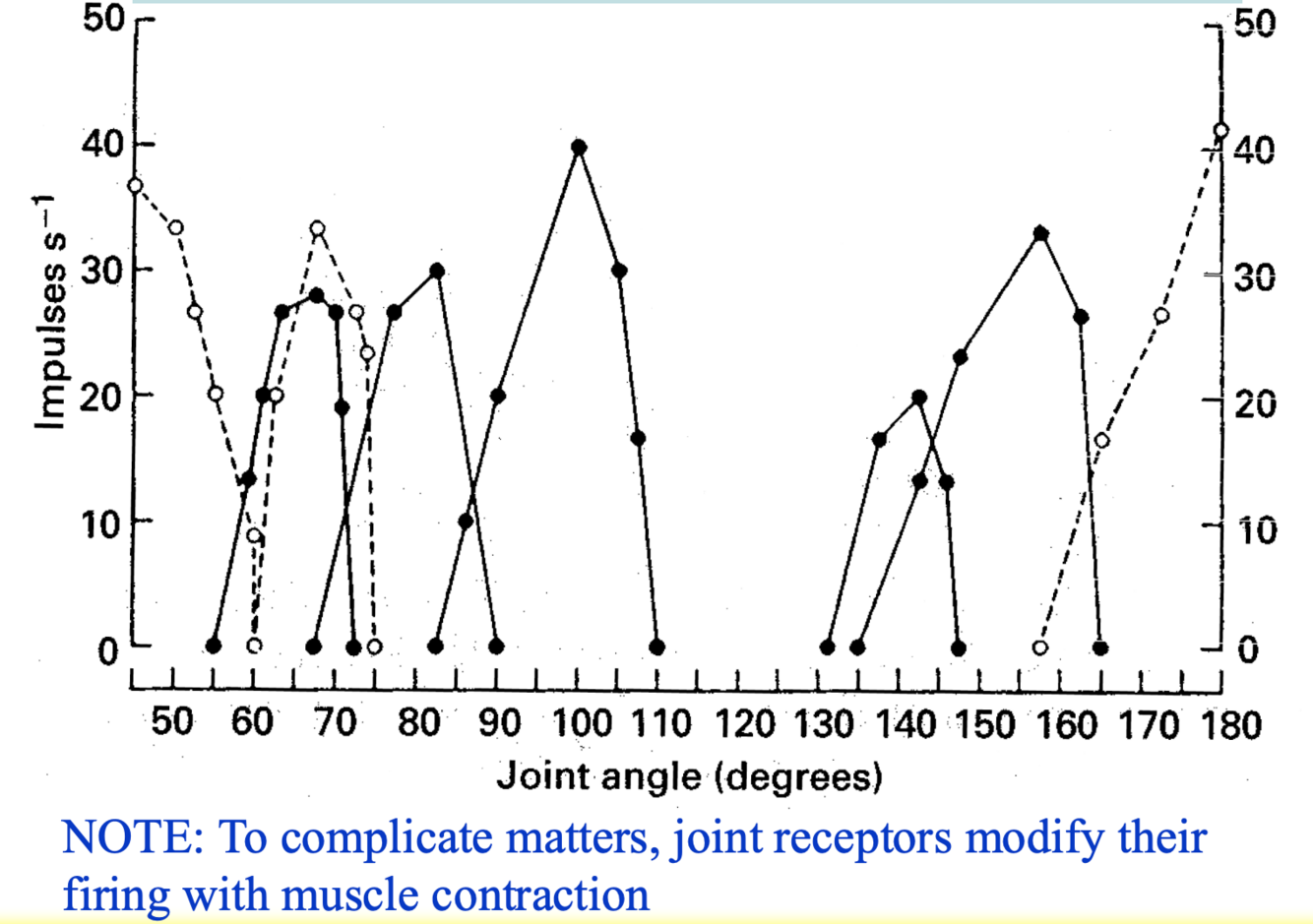

Joint receptor response to joint angle

Answer 5

The x-axis represents joint angle (degrees) — from ~50° (more flexed) to ~180° (fully extended).

The y-axis represents the firing rate of joint afferents (impulses per second).

Each line shows how different joint receptors fire across various joint positions.

⚙️ What It Shows

• Joint receptors don’t fire evenly across all angles — they are most active at the extremes of joint motion (either near full flexion or full extension).
• There are distinct peaks in firing rate at those limits, meaning they signal when the joint reaches its end range of movement.
• At mid-range angles, firing is minimal or absent, suggesting that joint receptors are not responsible for continuous position sensing (that’s mainly done by muscle spindles).

💡 Note at the Bottom

> “Joint receptors modify their firing with muscle contraction.”
This means muscle tension can alter joint receptor sensitivity, adding complexity to how the nervous system interprets joint position — they don’t just respond to movement, but also to load or muscle activity acting on the joint.

🧩 Summary

> Joint receptors are most responsive at the extremes of joint angles and can change firing behavior during muscle contraction, highlighting their role in joint protection and tension feedback, not fine position sense.

Question 6

Where do joint afferents project to in the nervous system?

Answer 6

They reach supraspinal centres

(areas above the spinal cord, such as brainstem & cortex)

Question 7

What happens when joint afferents are electrically or artificially stimulated in humans?

Answer 7

It evokes:

Distinct sensations of joint rotation or deep joint pressure

Well-defined somatosensory evoked potentials

Question 8

What does the response of joint afferents imply about their neural connections?

Answer 8

Implies a strong connection to higher-order sensory neurons

Question 9

Which joint receptors have strong projections on α-motoneurons?

Answer 9

High-threshold joint receptors (mainly nociceptors) have strong projections on α-motoneurons.

Question 10

How do low-threshold (mechanosensitive) joint receptors affect α-motoneurons?

Answer 10

They produce weak and infrequent effects on α-motoneurons

Question 11

What must occur before measurable EMG activity is detected in knee ligaments?

Answer 11

The ligaments must be heavily stretched.

Question 12

What does heavy stretching of knee ligaments suggest, and why is this reflex role uncertain?

Answer 12

It suggests a protective muscle reflex may occur, but the latencies are long and muscular coordination during the response remains unclear.

Question 13

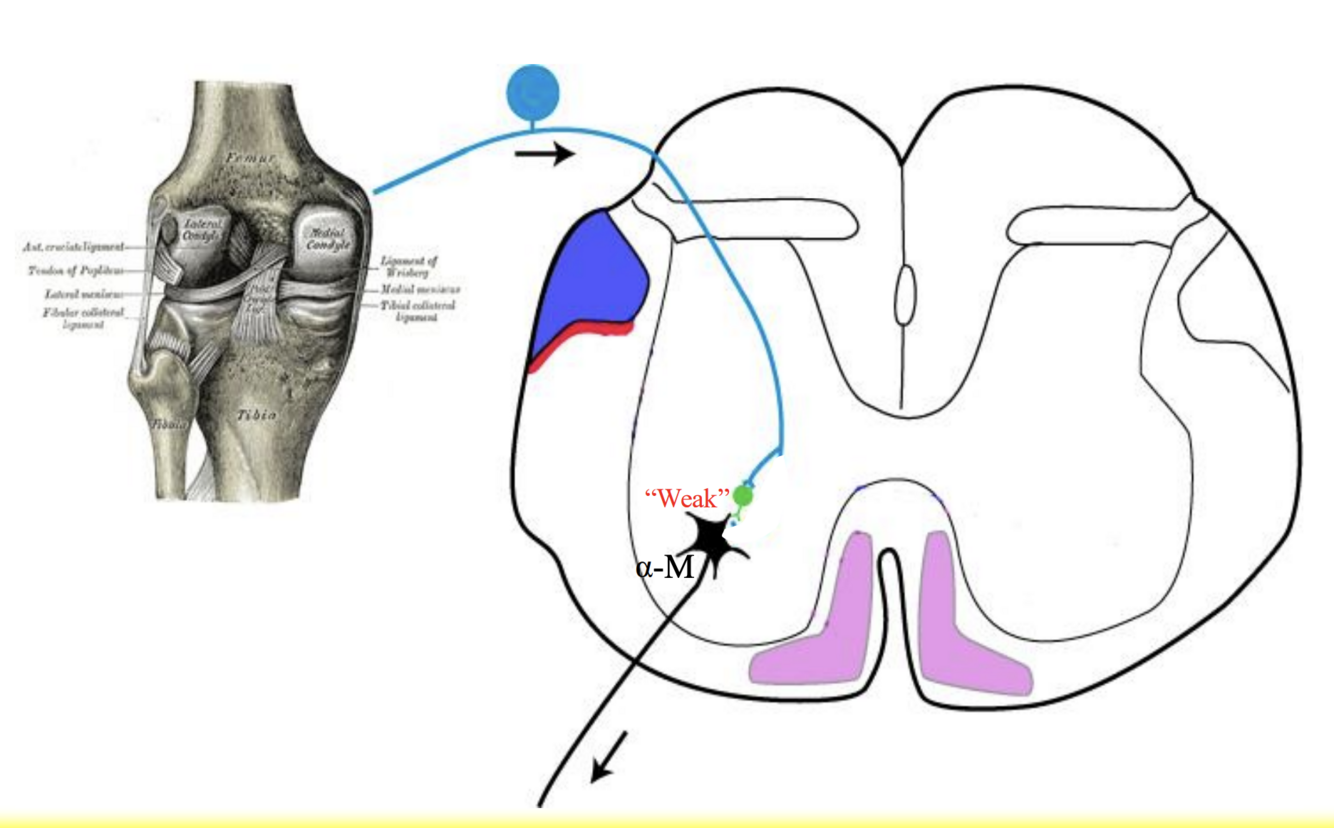

What does the diagram showing joint receptors and α-motoneurons illustrate?

Answer 13

It shows that joint receptors in ligaments send sensory signals to the spinal cord, but their connections to α-motoneurons are extremely weak, producing only minimal reflex activation. This means joint receptors mainly play a protective and proprioceptive role, rather than directly controlling muscle movement.

Question 14

slide 17

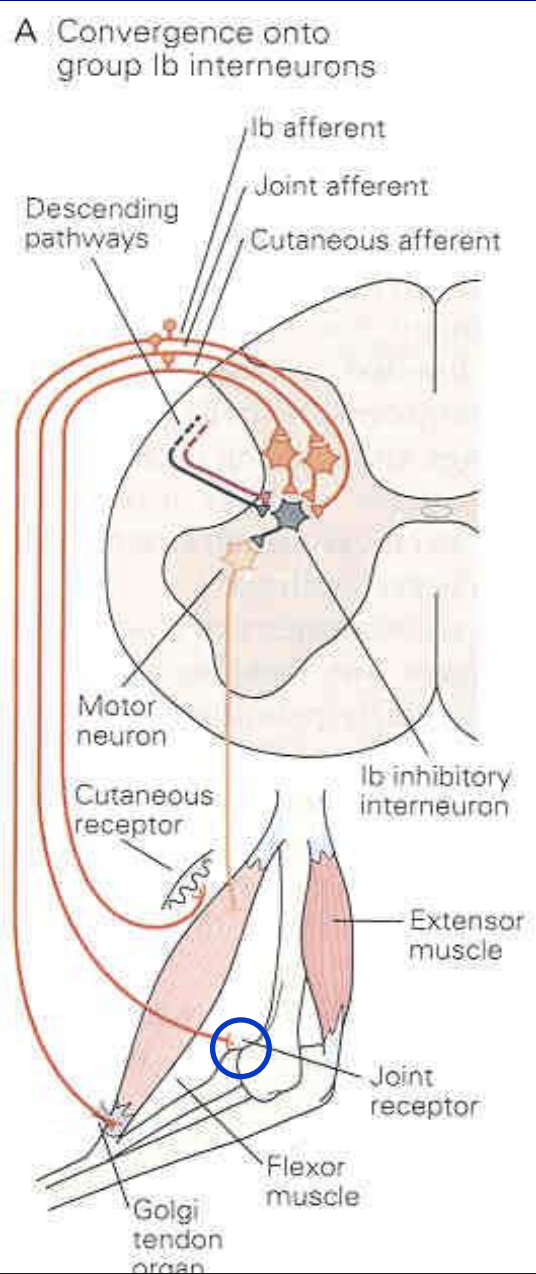

How do joint afferents influence motor control through spinal circuits?

Answer 14

Joint afferents project to interneurons in the spinal cord, which then connect to Ib inhibitory interneurons.

These interneurons inhibit the motor neurons of the agonist muscle (similar to GTO reflex), helping protect joints and regulate muscle tension during movement.

Question 15

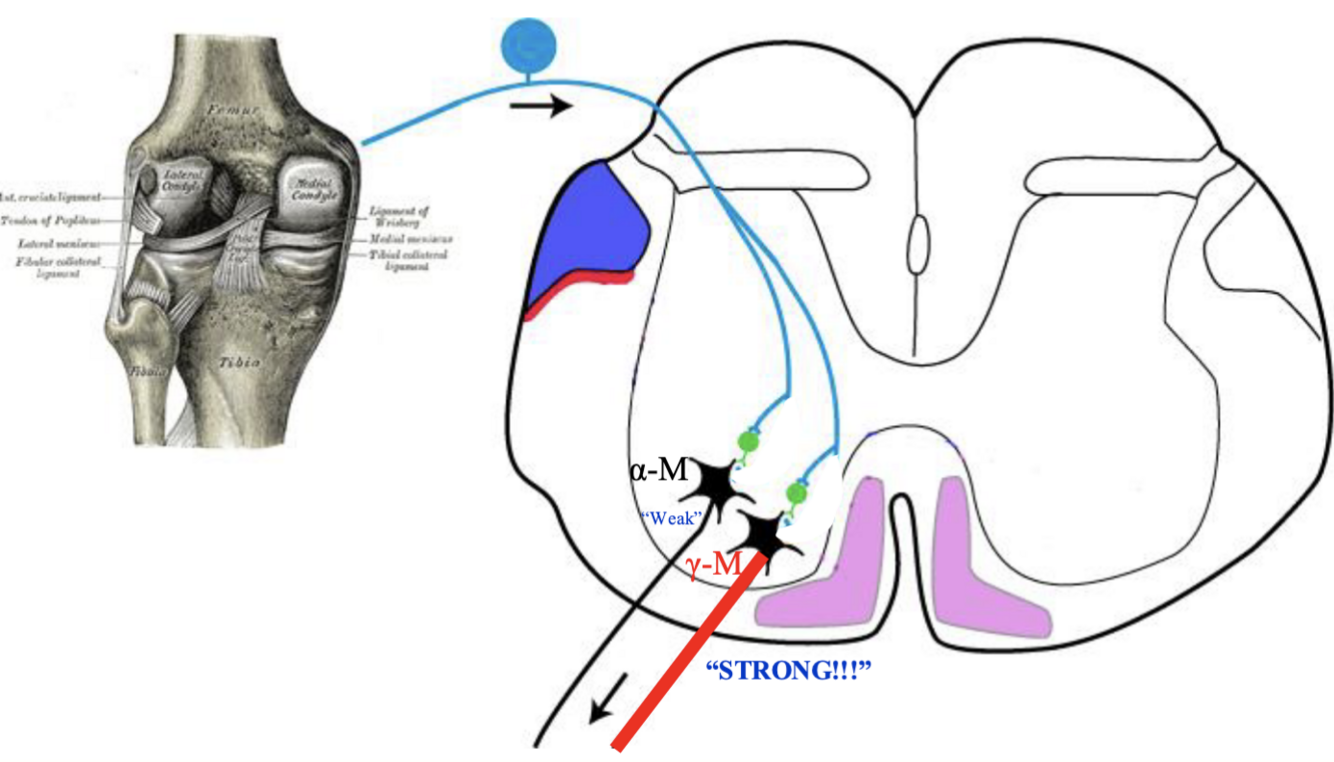

Which motoneurons are more influenced by low-threshold joint afferents — α or γ?

Answer 15

γ-motoneurons are more influenced by low-threshold joint afferents than α-motoneurons.

Question 16

What effects do low-threshold joint mechanoreceptors have on γ-motoneurons?

Answer 16

They evoke strong excitatory and inhibitory effects on both static and dynamic γ-motoneurons, helping regulate muscle spindle sensitivity and muscle tone during movement.
