BDS3 Orthodontics > Lab techniques (3, 4, 5) > Flashcards

Lab techniques (3, 4, 5) Flashcards

(109 cards)

Study These Flashcards
1
Q

URA

A

upper removable appliance

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
2
Q

retract

A

move distal

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
3
Q

space created by (2)

A

extraction

widen arch

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
4
Q

overjet

A

horizontal

risk of trauma, function impaired, aesthetics, lip trap

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
5
Q

overbite

A

vertical

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
6
Q

anchorage

A

balance of forces

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
7
Q

anchorage needed for 2 teeth movement

A

base plate sufficient

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
8
Q

extension of base plate

A

is 7 erupted fully - half length of 7s

not all the way back to hard-soft palte - gag reflex issue (stronger in younger pt)

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
9
Q

is overjet increases during tx - indicates

A

anchorage issue

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
10
Q

southend clasp

A

anterior retention

engage undercut

How well did you know this?
1
Not at all
2
3
4
5
Perfectly

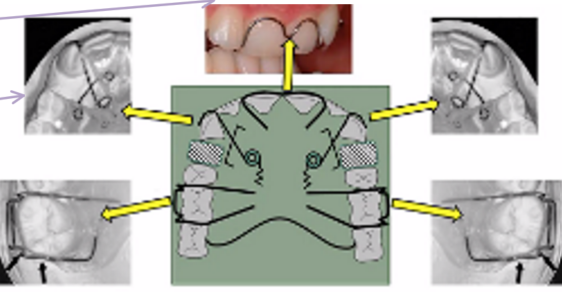

11
Q

components of palatal finger springs (4)

A

Zig zag tag embedded into acrylic

Coils – force exerted

Active arm – long arm around canine,

Goal post – guard – underneath the wire – allow active arm to slide along palate without rubbing – guideplane

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
12
Q

posterior rentention classically by

A

adam’s clasp on 6s

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
13
Q

9 advantages of removable orthodontics

A
  • Tipping movement
  • Anchorage – large baseplate
  • Cheaper than fixed
  • Shorter chairside time needed
  • Good oral hygiene maintenance
  • Non-destructive to tooth – no need to prep, no etch
  • Less specialised training required to manage
  • Can be easily adapted for overbite reduction
  • Can achieve block movements
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
14
Q

5 disadvantages of removable orthodontics

A
  • Less precise control of tooth movement – cannot 3D movement - extrude, intrude tooth, keep angulation but move in palate
  • Can be easily removed by the pt - only work when in the mouth
  • Generally 1-2 teeth can be moved at one time – don’t want to compromise the anchorage
  • Specialist technical staff required to construct the appliances
  • Rotation very difficult to correct
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
15
Q

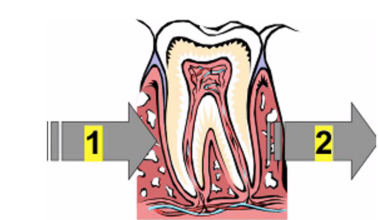

how do teeth move in orthodontics

A

The force exerted creates pressure this causes the bone around the tooth to be remodel

  • Remodelling - process where a bone is selectively removed in some areas and added in others

controlled by the periodontal ligaments or fibres (PDL) the PDL is a collection of fibres surrounding the root which act as a buffer against shock

  • PDL shock
    • Osteoclasts and osteoblasts activated
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
16
Q

aim for

Retract canine (1st premolars extracted already), 6mm overjet (OJ), Reduce overbite (OB)

A

please construct URA to retract 13 + 23 and reduce overbite (OB)

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
17
Q

ARAB for

Aim - please construct URA to retract 13 + 23 and reduce overbite (OB)

A

A – 13+23 palatal finger springs and guards, 0.5mm HSSW

R – same

A – same only moving 2 teeth

B - self cure PMMA

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
18
Q

overbite tackled in URA how

A

base plate modification - flat anterior bite plane (FABP) OJ + 3mm

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
19
Q

why can you not move all anteriors at one (if need to move 3-3)

A

compromise anchorage

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
20
Q

FABP use

A

overbite

How well did you know this?
1
Not at all
2
3
4
5
Perfectly

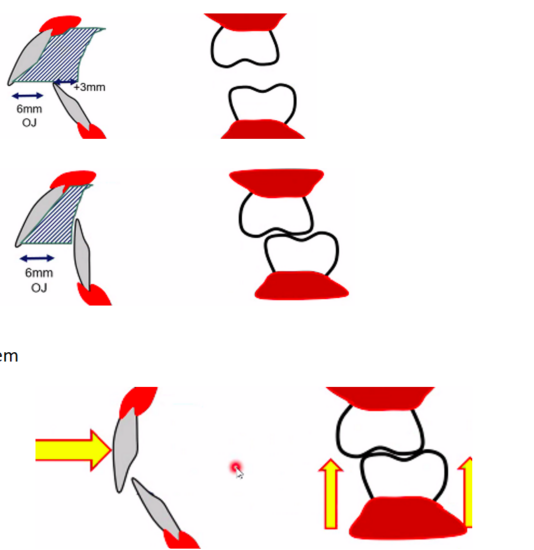

21
Q

how to FABP reduce overbite

A

Lowers inhibit anteriors coming back

  • don’t bend teeth need to change whole angulation

Lower anteriors bite against the platform

  • Creates space/ posterior open bite
  • posteriors will want to continue to erupt to continue being in occlusion
    • still want bone and soft tissue around them
      • lowers come up, upper do not as of appliance

Only works in young as bone form around

  • otherwise roots get exposed = sensitive, unaesthetic, unstable
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
22
Q

why is FABP OJ + 3mm

A

negative - bigger, bulkier, more invasice, less well tolerated by pt

but if not

Pt will retrude jaw – go inadvertently behind biteplane

  • Retrocline lowers so increase overjet
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
23
Q

11 uses of study casts

A
  • Look back on treatment to show pt changes – progress
  • Teaching purposes
  • Pt motivate – where you have been and going
  • Design appliance on it
  • Study pt occlusion outwith pt presence – diagnosis
  • Legal reasons
  • Forensics
  • Explaining treatment to pt
  • Second opinion
  • Retrospective studies
  • Consent decision by pt more informed
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
24
Q

retentive

A

resist displacement forces

go into undercuts

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
25
3 retentive components
adam's clasp southend clasp labial bows
26
wire gauge for retentive components
0.7mm HSSW (permanent teeth) ## Footnote *0.6mm HSSW (primary teeth)*
27
palatal acitve components (4)
finger springs + guard Z-spring (double cantilever) flapper spring T-spring
28
palatal active components location
in palate - have acrylic over them - well protected
29
wire gauge for palatal active components
0.5mm HSSW
30
2 buccal active components
buccal canine retractor roberts retractor
31
wire gauge and explanation for buccal active components
0.5mm HSSW; 0.5mm I.D. tubing easily distorted so add sheating on top to increase strength and rigidity
32
stops role
passive prevents relapse after active movement (mesial drift) DOESN'T RESIST DISPLACEMENT FORCES
33
wire gauge for stops
0.7mm HSSW (flattened)
34
this is
adam's clasp 0.7mm HSSW *(0.6mm on deciduous teeth)* retentive
35
this is
southend clasp 0.7mm HSSW retentive
36
this is
labial bow 0.7mm HSSW retentive
37
buccal retactors (active component) wire
mesial aspect is thinner than distal aspect as distal aspect as 0.5mm I.D. tubing to protect it from being deformed
38
this is
finger spring + guard 0.5mm HSSW active
39
this is
z sping 0.5mm HSSW active
40
this is
flapper spring 0.5mm HSSW active
41
this is
T spring 0.5mm HSSW active
42
this is
buccal canine retractor 0.5mm HSSW; 0.5mm I.D. tubing active
43
this is
roberts retractor 0.5mm HSSW; 0.5mm I.D. tubing active
44
fitting a URA 10 stages
Disinfected ready to fit – in passive state 1. Ensure the pt details match the details supplied for the appliance * Check – right appliance for right pt 2. Check the appliance matches the design specifications – human errors 3. Inspect the appliance and run your finger over all surfaces looking for sharp or potentially traumatic areas 4. Check the integrity of wirework 5. insert the appliance into the pt mouth, immediately looking for areas of blanching or soft tissue trauma – pain, stop wearing it 6. check the posterior retention (Adam’s clasp) * firstly flyovers, then arrowheads are correctly engaging the appropriate undercuts 7. apply the same principles to the anterior retention 8. activate the appliance (1mm movement approx. per month) 9. demonstrate to pt the correct procedure for insertion and removal of the appliance * ensure that the pt demonstrates this correctly 10. book a review appointment 4-6weeks (need to reactivate the active component - 1mm movement done)
45
what to check wirework for
damage or work hardening * bend one way than other – no flexibility = snaps on movement * through trimming stage – easier to spot areas of damage – different diamete * shine from chromium and prevents corrosion * lost on damage = corrode (black area), break
46
aim for URA if want to retract buccal placed canines, 1st premolars extracted, 6mm (OJ), reduce (OB)
aim - please construct a URA to retract buccally placed 13 + 23 and reduce OB
47
active component for aim - please construct a URA to retract buccally placed 13 + 23 and reduce OB
13+23 buccal canine retractor, 0.5mm HSSW and 0.5mm ID tubing * two lines (highlight tubing) * wirework distal to premolar so not inhibited in area finger spring only distal but need distal and palatal to get in line of arch
48
retentive component for aim - please construct a URA to retract buccally placed 13 + 23 and reduce OB
16 + 26 Adam's clasp; 0.7mm HSSW 11 +21 Southend clasp; 0.7mm HSSW
49
anchorage for aim - please construct a URA to retract buccally placed 13 + 23 and reduce OB
good as only moving 2 teeth
50
baseplate for aim - please construct a URA to retract buccally placed 13 + 23 and reduce OB
self cure PMMA with Flat anterior bite plane OJ + 3mm
51
where to draw extension of base plate to
if 7s erupted extend half away across 7s
52
when to use a palatal finger spring and guard or buccal canine retractor
Palatal finger spring – canines in line of arch Buccal canine retractors – to move back and in line
53
10 points pt information and intructions for URA
1. appliance will feel big and bulky (this is normal, and they will get used to it quickly) 2. may causes initial excessive salivation (this will pass in 24 hours – normal) 3. may impinge speech for a short period of time (practise reading a book aloud at home and this will subside – don’t want them to be teased) 4. may cause initial discomfort or ache or pressure (this is normal, and indicates that the appliance is working) 5. to be worn 24/7 including meal times and sleep - *using masticatory forces to advantages* 6. remove after every meal and clean with a soft brush (warm water and soap) 7. remove and store in a protective container when participating in contact or active sport (sharp intake of breath - running, swimming) 8. avoid hard or sticky foods that may damage the appliance and be cautious with hot food and drinks 9. not feel initial heat – appliance is insulator – not feel until to get to back of throat 10. missing appointment and non-compliance will significantly lengthen treatment time 11. provide emergency contact details in case any problems arise
54
issue of anterior crossbite (2)
aesthetics - dark hole due to light refraction self concious
55
aim for appliance if 12 in anteiror cross bite
please construct a URA to correct an anterior crossbite on 12
56
active component for ## Footnote Aim – please construct a URA to correct an anterior crossbite on 12
12 Z-spring, 0.5mm HSSW (double coils a.k.a double cantilever spring; large amount of displacement force)
57
rententive for ## Footnote Aim – please construct a URA to correct an anterior crossbite on 12
16+26 Adam’s clasp, 0.7mm HSSW 14+24 Adam’s clasp, 0.7mm HSSW
58
anchorage for ## Footnote Aim – please construct a URA to correct an anterior crossbite on 12
good only one tooth moving
59
baseplate for ## Footnote Aim – please construct a URA to correct an anterior crossbite on 12
Self cure PMMA Posterior bite plane
60
why need for posterior bite plane in tx anterior Xbite
* Lower teeth will prevent the 12 moving forward * create a temporary anterior open bite to allow tooth to move forward without obstruction * incorporate all teeth prevent continuing to erupt Overjet from Z spring Natural retention from lowers
61
why do anterior teeth not over erupt in posterior bite plane use
Anterior teeth don’t occlude naturally together in humans *(unlike rabbis and rodents – continue to erupt – need to continue to gnaw to prevent not being able to open)*
62
restorative use of posteiror bite planes
clinicians posterior bite planes to allow continued eruption to anterior teeth * E.g. not reached maximum eruption level
63
Z spring can do
small amounts of rotation in URA Helpful to get into line of arch when fixing anterior cross bite – protrude and rotate * Straight forward – activate both coils equally * Rotate to left = activate left coil more * rotate to right = activate right coil more move forward on a twist - like door
64
first step in drawing URA design
cross out teeth to be extracted/missing
65
buccal canine retractor distal placement
place as far back as you want canine to move to (e.g. mesial 5)
66
coil for active components
need to be on mesial aspect *so does the guard for finger springs*
67
mesial stops
mesial aspect canines – naturally want to relapse Stops are passive * no active force applied * do not resist displacement forces (not retention) * not anchorage or baseplate (prevents drift forward) Flattened – so not taking up a large amount of space
68
robert's retractor
Active component * But positioned in upper anterior undercut so resist displacement forces (by product) Only use when have proclined upper anterior teeth
69
retention for URA with robert's retractor
16+26 Adam's Clasp; 0.7mm HSSW * Cannot place southend* * *interfere with active components and fixate them where they are so prevent the active component action* * but have anterior retention as by-product of roberts retractor*
70
anchorage discuss for this URA
moving more than 2 teeth here (as 4) * not perfect but can get away as 4 anterior as 4 shortest rooted teeth in upper arch so have posterior teeth and baseplate
71
how to continue to reduce OB
When bringing canines back by applying actual active force move quicker than teeth naturally eruptingposterior teeth * new bone is soft needs to thicken so if remove FABP at once then when bite down relapse as teeth sink back in * **Take a small amount FABP anteriorly away in small increments** * **Trim at a slant to follow the shape of the tooth** Lower teeth wont get stuck as less likely to lower jaw forward * Moves backward naturally
72
why can a posterior bite plane not be used to continue to reduce OB
no use as relapse in few weeks as lowers press force on upper anterior as space posteriorly jaw want to resolve * Drop down when takeout bite plane * lower teeth contact above cingulum – relapse URA get tipping or tilting * So incisal edge of upper will lower when moving back – increases OB Need to continue to reduce OB whilst moving anterior back
73
when may want to expand upper arch
to create space e.g. posterior cross bites
74
aim for expanding upper arch as posteiror cross bite
Aim – please a construct a URA to expand the upper arch
75
active component for expand upper arch
midline palatal screw
76
retention for expand upper arch
16 + 26 adams clasps; 0.7mm HSSW 14+ 24 adams clasps; 0.7mm HSSW (if deciduous 0.6mmm)
77
anchorage for expand upper arch
reciprocal
78
reciprocal anchorage
Force equal on both sides – newtons 3rd law To cancel out force need counteract the force in the other way
79
reciprocation in RPD
force on one side, reciprocal side arm to **prevent unwanted tooth movement**
80
baseplate for expansion upper arch
Self cure PMMA * Needs cut in half down midline around screw * Only held together by screw posterior bite plane
81
lingual cross bites
posterior teeth biting on inside lowers instead of outside
82
problem with occlusion when expanding upper arch in post Xbite
Cusp to cusp – cuspal interference * Inhibit movement of uppers * Lowers can expand to – dragged with uppers Want to relieve interference between uppers and lowers * Posterior bite plane * Must include all posterior teeth – so none continue to erupt Not flat anterior bite plane – posterior teeth continue to erupt * only used for overbite
83
posterior bite plane
relieve occlusal interference of uppers and lowers when expanding upper arch must include all posterior teeth so none continue to erupt
84
flat anterior bite plane
posteiror teeth will continue to erupt only used for OVERBITE
85
midline palatal screw relies on
Need pt compliance * Demo to them and they demo them back to you 1 turn a week -\>0.25mm a week (1mm a month) * move teeth with osteoclastic and osteoblastic action around teeth
86
rapid maxillary expansion
similar but bonded onto teeth (turn couple times a day), fracture the midline suture not tooth movement
87
why is diastema not created in upper arch expansion
Usually have cross over crowding so won't get diastema * give space to move teeth into correct alignment
88
modification for device if only expanding one quadrant i.e. unilateral posterior cross bite
cut different - emphasise effect on that quadrant minimal expansion on other side can't move screw greatly due to curvature of the mouth
89
modification if dont want to expand anterior teeth region only posterior teeth region
remove base plate in anterior region * cut distal to canines
90
wire bending
Hold pliers in dominate hand * Counteract to straighten with pinch finger down * Bend away from face and others Cut with wire cutters – hold onto both ends to prevent ping away
91
adam's clasp components (5)
Bridge – buccal away, lift in and out Arrowheads – engage undercut, functional part Flyover – between teeth so not interfering with occlusion Leg – 0.5-1mm between palate and wire– inside baseplate – completely encompassed Tag – 0.5mm to prevent slippage (mesial direction for distal leg to prevent sticking out back of baseplate)
92
aim for wire after manipulation
Shine * chromium – needed – resistance to corrosion Want minimal bends * metal fatigue or work hardened
93
bridge of adam's clasp
buccal away, lift in and out
94
arrowheads of adam's clasp
engage undercut, fuctional part
95
flyover
between teeth so not interfering with occlusion
96
leg of adam's clasp
0.5-1mm between palate and it so inside baseplate - completely encompassed
97
tag of adam's clasp
0.5mm to prevent slippage (mesial direction for distal leg to prevent sticking out baseplate)
98
pro and con of digitised study casts
can be shared easily not same feel for occlusion - used as addition not replacement
99
2 cons of physical study models
storage - need 12 years for legal damage - fracture, attrition - render useless
100
12 uses of study casts
* Before and after treatment * Medicolegal records * Second opinions * Study occlusion when pt not there * Teaching * Motivation * Forensics * Legal reasons - 10-12 years * Tx planning * Waxing up * Diagnosis * More informed decision for pt * Retrospective studies
101
stainless steel 5 elements
iron chromium titanium carbon nickel
102
% iron in stainless steel
72
103
% chromium in stainless steel
18
104
% titanium in stainless steel
1.7
105
% carbon in stainless steel
0.3
106
% nickel in stainless steel
8
107
this is
adam number 64 pliers
108
this is
adam number 65 pliers
109
this is
wire cutters
BDS3 Orthodontics
flashcards
Decks in class (13)
# Cards
Brainscape helps you reach your goals faster, through stronger study habits.
© 2026 Bold Learning Solutions. Terms and Conditions
