1
Q
Boolean Algebra: Commutative Rule
A
A+B=B+A AB=BA
2
Q
Boolean Algebra: Assosciative Rule
A
(A+B)+C=A+(B+C) (AB)C=A(BC)
3
Q
Boolean Algebra: Distributive Rule
A
A(B+C)=AB+AC A+(BC)=(A+B)(A+C)
4
Q
Boolean Algebra: Identity Rule
A
A+A=A AA=A
5
Q
A
A
6
Q

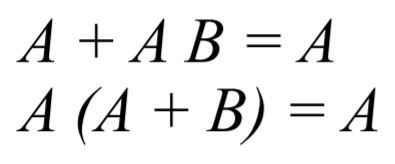

Boolean Algebra: Redundancy Rule
A
7
Q
A
A+B
8
Q
A
AB
9
Q

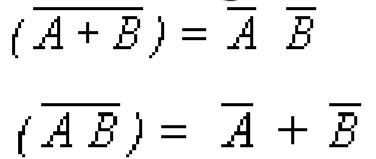

De Morgan’s Theorem
A
10
Q
Bistable/flip-flop
A
A circuit whose output can remain in one of the two stable states infinitely, even if the input changes to zeros.
