Lecture 4: Normalisation

Question 1

What is Normalisation?

Answer 1

improving the efficieny of relational models

The process of Normalisation, allows us to produce a set of suitable relations taht support the data requirements of the use case adn minimise redundancy. We do this to:

• Make it easier for the user to access and maintain Data
• Take up minimal storage space on the computer

Question 2

Quick Revision.
We ask these questions because the data that we want to extract is often in a different form to the way it is stored.

1. What is a relational Model?
2. What language creates SQL?
3. What represents SQL?
4. What is normalisation?
5. What are queries?
6. What language and diagram does Queries use?

Answer 2

1. is a conceptual schema represnts how data is organised in a database
2. SQL DDL allows us to create this in MySQL
3. An ER diagram allows us to represent this and the associated constraints on paper
4. The process of normalisation allows us to produce a set of suitable relations that support the data requirements of the case and minimise redundancy
5. Queries are like a question that you ask a databse
6. SQL and DML allows us to run these in MySQL. RA allows us to represent these on paper.

Question 3

Before considering normalisation, we need to familiarise with what?

Answer 3

• Relational Keys - Superkey, Candidate Key, PK, FK
• Dependency
• Determinant

Question 4

Explain Dependency

Answer 4

Is an important concept in normalisation

• Essentially, an attribute, a set of attributes, is reliant on another
• In a database you want everything in a relation (table), to be dependent on the PK, and the PK to be as simple as possible.
• This helps eliminate redundancy and update anomalies

Question 5

Functional Dependency. Please explain.

Answer 5

in a given table, an attribute B is said to have a functional dependency on a set of attributes A (written A - B) if and only if each A value is associated with precisely one B value.

e.g. StaffNo = position

Question 6

Explain Full functional Dependency

Answer 6

An attribute is fully functionally dependent on a set of attributes A if it is:

• functionally dependent on A &
• not functionally dependent on any proper subset of A

e.g. {staffAddress} has a functional dependency on [staffNo, staffName}, but not a full functional dependency, because it is also dependent simply on {staffNo}

Question 7

What is Transitive Dependency?

Answer 7

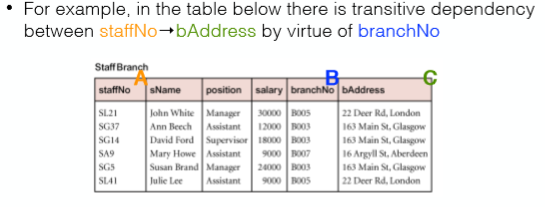

is an indirect functional dependency, one in which A - C only by virtue A-B and B -C.

They are important to realise because they can cause update Anomalies!

Question 8

There are 4 objectives of Normalisation. Please explain each.

Answer 8

1. To free the collection of relations from undesirable insertion, update and deletion dependencies
2. To reduce the need for restructuring the collection of relations, as new types of data are introduced, and thus increase the life span of application programs
3. To make the relational model more informative to users
4. To make the collection of relations neutral to the query bias, so unaticipated queries are supported.

Question 9

Explain the term Redundancy

Answer 9

The major aim of relational database design is to group attributes into relations to minimise data redundancy.

Limiting redundancy, using normalisation, offers potential benefits including:

• Updates to the data stored in the database are achieved with minimal number of operations thus reducing the opportunities for data inconsistencies
• Minimises cost through reduction of file storage space required by the base relations

Question 10

How can Anomalies occur?

Answer 10

Through:

1. Insertion
2. Deletion
3. Modification

Question 11

List the different normalisation steps

Answer 11

• 0NF
• 1NF
• 2NF
• 3NF
• BCNF (probably most difficult) stands for Boyce-Codd Normal Form
• 4NF

Question 12

Explain:

0NF

1NF &

2NF

Answer 12

0NF: a relation that contains one or more repeating groups (the unNormalised form)

1NF: A relation in which the intersection of each row and column contains one and only one value

2NF: A relation that is in 1NF and every non-PK attribute is fully functionally dependent on the PK

Question 13

Describe

3NF

BCNF

4NF

Answer 13

3NF: A relation this is in 1NF and 2NF in which no-non-primary-key attribute us transistively dependent on the PK

BCNF: A relation that is 3NF and every determinant is a candidate key

4NF: A relation that is BCNF and does not contain nontrivial multi-valued dependencies.

Question 14

Describe the characteristics of the BCNF normalisation step

Answer 14

A relation is in BCNF, if and only if, every determinant is a candidate key

So what is a:

• Determinant = an attribute, or a group of attributes on which some other attribute is fully functionally dependent
• Super Key = a set of attribtues where there are no duplicate tupels in the set
• Candidate Key = a minimal super key for the relation(An attribute that can uniquely identify any tuple without referring to any other data)

essentially what the definition is saying is that there is a full functional dependency in the table, where the determinant half is not a candidate key we have a problem.

Question 15

Describe the characteristics of the 4NF

Answer 15

recap: a 4NF is a relation that is in BCND and does not contain nontrivial multi-valued dependencies

multi-valued dependency represents a dependency between attributes (e.g. A,B and C), in a relation such that for each value of A there is a set of values for B and a set of values for C. However, the set of values for B and C are independent of each other.
