1
Q
Vmo/Mmo
A
272 (decreases above 13k)
2
Q
Bird Impact Speed
A
250 below 8000
3
Q
Flap Speed
A
Book
15 - 200kts
25 - 150kts
45 - 135kts
Company
15 - 180
25 - 145
45 - 135
4
Q
Max gear speed
A
200
5
Q
Va
A
200
6

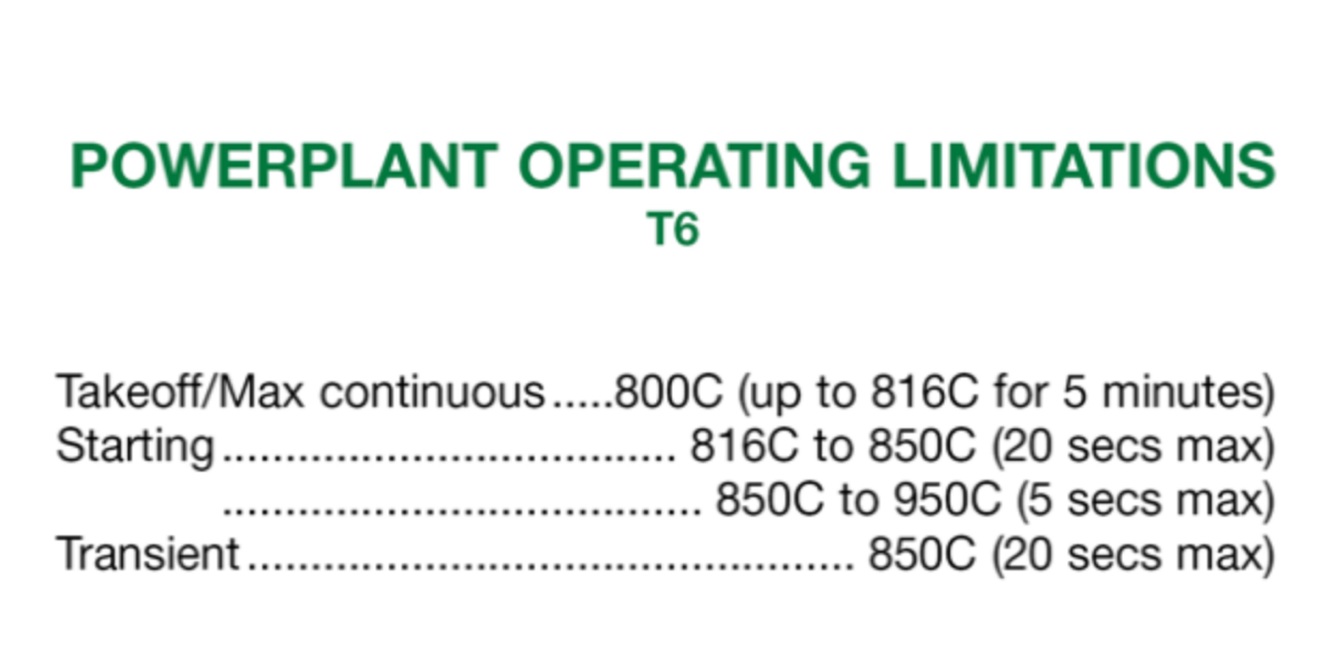

Q
T6
A
7

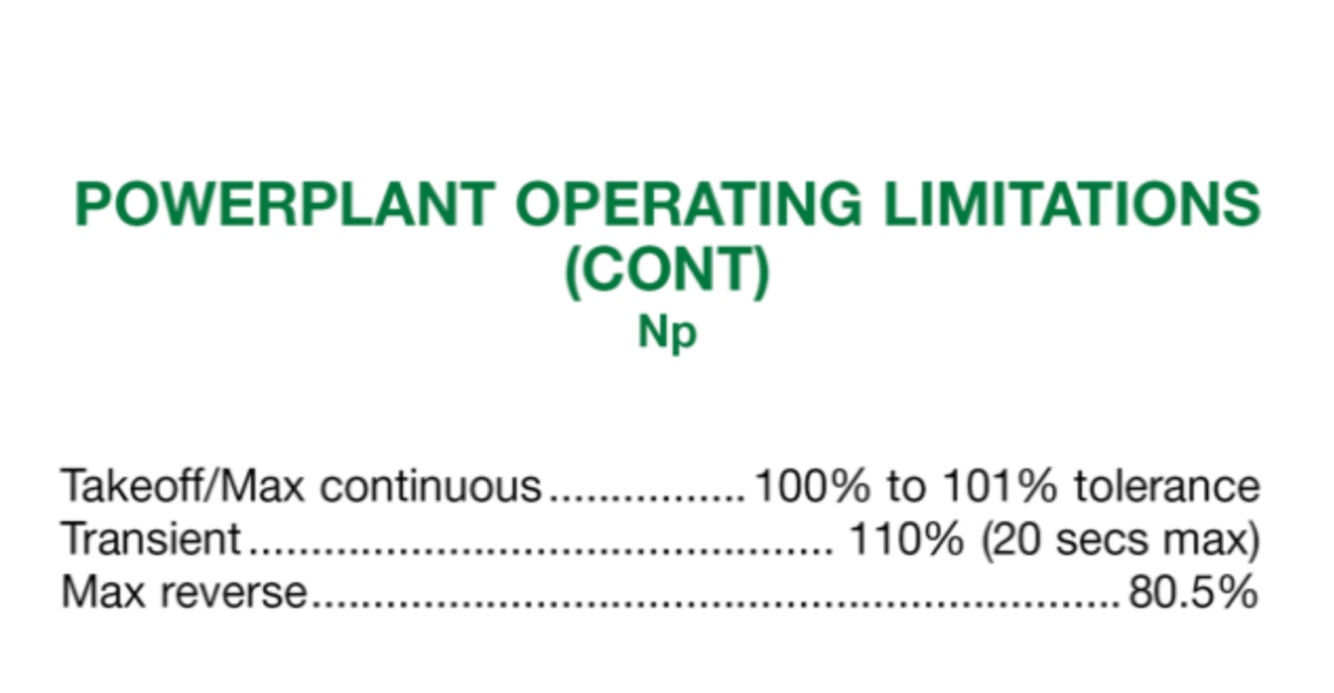

Q
Np
A
8

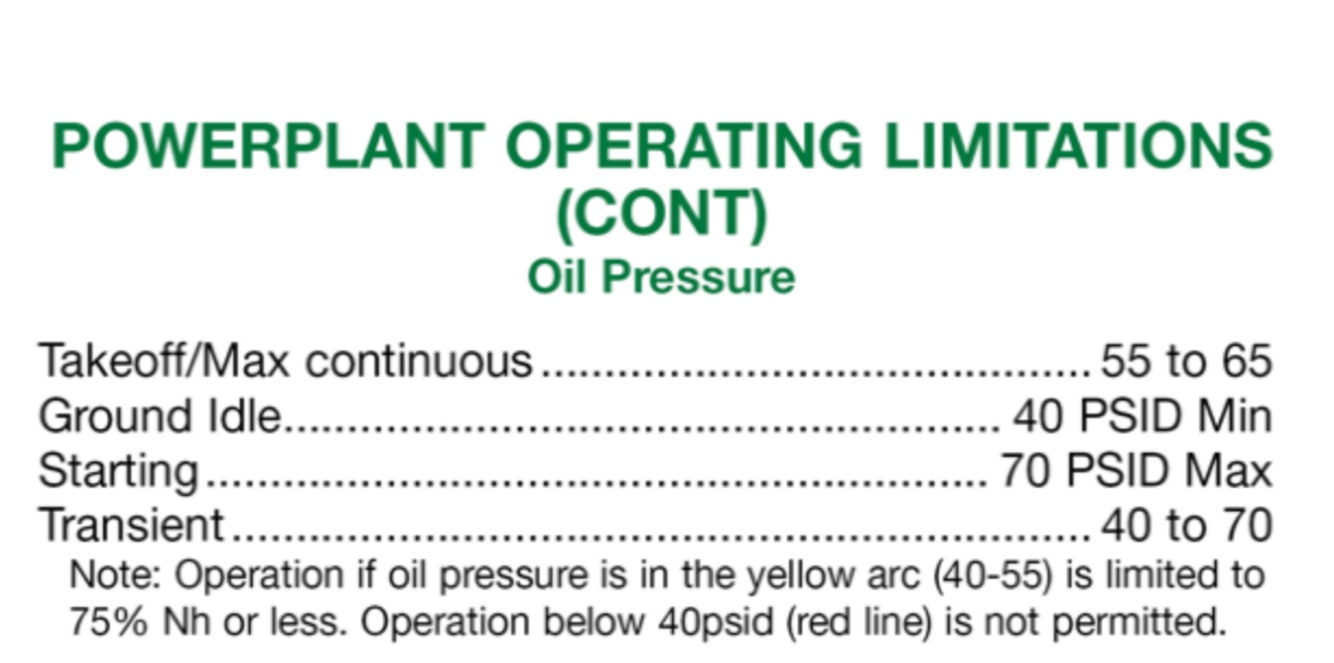

Q
Oil Pressure
A
9

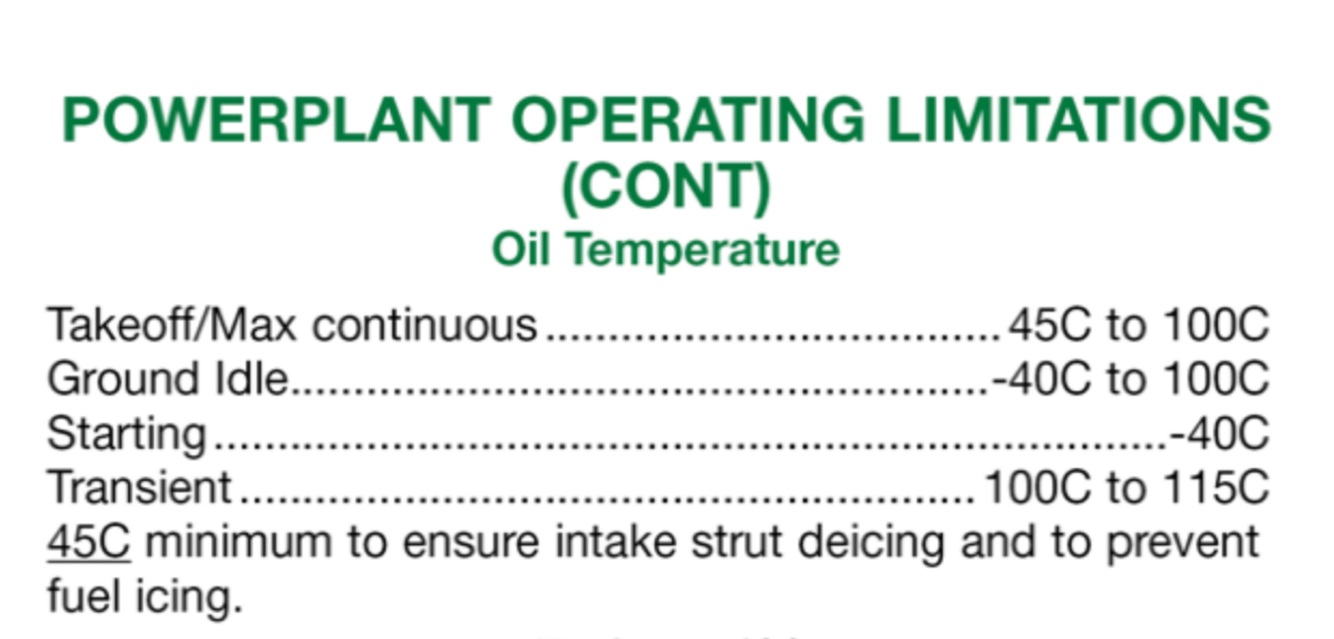

Q
Oil Temp
A
10

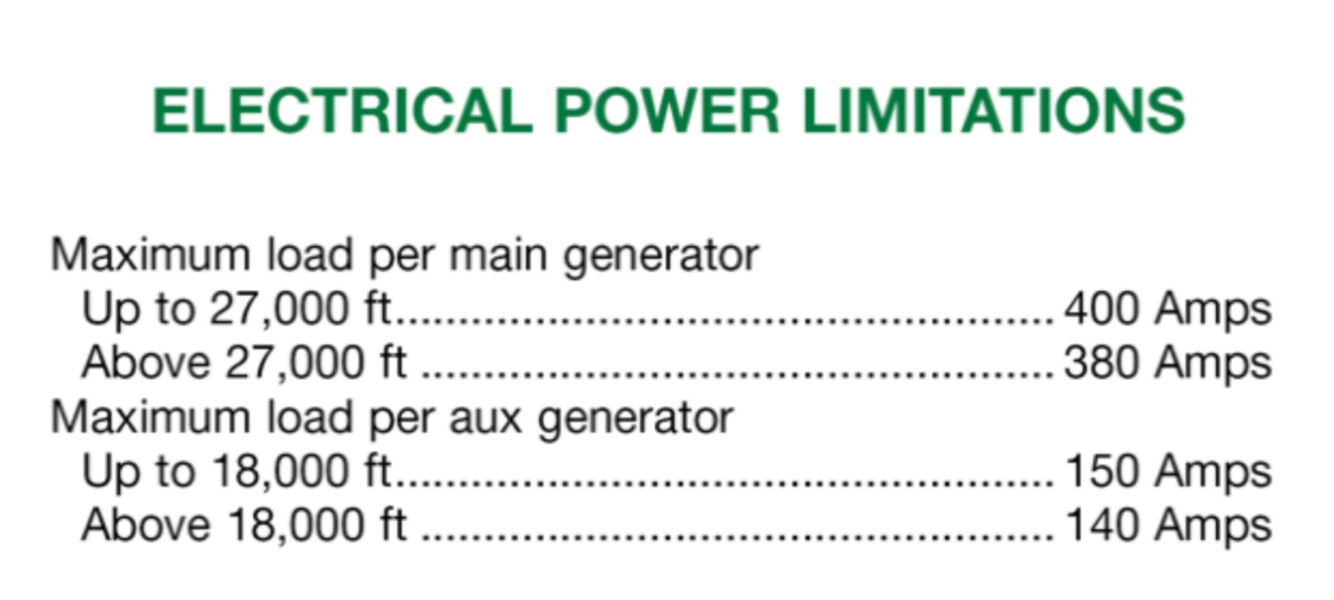

Q
Electrical (Main Gen/Aux Gen)
A
11

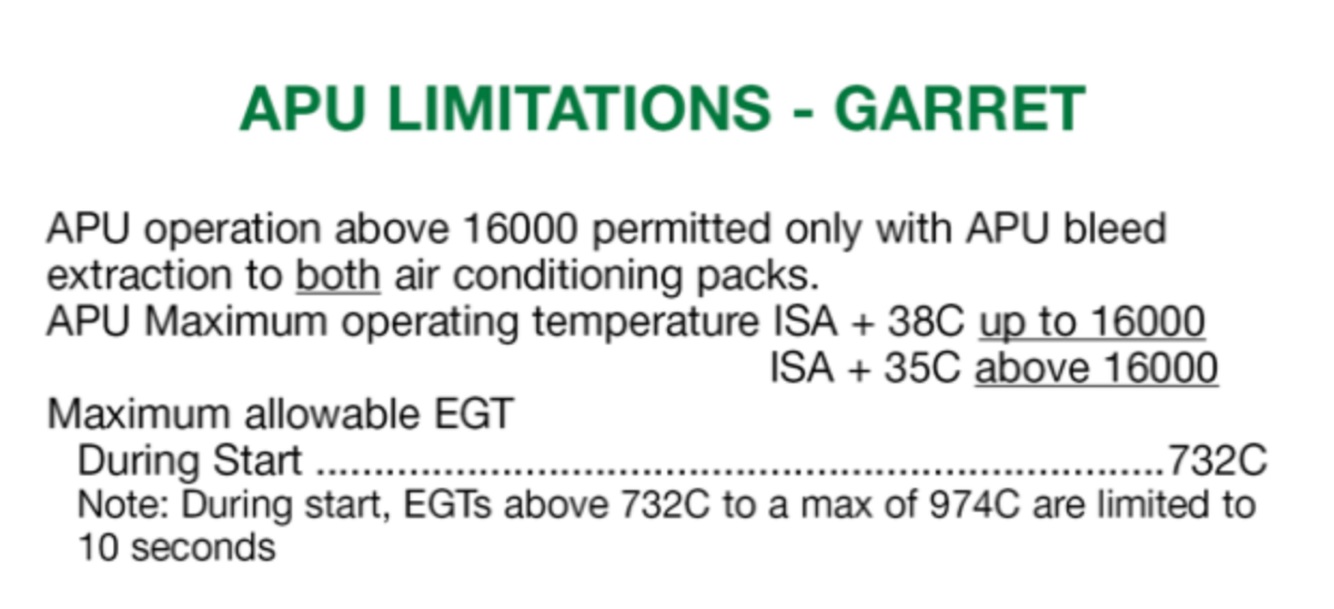

Q
APU
A
12

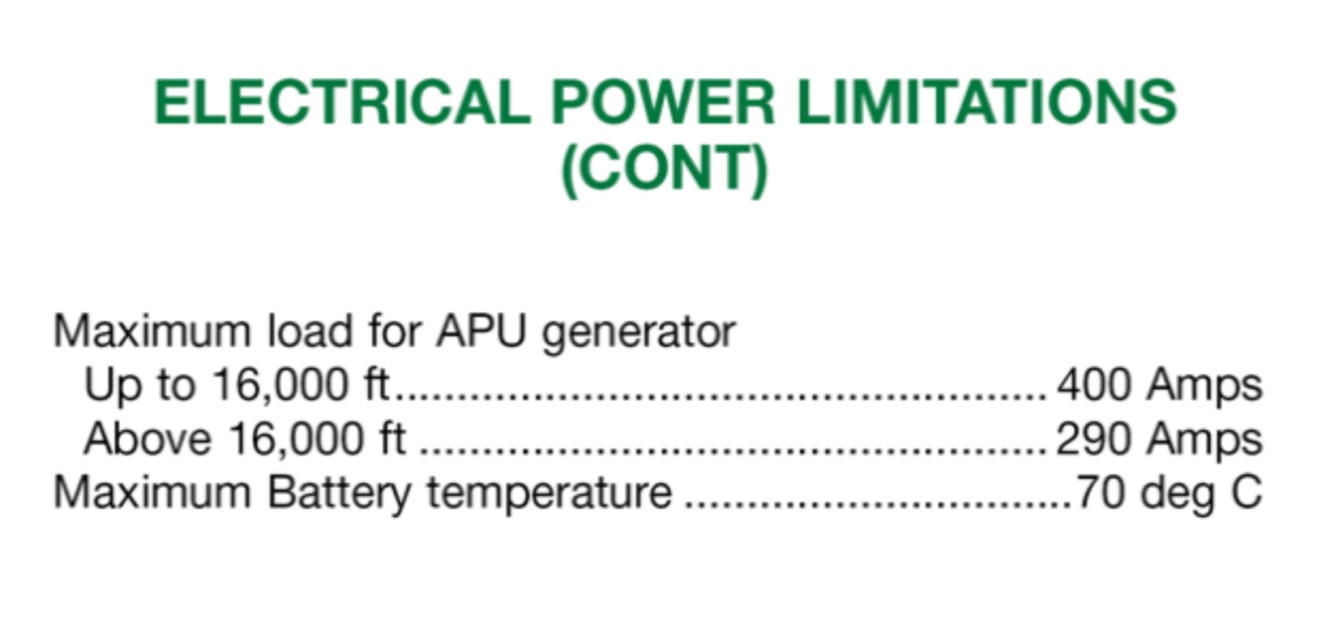

Q
APU Gen/Battery
A
13
Q
Operational Temp
A
14

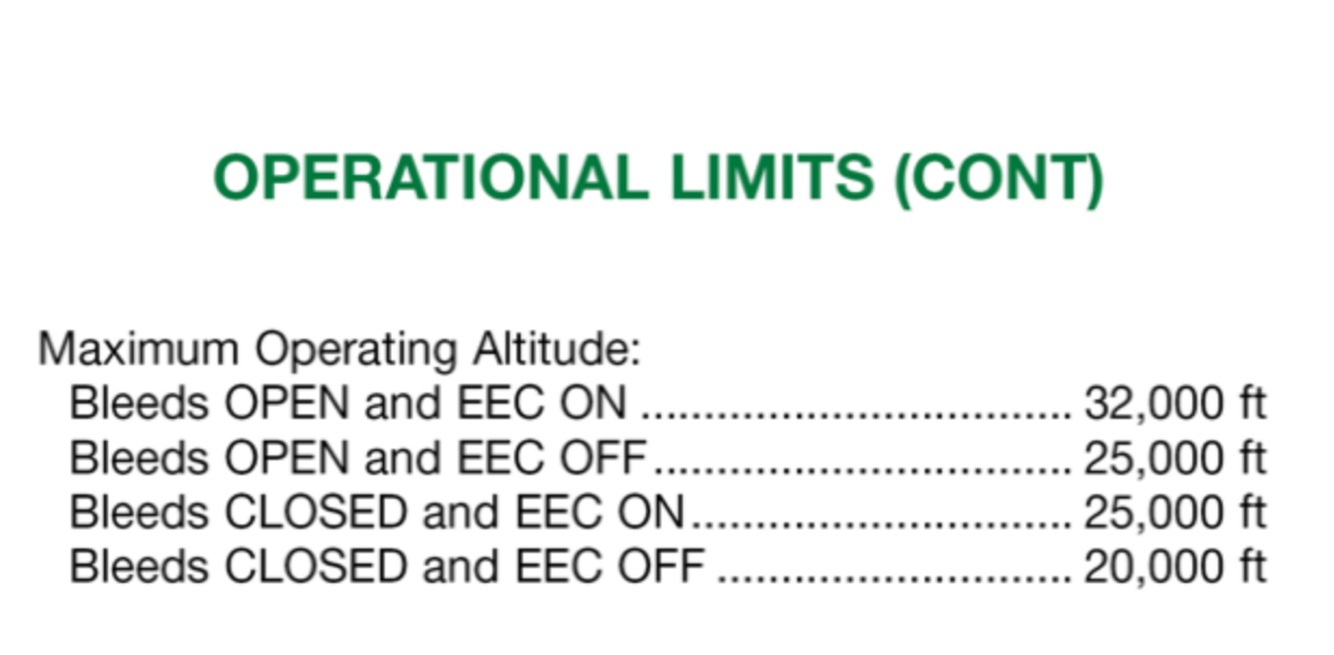

Q
Max Altitudes
A
15

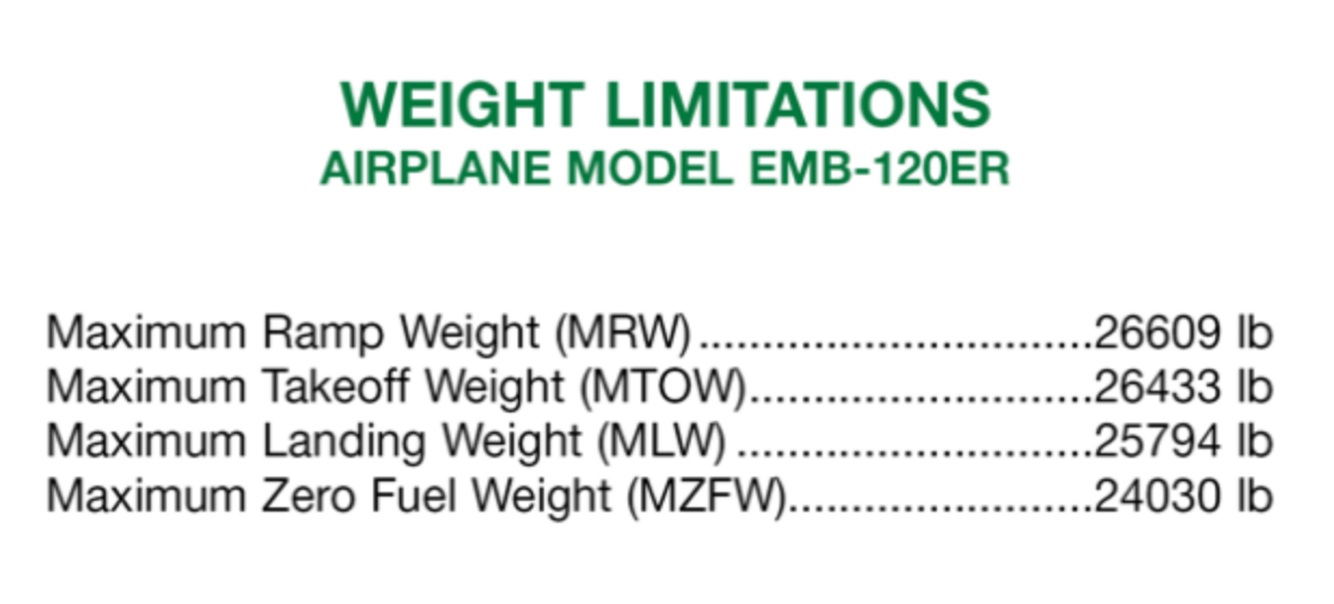

Q
Max Weights
A
16

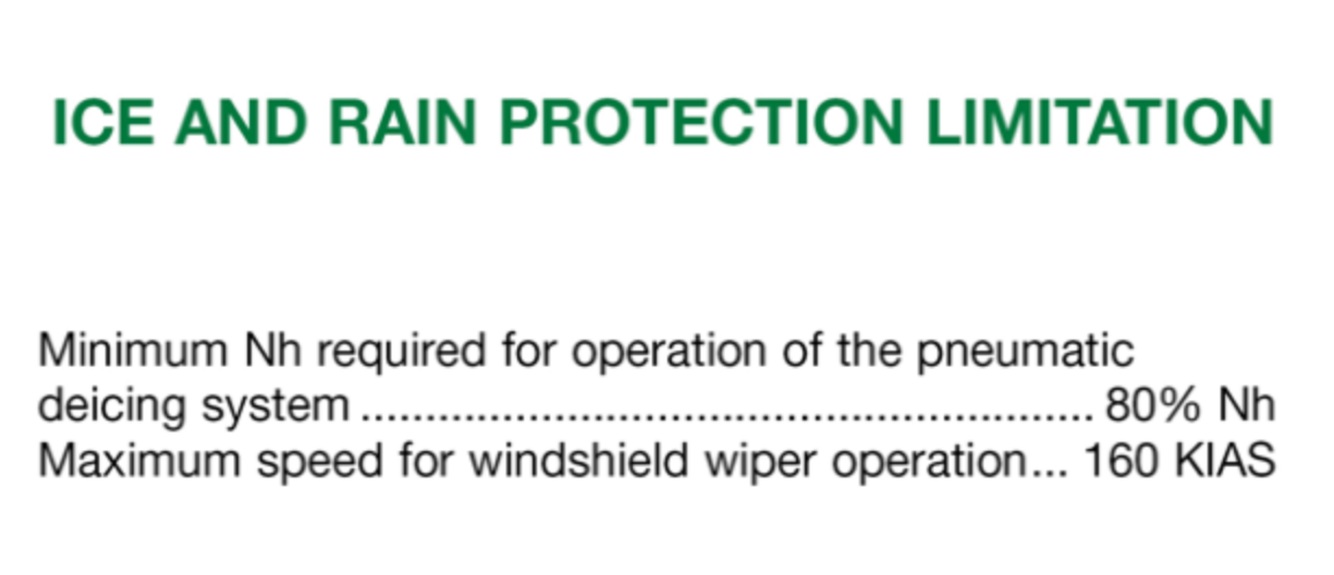

Q
Ice Rain Protection
A
17

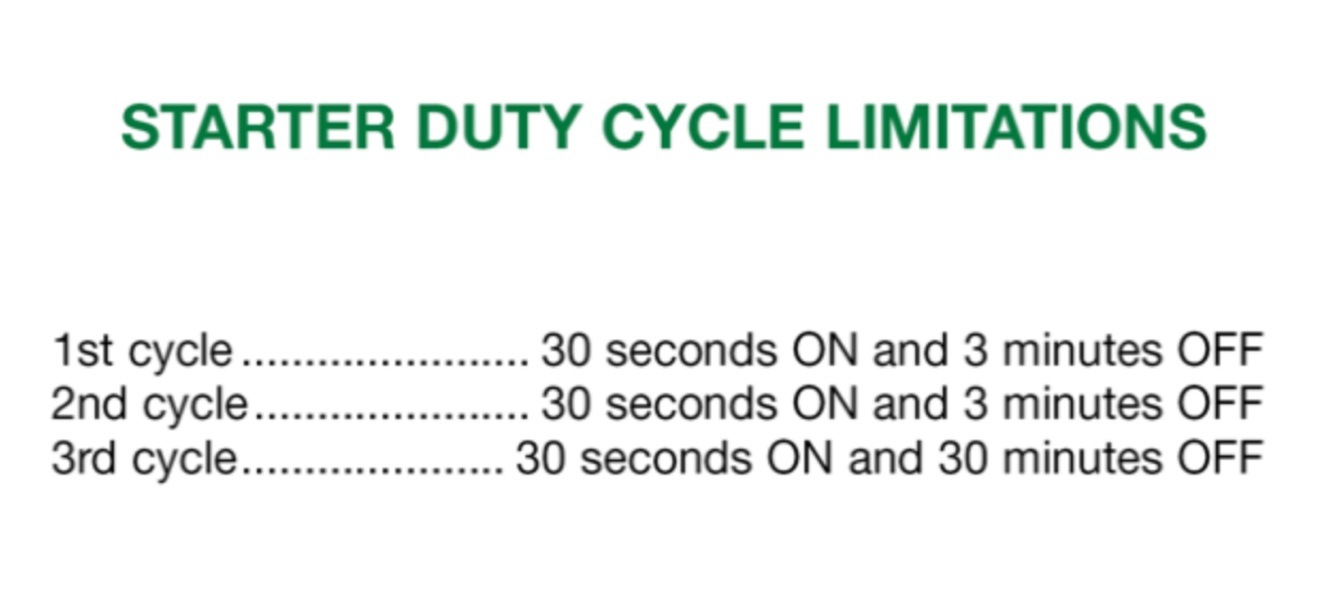

Q
Starter Duty Cycles
A
18

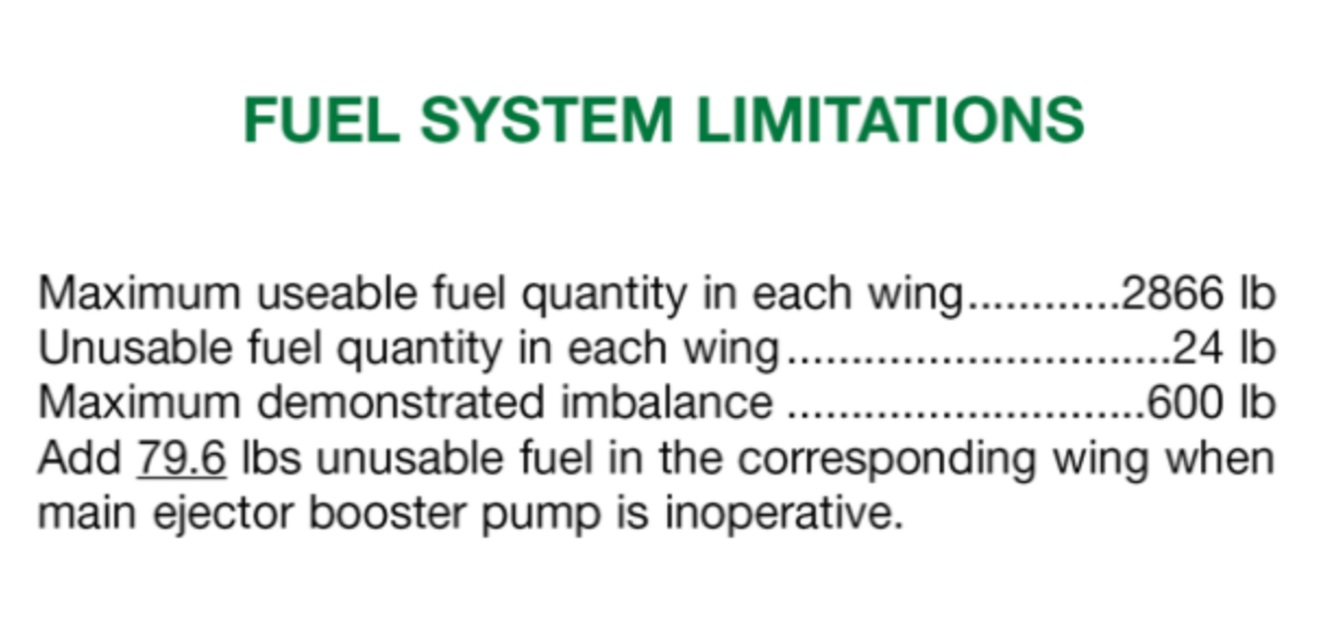

Q
Fuel
A
19

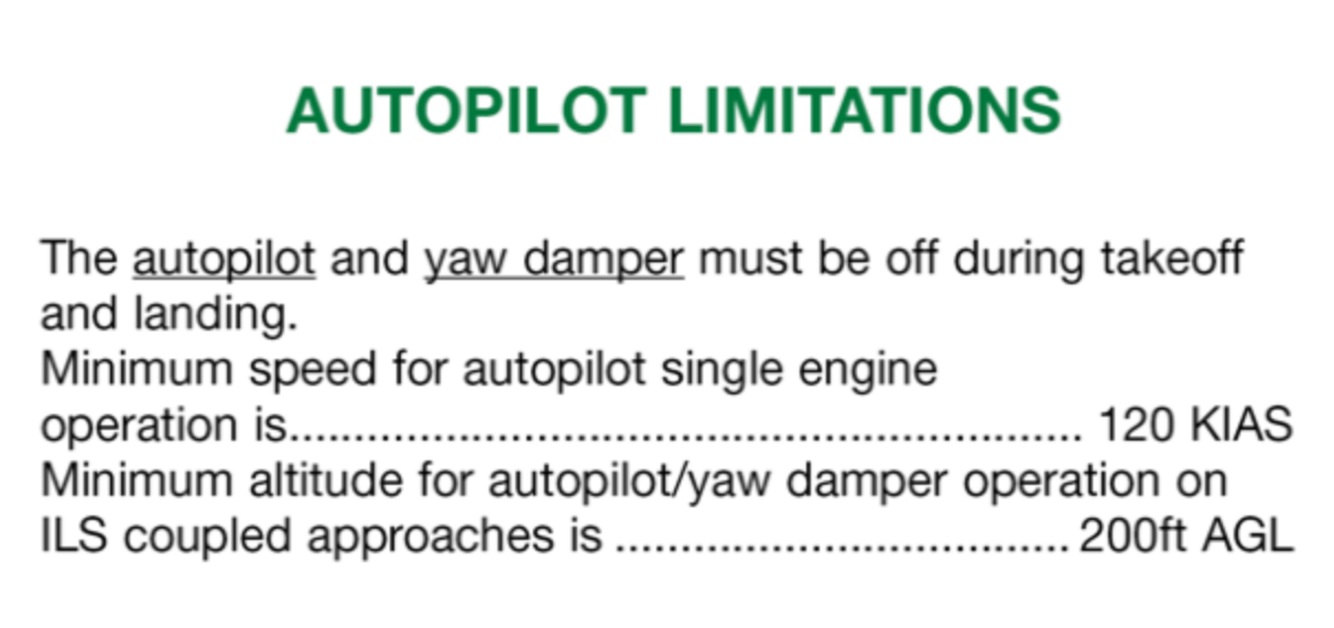

Q
Autopilot
A
20

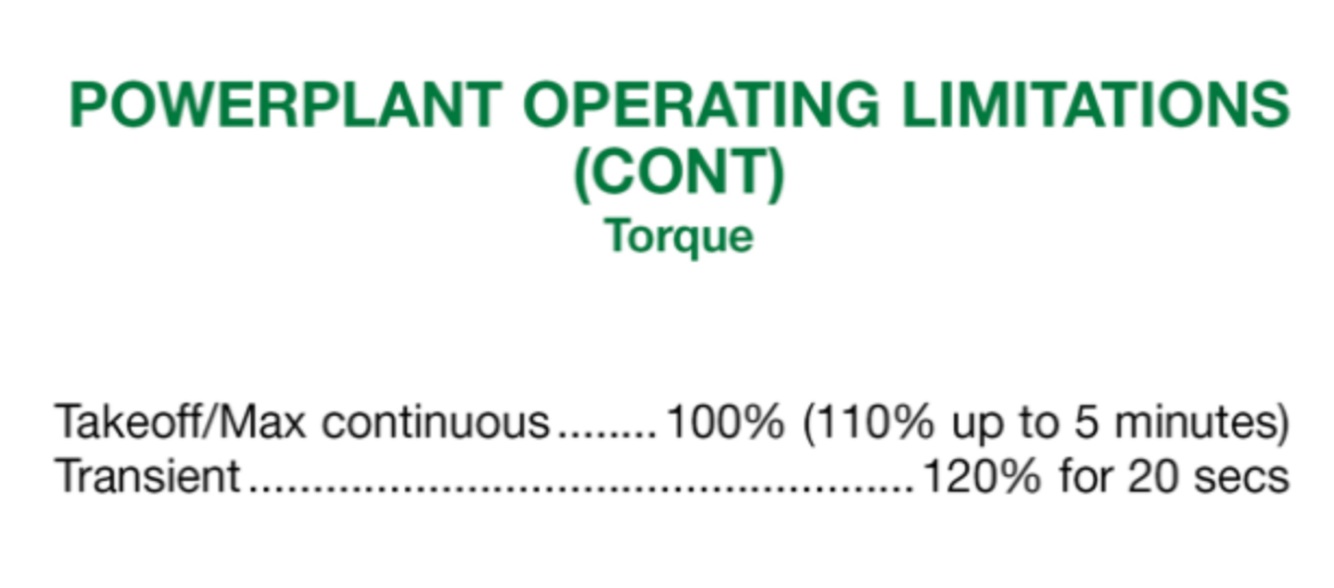

Q
Torque
A
21

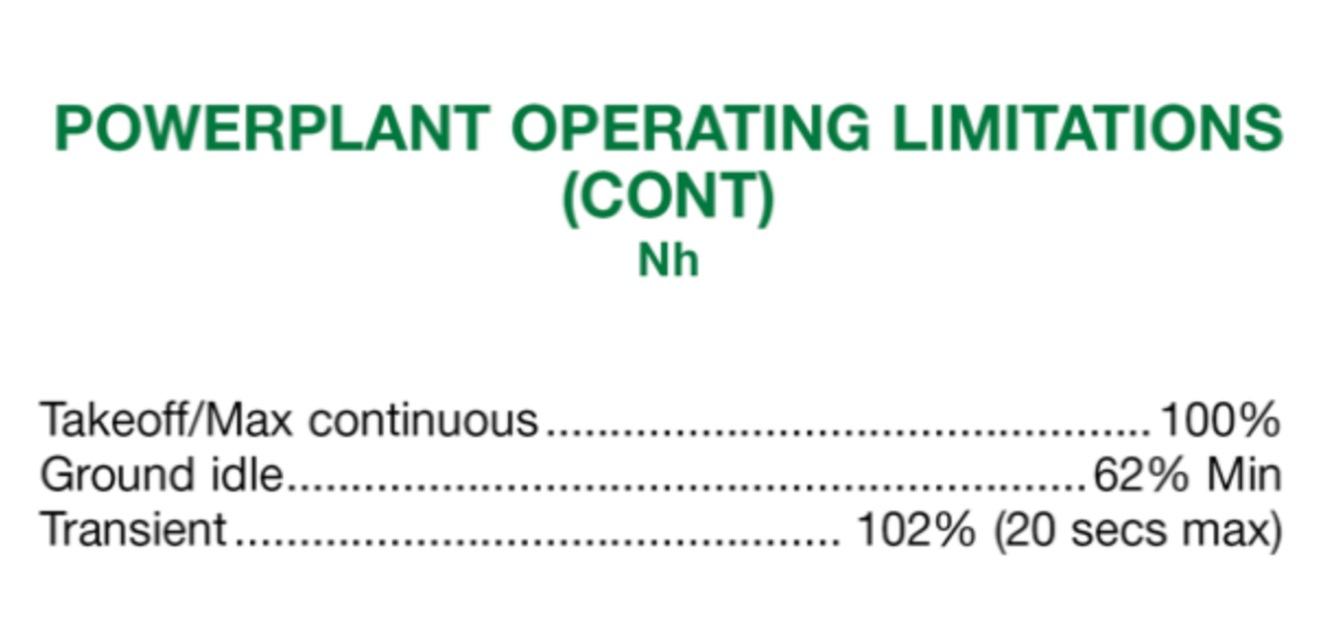

Q
Nh
A
22
Q
NL
A
TO/Mc 100 Transient 103 (20 Sec)
23
Q
Takeoff/Landing
A
Prop sync must be off
24
Q
Takeoff and Landing above 8000
A
EEC must be off
25
Maneuvering Flight loads (G Loads)
Flaps up -1 - +2.8
| Flaps downs 0 - +2.00
26
What is the reverse thrust limitations?
Ground use only, not approved for wet runways with standing water
27
Max runway slope?
+\- 2%
28
Max demonstrated crosswind
30
29
Min icing speeds
Flaps up - 165
| Flaps 15 - 140
30
Max pressure alt for TO and Landing
10,000
31
Max DV window speed
140
32
Max turbulence penetration speed?
175
33
Max tire speed?
165
34
Max cabin pressure differential?
7.2
35
Normal cabin pressure differential?
7.0
36
How many hours can aviation gasoline be used in case of an emergency between overhauls?
150hr
37
What fuel can be used if no other fuel is available?
JP-4 Jet B QAV4
