1
Q
What is the name of this logic gate?
A
NOT gate
2
Q
What is the name of this logic gate?
A
OR gate
3
Q
What is the name of this logic gate?
A
AND gate
4
Q

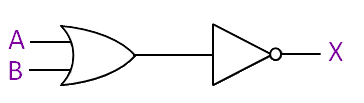

If A,B = 1 what is X?
A
0
5
Q
If A = 1 and B = 0 what is X?
A
0
6
Q
If A = 0 and B = 0 what is X?
A
1
7
Q
If A = 0 and B = 0 what is X?
A
1
8
Q
If A = 1 and B = 0 what is X?
A
1
9
Q
If A = 1 and B = 1 what is X?
A
0
10
Q

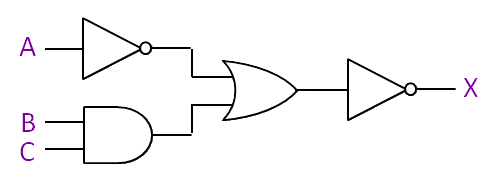

If A = 1, B = 1 and C = 1, what is X?
A
0
11
Q
If A = 0, B = 0 and C = 1, what is X?
A
0
12
Q
If A = 1, B = 1 and C = 1, what is X?
A
0
