Microscope

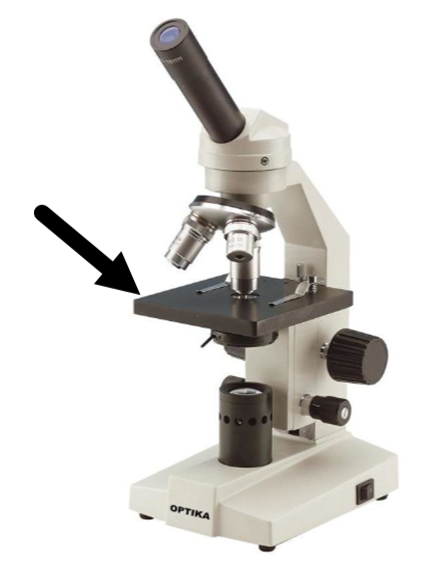

Question 1

Name the part shown

Answer 1

Stage

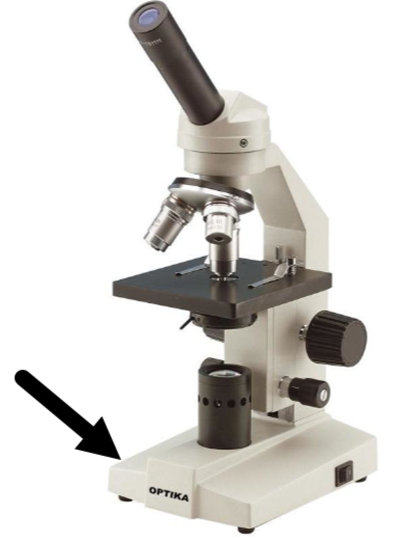

Question 2

Name the part shown

Answer 2

Base

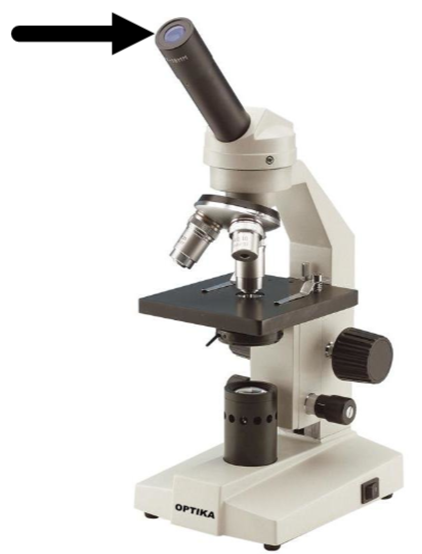

Question 3

Name the part shown

Answer 3

Ocular (eyepiece) lens

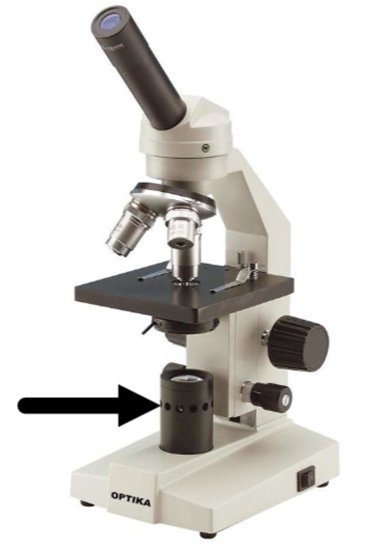

Question 4

Name the part shown

Answer 4

Light source

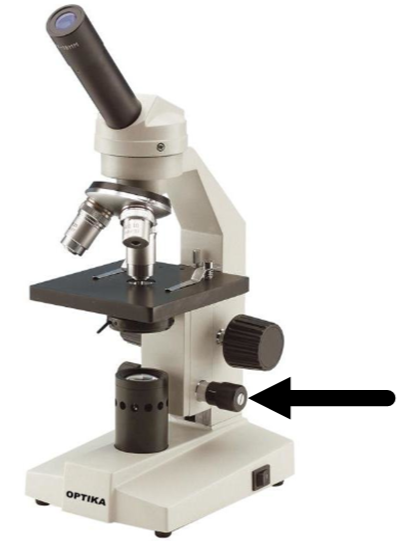

Question 5

Name the part shown

Answer 5

Fine focus knob

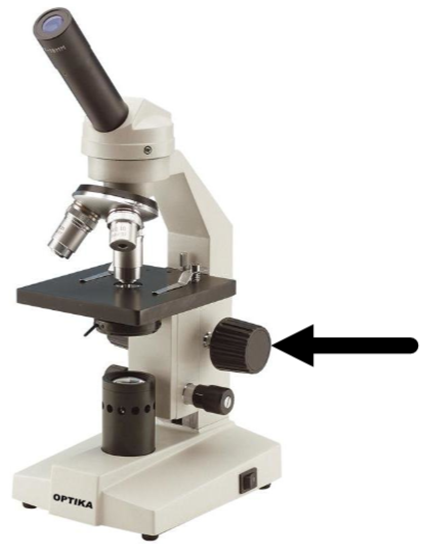

Question 6

Name the part shown

Answer 6

Coarse focus knob

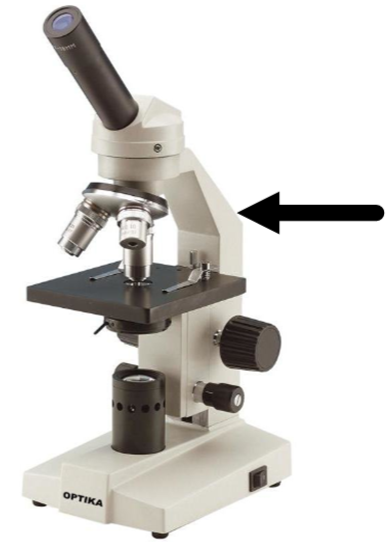

Question 7

Name the part shown

Answer 7

Arm

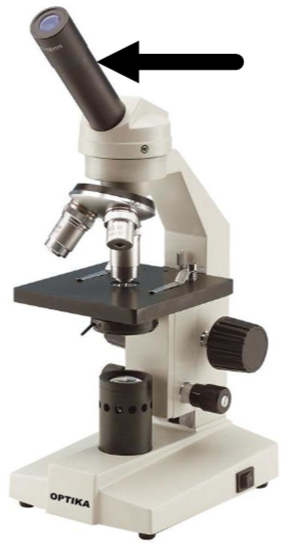

Question 8

Name the part shown

Answer 8

Body tube

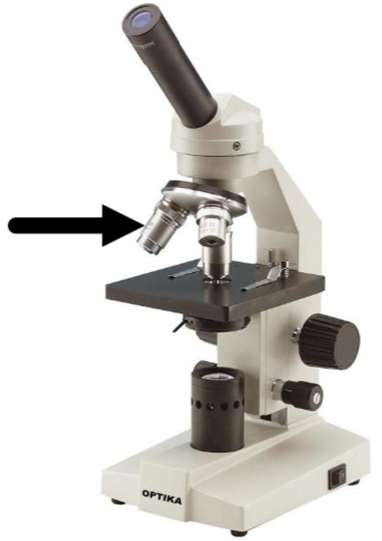

Question 9

Name the part shown

Answer 9

Objective lens

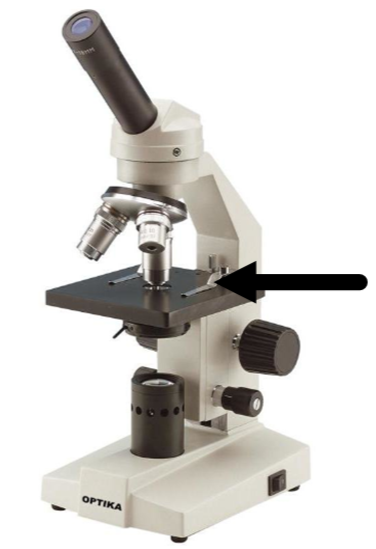

Question 10

Name the part shown

Answer 10

Stage clips

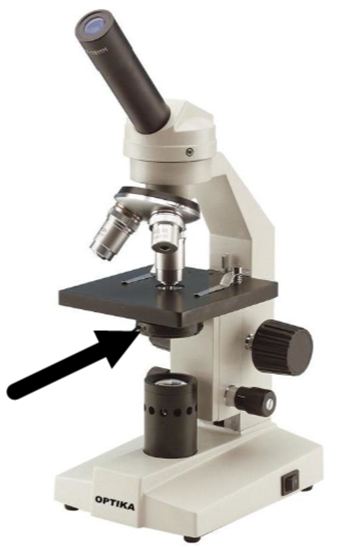

Question 11

Name the part shown

Answer 11

Diaphragm

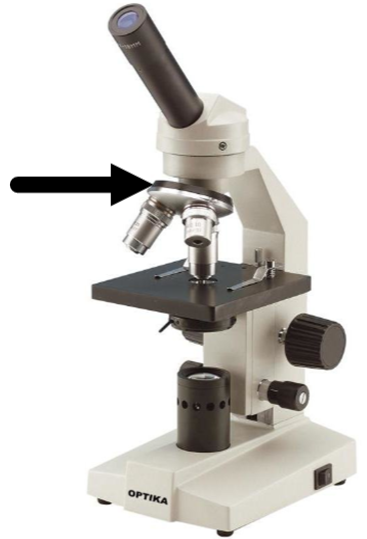

Question 12

Name the part shown

Answer 12

Revolving nosepiece
