MISC

Question 1

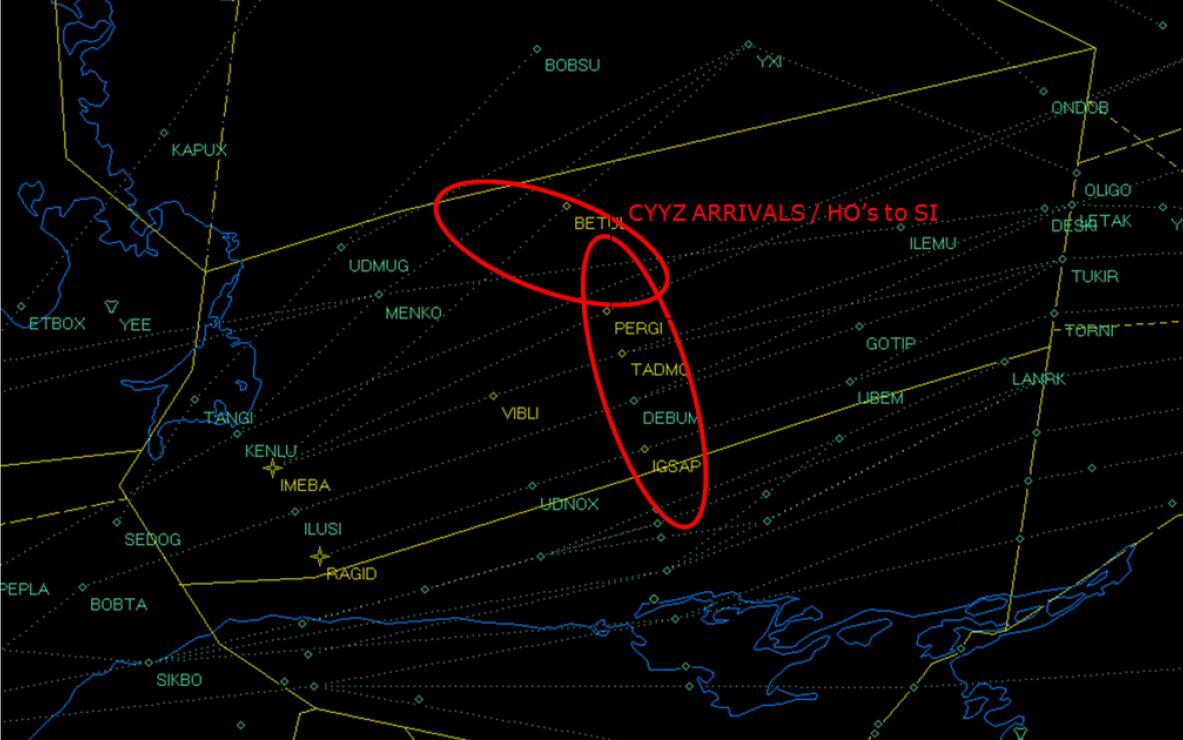

CYYZ Arrivals
Handoff’s to SI

Answer 1

This is where we need to have our sequencing for CYYZ completed and back on course

Question 2

Eastbound Direct to fixes - Inner

Answer 2

Question 3

Eastbound Direct to fixes - Outer

Answer 3

Question 4

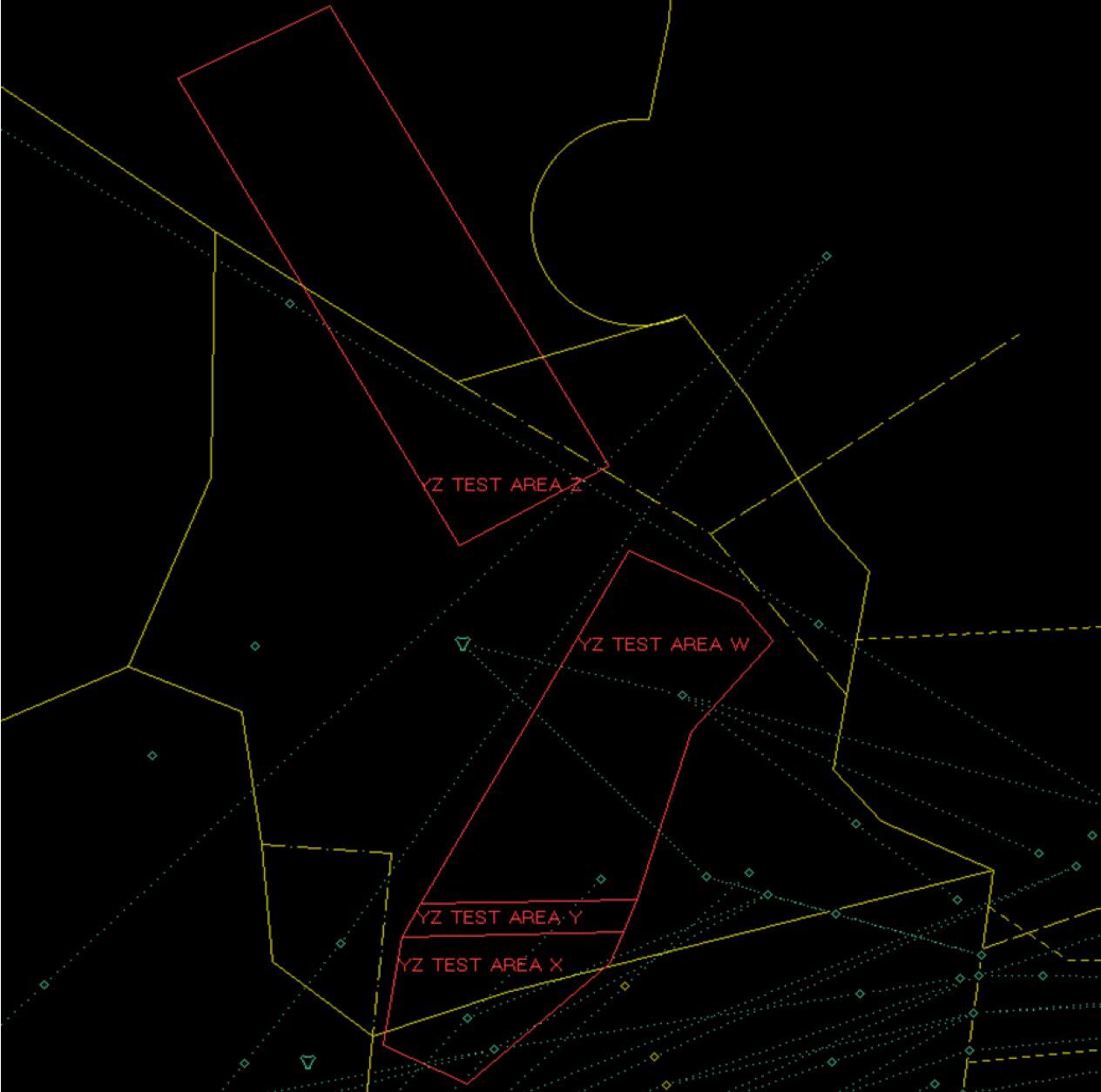

Bombarier Test Areas

Answer 4

Question 5

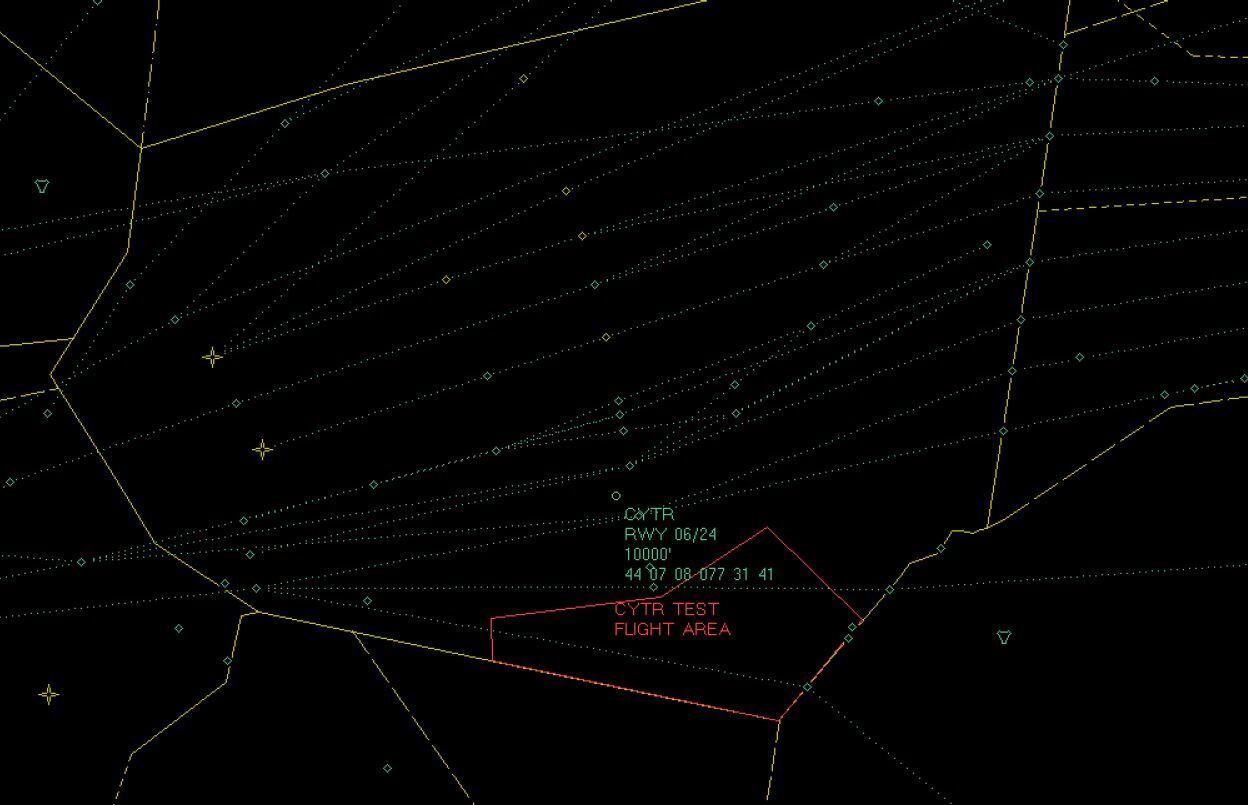

CYTR Test Flight Area

Answer 5

Question 6

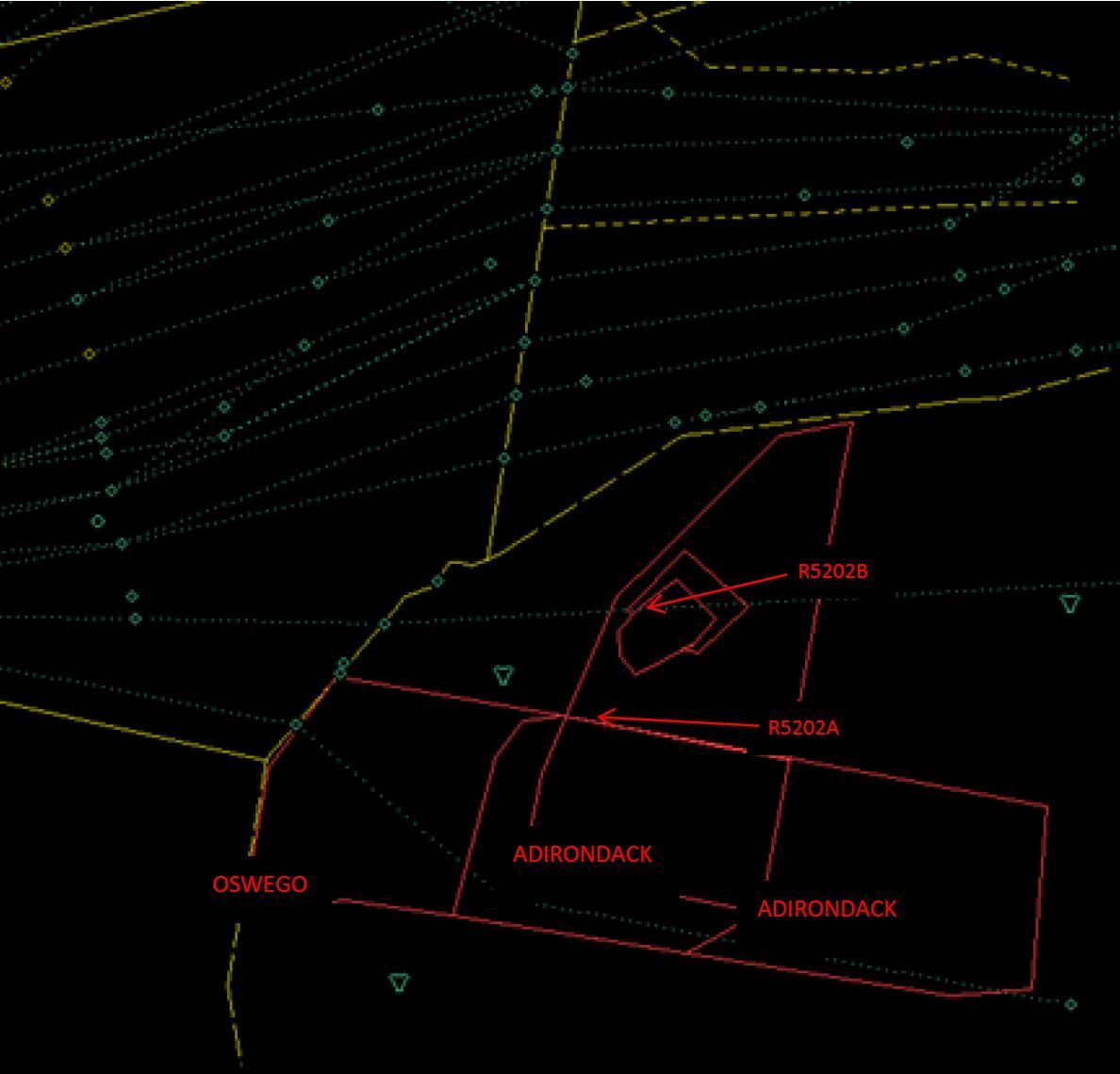

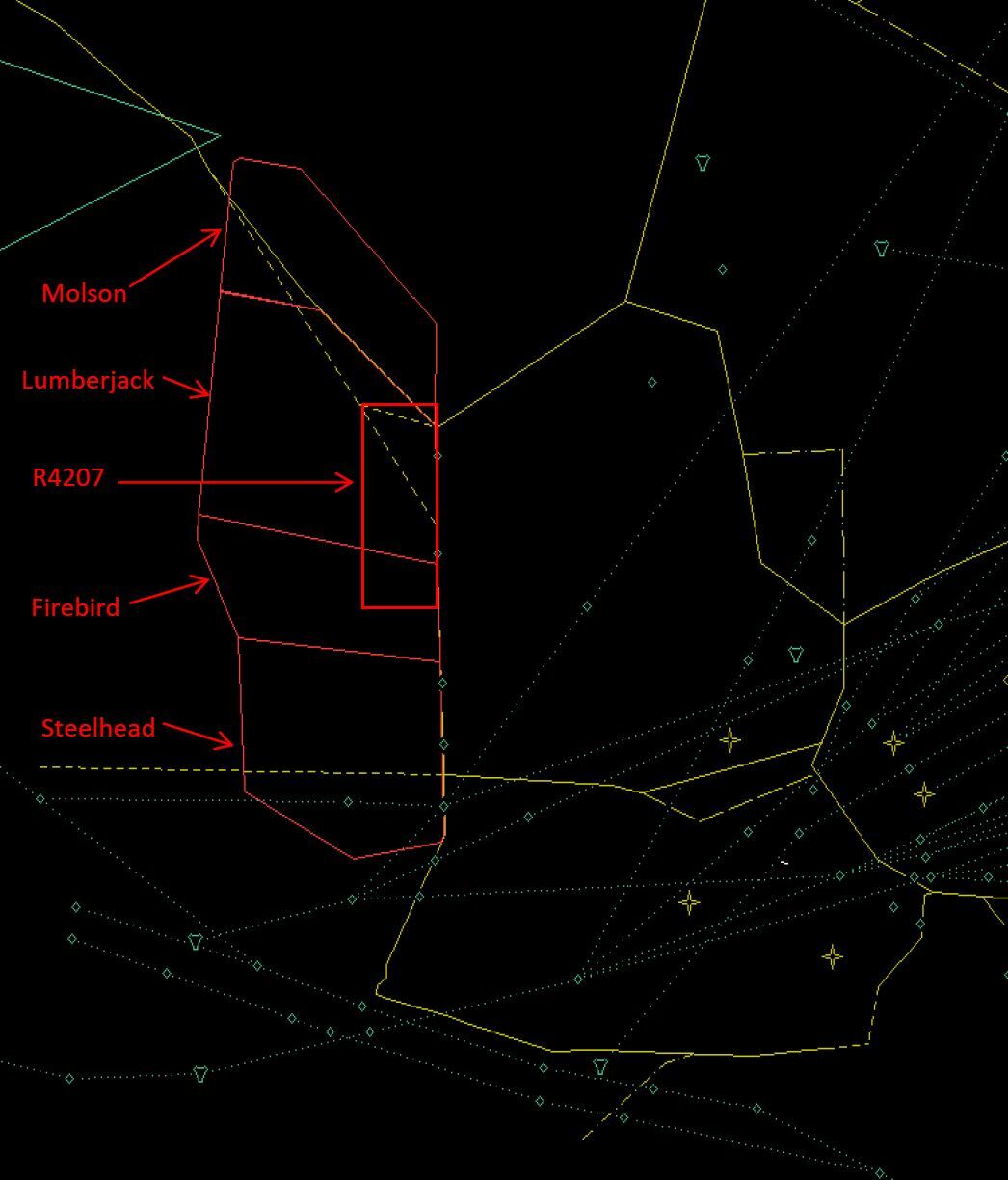

ADIRONDACK COMPLEX

Answer 6

Question 7

Answer 7

CYA 521 (M)

7000 to FL230 ocsnl by NOTAM

Question 8

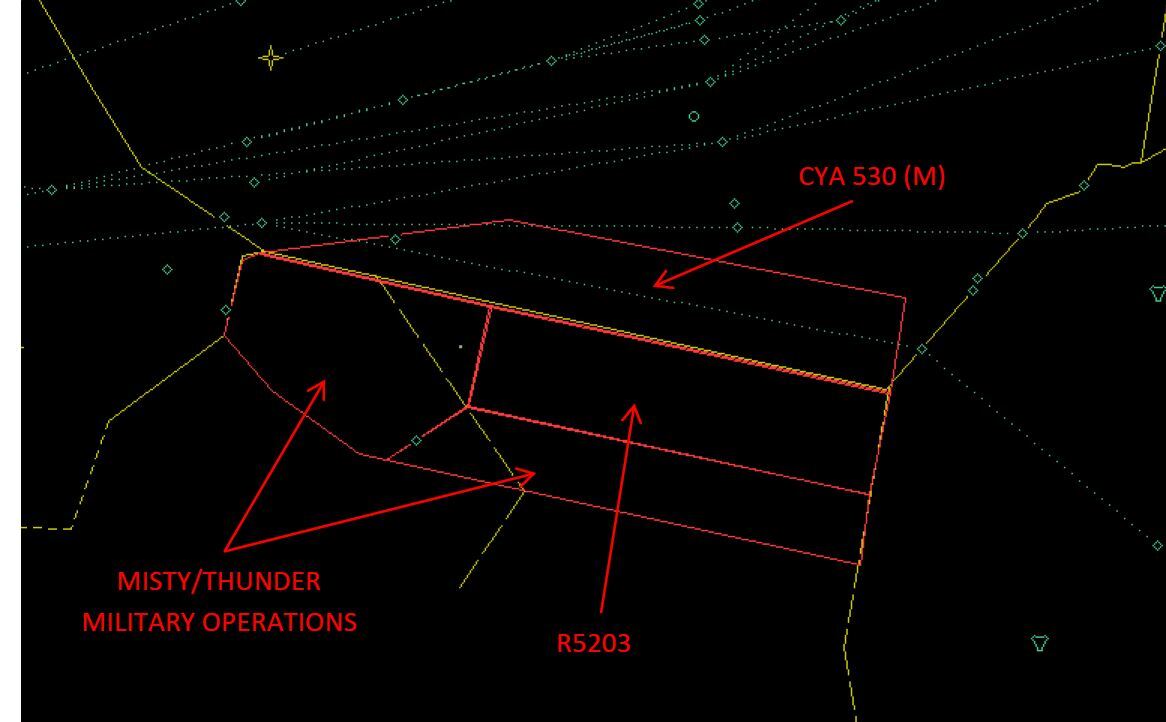

MISTY/THUNDER

Answer 8

CYA 530(M) 3,000 to FL500 ocsnl daylight by NOTAM - This is the Misty/Thunder Extension

R5203 to 50,000 by NOTAM

Question 9

Answer 9

Question 10

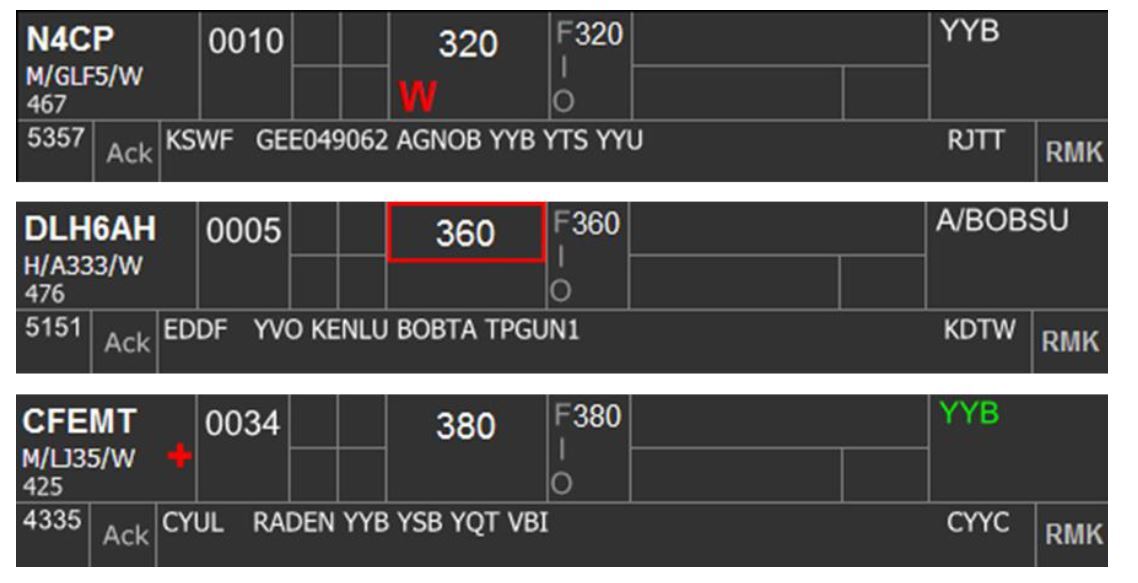

what does the red in each strip signify?

Answer 10

1. Red W, possible conflict
2. Red Square: wrong way altitude
3. Red plus is a medevac

Question 11

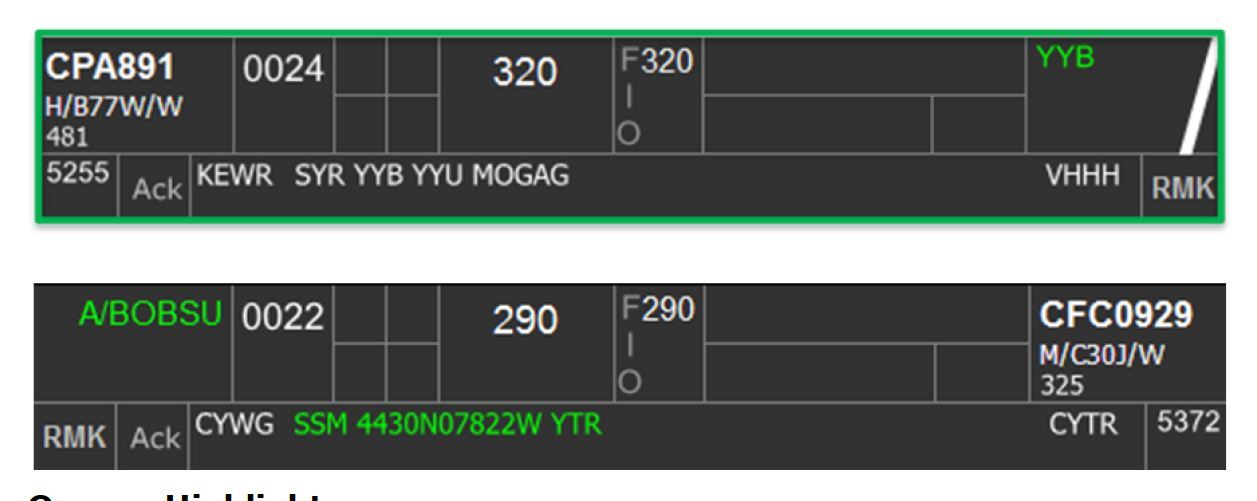

What does the green square mean?

Answer 11

New information available

Question 12

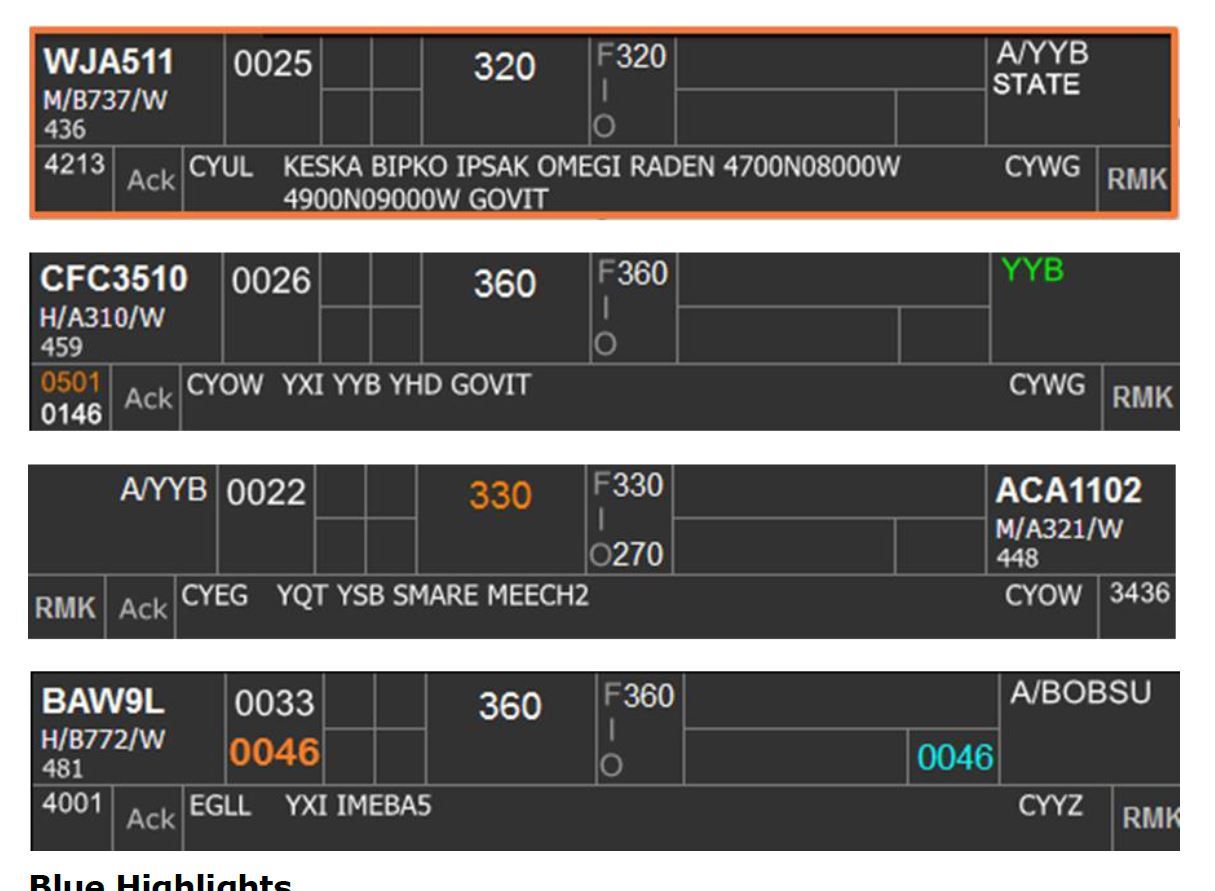

What does the orange mean on each strip?

Answer 12

1. Action required
2. New SSR code requiring assignment
3. Cleared altitude does not match coordinated OUT altitude
4. CYYZ meter time. It being blue on the right box indicates in a shared field that this time has been passed to the aircraft

Question 13

What does purple highlights mean?

Answer 13

Purple means “Controller Entered Field”’ and is shared internally for speed. When speed assignment is done using EXCDS-FDE it will appear in purple. This information will transfer down the line within the center but will not be passed to external sectors/units.

These will not pass to montreal because they are entered through EFS. montreal will see the blue stuff. This is why montreal will generally coordinate speeds with us by entering them through caats, not efs

Question 14

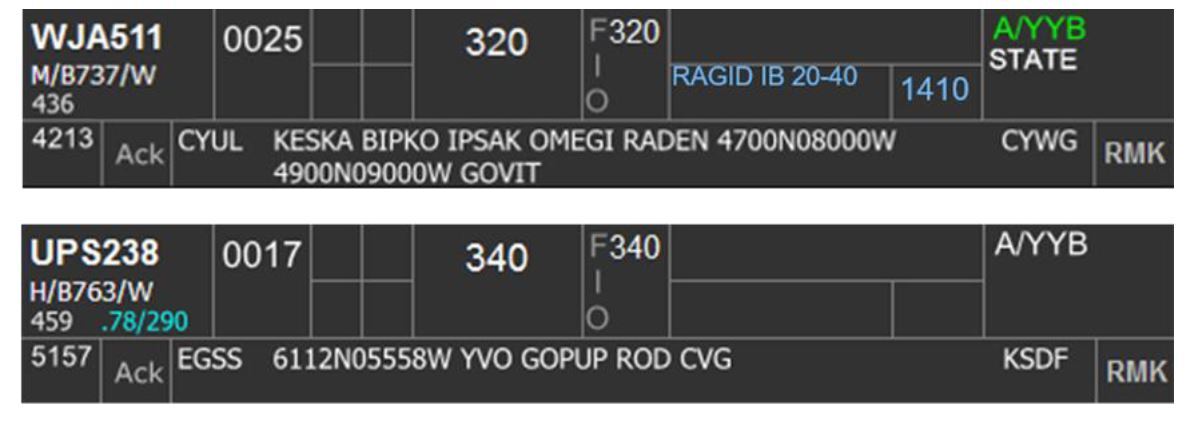

What do blue highlights mean?

And list the fields

Answer 14

Blue means Shared Information. The information highlighted in blue indicates that it is shared to all sectors that will hold an FDE for the aircraft. It will populate/unpopulated on all FDEs in real time. “Shareable” information on the FDE is in Box 12 (usually holding clearance), Box 13 (EFC time) and/or Box 3B (speed assignment executed through CAATS).

Montreal Centre will see this information

Question 15

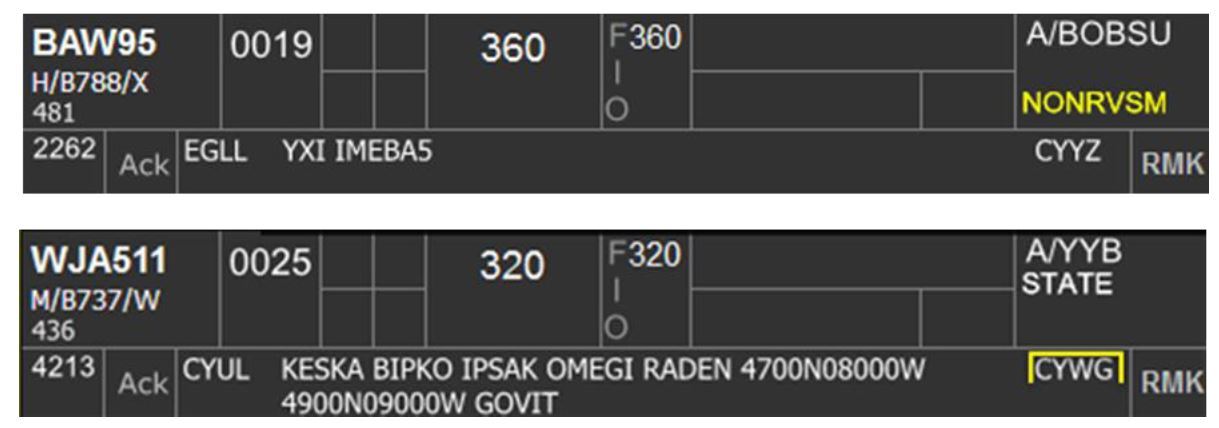

What do yellow highlights mean?

Answer 15

Yellow indicates “Special information” (NON-RVSM, SUPER, odd destination). NEGRVSM and SUPER will appear in Box 16, in yellow. Only one indicator can display at a time, therefore, if both indicators apply, highlight priority will be given to NEGRVSM.
The destination highlight can be toggled on/off by clicking on Box 6B. This highlight is used primarily on personal preference but helpful to use as a reminder of flight that arrive at an underlying airport and require descent as per procedure. Some examples include arrivals to CYYB, CYQA, and CYTR.

Question 16

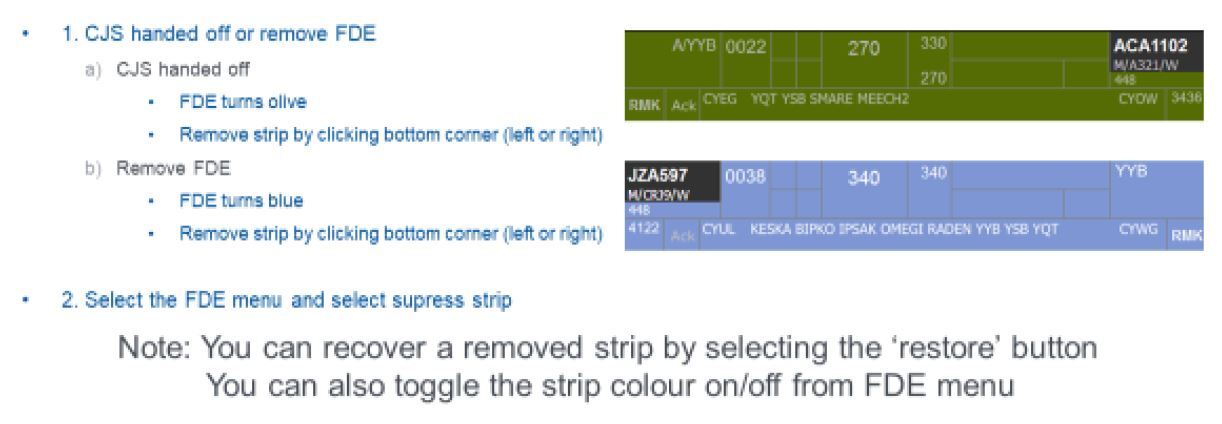

Three ways to remove a strip

Answer 16

1. CJS handed off
2. Remove FDE
3. Select the FDE menu and select “suppress strip”

Question 17

Impact of changes to altitude information

• Cleared
• Flight Planned
• Coordinated In
• Coordinated Out

Answer 17

-cleared – shared field, must always be updated
- Flight planned - can only be changed in CAATS
- Coordianted In - not shared, individual FDE only
- Coordinated out - not shared, individual FDE only

Question 18

EXCDS-EFS and CAATS, INFORMATION FLOW

What information goes both ways?

Answer 18

Cleared Altitude

Question 19

EXCDS-EFS and CAATS, INFORMATION FLOW

What information does not flow from CAATS to EXCDS-EFS?

Answer 19

• Controller Remarks
• ED Altitude
• Holding Information including time

Question 20

The four ways to change the cleared altitude are:

Answer 20

1. Click the Altitude Dialogue Box on the EXCDS FDE directly
2. On the CAATS data tag, click on the mode C or, if displayed, the cleared altitude to open. Select the altitude from the slider or type from the keyboard, be sure that the cleared altitude box is selected on the dropdown.
3. Cycle through the data tags on your CJS by using the F5 key on the CAATS keyboard, similar to the handoff key. When “CLR” appears under the appropriate PPS, enter the altitude using the CAATS keyboard.
4. Open the flight plan panel and enter the altitude in the Cleared box using the CAATS keyboard.

Question 21

Assigned Speeds - Two ways to enter

Answer 21

Question 22

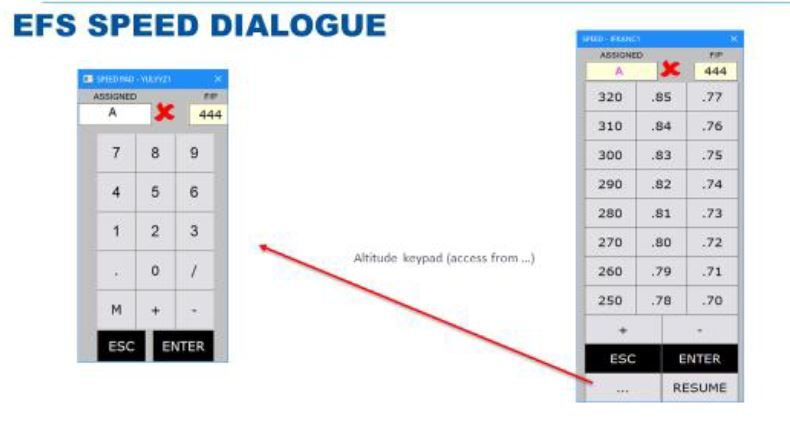

Assigning speeds in EXCDS-EFS

Answer 22

On the FDE, click on Box 3B to access the Speed Dialogue Box. The “click-toclose”
quick action buttons will automatically populate the selected speed
and simultaneously close the dialogue box. To use the “+” or “-” , select one
prior the using the quick action button.
The ellipses button opens the assigned speed keypad.
The “RESUME” button will remove the assigned speed from the FDE and
simultaneously close the Speed Dialogue Box

Question 23

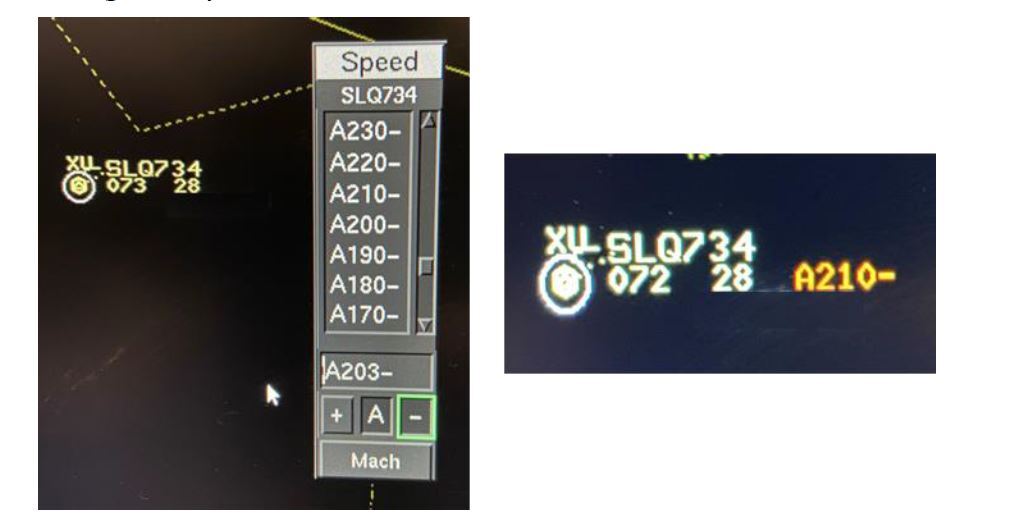

Assigning Speeds in CAATS

Answer 23

To access the speed slider, B3 click on the ground speed of the data tag, or, if present, on assigned speed. Select the “A” to indicate assigned speed. To change between Indicated speed and Mach number, toggle on the ‘Mach’ button. Select the “+” or “-”, as required.
When an assigned speed is entered in CAATS, a RESUME button will display at the top of the altitude slider to cancel and resume normal speed. If entered using CAATS, the assigned speed will be removed from the data tag and the FDE.

• Resuming speed on the FDE, will NOT update CAATS and only clears the assigned speed on the FDE.

Entering a speed in CAATS using the CAATS keyboard, will populate a filed speed only, not an assigned speed even if the “A” is selected.
To use the enter an assigned speed using the CAATS keyboard, follow the steps listed below:
* Open the speed slider
* Type “A”
* CAATS will automatically populate a period, therefore,
o enter two digits, for a MACH speed
o backspace to remove the period, for an indicated speed and enter 3 digits

Question 24

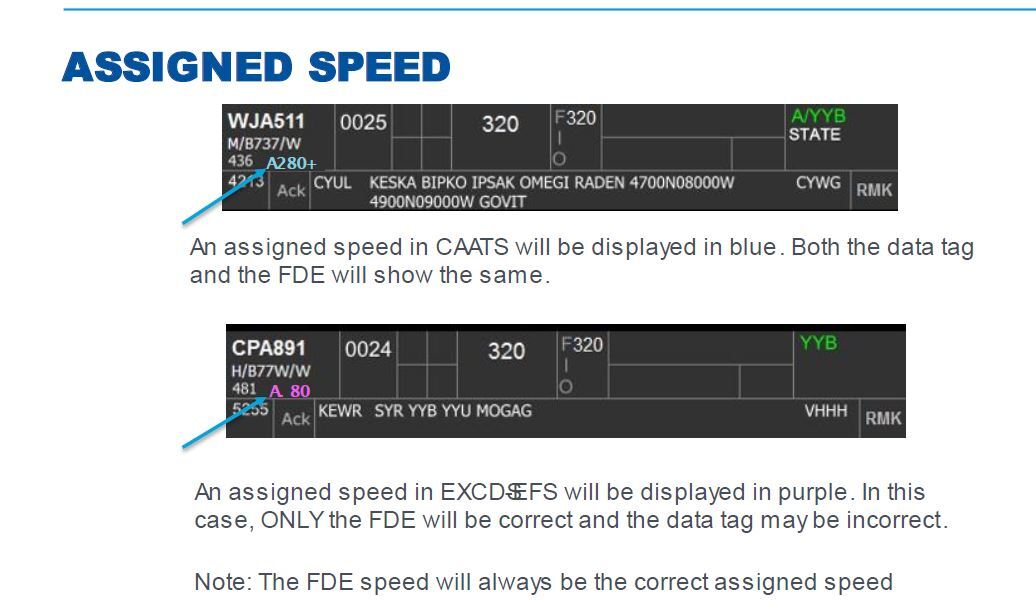

blue speeds vs purple speeds

Answer 24

blue speeds entered in CAATS. they are shared, montreal will see these on their FDE

Purple speeds entered in EXCDS-EFS, they are not shared and will not show to external sectors/units

NOTE: if there is a discrepancy between CAATS speeds and the EFS Speed, the speed in purple will be what the aircraft has because if the last speed was assigned in CAATS it would have overwritten the EFS speed etc. So a puple speed will always be the last speed assigned to the aircraft

Question 25

Print FDE inbox

Answer 25

- Create an FDE for a flight that is not flight planned through your airpsace - MB3 (mouse button 3) on data tag and select "controller remarks" - Select "EFS " An FDE should populate in the inbox

Question 26

How do you highlight (cock) the strip?

Answer 26

Click on the time to toggle on and off
