MLS

Question 1

MLS uses two beams like ILS but both use same frequency, one of 200 available in the … band from …. MHz to … MHz

Answer 1

SHF

5031

5090

Question 2

How is frequency of the two beams shared?

Answer 2

by multiplexing the signals

Question 3

DME/P is only used with … and operates in what band?

Answer 3

MLS

UHF

Question 4

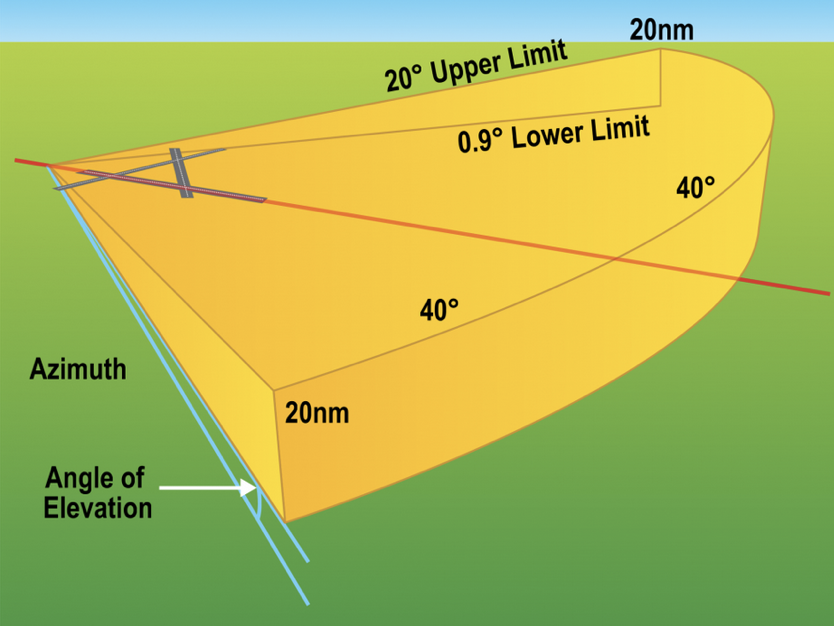

MLS coverage in azimuth is … degrees either side of centre line out to … NM

Answer 4

40

20

Question 5

Elevation limits are from … degrees to … degrees from the horizontal, up to … ft. and out to … NM

Answer 5

0.9

20

20 000

20

Question 6

DME/P coverage goes out to … NM

Answer 6

22
