What does Centerline Angle (CLA) refer to?
Included Angle divided by 2= CLA
CLA=Included angle/2
## Footnote
This defines the angle formed by the centerlines of two tapered sections.
Define Taper Ratio.
The ratio of the difference between the large and small diameters to the length of the taper
Usually ‘x’ taper per foot or inch. (expressed as something like 1:5 or 1:25)
What is Taper per Inch?
Amount that a shaft tapers for a length of one inch
This measurement helps in understanding the rate of tapering along the shaft.
What are Working Drawings?
Provided by the equipment designer, detailed drawings that contain everything needed to make a part
These drawings are essential for accurate manufacturing.
List the components that can be interpreted in taper designations.
- Large diameter taper
- Small diameter taper
- Length of taper
- Taper per foot
- Taper per inch
- Taper ratio
- Included and/or centerline angles
These components are crucial for defining the specifics of a taper.
What does Taper refer to?
Difference between the large and small diameters
This is a fundamental concept in understanding tapered shapes.
Define Taper Length.
The length of the tapered section
This measurement is important for determining the overall dimensions of a tapered part.
What is the formula for TPF?
TPF = (D - d) x 12
———
TL
OR
D= tpf xTL + d
———
12
Where D is the taper per foot and d is the small diameter.
What is a Revolved Sectional View?
Similar to a removed section but the cross-sectional shape is revolved 90° and drawn directly onto the workpiece or shown broken away
This view helps visualize complex shapes in engineering drawings.
What does Broken Out mean in drafting?
Only a small portion of a part needs to be shown sectioned, a broken out line is used to isolate the piece that is to be sectioned
This technique is useful for highlighting specific features.
What are the three systems of dimensioning?
- Unidirectional
- Aligned
- Dual
Each system has its own method of presenting measurements in engineering drawings.
What is an Offset Sectional View?
The cutting plane line is changes direction 90° to show different features in a sectional view.
This view allows for a clearer representation of complex geometries.
Define Unidirectional dimensioning.
Dimension numbers are shown in one direction
This is the preferred method for clarity in engineering drawings.
What is Aligned dimensioning?
The numbers are aligned with the dimension line
This method helps in maintaining a clear visual connection between dimensions and their corresponding features.
What does Dual dimensioning show?
Shows both SI (mm) and Imperial (inches) measurements for the same dimension
This is useful for international projects where both measurement systems are used.
What is the purpose of an Aligned Sectional View?
To show a sectional view of many different features on one sectional drawing
The cutting plane line is rotated through various angles to align all the features.
What is structural steel?
Structural angles available in various configurations. Formed by a red hot billet being forged into a specific shape.
These shapes are fundamental in construction and engineering.
What is the classification of Hollow Structural Section Squares (HSS squares)?
Classified by outside dimensions and wall thickness
These sections are crucial for structural integrity in construction.

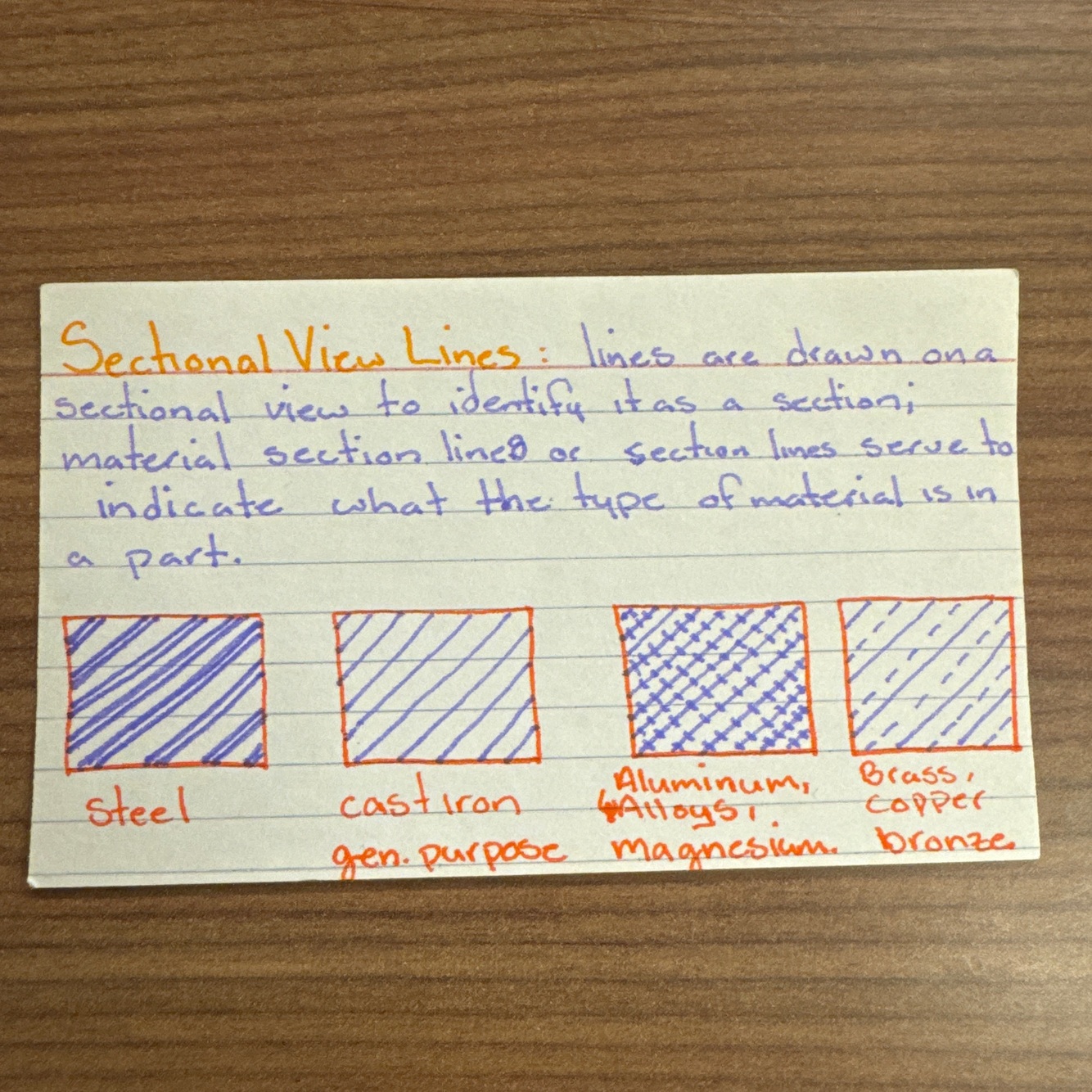

Sectional view lines on a drawing denoting type of material:
