Module 10: AC Circuits

Question 1

Answer 1

c. true only if XL is greater than or equal to XC

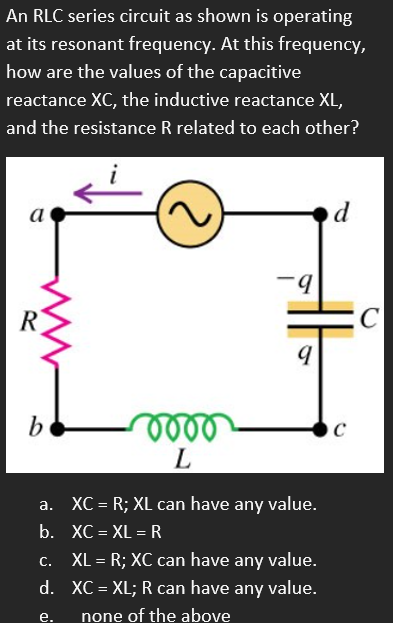

Question 2

Answer 2

d. XC = XL; R can have any value.

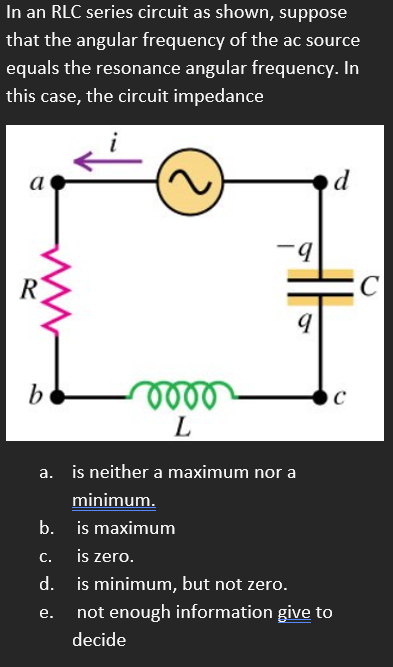

Question 3

Answer 3

d. is minimum, but not zero

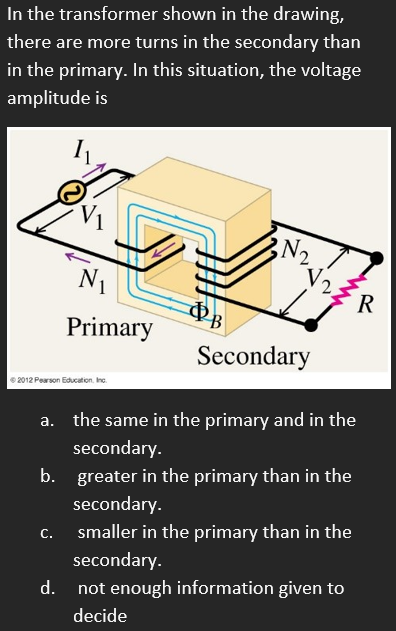

Question 4

Answer 4

c. smaller in the primary than in the secondary.

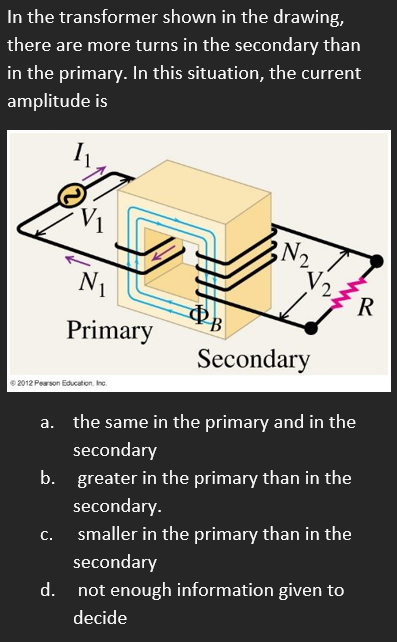

Question 5

Answer 5

b. greater in the primary than in the secondary.

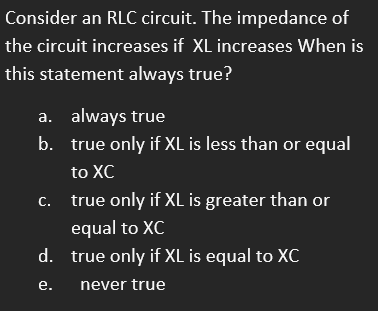

Question 6

Answer 6

c. true only if XL is less than or equal to XC

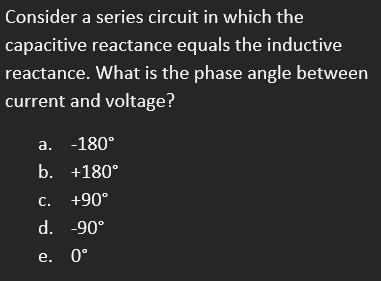

Question 7

Answer 7

e. 0°
