Module 3: Chapter 4 - Forces in Action Flashcards

(72 cards)

Study These Flashcards
1
Q

What are the 8 stores of energy?

A
  • Thermal
  • Kinetic
  • Nuclear
  • Elastic Potential
  • Gravitational Potential
  • Chemical Potential
  • Magnetic
  • Electrostatic
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
2
Q

What are the 4 energy transfer pathways?

A
  • Heating
  • Radiation (Light, Sound, Nuclear)
  • Electrical Work
  • Mechanical Work
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
3
Q

What are the 2 different types of forces?

A

Contact and non-contact forces

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
4
Q

What are 8 examples of contact forces?

A
  • Drag (Friction, air + water resistance)
  • Tension
  • Compression
  • Upthrust
  • Torsion
  • Thrust
  • Lift
  • Normal Contact Force
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
5
Q

What are 3 examples of non-contact forces?

A
  • Weight (Gravitional pull)
  • Electrostatic push/pull
  • Magnetic push/pull
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
6
Q

What are the 4 fundamental forces?

A
  • Gravitational Force
  • Electromagnetic/electrostatic force
  • Weak Nuclear Force
  • Strong Nuclear Force
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
7
Q

What does the gravitational force act upon?

A

Anything with mass

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
8
Q

What does electrostatic/electromagnetic force act upon?

A

Anything with charge

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
9
Q

What is a scalar force?

A

A force which has magnitude only

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
10
Q

What is a vector force?

A

A force which has magnitude and a direction

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
11
Q

What is common between all forces?

A
  • They are a push or a pull
  • They are measured in Newtons
  • They are vectors
  • They always act in pairs
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
12
Q

What can a force do to an object?

A
  • Change the motion of the object
  • Change the direction of the object
  • Change the shape of the object
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
13
Q

What is Newton’s third law of motion?

A

For every action there is an equal and opposite reaction

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
14
Q

What happens if the result force acting on an object is 0?

A

The forces are balanced, therefore the object will continue in uniform motion, if it is at rest it will remain at rest and if it is in motioin in will move at a constant velocity

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
15
Q

What happens if the result force acting on an object is not 0?

A

The forces are unbalanced, therefore the object will start moving, accelerate, or decelerate

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
16
Q

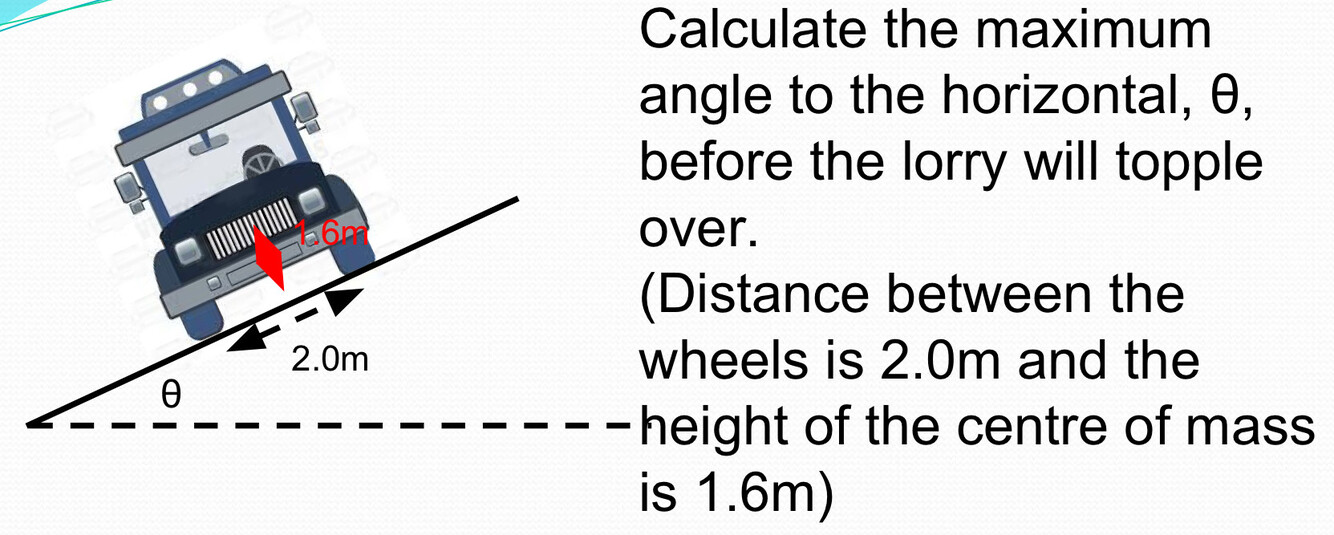

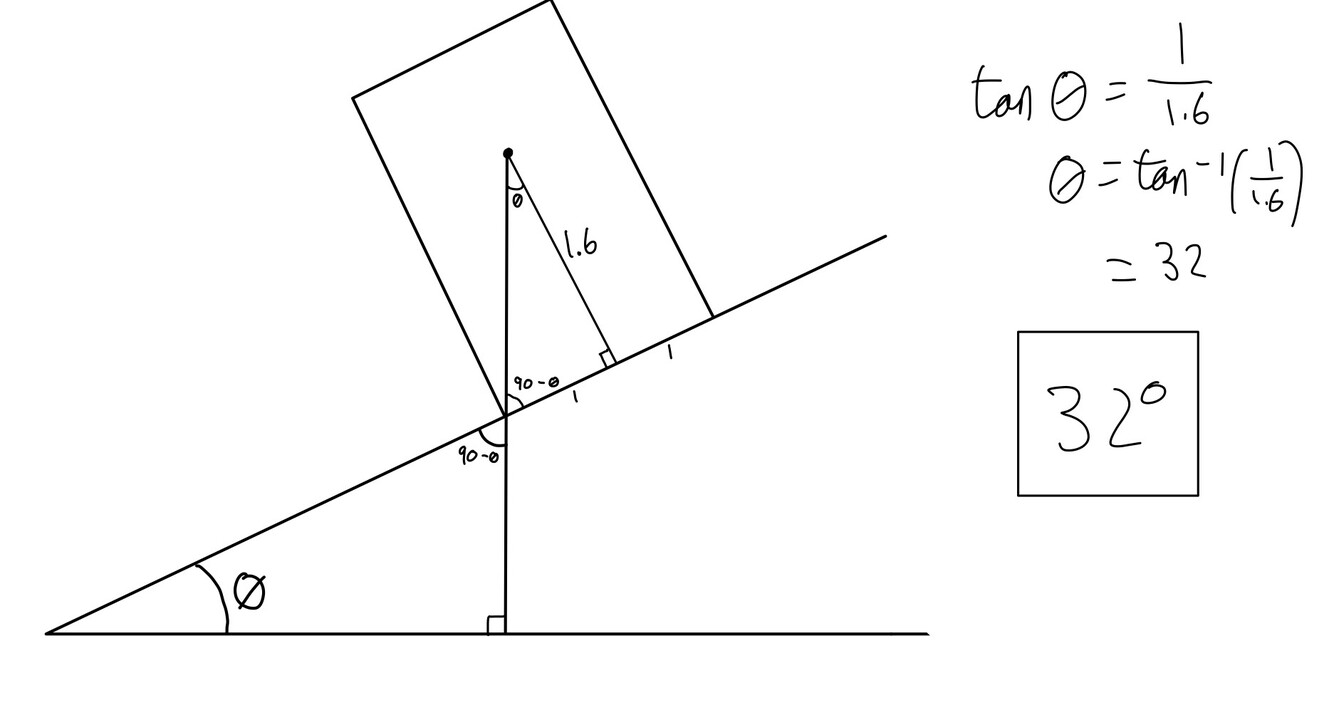

What is θ

NOT CONFIRMED

A

32*

NOT CONFIRMED

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
17
Q

What is a moment?

A

The turning effect of a force which acts around a pivot

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
18
Q

What is the equation for a moment?

A

Moment = Force x Perpendicular Distance to the line of action of the force

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
19
Q

What are the units for Moment?

A

Nm

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
20
Q

What is the principle of moments?

A

If a body is in equilibrium, the sum of the clockwise moments is equal to the sum of the anti-clockwise moments

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
21
Q

A 200N 3m long plank hangs over the edge of a cliff by 1m. How far can a man of 800N walk on the plank over the edge of the cliff before the plank tips over?

A

0.125m

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
22
Q

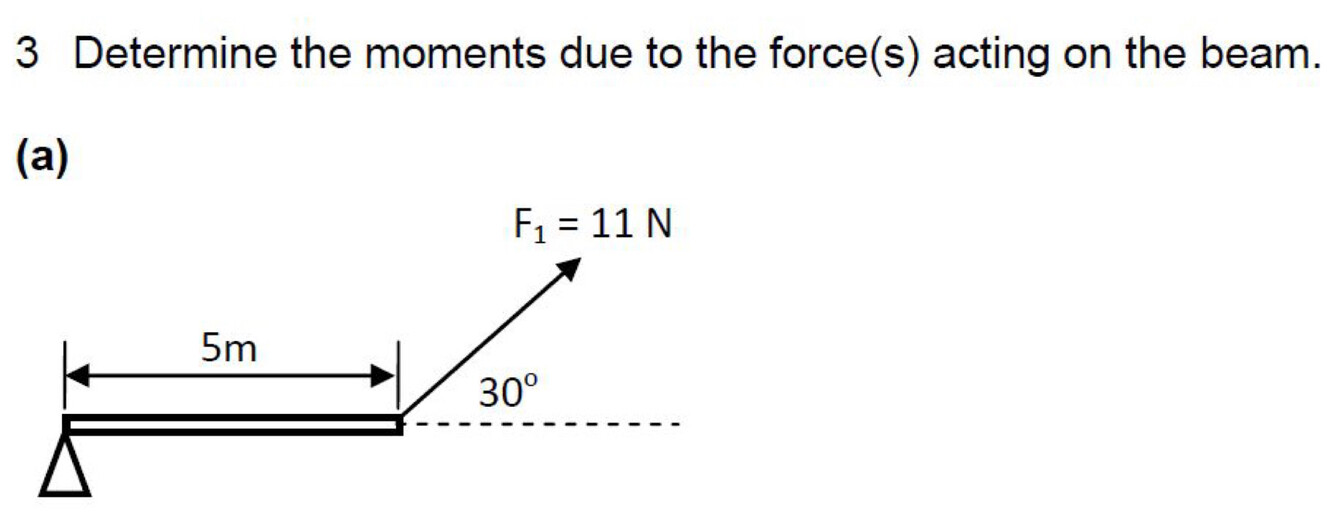

Calculate the moment

A

27.5Nm anticlockwise

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
23
Q

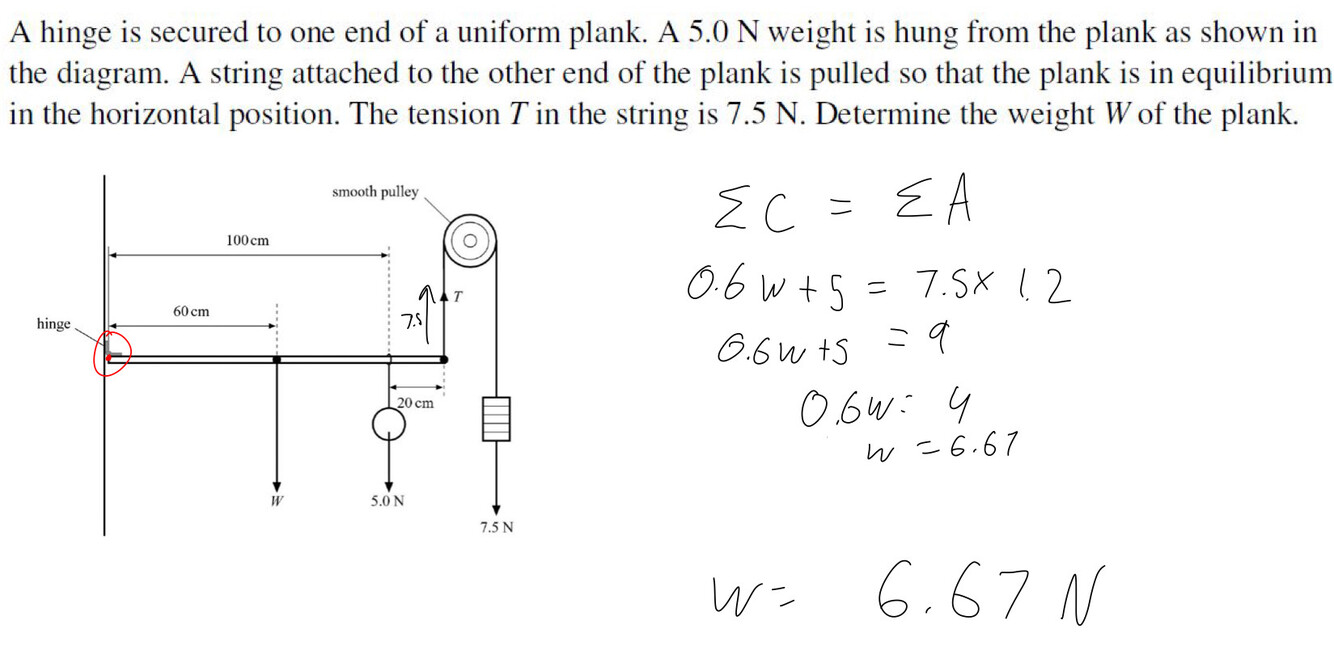

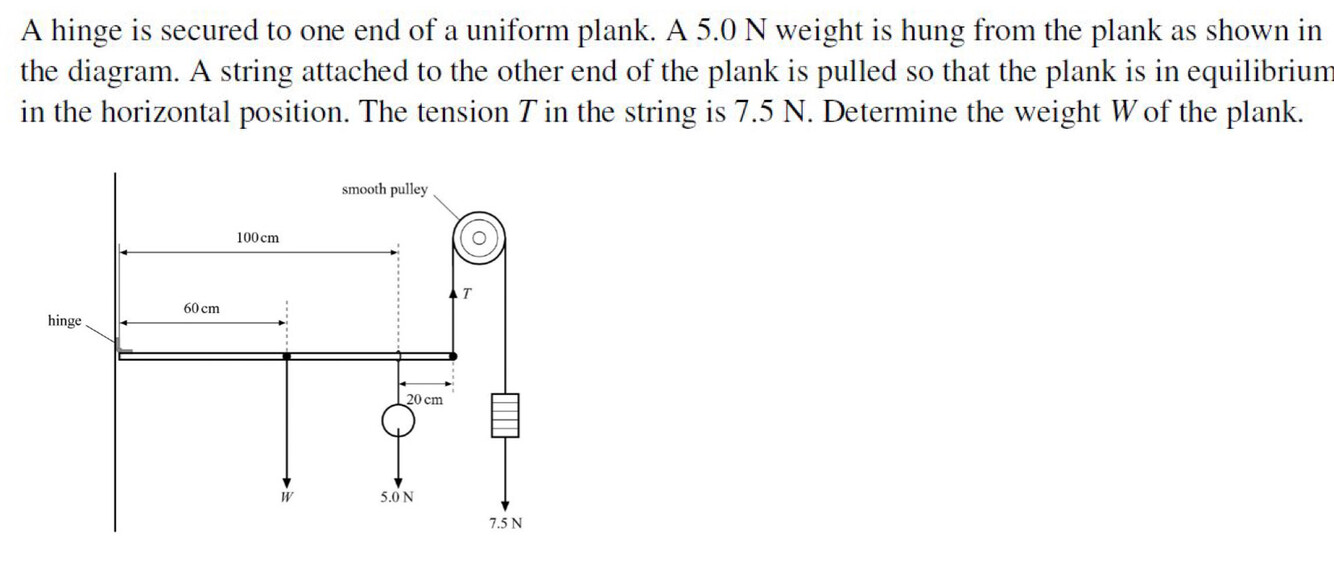

Calculate W

A

6.67N

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
24
Q

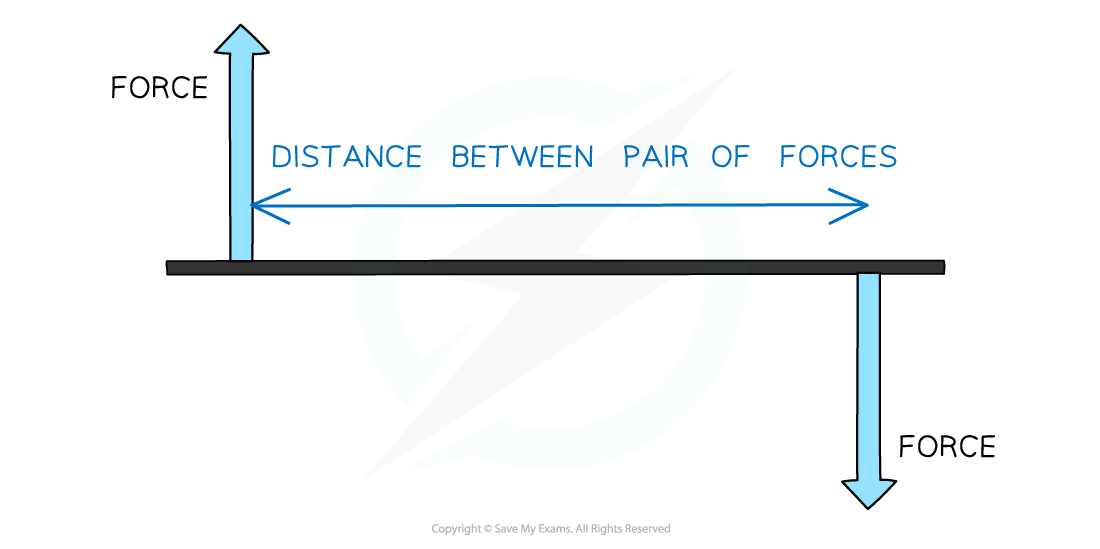

What is a couple?

A

2 equal and opposite forces (parallel forces) acting upon a body but on different lines of action

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
25
What is stable equilibrium?
If a body is displaced from the equilibrium position then released, it will return to the equilibrium position
26
What is unstable equilibrium?
If a body is displaced from the equilibrium position then released, it will not return to the equilibrium position
27
What is neutral equilibrium?
A system is in neutral equilibrium if its equilibrium is independent of displacements from its original position
28
What are the 3 types of stability equilibrium?
Stable, Usntable, Neutral
29
What does stability depend on?
* Width of base * Height of centre of mass
30
What causes an object to topple?
If the line of action of the object's weight does not pass through the base of the object then the object will topple
31
What is triangle of forces used for?
To consider 3 forces acting in equilibrium
32
What is the centre of gravity of an object?
Weight is caused by the attraction of every atom inside an object to another body. The sum of all these forces appear to act from a single point for any object, this is the centre of gravity
33
What is the centre of mass of an object?
The point at which a single force on a body has no turning effect (the point in an object where the mass can be throught as being concentrated)
34
How do you find the centre of mass in a symmetrical object?
divide the object by the lines of symmetry
35
How do you find the centre of mass in an irregular object?
**A freely suspended object will always come to rest with its centre of gravity vertically below the point of suspension:** 1. Make a hole in the material and hang from a clamp and stand 2. Hang a piece of string from it with a weight (plumb-bob) on the end so you can trace the plumb line 3. Make another hole in a different place and do the same thing 4. Where they cross is the centre of mass of the object
36
If an object is suspended from 2 different strings, how can you calculate the tension in each string?
1. Sketch the triangle of forces 2. Calculate the tension in each string using trigonometry
37
An object in equilibrium is being acted on by 3 different forces, if you know 2 forces, how can you find the third?
Arrange the 3 vector forces into a triangle and use trigonometry
38
What is important when drawing a triangle of forces?
* The forces must be joined head to tail, you must be able to follow the traingle round in 1 direction * They must be in the direction shown in the original diagram * Include all angles
39
draw the triangle of forces
.
40
What is the equation for the vertical component of each tension when an object is suspended from 2 cables?
Tv₁ = T₁Cos(θ₁) Tv₂ = T₂Cos(θ₂) Tv₁ + Tv₂ = Weight
41
What is the equation for the horizontal component of each tension when an object is suspended from 2 cables?
Tₕ₁ = Tₕ₂
42
43
44
45
46
What is density?
The mass per unit volume
47
What is the equation for density?
Density = mass / volume ρ = m / v
48
What are the units for density?
kg m⁻³
49
What is the density of water?
1000 kg m⁻³
50
What is archimedes' principle?
The upthrust on an object in a fluid is equal to the weight of the fluid displaced Upthrust = weight of fluid displaced
51
What is the equation for upthrust?
Upthrust = Vρg V = volume of the fluid displaced, ρ = density of fluid displaced
52
When will an object float?
If the density of the object is less than that of the fluid, it will float
53
What properties affect upthrust?
* Volume of fluid displaced * Density of fluid * Gravitational field strength
54
What is the equation for pressure in a fluid?
Pressure = height x density x gravitational field strength P=hρg
55
What is a barometer?
A device that can be used to measure atmospheric pressure depending on the changing height of a column of fluid
56
What is a manometer?
A U-shaped device that can be used to measure the pressure **difference** between 2 pressures of interest
57
What is newtons second law of motion?
F = ma A net (resultant) force acting upon an object will cause it to accelerate
58
What is weight?
The gravitational force acting on an object through its centre of mass
59
What is friction?
The force that arises when 2 objects in contact move past each other
60
What is drag?
The resistive force on an object travelling through a fluid
61
What is tension?
The force within a stretched cable or rope
62
What is upthrust?
An upward buoyancy force acting on an object partially or completely submerged in a fluid
63
What is normal contact force?
A force arising when one object rests against another object
64
What factors affect the magnitude of a drag force?
* **Speed** * **Cross sectional area** * density of fluid | drag ∝ speed²
65
What is the equation for the acceleration of an object in freefall?
a = (mg - D)/m acceleration = net force / mass | D = drag
66
What is the purpose of a couple?
To produce rotational motion with no translational motion
67
What is torque?
The moment of a couple (a force that causes rotation)
68
What is the equation for torque of a couple?
Torque of a couple = one of the forces x perpendicular separation between the 2 forces
69
What is a fluid?
A substance that can flow
70
What causes upthrust?
The difference in pressure between the top surface and bottom surface of an object
71
How can you determine what fraction of an object will be submerged in a liquid?
**Volume submerged / Total volume = density of object / density of fluid**
72
According to a student, Weight = Normal contact force, is a result of Newton's third law of motion. Explain whether they are correct
The student is **incorrect** as weight and normal contact force are not the same type of force. Therefore they cannot be a product of Newton's third law as they are of different types
