Module 9 Physically Connecting Network Devices

Question 1

What two types of copper cable are you most likely to see in networking?

Answer 1

Cooper cable and twisted pair cables

Question 2

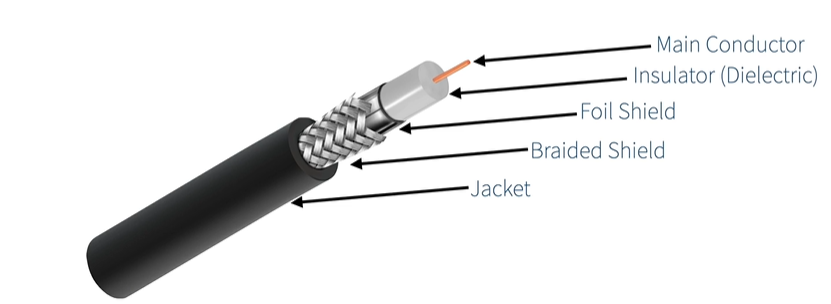

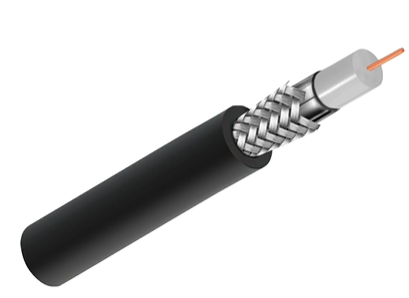

Coax cables are designed to protect against?

Answer 2

electromagnetic interference(EMI)

Question 3

Describe electromagnetic interference (EMI)

Answer 3

EMI is caused by radio waves being picked up from another cable carrying a signal, resulting in signal degradation.

Question 4

Explain Impedance

Question 5

What can a twitsted pair of copper cables help reduce?

Answer 5

electromagnetic interference(EMI)

Question 6

Answer 6

Question 7

What does unshielded mean in Twisted pair cabling?

Answer 7

UTP means that no additional foil is added for EMI shielding

Question 8

Describe STP Shielded Twisted Pair cabling

Answer 8

Has a foil surrounding the twisted copper cable for added protection from EMI.

More Expensive

Supports higher data transmition

Question 10

What are some plenum areas?

Answer 10

Are areas with raised floor or drop ceiling that are often used by HVAC systems for air flow.

Question 11

How many conductors/pins does a RJ 45 have?

Answer 11

8 pins/conductors

Question 12

How many conductors/pins does RJ11 have?

Answer 12

6 pins/conductors

Question 13

How many pins are used for Fax/telephone from an RJ11?

Answer 13

2 out of the 6 pins are used.

Question 14

Describe the pin and color layout for T568A standard

Question 15

Describe the pin and color layout for T568B standard

Question 16

Describe the Ethernet standards for CAT 3 cables.

Answer 16

10BASE-T
100M

Question 17

Describe the Ethernet standards for CAT 5 cables.

Answer 17

100BASE-TX
100M

Question 18

Describe the Ethernet standards for CAT 5E cables.

Answer 18

1000BAST-TX
100M

Question 19

Describe the Ethernet standards for CAT 6 cables.

Answer 19

1000BASE T
100M
55M FOR 10BASE-T

Question 20

Describe the Ethernet standards for CAT 6A cables.

Answer 20

1000BASE-T
5GBASE-T
10GBASE-T
100M

Question 21

Describe the Ethernet standards for CAT 7 cables.

Answer 21

1000BASE-T, 5GBASE-T, 10GBASE-T, AND POT
100M

Question 22

Describe the Ethernet standards for CAT 8 cables.

Answer 22

25GBASE-T AND 40GBASE-T
30M-36M
INTENDED FOR DATA CENTERS

Question 23

Describe AUTO MDI-X.

Answer 23

A feature on the switch that allows it to determine which pins are transmitting and receiving.

Question 24

Describe crossover cables.

Question 25

Describe straight-through cables.

Question 26

True or false, Is fiber immune to EMI?

Answer 26

True

Question 27

Is Multimode fiber better for long distances? And Why?

Answer 27

Mutimode is better for short distances due to the wider core. Which allows more to reflect through over longer distances

Question 28

Does single-mode fiber suffer from delay distortion?

Answer 28

No, single-mode fiber only uses one mode of light due to the small core.

Question 29

Pictures of fiber connectors

Answer 29

ST LC SC MT-RJ

Question 30

What type of fiber uses the Ethernet standard 100BASE-FX?

Answer 30

MMF 100MBPS 2 KM DISTANCE

Question 31

What type of fiber uses the Ethernet standard 100BASE-SX?

Answer 31

MMF 100MBPS 300M DISTANCE

Question 32

What type of fiber uses the Ethernet standard 1000BASE-SX?

Answer 32

MMF 1 GB 220M DISTANCE

Question 33

What type of fiber uses the Ethernet standard 1000BASE-LX?

Answer 33

MMF/SMF 1 GB 550M

Question 34

What type of fiber uses the Ethernet standard 10GBASE-SR?

Answer 34

MMF 10GB 33M

Question 35

What type of fiber uses the Ethernet standard 10GBASE-LR?

Answer 35

SMF 10 GB 10KM
