Components of the PNS
Spinal Nerve System
Segmental Dorsi Rami
Some have names, some don’t
Subocciptal Nerve (C1)
Greater Occipital Nerve (C2)
Third Occipital Nerve (C3)
C4 – T12 Dorsal Rami
L1-L3 Superior Cluneal Nerves
L4, L5 Dorsal Rami
S1-S3 Middle Cluneal Nerves
S4 – Cx2 Dorsal Rami
- primarily innervate posterior skin and deep spine muscles, and facet joints
C1- intervation may present as: Cranial facial pain, headaches
How to identify type of vertebrae

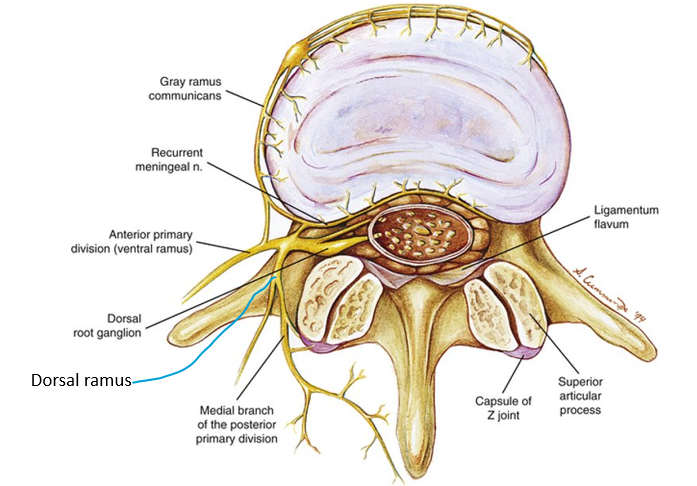

Dorsal: Nerve goes to facet joint and muscle (multifidus) in image
Cervical Plexus
Specific twigs that send little twigs out to muscles
Ansa Cervicalis: thyroid muscles
Brachial Plexus
C5-T1
RTDCB - MARMU
Splits into 3 anterior and 3 posterior division
Anterior Dividion of BP will innervate
Developmentally Ventral Structures
Posterior Division of BP will innervate
Developmentally Dorsal Structures
The three cords are names based off position to Axillary A.
The Divisions Join to form Three Cords – named for relation to axillary artery – lateral, posterior, medial
Lateral Cord
From Anterior Divisions (to ventral structures, mostly flexors!)
Lateral Pectoral Nerve (C5-C8)
Musculocutaneous Nerve (C5-C7)
Lateral Root to the Median Nerve (C6 & C7)
Median Nerve C6-T1
Medial Cord
From Anterior Divisions (also to ventral structures, mostly flexors)
Medial Pectoral Nerve (C7 – T1)
Medial Brachial Cutaneous Nerve (C8 & T1)
Medial Antebrachial Cutaneous Nerve (C8 & T1)
Medial Root to the Median Nerve (C8 & T1)
Ulnar Nerve (C8 & T1)
Median Nerve C6-T1
Posterior Cord
From Posterior Divisions (to dorsal structures, mostly extensors)
Upper Subscapular Nerve (C5 & C6)
Thoracodorsal Nerve (C6, C7 & C8)
Lower Subscapular Nerve (C5 & C6)
Axillary Nerve (C5 & C6)
Radial Nerve (C5, C6, C7 & C8)
Injuries above the plexus
Dermatome/Myotome Charts
Injuries below, use
peripheral distribution charts
Injury occuring in the middle of the plexus present as
random; individual situation
Upper Arm Compartmentalization - Anterior Arm
Flexes Shoulder and Elbow
Anterior Divisions
Musculocutaneous Nerve
C5, C6, C7
Upper Arm Compartmentalization - Posterior Arm
Extends Elbow
Posterior Divisions
Radial Nerve
C7 & C8
UA Compart - Anterior Forearm
Flexes Wrist and Fingers
Anterior Divisions
Median Nerve (Mostly)
C6, C7 & C8
UA Compart - Posterior Forearm
Extends Wrist and Fingers
Posterior Divisions
Posterior Interosseous Nerve (Mostly)
C7 & C8
UL Compart - Intrinsic Hand
Abducts/Adducts Fingers
Anterior Divisions
Ulnar Nerve (Mostly)
C8 & T1
Lumbar Plexus
T12-L5
LFC: Commonly gets compressed with pregnancy, obesity, and tight clothes
Sacral Plexus

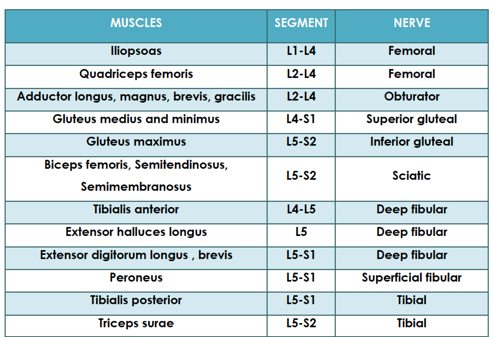

Muscles and Nerve Innervation - Lumbosacral
Developmental in the LE has rotation so…
what started out as dorsal is now anterior…i.e. the posterior divisions of the plexus innervate anterior compartments
