Rectification 10-1

Question 1

What is rectification?

Answer 1

The process of converting AC into DC.

DC is essential for devices with computers, as almost everything today uses DC.

Question 2

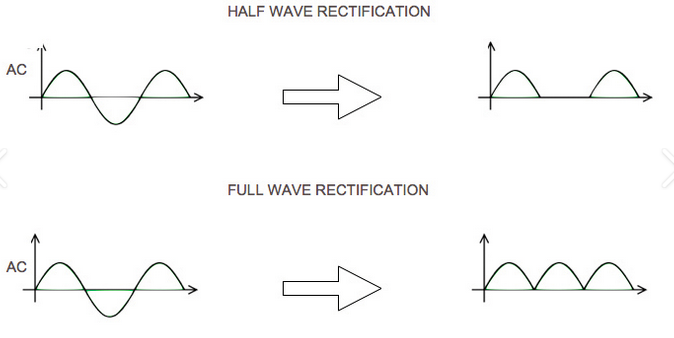

What are the two types of rectifiers discussed?

Answer 2

Half-wave rectifier and full-wave rectifier.

Full-wave rectifiers utilize two copies of the source.

Question 3

Define topology in the context of circuits.

Answer 3

The layout of the circuit, focusing on how components are connected.

It does not refer to the physical layout on a circuit board.

Question 4

What is a voltage divider?

Answer 4

A simple circuit topology consisting of a voltage source and two resistors.

It demonstrates how voltage is divided among components.

Question 5

List some types of amplifiers associated with op-amps.

Answer 5

• Non-inverting amplifiers
• Inverting amplifiers
• Integrating amplifiers
• Differentiating amplifiers
• Summing amplifiers

Question 6

What is the significance of the specifications in rectifier design?

Answer 6

To convert AC voltage to a specified DC voltage with allowable ripple.

This is a standard question for tests and ABET assessments.

Question 7

What does a half-wave rectifier do?

Answer 7

It allows current to pass only during the positive half of the AC cycle.

It results in a DC output with some ripple.

Question 8

What is V_gamma in diode circuits?

Answer 8

The cut-in voltage required for the diode to conduct, typically around 0.7 volts.

This is necessary for the diode to turn on.

Question 9

Fill in the blank: The output voltage (V_out) of a diode is equal to V_sub_S minus _______.

Answer 9

V_gamma

Question 10

True or False: An ideal diode conducts as soon as the input voltage reaches zero.

Answer 10

False

Question 11

What happens when the input voltage reaches V_gamma?

Answer 11

The diode starts conducting current.

This occurs after the input voltage surpasses the threshold.

Question 12

How does the conduction time of a diode compare to that of an ideal diode?

Answer 12

The conduction time is less than 50% of the period due to the forward voltage drop.

An ideal diode would conduct for exactly 50% of the period.

Question 13

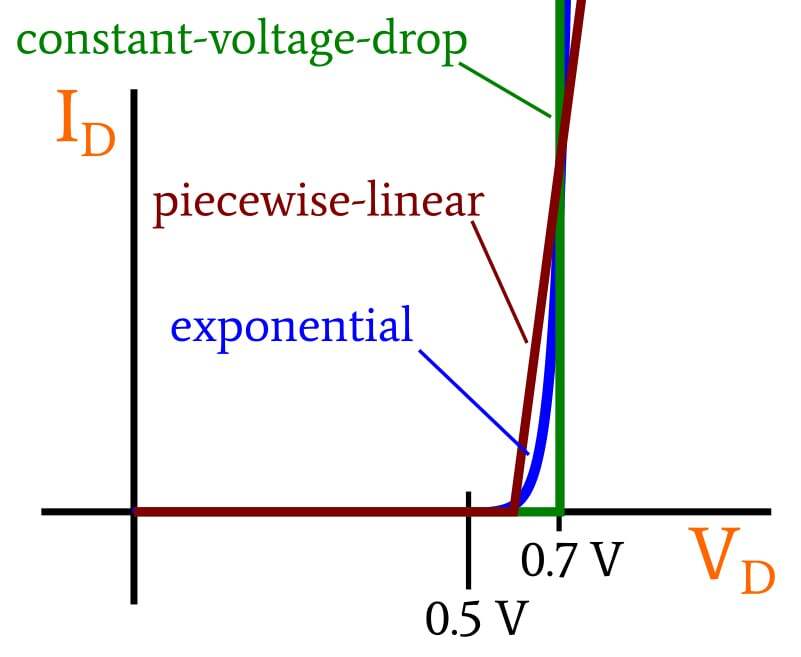

What are the four models of diodes discussed?

Answer 13

• Exact model
• Piecewise linear model
• Constant voltage drop model
• Ideal model

Question 14

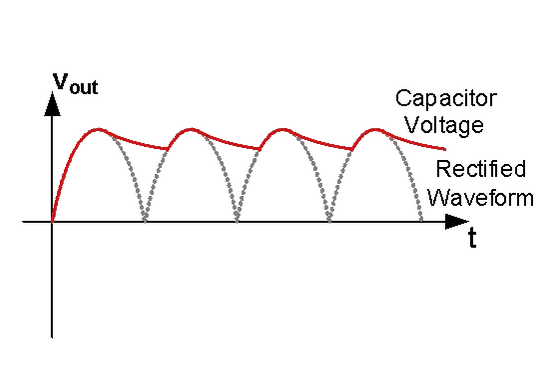

What is the role of a capacitor in a rectifier circuit?

Answer 14

To smooth the output voltage.

This helps reduce ripple in the DC output.

Question 15

Describe the characteristics of a piecewise linear diode model.

Answer 15

It approximates the diode’s behavior using two straight lines.

This model is simpler than the exact model.
