TD 53

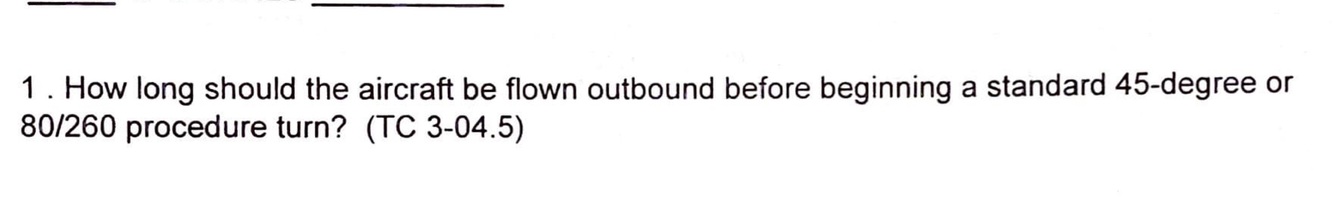

Question 1

Answer 1

2 min

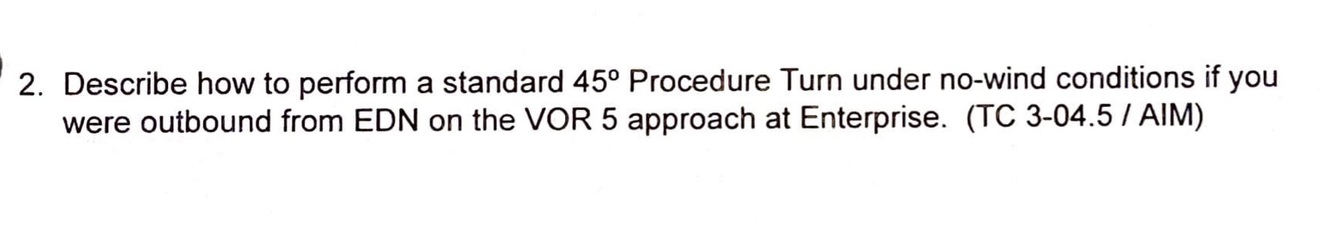

Question 2

Answer 2

1. 2min after passing BVG NDB on 356 turn left 45 deg
2. After roll out fly 1 min
3. Turn right 180 deg, then fly straight 45 s
4. Turn right 45 deg

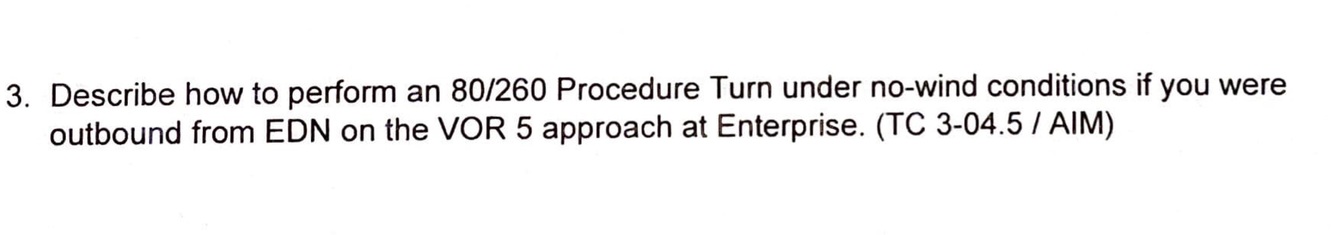

Question 3

Answer 3

1. 2 min after passing BVG NDB on 356 turn left 80 deg
2. Then turn right 260 deg

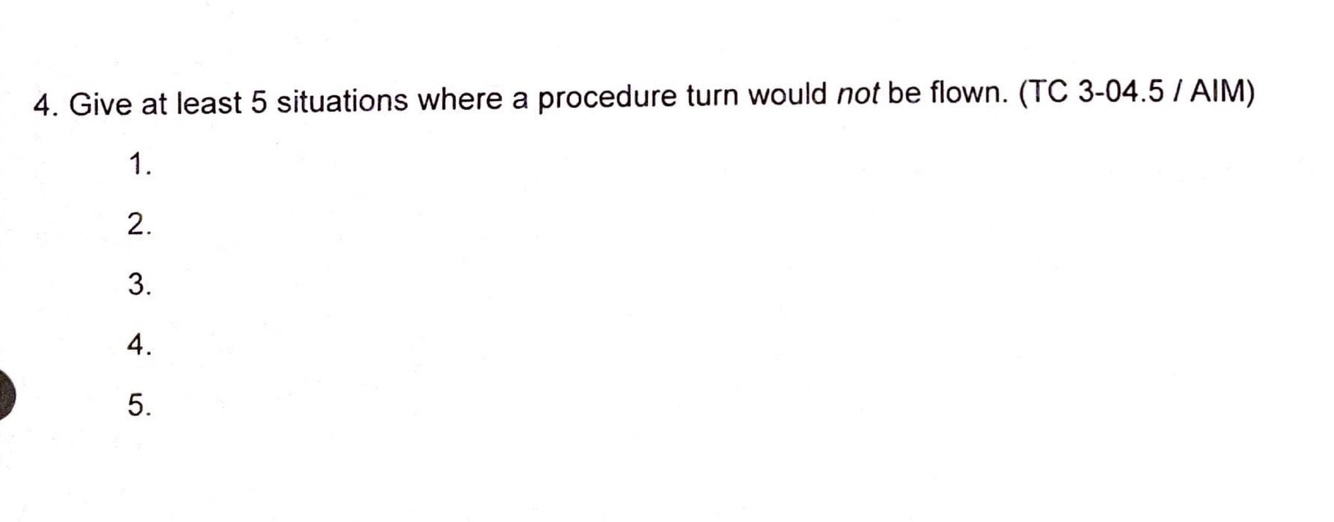

Question 4

Answer 4

1. Absence of barbed arrow
2. ‚No PT’ specified
3. Holding in lieu of procedure turn
4. Approach can be made directly???
5. Radar initial approach

(See full list TC 3-04.5 p. 10-31 § 10-148)

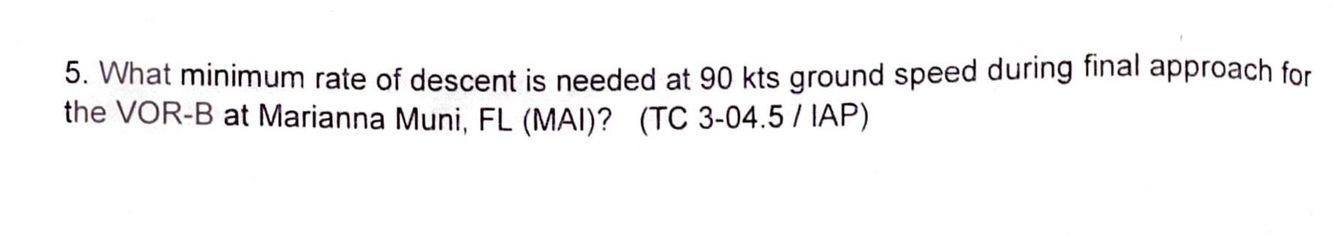

Question 5

Answer 5

Time to RWY @ 90 kts: 2:40 min
Descent from FAF (1800’) to MDA (620’): 1180’
1180’/2:40min = 443 FPM
