Test 3 A&P Labeling - Cher

Question 1

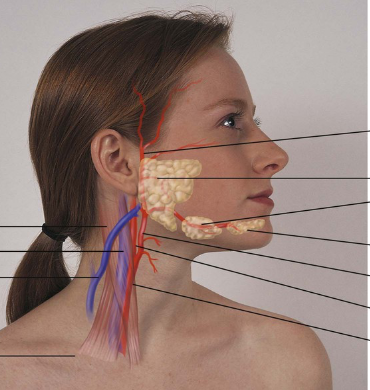

Label her right Side top to bottom:

1. ____________ muscle
2. _______ _______ vein
3. ______ _______ vein
4. What bone is this? _______

Answer 1

1. Sternomastoid
2. Internal Jugular Vein
3. External Jugular Vein
4. Clavicle

Question 2

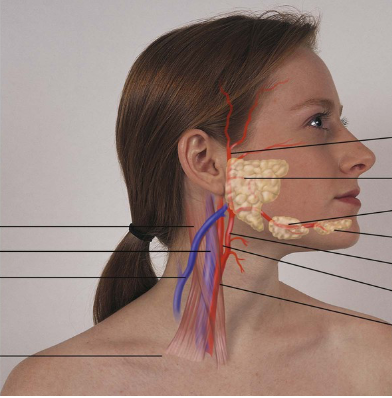

Label her left side top to bottom:

1. __________ artery
2. ___________ gland
3. ______________ gland
4. ______________ gland
5. _______ ________ artery
6. _______ _______ artery
7. _______ ________ artery

Answer 2

1. Temporal artery
2. Parotid Gland
3. Submandibular gland
4. Sublingual gland
5. External Carotid Artery
6. Internal carotid artery
7. Common Carotid Artery

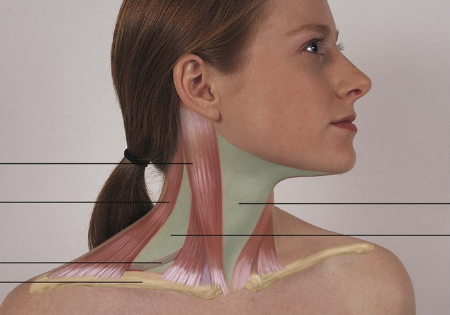

Question 3

Label Top to bottom on her right:

1. ____________ muscle
2. ____________ muscle
3. ___________ muscle
4. ____________ bone

Label top to bottom on her right:

1. ____________ ________
2. _________ __________

Answer 3

1. Sternomastoid.
2. Trapezius muscle
3. Omohyod Muscle
4. Clavicle Bone
5. Anterior Triangle
6. Posterior Traingle

Question 4

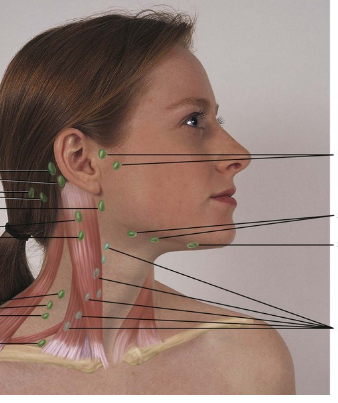

Label the lymph nodes on her right from top to bottom (many have multiple arrows to represent one node name).

1.

2.

3.

4.

5.

6.

Answer 4

1. Posterior auricular
2. Occipital
3. Jugulogastric
4. Superficial cervical
5. Posterior cervical
6. supraclavicular

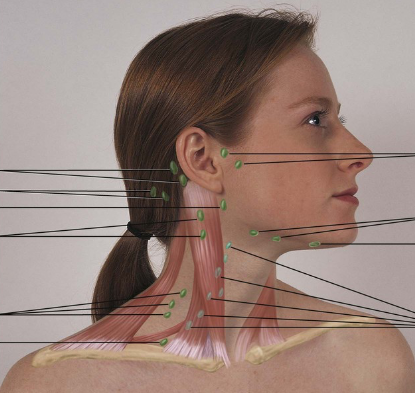

Question 5

Label the lymph nodes on the right side (the side she is facing)

from top to bottom

(many have multiple arrows to represent one node name).

1.

2.

3.

4.

Answer 5

1. Preauricular
2. Submandibular
3. Submental
4. Deep cervical chain

Question 6

What are these two conditions called?

Left?

Right?

Answer 6

Hydrocephalus

Acromegaly

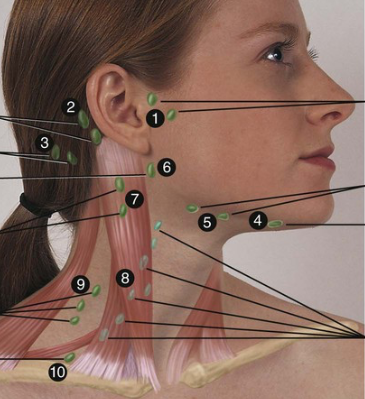

Question 7

Label these nodes 1-10

Answer 7

1. preauriculur
2. Posterior auricular
3. Occipital
4. Submental
5. Submandibular
6. jugulodigastric
7. superficial cervical
8. Deep cervical chain
9. Posterior Cervical
10. supraclavicular

Question 8

What nodes are being palpated here?

Answer 8

Supraclavicular

Question 9

This node is sometimes coined “the seat of the devil”

given its ominous association with malignant disease

Answer 9

Virchow’s node

Question 10

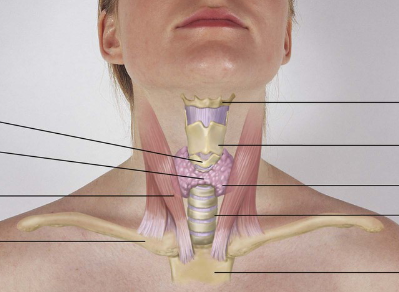

Label the parts on the right from top to bottom:

1.

2.

3.

4.

Answer 10

1. Cricoid cartilage
2. Isthmus of thyroid
3. sternomastoid muscle
4. Clavicle

Question 11

Label the parts on the left from top to bottom:

1.

2.

3.

4.

5.

Answer 11

1. Hyoid
2. Thyroid cartilage
3. Thyroid gland
4. Trachea
5. Manubrium

Question 12

What do you call this facial problem?

Answer 12

Bells palsy

Question 13

Question 14

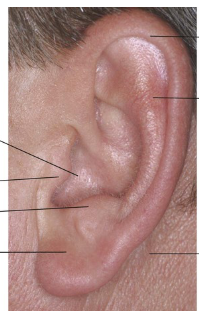

Label the parts top to bottom:

Reader’s left:

1.

2.

3.

4.

Right side

1.

2.

3.

Answer 14

Your left:

1. External Auditory Meatus
2. Tragus
3. Antitragus
4. Lobule

Your right:

1. Helix
2. Antihelix
3. Location of mastoid process

Question 15

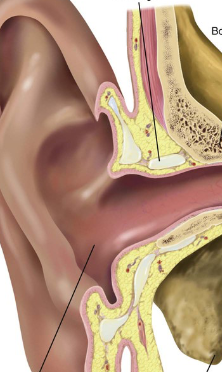

Label the ear:

1. Top:
2. Arrow on left:
3. Arrow on right:

Answer 15

1. Top: Cartilage
2. Arrow on left: External Auditory Canal
3. Arrow on right: Mastoid Procedd

Question 16

Label the parts of the middle ear:

1. Left arrow bony part: Bone: _____
2. Next arrow to right of bony part:_____
3. Next arrow to right: ______
4. Stirrup shaped part: ______
5. Arrow pointing at pink tube: ________
6. Arrow pointing at pink swirl: _______
7. Bottom arrow pointing at pink coccoon looking sac: _____
8. Arrow pointing at tiny light pink dot:________

Answer 16

1. Left arrow bony part: Bone - skull
2. Next arrow to right of bony part: Malleus
3. Next arrow to right: Incus
4. Stirrup shaped part: stapes
5. Arrow pointing at pink tube: Vestibule
6. Arrow pointing at pink swirl: cochlea
7. Bottom arrow pointing at pink coccoon looking sac: tympanic membrane
8. Arrow pointing at tiny light pink dot:
