1
Q
TS1-1.2 Unless otherwise shown in the Signal Box Special Instructions, you must record the following times in the Train Register, legibly in pen:
A
On absolute block and electric token block lines
* The time at which all bell signals are sent and received
* The time at which trains arrive, or depart from the signal box.
On track circuit block and ERTMS lines
* The time at which all train descriptions are sent and received.
* The time at which trains arrive, depart or pass the signal box.
2
Q
TS1-1.3 When going off duty, you must:
A
- Tell the signaller taking over what trains are in the section, whether the equipment is in order, and any other necessary information.
- Sign the Train Register with the words ‘off duty at…………..hours’ immediately below the last entry.
3
Q

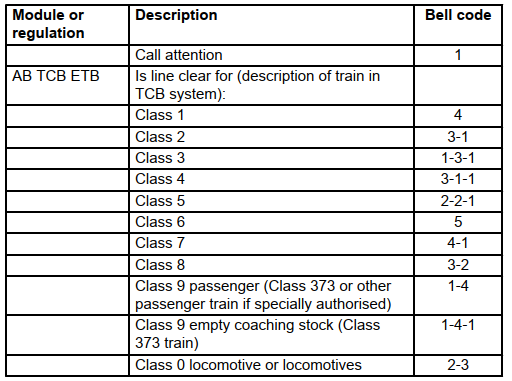

Bell Signals - Train Classes
A
4
Q

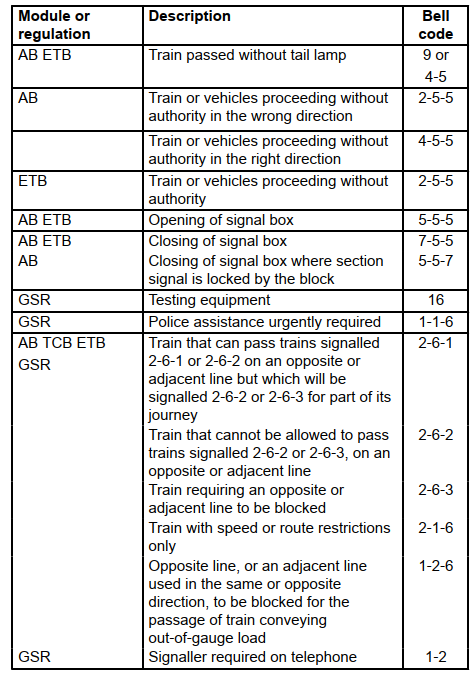

Bell Signals (Sheet 2)
A
5
Q

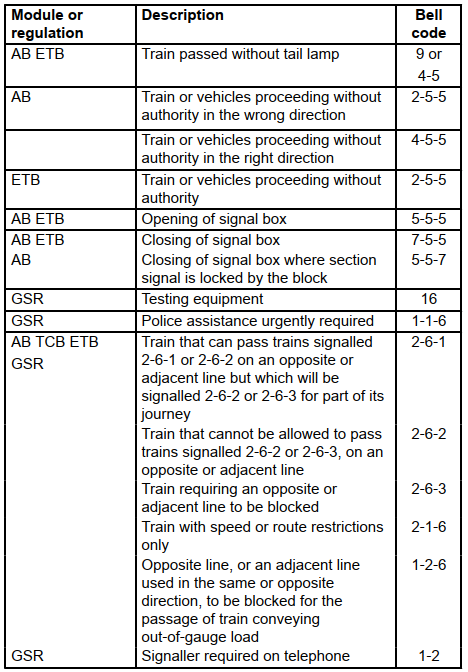

Bell Signals (Sheet 3)
A
6
Q
TS1-2.2. When do you not need call attention (1)
A
TTTROPES (Titty Ropes)
- Train entering section (2)
- Train or vehicles proceeding without authority in the right direction (4-5-5)
- Train or vehicles proceeding without authority in the wrong direction (2-5-5)
- Restricted acceptance (3-5-5)
- Obstruction danger (6)
- Police assistance urgently required (1-1-6)
- Emergency alarm (6) (TCB)
- Signaller required on telephone (1-2)
7
Q
TS-3.5.1 You must use a reminder appliance on the most appropriate lever to prevent the operation of:
A
CLTS
- CAUTION The signal or RSP protecting a route over which trains can pass only after the driver has been told to proceed at caution in connection with an incident, failure or unusual occurrence
- LEVEL CROSSING Any signal, RSP or level crossing equipment that is disconnected or defective
- TRACK CIRCUITS The signal or RSP protecting a train or vehicles detained or left on a running line where track circuits are not provided.
- STOPPED The signal or route setting position (RSP) protecting a route over which the normal passage of trains (or certain trains) is stopped
8
Q
TS1-3.5.2 You must use a reminder appliance on an override switch which, if operated to the override position, would:
A
- Clear a signal on which you have already placed a reminder appliance
- Clear a junction signal leading towards a line on which the normal passage of trains is stopped
9
Q
TS1-3.5.3 You must use a reminder appliance when signalling equipment or equipment at a controlled level crossing that:
A
- must not be worked, or
- is to be kept in a particular position as shown in the rules, regulations and instructions.
10
Q
TS1-3.5.4 You must use the block or token instrument reminder when a train or vehicles that:
A
- are detained or left at the home signal
- are detained or left within the clearing point
- have been left in the block or token section.
- To protect engineering work.
11
Q
TS1-3.7.1If a sealed release is provided, you must only use it if:
A
- a lever working points or a facing point lock is locked by a failure of a track circuit
- controlled level-crossing barriers are locked down by failure of a track circuit or by the occupation of a track circuit by a failed train and you have the driver’s confirmation that the train will not be moved without your authority.
12
Q
TS1-3.7.1 Before using a sealed release, you must make sure each time:
A
- that it is safe to do so
- that the portion of line is clear and no movement is about to be made over it.
13
Q
TS1-3.7.1Before operating a release to raise level-crossing barriers, you must also make sure that:
A
- the protecting signals are at danger and their controls are in the normal position
- the auto raise switch (if provided) is in the ‘manual’ position.
14
Q
If you have used a sealed release, you must:
A
Tell Operations Control and make an entry in the Train Register.
.
15
Q
Before you use a manual time release:
A
you must make sure that the line concerned is clear.
16
Q
TS1-3.7.2 You must only use a manual time release if one of the following applies.
A
- You have to change the ** route **after the junction signal has been cleared.
- You cannot restore a signal lever after the passage of a train because a track circuit or treadle has failed where backlocking is provided.
- You have to place the block indicator to line clear again after it has been placed in that position in connection with:
- testing block instruments
- testing a signal released by line clear
- closing a signal box where the section signal is released by line clear
- a train being cancelled after being accepted
- a shunting movement having been completed.
17
Q
TS1-4.3 When must you replace a stop signal to danger during normal mode of working:
A
- as soon as the last vehicle of the train has passed the signal, or
- at facing points, as soon as the last vehicle is clear of the points.
18
Q
TS1-4.4.1In an emergency, if you have replaced any signal to danger, or closed a route, you must make sure that the driver is aware that you have done so before you:
A
- permit any obstruction of the route to which the signal
- move any points in that route.
19
Q
.TS1-4.4.2 Except in an emergency.
If you have cleared a signal for a train to proceed, you must not:
A
replace it to danger if this will cause the driver to see an irregular sequence of aspects or indications.
20
Q
TS1-4.4.2 Except in an emergency.
If you have cleared a signal for a train to start, you must not:
A
Do not replace it to danger before the train starts until you have made sure that the driver is aware that you are going to do so, or you have made sure the train does not have a driver.
21
Q
TS1-4.2.2 Except in an emergency.
If a train stops at a signal that you had cleared for the train to proceed, you must not:
A
Do not replace it to danger until you have made sure that the driver is aware that you are going to do so.
22
Q
TS1-4.5 If you cannot clear a stop signal, you must not do what, and what is the exception to the rule.
.
A
You must not clear any associated signals on the approach to it until the train has stopped or nearly stopped at each signal in turn.
You do not need to apply this instruction if the stop signal on the approach to the stop signal at danger is a colour light that can show a yellow aspect, and:
- is controlled by the occupation of a berth track circuit, or
- requires the line to be clear up to and including the overlap track circuit of the signal at danger
23
Q
TS1-4.6 If you are not sure whether the section signal is at danger, you must not:
A
clear the stop signal on the approach to the section signal unless you have told the driver about the circumstances.
24
Q
TS1-4.9 You must always use the main aspect or indication when there is an associated subsidiary or position-light signal, except when:
A
- shunting
- attaching or detaching
- the line is occupied and permissive working is authorised for that line and the type of train concerned
- it is necessary during single line working or working by pilot
- a failure of equipment means the main aspect or indication cannot be displayed.
25
TS1-5You must not rely on an SPRS to keep a signal at danger unless the person operating the SPRS has confirmed the signal:
* was showing a proceed aspect immediately before the key was operated, and
* has returned to danger when the key was operated.
26
TS1 6.1 When the section signal is locked by the block, or until a token is released, you must send cancelling and when acknowledged, send is line clear again if:
* you have not cleared the section signal before the block indicator has been placed to train on line
* you have placed the section signal to danger after the train has stopped, to allow you to work points on the approach side of the signal for shunting purposes
* you have replaced the section signal to danger before a train has passed it, (either by mistake or in an emergency). In which case, you must not send cancelling until the train has stopped.
27
TS1 6.2. Except as shown in regulation 6.1, if a section signal stays locked when the indicator is at line clear, you must:
* treat the section signal as being correctly locked at danger
* tell the signaller at the next signal box about the circumstances and reach a clear understanding of what is to happen
* stop the train and instruct the driver to pass the signal at danger.
You and the signaller at the next signal box must **be sure about the identity **of the train before the signaller at the next signal box sends train out of section.
You **must not** try to get another line clear until the train has passed through the section and **you have received and acknowledged train
out of section.**
28
TS1 7.1 When to apply the regulations for working during poor visibility:
You must apply the regulations for poor visibility when visibility (determined as near as possible from the driver’s eye level) is** less than 183 metres** (200 yards).
29
TS1 7.3 During poor visibility you must not allow a train to draw forward to a semaphore section signal to wait for acceptance unless:
* the train will stay within your view, or
* a track circuit is provided to remind you of the presence of the train at the signal.
30
TS1 9.2 You can only allow a vehicle carrying passengers to pass over points in the facing direction if:
* the points are locked by a facing-point lock, and also by locking bars or track circuits, or
* the points have been secured for the movement.
31
TS1 10.3 You must not allow a train to enter an occupied portion of line between two signals or block markers worked from the same signal box unless one of the following applies:
* Permissive working is authorised for the type of train concerned.
* A shunting movement is to take place
* A movement is to enter a line that is obstructed by an accident, failure, obstruction or engineering work.
32
TS1 11.1 You must not allow a train carrying passengers to enter a goods line or goods loop unless:
* the arrangements have been published, or
* it is an emergency, as long as you have been authorised to do so by the signal box supervisor or Operations Control.
Unless the arrangements have been published, you must stop each train carrying passengers and tell the driver what is happening before you allow the train on to the goods line or goods loop.
33
Before you allow a train carrying passengers onto a goods line or goods loop that is **not protected by trap points** from a movement from sidings, you must be sure, or get an assurance from the person in charge, that:
* these sidings are clear of vehicles and no movement will approach, or
* all vehicles and traction units on these sidings are properly secured and are clear of the line to be used by the train carrying passengers.
If the driver of any traction unit is present, you must tell the driver, or
be sure that the driver has been told, not to make any further movement until authorised by you.
34
TS1 11.4 (AB) Before you allow a train carrying passengers to enter the goods
loop:
* The loop must be clear throughout and all points beyond the loop exit signal must be correctly set for that train.
* You must keep all points in the correct position until the train has passed clear of those points or has stopped at the signal protecting those points.
* You must not allow another train to enter the loop when it is occupied by the train carrying passengers.
You may only allow a train carrying passengers to enter a goods line not worked by TCB, ERTMS or absolute block if the Signal Box Special Instructions allow this.
35
TS1 12.3 For a train that cannot be relied upon to operate track circuits. When you are waiting for the next signal box to accept the train concerned, you must not:
* You must not allow it to proceed beyond your signal box if it would be out of sight.
* If the section signal is out of sight, you must not allow a following train to approach the section signal until the train that cannot be relied upon to operate track circuits has arrived at the next signal box.
* If necessary, you must ask the signaller at the next signal box to tell you when the train arrives.
36
TS1 12.5. For trains that cannot be relied upon to operate track circuits . Where there is an intermediate block signal you must not:
* you must not clear the section signal for a following train until the train that cannot be relied upon to operate track circuits has arrived at the next signal box.
* If necessary, you must ask the signaller at the next signal box to tell you when the train arrives.
37
TS1 13-. Personnel asking for trains to be stopped (NR3178) :
* personnel need to work on the outside of a train stopped on a running line
* Personnel needing to check that working equipment on an OTM is correctly positioned
* a driver asks you to block a line for their or another member of the traincrew’s personal safety to walk alongside their train
* a designated person (DP) needs to carry out work on the side of a vehicle which is less than 3 metres (approximately 10 feet) from an adjacent running line.
* a DP needs to walk with a group to a train stopped on a running line because of failure or other incident.
* a member of station staff or an infrastructure manager's employee needs to retrieve an item from a platform line by either going onto that line or by using retrieval equipment whilst remaining on the platform.
* If a train or OTM is within a protection zone, the engineering supervisor can ask you to block an adjacent line.
38
TS1 13.1.2 When personnel ask for a 13.1 line blockage you MUST ask:
* Location and time
* How the item is going to be removed
* If station staff are going onto a line the adjacent line must be stopped.
* If the person is not sure which line needs stopped then stop ALL lines
39
TS1 - 13.2 COSS, IWA or PC Requesting a line block. You must agree (NR1380):
TALLPANTS
T-Time to complete
A-Additional protection needed if work is to affect the safety of the line.
L-Location of the work
L- Lines to be blocked/open
P-Protection at signals
A-Arrangements at level crossings
N-Nature of the work
T-Time after which permission can be given for the line blockage to start
S-Single line working arrangements
40
TS1 13.2. Line blockage. If the site of work is less than 200 meters from the protecting signal you must:
Keep the previous signal at danger unless the route can be set for an unaffected line.
41
TS1 13.2 Line blockage. If you have told the COSS, IWA or PC you may allow a previous signal to be passed at danger so that a:
so that a train can reach a:
* station
* siding
* crossover being used for single line working.
42
TS1 13.3 If personnel are to work on or near points, you must find out:
* which points are affected
* the position the points must be kept in
* how long the work will take
* whether the points will be secured or the points machine isolated to prevent any movement of the points that might cause injury.
43
TS1 13.4 When a PICOS asks for possession of sidings you must agree:
* the name and contact number of the PICOS
* the location of the siding or sidings involved
* whether it is the whole length of a siding or just part of it that will be taken under possession
* how line protection will be arranged
* the date and time possession will be taken and when it will be given up
* who will tell the shunter, if involved.
44
TS1 13.4.3 If you have agreed with the PICOS that possession may be taken of
the whole siding, you must:
* where you control the points at the entrance to the siding, make sure those points are set to prevent movements from entering it
* where you do not control points at the entrance to the siding, make sure those points are set by the PICOS to prevent movements from entering it and give the PICOS permission to apply line protection by clipping and padlocking the points.
45
TS1 13.4.4 If PICOS is taking possession of only part of one siding you must:
you must give the PICOS permission to place
line protection on the siding concerned.
A possession limit board (PLB) or red light must be placed so that it may clearly seen by an approaching movement.
If any of the following apply, a sleeper must be placed across therails, or a derailer must be placed.
* The part of the siding under possession has become unsafe forany movements to take place over it.
* The work taking place would make it unsafe for any movement toenter the part of the siding under possession.
* Anyone will be required to work on or near that part of the siding.
You must not allow any movement to enter the siding concerned until you have confirmed with the PICOS that the line protection is in place.
46
TS1 13.7.1 Crossing the line procedure. When can this regulation be used:
You can use this procedure if an IWA or COSS is walking alone, or is with a group that is walking and needs:
* to cross no more than four running lines
* to walk past a structure that restricts clearance from a running line.
You can only use this procedure as long as all of the following apply.
* The location is one that has been approved for the use of the procedure and you have been given details about the location and the conditions for using it.
* The IWA or COSS is competent to use the procedure and you have been given that person's name.
The person making the request must contact you using a mobile phone.
47
TS1 15.1You must not let a train proceed that is out-of-gauge, carrying an exceptional load, or has route restrictions, unless:
unless you have the details of the restrictions that apply to the movement of the train and how it must be signalled.
48
49
TS1 13.7.2 IWA or COSS, crossing the line arrangements:
The person making the request must tell you:
* the location where the line will be crossed, or a structure will be passed by
* their name and employer
* how long it will take to cross the line or pass by the structure.
You must make sure that:
* the location is one that is approved and you have details of
* the person concerned is authorised to carry out the procedure and is named on a list you have.
50
TS1 16.1During a dangerous goods incident what must you prefix the call with and what information needs to be supplied to control:
You must pass the information you have received from the traincrew to Operations Control using the message prefix: ‘This is a rail dangerous goods emergency.’
This information must include:
* the train reporting number, if appropriate
* where and when the incident happened
* the wagon types and numbers, if known
* the position of the wagons on the train or in the siding
* as many details of the incident as possible
* whether any railway personnel or members of the public areinvolved
* the six-character ‘Emergency Code’, made up of four numbers followed by two letters.
51
TS1 17.1.1 If you are told about a broken, distorted or damaged rail or that both fishplates are broken on the same rail, you must:
* stop trains from passing over the affected line
* tell Operations Control
* arrange for a rail defect examiner (RDE) or rail defect nominee (RDN) to examine the rail or fishplates concerned.
You **must not allow a train to pass over any adjacent line **when a train is passing over the defective rail or broken fishplates.
52
TS1 17.1.2 When the RDN or RDE has examined the defective rail or fishplates, and gives permission for trains to proceed at a specified reduced
speed -You must continue to instruct drivers to proceed at the speed authorised by the RDN or RDE until one of the following applies:
* The RDN or RDE advises that the condition of the defect has worsened and train movements must be stopped.
* An emergency speed restriction is imposed over the line or lines concerned.
* A competent person authorises that normal speed of trains may be resumed.
53
TS1 17.1.3 If you are told by a rail defect examiner (RDE), a rail defect nominee
(RDN) or anyone who has carried out a basic visual inspection that **one fishplate of a pair is broken**, you must tell Operations Control.
Operations Control will arrange to advise a competent engineer.
You can allow trains to pass over the broken fishplate as long as you do all of the following:
* You stop each train over the affected line.
* You tell the driver what has happened.
* You tell the driver the location of the broken fishplate.
* You instruct the driver not to exceed 20 mph (30 km/h) over the broken fishplate.
You must continue to do so until you are told that the broken fishplate has been repaired, an RDE or competent engineer authorises any higher speed, or an emergency speed restriction has been imposed.
**You do not need to stop trains on any adjacent line.**
54
TS1 17.2.1 If you become aware that an underline bridge has been struck by a road vehicle, you must:
* stop trains passing over the affected bridge, unless otherwise shown in the Signal Box Special Instructions
* tell Operations Control
* arrange for a bridge strike examiner (BSE) or bridge strike nominee (BSN) to examine the bridge.
55
TS1 17.2 1 After the bridge is examined, you must carry out the instructions of the BSE or BSN. This may be to permit trains to pass over the bridge at normal or a specified reduced speed.
If you are given permission for trains to proceed at a specified reduced speed, you must:
* stop each train over the affected line
* tell the driver what has happened and the location of the bridge
* instruct the driver not to exceed the specified reduced speed over the bridge.
56
TS1 17.2.2 If you become aware that an overline bridge has been struck by a road vehicle, you must:
* tell Operations Control
* arrange for a BSE or BSN to examine the bridge
* carry out regulation 20 (Examine the line) for the lines concerned.
57
TS1 17.2.2 Overline Bridge Strike. Examination of the line Reg 20. You must make sure the driver of the train which is to examine the line is aware of the exact location of the bridge and tell the driver:
* to stop short of the affected bridge
* unless there is obvious damage to the bridge or there is debris on the line, to pass under the bridge and **not to exceed 5 mph (10 km/h).**
If the driver reports that the line appears safe for the passage of trains, you must instruct the driver of each train which will pass over the affected line to pass under the bridge at **no greater speed than
20 mph (30 km/h).**
After the bridge is examined, you must carry out the instructions of the BSE or BSN. This may be to permit trains to pass under the bridge at normal or a specified reduced speed.
58
TS1 17.2.3 If you become aware that an underline or overline bridge has been struck some time earlier, and trains have continued to pass since the bridge strike happened, you must try to get details of:
* the approximate time the bridge was struck
* the type of vehicle that hit the bridge
* whether any damage to the bridge has been reported.
59
TS1 18.1 If a driver tells you about trespassers, you must get as much information as possible including:
* the reporting number of the train
* the location of the trespassers
* whether the trespassers are on the lineside or on or near the line
* if the trespassers are moving, which direction they are moving in
* whether the trespassers appear likely to endanger trains
* a brief description of the trespassers. If possible, include distinguishing features such as age and what they are wearing.
If the driver tells you that trespassers are **on the lineside but not moving towards the line**, you must tell Operations Control and take any other action that will allow the trespassers to be removed.
**You can continue to signal trains normally.**
60
TS1 18.1If you are told about trespassers who are on or near the line, or on the lineside and moving towards the line, you must:
* stop each train which would proceed over the affected portion of line
* tell each driver what is happening, and to proceed at caution past the location.
You must continue to tell each driver to proceed at caution until you are sure the line is clear.
61
TS1 18.1 If you are told about trespassers who may endanger trains, you do not need to examine the line, but you must:
* stop each train which would proceed over the affected portion of line
* tell the driver what is happening, and to proceed at caution.
If there is a tunnel that might be affected, you must also tell each driver not to exceed 10 mph (15 km/h) through the tunnel.
You must not allow more than one train to be in the tunnel at the same time.
You must continue to tell each driver to proceed at caution until you are sure the line is clear.
In all cases of reported trespassers, if the entrance to the section is controlled by another signaller, you must tell that signaller.
62
TS1 18.2 Animals or minor obstacles. You must arrange for the line to be cleared if you become aware
that:
* animals are likely to cause an obstruction
* minor obstacles are on the line
* a cow, bull or other large animal is within the boundary fence.
You do not need to examine the line, but you must:
* stop each train which would proceed over the affected portion of line
* tell each driver what is happening, and to proceed at caution.
If there is a tunnel that might be affected, you must also tell each driver not to exceed 10 mph (15 km/h) through the tunnel, and not allow more than one train to be in the tunnel at the same time.
You must continue to stop and tell each driver to proceed at caution until you are sure the line is clear.
If the entrance to the section is controlled by another signaller, you must tell that signaller.
63
TS1 19 **Stop and examine train.**
You must carry out this regulation if you become aware of anything unusual or wrong such as:
* signals of alarm
* an insecure load
* a vehicle on fire
* a hot axle box
* a door open or on the catch
* a person has fallen from a train
* unusual noise coming from a train
* other mishaps.
You must also look for damage to the infrastructure which might have been caused by the train including:
* multiple or sequential track circuit failures, or
* multiple or sequential loss of detection of points.
64
# **Stop and examine train.**
TS1 19.3 After the train has been stopped and you have found out whether any line is obstructed, you may allow normal working on unobstructed lines.
If after the train has been examined, nothing can be found wrong with the train, you must:
* stop the first train to travel over the affected area on any line
* tell the driver what has happened.
You must then instruct the driver to:
* proceed at caution through the affected area
* report the state of the line to the next signaller or at a specified point ahead.
Until you receive a report on the state of the line, you must instruct the driver of any other train that is to pass through the affected area to proceed at caution.
65
# **Stop and examine train.**
TS1 19.3 If, after the train has been examined, it is not possible for it to be dealt with but it can proceed safely to a point where it can be dealt with, you must:
* agree the arrangements with the signaller who controls the area ahead
* signal the train in the normal way.
You must not allow the train to pass, or be passed by, a train on an adjacent line unless you have been assured that it can be done safely.
These arrangements must be repeated for each section the train has to pass through.
66
# **Stop and examine train.**
TS1 19.5.2 If it is not known whether a person has fallen from the train.
If you are told that a door is open or is on the catch on a passenger train and you have been told the door has been closed, but it is not nown whether any person has fallen from the train,** you do not
need to examine the line.** However, you must:
* stop the first train on each line and tell the driver what has happened
* instruct the driver to proceed at caution over the affected portion of line.
67
TS1 20.1 **Examining the line**
If the train signalling regulations require a line to be examined, this can be achieved by one of the following:
* You can see the line is safe for trains to pass.
* You can get a competent person to check the line is safe for trains to pass.
* You can get the driver of a train passing over the affected line to check the line is safe for trains to pass.
68
TS1 20.1You must not use a train to examine the line, but must instead arrange for a competent engineer to examine the line if any of the
following are reported:
* broken, distorted or damaged rails
* broken fishplates
* an underline bridge has been struck by a road vehicle, unless otherwise shown in the Signal Box Special Instructions
* damage to a bridge not caused by a road vehicle
* subsidence
* suspected damage to any other structure below or above the
railway.
69
TS1 20.2 Before an examination of the line using a train can start
* If another signaller is involved, you must both reach a clear understanding about what is to be done.
* You must be sure that the last train to enter the affected section has passed, complete with tail lamp, beyond the stop signal or block marker ahead of the affected portion of line.
* You must not allow a train with a failed headlight to examine the line during darkness, or poor visibility, or if there is a tunnel in the section, unless a portable headlight is fitted to the front of the train.
* If there is more than one line, you must treat each line as affected unless you have definite information that a line is not affected.
* Each affected line must be examined individually but this can be done at the same time.
* Where the affected portion of line is in a tunnel, you must not allow another train to enter or pass through the tunnel while a train is being used to examine the affected portion of line.
* If the overhead line equipment is to be examined using a train, you must also carry out the instructions shown in module AC AC electrified lines.
70
TS1 20.2 ** Examinining the line.** You may allow trains on all other lines not affected to continue to
run.
However, during the time an affected line is being examined, thedriver of each train on lines immediately next to the affected line must be:
* told what is happening
* told the locations between which the adjacent line is affected
* instructed to pass the affected portion of line at caution
* told to report as soon as possible if anything is seen to be wrong.
You must continue to do this until any train being used to examine
the affected line has passed over the affected portion of line.
71
TS1 20.3 **Examinine the line**Before you allow the train that will be used to examine the line to
enter the affected section, you must:
* tell the driver why the line is to be examined
* reach a clear understanding with the driver as to which portion of the line is to be examined.
You must instruct the driver that, when the signal is cleared or you have given permission to pass the signal at dange:
* to proceed at caution over the affected portion of line
* if the affected portion of line is in a tunnel, not to exceed 10 mph (15 km/h) through the tunnel
* if the line is to be examined because of a reported track defect, not to exceed 20 mph (30 km/h)
* report the state of the affected line at an agreed location beyond the affected portion of line.
72
TS1 20.4 When signalling the train to examine the line.When obstruction danger has previously been sent:
the signaller accepting the examining train, must send obstruction removed.
If the driver tells you the line is obstructed, you must immediately carry out train signalling regulation 4.
73
TS1 20.5 If the driver of the train being used to examine the line reports that the line appears to be safe for the passage of trains, you may resume normal working over that line.
However, if the line has been examined for a reported track defect you must tell the driver of each train that is to pass over the affected
line:
* a track defect has been reported
* to proceed at caution over the affected portion of line not exceeding 20 mph (30 km/h).
You must continue to do this until a competent engineer has confirmed that the affected portion of line is safe for normal operation.
74
TS1 20.6 When a track circuit fails to clear or
shows occupied for some other reason. Before the passage of the first train:
You must make sure that no train has been signalled over the affected portion of line and that the last train over the affected portion of line has passed clear of the track circuit concerned and one of the following applies.
* That train has occupied and cleared the overlap of the signal or block marker beyond the affected portion of line.
* You have received train out of section for that train.
* You have been told that the train has passed out of the section with tail lamp attached.
On a single line or bi-directional line, you must also carry out the instructions shown in module P2 Working single and bi-directional lines by pilot.
Unless you are sure that the line is not obstructed, you must arrange for the line to be examined as well as carrying out the following instructions.
75
TS1 20.6.2 When a track circuit fails to clear or shows occupied for some other reason. If the first train to pass on a line immediately next to the affected line
before the affected line is examined, the driver of this train must be told:
* what is happening
* the locations between which the adjacent line is affected by the track circuit
* to pass the affected portion of line at caution
* to report as soon as possible if anything is wrong.
76
TS1 20.6.3 When a track circuit fails to clear or shows occupied for some other reason. First train to pass over the affected line:
You must stop the first train to pass over the affected portion of line and ask the driver if the line appears to be **clear as far as can be seen.**
If the driver confirms that the line appears to be clear as far as can be seen, you must:
* tell the driver what has happened
* reach a clear understanding with the driver as to which portion of the line is to be examined
* tell the driver to pass the signal at danger and to proceed at caution over the affected portion of line
* tell the driver not to exceed 10 mph (15 km/h) through any tunnel on the affected portion of line
* tell the driver to report the state of the affected line at an agreed point ahead of the affected portion of line.
77
TS1 20.6.5 When a track circuit fails to clear or shows occupied for some other reason. If the affected track circuit again shows clear:
If the affected track circuit shows clear before the signalling technician arrives, but a train has not yet passed over the affected track circuit, you must carry out the instructions for a first train passing over the affected line.
After you have given the driver the
necessary instructions, you may clear the signal or issue an MA. If it is then proved that the line is clear, you may resume normal working.
If a train has already passed over the affected track circuit, you may resume normal working.
78
79
TS1 20.6.6 When a track circuit fails to clear or shows occupied for some other reason. If, after a train has passed over the affected track circuit, it shows
occupied and clear at intervals, and as a result there is a possibility that a signal or signals could revert to danger in front of a train or affect an MA which has been issued, you must treat the track circuit
as having failed.
If you have been treating a track circuit as failed but the affected track circuit shows clear before the technician arrives, you may resume normal working as long as:
* at least three trains have passed over the affected track circuit
* the track circuit has been observed to have operated normally for and between each train.
80
TS1 21If you become aware that a long time has passed after a train has entered a section, you must try to contact the driver to find out the cause.
If you cannot contact the driver, until you have found out what is wrong, you must:
* stop each train on any adjacent line travelling towards the overdue train
* tell the driver of each train the circumstances regarding the overdue train
* instruct the driver to proceed at caution when the signal is cleared or an MA is received
* tell the driver to report what has happened with the overdue train
* signal each train normally.
If another line is not available, you must get help from a competent person.
If the entrance to the section is controlled by another signaller, you must tell that signaller.
81
TS3 DEFINE Absolute block section
The line between the last stop signal (which can be a section signal or an intermediate block home signal) controlled from one signal box, and the home signal controlled by the next signal box.
82
TS3 DEFINE Block signals
A stop signal that controls the entrance to, or exit from, a block or intermediate block section.
Home signal: the first stop signal controlled by a signal box that controls the exit from an absolute block section.
Section signal: a stop signal that controls the entrance to an absolute block section or an intermediate block section.
Intermediate block home signal: a stop signal that controls the exit from an intermediate block section, and the entrance to an absolute
block section.
83
TS3 DEFINE Clearing point
The point beyond the home signal up to which the line must be clear before a train can be accepted as shown in regulation 3.4.
84
TS3 DEFINE Intermediate block section
The line between the section signal and the intermediate block home signal worked by the same signal box in the same direction of travel.
85
86
TS3 DEFINE Station Limits (Taken from NOI)
The line between the home signal controlled by a signal box and section signal controlled by the same signal box in the same direction of travel.
87
TS3 Principle of AB?
The principle of the absolute block system is to prevent more than one train being in a section on the same line at the same time.
88
88
TS3 3.2 When can you send train out of section:
You must observe the train as it passes the signal box and make sure it has a tail lamp at the rear.
When the train has passed beyond the clearing point, or passed beyond a facing junction and you have set the points for another line which is clear to the clearing point of that line or has been shunted clear of the running line
Initial Signaller Training IST
flashcards
Decks in class (13)
# Cards
-
GSR Bell Signals (Basic)16
-
Level Crossings (LX)30
-
Controlling Trains17
-
BQ Week 1 - Trackside Safety20
-
BQ Week 1 - Introduction to level crossings30
-
BQ Week 1 - Regulations 1,2,3 and NOI2219
-
BQ Week 1 - Publications available to signallers6
-
BQ Week 1 - Signals, handsignals, indicators and signs44
-
BQ Week 9 Exam Master702
-
BQ Week 9 Exam Master COPY702
-
TCB Conversion BQ's147
-
TCBc Exam De-Brucified168
-
The Rules89
