Radiation induced liver disease
Dose >40 Gy
Max acceptable dose 35 Gy
Radiation dose to kill solid tumor >70 Gy
Radioactive I131-Lipiodol
TARE - - transarterial radioembolization of liver
Lipidic particles injected into hepatic artery - - retain in tumor by pinocytosis
Thyroid block
Fixed activity 65 mCi
Hospitalization for 1 week
Risk - interstitial pneumonitis
Re188-Lipiodol
Inoperable large or multifocal HCC
Higher tumor killing efficacy
Lower toxicity
T1/2 19.6h, beta 2.1 MeV, gamma 155 keV
Ho166-Microspheres = QuiremSpheres
Predict distribution before therapy
Predict radiation dose to tumor and normal liver
Highest paramagnetic properties - - MRI
T1/2 26.8h beta 1.7 MeV, gamma 81 keV
Particle 15-60 microm
340 Bq in microsphere - - 20-30 mln - - 184-275 mCi, rate 5 ml/mn
Rapid - - reflux - - saline instead of 5% glucose
Pretreatment scout dose 250 MBq (3 mln particles) - - more accurate than Tc-MAA
Y90-Microspheres
T1/2 64.2h
Pure beta emitter 0.936 MeV
Pair production 511 keV - - PET
Bremsstrahlung
Mean tissue penetration 4 mm, max 10 mm
Y90-Microspheres glass
Glass - TheraSphere - - 20-30 microm, carry 2500 Bq per particle, 1.2-8 mln are injected, 20-60 ml saline, high specific activity, total activity 81 mCi
Vial 1 ml incl 0.6 ml sterile water
Theoretical disadvantage - - influence of gravity on biodistribution
SIRT patient selection
ECOG >2 - - not ideal candidate
Contra: total bilirubin >2.0 mg/dL, serum albumin <3 g/dL
Ascites - - poor hepatic reserve
Peritoneal MTS - - poor prognosis
Cross sectional imaging and arteriogram - - tumoral and non tumoral volume, portal vein potency, extent of extra hepatic disease, arteroportal shunt, liver to lung shunt
Prophylactic embolization of gastroduodenal artery and right gastric artery
Pretreatment angiography
Tc-MAA inject into hepatic artery 150 MBq
SPECT within 1h
Later - - degradation of MAA, radioactivity in capillary, free pert in stomach - - overestimate liver to lung shunt
To avoid - Na-perchlorate PO 30 min before MAA injection
Treatment ideally within 15 days
LSF
Planar - - scatter correction for right lung
Highest tolerable dose to lungs 30 Gy (50 Gy for cumulative)
Geometric mean of anterior and posterior views
LSF=lung counts/(lung counts+liver counts) *100
LSF <10% - - no restriction
LSF >20% - - relative contra
LSF 10-15% - - reduce activity by 20%
LSF 15-20% - - reduce activity by 40%
Y90-Microspheres indication
Neoadjuvant before resection/transplant
Alternative in portal vein occlusion
Combi with bio therapy
Combi with chemo
Salvage treatment
Y90-Microspheres administration
Under fluoroscopic guidance during transcutaneous arterial catheterization trying to copy the same positioning
One lobe - - selective procedure
Specific segment - - super selective
Manually - - to avoid early full embolization
Iodine contrast + sterile water/glucose solution for resin and saline for glass
Continuous fluoroscopy
Post SIRT image
Y90:
SPECT based on Bremsstrahlung emission - - very poor quality

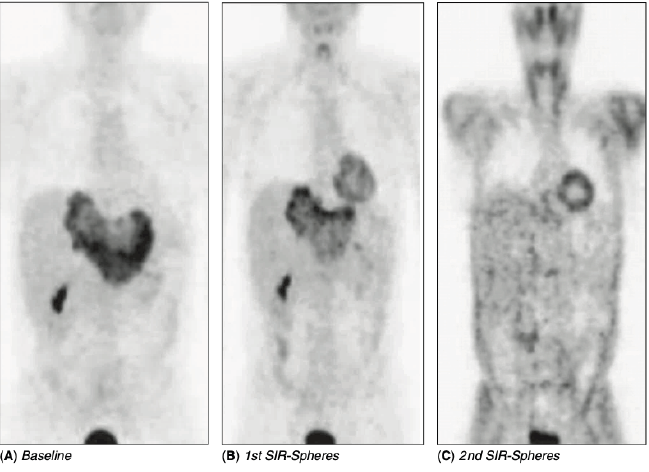

PET based on beta+ - - detection of extrahepatic distribution and estimation of absorbed dose
Ho166:
Gamma - - SPECT/CT 2-5 days after
MRI - - artefacts
Tumor response assess
TARE
First lab - - 2-4 weeks after
CT - - 3 m - - modified RECIST:
CR - - no intratumoral arterial enhancement
PR - - 30% decrease in sum of diameters of target lesion
PD - - increase 20% in sum of diameters
SD - - any other case
PET in 4-6 weeks
HCC SIRT
Response after TARE/SIRT - 6 m for reduction in tumor size
Changes in vascular enhancement in 2m
Too advanced to meet transplant criteria without malignant portal vein thrombosis or MTS - - TARE downstages - - transplantation
No negative impact of limited extrahepatic spread - - LN, bones, adrenal
Intrahepatic Cholangiocarcinoma TARE
Improve survival, downstage
Combi with chemo - - downstage - - resectable
LN MTS no negative impact on survival - - not exclusion criteria
Solid organ MTS - - caution
Metastatic colorectal cancer TARE
Unresectable liver MTS on chemo
Up to 5 lung nodules and either LN - - limited extrahepatic spread - - reference
Metastatic NET TARE
Carcinoid, VIPoma, gastrinoma, somatostatinoma - - liver MTS well arterialized - - ideal candidate
TARE/SIRT abs contra
Pregnancy, breastfeeding
Life expectancy <3m
Clinical liver failure (ascites, encephalopathy)
Disseminated exctrahepitc malignant disease
Inability to prevent deposition of radiolabeled microspheres in GIT (except gallbladder, LN, falciform ligament)
TARE/SIRT toxicities
Common side effects:
Fatigue, abd pain, nausea, fever, cold chills
Transitory elevation of liver enzymes
Transitory lymphopenia
Severe adverse events:
REILD = radioembolization induced liver disease
Radiation gastritis, ulceration, upper GI bleeding, pancreatitis, pneumonitis
Avoid pregnancy 4 m
Radionuclide therapy Lu177
Beta, 490 keV
Max tissue penetration 2 mm - - better irradiation
Gamma, 208 and 113 keV - - image
T1/2 6.73 days
Freeze salivary gland for 30 min before
Radionuclide therapy Ra223 dichloride
Xofigo - - Ca analog (second group) - - replace Ca in hydroxyapatite
Alpha 5.8-7.53 MeV, penetration <100 microm - - lethal DNA damage - - lower hematological toxicity
T1/2 11.43 days
Beta and gamma - - gamma camera
Indication: castration - resistant cancer, symptomatic bone MTS, no visceral MTS
Life expectancy >6 months preferred
Accumulate: bones, areas of high bone turnover
Slow IV 1 min, 55 kBq/kg 6 administrations at 4 weeks interval
10.4 mCi for 70 kg
Only one survival benefit
Xofigo before treatment
2 weeks before: Hb>10, Abs neutrophil count >1.5*10^9 l, PLT >100
Subsequent: abs neutrophil count >1, PLT > 50
No fast, well hydration
Only limited renal excretion - - no matter GFR
Bone scan within 3 m - - osteoblastic MTS
Stop myelosuppressive treatment 6-8 weeks for long and 4 weeks for other
EBRT 2-4 weeks before
Xofigo side effects
Flare pain within 72h
Nausea, weakness, transient myelosuppression
Fecal excretion > renal - - incontinence - - hospitalization
Combi with chemo - - jaw osteonecrosis
May contain up to 54 mg of sodium per dose - - monitor BP, avoid hypertension
Dialysis after 24h
Lu-PSMA
Castration resistant prostate cancer (2023)
2 consecutive PSA progression min 2 weeks apart to 25 % increase over nadir
Or
New lesions despite hormonal therapy leading to testosterone <50 ng/dl
