VT, VF

Question 1

Discuss the Features of Ventricular Tachycardia (VT) – Definition & Features

Answer 1

• ≥ 3 consecutive beats
• HR 100–250 bpm
• Slow VT: 100–120 bpm
• Ventricular flutter: > 250 bpm
• Broad QRS complexes- Usually > 160 msec
• Axis: North-west axis
• ECG features: Capture beats, Fusion beats

->Sustained vs Non-sustained VT
* Non-sustained VT: < 30 sec

Question 2

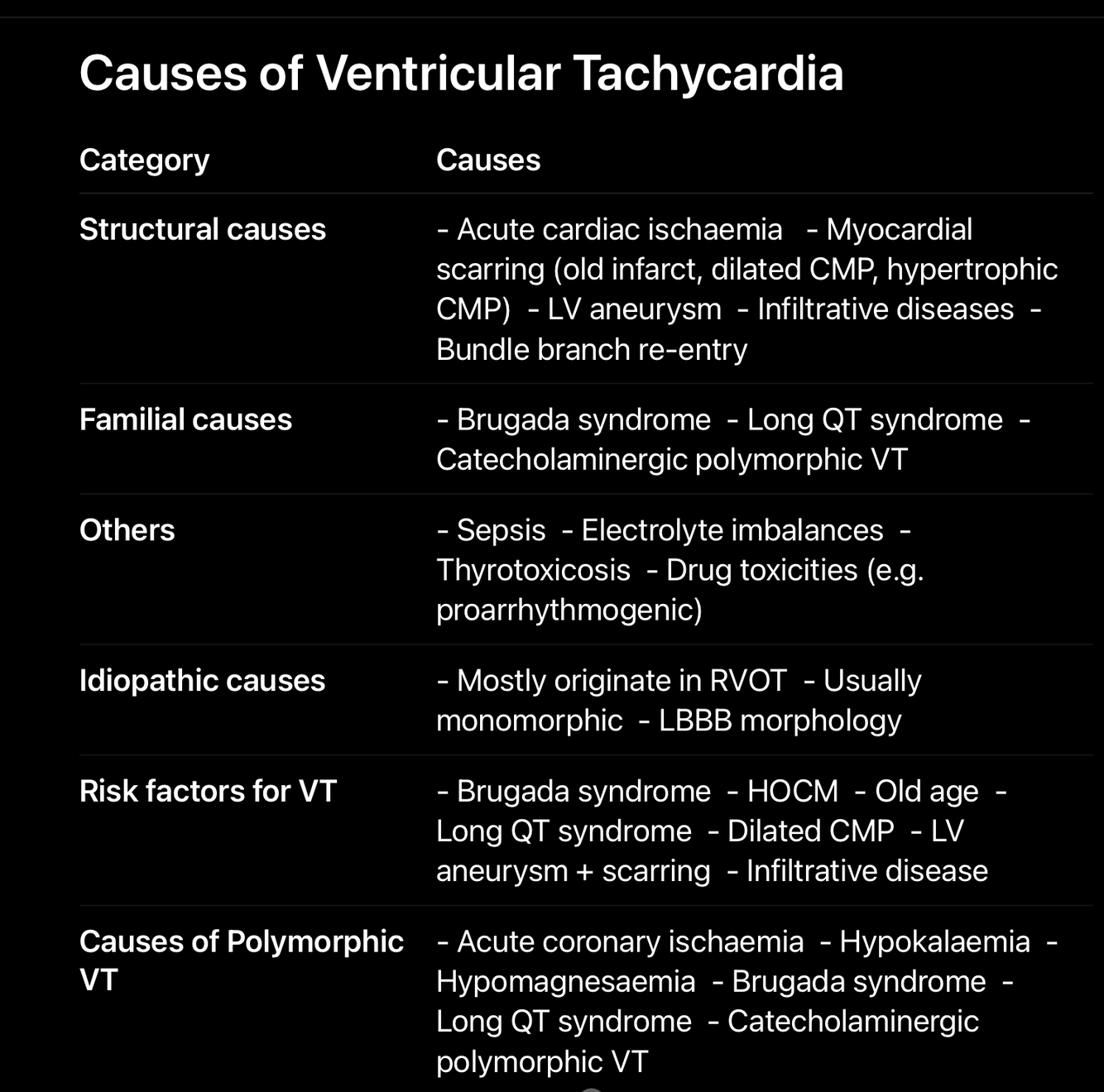

VT
Causes
and
Risk factors

Answer 2

Question 3

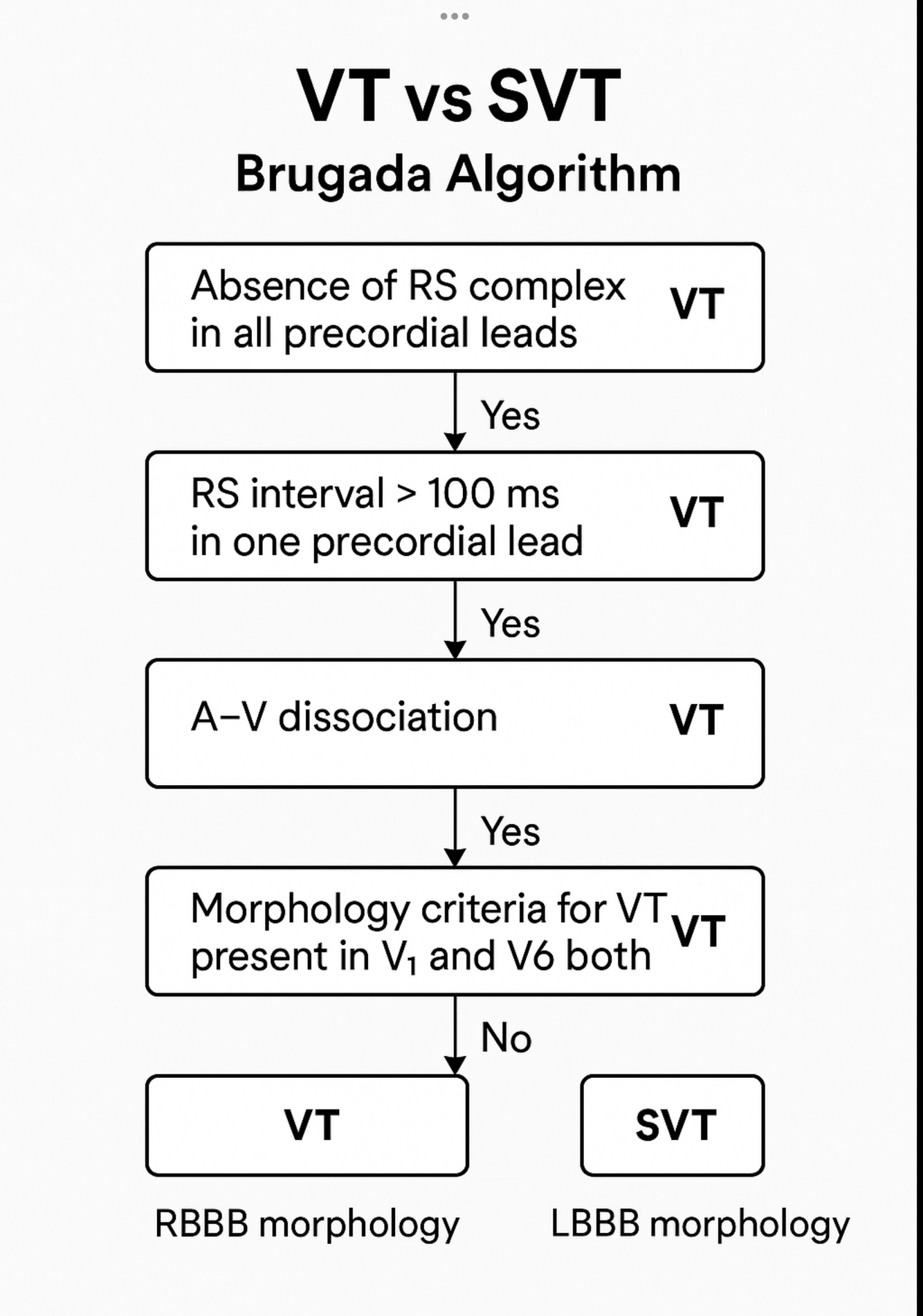

Brugada criteria

Answer 3

RS interval - calculated from start of R to nadir of S

Question 4

Morphology criteria in Brugada

Answer 4

=>RBBB criteria:
i)Smooth monophasic R wavein V1
ii) Notched downslope of R wave- Lt rabbit ear taller than Rt in V1
iii) qR complex in V1
iv) Completely Negative complex- no R wave in V6

=>LBBB criteria:
i) Broad R wave- > 40msec in V1
ii) R-S interval >60msec
iii) Notching/ Slurrig of S wave in V1- josephson’s sign(in the downslope)
iv) q waves in V6

If in doubt, treat as VT

Question 5

Differential Diagnosis of Wide-Complex Tachycardia

Answer 5

=>Several arrhythmias can present as a wide-complex tachycardia (QRS > 120 ms), including:

• Ventricular Tachycardia
• SVT with aberrant conduction due to bundle branch block
• SVT with aberrant conduction due to the pre-excitation syndromes
• Pace-maker mediated tachycardia
• Metabolic derangements e.g. hyperkalaemia
• Poisoning with sodium-channel blocking agents (e.g. tricyclic antidepressants)

Question 6

VT Storm (Electrical Storm)
Definition

Answer 6

=> Definition: ≥ 3 or more episodes of sustained VT / VF within 24 hours → requires cardioversion / defibrillation ± antiarrhythmics or, recurrent ICD firing.

-> Sustained VT = lasting > 30 sec or requiring termination due to haemodynamic compromise.

->Refractory VT
* Recurrent episodes of VT / VF → can be shocked out of VT easily but keep re-entering into arrhythmia.
OR
* Remain in VT, never go into sinus rhythm

Question 6

Pathophysiology of
VT/VF storm due to ischaemia
Symptoms

Answer 6

> VT/VF causes ⬆️ intracellular Ca levels→ proarrhythmogenic
->Recurrent shocks and episodes of cardiac arrests→ myocardial injury + pain → ⬆️catecholamines →proarrhythmogenic

->VF/VT storm is not self-limiting unless treated, hence Need aggressive therapy

->Symptoms: palpitations, Dizziness→ syncope → cardiac arrest.

Question 7

Mx of VT Storm

Answer 7

Initial evaluation & Management

1). Accurate diagnosis of underlying arrhythmia
* e.g. VT vs SVT with BBB / aberrancy
* If in doubt, Wide complex tachycardia should always be treated as VT (esp. if structural heart disease).
* (Treating VT as SVT may precipitate cardiac arrest).

2). Identify causative factors(FAST ICE)
* Acute ischaemia → urgent angio ± revascularisation
* Worsening CCF
* Electrolyte imbalance → correct (K⁺, Ca²⁺, Mg²⁺).
* Endocrine (thyrotoxicosis) → β-blockers, anti-thyroid drugs.
* Antiarrhythmic drugs → proarrhythmia (esp. catecholamines).
* Sepsis / fever → treat underlying sepsis.

⸻

3). Rapid correction
* Of any quickly correctable causes.

⸻

4). Analgesia & sedation
* Electrical storm may be very distressing.
* Anxiety → ↑ catecholamines → worsening of storm.
* Intubation Ventilation, sedation, analgesia to suppress sympathetic drive worsening VT storm unless a quickly correctable cause eg- electrolyte imbalance can be found

Question 8

Mx cont..
Pharmacological Mx

Answer 8

1)Adrenergic blockade with beta blockers- rarely possible because of associated hypotension–> If BP maintained- Propranolol - DOC
2) Amiodarone
3) Lignocaine
4)Anaesthetic agents

Question 9

ii. Amiodarone

Answer 9

->Most used antiarrhythmic therapy.
->Rapid IV administration →
- blocks fast Na⁺ channels(more blockade in faster HR)
- Also blocks K⁺ channels → prolongs AP duration & refractoriness.
- Blocks L-type Ca²⁺ channels
- Inhibits NE release
–>dose- 5mg/kg iv bolus foll. by 1mg/minx6hrs → 0.5mg/min→not to exceed 2.2gm in 24hrs

*	**ARREST trial: Amiodarone vs placebo → improved survival to hospital admission in VF / pulseless VT.**
*	Effective when other agents have been ineffective.

Loading dose req. even in pts on chronic amiodarone therapy

Question 10

iii. Lignocaine
Mechanism
&
Dose

Answer 10

• Binds to fast Na⁺ channels.
• Binding ↑ with acidosis & ↑ heart rate
• Relatively weak antiarrhythmic properties, but useful in ischaemic VT.
  Dose: 1-1.5mg/kg bolus foll by 1mg/min as iv infusion.

Question 11

pharmacological therapycont..
Anaesthetic agents and procedures

Answer 11

• Anaesthetic agents:

  • Short-acting anaesthetics (e.g. propofol, midazolam) → conversion & suppression of VT.
• Stellate Ganglion block
• Thoracic Epidural block
  -directly target sympathetic nerves innervating myocardium.

Question 12

Adjunctive / Non-pharmacological Therapy
cont..

Answer 12

=> Non-pharmacological therapy
-> IABP / LVAD
* Malignant Arrhythmias are accepted indication for IABP / LVAD.
-⬆️es Coronary Perfusion Pressure, relieves ischemia
-In Nonischemic aetiology, → Reduces afterload & LV wall stress

-> ECMO
- If deemed necessary → should be done early to prevent end-organ damage.

-> Intracardiac mapping & Radiofrequency ablation.

Question 13

Clinical Syndromes of Electrical Storm
Classified as:

Answer 13

->Determining cause of E-storm is essential → treatment must be directed towards underlying mechanism.

->Classified on basis of QRS / ECG morphology:
1. Monomorphic VT
2. Polymorphic VT
3. VF

Question 14

Monomorphic VT

Answer 14

->Usually associated with structural heart disease.
->Mechanism = reentry around a fixed anatomic substrate (scar tissue after MI).
->Trigger: usually premature ventricular depolarisation.
* Does not require acute ischaemia as trigger.
* Uncommon in patients with acute MI.
->Degree of haemodynamic compromise depends on:
* Ventricular rate
* LV function
* Presence of IHD
* Loss of A–V synchrony

Question 15

Therapy

Answer 15

=>Reverse ischaemia:
* Coronary revascularisation, thrombolytics, antiplatelets.
* Amiodarone / β-blockers → antiarrhythmics of choice.
* Lignocaine: less effective than Amiodarone, but can be used in ischaemic settings.
* Electrolyte correction: correct K⁺, Mg²⁺, Ca²⁺.
* Mg²⁺: unlikely to help in polymorphic VT unless QT is prolonged (torsades).

***	Torsades de pointes = pause-dependent polymorphic VT.**
*	Associated with long QT.
*	Often triggered by bradycardia.

⚠️ Do not use isoprenaline or other catecholamines in polymorphic VT → instead use Amiodarone / β-blockers.

Question 15

Risk Factors for Torsades

Answer 15

*Female gender
* Bradycardia
* Heart block
* Hypokalaemia
* Hypomagnesaemia
* Hypocalcaemia
* Inherited long QT
* Proarrhythmic drugs (sotalol, amiodarone, erythromycin, haloperidol, methadone)

Question 15

polymorphic VT
Definition
Causes
Mechanism

Answer 15

->VTwith varying QRS amplitude and Axis- appear to twist around the baseline

->Causes[HIM]
* Most often acute Ischaemic syndromes (often initial manifestation of ischaemia).
Acute Myocarditis
* HOCM

->Mechanism: ischaemia → Purkinje cell automaticity & spontaneous firing of fibres → degeneration to polymorphic VT / VF.HR>200/min

Question 15

Ventricular Fibrillation (VF)

Answer 15

->Primary mechanism: ischaemia.
->Can be triggered by closely coupled PVCs in healthy heart or post-MI.
* RF ablation of these sites can cure further VF episodes.

Question 16

Brugada Syndrome

Answer 16

->Inherited Na⁺ channelopathy.
->Characteristic ECG: RBBB + ST elevation in V1–V3.
->Can cause recurrent VF → sudden cardiac death.
->Predisposing factors: fever, increased vagal tone, bradycardia.

Class I antiarrhythmics (Na⁺ channel blockers) can unmask Brugada syndrome–>Contraindicated.

ICD required for prevention of sudden death.

Question 17

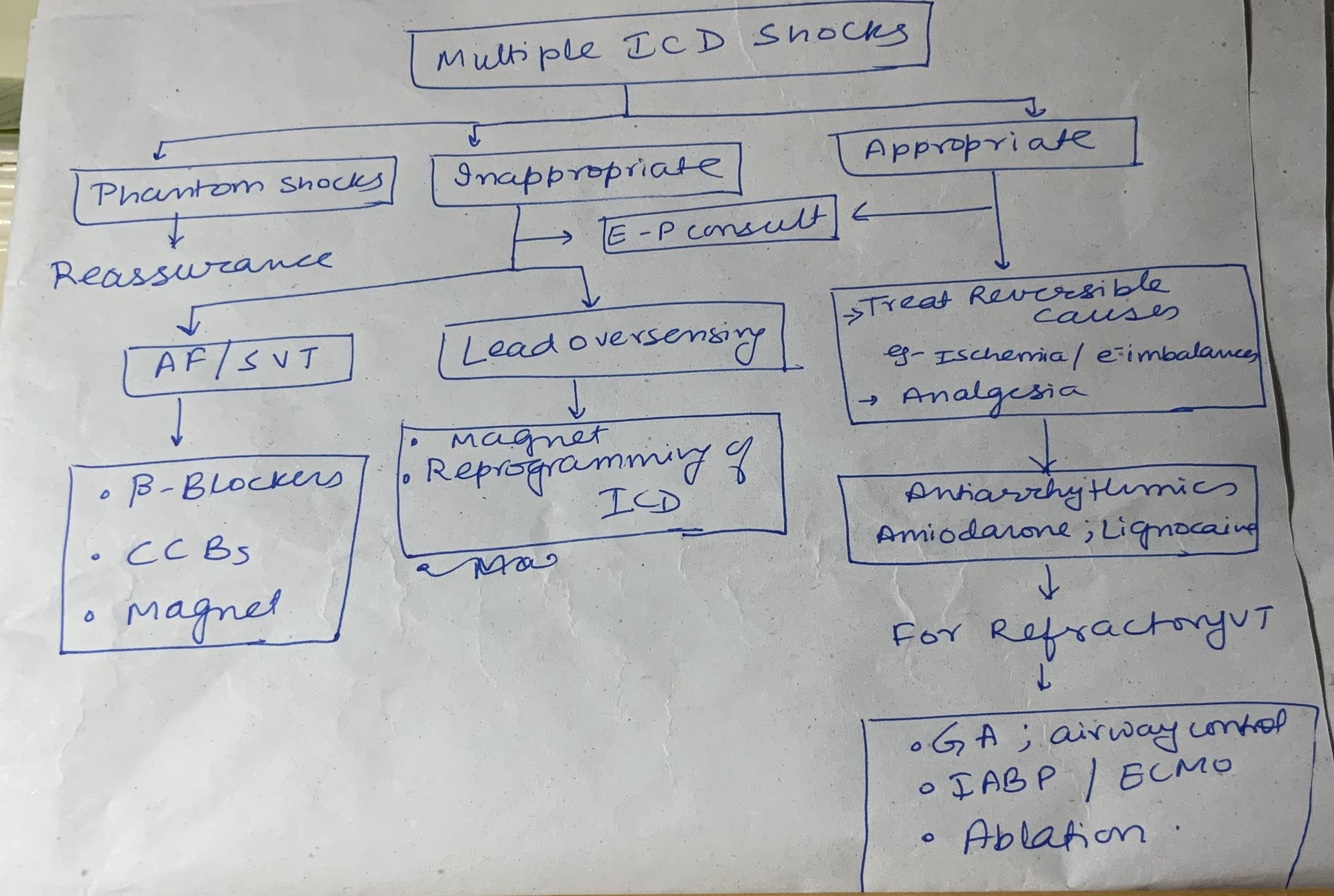

Treatment algorithm for multiple ICD shocks

Answer 17

Question 18

ICD & Electrical Storm
Important points

Answer 18

1->Transient ST-segment changes & mild troponin rise → common after multiple shocks.
2->Rapid SVT / AF may cause inappropriate shocks.
- Place a magnet over ICD to inhibit sensing of arrhythmias.
- If patient develops true arrhythmias, removing magnet re-enables delivery of therapy.
- Applying a magnet does not alter pacing ability of ICD.
3->Antiarrhythmic medications can reduce frequency of ICD shocks (Amiodarone & β-blocker).
4->Coordination with EP team essential.
5->CRT may ↓ incidence of electrical storm (progressive LV dysfunction = predictor of storm).

CRT- cardiac resynchronisation therapy
