What are drivers to advise passengers of as soon as practicable in the event of power loss?
• period of delay
• any arrangement for transfer to assisting train
• retraining arrangements at station
• any other necessary arrangements
How long will batteries last in an Xtrap?
No more than 60 minutes
What are some ways to conserve battery ?
• Reverser to NEUTRAL
• Master Controller Key OFF
• headlights OFF
• Cab Lighting switch on the Driver Desk to OFF
• Saloon lighting to Emergency
• Ensure Step Lights are OFF

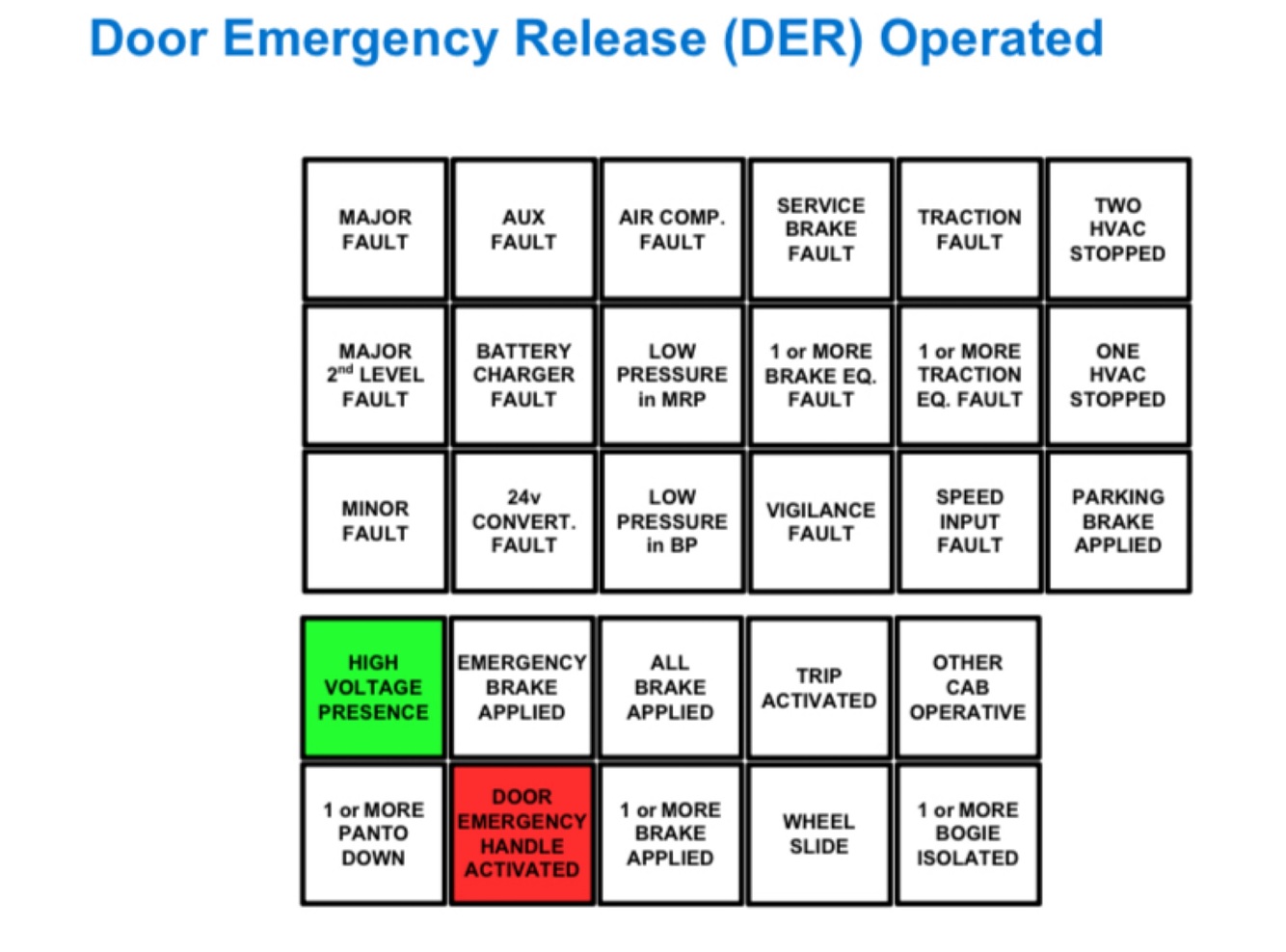

How do you rectify a pulled Der?
What way do you turn tri-key to reset?
- establish what door
- Full Cab
- Reset by turning Tri-key ANTI-clockwise
- report as per FMP
How do you isolate a defective door?
- locate
- open overhead cabinet to left of the door
- isolation switch to MOTOR RELEASE
- manually close the door
- isolation switch to MOTOR LOCK CLOSE
- apply “do not use” stickers
- FMP

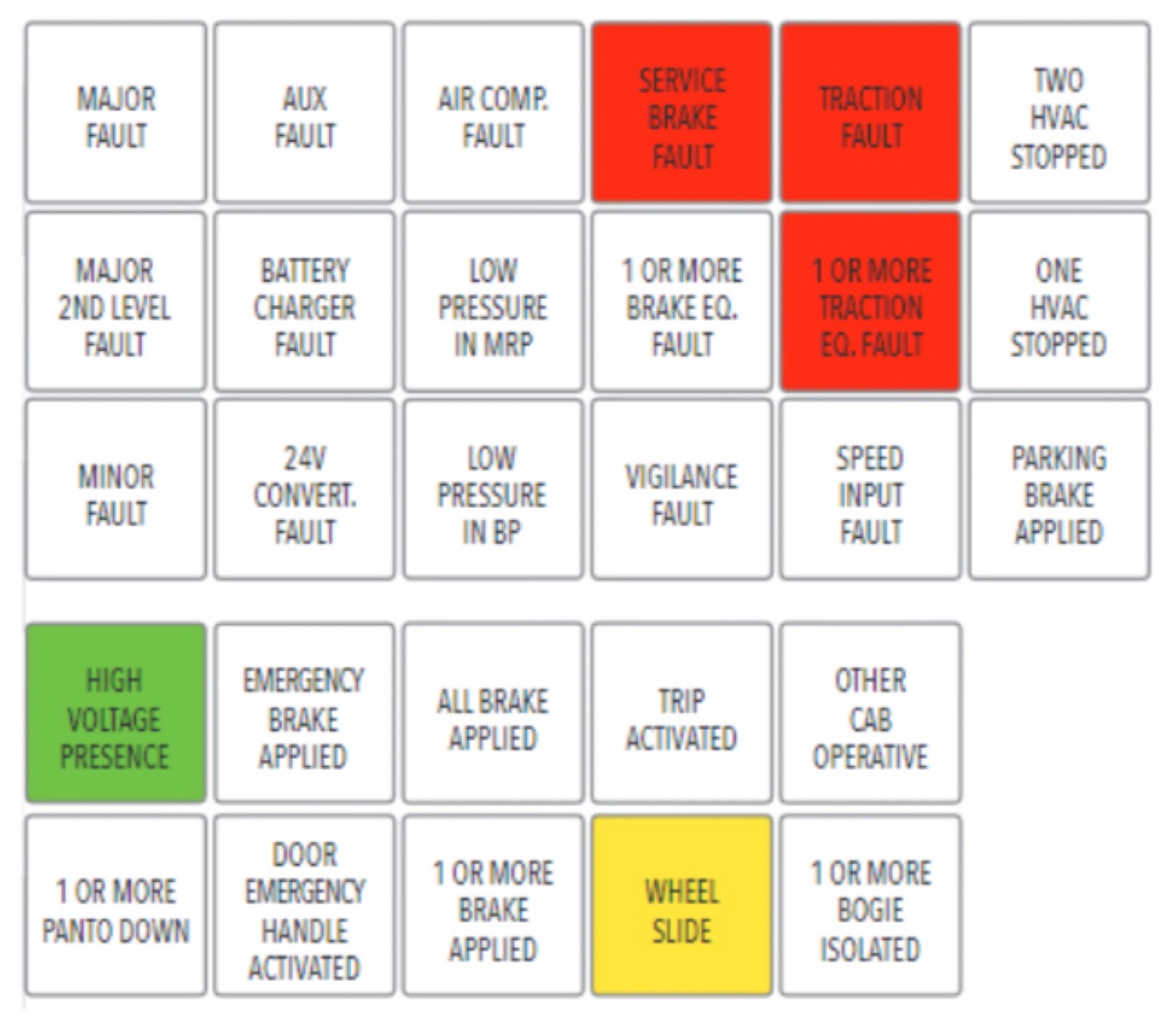

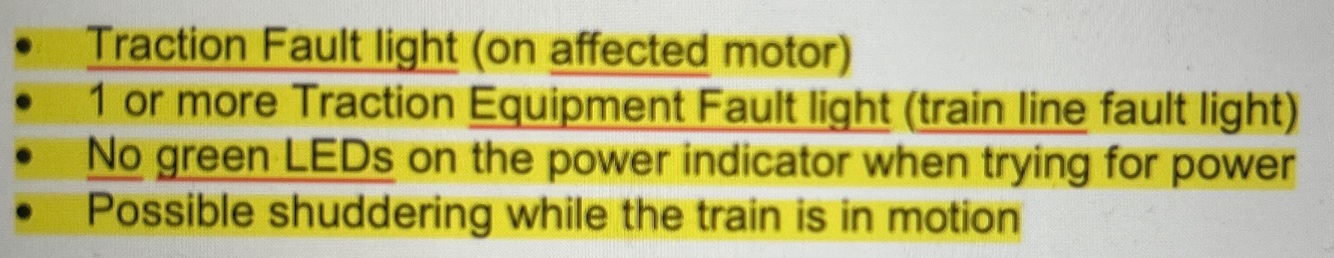

What four fault indications might you get for traction faults?

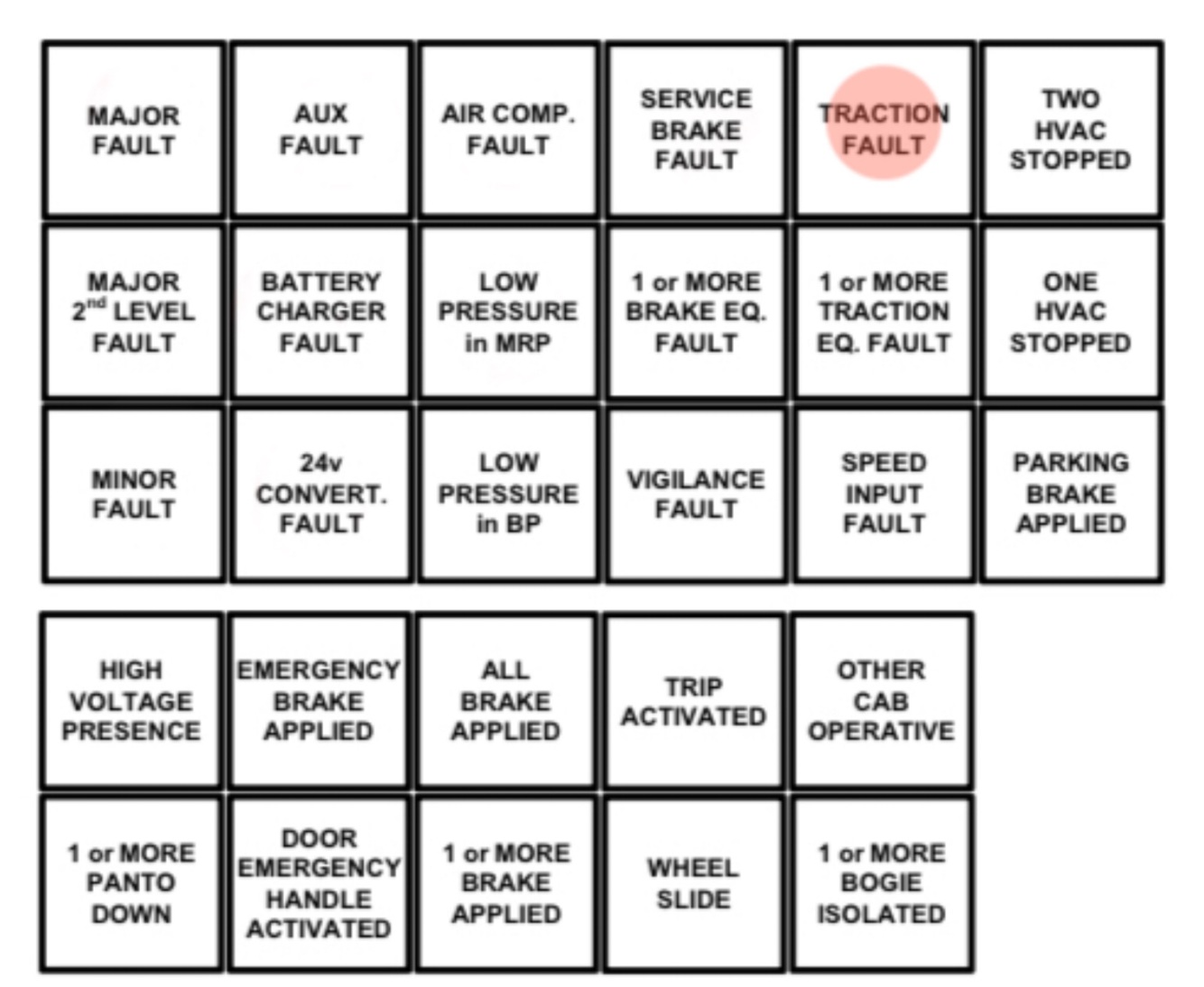

Where would this traction fault be?
On the car in which this light is illuminated.

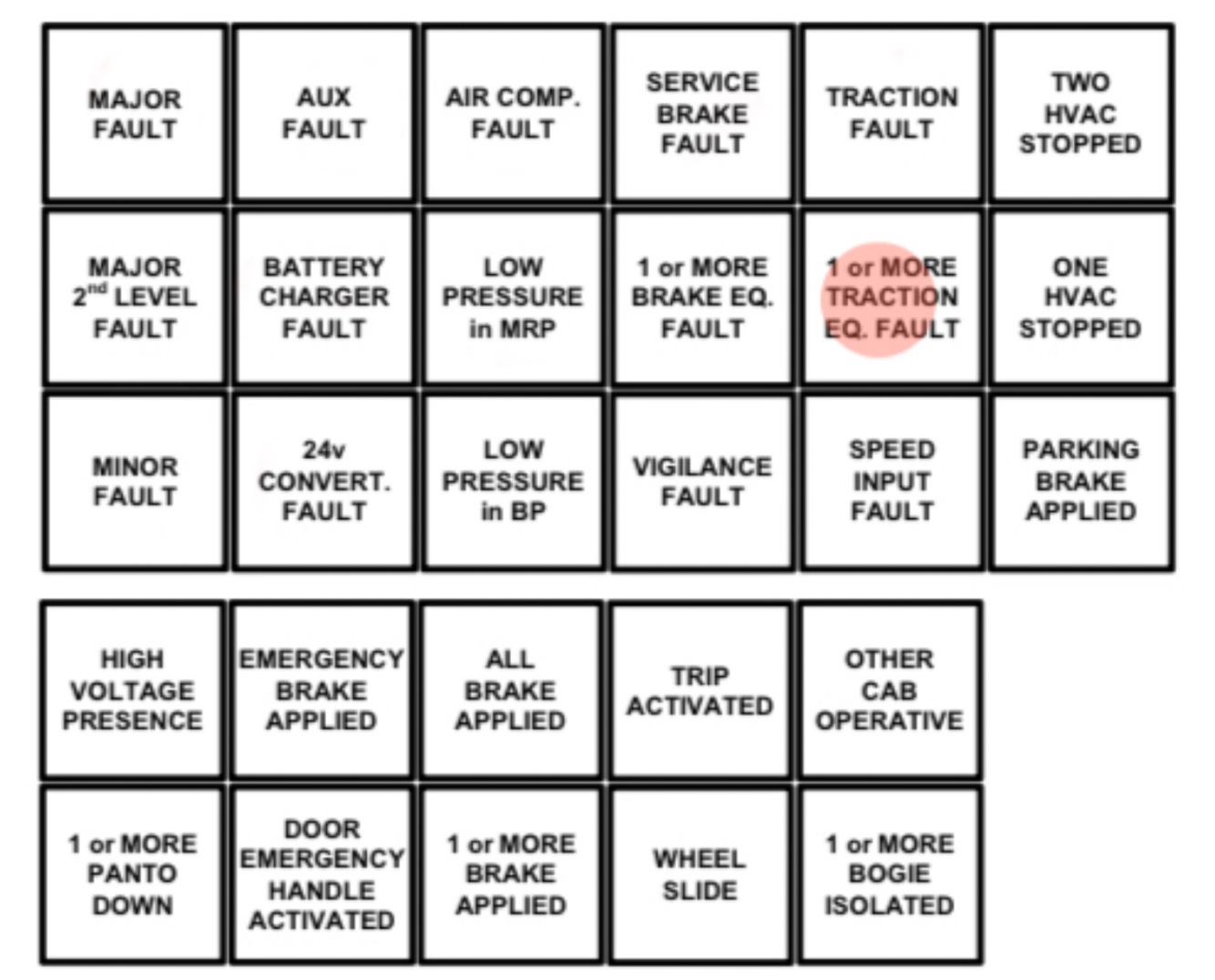

Where would this traction fault be?
This is a train lines fault light so it indicates there is a fault somewhere on the train.

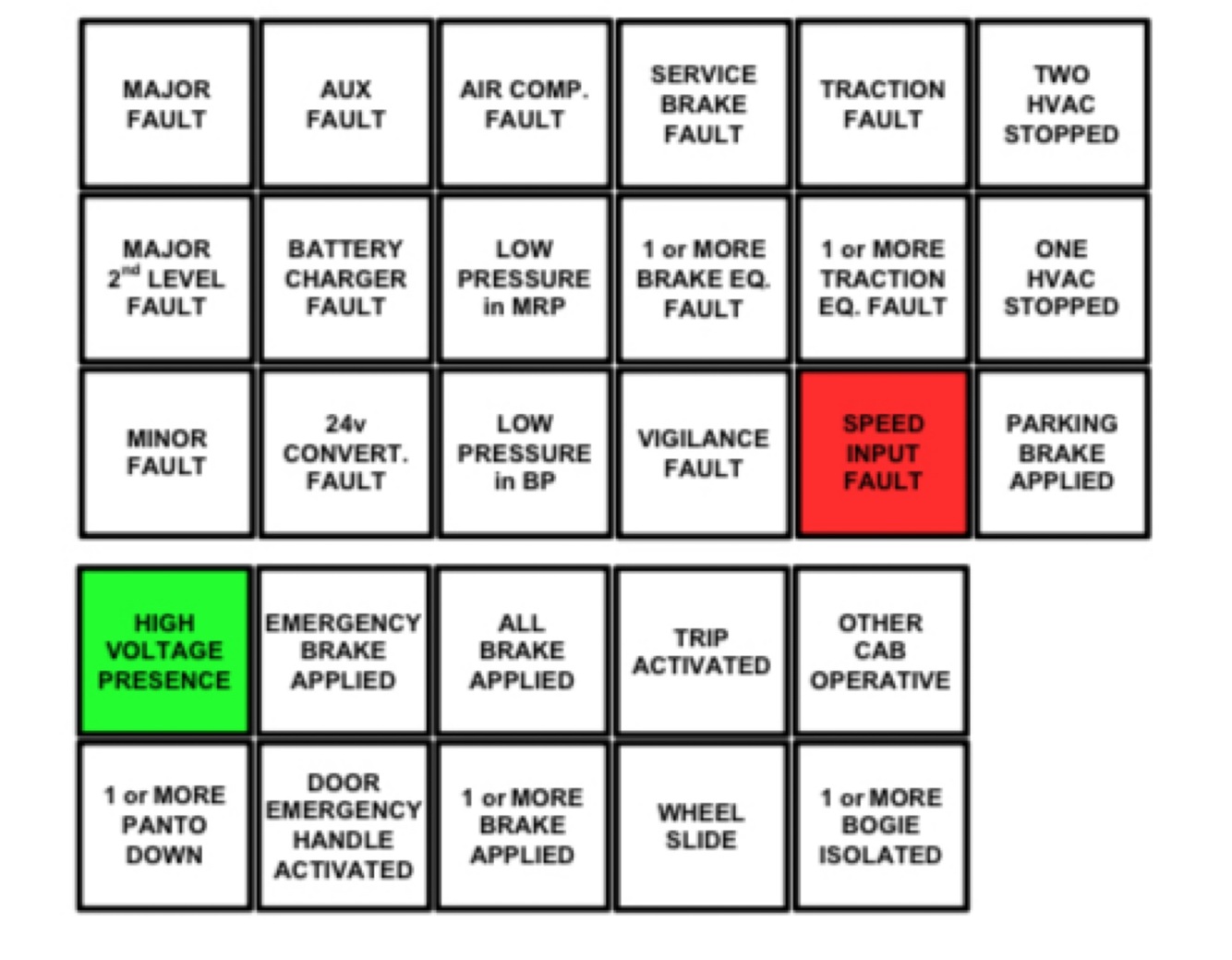

What does this fault light indicate?
2 things
- one or all Tacho Speed sensors have failed
- failure of one or both Tachometer
Where is the Tachometer CB located?
In the trailer to the left of number 2 door
What will happen in regard to speed when ALL tacho speed sensors or tachometers fail on BOTH units?
The 0.5 km/h speed threshold is not able to be read by the TCU
What will happen to the affected equipment when tachometers fail on BOTH units?
DUST Bp V
- Door Release Button won’t function
- Uncouple Button won’t function
- Speedo won’t function
- Trip can’t be reset
- Brake pipe pressure won’t be restored after Emy application (train rescue)
- Vicers can’t be reset
How do you by-pass the tachometer failure on both units? (DUSTBpV)
2 ways
- Train Stable
- Tacho By-pass switch
How do you reset an inoperative DTRS?
DTRS Micro Breaker (MCB)
When Auto Announcement fail, at what three times do drivers need to make manual PA announcements?
JET
- junctions
- express running
- terminal stations

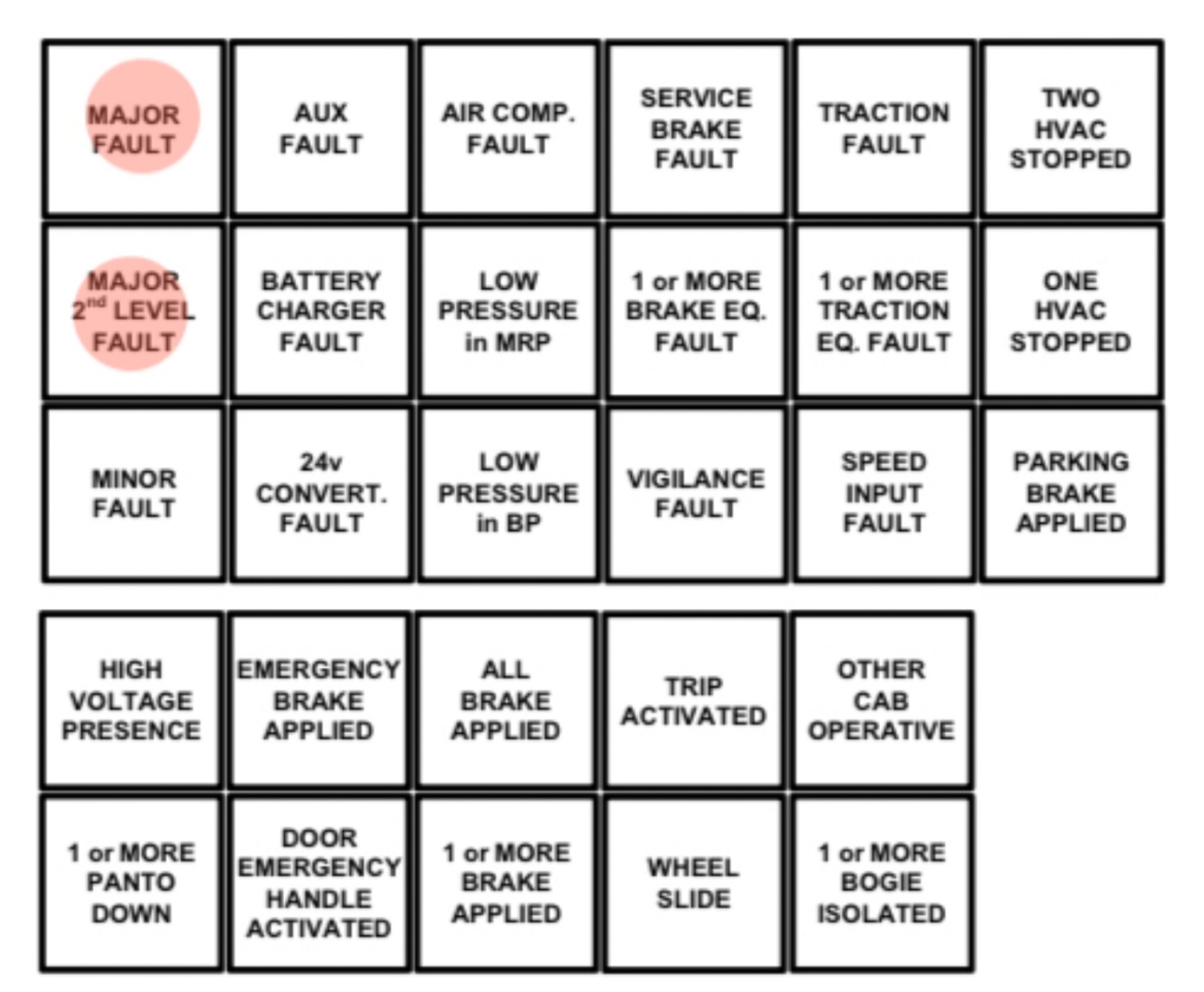

What do both of these fault indicators mean?
Indicate an MCB has tripped on the train

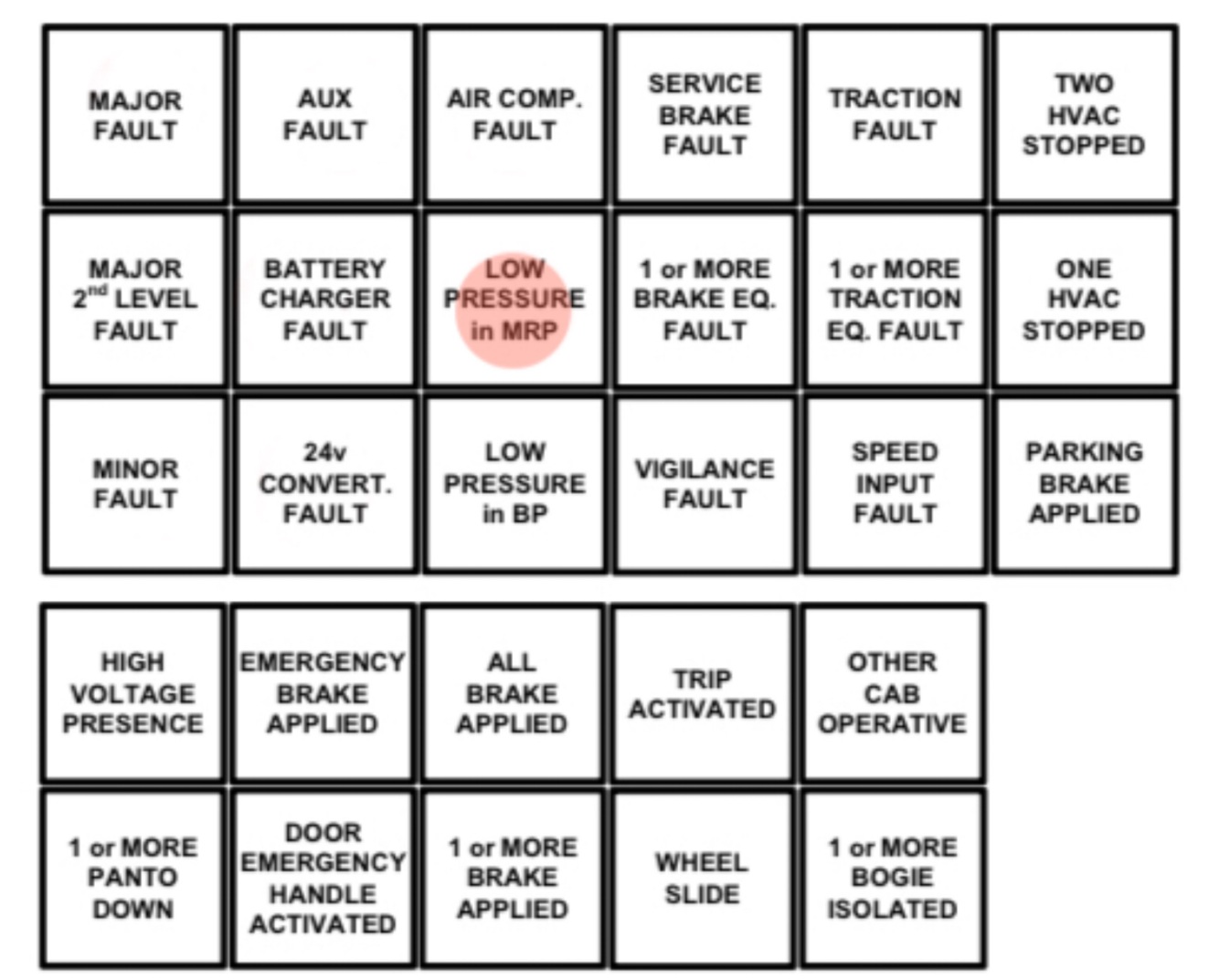

Below what pressure would you get this fault light?
650 kPa

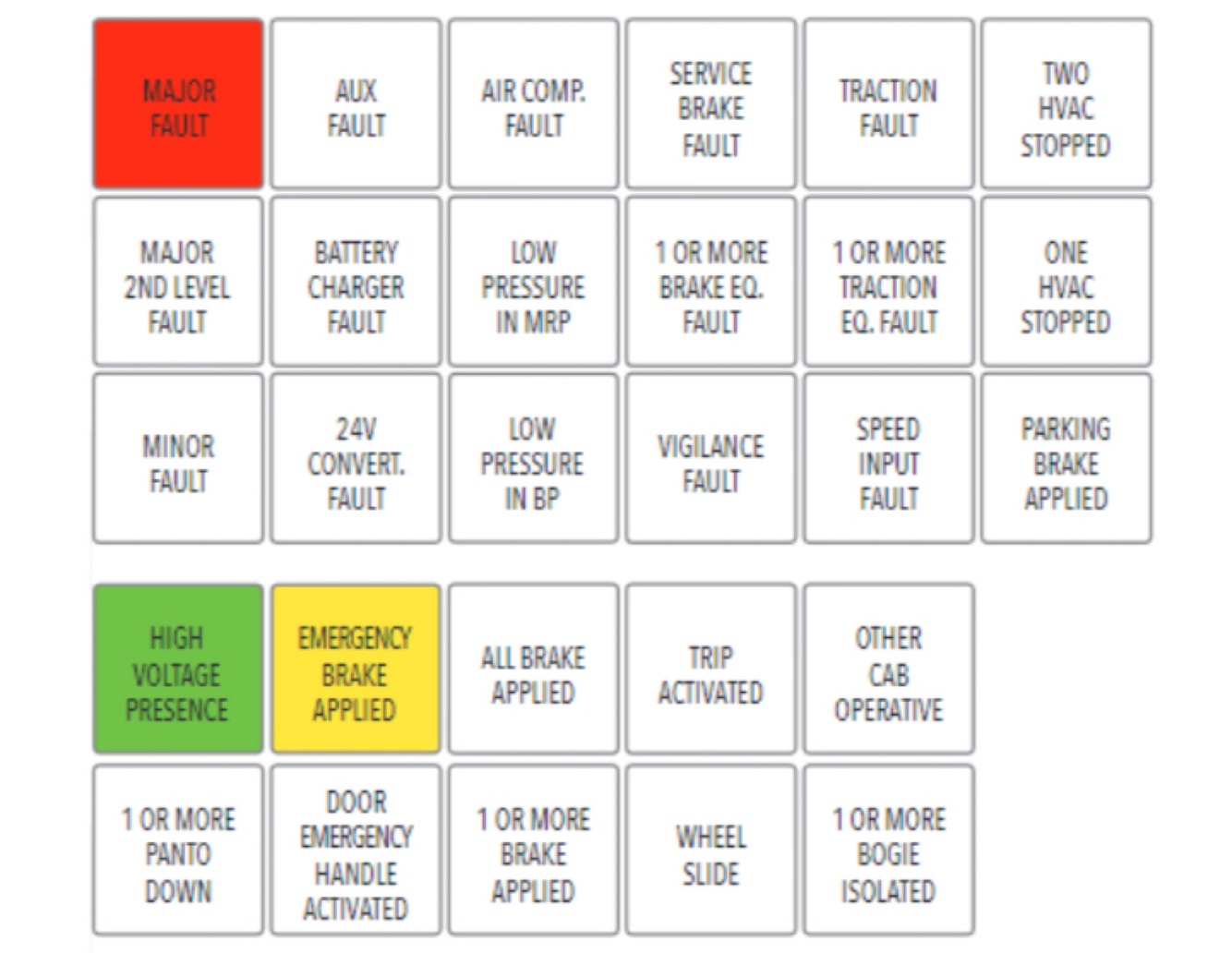

At what MR pressure will the safety loop open and what will happen?
580 kPa
the train will fail and Emy brake will apply
What Circuit breakers would you check in leading cab with these fault lights?
23Q1 & 23Q2
What would these fault lights indicate?
Sticking brakes
Apart from the fault lights what else might indicate you have sticking brakes?
5 things
- sluggish
- retardation of the train
- smoke
- smell
- both fault lights will extinguish when stationary
What would these fault lights indicate?
Locked axle in the leading motor
What would these fault lights indicate?
Locked axle on Trailing MOTOR
What would these fault lights indicate?
Locked axle in TRAILER CAR
-
