6. Mesh Analysis

Question 1

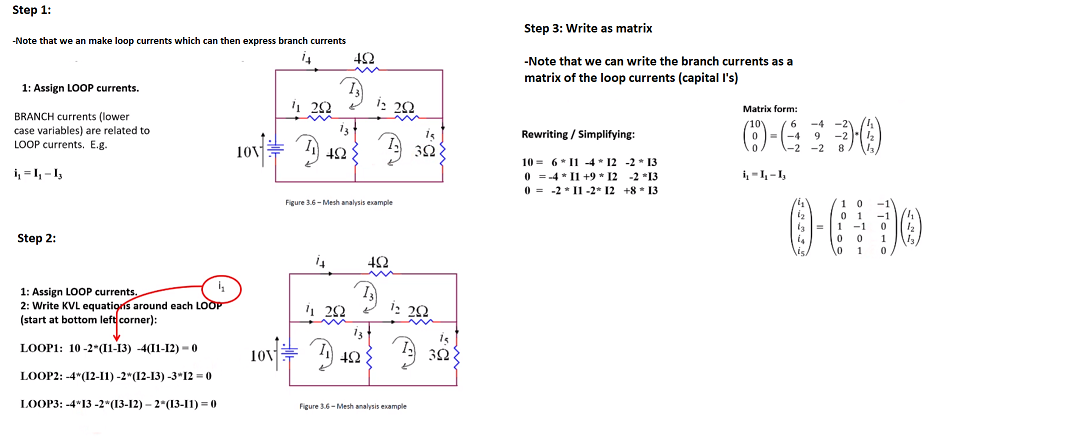

What are the basic steps of Mesh analysis?

Answer 1

• Assign loop currents
• Write voltage equations around each loop
• Solve or write as a matrix

Question 2

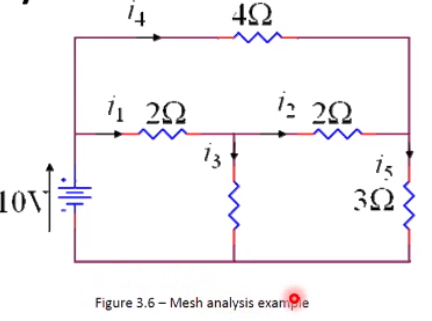

How do you expess these currents in matrix form using mesh analysis?

Answer 2
